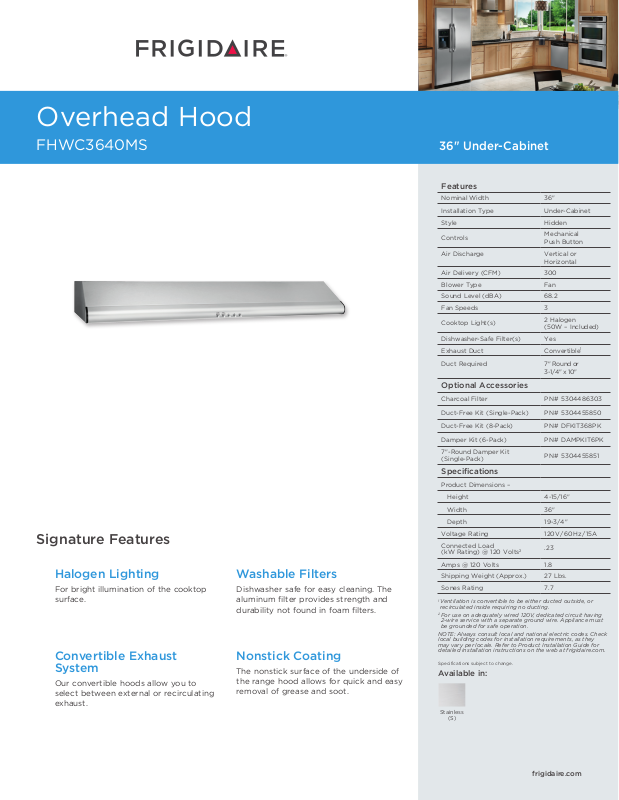

Frigidaire FHWC3640MS User Manual
Drop-In Cooktop
Overhead Hood
FPEC3085K S
FHWC3640MS
Signature Features
Halogen Lighting
For bright illumination of the cooktop
surface.
Convertible Exhaust
System
Our convertible hoods allow you to
select between external or recirculating
exhaust.
Washable Filters
Dishwasher safe for easy cleaning. The
aluminum filter provides strength and
durability not found in foam filters.
Nonstick Coating
The nonstick surface of the underside of
the range hood allows for quick and easy
removal of grease and soot.
30" Electric
36" Under-Cabinet
Features
Nominal Width 36"
Installation Type Under-Cabinet
Style Hidden
Controls
Air Discharge
Air Delivery (CFM) 300
Blower Type Fan
Sound Level (dBA) 68.2
Fan Speeds 3
Cooktop Light(s)
Dishwasher-Safe Filter(s) Yes
Exhaust Duct Convertible
Duct Required
Mechanical
Push Button
Vertical or
Horizontal
2 Halogen
(50W – Included)
1
7" Round or
3-1/4" x 10"
Optional Accessories
Charcoal Filter PN # 5304486303
Duct-Free Kit (Single-Pack) PN # 5304455850
Duct-Free Kit (8-Pack) PN # DFKIT368PK
Damper Kit (6-Pack) PN # DAMPKIT6PK
7"-Round Damper Kit
(Single-Pack)
PN # 5304455851
Specifications
Product Dimensions –
Height 4-15/16"
Width 36"
Depth 19-3/4"
Voltage Rating 120V / 60Hz / 15A
Connected Load
(kW Rating) @ 120 Volts
Amps @ 120 Volts 1.8
Shipping Weight (Approx.) 27 Lbs.
Sones Rating 7.7
1
Ventilation is convertible to be either ducted outside, or
recirculated inside requiring no ducting.
2
For use on adequately wired 120V, dedicated circuit having
2-wire service with a separate ground wire. Appliance must
be grounded for safe operation.
NOTE: Always consult local and national electric codes. Check
local building codes for installation requirements, as they
may vary per locale. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Specifications subject to change.
.23
2
Available in:
Stainless
(S)
frigidaire.com
Overhead Hood
36" Under-Cabinet Vent Hood (recirculating model)
FHWC3640M
Frigidaire Baseline
FHWC3640MS 36" Under-Cabinet
Under-Cabinet Hood Specifications
•
Product Shipping Weight (Approx.) – 27 Lbs.
•
Under-Cabinet Installation – can be ducted vertically or horizontally.
•
Ventilation system can exhaust air outside, either vertically
through roof or horizontally through wall. (Refer to Ducting Option
Specifications for outside ventilation.). If ducting outside is not
possible, the system can be alternately set to recirculate air inside,
requiring use of recirculating kit, included with hood.
•
Sones Rating – 7.7
•
Voltage Rating – 120V / 60 Hz / 15 Amps
•
Connected Load (kW Rating) @ 120 Volts = .23 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.)
•
Amps @ 120 Volts = 1.8 Amps
•
Always consult local and national electric codes. Check local building
codes for installation requirements, as they may vary per locale.
•
Makeup air systems may be required by local building codes
when using ventilation systems greater than specified CFM of air
movement. Specified CFM varies per locale.
•
Connect vent hood with copper wire only. (For installation pre-wired
with aluminum wiring, refer to Product Installation Guide on web for
correct wiring procedure.)
•
Locate vent hood away from strong draft areas, such as windows,
doors or strong heating vents.
•
Minimum 24" - 30" installation height allowed from bottom of hood
canopy to cooking surface; minimum 66" height suggested from
top of hood to floor.
•
When installing vent hood under cabinets with recessed bottoms, two
2"-wide filler strips required with length and thickness determined by
recess dimensions.
Ducting Option Specifications
•
Vent system MUST terminate outside through roof or wall; do NOT
terminate into attic or other enclosed area.
•
Exhaust Duct Required – 3-1/4" x 10" rectangular with 35' maximum
vent length or 7" round with 50' maximum vent length. Refer
to Product Installation Guide on web for calculations needed to
determine total duct length.
•
Installation of 7" Round Duct requires use of 7" Round Transition Duct
(included) and can only be vented vertically.
•
To provide efficient performance, length of vent system and number
of elbows should be kept to minimum. Flexible vent greatly reduces
performance and is NOT recommended.
•
Use 3-1/4" x 10" rectangular metal vent only – rigid metal vent
recommended; plastic or metal foil vent NOT recommended.
•
For cold weather installation, additional backdraft damper and thermal
break should be installed. Thermal break will minimize conduction of
outside temperatures as part of the vent system with damper on cold
air side of break, as close as possible to where vent system enters
heated portion of house.
•
Refer to Product Installation Guide on web for detailed vent system
preparation instructions.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
Charcoal Filter – (PN # 5304486303).
•
Duct-Free Kit (Single-Pack) – (PN # 5304455850).
•
Duct-Free Kit (8-Pack) – (PN # DFKIT368PK).
•
Damper Kit (6-Pack) – (PN # DAMPKIT6PK).
•
7"-Round Damper Kit (Single-Pack) – (PN # 5304455851).
Accessories information available on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FHWC3640M 08/14 © 2014 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
