Frigidaire FHWC3050RS Installation Guide

Important Safety Instructions ............................... 3

List of materials ................................................... 5

Electrical requirements ......................................... 5

Location requirements .......................................... 6

Product dimensions .............................................. 6

Venting Requirements .......................................... 7

Prepare the location ............................................. 8

Install Range Hood (Ducted version) ..................... 10

Make Electrical Connection .................................... 11

Range Hood Use .................................................. 12

Range Hood Care ................................................. 13

Troubleshooting ................................................... 15

Warranty Information ........................................... 16

USA 1-800-374-4432 www.frigidaire.com

Canada 1-800-265-8352 www.frigidaire.ca

316495194

August 2016

WELCOME & CONGRATULATIONS

EN-2

Congratulations on your purchase of a new range hood! At Electrolux Home Products,

Questions?

1-800-374-4432

(United States)

1-800-265-8352

(Canada)

we are very proud of our product and are completely committed to providing you with the best service possible. Your satisfaction is our number one priority.

We know you’ll enjoy your new range hood and Thank You for choosing our product. We hope you consider us for future purchases.

PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS

This Use & Care Manual provides speciﬁ c operating instructions for your model. Use your

range hood only as instructed in this manual. These instructions are not meant to cover

every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating and maintaining any appliance.

Please record your model and serial numbers below for future reference.

Please attach sales receipt

here for future reference.

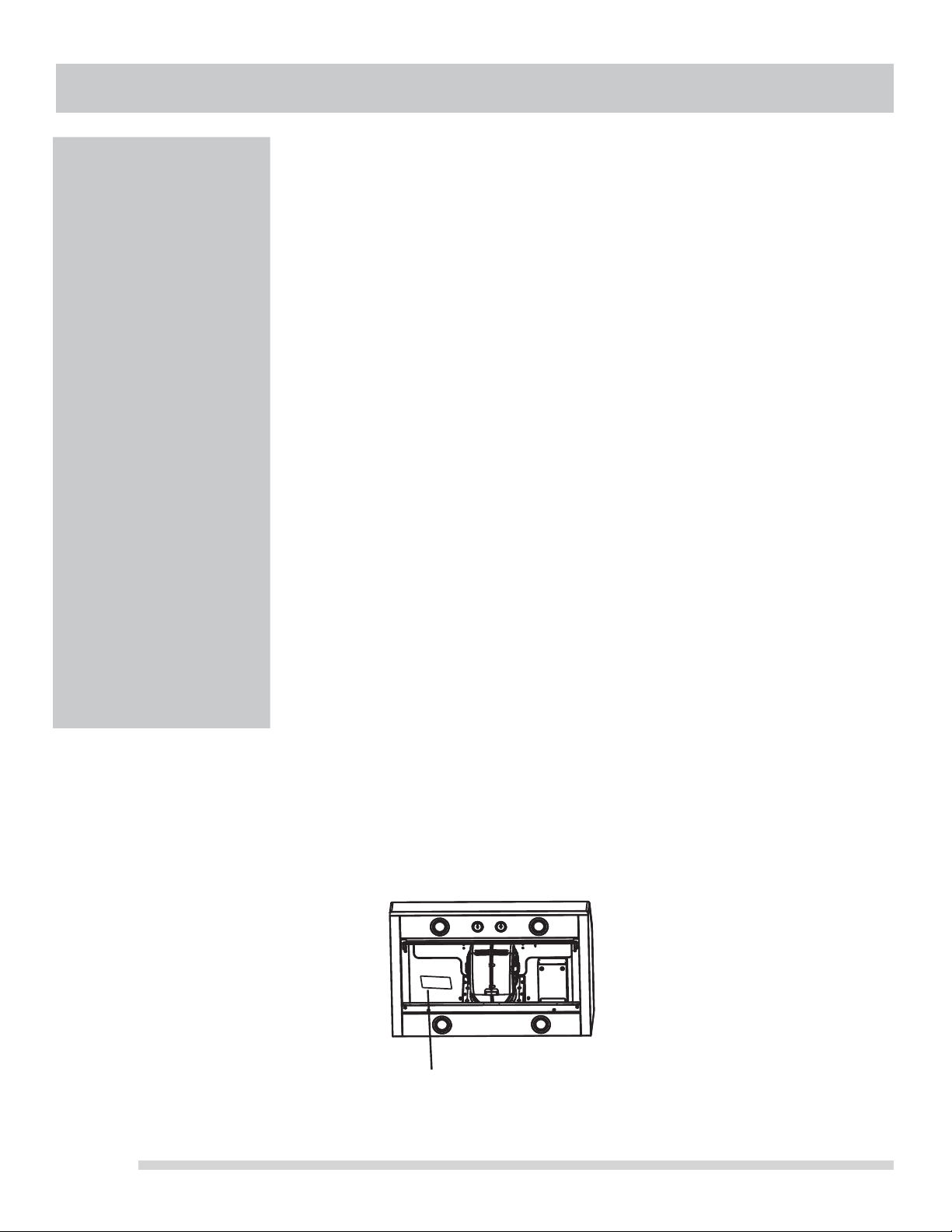

Serial Plate Location

Model Number:

Serial Number:

Purchase Date:

______________________________________________________________________________

NEED HELP?

Visit the Frigidaire Web Site at: http://www.frigidaire.com

Before you call for service, there are a few things you can do to help us serve you better.

Read this manual.

It contains instructions to help you use and maintain your range hood properly.

If you received a damaged range hood... immediately contact the dealer (or builder) that sold you the range hood.

Save time and money.

Check the section titled “Troubleshooting”. This section helps you solve common problems that might occur. If you do need service, you can relax knowing help is only a phone call away. A list of toll-free customer service numbers is included in the back of this manual. Or call Frigidaire Customer Services at 1-800-374-4432,

to 8 pm Eastern Standard Time.

Monday through Saturday from 8 am

Hinge down the vent grille and remove the grease filters. Refer to page 13 for

additional information

The serial plate is located on the left inside of the range hood

Read all instructions before using this appliance.

Save these instructions for future references

Approved for residential appliances

For residential use only

Do not attempt to install or operate your appliance until you have read the safety precautions in this manual. Safety items throughout this manual are labeled with a WARNING or CAUTION based on the risk type.

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messeges that follow this symbol to avoid possible injury or deat'h.

WARNING

This symbol alerts you to situations that may cause serious body harm, death or property damage.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

IMPORTANT

IMPORTANT indicates installation, operation, maintenance or valuable information that is not hazard related.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

Use this unit only in the manner intended by the

A. manufacturer. If you have questions, contact the manufacturer

Before servicing or cleaning the unit, switch power

B. off at service panel and lock service panel disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

Installation Work and Electrical Wiring Must Be Done

C. By Qualied Person(s) In Accordance With all Aplicable Codes & Standards, Including Fire-rated Construction.

Sufcient air is needed for proper combustion and

exhausting of gases through the ue (Chimney) of fuel

burning equipment to prevent back- drafting. Follow the heating equipment manufacturers guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

When cutting or drilling into wall or ceiling, do not

E. damage electrical wiring and other hidden utilities.

Ducted systems must always be vented to the

F. outdoors.

CAUTION

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

FOR GENERAL VENTILATING USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS OR VAPORS.

To reduce risk of re and to properly exhaust air, do not vent ex

walls, ceilings, attics, crawl spaces, or garages.

WARNING

TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCT WORK.

Install this hood in accordance with all requirements

specied.

haust air into spaces within

EN-3

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To Reduce The Risk Of Fire Or Electric Shock, Do

Not Use This Hood With Any External Solid State

Speed Control Device.

WARNING

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE.

Never leave surface units unattended at high

a) settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.

Always turn hood ON when cooking at high heat or

b) when ambeing food (l.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe’).

Clean ventilating fans frequently. Grease should not

be allowed to accumulate on fan or lter.

Use proper pan size. Always use cookware

d) appropriate for the size of the surface element.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS, IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:

SMOTHER FLAMES with a close - tting lid, cookie

sheet, or other metal tray, then turn off the gas burner or the electric element.

PREVENT BURNS. If the ames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.

NEVER PICK UP A FLAMING PAN - you may be

burned.

DO NOT USE WATER, including wet dishcloths or

towels - a violent steam explosion will result.

Use an extinguisher ONLY if:

You know you have a class ABC extinguisher,

1) and you already know how to operate it.

The re is small and contained in the area

2) where it started.

The re department is being called.

You can ght the re with your back to an exit.

OPERATION

Always leave safety grills and lters in place.Without

these components, operating blowers could catch onto

hair, ngers and loose clothing.

The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation,maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and the warranty of the unit automatically expires due to improper maintenance.

BE CAREFUL TO

EN-4

LIST OF MATERIALS

Wire cutter / stripper Measuring tape

CAUTION

Remove carton carefully. Wear gloves to protect against sharp edges.

LIST OF MATERIALS

Parts included in your hood

•

3 1/4" x 10" Rectangular vent damper

•

2 - Grease filters Use and Care / Installation Manual

•

Mounting screw kit

•

2 - 0.49 * 5.0 cm mounting screws 4 - 0.50 * 1.9 cm mounting screws 6 - 0.40 * 0.8 cm rectangular vent damper screws 2 - plastic wall anchores

Tools/Materials required

•

Wire nuts

•

Metal duct length to suit installation Vent clamps/duct tape as required

•

UL listed or CSA approved ½” strain relief

•

Remove the protective film covering the product before

•

putting into operation.

5/64” drill bit for cabinet pilot holes

•

Pencil

•

Caulking gun and weatherproof caulking compound

•

Flat-blade screwdriver

•

Phillips screwdriver

•

Saber or keyhole saw

•

••Safety glasses

Gloves

For cabinets with recessed bottoms:

Two - 2” (5.1 cm) wide ller strips. Length and

•

thickness determined by recess dimensions.

Four at head wood screws or machine screws

•

with washers and nuts (to attach ller strips).

NOTE

If configuring for recirculation venting, range hood

model FHWC3050RS

FHWRKT30RS and if using range hood model FHWC3650RS

would be used.

uses recirculation kit

recirculation kit FHWRKT36RS

ELECTRICAL REQUIREMENTS

Observe all governing codes and ordinances. Ensure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances. If codes permit and a separate ground wire is used, it is

recommended that a qualied electrician determine that

the ground path is adequate. A copy of the above code standards can be obtained from:

National Fire Protection Association

One Batterymarch Park

Quincy, MA 02269

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

A 120 volt, 60 Hz., AC only, 15-amp, fused electrical

•

circuit is required.

If the house has aluminum wiring, follow the

•

procedure below:

Connect a section of solid copper wire to the

pigtail leads.

Connect the aluminum wiring to the added

section of copper wire using special conectors and/or tools designed and UL listed

for joining copper to aluminum.

Follow the electrical connector manufacturer’s recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

Wire sizes and connections must conform with

•

the rating of the appliance as specied on the model/serial rating plate. The model/serial plate is located on the left side of the range hood.

Wire sizes must conform to the requirements of

•

the National Electrical Code, ANSI/NFPA 70 (la est edition), or CSA Standards C22. 1-94, Canad Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

EN-5

LOCATION REQUIREMENTS

EN-6

IMPORTANT

Observe all governing codes and ordinances.

•

It is the installer’s responsibility to comply with

installation clearances

•

Range hood location should be away from strong draft areas, such as windows, doors and strong heating vents.

Cabinet opening dimensions that are shown must

•

be used. Given dimensions provide minimum clearance.

Grounded electrical outlet is required. See

•

“Electrical Requirements” section. All openings in ceiling and wall where canopy hood

•

will be installed must be sealed.

For Mobile Home Installations

The installation of this range hood must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part

280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A, or latest edition, or with local codes.

Cabinet Dimensions

”

(61.0 cm) min. for electric cooking surfaces

A. 24

” (68.6 cm) min. for gas cooking surfaces

” (76.2 cm) suggested max.

B. 30” (76.2 cm) min. cabinet opening width for 30” (76.2 cm) models and 36” (91.4 cm) min. cabinet width for 36” (91.4 cm) models.

C. 36” (91.4 cm) base cabinet height

PRODUCT DIMENSIONS

hood model Dim A Dim B

FHWC3050RS 30” Hood Model

FHWC3650RS 36” Hood Model

29 7 8” (75.8 cm)

35 7\/8”

(91.1 cm)

(16.7 cm) (16.7 cm)

9 9/16”

(24.3 cm)

Dim C

3” (7.6cm)6 1/2”

6'(15.2 cm)

Dim D

27 3/4”

(70.5 cm)

33 15/16”

(86.2 cm)

Do not terminate the vent system into an attic or other

•

enclosed area.

Do not use a 4” (10.2 cm) laundry-type wall cap.

•

Use metal vent only.

Rigid metal vent is recommended.

Plastic or metal foil vent is not recommended.

The length of vent system and number of elbows

•

should be kept to a minimum to provide efcient performance.

For the most efcient and quiet operation:

Use no more than three 90° elbows.

•

Make sure there is a minimum of 24” (61 cm) of straight

•

vent between the elbows if more than 1 elbow is used.

Do not install 2 elbows together.

•

Use clamps or duct tape to seal all joints in the

•

vent system.

The vent system at exit must have a cold air damper.

•

Use caulking to seal exterior wall or roof opening

•

around the cap. Best performances are reached with straight piping,

•

without elbows and using smooth pipe.

VENTING REQUIREMENTS

Roof Venting Wall Venting

Calculating Vent System Length

To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system.

These directions are for rectangular vent installation only. If you choose to use round rigid metal venting the minimum

diameter to use is """"""""''''"'"""" .??????

3¼” x 10” (8.3 cm x 25.4 cm) rectangular Vent System

Vent Piece

8”

Cold Weather Installations

An additional back draft damper should be installed to

minimize backward cold air ow and a thermal break

should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break. The break should be as close as possible to where the vent system enters the heated portion of the house.

Makeup Air

Local building codes may require the use of makeup air systems when using ventilation systems greater than

specied CFM of air movement. The specied CFM varies

from locale to locale. Consult your HVAC professional for specic requirements in your area.

Venting Methods Vent system can terminate either through the roof or wall. Use 3¼” x 10” (8.3 x 25.4 cm) rectangular with a maximum vent length of 35 ft (10.7 m)

NOTE

for vent system.

Flexible vent is not recommended. Flexible vent creates both back pressure and air turbulence that greatly reduce performance.

3¼” x 10” (8.3 cm x 25.4 cm) 5.0 ft 90° elbow (1.5 m)

3¼” x 10” (8.3 cm x 25.4 cm) 12.0 ft flat elbow (3.7 m)

3¼” x 10” (8.3 cm x 25.4 cm) 0.0 ft wall cap (0.0 m)

Example Vent System

3¼” x 10”

(8.3 x 25.4 cm)

elbow

2 ft

(0.6 m)

Maximum Recommended Length = 35 ft (10.7 m) 1 - 90° elbow = 5.0 ft (1.5 m)

8 ft (2.4 m) straight = 8.0 ft (2.4 m) 1 - wall cap = 0.0 ft (0.0 m)

Length of 3¼” x 10” = 13.0 ft (3.9 m) (8.3 cm x 25.4 cm) system

6 ft (1.8 m)

Wall Cap

EN-7

VENTING REQUIREMENTS

PREPARE THE LOCATION

NOTE

Before making cutouts, make sure there is proper clearance within the ceiling, wall or cabinet.

Fitting material is provided to secure

the hood to most types of walls and cabinets.

However, a qualified technician must

verify suitability of the materials in

accordance with the type of wall and cabinet.

Disconnect power.

Select a at surface for assembling the range hood.

Place covering over that surface.

Lift the range hood and set it upside down onto covered

surface.

If cabinet has recessed bottom, add

wide filler strips. Length and

recess dimensions.

machine screws with

strips in locations shown.

3” (7.6 cm)

Lift the range hood up under cabinet and determine

Four flat head wood screws or

washers and nuts to attach filler

thickness determined by

Wood filler strips (recessed cabinet bottoms only)

Cabinet bottom

nal location by centering beneath cabinet. Mark on the underside of cabinet the location of the 4 keyhole mounting slots on the range hood (See slot dimensions on page 6).

Set range hood aside on a covered surface.

Mark rear mounting screw hole locations.

"two - 2” (5.1 cm)

Use

5/64” drill bit and drill 4 pilot holes as shown

for top range hood support.

NOTE: Make the drill holes on the thin area of the slot.

Install the 4 - 0.50 cm x 1.9 cm mounting screws in

A. Drill pilot hole

pilot holes. Leave about ¼” (6.4 mm) space between screw heads and cabinet to slide range hood into place.

Install framing for hood rear support

¹⁄4”

(6.4 mm)

If drywall is present, using the rear mounting screw hole locations marked in the previous step cut away enough drywall to expose 2 vertical studs at the rear mounting screw holes locations. Install horizontal support at least 4” X 2 ” between two wall studs at the rear mounting screw holes location. The horizontal support must be flush with the room side of the studs. Use cleats behind both sides of the support to secure to wall studs. Reinstall drywall and refinish. IMPORTANT – Framing must be capable of supporting 100 lbs.

Wall

8-1/2” min. opening for ductwork

View From

Rear

Cleats

2” x4” Min

. Mounting Support

EN-8

A. Keyhole slot

Centerline of Installation Space

Determine Wiring Hole Location

Determine and clearly mark a vertical centerline on

the wall and cabinet bottom.

A Centerline

To wire through top:

Mark a line distance (A) from the right of the

centerline on the underside of the cabinet. Mark the point on this line that is 1 1/2"(3.8cm) from back wall. Drill a 1¼” (3.2 cm) diameter hole (B) through the cabinet at this point.

hood

model

30” & 36” models

Dim

8 5/8” (21.9 cm)

1 1/2"(3.8cm)

from wall, not cabinet frame

Centerline

To wire through wall:

Mark a line distance (A) from the right of the

centerline on the underside of the wall. Mark the point on this line that is from the underside of

1 1/2"(3.8cm)

the cabinet. Drill a 1¼” (3.2 cm) diameter hole (B)

through the rear wall at this point.

PREPARE THE LOCATION

Roof Venting

To make a 4 ” x 10½” (10.8 cm x 26.7 cm) rectangular

cutout on the underside of cabinet top and bottom:

Mark lines (1.6 cm) and 4 ” (10.8 cm) from the

back wall on the centerline of the underside of cabinet.

Mark lines 5¼” (13.3 cm) to the right and left of the

centerline on the underside of cabinet.

Use saber or keyhole saw to cut a rectangular opening

for vent.

Repeat steps 1-3 for the underside of the top of the

cabinet.

Centerline

Wall Venting

To make a 4 ” x 10½” (10.8 cm x 26.7 cm) rectangle in

the wall:

Make 2 lines by measuring ”

(10.16 cm) down from underside of cabinet and mark on the centerline on the back wall.

Mark lines 5¼” (13.3 cm) to the right and left of the

centerline on the wall.

Use saber or keyhole saw to cut a rectangular opening

in the wall for the vent.

Cabinet cutouts

(10.8 cm)

Cabinet

front

/8 (1.6 cm)

4 4/

51/4

(13.3 cm)

*From wall, not cabinet frame

(0.63 cm) and

¼”

5 /

(13.3 cm)

Centerline

1 1/2"(3.8cm)

hood

model

30” & 36” models

Dim

”

8 5⁄8

(21.9 cm)

”

(10.16 cm)

⁄ ”

(0.63 cm)

51/4”

(13.3 cm)

51/4”

(13.3 cm)

A Centerline

EN-9

PREPARE THE LOCATION

EN-10

Install Vent System

Install vent through the vent opening in upper cabinet

or wall. Complete venting system according to the selected venting method. See “Venting Requirements” section.

Use caulking to seal exterior wall or roof opening

around the cap.

INSTALL RANGE HOOD (Ducted version)

Detach the 3¼” x 10” (8.3 x 25.4 cm) rectangular

damper from the package.

vent

Vent Damper Installation

Install 3¼” x

Attach to range hood using the indicated screws provided in hardware kit.

If a vent damper is installed with a wall cap with

•

10” (8.3 x 25.4 cm) vent damper.

Install the 3¼” x 10” (8.3 x

25.4 cm) rectangular vent transition

A. 3¼” x 10” (8.3 x 25.4 cm) rectangular vent transition B. 6 - 0.40 x 0.80 cm screws C. Rectangular vent knockouts

damper, check that they do not interfere with each

other. Remove the vent damper ap if

Power Supply Cable Installation

For direct wire installations, run the home power

supply cable according to the National Electric Code or CSA standards and local codes and ordinances.

they interfere.

A. 3¼” x 10” (8.3 x 25.4 cm) rectangular vent damper

For roof installations, remove the top rectangular • vent knockout A.

rear rectangular vent knockout B.

For wall installations, remove the

A. Top rectangular knockout B. Rear rectangular knockout

NOTE

Do not reconnect power until the installation is complete. Before starting the installation, remove the

vent grill and grease filters.

Remove the screws from the

Remove terminal box cover

terminal box cover.

and set aside.

A. Terminal box cover B. Screw

Remove the power supply knockout from the top

Use” section.

6. Reconnect power.

Lift the hood into nal position.

Install

or rear of the vent hood (depending on the incoming location of your home power supply cable) and

install a UL listed or CSA approved ½” strain relief.

A. Power supply knockout

Feed enough electrical wire through the ½” UL listed or CSA approved strain relief to make connections in

the terminal box. Tighten the strain relief screws.

Position the range hood so that the large end of

the keyhole slots are over the mounting screws. Then push the hood toward the wall so that the screws are in the neck of the slots. Tighten the mounting screws, making sure the screws are in the narrow neck of slots.

Add the 2 rear 0.49 * 5.0 cm rear mounting screws

into the narrow neck of the rear keyhole slots. These should screw into the horizontal support that was placed between the two wall studs in section PREPARE THE LOCATION on page 8.

Connect ventwork to hood. Seal joints with vent

clamps or duct tape to make secure and airtight.

Check that back draft dampers work properly.

MAKE ELECTRICAL CONNECTION

WARNING

Electrical Shock Hazard Disconnect power before servicing. Replace all parts and panels before operating. Failure to do so can result in death or electrical shock.

INSTALLING THE HOOD

1. Disconnect power.

A. White wires B. Black wires C. Green ground wire D. UL listed wire connector E. Home power supply cable F. UL listed or CSA approved ½” strain relief

2. Use UL listed wire connectors and connect white wires (A) together.

3. Use UL listed wire connectors and connect black wires (B) together.

WARNING

Fire Hazard Electrically ground the blower. Use copper wire. Connect ground wire to green wire in

terminal box. Failure to do so can result in death, re, or electrical shock.

4. Connect green (or bare) ground wire from power supply

to green wire in terminal box .

5. Install terminal box cover.

Complete Installation

See “Range Hood Use” section.

If range hood does not operate, check to see whether a circuit breaker has tripped or a household fuse has blown. Disconnect power and check wiring connections.

To get the most efcient use from your new

range hood, read the “Range Hood Use” section.

grease lters . See the “Range Hood

Check the operation of the range hood fan and light.

NOTE

EN-1

Operating the Light

Operating the Fan

RANGE HOOD USE

EN-1

RANGE HOOD USE

The range hood is designed to remove smoke and cooking vapors from the cooktop area. For best results, start the hood before cooking and allow it to operate several minutes after the cooking is complete to clear all smoke from the kitchen.

A. LED lights B. Grease filter C. Vent Grille

D. Control knobs

Range Hood Controls

The hood controls are located at the bottom front section of the unit.

Light Fan

ON FRONT REAROFF

Knob Graphics Light Icon

Push in on knob to release and then

HI MED LOOFF

Knob Graphics Fan Icon

rotate it counter clockwise for light On/Front/Rear/Off.

Cleaning

WARNING

To Reduce The Risk Of Fire Or Electrical shock disconnect from power supply before cleaning.

IMPORTANT

Clean the hood and grease lters frequently

according to the following instructions. Replace

grease lter before operating hood.

IMPORTANT

Exterior Surfaces

Do not use soap-lled scouring pads, abrasive cleaners,

Cooktop Polishing Creme, steel wool, gritty washcloths or paper towels. To avoid damage to the stainless steel, do not use cleaners that contain chlorine.

Cleaning Method:

SMUDGE-PROOF™ STAINLESS STEEL

Your range hood has Smudge-Proof Steel finish.

water using a

water and dry

cleaners like

of cleaners

Clean the stainless with warm soapy

clean sponge or cloth. Rinse with clean

with a soft clean cloth. DO NOT

Stainless Steel cleaners or any other types

containing any abrasive, chlorides, chlorines or

ammonia. It is recommended to use mild dish soap

and water or a 50/50 solution of water and vinegar.

Stainless

USE any

Push in on knob to release and then rotate it counter clockwise for fan speeds Hi/Med/Lo/Off.

RANGE HOOD CARE

EN-1

To clean or replace grease lter:

Push in at the indicated area to open the

vent grille. The vent grille will hinge down for access to the grease filters.

PUSH TO OPEN

To remove or install the grease filters push tab towards the back of the unit.

WARNING

Electrical Shock Haxzard Disconnect power before servicing.

Replace all parts and panels before operating. Failure to do so can result in death or electrical shock.

Replacing the Front LED lights

1. Remove the vent grille and grease filters.

2. Remove the screws at the front support

and slide the panel back.

To clean grease lter, soak the lters in hot water using

a mild detergent. Rinse well and shake to dry.

NOTE

Do not use ammonia. The aluminum on the grease filter will corrode and darken.

NOTE

The grease lter is dishwasher safe. To avoid grease lter damage while cleaning, place lter into the dishwasher top rack for

cleaning

3. Disconnect the front LED lights wiring

Squeeze LED lamp mounting clips and push

down the LED lights as shown below

Squeeze here

5. Replace with new LED lights and re-install the front support

P art number 5304503879

RANGE HOOD CARE

WARNING

Electrical Shock Haxzard Disconnect power before servicing.

Replace all parts and panels before operating. Failure to do so can result in death or electrical shock.

Replacing the Rear LED lights

1. Remove the vent grille and grease filters.

2. Disconnect the rear LED lamp wiring

3. Squeeze LED lamp mounting clips and push down the LED lights as shown below.

Squeeze here

4. Replace with new LED lights.

P art number 5304503879

EN-14

Problem Possible Causes Solutions

After installation, the unit doesn’t work.

Light works, but motor is not turning.

1. The power line and the cable connector is not connected properly.

2. The wires from the switches are disconnected or loose.

1. The motor is defective, possible seized. 1. Change the motor.

1. Check the power connections.

2. Make sure the wires on the switches are connected properly.

2. Make sure the motor wire is plugged into the2. The motor wire is not connected.

terminal box connector.

TROUBLESHOOTING

The unit is vibrating.

The motor is working, but the lights are not.

The hood is not venting out properly.

Vent grill or grease filter

is vibrating.

1. The motor is not secure in place. 1. Tighten the motor in place.

2. Damaged blower wheel. 2. Change the blower.

3. The hood is not secured in place. 3. Check the installation of the hood.

1. Defective lamp. 1. Change the lamp.

2. The lamp is loose.

3. The wires on the light switch are loose. 3. Make sure the wires on light switch are

1. The hood might be hanging to high from the cook top.

2. The wind from the opened windows or opened doors in the surrounding area are affecting the ventilation of the hood.

3. Blockage in the duct opening or duct work. 3. Remove all the blocking from the duct work or

4. The direction of duct opening is against the wind.

5. Using the wrong size of ducting. 5. Change the ducting to correct size.

1 . Vent grill or grease filter is loose. 1 . Make sure vent grill or grease filter is installed

2 . Make sure the lamp is seated properly.

connected properly.

1 . Check installation instructions.

2. Close all the windows and doors to eliminate

the outside wind ow.

duct opening.

4. Adjust the duct opening direction.

correctly.

EN-1

+ 33 hidden pages
