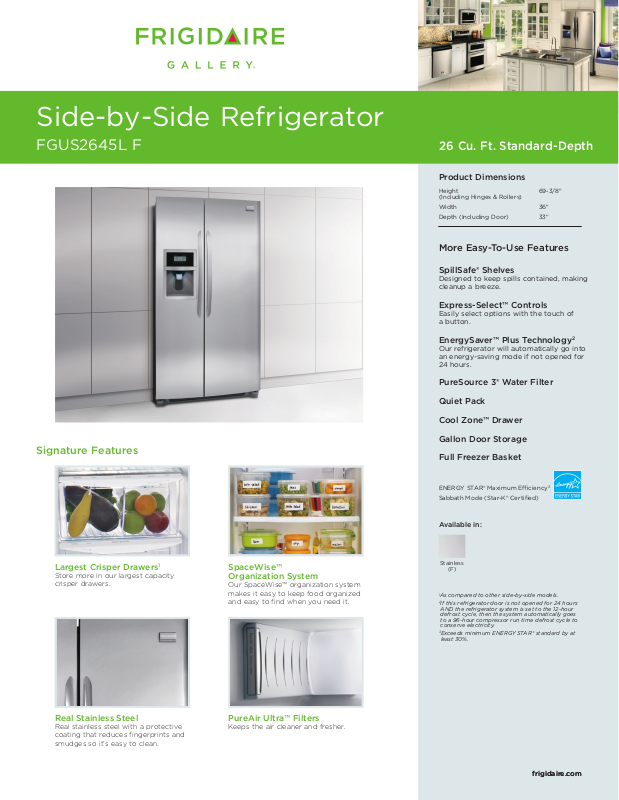

Frigidaire FGUS2645L DATASHEET

Side-by-Side Refrigerator

FGUS2645L F

Signature Features

26 Cu. Ft. Standard-Depth

Product Dimensions

Height 69-3/8"
(Including Hinges & Rollers)

Width 36"

Depth (Including Door) 33"

More Easy-To-Use Features

SpillSafe® Shelves

Designed to keep spills contained, making
cleanup a breeze.

Express-Select™ Controls

Easily select options with the touch of
a button.

EnergySaver™ Plus Technology

Our refrigerator will automatically go into
an energy-saving mode if not opened for
24 hours.

PureSource 3® Water Filter

Quiet Pack

Cool Zone™ Drawer

Gallon Door Storage

Full Freezer Basket

2

Largest Crisper Drawers

Store more in our largest capacity
crisper drawers.

1

Real Stainless Steel

Real stainless steel with a protective
coating that reduces fingerprints and
smudges so it’s easy to clean.

SpaceWise™
Organization System

Our SpaceWise™ organization system
makes it easy to keep food organized
and easy to find when you need it.

PureAir Ultra™ Filters

Keeps the air cleaner and fresher.

ENERGY STAR® Maximum Eciency

Sabbath Mode (Star-K® Certified)

Available in:

Stainless

(F)

1

As compared to other side-by-side models.

2

If this refrigerator door is not opened for 24 hours
AND the refrigerator system is set to the 12-hour
defrost cycle, then the system automatically goes
to a 96-hour compressor run time defrost cycle to
conserve electricity.

3

Exceeds minimum ENERGY STAR® standard by at
least 30%.

3

frigidaire.comfrigidaire.com

Features

Door Design

Door Handle Design

Cabinet Finish

Door Stops / Door Closers

Door Hinge Covers

Rollers – Front / Rear

EnergySaver™ Plus Technology

Water Filter Location

Sound Package

Soft-Arc

Stainless Steel

Grey

Yes / Yes

Hidden

Adjustable / Yes

Yes

Top Right Rear

Quiet Pack

Dispenser

Controls

Dispenser Design

Number of Dispenser Buttons

Crushed Ice / Cube Ice / Chilled Water

Ice Option

Freeze Option

Display On / O Option

Lock / Light

Temp / Door Ajar / Power Failure Alerts

Water Filter Change Indicator Light

Air Filter Change Indicator Light

Express-Select™

Tall, Single Paddle

6

Yes / Yes / Yes

Yes

Yes / Yes

Yes

Refrigerator Features

Interior Lighting

Water Filter Type

Air Filter Type

Fixed Shelves

Sliding Shelves

Cool Zone™ Drawer

Wine / Can Rack

Upper Crisper / Lower Crisper

Humidity Controls

Dairy Compartment

Fixed Door Bins

Adjustable Door Bins

Non-Slip Bin Liner / Bottle Retainers

Condiment Bin

Standard

PureSource 3®

PureAir Ultra™

2 SpillSafe®

1 SpillSafe®

1 Stacked

1 Clear / 1 Clear

2

1 Clear

2 Two-Liter Clear

2 One-Gallon Clear

Freezer Features

Door Bins / Tilt-Out Wire Door Bins

Fixed Shelves

Full Extension Baskets

Full Freezer Baskets

Half Freezer Baskets

Ice Cream Shelf / Pizza Shelf

SpaceSaver™ Shelf

Lighting

4 White / No

1 Flip-Out / 2 Wire

1 Plastic

No / Yes

Yes

Certifications

ENERGY STAR® Maximum Eciency

Sabbath Mode (Star-K® Certified)

1

Yes

Yes

Specifications

Total Capacity (Cu. Ft.)

Refrigerator Capacity (Cu. Ft.)

Freezer Capacity (Cu. Ft.)

Power Supply Connection Location

Water Inlet Connection Location

Voltage Rating

Connected Load (kW Rating)
@ 120 Volts

2

Amps @ 120 Volts

Minimum Circuit Required (Amps)

Shipping Weight (Approx.)

1

Exceeds minimum ENERGY STAR® standard by at least 30%.

2

For use on adequately wired 120V, dedicated circuit having 2-wire service with a
separate ground wire. Appliance must be grounded for safe operation.

26

16.5

9.5

Right Bottom Rear

Left Bottom Rear

120V / 60Hz / 15 or 20A

1.02

8.5

15

300 Lbs.

Side-by-Side Refrigerator

FGUS2645L F 26 Cu. Ft. Standard-Depth

NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.

Overall Exterior Dimensions

A - Height (Incl. Hinges and Rollers)

B - Width

C - Depth (Incl. Door)

Depth with Door Open 90˚

69-3/8"

36"

33"

49-7/8"

Accessories information available

on the web at frigidaire.com

•

USA

10200 David Taylor Drive

•

CANADA

FGUS2645L 08/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.

5855 Terry Fox Way

•

Charlotte, NC 28262

•

Mississauga, ON L5V 3E4

•

1-800-FRIGIDAIRE

•

1-800-265-8352

•

frigidaire.com

•

frigidaire.ca

Specifications

subject to change.
