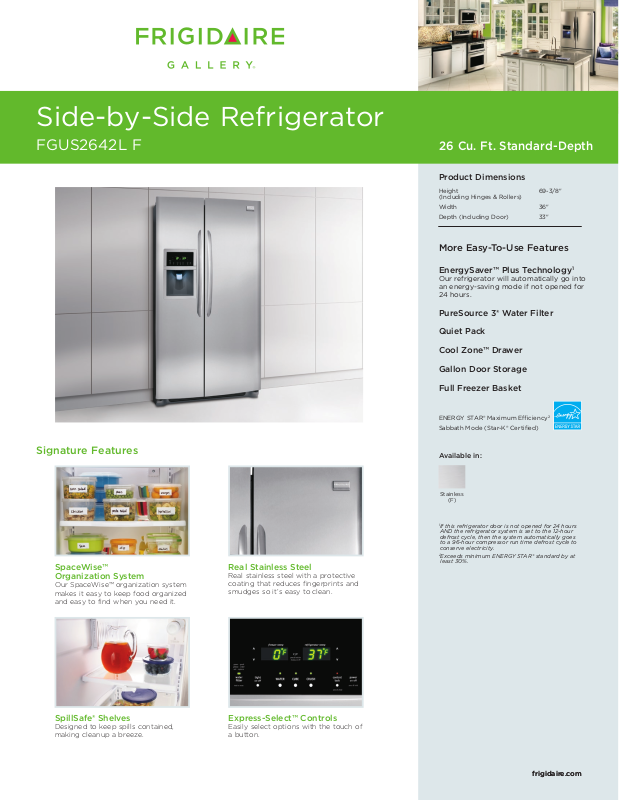

Frigidaire FGUS2642L F User Manual
Side-by-Side Refrigerator
FGUS2642L F
26 Cu. Ft. Standard-Depth
Product Dimensions
Height 69-3/8"
(Including Hinges & Rollers)
Width 36"
Depth (Including Door) 33"
More Easy-To-Use Features
EnergySaver™ Plus Technology
Our refrigerator will automatically go into
an energy-saving mode if not opened for
24 hours.
PureSource 3® Water Filter
Quiet Pack
Cool Zone™ Drawer
Gallon Door Storage
Full Freezer Basket
ENERGY STAR® Maximum Eciency
Sabbath Mode (Star-K® Certified)
1
2
Signature Features
SpaceWise™
Organization System
Our SpaceWise™ organization system
makes it easy to keep food organized
and easy to find when you need it.
SpillSafe® Shelves
Designed to keep spills contained,
making cleanup a breeze.
Real Stainless Steel
Real stainless steel with a protective
coating that reduces fingerprints and
smudges so it’s easy to clean.
Express-Select™ Controls
Easily select options with the touch of
a button.
Available in:
Stainless
(F)
1
If this refrigerator door is not opened for 24 hours
AND the refrigerator system is set to the 12-hour
defrost cycle, then the system automatically goes
to a 96-hour compressor run time defrost cycle to
conserve electricity.
2
Exceeds minimum ENERGY STAR® standard by at
least 30%.
frigidaire.comfrigidaire.com
Features
Door Design
Door Handle Design
Cabinet Finish
Door Stops / Door Closers
Door Hinge Covers
Rollers – Front / Rear
EnergySaver™ Plus Technology
Water Filter Location
Sound Package
Soft-Arc
Stainless Steel
Grey
Yes / Yes
Hidden
Adjustable / Yes
Yes
Top Right Rear
Quiet Pack
Dispenser
Controls
Dispenser Design
Number of Dispenser Buttons
Crushed Ice / Cube Ice / Chilled Water
Ice Option
Freeze Option
Display On / O Option
Lock / Light
Temp / Door Ajar / Power Failure Alerts
Water Filter Change Indicator Light
Air Filter Change Indicator Light
Express-Select™
Tall, Single Paddle
5
Yes / Yes / Yes
Yes
Yes / Yes
Yes
Refrigerator Features
Interior Lighting
Water Filter Type
Air Filter Type
Fixed Shelves
Sliding Shelves
Cool Zone™ Drawer
Wine / Can Rack
Upper Crisper / Lower Crisper
Humidity Controls
Dairy Compartment
Fixed Door Bins
Adjustable Door Bins
Non-Slip Bin Liner / Bottle Retainers
Condiment Bin
Standard
PureSource 3®
2 SpillSafe®
1 SpillSafe®
1 Clear Hanging
1 Clear / 1 Clear
2
1 Clear
2 Two-Liter Clear
2 One-Gallon Clear
Freezer Features
Door Bins / Tilt-Out Wire Door Bins
Fixed Shelves
Full Extension Baskets
Full Freezer Baskets
Half Freezer Baskets
Ice Cream Shelf / Pizza Shelf
SpaceSaver™ Shelf
Lighting
4 White / No
1 Flip-Out / 2 Wire
1 Plastic
No / Yes
Yes
Certifications
ENERGY STAR® Maximum Eciency
Sabbath Mode (Star-K® Certified)
1
Yes
Yes
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 120 Volts
2
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
Exceeds minimum ENERGY STAR® standard by at least 30%.
2
For use on adequately wired 120V, dedicated circuit having 2-wire service with a
separate ground wire. Appliance must be grounded for safe operation.
26
16.5
9.5
Right Bottom Rear
Left Bottom Rear
120V / 60Hz / 15 or 20A
1.02
8.5
15
300 Lbs.
Side-by-Side Refrigerator
FGUS2642L F 26 Cu. Ft. Standard-Depth
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Overall Exterior Dimensions
A - Height (Incl. Hinges and Rollers)
B - Width
C - Depth (Incl. Door)
Depth with Door Open 90˚
69-3/8"
36"
33"
49-7/8"
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FGUS2642L 08/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
