Side-by-Side Refrigerator
FGUS2642L F
26 Cu. Ft. Standard-Depth
Product Dimensions
Height 69-3/8"
(Including Hinges & Rollers)
Width (Doors) 36"
Depth (Including Door) 33"
More Easy-To-Use Features
Energy Saver Plus Technology
Our refrigerator will automatically go into
an energy-saving mode if not opened for
24 hours.
PureSource 3® Water Filter
Quiet Pack
Cool Zone™ Drawer
Gallon Door Storage
Full Freezer Basket
ENERGY STAR® Maximum Eciency
Sabbath Mode (Star-K® Certified)
1
2
Signature Features
SpaceWise®
Organization System
Our SpaceWise® organization system
makes it easy to keep food organized
and easy to find when you need it.
SpillSafe® Shelves
Designed to keep spills contained,
making cleanup a breeze.
Real Stainless Steel
Real stainless steel with a protective
coating that reduces fingerprints and
smudges so it’s easy to clean.
Express-Select® Controls
Easily select options with the touch of
a button.
Available in:
Stainless
(F)
1
If this refrigerator door is not opened for 24 hours
AND the refrigerator system is set to the 12-hour
defrost cycle, then the system automatically goes
to a 96-hour compressor run time defrost cycle to
conserve electricity.
2
Exceeds minimum ENERGY STAR® standard by at
least 30%.
frigidaire.comfrigidaire.com
Features
Door Design
Door Handle Design
Cabinet Finish
Door Stops / Door Closers
Door Hinge Covers
Rollers – Front / Rear
Energy Saver Plus Technology
Water Filter Location
Sound Package
Soft-Arc
Stainless Steel
Grey
Yes / Yes
Hidden
Adjustable / Yes
Yes
Top Right Rear
Quiet Pack
Dispenser
Controls
Dispenser Design
Number of Dispenser Buttons
Crushed Ice / Cube Ice / Chilled Water
Ice Option
Freeze Option
Display On / O Option
Lock / Light
Temp / Door Ajar / Power Failure Alerts
Water Filter Change Indicator Light
Air Filter Change Indicator Light
Express-Select®
Tall, Single Paddle
5
Yes / Yes / Yes
Yes
Yes / Yes
Yes
Refrigerator Features
Interior Lighting
Water Filter Type
Air Filter Type
Fixed Shelves
Sliding Shelves
Cool Zone™ Drawer
Wine / Can Rack
Upper Crisper / Lower Crisper
Humidity Controls
Dairy Compartment
Fixed Door Bins
Adjustable Door Bins
Non-Slip Bin Liner / Bottle Retainers
Condiment Bin
Standard
PureSource 3®
2 SpillSafe®
1 SpillSafe®
1 Clear Hanging
1 Clear / 1 Clear
1
1 Clear
2 Two-Liter Clear
2 One-Gallon Clear
Freezer Features
Door Bins / Tilt-Out Wire Door Bins
Fixed Shelves
Full Extension Baskets
Full Freezer Baskets
Half Freezer Baskets
Ice Cream Shelf / Pizza Shelf
SpaceSaver™ Shelf
Lighting
4 White / No
1 Flip-Out / 2 Wire
1 Plastic
No / Yes
Yes
Certifications
ENERGY STAR® Maximum Eciency
Sabbath Mode (Star-K® Certified)
1
Yes
Yes
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 120 Volts
2
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
Exceeds minimum ENERGY STAR® standard by at least 30%.
2
For use on adequately wired 120V, dedicated circuit having 2-wire service with a
separate ground wire. Appliance must be grounded for safe operation.
26
16.5
9.5
Right Bottom Rear
Left Bottom Rear
120V / 60Hz / 15 or 20A
1.02
8.5
15
300 Lbs.
Side-by-Side Refrigerator
FGUS2642L F 26 Cu. Ft. Standard-Depth
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Overall Exterior Dimensions
A - Height (Incl. Hinges and Rollers)
B - Cabinet Width / Door Width
C - Depth (Incl. Door)
Depth with Door Open 90˚
69-3/8"
35-5/8" / 36"
33"
49-7/8"
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FGUS2642L 02/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
Side-by-Side Refrigerator
FGUS2642L F 26 Cu. Ft. Standard-Depth
Side-by-Side Refrigerator Specifications
•
Product Shipping Weight (approx.) – 300 Lbs.
•
Voltage Rating – 120V / 60 Hz / 15 or 20 Amps
•
Connected Load (kW Rating) @ 120 Volts = 1.02 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120 Volts = 8.5 Amps
•
Always consult local and national electric & plumbing codes.
•
Floor should be level surface of hard material, capable of supporting
fully loaded refrigerator.
•
When installing refrigerator adjacent to wall, cabinet or other appliance
that extends beyond front edge of unit, 20" minimum clearance
recommended to allow for optimum 120° to 180° door swing, providing
complete drawer / crisper access and removal. (Absolute 4-1/2"
minimum clearance will ONLY allow for 90° door swing which will
provide drawer / crisper access with restricted removal.)
•
To ensure optimum performance, avoid installing in direct sunlight or
close proximity to range, dishwasher or other heat source.
•
For proper ventilation, front grille MUST remain unobstructed.
•
USA
10200 David Taylor Drive
•
CANADA
FGUS2642L 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
•
Recess electrical outlet when possible.
•
Water recess on rear wall recommended to prevent water line damage.
•
Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
•
Copper tubing with 1/4" O.D. recommended for water supply line
with length equal to distance from rear of unit to household water
supply line plus 7 additional feet. Optional Water Supply Installation
Kits available.
•
Adjustable front rollers to assist with door alignment.

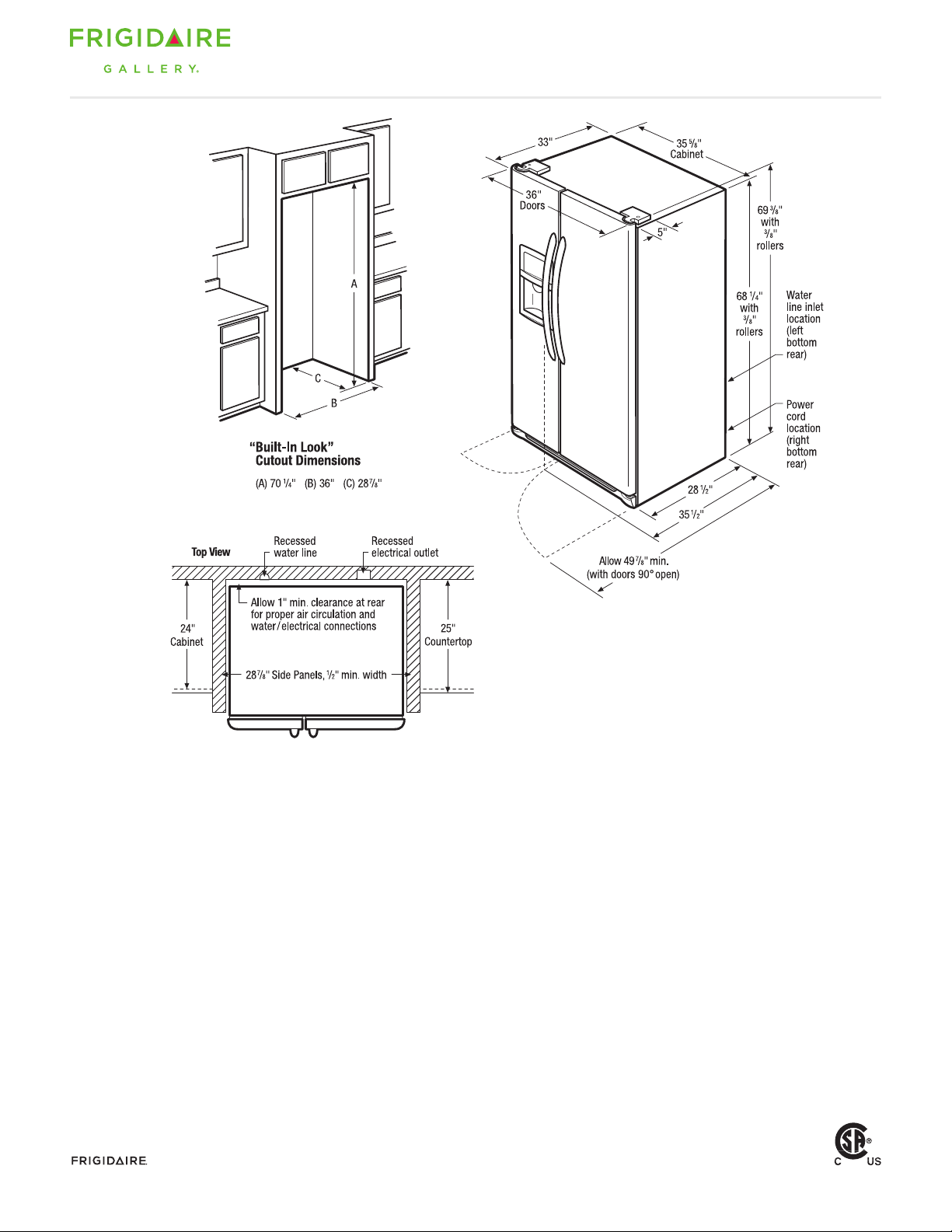

“Built-In Look” Specifications
•
Minimum opening of 70-1/4" H x 36" W x 28-7/8" D required to allow
for ease of installation, proper air circulation, and plumbing / electrical
connections.
•
Remove all wall / floor molding prior to installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Specifications
subject to change.
Top
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
General Installation Guidelines
with Side-by-Side Refrigerator
•
USA
10200 David Taylor Drive
•
CANADA
INSTGDLNS_SSR FR 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
