FGET3069UF.jpeg CFGET3069UFA.wmf BUFGET3066UFA.wmf
Factory
Pa
rt
s
C
at
a
log
Product No.
FGET3069UFA
Series
30" gallery
Color
stainless
Market
North America
Owner's Guide
A00538606
Installation Instructions
807153706
Service Data Sheet
A00980650
808595747
Frigidaire
P.O. BOX 8020
CHARLOTTE, NC 28262
30” DOUBLE ELECTRIC
BLFGET3066UFA.wmf DFGET3069UFA.wmf A00980650-1.wmf A00980650-
2.wmf
(EN/SERVICE/ECL)
Publication No.
5995721320
20/03/26
377
WALL OVEN
Model No.
FGET3069U
Publication No: 5995721320 FGET3069UFA
CONTROL PANEL
03/20 2
FGET3069UFA Publication No: 5995721320
CONTROL PANEL
POS. NO PART NO. DESCRIPTION
2A 5304521623 Shield, wire, top
2B 5304520853 Cover, control access
19 # 5304524017 Control Panel Assembly, steel/glass, stainless/black, w/touch pad
20 # 316474959 Controller, electronic
21 5304520558 Bracket, OVC support
97 # 316475806 Board Assembly, OVC2 PCBA, w/chassis
97* 5303323129 Screw, 8 X 0.750
* # 5304523462 Harness, wiring, communication, control panel
* # 5304514831 Harness, grounding wire
* # 5304514832 Harness, wiring, upper oven, hall effect
* 3201861 Screw, 6 x 0.375, (4)
* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black
# Functional Parts 3 03/20
* Non-Illustrated Parts
Publication No: 5995721320 FGET3069UFA
UPPER OVEN
03/20 4
FGET3069UFA Publication No: 5995721320
UPPER OVEN
POS. NO PART NO. DESCRIPTION
1 139035302 Panel, main back
2 808651301 Shield, insulation, top
6 5304514983 Rack, oven, w/handle
6A 5304518864 Rack Assembly, gliding, nickel, w/handle
7 5304520858 Box, bake element
9 5304494997 Broil Pan Kit, pan & insert, slate blue, Optional, accessory
11 139036701 Seal, oven door
12 # 318394802 Switch, light, door
15 # 139009000 Lamp Assembly, round, halogen, w/lens, w/bulb
15*# 318946500 BULB, halogen, G9, 25W, 120V
29 316517600 Bumper, front, main
37 # 5304504897 Sensor, oven temp probe
53 # 5304516490 Probe, meat, black
54 # 5304514886 Receptacle Assy, meat probe
57 5304521752 Sheild, air wash, lower
58 808816501 Insulation, bottom
58A 808905501 Insulation, oven wrapper
58B 808905101 Insulation, oven back
58C 807887503 Insulation, bake element, front
59 # 808931403 Vent Box Assy., w/catalyst
59A 808931501 Tube, extension, catalyst
59A* 5304500643 Bracket, catalyst tube
66 # 5304514924 Element, broil, 6 pass, 4000W
67 # 5304516286 Element, hidden bake, 2200W
70 139000601 Shield, insulation, sides, (2)
71 5304520854 Shield, rear wall
80 139021101 Bracket, support, chassis/fan
82 808108901 Shield, insulation, lower
83 5304520860 Shield, bake tray, rear
86 139026900 Receptacle, hinge, dual spring
86* 316418900 Screw, sims lp, #8-32 x 5/16", black
87A 5304520866 Shield, terminals, bake element
88 808721601 Rod, door latch
88* 318167300 Clip, rod
88* 5303311164 Spring
89 # 808721803 Motor Assy., door latch
89*# 5304514912 Harness, wiring, ADS MDL, upper
99 808109001 Support, side, (2)
107 139013903 Cover, convection fan
108# 807123001 Motor Assembly, fan
109 318398302 Fan Blade
111 316136600 Nut, fan retainer
112# 5304494446 Switch, thermal cutoff, 145c
125# 139008504 Motor, convection fan, 2 speed
* # 5304514908 Harness, convection
130 808651606 Duct, cooling fan, upper
130* 318579001 Bracket, wire
131 808651702 Duct, cool fan, lower
143 318172904 Bracket, wire support
161# 139006500 Element, convection, 2500W
185 318531800 Spacer, oven shield, (2)
264 5304500596 Trim, vent, black, upper
272 139021700 Tube, convection fan
* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black
* 316021109 Screw, 8-18 x 0.5, chrome
* 316021110 Screw, 8-18 x 0.5, black
* 807597603 Screw, self tapping, 8-18 x 11/32, (4)
* 5303289910 Screw, truss sqdr, 8A x 1", 62*
* 5303324184 Screw, 8-18 x 5/16, black
# Functional Parts 5 03/20
* Non-Illustrated Parts
Publication No: 5995721320 FGET3069UFA
LOWER OVEN
03/20 6
FGET3069UFA Publication No: 5995721320
LOWER OVEN
POS. NO PART NO. DESCRIPTION
1 139035302 Panel, main back
2 808651301 Shield, insulation, top
6 5304514983 Rack, oven, w/handle
7 5304520858 Box, bake element
11 139036701 Seal, oven door
12 # 318394802 Switch, light, door
12*# 5304514913 Harness, wiring, door switch
15 # 139009000 Lamp Assembly, round, halogen, w/lens, w/bulb
15*# 318946500 BULB, halogen, G9, 25W, 120V
29 316517600 Bumper, front, main
37 # 5304504897 Sensor, oven temp probe
56 5304520852 Trim, side filler, black, RH
56A 5304520850 Trim, side filler, black, LH
57 5304521752 Sheild, air wash, lower
58 808816501 Insulation, bottom
58A 808905501 Insulation, oven wrapper
58B 808905101 Insulation, oven back
58C 807887503 Insulation, bake element, front
59 # 808931403 Vent Box Assy., w/catalyst
59A 808931501 Tube, extension, catalyst
59A* 5304500643 Bracket, catalyst tube
59B 808931601 Tube, connector, catalyst
62 316056000 Terminal Block
62* 316001003 Screw, ground wire
62* 316205500 Nut, hex flange, 3/8 10-32
66 # 5304514924 Element, broil, 6 pass, 4000W
67 # 5304516286 Element, hidden bake, 2200W
70 139000601 Shield, insulation, sides, (2)
71 5304520854 Shield, rear wall
71* 139022101 Insualtion, noise dampening
80 139021101 Bracket, support, chassis/fan
82 808108901 Shield, insulation, lower
83 5304520860 Shield, bake tray, rear
86 139026900 Receptacle, hinge, dual spring
86* 316418900 Screw, sims lp, #8-32 x 5/16", black
87 5304520557 Bracket, cable box
87A 5304520866 Shield, terminals, bake element
88 808721601 Rod, door latch
88* 318167300 Clip, rod
88* 5303311164 Spring
89 # 808721803 Motor Assy., door latch
90 5304514922 Trim, vent, stainless, lower
91 5304518870 Divider, lower air, black
99A 5304514974 Support, floor
107 139013903 Cover, convection fan
108# 808963704 Blower Assy., cooling, lower oven
109 318398302 Fan Blade
111 316136600 Nut, fan retainer
112# 5304494446 Switch, thermal cutoff, 145c
125# 139008504 Motor, convection fan, 2 speed
130 808931801 Seal, silicone, (2)
# Functional Parts 7 03/20
* Non-Illustrated Parts
Publication No: 5995721320 FGET3069UFA
LOWER OVEN
03/20 8
FGET3069UFA Publication No: 5995721320
LOWER OVEN
POS. NO PART NO. DESCRIPTION
131 808651702 Duct, cool fan, lower
143 318172904 Bracket, wire support
161# 139006500 Element, convection, 2500W
185 318531800 Spacer, oven shield, (2)
272 139021700 Tube, convection fan
* # 5304506955 Harness Assembly, conduit, elbow connector, & wiring
* # 5304518585 Harness, wiring, main
* # 5304514908 Harness, convection
* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black
* 316021109 Screw, 8-18 x 0.5, chrome
* 316021110 Screw, 8-18 x 0.5, black
* 807597603 Screw, self tapping, 8-18 x 11/32, (4)
* 5303289910 Screw, truss sqdr, 8A x 1", 62*
* 5303324184 Screw, 8-18 x 5/16, black
* 5304470882 Screw, anti-tip, 8 - 5/8, black, (2)
# Functional Parts 9 03/20
* Non-Illustrated Parts
Publication No: 5995721320 FGET3069UFA

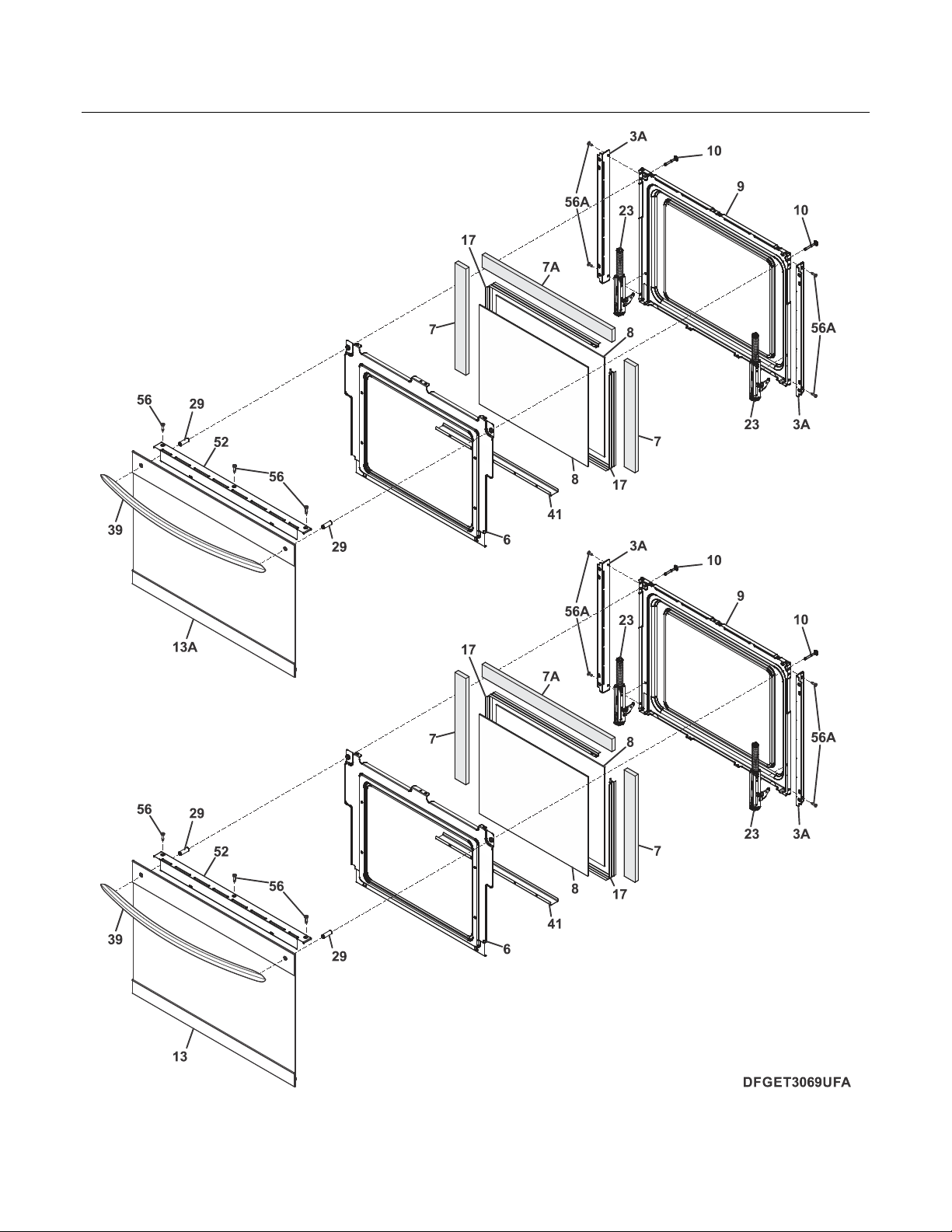

DOORS
03/20 10
FGET3069UFA Publication No: 5995721320
DOORS
POS. NO PART NO. DESCRIPTION
3A 5304520787 Trim, oven door, black, side vent
6 808474502 Shield, wool, oven door
7 807887502 Insulation, door, side, (2)
7A 5304505925 Insulation, door, upper
8 316502504 Glass, door, inner, (2)
9 808474614 Liner, oven door, black
10 316513302 Screw, truss head, 10 24X1.980
13 5304514954 Door Assembly, outer, stainless, w/trim
13A 5304514953 Door Assembly, outer, stainless, upper oven, w/trim
17 316502101 Spacer, door glass, (2)
23 139010308 Hinge, door, turquoise, dual spring
23* 316418900 Screw, sims lp, #8-32 x 5/16", black
29 808296701 Spacer, door handle, (2)
39 316554008 Handle, door/drawer, stainless
41 5304500644 Support, glass
52 5304520856 Trim, door, black, top
56 809136201 Screw, truss head, #8-32 x 3/8"
56A 5303324184 Screw, 8-18 x 5/16, black
* 316021110 Screw, 8-18 x 0.5, black
# Functional Parts 11 03/20
* Non-Illustrated Parts
Publication No: 5995721320 FGET3069UFA
WIRING DIAGRAM
03/20 12
FGET3069UFA Publication No: 5995721320
WIRING DIAGRAM
# Functional Parts 13 03/20
* Non-Illustrated Parts
