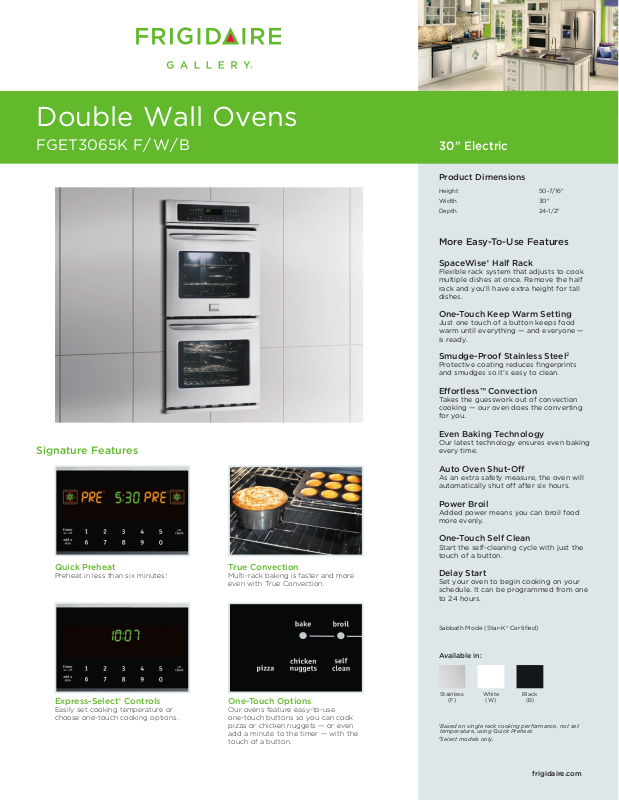

Double Wall Ovens
FGET3065K F/ W/ B
Signature Features
30" Electric
Product Dimensions
Height 50-7/16"
Width 30"
Depth 24-1/2"
More Easy-To-Use Features
SpaceWise® Half Rack
Flexible rack system that adjusts to cook
multiple dishes at once. Remove the half
rack and you’ll have extra height for tall
dishes.
One-Touch Keep Warm Setting
Just one touch of a button keeps food
warm until everything — and everyone —
is ready.
Smudge-Proof Stainless Steel
Protective coating reduces fingerprints
and smudges so it’s easy to clean.
Eortless™ Convection
Takes the guesswork out of convection
cooking — our oven does the converting
for you.
Even Baking Technology
Our latest technology ensures even baking
every time.
2
Quick Preheat
Preheat in less than six minutes.
1
Express-Select® Controls
Easily set cooking temperature or
choose one-touch cooking options.
True Convection
Multi-rack baking is faster and more
even with True Convection.
One-Touch Options
Our ovens feature easy-to-use
one-touch buttons so you can cook
pizza or chicken nuggets — or even
add a minute to the timer — with the
touch of a button.
Auto Oven Shut-O
As an extra safety measure, the oven will
automatically shut off after six hours.
Power Broil
Added power means you can broil food
more evenly.
One-Touch Self Clean
Start the self-cleaning cycle with just the
touch of a button.
Delay Start
Set your oven to begin cooking on your
schedule. It can be programmed from one
to 24 hours.
Sabbath Mode (Star-K® Certified)
Available in:
Stainless
(F)
1
Based on single rack cooking performance, not set
temperature, using Quick Preheat.
2
Select models only.
White
(W)
Black
(B)
frigidaire.com
E
D
Spacers
B
C
A
Features
Oven Control / Timing System
Windows
Exterior Door Finish
Handle Design
Oven Cleaning System
Oven Controls
Bake / Broil
Eortless™ Convection Conversion
Convection Bake / Broil / Roast
Oven Preheat
My Favorite
Chicken Nugget Button
Pizza Button
Keep Warm
Add-a-Minute
Delay Start
Self-Clean / Clean Option
Delay Clean
Kitchen Timer / Timed Cook Option
Control Lock
Auto Oven Shut-O
Oven Lock-Out
Upper Oven Features
Capacity (Cu. Ft.)
Convection System
Oven Light
Hidden Bake Element
Rack Configuration
Baking System
Broiling System
Bake / Broil Element (Watts)
Lower Oven Features
Capacity (Cu. Ft.)
Convection System
Oven Light
Hidden Bake Element
Rack Configuration
Baking System
Broiling System
Bake / Broil Element (Watts)
Optional Accessories
3"-High Bottom Trim – Stainless
Steel (F) / White (W) / Black (B)
Certifications
A.D.A. Compliant
Sabbath Mode (Star-K® Certified)
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 240 / 208 Volts
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
Express-Select®
Extra-Large
Smudge-Proof
Stainless Steel (F),
Color-Coordinated (W/B)
Stainless Steel (F),
Color-Coordinated (W/B)
Self Clean
Yes / Variable (400 - 500 °F)
Yes
Yes / Yes / Yes
Quick
Yes
Yes
Yes
Yes
Yes
Yes / Quick
2, 3, 4 Hours
Yes / Yes
Yes
Yes
Yes
4.2
True Convection
2
Yes
1 Heavy Duty, 1 SpaceWise®
Half Rack, 1 Oset Rack
Even Baking Technology
Power Broil
2,200 / 4,000
4.2
True Convection
2
Yes
1 Heavy Duty, 1 SpaceWise®
Half Rack, 1 Oset Rack
Even Baking Technology
Power Broil
2,200 / 4,000
(F) PN # 903114-910S
(W) PN # 903114-9101
(B) PN # 903114-9100
Yes
16-1/2" x 24-1/8" x 18-1/32"
Left Bottom Rear
240V / 208V / 60Hz
9.4 / 7.1
39.2 / 34.1
40
300 Lbs.
Double Wall Ovens
FGET3065K F / W / B 30" Electric
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
D - Height (Wrapper)
E - Width (Wrapper)
Depth with Door Open 90˚
50-7/16"
30"
24-1/2"
48-5/8"
28-1/4"
44-1/2"
Cutout Dimensions
Height (Min.) / (Max.)
Width (Min.) / (Max.)
Depth (Min.)
48-7/8" / 49-7/8"
28-1/2" / 29"
23-1/2"
•
USA
10200 David Taylor Drive
•
CANADA
FGET3065K 02/12 © 2012 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
30" Double Electric Wall Oven
Gallery
Double Wall Ovens
FGET3065K F / W/B 30" Electric
Double Wall Oven Specifications
•
Product Shipping Weight (approx.) – 300 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•
Connected Load (kW Rating) @ 240 / 208 Volts = 9.4 / 7.1 kW
•
Amps @ 240 / 208 Volts = 39.2 / 34.1 Amps
•
Recommended Circuit Breaker – 40 Amps
•
Always consult local and national electric codes.
•
Minimum 21" clearance for oven door depth when open.
•
Suggested distance from floor is 11-1/2". Minimum required distance
is 4-1/2".
•
Minimum 23-1/2" deep cutout dimension is critical for proper
installation, to ensure that oven’s faceplate will fit flush against
cabinet front.
•
To adapt oven to fit cutout height greater than 49-1/2", add one
2"-wide wood shim of appropriate height to each side of opening
under oven side rails. Lifting oven will hide larger cutout opening
at top and oven’s 1"-high bottom trim will hide shims at bottom.
(Standard 1"-High Bottom Trim included.)
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com
•
CANADA
FGET3065K 02/12 © 2012 Electrolux Home Products, Inc.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
•
To adapt oven to fit cutout height greater than 49-7/8", optional
3"-High Bottom Trim available.
•
Full oven base of solid plywood or similar material required,
capable of supporting 375 Lbs.
•
Base must be level and cabinet front must be square.
•
Double Wall Ovens are NOT approved to be used in stackable or
side-by-side installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
3"-High Stainless Steel Bottom Trim – (PN # 903114-910S).
•
3"-High White Bottom Trim – (PN # 903114-9101).
•
3"-High Black Bottom Trim – (PN # 903114-9100).
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
Top
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
General Installation Guidelines
with Side-by-Side Refrigerator
•
USA
10200 David Taylor Drive
•
CANADA
INSTGDLNS_SSR FR 02/12 © 2012 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Top
General Installation Guidelines
with Top Mount Refrigerator
•
USA
10200 David Taylor Drive
•
CANADA
INSTGDLNS_TMR FR 02/12 © 2012 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
Top
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
General Installation Guidelines
with French Door Refrigerator
•
USA
10200 David Taylor Drive
•
CANADA
INSTGDLNS_FDR FR 02/12 © 2012 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
