Frigidaire FGET2766UD Specifications

Download

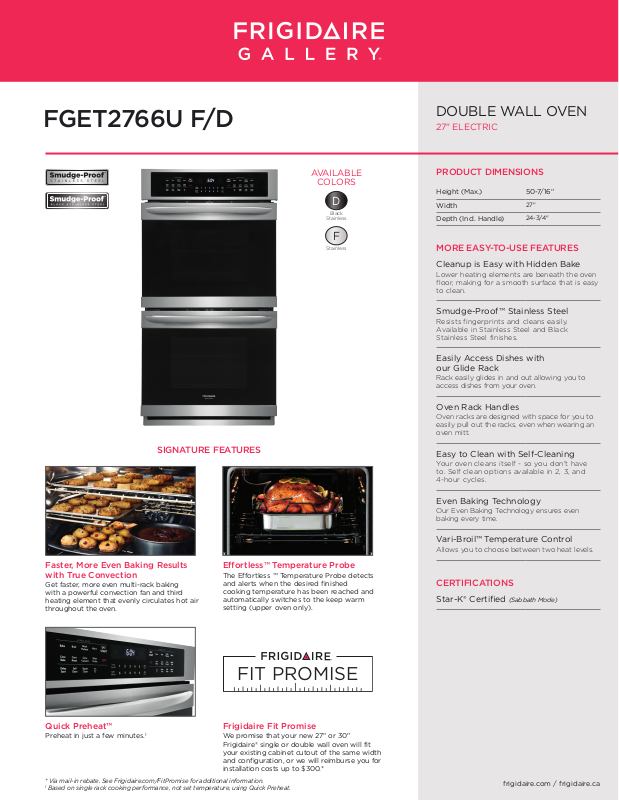

Page 1

FGET2766U F/D

DOUBLE WALL OVEN

27" ELECTRIC

SIGNATURE FEATURES

AVAILABLE

COLORS

Black

Stainless

PRODUCT DIMENSIONS

Height (Max.) 50-7/16"

Width

Depth (Incl. Handle)

27"

24-3/4"

MORE EASY-TO-USE FEATURES

Cleanup is Easy with Hidden Bake

Lower heating elements are beneath the oven floor, making for a smooth surface that is easy to clean.

Smudge-Proof™ Stainless Steel

Resists fingerprints and cleans easily. Available in Stainless Steel and Black Stainless Steel finishes.

Easily Access Dishes with our Glide Rack

Rack easily glides in and out allowing you to access dishes from your oven.

Oven Rack Handles

Oven racks are designed with space for you to easily pull out the racks, even when wearing an oven mitt.

Easy to Clean with Self-Cleaning

Your oven cleans itself - so you don't have to. Self clean options available in 2, 3, and 4-hour cycles.

Faster, More Even Baking Results with True Convection

Get faster, more even multi-rack baking with a powerful convection fan and third heating element that evenly circulates hot air throughout the oven.

Eortless™ Temperature Probe

The Effortless ™ Temperature Probe detects and alerts when the desired finished cooking temperature has been reached and automatically switches to the keep warm setting (upper oven only).

FIT PROMISE

Quick Preheat™

Preheat in just a few minutes.

* Via mail-in rebate. See Frigidaire.com/FitPromise for additional information.

Based on single rack cooking performance, not set temperature, using Quick Preheat.

Frigidaire Fit Promise

We promise that your new 27" or 30" Frigidaire® single or double wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you for installation costs up to $300.*

Even Baking Technology

Our Even Baking Technology ensures even baking every time.

Vari-Broil™ Temperature Control

Allows you to choose between two heat levels.

CERTIFICATIONS

Star-K® Certiﬁed (Sabbath Mode)

frigidaire.com / frigidaire.ca

Page 2

Spacers

FGET2766U F/D

DOUBLE WALL OVEN

27" ELECTRIC

FEATURES

Control / Timing System Express-Select® Controls

Window Extra-Large

Exterior Door Finish

Handle Design

Oven Cleaning System

Smudge-Proof™ Stainless Steel (F), Black Stainless (D)

Stainless Steel (F), Black Stainless (D)

Self-Clean w/ Steam Clean Option

OVEN CONTROLS

Bake/Broil Yes / Variable (400 - 550 °F)

Effortless™ Convection Conversion Yes

Convection Bake / Broil / Roast Yes / Yes / Yes

Oven Preheat Quick

My Favorite

Slow Cook

Effortless™ Temperature Probe Yes

Pizza Button

Keep Warm Yes

Add-a-Minute Yes

Delay Start Yes

Self-Clean / Clean Options Yes/2, 3 4 Hours

Steam Clean Yes

Delay Clean Yes

Kitchen Timer / Timed Cook Option Yes/Yes

Control Lock Yes

Auto Oven Shut-Off 6 Hours

Oven Lock-Out Yes

UPPER OVEN FEATURES

Capacity (Cu. Ft.) 3.8

Convection System True Convection

Oven Light 2 Halogen

Hidden Bake Element Yes

Rack Conﬁguration 1 Heavy Duty / 1 Offset Rack

Baking System Even Baking Technology

Broiling System Power Broil

Bake / Broil Element (Watts) 2,500/4,000

LOWER OVEN FEATURES

Capacity (Cu. Ft.) 3.1

Convection System True Convection

Oven Light 2 Halogen

Hidden Bake Element Yes

Rack Conﬁguration 2 Heavy Duty

Baking System Even Baking Technology

Broiling System Power Broil

Bake / Broil Element (Watts) 2,500/4,000

OPTIONAL ACCESSORIES

3"-High Bottom Trim – Black Stainless (D) / Stainless Steel (F)

10'-Long Armored Power Cable PN # 903056-9010

(D) PN# TBD (S) PN # TBD

CERTIFICATIONS

A.D.A. Compliant

Star-K® Certiﬁed (Sabbath Mode) Yes

SPECIFICATIONS

Oven Interior ( H x W x D ) 17" x 20-1/2" x 18-3/4"

Power Supply Connection Location Left Bottom Rear Voltage Rating 240V / 208V / 60Hz Connected Load (kW Rating)

@ 240 / 208 Volts Amps @ 240 / 208 Volts 37.5/32.7 Minimum Circuit Required (Amps) 40

Shipping Weight (Approx.)

Yes

9 / 6.8

235 Lbs.

PRODUCT DIMENSIONS

A - Height 50-7/16"

B - Width 27"

C - Depth 24-3/4"

D - Height (Wrapper) 48-5/8"

E - Width (Wrapper) 28-1/4"

Depth with Door Open 90˚ 45-3/4"

CABINET CUTOUT DIMENSIONS

Height (Min.) / (Max.) 48-7/8" / 49-7/8"

Width (Min.) / (Max.) 24-7/8" / 25-1/4"

Depth (Min.) 24"

•

USA

10200 David Taylor Drive

•

CANADA

5855 Terry Fox Way

•

Charlotte, NC 28262

•

Mississauga, ON L5V 3E4

•

1-800-FRIGIDAIRE

•

1-800-265-8352

1 When properly installed, this model is A.D.A.-qualied based on the United States Access Board’s A.D.A./

A.B.A. Accessibility Guidelines and the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.

Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.

Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com / frigidaire.ca.

•

frigidaire.com

•

frigidaire.ca

Specifications subject to change. Accessories information available on the web at frigidaire.com / frigidaire.ca

FGET2766U 11/18

Page 3

FGET2766U F/D

DOUBLE WALL OVEN

27" ELECTRIC

11/2"

min.

1/8"

5/8"

Spacers

5/8"

Power supply location (left bottom

7/16"

(includes

bottom trim)

27"

rear)

Allow at least 21" clearance

243/4"

for door depth

when open

*Critical dimension – MUST be applied

**For cutout height greater than 49

", add one 2"-wide wood

/ shim of appropriate height to each side of opening under oven side rails. Lifting oven will hide larger cutout opening at top and oven’s 1"-high bottom trim will hide shims at bottom.

(Optional 3"-high

bottom trim available for cutout height greater than 49

".)

7/8"

min.

7/8"

max.

/2"

suggested

distance

/2"

min.

required

/8"

min.

/4"

max.

2"-wide

wood spacers

(if needed)**

24" min.*

(critical

dimension)

2" min.

4" x 4" opening to route armored cable

Full base required to support 300 lbs.

3" max.

Electrical junction box location

INSTALLATION SPECIFICATIONS

•

Product Shipping Weight (approx.) – 265 Lbs.

•

Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC only electrical supply with ground required on separate circuit fused on both sides of line.

•

Connected Load (kW Rating) @ 240 / 208 Volts = 7.4 / 5.6 kW

•

Amps @ 240 / 208 Volts = 30.8 / 26.9 Amps

•

Recommended Circuit Breaker – 40 Amps

•

Always consult local and national electric codes.

•

Minimum 21" clearance for oven door depth when open.

•

Suggested distance from floor is 11-1/2". Minimum required distance is 4-1/2".

•

Minimum 24" deep cutout dimension is critical for proper installation, to ensure that oven’s faceplate will fit flush against cabinet front.

•

To adapt oven to fit cutout height greater than 49-1/2", add one 2"-wide wood shim of appropriate height to each side of opening under oven side rails. Lifting oven will hide larger cutout opening at top and oven’s 1"-high bottom trim will hide shims at bottom. (Standard 1"-High Bottom Trim included.)

•

To adapt oven to fit cutout height greater than 49-7/8", optional 3"-High Bottom Trim available.

Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com / frigidaire.ca.

•

USA

10200 David Taylor Drive

•

CANADA

5855 Terry Fox Way

•

Charlotte, NC 28262

•

Mississauga, ON L5V 3E4

•

1-800-FRIGIDAIRE

•

1-800-265-8352

•

frigidaire.com

•

frigidaire.ca

•

Full oven base of solid plywood or similar material required, capable of supporting 300 Lbs.

•

Base must be level and cabinet front must be square.

•

Double Wall Ovens are NOT approved to be used in stackable or side-by-side installation.

OPTIONAL ACCESSORIES

•

3"-High Black Stainless Steel Bottom Trim – (PN #TBD).

•

3"-High Stainless Steel Bottom Trim – (PN #TBD).

•

10'-Long Armored Power Cable – (PN # 903056-9010).

Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.

Specifications subject to change. Accessories information available on the web at frigidaire.com / frigidaire.ca

FGET2766U 11/18
