Freezer
FFFC18M4RW
Manual Defrost
18 Cu. Ft. Chest
Product Dimensions
Height (Including Lid) 35"
Width 61-1/4"
Depth 27-1/2"
More Easy-To-Use Features
Color-Coordinated Handle
Lock with Pop-Out Key
The freezer key automatically ejects after
locking the door so you won't leave it in
the door.
Place and center
image here.
Signature Features
SpaceWise® Adjustable
Baskets with ColorCoordinated Clips
Take organization to the next level with
our heavy-duty adjustable plastic baskets
with color-coordinated clips that snap-on
and can be used to organize items by
categories or purchase date so items are
much easier to find.
Built with American Pride
Appliances that are high-performing,
more accessible, and more innovative
than ever — designed, built, and
engineered in the U.S.A.
Adjustable
Temperature Control
Select the correct temperature for
your needs.
Available in:
White
(W)
Power-On Indicator Light
Know at a glance that your freezer
is working.
Defrost Water Drain
Use the drain to conveniently remove
water during defrosting.
frigidaire.com
A
B
C

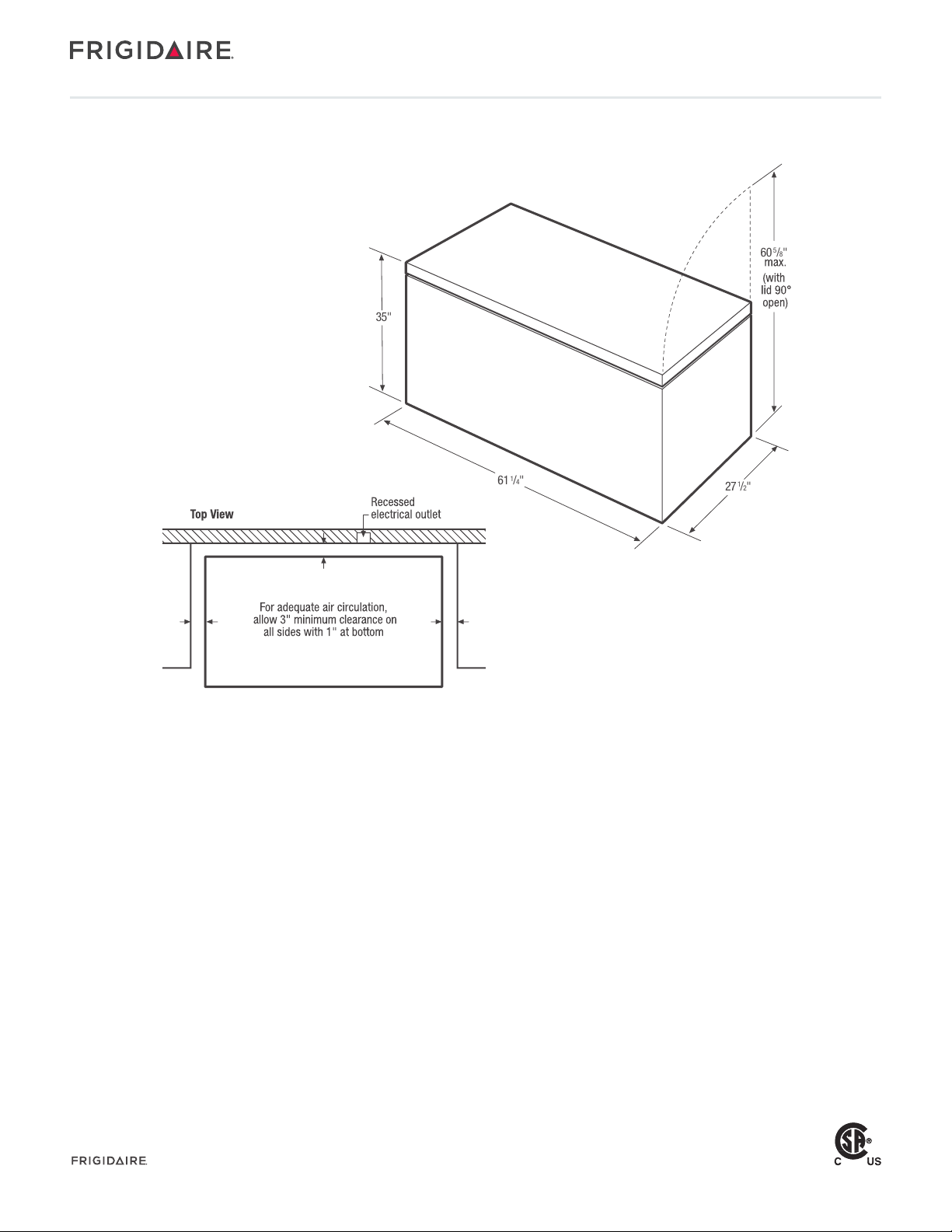

Top View
For adequate air circulation,
allow 3" minimum clearance on
all sides with 1" at bottom
Recessed
electrical outlet
Features
Defrost
Adjustable Temperature Control
Interior Lighting
SpaceWise® Sliding Plastic Baskets with
Color-Coordinated Clips
SpaceWise® Adjustable Dividers
Food Organization System
Defrost Water Drain
Lid Handle
Lock with Pop-Out Key
Power-On Light
Manual
Yes
Incandescent
2 Full-Width Upper Baskets
Yes
Yes
Yes
Yes
Certifications
CSA Rating
Household
Specifications
Total Capacity (Cu. Ft.)
Annual Energy (kWH)
Annual Energy Cost (.12/ kWH)
Power Supply Connection Location
Voltage Rating
Connected Load (kW rating) @ 115 Volts
Amps @ 115 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
An electrical supply with grounded three-prong receptacle is required. The
power supply circuit must be installed in accordance with current edition of
National Electrical Code (NFPA 70) and local codes & ordinances.
17.51
331
40
Bottom Rear
115V / 60Hz / 5A
1
.6
5
15
200 Lbs.
Freezer
FFFC18M4RW 18 Cu. Ft. Chest
NOTE: For planning purposes only. Always consult local and
national electric codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Including Lid)
B - Width
C - Depth
Height with Lid Open 90°
35"
61-1/4"
27-1/2"
60-5/8"
•
USA
10200 David Taylor Drive
•
CANADA
FFFC18M4R 10/15 © 2015 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
18 Cu. Ft. Chest Freezers 2014
Frigidaire
35"
61
1/4"
27
1/2"
60
5
/8"
Freezer
FFFC18M4RW 18 Cu. Ft. Chest
Chest Freezer Specifications
•
Product Shipping Weight (approx.) – 200 Lbs.
•
An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (NFPA 70) and
local codes & ordinances.
•
Voltage Rating – 115V / 60 Hz / 5 Amps
•
Connected Load (kW Rating) @ 115 Volts = 0.6 kW
•
Amps @ 115 Volts = 5 Amps
•
Always consult local and national electric codes.
•
For adequate air circulation, allow 3" minimum clearance on all
sides with 1" at bottom.
•
Locate where surrounding air temperature will not exceed 110° F,
to ensure optimum performance. (Temperatures 32° F and below
will NOT affect operation.)
•
All bottom corners of unit MUST rest firmly on solid level surface
of hard material, same height as flooring. Surface must be strong
and stable enough to support unit when fully loaded.
•
Equipped with adjustable leveling legs to ensure unit is level,
which is required in order to function properly.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
•
USA
10200 David Taylor Drive
•
CANADA
FFFC18M4R 10/15 © 2015 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
