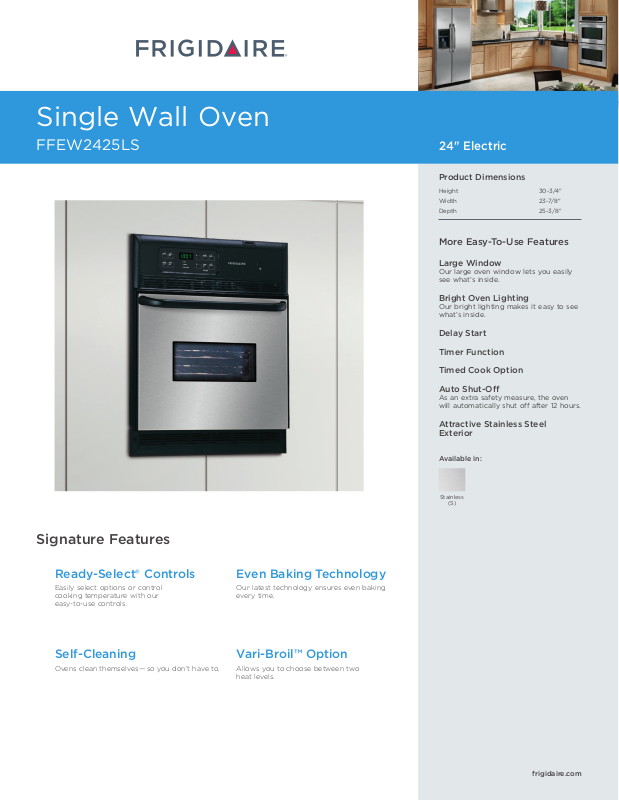

FRIGIDAIRE FFEW2425LS User Manual
Drop-In Cooktop
Single Wall Oven
FPEC3085K S
FFEW2425LS
30" Electric
24" Electric
Product Dimensions
Height 30-3/4"
Width 23-7/8"
Depth 25-3/8"
More Easy-To-Use Features
Large Window
Our large oven window lets you easily
see what’s inside.
Bright Oven Lighting
Our bright lighting makes it easy to see
what’s inside.
Delay Start
Timer Function
Timed Cook Option
Auto Shut-O
As an extra safety measure, the oven
will automatically shut off after 12 hours.
Attractive Stainless Steel
Exterior
Signature Features
Ready-Select® Controls
Easily select options or control
cooking temperature with our
easy-to-use controls.
Self-Cleaning
Ovens clean themselves — so you don’t have to.
Even Baking Technology
Our latest technology ensures even baking
every time.
Vari-Broil™ Option
Allows you to choose between two
heat levels.
Available in:
Stainless
(S)
frigidaire.com
Features
Oven Control / Timing System
Window
Exterior Door Finish
Handle Design
Oven Cleaning System
Ready-Select®
Large
Stainless Steel
Black
Self Clean
Oven Controls
Bake / Broil
Convection Conversion
Convection Bake / Broil / Roast
Quick Bake Convection
PowerPlus® / Quick Preheat
My Favorite
Chicken Nugget Button
Pizza Button
Keep Warm
Add-a-Minute
Delay Start
Self-Clean
Rapid / Quick Clean Option
Delay Clean
Kitchen Timer
Timed Cook Option
Control Lock
Auto Oven Shut-O
Oven Lock-Out
Yes /
Variable (Hi - Lo)
Yes
Yes
2, 3 Hours
Yes
Yes
Yes
12 Hours
Yes
Oven Features
Capacity (Cu. Ft.)
Convection System
Oven Light
Hidden Bake Element
Rack Configuration
Baking System
Broiling System
Bake / Broil Element (Watts)
2.9
1
2 Handle Racks
Even Baking Technology
Vari-Broil™
2,100 / 3,400
Certifications
Sabbath Mode (Star-K® Certified)
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 240 / 208 Volts
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Approved for Under-Counter
Installation
Shipping Weight (Approx.)
1
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC
only electrical supply with ground required on separate circuit fused on
both sides of line.
16" x 17" x 18-1/2"
Left Bottom Rear
240V / 208V / 60Hz
3.4 /2.6
1
14.2 / 12.5
20
130 Lbs.
Single Wall Oven
FFEW2425LS 24" Electric
B
A
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
D - Height (Wrapper)
E - Width (Wrapper)
Depth with Door Open 90˚
30-3/4"
23-7/8"
25-3/8"
28-3/32"
21-11/16"
44-6/8"
Cutout Dimensions
Height (Min.)
Height (Max.)
Width (Min.)
Width (Max.)
Depth (Min.)
E
C
D
28-1/8"
30-1/8"
22"
22-1/4"
23-1/2"
•
USA
10200 David Taylor Drive
•
CANADA
FFEW2425L 09/13 © 2013 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
24" Single Electric Wall Ovens
Baseline
Single Wall Oven
FFEW2425LS 24" Electric
Single Wall Oven Specifications
•
Product Shipping Weight (approx.) – 130 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•
Connected Load (kW Rating) @ 240 / 208 Volts = 3.4 / 2.6 kW
•
Amps @ 240 / 208 Volts = 14.2 / 12.5 Amps
•
Recommended Circuit Breaker – 20 Amps
•
Always consult local and national electric codes.
•
Minimum 19-3/8" clearance for oven door depth when open.
•
Minimum required distance from floor is 31".
•
Minimum 23-1/2" deep cutout dimension is critical for proper
installation, to ensure that oven’s faceplate will fit flush against
cabinet front.
•
To adapt oven to fit cutout height greater than 28-1/8", add one
2"-wide wood shim of appropriate height to each side of opening
under oven side rails. Lifting oven will hide larger cutout opening at
top and oven’s bottom trim will hide shims at bottom.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com
•
CANADA
FFEW2425L 09/13 © 2013 Electrolux Home Products, Inc.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
•
Full oven base of solid plywood or similar material required,
capable of supporting 150 Lbs.
•
Base must be level and cabinet front must be square.
•
Single Wall Oven is NOT approved to be used in stackable or
side-by-side installation.
•
Single Wall Oven is NOT approved to be used in under-counter
installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
