Frigidaire Fdr38ngdc, Fdr38lpdc, Fdr38hongdc, Fdr38holpdc, Fd38hongdc Owner's Manual

...

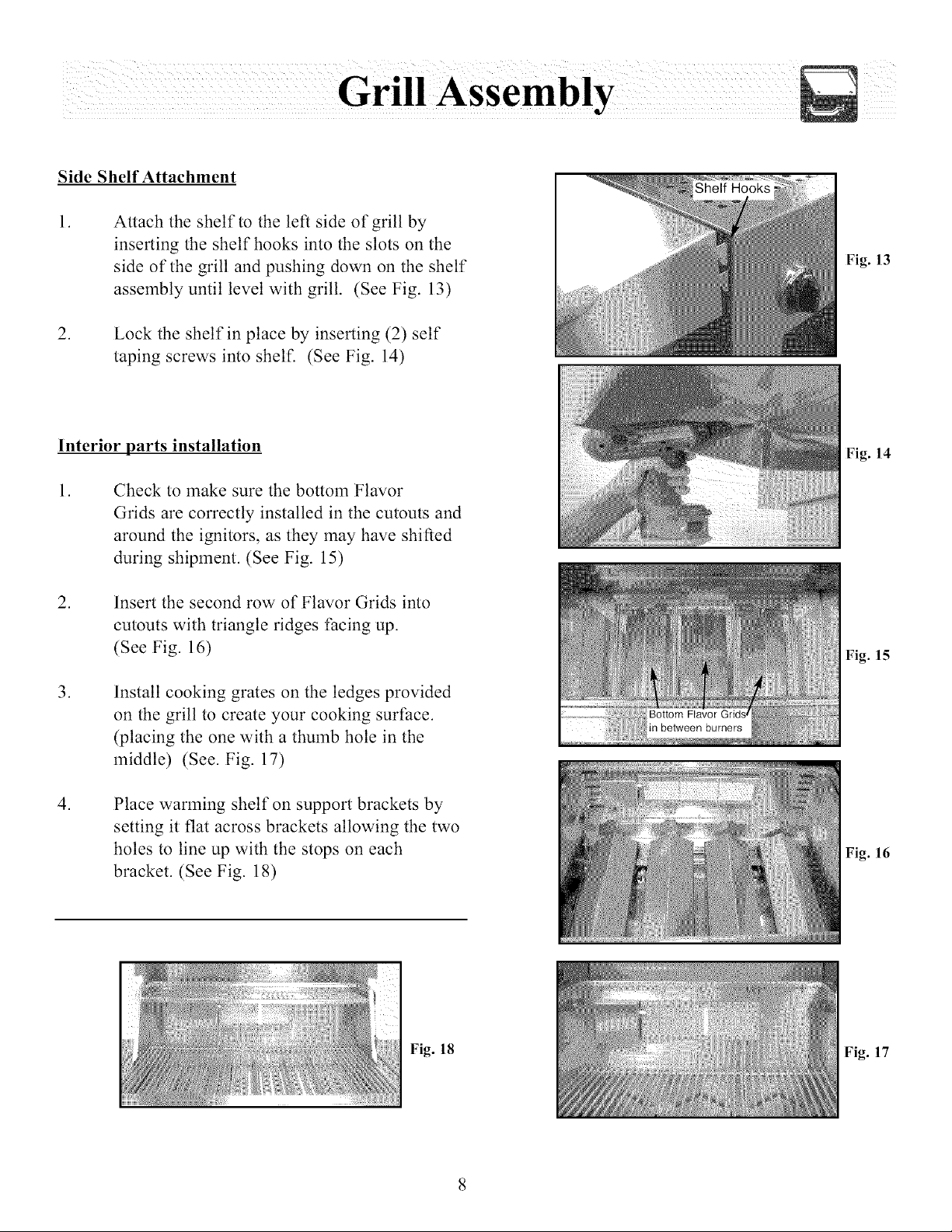

Grill Assembly

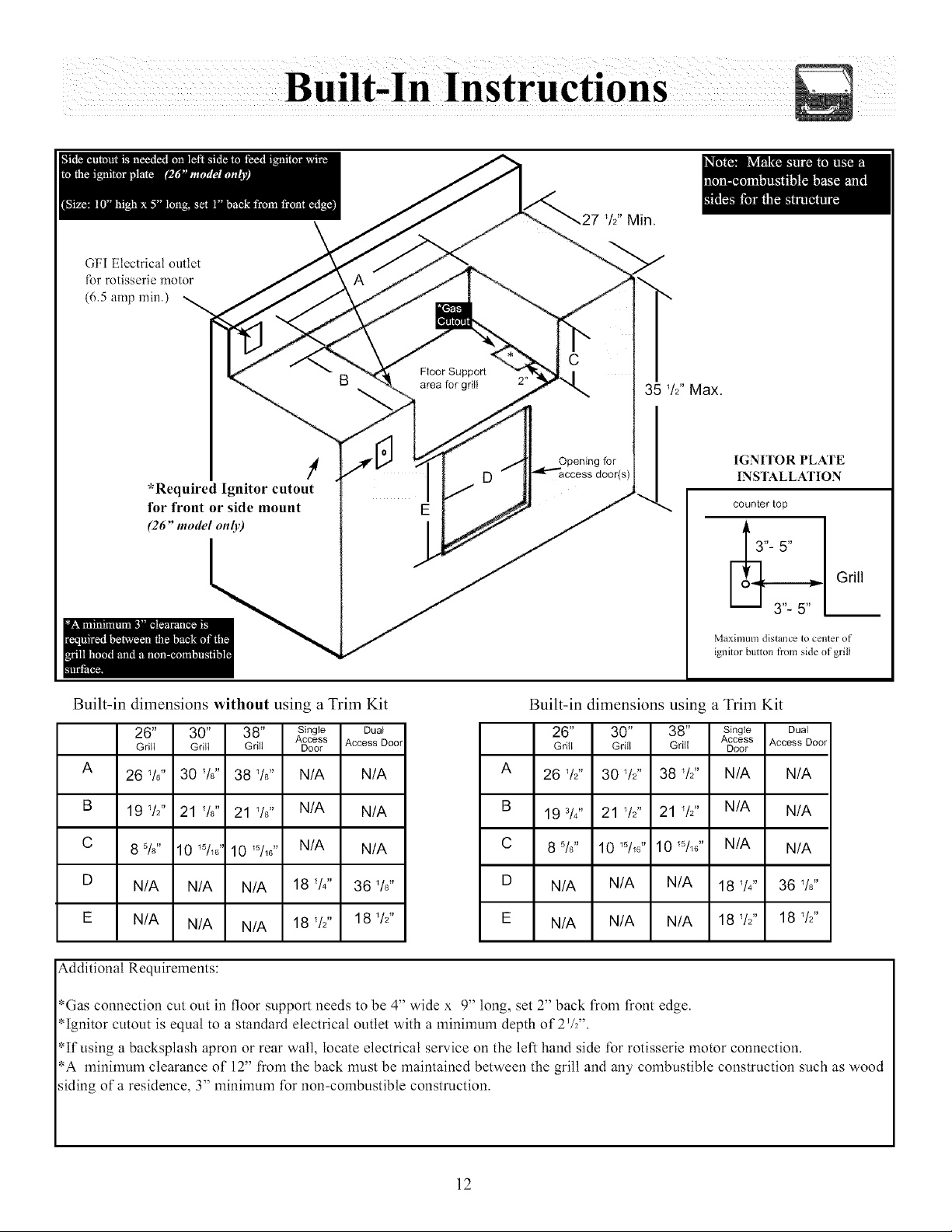

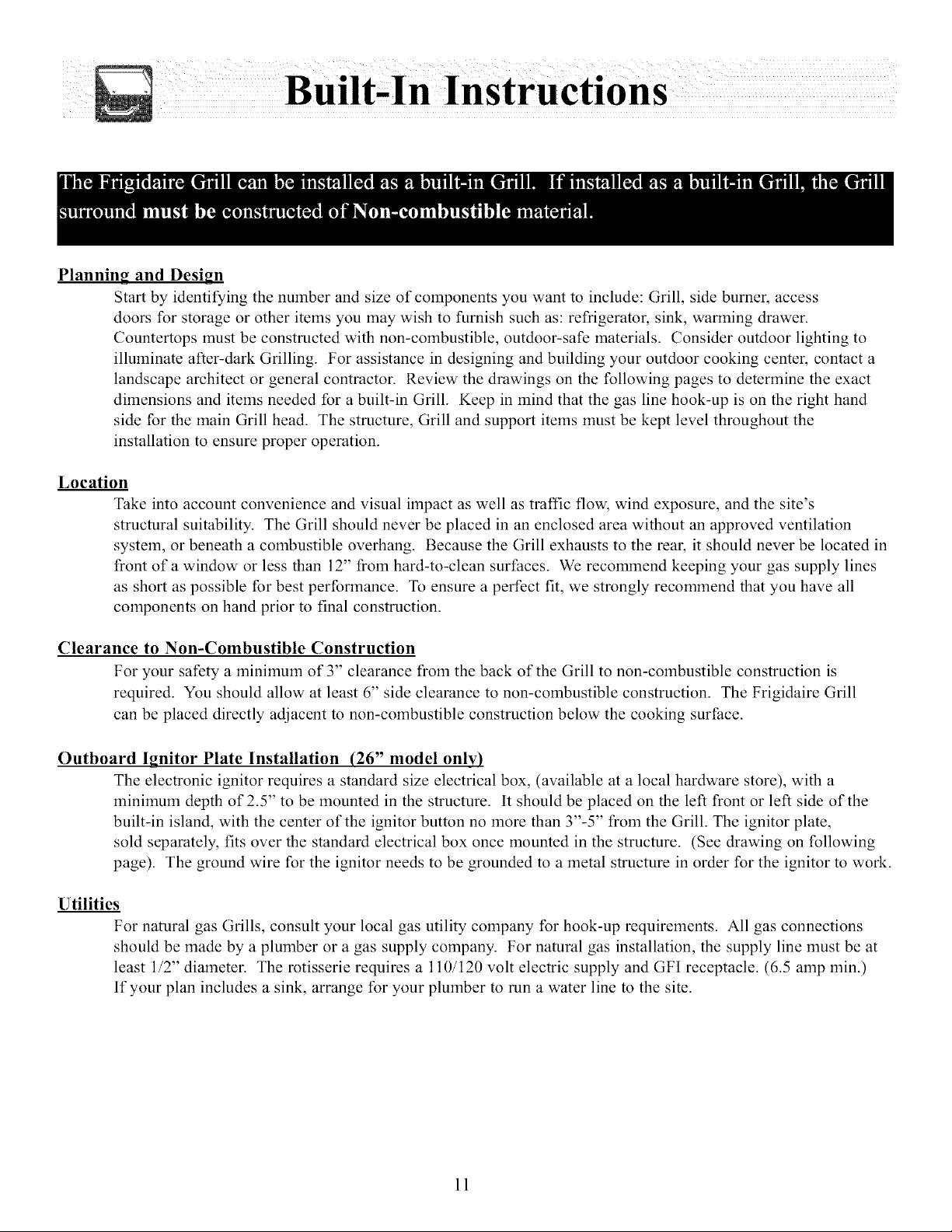

Built-In Instructions ........... 5-12

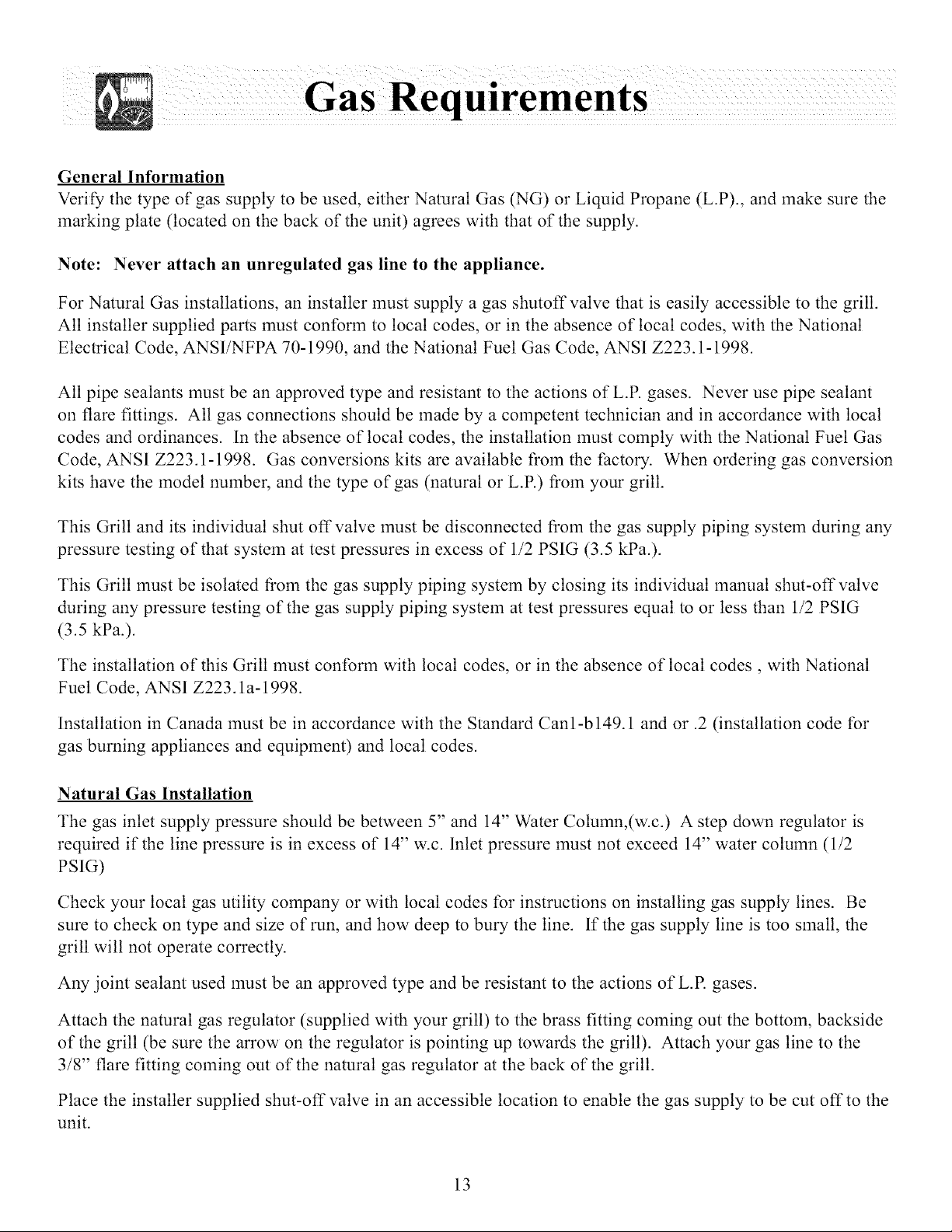

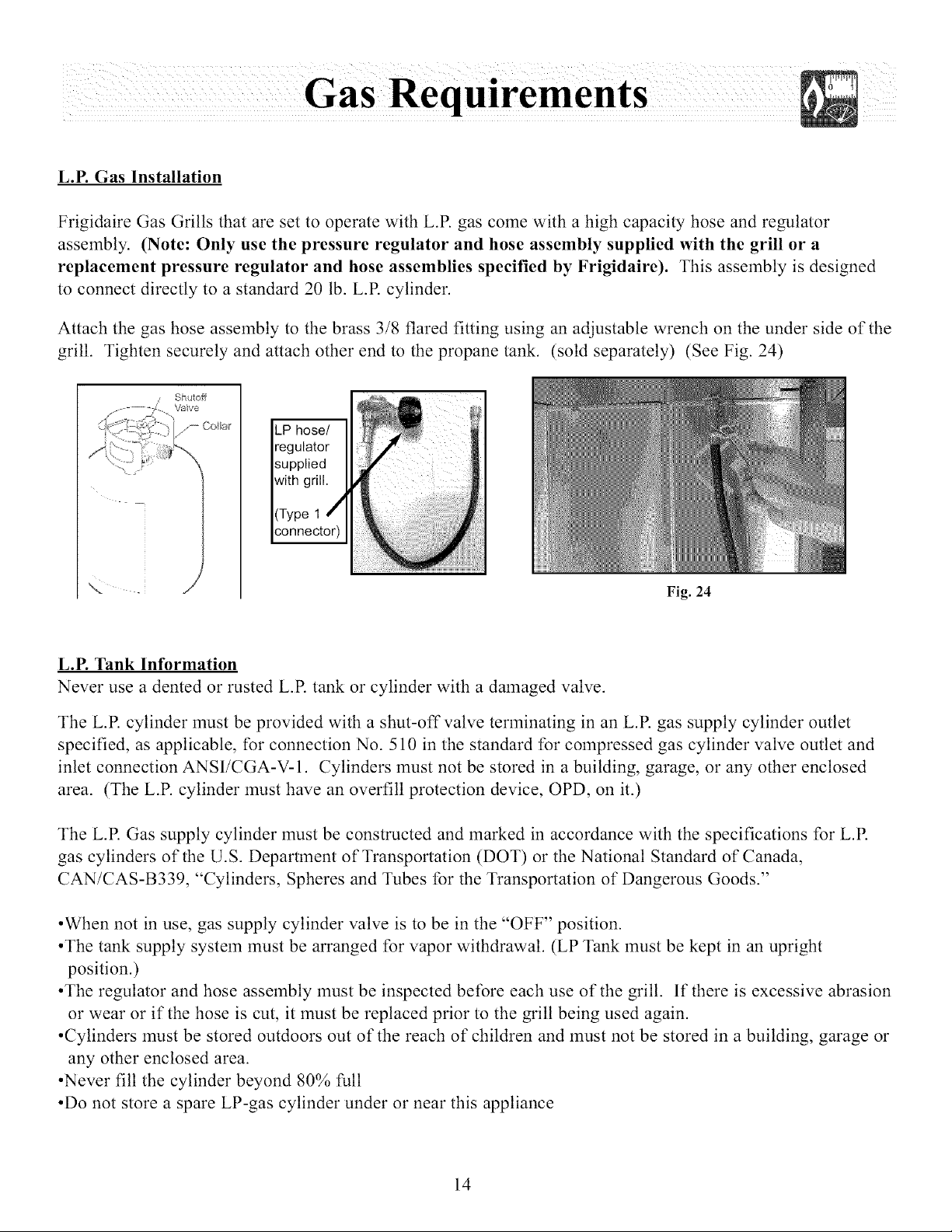

Gas Requirements

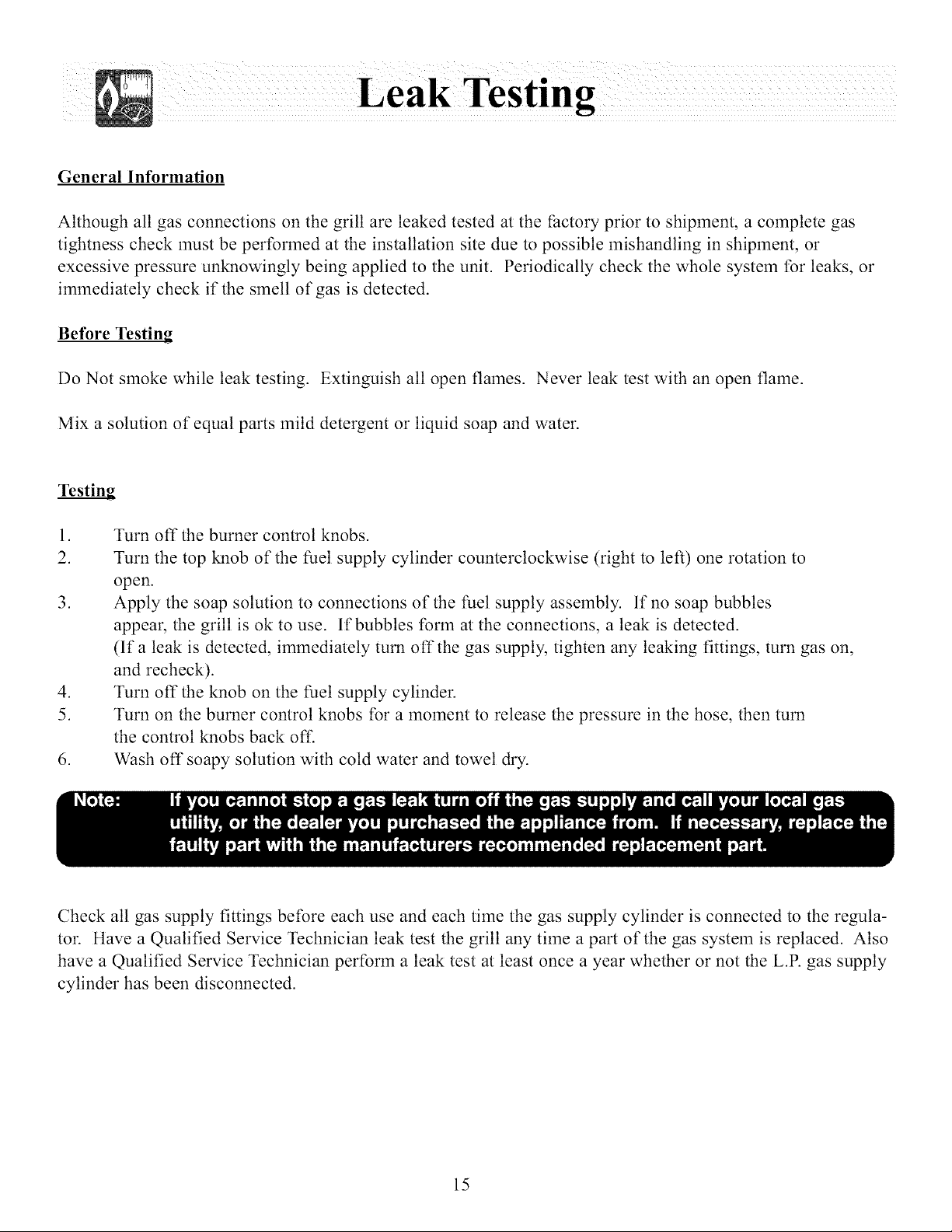

Leak Testing ................. 13-15

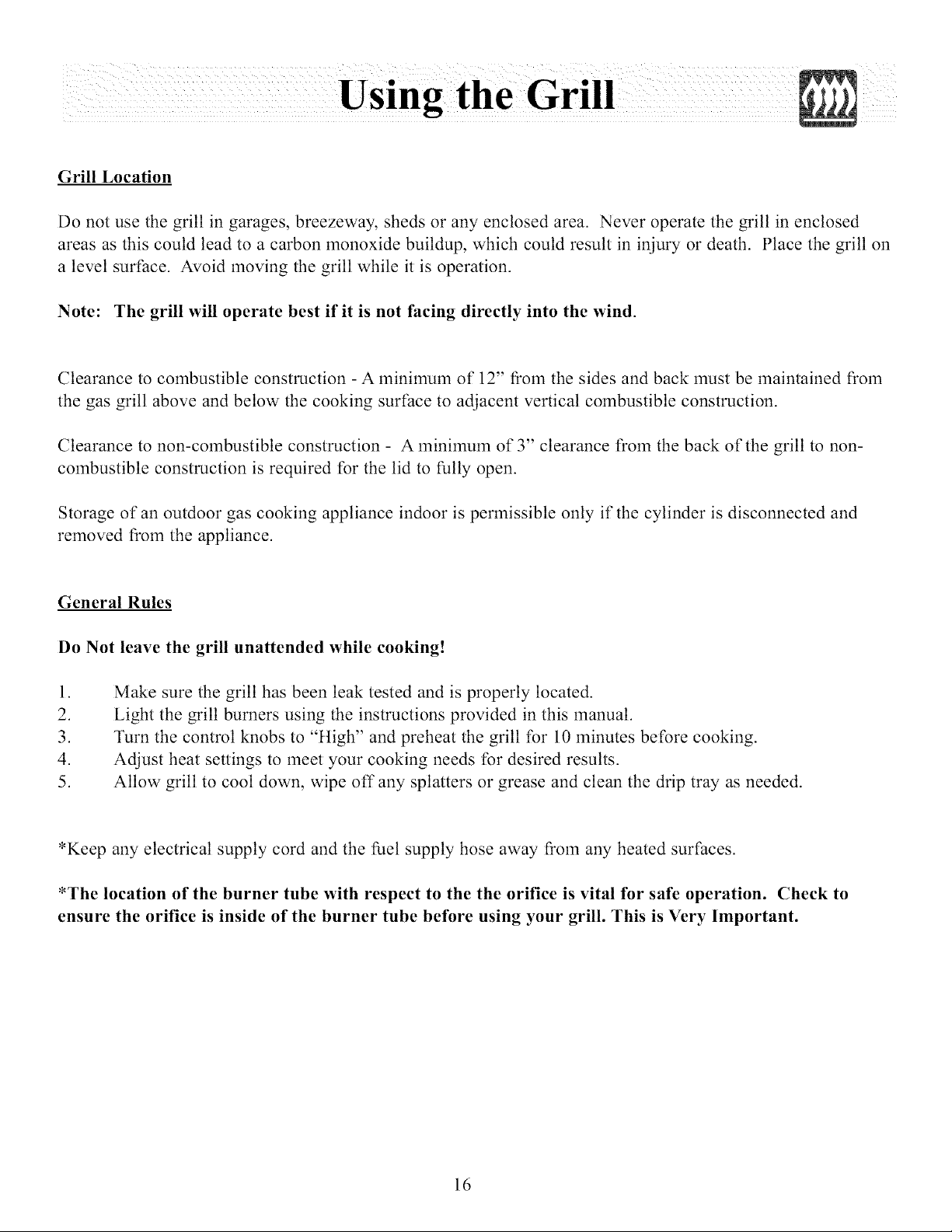

Using the Grill

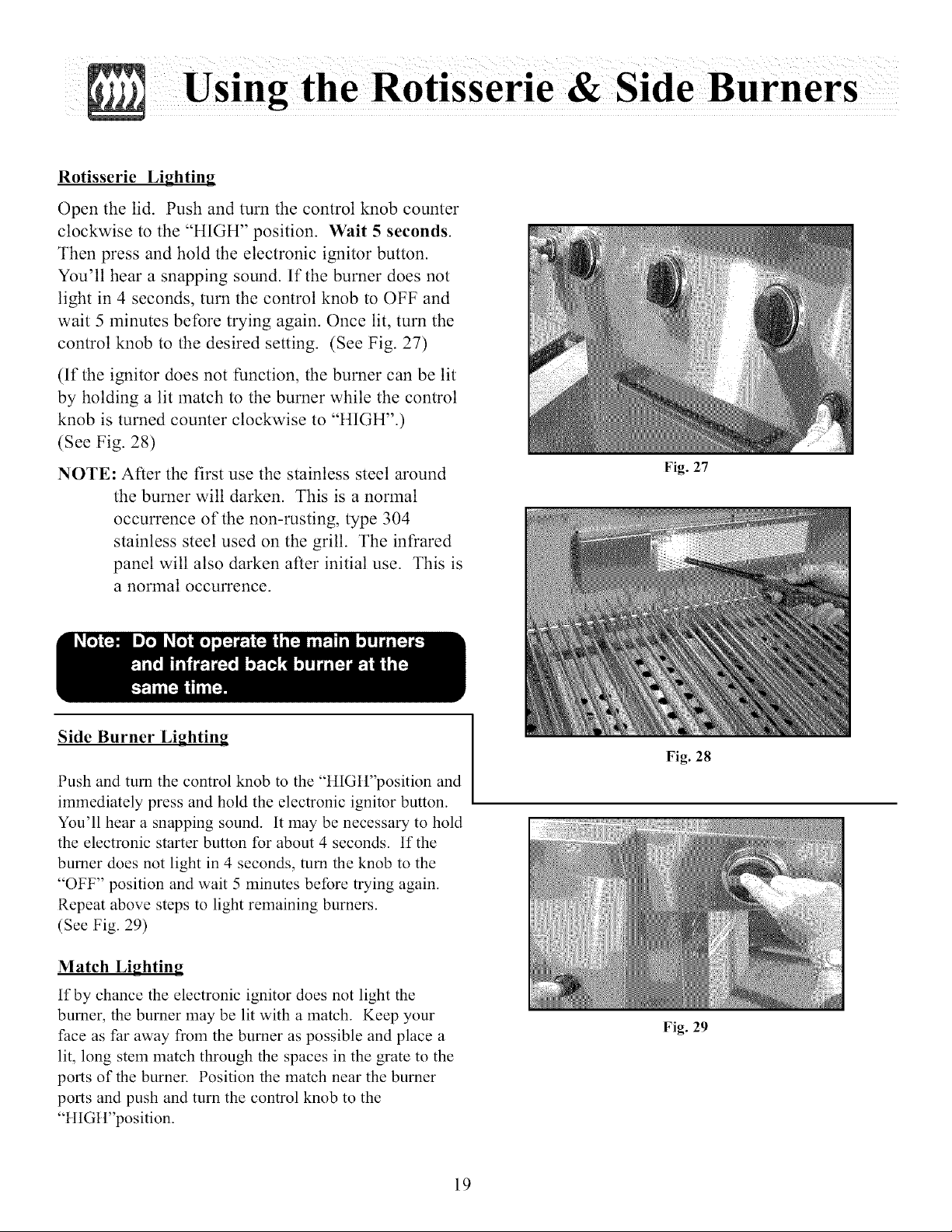

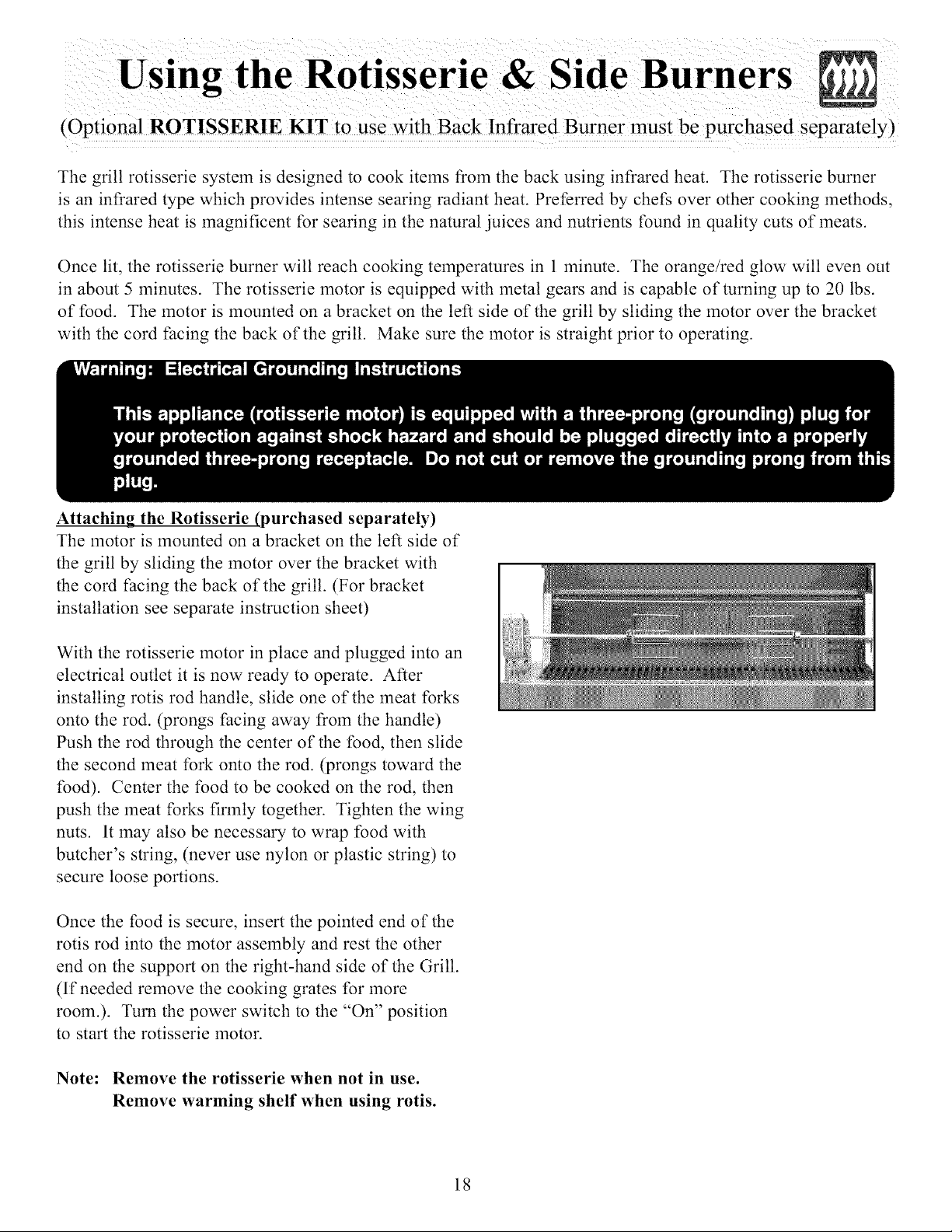

Rotisserie/Side Burner Usage ........... 16-19

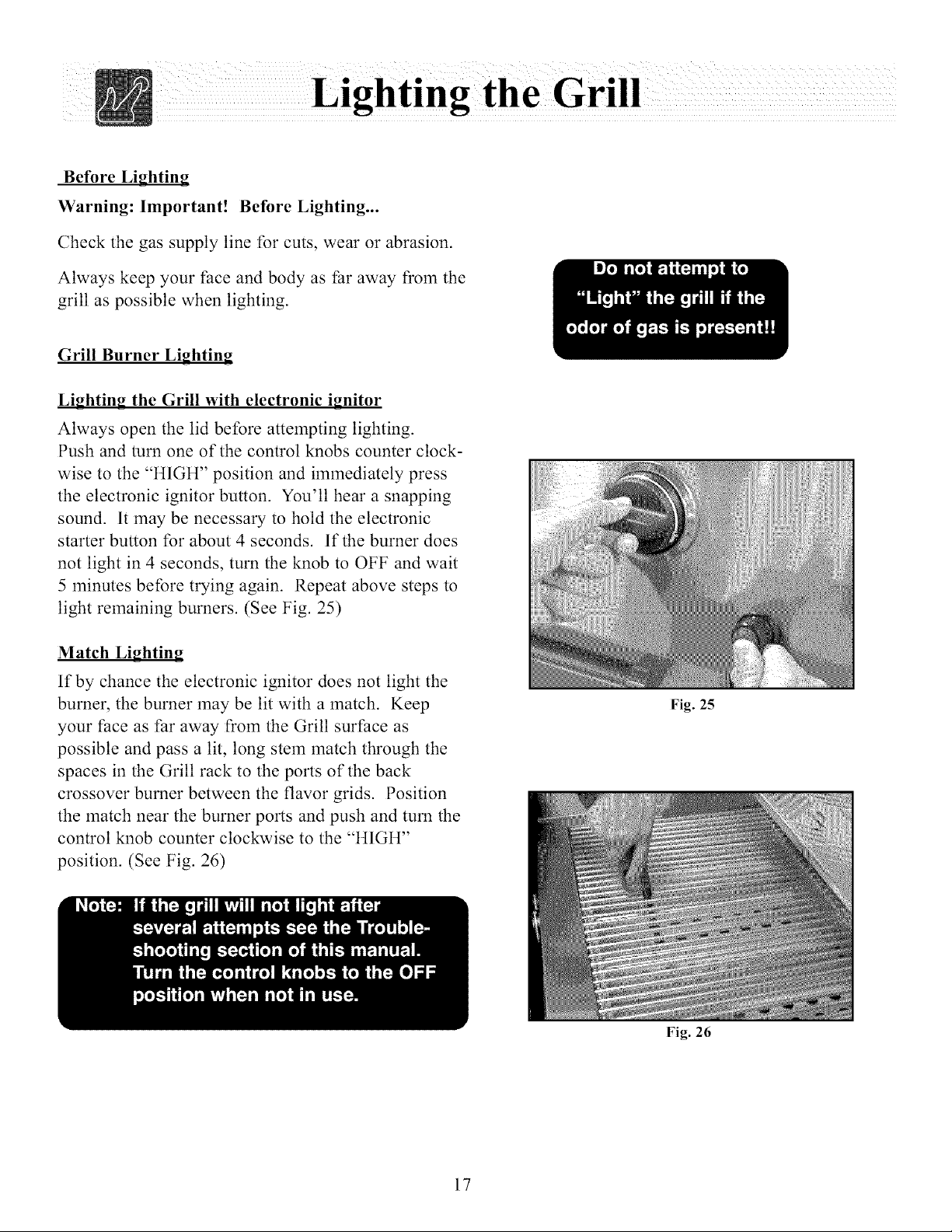

Lighting the Grill ................. 17

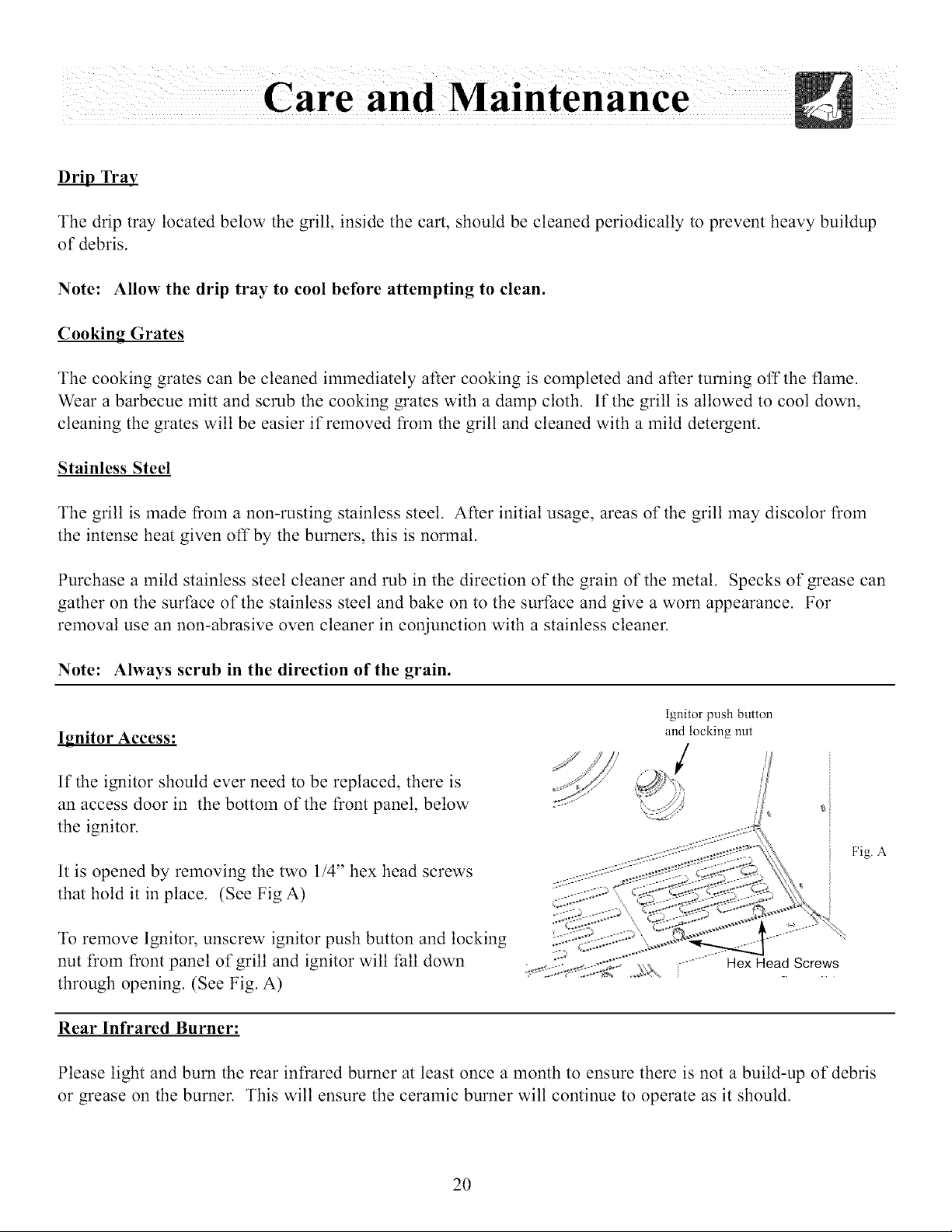

Care & Maintenance ............. 20

Before You CaJm

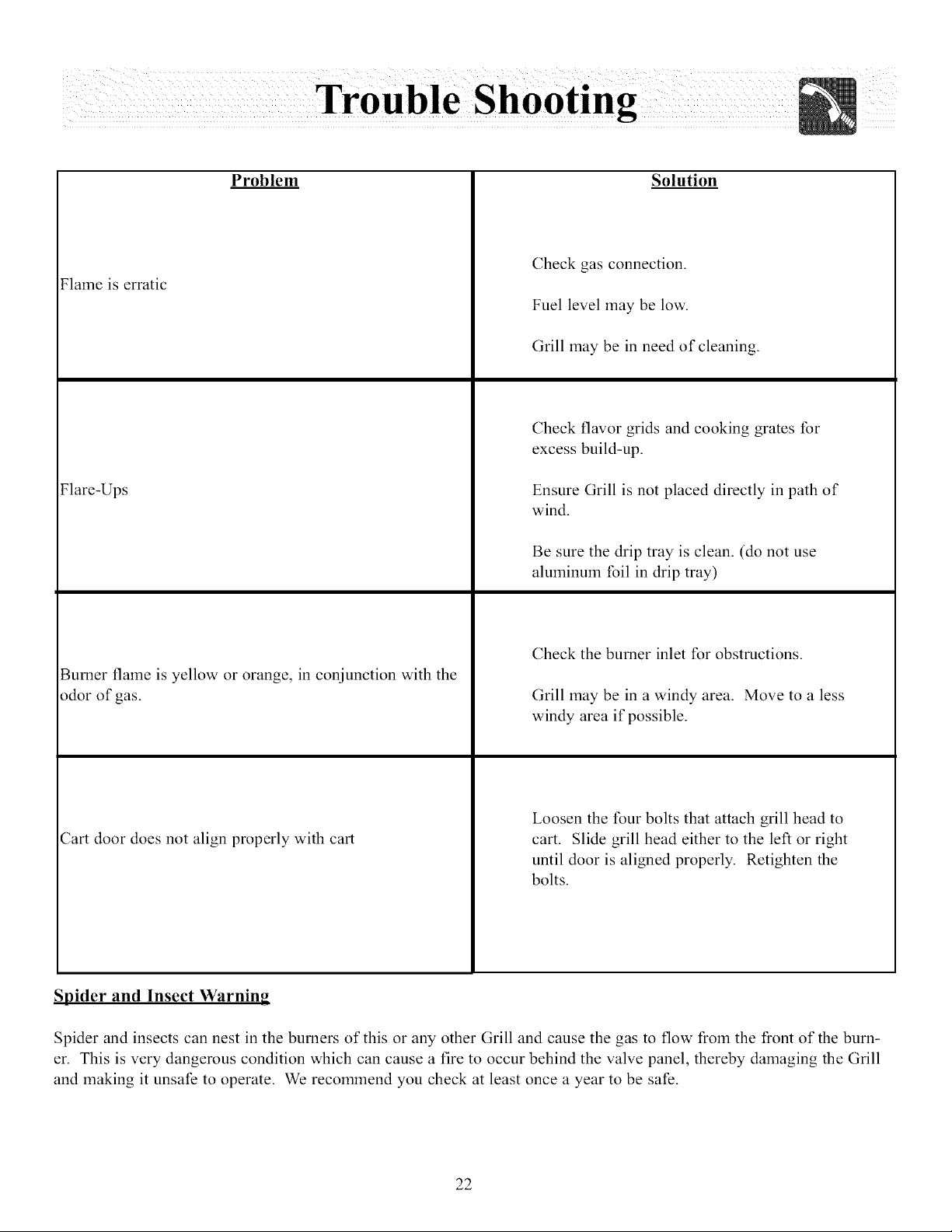

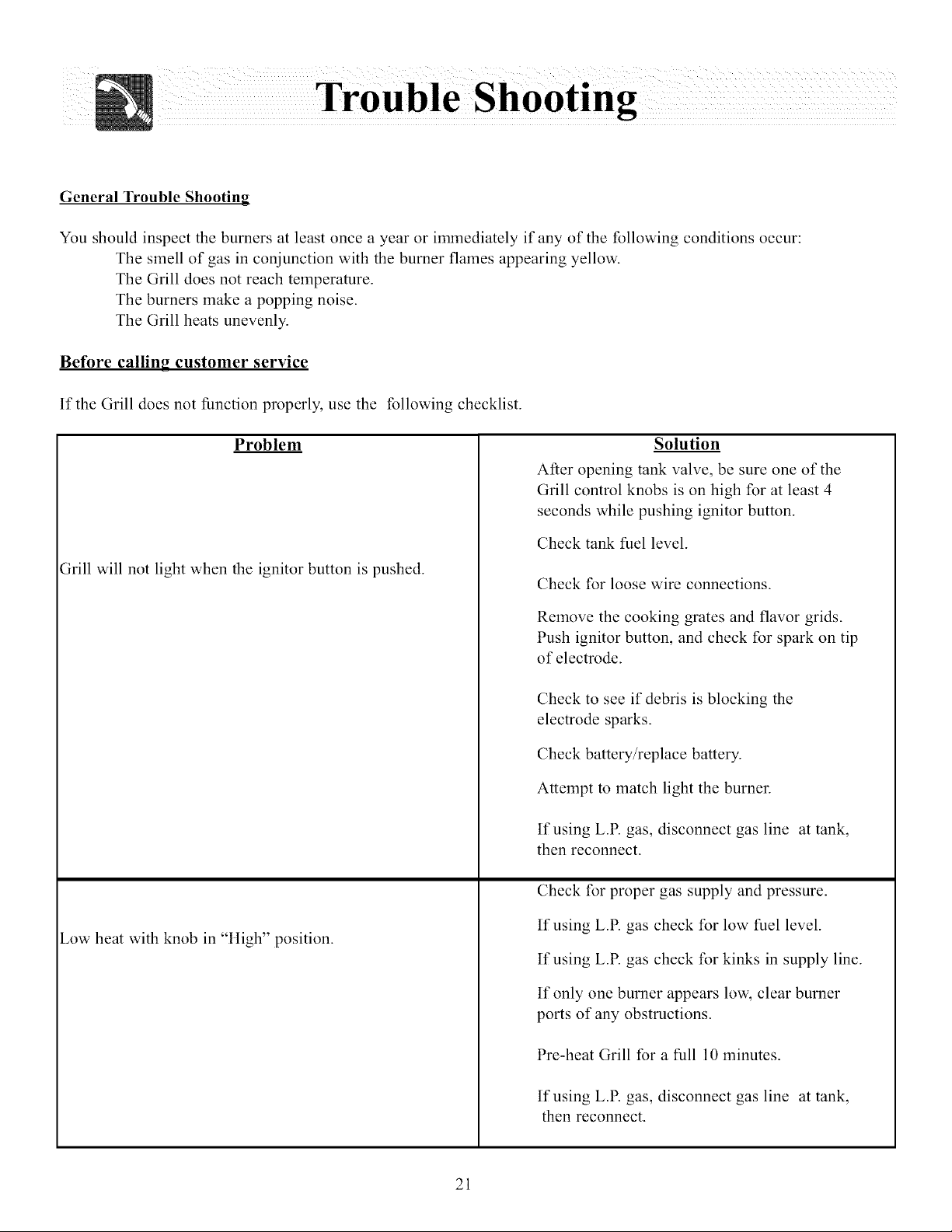

Trouble Shooting ............. 21-22

Visit the Frigidaire Web Site at:

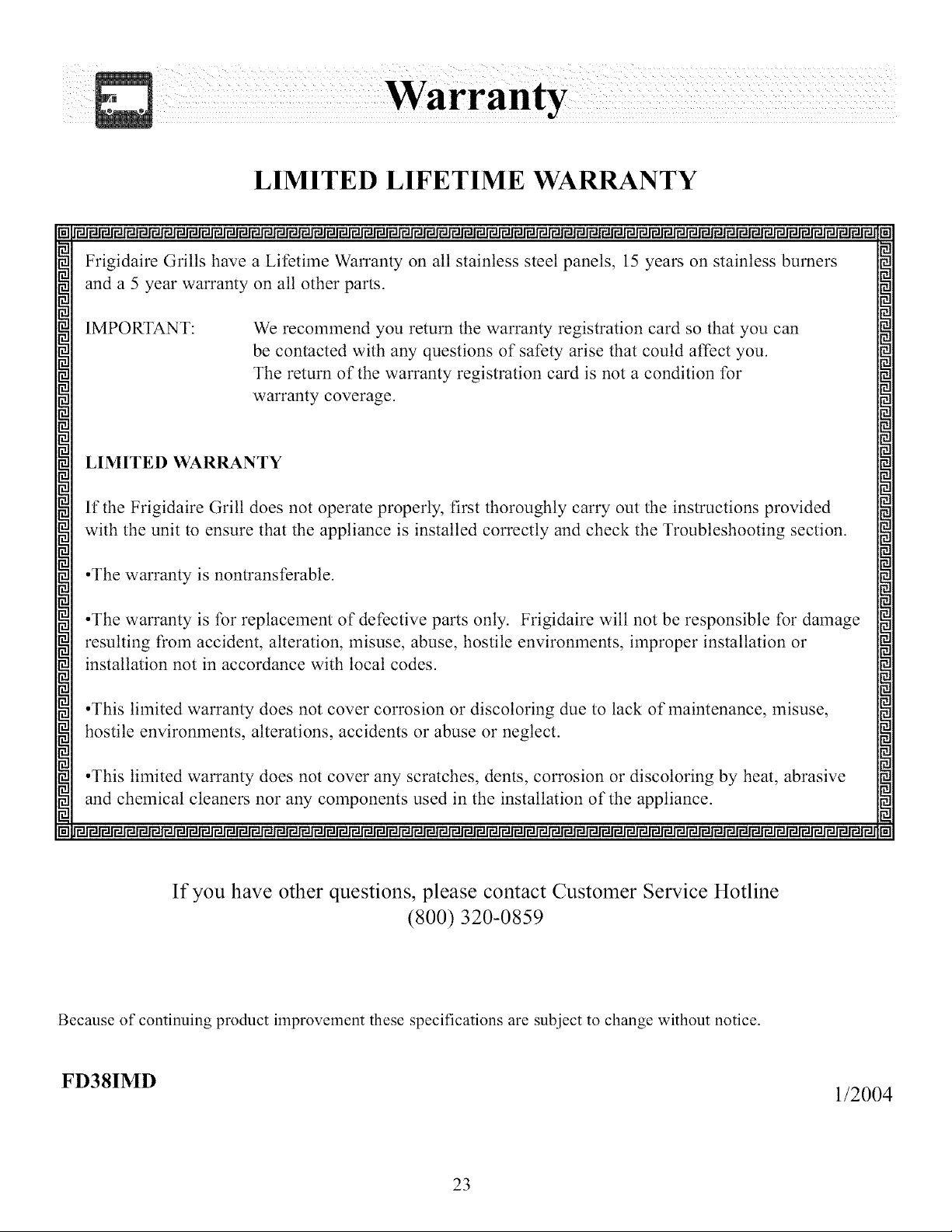

Warranty .......................... 23

http ://www.frig idai re.corn

m _ m

READ AND SAVE THESE iNSTRUCTiONS =MADE IN THE U.S.A.

FD381MDEN 1/04

i aS¸¸¸¸¸¸U /;

Congratulations on your purchase of a new gas grill! At Electrolux Home Products, we are very proud of our product and are completely committed to providing you with the

best service possible. Your satisfaction is our number one priority.

We know you'll enjoy your new gas grill and Thank You for choosing our product. We hope you consider us for future purchases.

PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS

This Use & Care Manual provides specific operating instruction for your model. Use your gas grill only as instructed in this manual. These instructions are not meant to cover every

possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating and maintaining any appliance.

Questions? 1-800-320-0859

Please record Grill information for future reference and service work:

Model #:

Serial #:

Date of Purchase:

Gas Type:

Please retain this manual tbr thture reference

IMPORTANT SAFETY INFORMATION

- Read this manual carefully before using your grill to reduce the risk of fire, burn hazard or other injury.

- Extreme care should be used because of the high temperatures produced by this appliance. CHILDREN SHOULD NOT BE LEFT UNATTENDED IN AN AREA WHERE THE GRILL IS BEING OPERATED.

- This appliance rnust be kept clear from combustible materials, gasoline or other flammable vapors and liquids. Do not allow flammable materials to come in contact with grate, burner or hot surfaces.

- Do not repair or replace any part of this appliance unless it is specifically recommended in this manual. A qualified service techni- cian should conduct all other service.

- Follow the installation and servicing instructions provided with this product. Have your grill installed by a qualified service techni- cian. Locate the main gas supply valve so that you know how to shut the gas off to your grill. If you smell gas, make sure all gas connections are tight before operation. If you continue to smell gas call a qualified technician.

- When lighting a burner, always pay close attention to what you are doing. Be certain you are pushing the ignitor that lights the burner you intend on using.

Roll top grill hood

Grilling/Cooking surface

Side Shelf"

Control knob: back infrared burner

Control knobs: main burners

Warming shelf

10.

11.

Infrared back burner

Electronic ignitor: main, rear infrared

& side burner

Cart w/doors

12. lgnitor access opening

Convection vents

13. Side Burner

7. ttandle 14. Control knob:side burner

Cart Parts 2 L-shaped side pieces

1 U-shaped back side piece 1 Base

2 Wheel channels

Cart2Door Parts

Part #'s WIP- 192-71 D384 WIP- 192-72D384 WIP- 192-70D384

WIP- 192-438365L/R

Doors Handle Kits

Nylon bushings

Door pivot screws and nuts

Grill Parts

1 1 1 1

7 3

1 1

Stainless steel grill head Stainless steel side shelf

Side burner (side shelf) Electronic ignitor Flavor grids

Stainless steel bar grates Stainless steel warming rack

Drip pan Magnetic catches Hose and regulator (LP models only)

Assembly Parts

RMP-122-00921 RMP-122-00520 RMP- 122-00598/122-00508

Grill Parts

WIP-122-11D384 WIP- 192-326393 WIP- 191-43DGN4 RMP-122-53306 WIP-191-13D384 RMP-122-00699 WIP-191-538015

RMP-122-00005 RMP-122-00029 RMP-122-00821

Assembly Parts

16 Hex head screws

8 Bolts 2 Rubber Door Stops with Bolts

1 1 1/4" Plastic Plug

RMP-122-00615 RMP-122-00626 RMP-122-00579 RMP- 122-00492

Note:

Prior to assembly remove protective film from stainless steel parts

Cart Assembly, Door Stops & Door Pivot Bolts

1. Attach the two L-shaped sides to the back portion

of the cart, making sure the two holes face up & the key holes are on the top, using the (4) self tapping hex head screws. (See Fig. 1)

Fig. 1

Wheel Channel

Fig. 2

Note: A power screwdriver is required to install the

screws-be cautious not to over-tighten and strip the screws.

Set the base on the top of the cart assembly, with large opening closer to back portion of cart, and align the eight mounting holes. Then set the 2 wheel channels on the base and attach them using the (8) bolts provided, from inside the cart

upwards through wheel channels. (See Fig. 2)

Note: Tighten the bolts securely

3. Door Stops: Insert Door Stop Bolts downward

from bottom side of Cart Base through the hole found in the middle/front of the base. (See Fig 3)

Screw Rubber Caps onto Bolts from the topside of Cart Base and tighten securely. (See Fig 4)

. Door Pivot Bolts: Insert Bolts downward from

bottom side of Cart Base through the holes found in the left & right/front of the base and secure with bolt. (See Fig. 2)

Fig. 3

Fig. 4

Attaching Grill Head to Cart

1. While keeping the Grill on the foam base lean it onto its back. (be sure to hold the

hood shut when doing this.) With the Grill on its back, loosen all 4 bolts on the bottom side of the Grill, but do not

remove.(See Fig. 5)

Using 2 self, tapping hex head screws, attach the magnetic door catch in the 2 holes

in the bottom of"the grill. (Repeat for second door catch) (See Fig. 6)

tlave someone help you pick up the grill and set it on the top of the cart, with the front

of" the grill above the door opening. Make sure the 4 bolt heads fall through the large

opening of" the key hole slots in the top of" the cart. Slide the grill head backward, so the bolts are resting in the small opening of the

key hole slots. Tighten the bolts securely. Be sure not to over tighten and strip the

bolts. Next insert 4 hex head screws into grill bottom through cart. (See Fig. 7)

Screw holes for

magnetic catch

Fig. 5

Fig. 6

Note: This is a very heavy step that requires

two individuals to complete.

Installing the Cart Door

While holding the door line up the bottom hole on the door with the bolt sticking up

through base of" cart. Next place a nylon bushing onto the top pin, then depress the pin

and insert into the hole in the bottom of'the grill. (See Fig. 8)

Fig. 7

Fig. 8

Installing the Cart Door Handles

Using a 5/32" allen wrench insert 1 screw through the inside of the door front into a bar handle end and tighten securely.

(See Fig. 9)

Insert Bar tlandle into the End Cap attached to the door and then into the

other End Cap and tighten End Cap with allen wrench and screw. (See Fig. 10)

3. Complete Door. (See. Fig. 11)

Repeat above steps for the second door.

Installing the Drip Tray

Backside of door: 2 screw locations

Screw Holes

Fig. 9

The drip pan is installed inside of the cart under the grill head.

Slide the drip pan onto the two ledges located on the bottom of the grill, by inserting it from

the left side of the cart. (See Fig. 12)

Fig. 12

Fig. 10

Fig. 11
