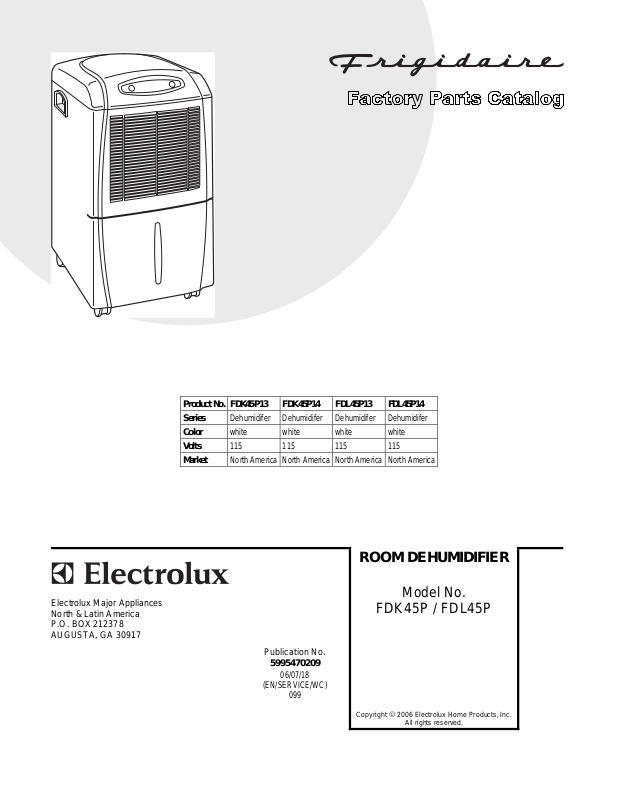

Page 1
Product No. FDK45P13 FDK45P14 FDL45P13 FDL45P14
Series Dehumidifer Dehumidifer Dehumidifer Dehumidifer
Color white white white white
Volts 115 115 115 115
Market North America North America North America North America
FDL25P cover.eps FDL25P.eps 2202619052.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995470209
06/07/18
(EN/SERVICE/WC)
099
ROOM DEHUMIDIFIER
Model No.
FDK45P / FDL45P
Copyright © 2006 Electrolux Home Products, Inc.
All rights reserved.
Page 2
Publication No: 5995470209 FDK45P / FDL45P
RECOMMENDED SPARE PARTS
07/06 2
Page 3
FDK45P / FDL45P Publication No: 5995470209
RECOMMENDED SPARE PARTS
POS. NO PART NO. DESCRIPTION
1 # 5304447105 A B C D Filter, air
2 5304447106 A B C D FRONT PANEL ASSEMBLY
3 5304447279 A B C D Evaporator
4 5304447280 A B C D CONDENSER-AIR COOL, REC.
5 5304447109 A B C D LEFT CONNECTION BOARD
6 5304447110 A B C D RIGHT CONNECTION BOARD
7 5304447111 A B C D SEAL, COND/EVAP COIL, FOAM
8 5304447237 A B C D Panel-left side
9 5304447238 A B C D COVER/TOP CAP ASSEMBLY
10 5304447239 A B C D COVER/TOP CAP
11 5304447240 A B C D MAIN CONTROL ASSEMBLY
12 5304447241 A B C D Overlay-control
13 5304447242 A B C D COVER-CONTROL BOX, E-PART BOX
14 # 5304447243 A B C D PC Board, display/input
15 5304447244 A B C D MAIN CONTROL BOARD
16 5304447245 A B C D CONTROL BOX, E-PART BOX COVER
17 5304447246 A B C D HUMIDITY SENSOR
18 5304447247 A B C D BRACKET, HUMIDITY SENSOR
19 5304447248 A B C D EVAPORATOR PIPE TEMP SENSOR
20 5304447249 A B C D WATER DEPTH SWITCH, OVERFLOW
21 5304447250 A B C D Bracket-fan motor
22 5304447251 A - C - Fan Motor
22 5304447278 - B - D Fan Motor
23 5304447252 A B C D Blade-fan
24 5304447281 A B C D COVER, COMPRESSOR CAPACITOR BOX
25 5304447282 A B C D Strap, capacitor mtg.
26 5304447283 A B C D Capacitor
27 5304447253 A B C D Shroud-condenser
28 5304447254 A B C D FAN MOTOR CAPACITOR BOX
29 # 5304447255 A B C D Terminal, electric
30 5304447284 A B C D FAN MOTOR CAPACITOR
31 5304447257 A B C D WATER DEPTH SWITCH BRACKET
32 5304447258 A B C D Drain Tube
33 5304447259 A B C D TRAY-DRIP, WATER COLLECTOR
34 5304447260 A B C D WATER TANK ASSEMBLY
35 5304447261 A B C D Water Tank
36 5304447262 A B C D TANK HANDLE
37 5304447263 A B C D FLOAT, WATER DEPTH SWITCH PIN
38 5304447264 A B C D WATER TANK COVER
39 5304447265 A B C D WATER TANK BASE
40 5304447266 A B C D Caster
41 5304447267 A B C D SUPPORTING BAR 1
42 5304447285 A B C D Base
43 5304447269 A B C D SUPPORTING BAR II
44 5304447270 A B C D POWER CORD CLAMP
45 5304447271 A B C D Panel-side
46 5304447351 A B C D Compressor Assembly
50 5304447273 A B C D REAR PANEL ASSEMBLY
51 5304447274 A B C D REAR PANEL
52 5304447275 A B C D WATER DRAIN BRACKET
53 5304447276 A B C D Drain Plug
54 5304447277 A B C D HOLDER, POWER CORD BOBBIN
54* 5304448416 A B C D Power Cord
Model Index: A FDK45P (FDK45P13)
B FDK45P (FDK45P14)
C FDL456 (FDL45P13)
D FDL45P (FDL45P14)
# Functional Parts
3 07/06
* Non-Illustrated Parts
Page 4
Publication No: 5995470209 FDK45P / FDL45P

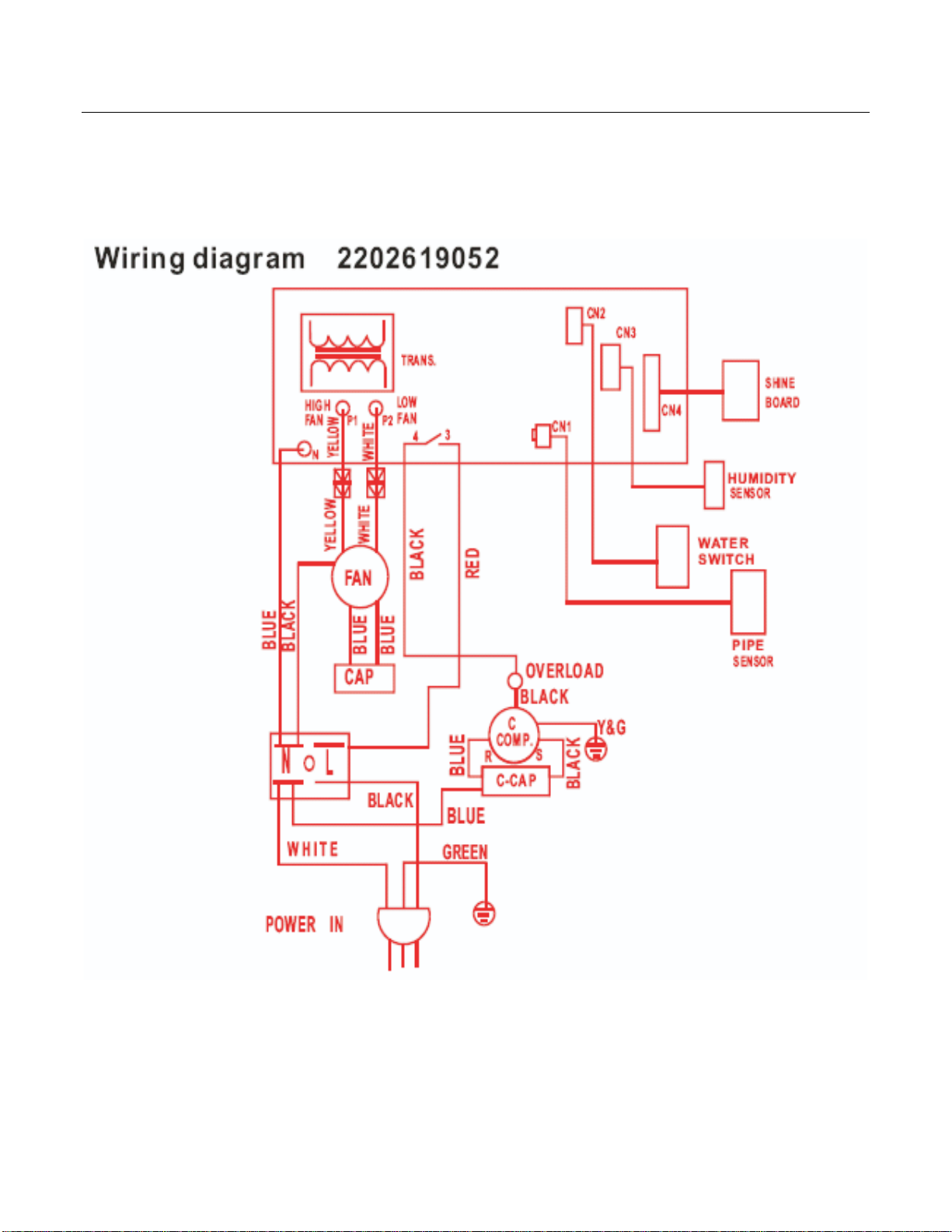

WIRING DIAGRAM
07/06 4
