Friedrich WMPTAC02 User Manual

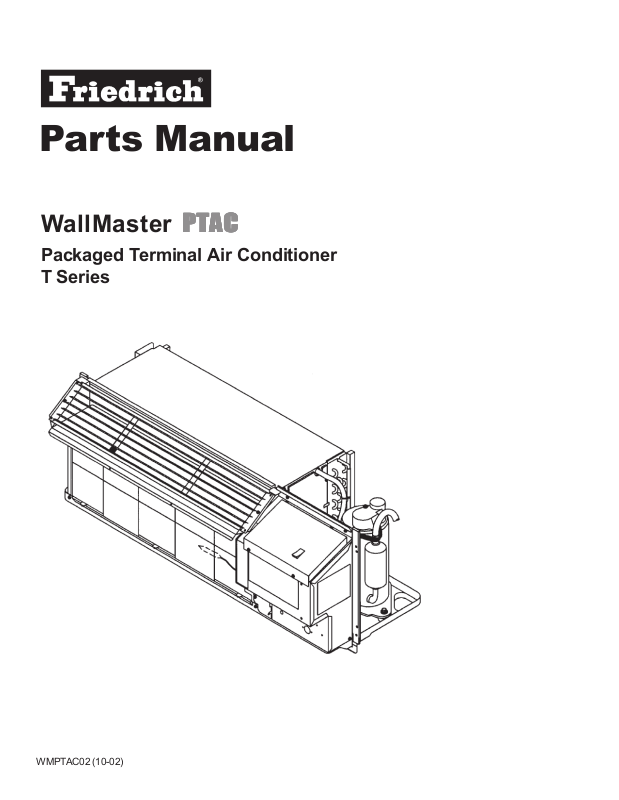

Parts Manual
PTPT
Packaged Terminal Air Conditioner T Series
PT
PTPT
ACAC
AC
ACAC
WMPTAC02 (10-02)
Table of Contents
PTAC Model Number Identification Guide .............................................................. 3
PTAC Serial Number Identification Guide ............................................................... 3
Unit Assembly Drawing .......................................................................................... 4
Unit Assembly Parts List ........................................................................................ 5
Air Handler ............................................................................................................. 6
Air Handler Parts List ............................................................................................. 7
Control Box Assembly ............................................................................................ 8
Control Box Parts List ............................................................................................ 9
Front Cover Assembly Drawing ............................................................................. 10
Front Cover Parts .................................................................................................. 10
Central Desk Control Models ................................................................................ 11
Remote Thermostat Models .................................................................................. 11
Drain Kits and Flex Drive Retrofit Kits ................................................................... 11
Service Parts List .................................................................................................. 11
Notes & Comments ............................................................................................... 12
2
PTAC Model Number Identification Guide
Model Number T H C 07 K 25 ST C
Series Engineering Code T = T Series A - B - C Unit Type Option
E = Electric Heat/No Heat ST = Standard Unit H = Heat Pump RT = Remote Thermostat Design Series DC = Central Desk Control C = Friedrich Manufactured SP = Seacoast Protection A & B = ICP Manufactured
Nominal Heater Size
Nominal Cooling Capacity (@ 230V or 265V)
07 = 6,500 - 7,200 BTUh 12 = 11,500 - 12,200 BTUh 00 = No electric heater 09 = 8,500 - 9,200 BTUh 15 = 14,000 - 15,000 BTUh 25 = 2.5 KW
34 = 3.4 KW Voltage 50 = 5.0 KW K = 208/230V - 1PH - 60Hz R = 265V - 1PH - 60Hz
PTAC Serial Number Identification Guide
Serial Number JG A P 00000
Production Run Number
Year Manufactured
A = 1 D = 4 G = 7 K = 0 B = 2 E = 5 H = 8 Manufacturing Location C = 3 F = 6 J = 9 S = San Antonio Month Manufactured P = San Antonio A = Jan D = Apr G = Jul K = Oct B = Feb E = May H = Aug L = Nov C = Mar F = Jun J = Sep M = Dec
Notes & Comments
Note Units Affected Note or Comment
Heat Pump All Identifies the parts or components used specifically in the heat
THC units pump units. All other components are consistent with all other
units.
Note 1 Identifies the parts or components used specifically in units built
Note 2 All Identifies the parts or components used specifically in units built
Note 3 All The thermostat was changed from the original that had a short A & B suffix only 3/8” diameter bulb to the thermostat that has a long 1/4” bulb.
265V All Identifies the parts or components used specifically in units built
A, B & C suffix
C suffix only starting September 1997 (serial prefix JGJP.....) to current.
Voltage code R to operate on 265V 1PH 60Hz (same as 277V 1PH 60Hz)
prior to August 1997 (serial prefix JGHP.....)
Both have the same operating range. If changing from the 3/8” bulb this kit is required.
3
Unit Assembly
4
