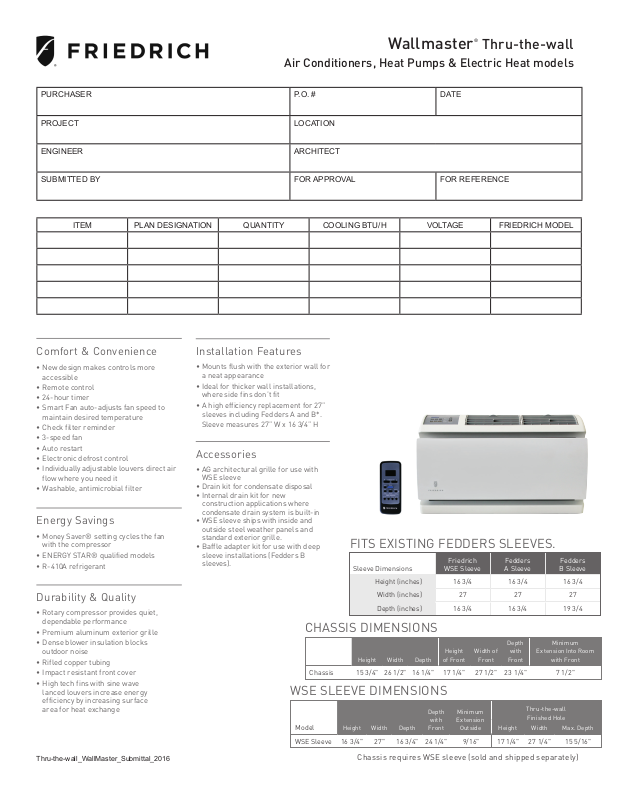

Wallmaster® Thru-the-wall

Height Widt h Depth

Height

of Front

Widt h of

Front

Depth

with

Front

Minimum

Extension Into Ro om

with Fr ont

Chassis 15 3/4" 26 1/2" 16 1/4" 17 1/4" 27 1/2" 23 1/4" 7 1/2"

Model

Height Width Depth

Depth

with

Front

Minimum

Extension

Outside

Thru-the-wall

Finished Hole

Height Width Max. Depth

WSE Sleeve 16 3/4" 27" 16 3/4" 24 1/4" 9/16" 17 1/4" 27 1/4" 15 5/16"

Air Conditioners, Heat Pumps & Electric Heat models

PURCHASER P.O. # DATE

PROJECT LOCATION

ENGINEER ARCHITECT

SUBMITTED BY FOR APPROVAL FOR REFERENCE

ITEM PLAN DESIGNATION QUANTITY COOLING BTU/H VOLTAGE FRIEDRICH MODEL

Comfort & Convenience

• New design makes controls more

accessible

• Remote control

• 24-hour timer

• Smart Fan auto-adjusts fan speed to

maintain desired temperature

• Check filter reminder

• 3-speed fan

• Auto restart

• Electronic defrost control

• Individually adjustable louvers direct air

flow where you need it

• Washable, antimicrobial filter

Energy Savings

• Money Saver® setting cycles the fan

with the compressor

• ENERGY STAR® qualified models

• R-410A refrigerant

Durability & Quality

• Rotary compressor provides quiet,

dependable performance

• Premium aluminum exterior grille

• Dense blower insulation blocks

outdoor noise

• Rifled copper tubing

• Impact resistant front cover

• High tech fins with sine wave

lanced louvers increase energy efficiency by increasing surface area for heat exchange

Installation Features

• Mounts flush with the exterior wall for a neat appearance

• Ideal for thicker wall installations, where side fins don’t fit

• A high efficiency replacement for 27” sleeves including Fedders A and B*.

Sleeve measures 27” W x 16 3/4” H

Accessories

• AG architectural grille for use with

WSE sleeve

• Drain kit for condensate disposal

• Internal drain kit for new

construction applications where condensate drain system is built-in

• WSE sleeve ships with inside and outside steel weather panels and standard exterior grille.

• Baffle adapter kit for use with deep sleeve installations (Fedders B sleeves).

CHASSIS DIMENSIONS

WSE SLEEVE DIMENSIONS

FITS EXISTING FEDDERS SLEEVES.

Sleeve Dimensions

Height (inches) 16 3/4 16 3/4 16 3/4

Width (inches) 27 27 27

Depth (inches) 16 3/4 16 3/4 19 3/4

Friedrich

WSE Sleeve

Fedders A Sleeve

Fedders

B Sleeve

Thru-the-wall_WallMaster_Submittal_2016

Chassis requires WSE sleeve (sold and shipped separately)

SPECIFICATIONS

ENERGY STAR® models



Model Cooling Btu Heating Btu



WS08D10A

WS12D10A

8000

12000

WS15D30A 14500/14000

INDOOR COOLING

Model

WS08D10A

WS12D10A

WS15D30A

0$; +,*+ 0(' /2:

55.3 53.5 52.0 NA 61.5 59.2 58.0 NA 55.1 53.3 52.1 NA 61.5 59.1 57.1 NA

62.1 56.0 51.1 NA 67.1 60.8 56.6 NA 62.1 56.0 51.1 NA 57.1 61.7 67.9 NA

58.5 55.9 50.9 NA 66.8 63.4 60.6 NA 58.0 55.2 49.0 NA 66.6 62.8 57.0 NA

Volts

Rated

230/208 7.0/7.6 1559/1505

PLUG FACE/CIRCUIT RATING

Cooling

Amps

Cooling

Watts EER CEER

115 6.3 748

115 10.8 1224

A-WEIGHTED SOUND PRESSURE LEVEL (dbA)

OUTDOOR COOLING 0$; +,*+ 0(' /2:

Estimated

Yearly

Energy

Cost

10.7 10.6 $67

9.8 9.7 $110

9.3/9.3

9.3/9.3 $140

DEFROST CONTROL: Initiated at 30°F (outdoor coil temperature) and terminated at 43°F (outdoor coil temperature). During defrost, the compressor stops and the electric heat starts, then operates with the fan to maintain indoor comfort. Below 43°F, the unit remains in electric heat mode.

DEFROST DRAIN: Drain automatically opens at approximately 50°F to prevent condensate from freezing inside drain pan.

INDOOR FAN ONLY 0$; +,*+ 0(' /2:

OUTDOOR FAN ONLY 0$; +,*+ 0(' /2:

Tested in Friedrich DDC sound test lab.

Circuit

WallMaster Model Number

WS08D10A, WS12

WS1

Power cords are located on front left of WallMaster models.

Due to continuing research in new energy-saving technology, specic ations are subject to change without notice.

As an models meet the Your operating costs will depend on your utility rates and use. The estimated operating cost is based on a electricity cost of $ .12 per kWh. For more information, visit www.ftc.gov/energy.

0A.

5D3

ENERGY STAR

D10A

partner, Friedrich Air Conditioning Co. has determined that the selected ENERGY STAR®

guidelines for energy efciency.

Rating

Breaker

or T-D Fuse

125V - 15A 5 - 15P 6

250V - 15A 6 - 15P 6

Plug Face

(NEMA#)

Power

Cord

Length

(ft.)

Wall

Outlet

Appearance

Model

WallMaster

WSE Sleeve 18" 27 1/4" 18"

Chassis 19 3/ 8" 30 5/8" 27 1/2"

Carton Dimensions

INCHES

Height Wid t h Depth
