Friedrich MW09C1H User Manual

Models

Indoor Unit

Outdoor Unit

920-088-01

MW09C1H

MR09C1H

12C1H

MW

MR12C1H

CONTENTS

Operation and maintenance

Notices for use

■

■

Typical Unit Components

Operation of remote controll

■

Remote Control Instructions

■

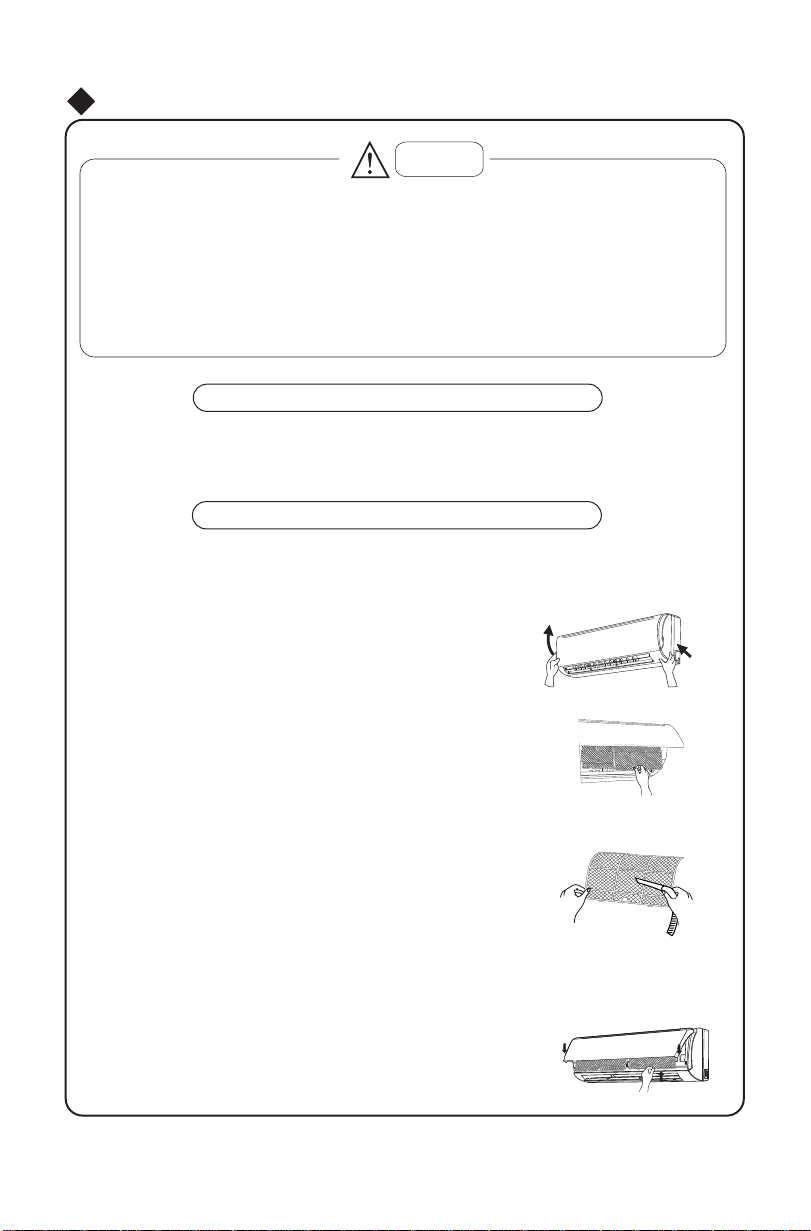

Routine Maintenance

■

Basic Troubleshooting

■

■

Service & Assistance

......................................

.................................

er

.............................

............................

.................................

.

...............................

.

. ...............................

Installation service

installation

■

Typical Unit Dimensions

■

Install indoor unit

■ ...................................

■ ..................................

Install outdoor unit
Checklist

■

This symbol stands for the items
should be forbidden.

....... ................................

..............................

.........................................

This symbol stands for the items
should be followed

1

3
4
7

11

12
15

16

18
19
21

22

Thank you for choosing , please read this owner's manual

carefully before operating the unit and keep it carefully for consulation.

This appliance is not intended for use by persons (including children) with reduced

physic
unless they have been given supervision or instruction concerning use of the appliance
by a person reponsible for thei safety.

Children should be supervised to ensure that they do not play with the appliance.

, sensory or mental capabilities or lack of experience and knowledge,

al

Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment
is necessary.

Image shown in this operating instruction manual here is
indicative only. Actual product you receive may differ!

Friedrich Air Conditioning

r

Congratulations

WARNING

Read Installation Operation
Manual

Please read this manual thoroughly prior to
equipment installation or operation.

It is the installer’s responsibility to properly
apply and install the equipment. Installation
must be in conformance with the NFPA 70

-2008 National Electric Code or current edition,
International Mechanic Code 2009 or current
edition and any other applicable local or
national codes.

Failure to do so can result in property damage,
personal injury or death.

Thank you for your decision to purchase Friedrich. Your new Friedrich has been carefully engineered and manufactured to give you many years of dependable,

efcient operation, maintaining a comfortable temperature and humidity level. Many extra features have been built into your unit to assure quiet operation,

the greatest circulation of cool, dry air, and the most economic operation.

General Instructions

This Installation and Operation Manual has been designed to insure maximum satisfaction in the performance of your unit. For years of trouble-free service,

please follow the installation instructions closely. We cannot overemphasize the importance of proper installation.

and the controls are properly set, the unit may need service and

WARNING

Refrigeration system

under high pressure

Do not puncture, heat, expose to flame or
incinerate.

Only certified refrigeration technicians should
service this equipment.

R410A systems operate at higher pressures
than R22 equipment. Appropriate safe
service and handling practices must be used.

Only use gauge sets designed for use with
R410A. Do not use standard R22 gauge sets.

Here are some suggestions to help you use your

new Friedrich most efficiently:

1. Carefully read and follow the installation instructions.

2. Make sure the unit is the right capacity for the area being cooled.

An undersized unit makes the unit work too hard, using more
electricity than needed and increases wear. An oversized unit
will cycle on and off too rapidly, and therefore cannot control
humidity as well.

3. Clean the lter frequently (See Routine Maintenance, Page 27).

4. Do not block the air ow to and from the unit.

5. A dirty lter or improperly set controls can affect the cooling

ability of the unit.

6. If cooling is weak and you have veried that the lter is clean

you should call your Friedrich service provider to check the unit.

7. Keep blinds, shades and drapes closed on the sunny side of the
room being cooled to reduce radiant heat.

8. Proper insulation helps your unit maintain the desired inside
temperature.

9. Whenever possible, shade south and west facing windows.

10. Keep window coverings away from the unit to provide free air ow.

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.

This is a safety Alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol with the word “WARNING”
or “CAUTION”. These words mean:

ANIN

WARNING

CAUTION

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what will happen if the instructions are not followed.

NOTICE

Indicates a hazard which, if not avoided, can result in severe personal injury or
death and damage to product or other property.

Indicates a hazard which, if not avoided, can result in personal injury and
damage to product or other property.

Indicates property damage can occur if instructions are not followed.

Notices for use

1

Working principle and special functions for cooling

Principle:

Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that
indoor ambient temperature decreased, its cooling capacity will increase or decrease by

outdoor ambient temperature.

Anti-freezing function:

If the unit is running in COOL mode and in low temperature, there will be frost formed on
the heat exchanger, when indoor heat exchanger temperature decrease below 32s
indoor unit microcomputer will stop compressor running and protect the unit.

Working principle and special functions for heating

Principle:

Air conditioner absorbs heat from outdoor and transmits to indoor, in this way to increase

*

room temperature. This is the heat pump heating principle, its heating capacity will be
reduced due to outdoor temperature decrease.
If outdoor temperature becomes very low, please operate with other heating equipments.

*

Defrosting:

When outdoor temperature is low but high humidity, after a long while running, frost will

*

form on outdoor unit, that will effect the heating effect, at this time, the auto defrosting
function will act, the heat running will stop for 8-10mins.

During the auto defrosting, the fan motors of indoor unit and outdoor unit will stop.

*

During the defrosting, the indoor indicator flashes, the outdoor unit may emit vapor.

*

This is due to the defrosting, it isn't malfunction.

After defrosting finished,the heating will recover automatically.

*

F

º

, the

Notices for use

2

Anti-cool wind function:

In "Heat" mode, under the following three kinds of state, if indoor heat exchanger doesn't
arrive at certain temp., indoor fan will not , in order to prevent cool wind blowing(within
2 mins):

1. Heating starts. 2.After Auto Defrost finished. 3.Heating under the low temperature.

Working temperature range

Maximum cooling

Minimum cooling

Maximum heating
Minimum heating

The operating temperature range (outdoor temperature) for cooling unit is 32℉~115℉；
for cooling and heating unit is 5℉~115℉.

start

Indoor sideDB/WB( )

95/75
70/59

75/---
68/---

ºF

Outdoor sideDB/WB( )

115/86

70/-

75/60

5/-

ºF

.

Typical Unit Components

3

Indoor unit

Display icon

Cooling

Heating

Ou

tdoor unit

(Image shown here is indicative only. Actual product you receive may differ)

Front Panel

Guide panel

Filter

（Only for some Units）:

Power/Run

Set temp.

in

Air

Air inlet

Display

Wall Pipe

Air outlet

Wireless remote control

Receiver

Dehumidify

epip noitcennoC

Wrapping Tape

hose

e

Drainag

out

r

Ai

Operation of Remote Controller

4

1

START / STOP

Press to start or stop operation.

2

3

4

FAN

Press to set fan speed.

5

MODE

Press to select operation mode
(AUTO/COOL/DRY/FAN/HEAT).

6

SENSOR

7

CLOCK

Press it set clock.

8

2

1

4

6

3

5

TIMER ON

Press it to set auto-on timer.

9

AIR SWEEP

10

EXTEND

: Press to decrease temperature

setting.

: Press to increase temperature

setting.

AUTO

Press it set swing angle.

10

7

13

11

14

8

9

12
15

11

TEMP

12

TIMER OFF

Press it to set auto-off timer

13

TURBO

14

SLEEP

15

LIGHT

Press it to turn on/off the light.

17

Operation of Remote Controller

5

1

6

16

MODE icon:

If MODE button is pressed,
current operation mode icon

(AUTO), ( COOL),

(DRY), (FAN) or (HEAT

only for heat pump models) will show.

17

SLEEP icon :

is displayed by pressing
the SLEEP button.
button again to clear the display.

18

TEMP icon:

Pressing TEMP button,
(set temperature),
ambient temperature)

(outdoor ambient temperature)
and blank is displayed circularly.

AIR SWEEP

19

is displayed when pressing

the

AIR SWEEP

Press this button again to clear the
display.

icon:

button.

Press this

(indoor

27

26

25

24

23

22

7

1

18

20

19

20

LIGHT icon:

is displayed by pressing the
LIGHT button.

again to clear the display.

21

LOCK icon:

is displayed by pressing "+"
an

d “-” buttons simultaneously. Press

them again to clear the display.

22

SET TIME display:

After pressing TIMER button, ON or

OFF will blink.This area will show
the set time.

23

TURBO icon:

again to clear the display.

24

DIGITAL display:

This area will show the set tempe­rature. In SAVE mode,"SE" will be

displayed. During defrosting opera­tion, “H1” will be displayed.

21

Press LIGHT button

is displayed when pressing the

nottub siht sserP.nottub OBRUT
