Safety for children and others
who are vulnerable people
instructions as the
manufacturer is not
responsible for damages
caused by omission.
This appliance can be used
by children aged from 8
years and above and
persons with reduced
physical, sensory or mental
capabilities or lack of
experience and knowledge
if they have been given
supervision or instruction
concerning use of the
appliance in a safe way and
understand the hazards
involved. Children shall not
play with the appliance.
Cleaning and user
maintenance shall not be
made by children without
supervision.
Keep all packaging away
This appliance is in accordance with the following EU guidelines:
and 2004/108/EC and 2009/125/EC and EC.643/2009 and 2002/96/EC
2006/95/EC
For your safety and correct
usage, before installing and
first using the appliance, read
this user manual carefully,
including its hints and
warnings. To avoid
unnecessary mistakes and
accidents, it is important to
make sure that all people
using the appliance are
thoroughly familiar with its
operation and safety
features. Save these
instructions and be sure that
they remain with the
appliance if it is moved or
sold, so that anyone using it
throughout its life, will be
properly informed on its
usage and safety notices.
For the safety of life and
property, keep the
precautions of these user's
3
from children as there is risk
of suffocation.
If you are discarding the
appliance, pull the plug out
of the socket, cut the
connection cable (as close
to the appliance as you can)
and remove the door to
prevent children playing
from suffering an electric
shock or from closing
themselves inside it.
If this appliance, featuring a
magnetic door seals, is to
replace an older appliance
having a spring lock (latch)
on the door or lid, be sure to
make the spring lock
unusable before you
discard the old appliance.
This will prevent it from
becoming a death trap for a
child.
General safety
This
appliance is intended
WARNING —
to be used in
and similar applications
such as
household
-staff kitchen areas in
shops, offices and other
working environments;
-farm houses and by
clients in hotels, motels
and other residential type
environments;
-bed and breakfast type
environments;
-catering and similar nonretail applications
WARNING — Do not
store explosive
substances such as
aerosol cans with a
flammable propellant in
this appliance.
WARNING — If the
supply cord is damaged,
it must be replaced by the
manufacturer, its service
agent or similarly
qualified persons in order
to avoid a hazard.
WARNING — Keep
ventilation openings, in
the appliance enclosure
or in the built-in structure,
clear of obstruction.
WARNING — Do not use
mechanical devices or
other means to
accelerate the defrosting
process, other than those
recommended by the
manufacturer.
WARNING — Do not
damage the refrigerant
circuit.
WARNING — Do not use
electrical appliances
inside the food storage
compartments of the
appliance, unless they
are of the type
recommended by the
manufacturer.
4
1.
be lengthened.
2. Make sure that the power
plug is not or
damaged. A or
damaged power plug may
overheat and cause a fire.
3. Make sure that you can
plug of the
appliance.
4. Do not pull the main
cable.
5. If the power plug socket
is loose, do not insert the
power plug. There is a risk
of electric shock or fire.
6.You must not operate the
appliance without the
interior lighting lamp cover.
7.The fridge is only applied
with power supply of single
phase alternating current of
220~240V/50Hz. If
fluctuation of voltage in the
district of user is so large
that the voltage exceeds the
above scope, for safety
sake, be sure to apply A.C.
Automatic voltage regulator
of more than 350W to the
The power cord must not
crushed
crushed
access the main
Electrical safety
WARNING — The
refrigerant and insulation
blowing gas are
flammable. When
disposing of the
appliance, do so only at
an authorized waste
disposal centre. Do not
expose to flame.
The refrigerant isobutene
(R600a) is contained
within the refrigerant
circuit of the appliance, a
natural gas with a high
level of environmental
compatibility, which is
nevertheless flammable.
During transportation and
installation of the
appliance, ensure that
none of the components
of the refrigerant circuit
becomes damaged.
The refrigerant (R600a) is
flammable.
Refrigerant
Any damage to the cord
may cause a shortcircuit,
fire, and/or electric
shock.
If the refrigerant circuit
should be damaged:
-Avoid opening flames
and sources of ignition.
-Thoroughly ventilate the
room in which the
appliance is situated.
It is dangerous to alter the
specifications or modify
this product in any way.
Caution:risk of fire
fridge. The fridge must
employ a special power
socket instead of common
one with other electric
appliances. Its plug must
match the socket with
ground wire.
Do not store flammable
gass or liquids in the
appliance,There is a risk
of an explosion.
Do not operate any
electrical appliances in
the appliance(e.g.electric
ice cream makers,mixers
etc.).
When unplugging always
pull the plug from the
mains socket,do not pull
on the cable.
Do not place hot items
near the plastic
components of this
appliance.
Do not place food
products directly against
the air outlet on the rear
wall.
Store pre-packed frozen
food in accordance with
the frozen food
manufacture’s
instructions.
The appliances
manufactures storage
recommendations should
be strictly adhered
Daily use
to. Refer to relevant
instructions for
Do not place carbonated
or fizzy drinks in the
freeze compartment as it
creates pressure on the
container, which may
cause it to explode,
resulting in damage to the
appliance.
Keep burning candles,
lamps and other items
with naked flames away
from the appliance so that
do not set the appliance
on fire.
The appliance is intended
for keeping food stuff
and/or beverages in
normal household as
explained in this
instruction booklet The
appliance is heavy. Care
should be taken when
moving it.
Do not remove nor touch
items from the freezer
compartment if your
hands are damp/wet,as
this could cause skin
abrasions or frost/freezer
burns.
storage.
Frozen food can cause
frost burns if consumed
straight from the freezer
compartment.
Do not place the
appliance in direct
sunlight.
5
6
Unpack the appliance and
check if there are damages
on it. Do not connect the
appliance if it is damaged.
Report possible damages
immediately to the place
you bought it. In this case
retain packing.
It is advisable to wait at
least four hours before
connecting the appliance to
allow the oil to flow back in
the compressor.
Adequate air circulation
should be around the
appliance, lacking this leads
to overheating. To achieve
sufficient ventilation, follow
the instructions relevant to
installation.
Wherever possible the back
of the product should not be
too close to a wall to avoid
touching or catching warm
parts (compressor,
condenser) to prevent the
risk of a fire, follow the
instructions relevant to
installation.
The appliance must not be
locate close to radiators or
cookers.
Make sure that the mains
plug is accessible after the
installation of the appliance.
manual.
For electrical connection
carefully, follow the
instructions given in this
Never use the base,
drawers, doors etc. to
stand on or as supports.
Frozen food must not be
refrozen once it has been
thawed out.
Do not consume ice
popsicles or ice cubes
straight from the freezer
as this can cause freezer
burn to the mouth
and lips.
To avoid items falling and
causing injury or damage
to the appliance, do not
overload the door racks
or put too much food in
the crisper drawers.
Installation Important!
caution!
Care and cleaning
Before maintenance, switch
off the appliance and
disconnect the mains plug
from the mains socket.
Do not clean the appliance
with metal objects, steam
cleaner, ethereal oils,
organic solvents or abrasive
cleansers.
Do not use sharp objects to
remove frost from the
appliance. Use a plastic
scraper.
Service
serviced by an authorized
Service Center, and only
genuine spare parts must
be used.
1)If the appliance is Frost
Free.
2)If the appliance contains
freezer compartment.
Any electrical work required
This product must be
to do the servicing of the
appliance should be carried
out by qualified electrician
or competent person.
7
8
Control panel
Starting up and temperature regulation
The temperature selector knob is located
on the top right of the refrigerator
compartment.
Setting “0” means
Off.
Clockwise rotate the knob to turn on the
appliance
Setting “1” means
Highest temperature, warmest setting.
Setting “7” (end-stop) means
Lowest temperature, coldest setting.
Normally we advise you select setting of 3 or
4, if you want the temperature warmer or
colder please turn the knob to lower or
higher setting accordingly.
Important! High ambient temperatures (e.g.
on hot summer days) and a cold setting
(position 6 to 7) may cause the compressor
to run continuously or even non-stop!
Reason: when the ambient temperature is
high, the compressor must run continuously
to maintain the low temperature in the
appliance
Insert the plug of the connection lead into
the plug socket with protective earth
c o n t a c t . Wh e n t h e re f r i g e r a t o r
compartment door is opened, the internal
lighting is switched on.After the fridge has
been placed in position,wait for 5 minutes
before electricity is supplied.Don't store
anything until the temperature inside the
fridge becomes low enough.
Warning!
If the light bulb is damaged, only a
qualified electrician of competent
person must carry out it!Changing
t h e li g h t bu l b ca r ry o u t by
inexperienced persons may cause
injury or serious malfunctioning. it
must be replaced by a qualified
persons in order to avoid a hazard.
Contact your local Service Force
Center for help.
Light bulb data: 220-240 V,max.15W.
To switch off the appliance, set the
temperature regulator to position “0”.
Unplug the mains plug
To change the light bulb, undo the screw.
Press the light bulb cover and slide it
backwards.
Change the defective light bulb.
Refit the light bulb cover and the screw.
Put the refrigerator back into operation.
Changing the light bulb
3
4
5
Knob
Bulb
Bulb cover
Screw
Control Box
5
4
3
Appliances must not be exposed to rain.
Sufficient air must be allowed to circulate
in the lower rear section of the appliance,
as poor air circulation can affect performance. Built-in appliances should be
positioned away from heat sources such
as heaters and direct sunlight.
Leveling
Electrical connection
Caution! Any electrical work required to
install this appliance should be carried out by
a qualified or personnel.authorized
Warning! This appliance must be grounded.
The manufacturer declines any liability should
these safety measures not be observed.
Operation
Accessories 1)
Movable shelves/trays
Various glass, plastic storage shelves or
wire trays are included with your appliancedifferent models have different combinations
and different models have different features.
The appliance should be level in order to
eliminate vibration. To make the appliance
the floor. You can also adjust the level by
the appropriate level
the front (use your fingers or a suitable
spanner).
unscrewing adjustment
in
level, it should be upright and both
adjusters should be with in stable contact
Climate class
Ambient temperature
SN
N
ST
T
+10°C to +32°C
+16°C to +32°C
+16°C to +38°C
+16°C to +43°C
First use and installation
Cleaning before use
Before using the appliance for the first
time, wash the interior and all internal
accessories with lukewarm water and
some neutral soap in order to remove the
typical smell of a brand new product, then
dry thoroughly.
Installation Positioning
Warning! Before installing, read the
instructions carefully for your safety
and the correct operation of the appliance.
of heat such as stoves, radiators, direct
sunlight, etc.
The appliance performs well according the
form below. The appliance may not work
properly if it is left for a longer period at a
temperature above or below the indicated
Important! It is necessary to have good
ventilation around the refrigerator to allow
for the dissipation of heat, high efficiency
Maximum performance and safety are
guaranteed by maintaining the correct
indoor temperature for the class of unit
concerned, as specified on the rating
plate.
Position the appliance away from sources
and low power consumption.
sufficiently cleared
refrigerator
refrigerator
sides, a
height
For this
reason, a space should
be available around the . It is
advisable for there to be 75mm separating
the back of the to the wall at
least 100mm of space on its two
of over 100mm from its top and a
clear space in front to allow the doors to
open 135°.
The walls of the refrigerator are equipped
with a series of runners so that the shelves
can be positioned as desired.
75mm
100mm
100mm
9
Model
Climate class
MC55180FF
N,ST,T
N,ST,T
MC55231FF
Freezer food compartment 2)
For freezing fresh food and storing frozen
and deep-frozen food for long periods of
time.
Thawing food 2)
In the refrigerator compartment.
At room temperature.
In a microwave oven.
In a conventional or convection oven.
Food once thawed should be re-frozen
with the exception of special cases.
1) If the appliance contains related accessories
and functions.
2) If the appliance contains a freezer compartment.
Helpful hints and tips
Noises during operation
Clicks- Whenever the compressor switches
on or off, a click can be heard.
Humming- As soon as the compressor is in
operation, you can hear it humming.
Bubbling- When refrigerant flows into thin
tubes, you can hear bubbling or splashing
noises.
Splashing- Even after the compressor has
been switched off, this noise can be heard
for a short time.
Energy saving tips
Do not install the appliance near stoves,
radiators or other sources of warmth.
Keep the time the appliance is open to a
minimum.
Do not set the temperature colder than
necessary.
Make sure the side plates and back plate
of the appliance are at some distance
from the wall, and follow the instructions
relevant to installation.
If the diagram shows the correct
combination for the drawers, crisper and
shelves, do not adjust the combination as
it would produce an effect on energy
consumption.
Hints for fresh food refrigeration
Do not store warm foods or evaporating
liquids in the appliance.
Hints for freezing
When first starting-up or after a period out
of use. Before putting the food in the
compartment, let the appliance run at
least 2 hours on the higher settings.
Milk bottles: these should have a cap and
should be stored in the bottle rack on the
door.
Butter and cheese: these should be
placed in aluminum foil or
bags while as much air
as possible.
polyethylene
(plastic) removing
Hints for refrigeration
Meat (all types): wrap in
bags and place on the glass shelf
above the vegetable drawer. For safety,
store in this way only one or two days at
the most.
Cooked foods, cold dishes, etc…: these
should be covered and may be placed on
any shelf.
polyethylene
(plastic)
Do cover or wrap the food, particularly if it
has a strong flavor or odor.
Position food so that air can circulate
freely around it.
Ice-cube tray
For making ice and storing ice-cubes.
Refrigerator compartment 2)
For storing food that does not need to be
Positioning the door shelves
To permit the storage of food packages of
various sizes, the door shelves can be
placed at different heights.
To gradually pull the shelf in the
direction of the arrows until it comes free,
then reposition as required.
adjust,
Vegetable Drawer
For storing fruit and vegetables.
Freezer Drawer
For storing frozen food.
10
frozen and different sections suitable for
different kinds of food.
Cleaning and Care
Cleaning and care
For hygienic reasons, the appliance interior,
including interior accessories, should be
cleaned regularly.
The appliance should be cleaned and
maintained at least every two months.
Warning! Danger of electrical shock!
The appliance should not be connected to
the during cleaning.
Before cleaning, switch the appliance off
and remove the plug from the
switch off, or the circuit
breaker or fuse.
main power supply
main power
supply, shut off
Notice!
Remove the food from the appliance
before cleaning. Store them in a cool
place well covered.
Never clean the appliance with a steam
cleaner. Moisture could accumulate in
electrical components.
Hot vapors can lead to the damage of
plastic parts.
Ethereal oils and organic solvents can
attack plastic parts, e.g. lemon juice or the
juice from an orange peel, butyric acid,or
cleansers that contain acetic acid. Do not
allow such substances to come into
contact with appliance parts.
Do not use any abrasive cleansers.
and keep
Clean the appliance and the interior
accessories with a cloth and lukewarm
wa ter. Commercia lly available dish
washing detergents may also be used.
After cleaning, wipe with fresh water and
a clean dish cloth.
Accumulation of dust at the condenser
increases energy consumption; clean the
condenser at the back of the appliance
once a year with a soft brush or a vacuum
cleaner.(Only for the outside-condenser
product)
Check the water drain hole on the rear
wall of the refrigerator compartment.
Clear a blocked drain hole with the aid of
something like soft green peg, an be
careful not to any damage to the
cabinet by sharp
After everything is dry, the appliance back
into service.
create
objects.
Empty the appliance.
Pull out the power plug.
Clean thoroughly (see section: Cleaning
and Care).
Leave the door open to prevent odours.
Taking the appliance out of service
Defrosting with NoFrost
The NoFrost system automatically defrosts
the appliance.
The moisture condenses on the evaporator,
is periodically defrosted and evaporates.
The appliance does not have to be
manually defrosted.
Wrap up the food in aluminum foil or
and make sure that
the packages are airtight.
Do not allow fresh, unfrozen food to touch
food that is already frozen, thus avoiding a
rise in the temperature of the latter.
polyethylene (plastic)
Prepare food in small portions to enable it
to be rapidly and completely frozen and to
make it possible to thaw
only the quantity required.
subsequently
Iced products, if consumed immediately
It is recommended to label and date each
frozen package in order to keep track of
the storage time.
after removal from the freezer compartment,
can possibly cause skin to become freezer
burnt.
Hints for the storage of frozen food
Make sure that commercially frozen food
was stored by the retailer.
Once defrosted, foods deteriorate rapidly
and can not be re-frozen.
Do not exceed the storage period
indicated by the food manufacturer.
Note: If the appliance contains related
accessories and functions.
IMPORTANT!– If large quantities of food are
to be stored in the freezer, all the freezer
drawers (except the freezer lower drawer)
can be taken out of the appliance and the
food stacked directly on the freezer shelves
or in the freezer.
11
The food is too warm.
Interior lighting does
not work.
Unusual noises.
The compressor does
not start immediately
after changing the
temperature setting.
Water on the floor or
storage shelves.
Temperature is not properly
adjusted.
Door was open for an
extended period.
A large quantity of warm food
was placed in the appliance
within the last 24 hours.
The appliance is near a heat
source.
Light bulb is defective.
Door seal is not air-tight
(possibly after reversing the
door).
Appliance is not level.
The appliance is touching the
wall or other objects.
A component, e.g. a pipe, on
the rear of the appliance is
touching another part of the
appliance or the wall.
This is normal, no error has
occurred.
Water drain hole is blocked.
Please the “Initial Start Up”
section.
refer to
Open the door only as long as
necessary.
Turn the temperature regulator
to a colder setting temporarily.
Please the “Installation
Location” section.
refer to
Please look in the “Changing the
Light Bulb “section.
Car eful ly warm the leaking
sections of the door seal with a
hair dryer (on a cool setting). At
the same time, shape the warmed
door seal by hand so that it sits
correctly.
Readjust the feet.
Move the appliance slightly.
If necessary, carefully bend the
component out of the way.
The compressor starts after a
period of time.
Refer to the “Cleaning and Care”
section.
Heavy build-up of
frost, possibly also on
the door seal.
Troubleshooting
Problem Possible cause Solution
Appliance does not
work.
Appliance cools too
much.
Appliance is not switched on.
Main plug is not plugged in or
is loose.
Fuse has blown or is defective.
Outlet is defective.
Temperature is set too cold.
Switch on the appliance.
Plug the appliance into the
electrical socket.
Check fuse, replace if necessary.
Defective parts need
repaired
to be
by an electrician.
Turn the temperature regulator to
a warmer setting temporarily.
Warning! Before trouble-shooting,
disconnect the power supply. Only a
qualified electrician or other
personnel must carry out the troubleshooting that is not in the manual.
Important!
Repairs to the appliance may only be
performed by competent service engineers.
Improper repairs can give rise to significant
hazards for the user. If your appliance
needs repairing, please contact your
specialist dealer or your local Customer
Service Center.
12
MC55180FF
MC55231FF
1.Refrigerator lamp
2.Door switch
3.Shelf
4.Vegetable drawer cover
5.Vegetable drawer
6.Ice tray(inside)
7.Freezer upper drawer
8.Freezer lower drawer
9.Adjustable foot
10.Egg rack(inside)
11.Door rack
1.Refrigerator lamp
2.Door switch
3.Shelf
4.Vegetable drawer cover
5.Vegetable drawer
6.Ice tray(inside)
7.Freezer upper drawer
8.Freezer lower drawer
9.Adjustable foot
10.Egg rack(inside)
11.Door rack
MC55228FF
3.
and stopper according this picture. Then
place the door on a padded surface to
prevent it scratched.
Lift the upper door .Exchange the handle
Reverse the door
14
The side at which the door opens can be
changed from the right side (as supplied) to
the left side, if the installation site requires.
Warning!
When changing the side at which the door
opens, the appliance must not be connected
to the mains. Remove plug from the mains
beforehand.
Tools you will need
Before you start lay the refrigerator on its
back in order to gain access to the base,
you should rest it on soft foam packaging or
similar material to avoid damaging the
backboard of the refrigerator.

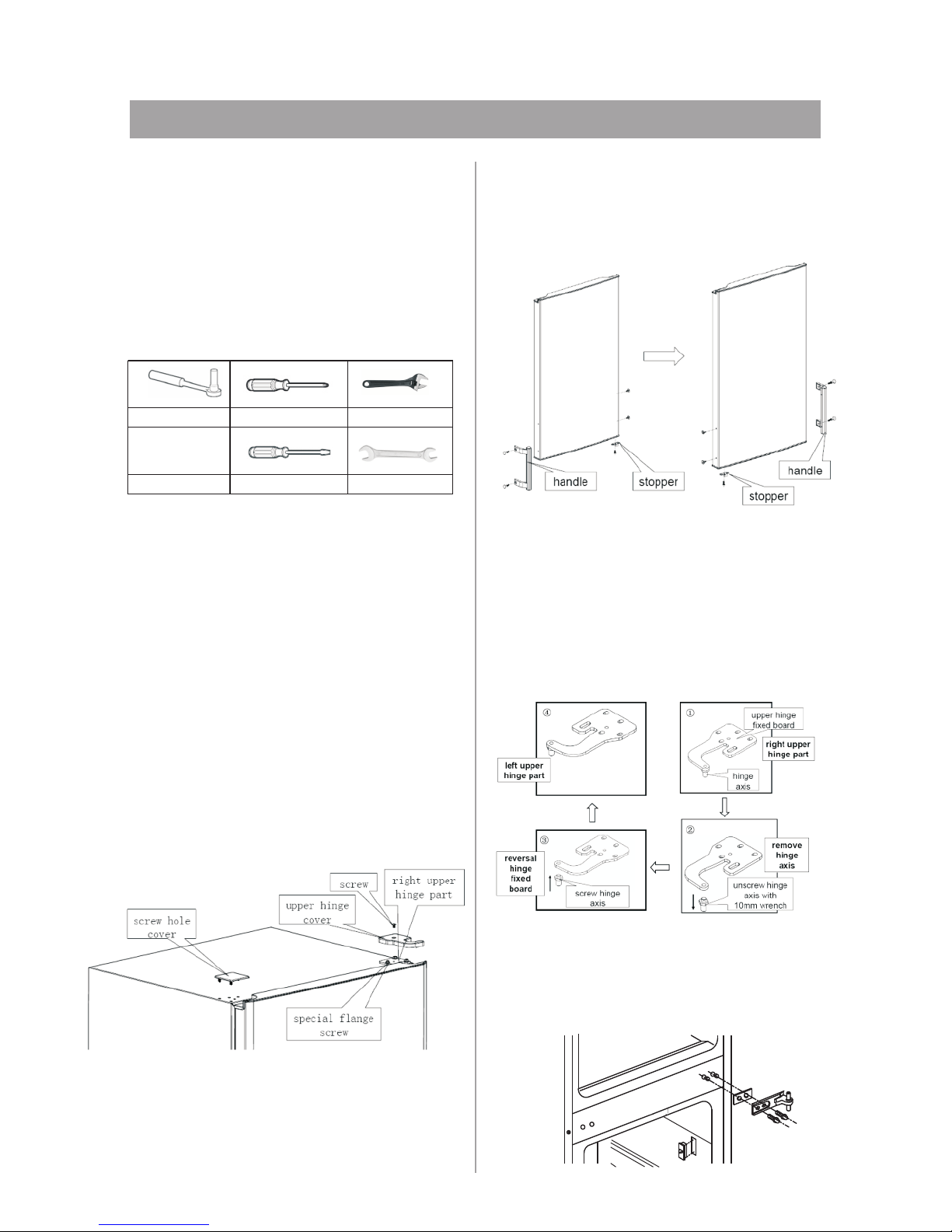

To reverse the door, the following steps are
generally recommended.
1. Stand refrigerator upright. Open upper
door to take out all door racks (to avoid rack
damaged) and then close door.
2. Unscrew and lift the upper hinge cover,
then remove screws used to fix top right
h i n g e , a n d r e m o v e u p p e r
hinge and screw hole cover.
4. Transform the right upper hinge part to
left upper hinge part according following
steps:
5.Remove the two flange screw, then remove
the middle hinge that hold the lower door in
place.
NOTICE:
if the product has no handle, exchanging
handle is unnecessary.
8mm socket wrench Cross-shaped screwdriver 150x19mm monkey wrench
Thin-blade screwdriver 10mm wrench
Reverse the door
7. Remove both adjustable feet , then remove
the bottom hinge and adjustable feet fixed board
by unscrewing the bolts.
6.
left side to right side, and the stopper from right
side to left side according this picture. Fasten
them, then place the door on a padded surface
to prevent it scratched.
Lift the lower door .Transform the handle from
8. Transform the right lower hinge part to left
lower hinge part according following steps:
9. Install the left lower hinge part at the left side
bottom , and the front feet fixed board at the right
side bottom .see the picture below.
Transfer the lower door to the proper position.
Adjust the door level.
10. Remove the hinge hole cover from the left holes
,and transfer them to the hole at the right side.
Reverse the middle hinge 180 degree, then transfer
it to the left property position. Insert the middle
hinge pin into the upper hole of the lower door, then
tight the bolts.
Transfer the upper door to the proper position.
Secure the door's level; make the middle hinge pin
into the lower hole of the upper door.
11.
side ,make the hinge pin into the upper hole of the
upper door. then install the left upper hinge cover,
and screw it. Install the screw hole cover at the
right top side.
Install the left upper hinge part at the left top
NOTICE:
if the product has no handle, exchanging handle
is unnecessary.
15
16
Disposal of the appliance
Correct disposal of this product
It is prohibited to dispose of this appliance in domestic household waste.
Packaging materials
Packaging materials with the recycle symbol are recyclable. Dispose of the packaging in a
suitable container to recycle it.
Before disposal of the appliance.
1. Disconnect the main plug from the main socket.
2. Cut off the main cable and discard it.
waste collection
This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible
harm to the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable reuse of
material resources. To return your used device, please use the
return and collection systems or contact the retailer where the
product was purchased. They can take this product for
environmental safe recycling.
Warning! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and
gases must be disposed of professionally as they may cause eye injuries or ignition.
Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.
Fridgemaster Technical Helpline
and Service Centre - Telephone
0845 050 8536
Loading...
