Freefly FRX PRO User Manual

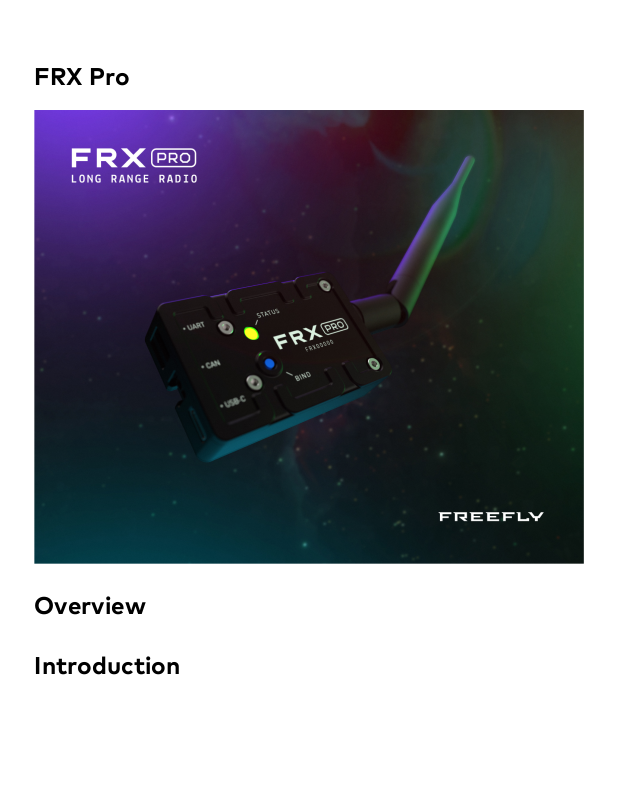

FRX Pro

Overview

Introduction

FRX Pro was designed to increase the performance of Freefly's family of gimbal controllers
by allowing users to achieve increased range and better connections in even the harshest RF
environments. FRX Pro is perfect for professionals who are looking to push their Freefly gear
further to get shots that were previously unattainable.

This manual covers the setup, use, and troubleshooting information needed to successfully
use FRX Pro with your other Freefly gear. We advise reading and understanding this manual
before using FRX Pro with other products in the Freefly Ecosystem!

Throughout the manual, warnings, cautions and notes are used to highlight various
important procedures. These are defined as follows:

In the Box

FRX Pro Kit Contents

Item Quantity

FRX Pro Module 2

COM Cable 300mm 2

USB Cable (A-C) 1

5dBi Antenna (RP-SMA) 2

2dBi Antenna (RP-SMA) 2

Zipties 200mm 2

Additional Optional Accessories

Item Use

25mm Pop-n-Lock Used to mount FRX Pro to MōVI Pro and MōVI Carbon

50mm Pop-n-Lock Used to mount FRX Pro to MōVI XL

Used to mount FRX Pro to MōVI Controller and other products

Screw Mount Pop-n-Lock

with 1/4-20 mounts.

FRX Pro - Single Module* Replace or add an additional FRX Pro to your Freefly kit

5dBi Spare Antenna Set* Replace the 5dBi antennas provided in the FRX Pro Kit

2dBi Spare Antenna Set* Replace the 2dBi antennas provided in the FRX Pro Kit

*Note: These items are not yet available in the Freefly store but will be added soon.

System Diagram

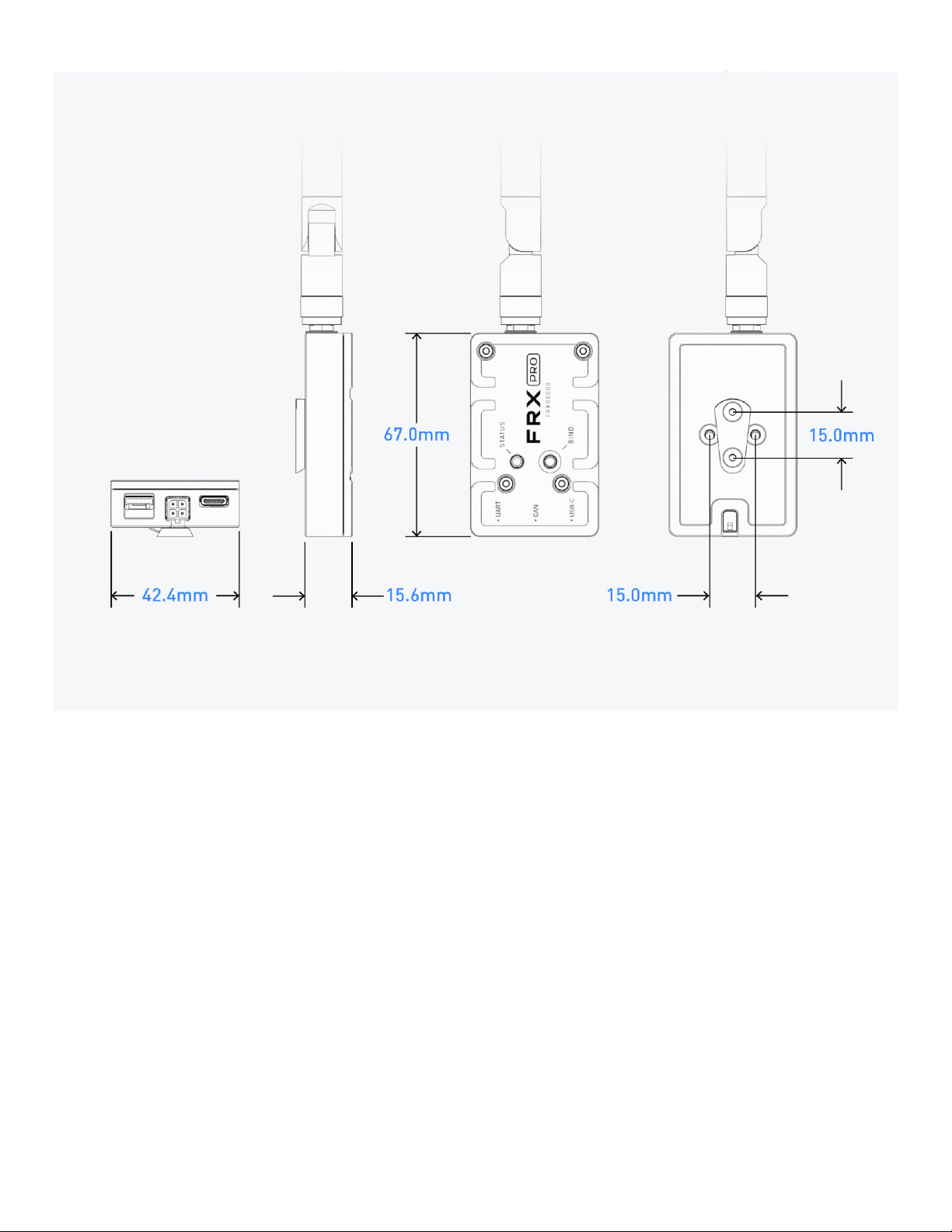

FRX Pro Overview

Item Function

1. Status LED Communicates FRX Pro status to the user

2. Bind Button Binds FRX Pro units to one another

3. UART Port Connects to FRX Pro to Freefly products with UART communication ports

4. CAN Port Connects to FRX Pro to Freefly products with CAN communication ports

5. USB-C Port Connects to FRX Pro to Freefly products with USB communication ports

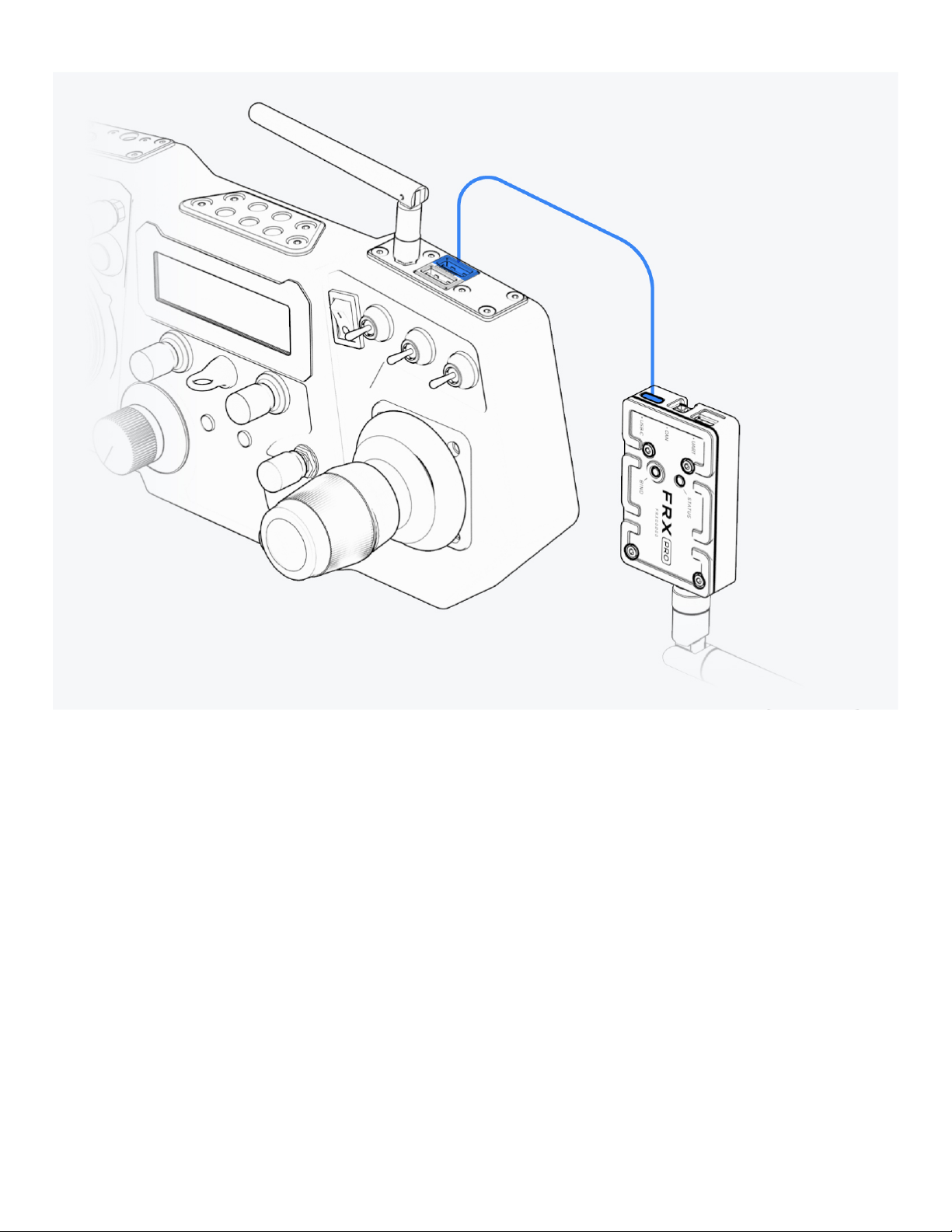

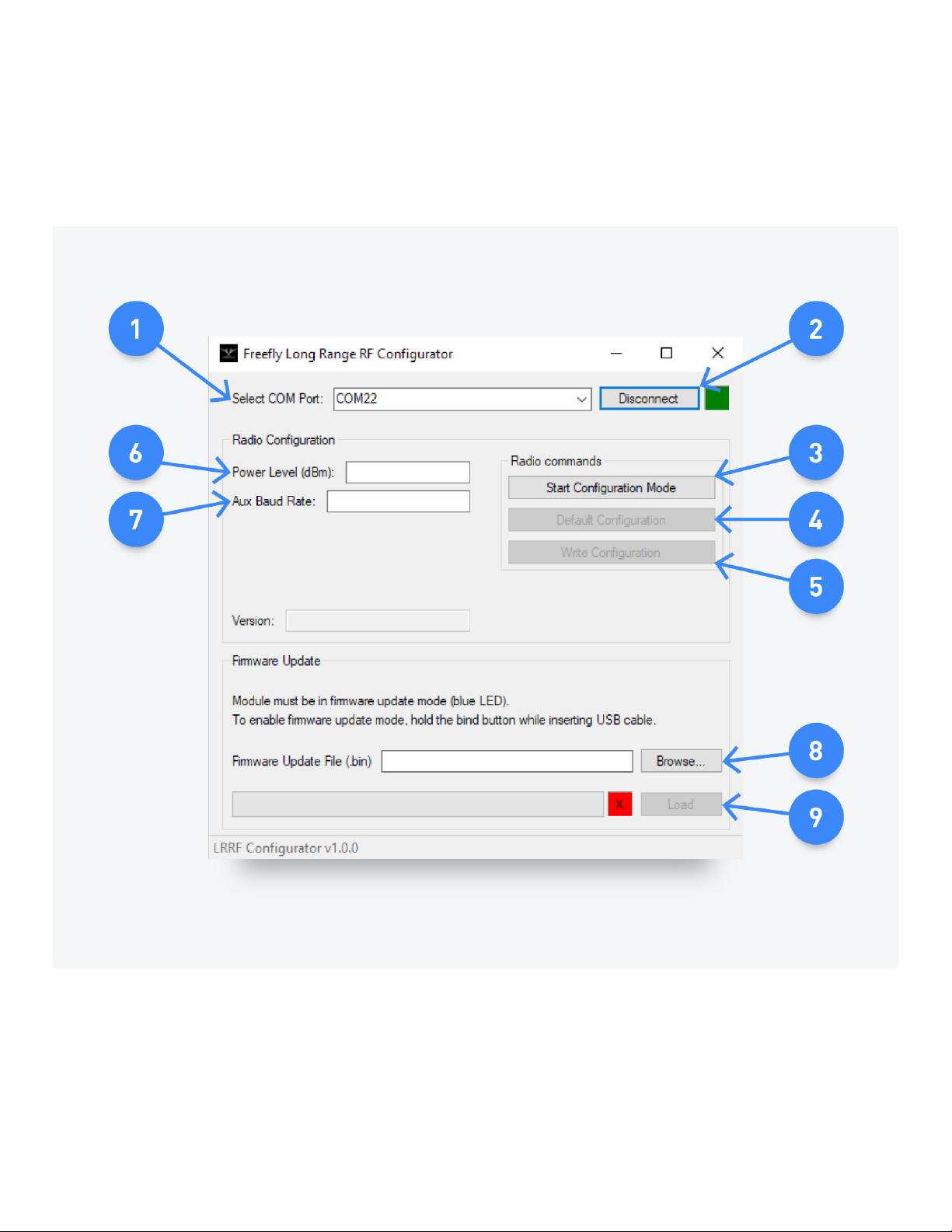

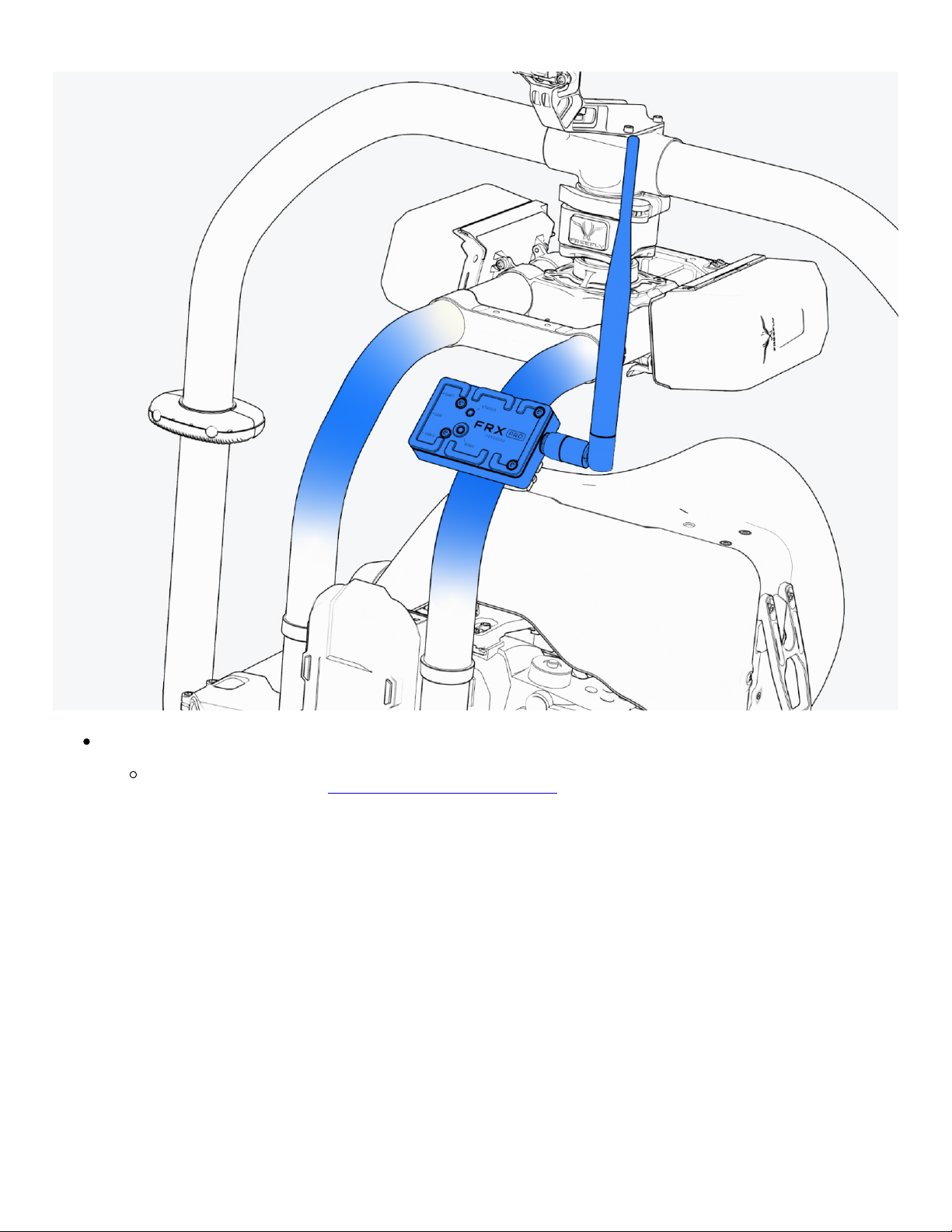

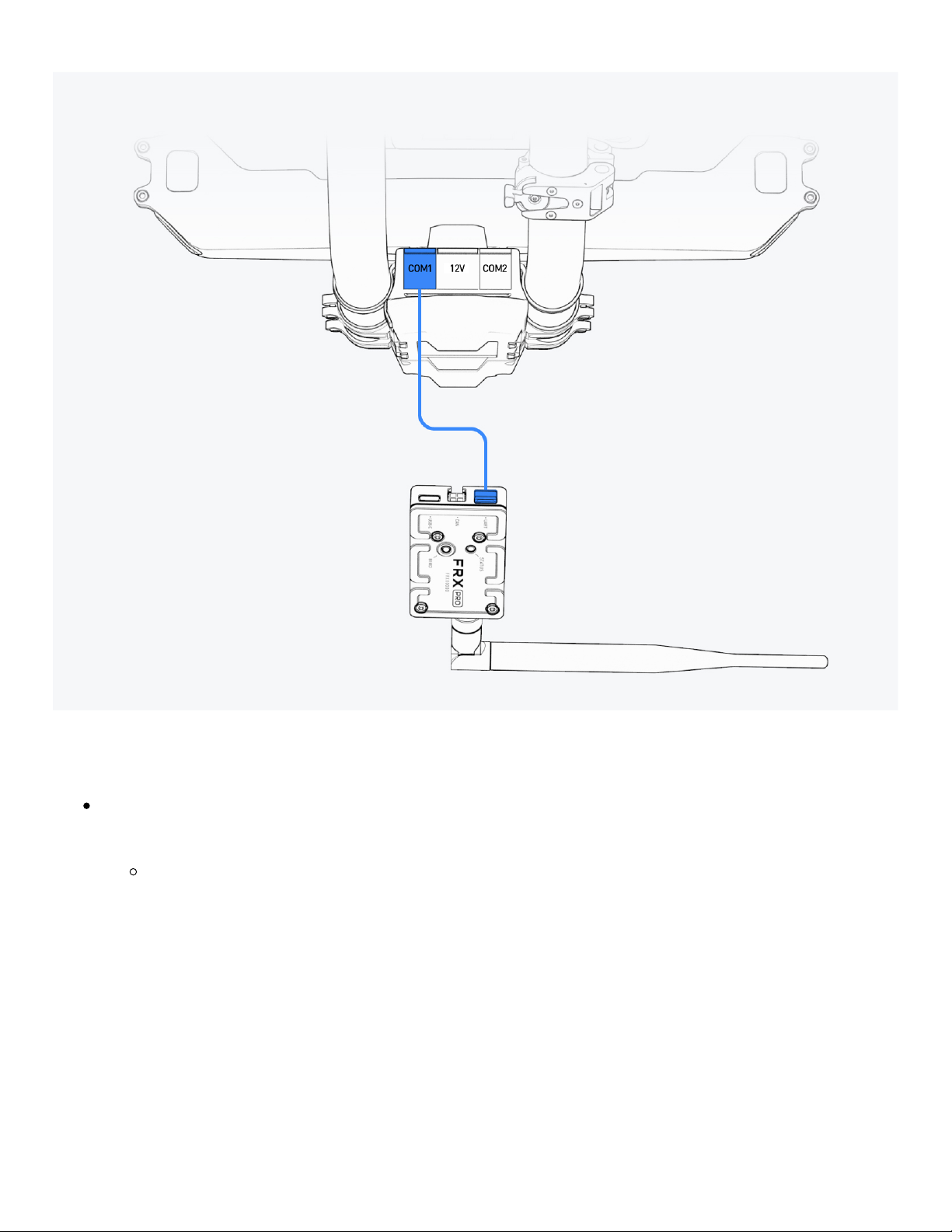

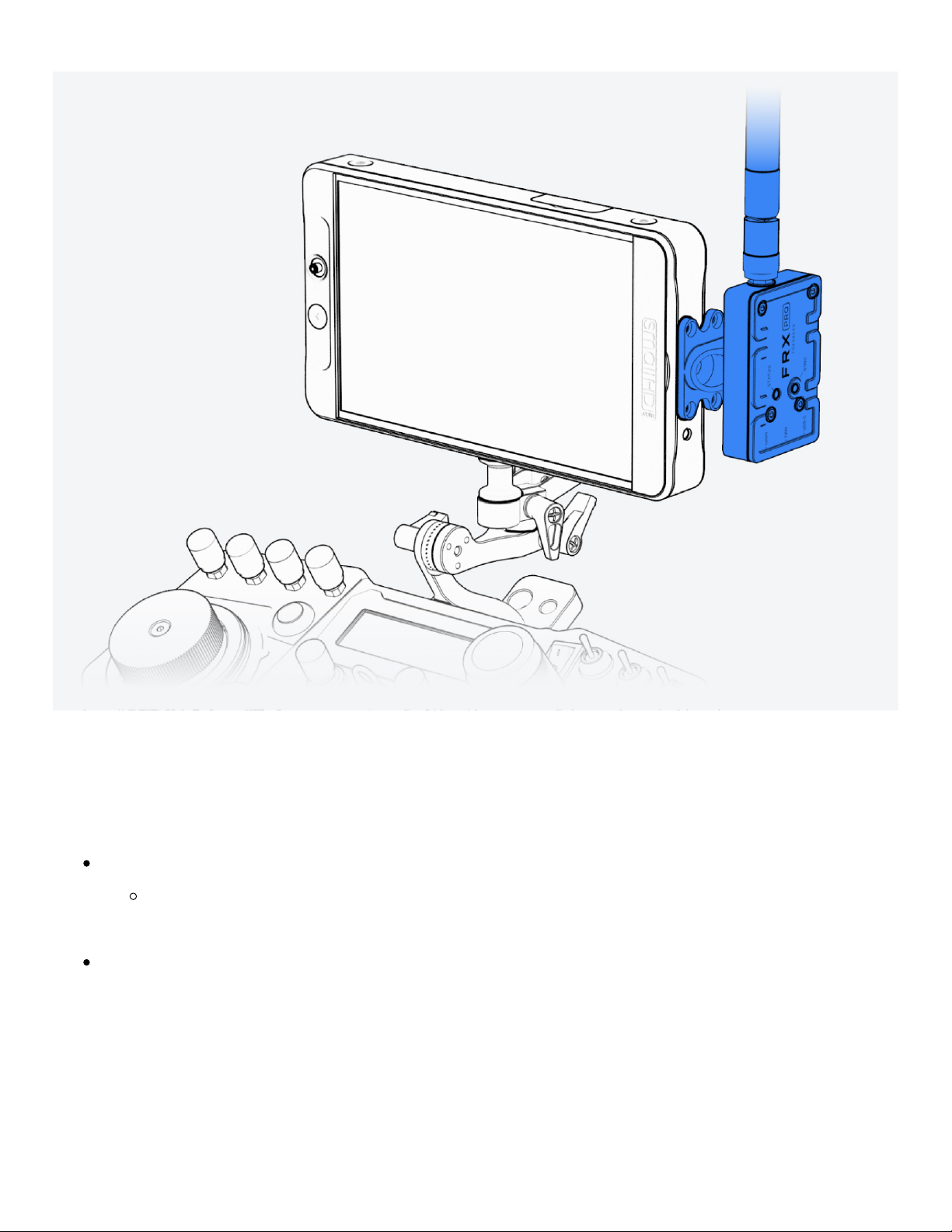

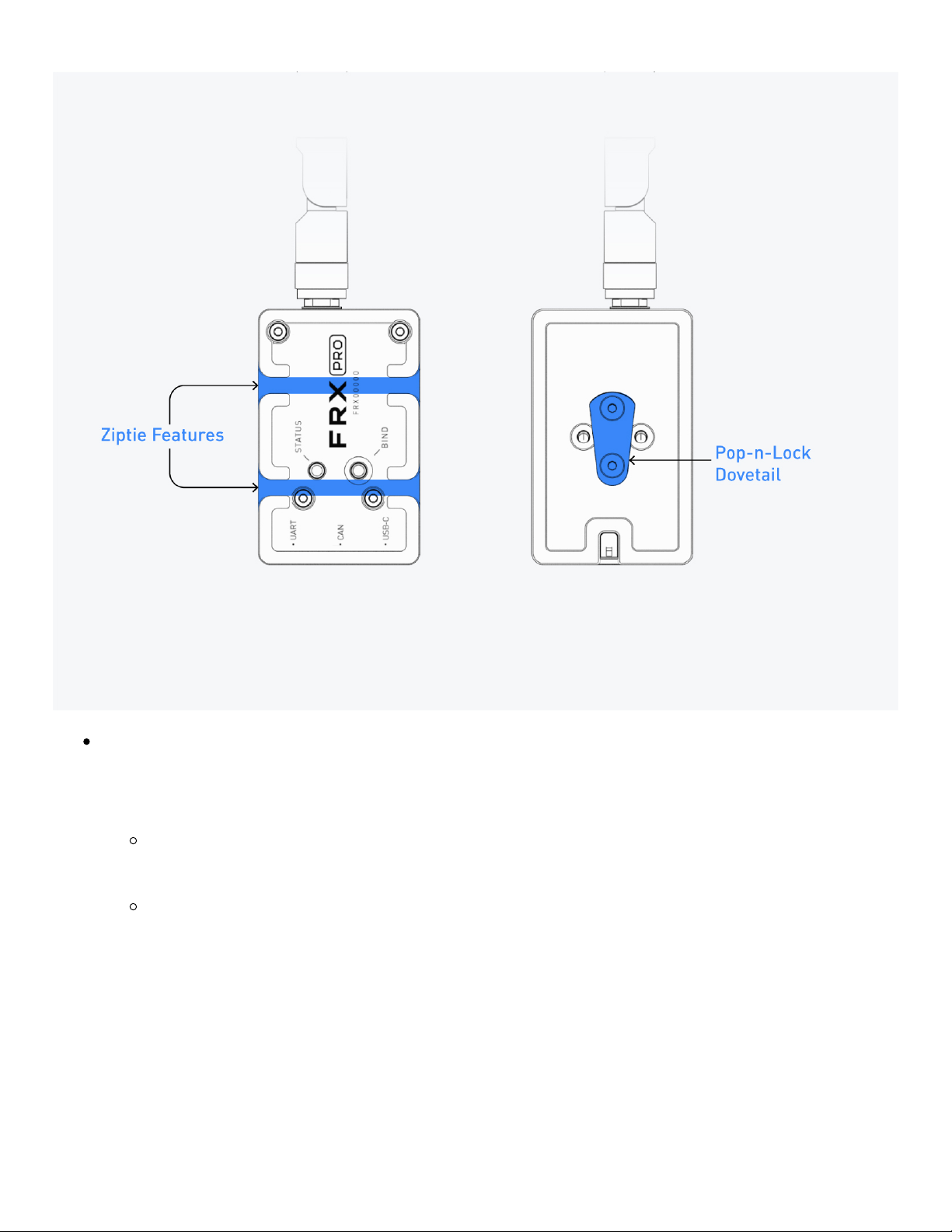

Setup Overview

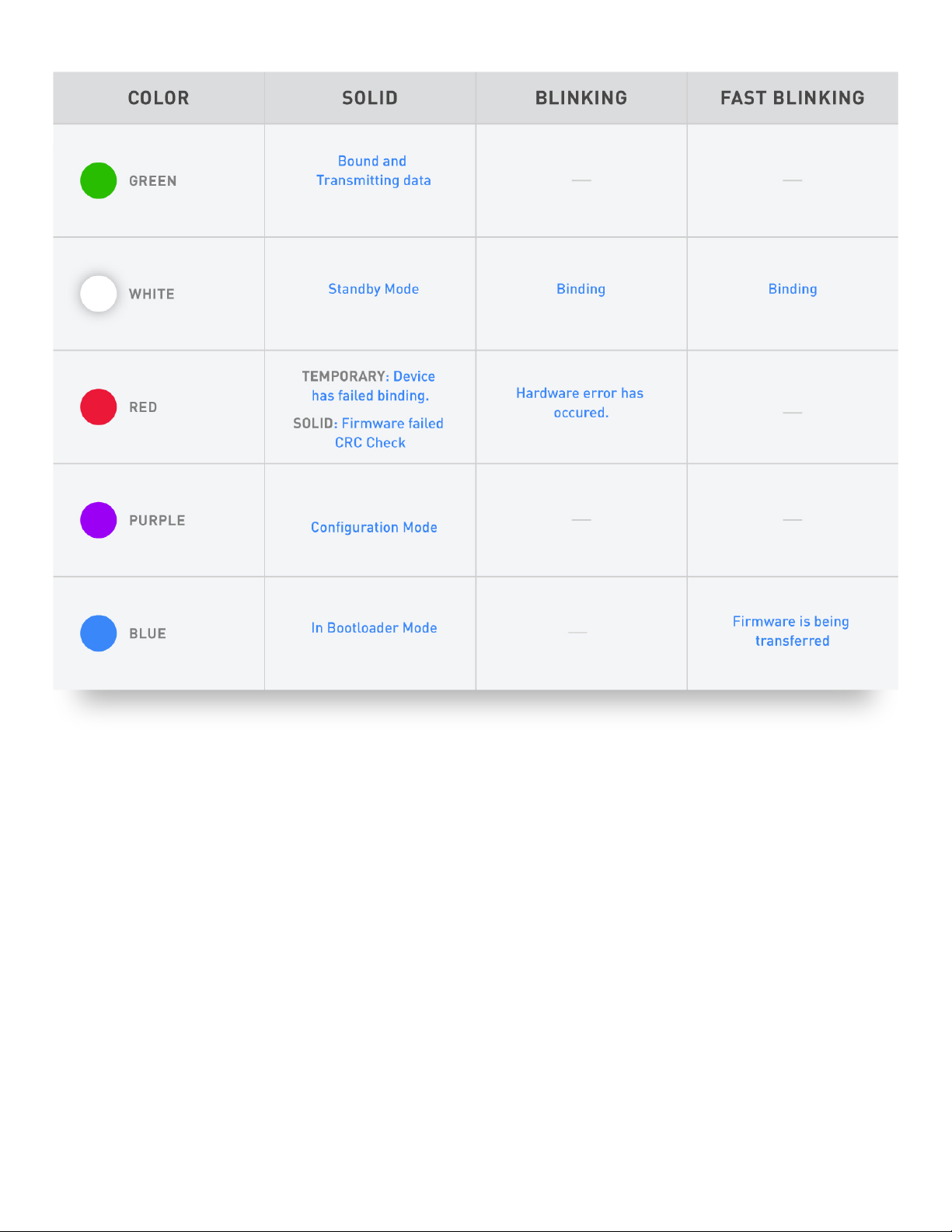

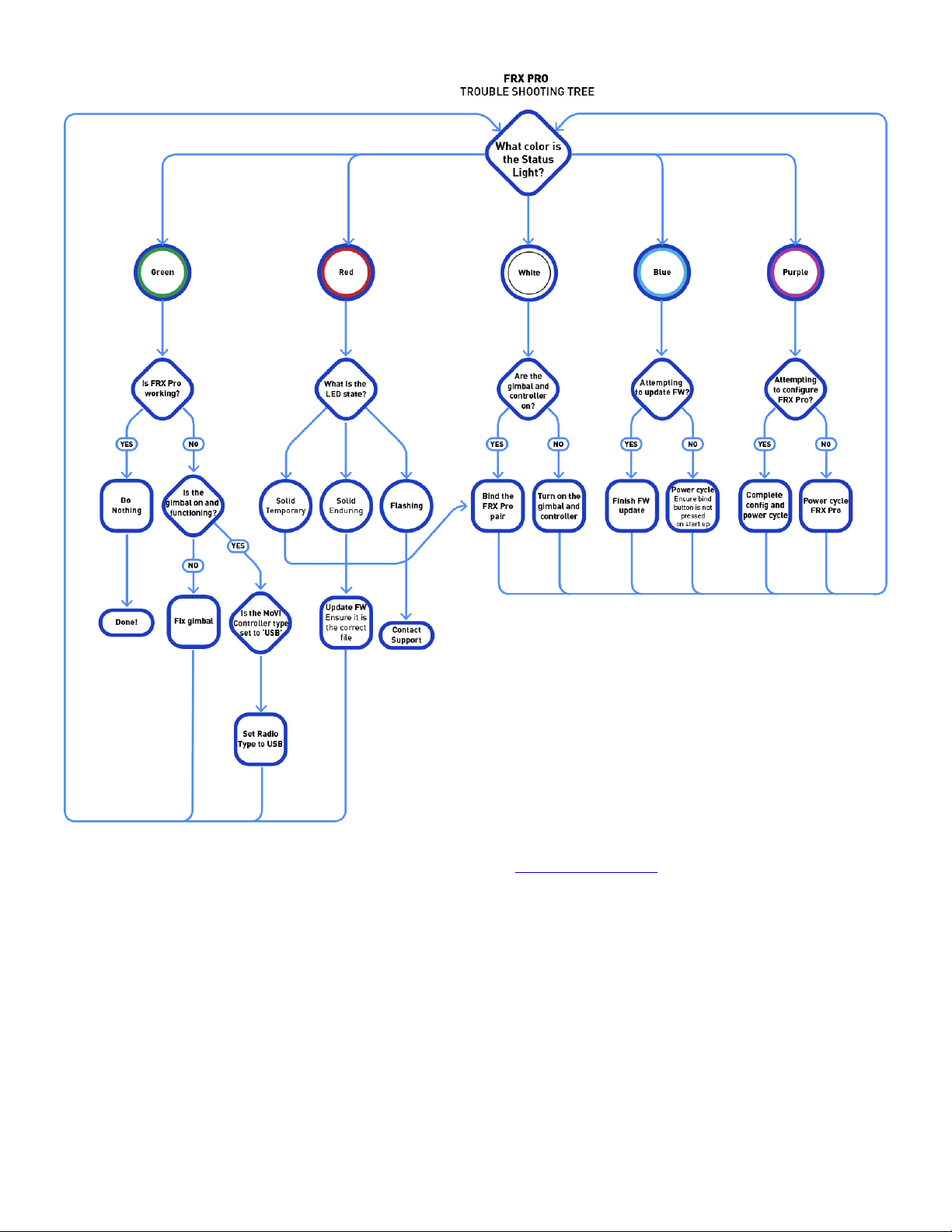

Status Light Overview

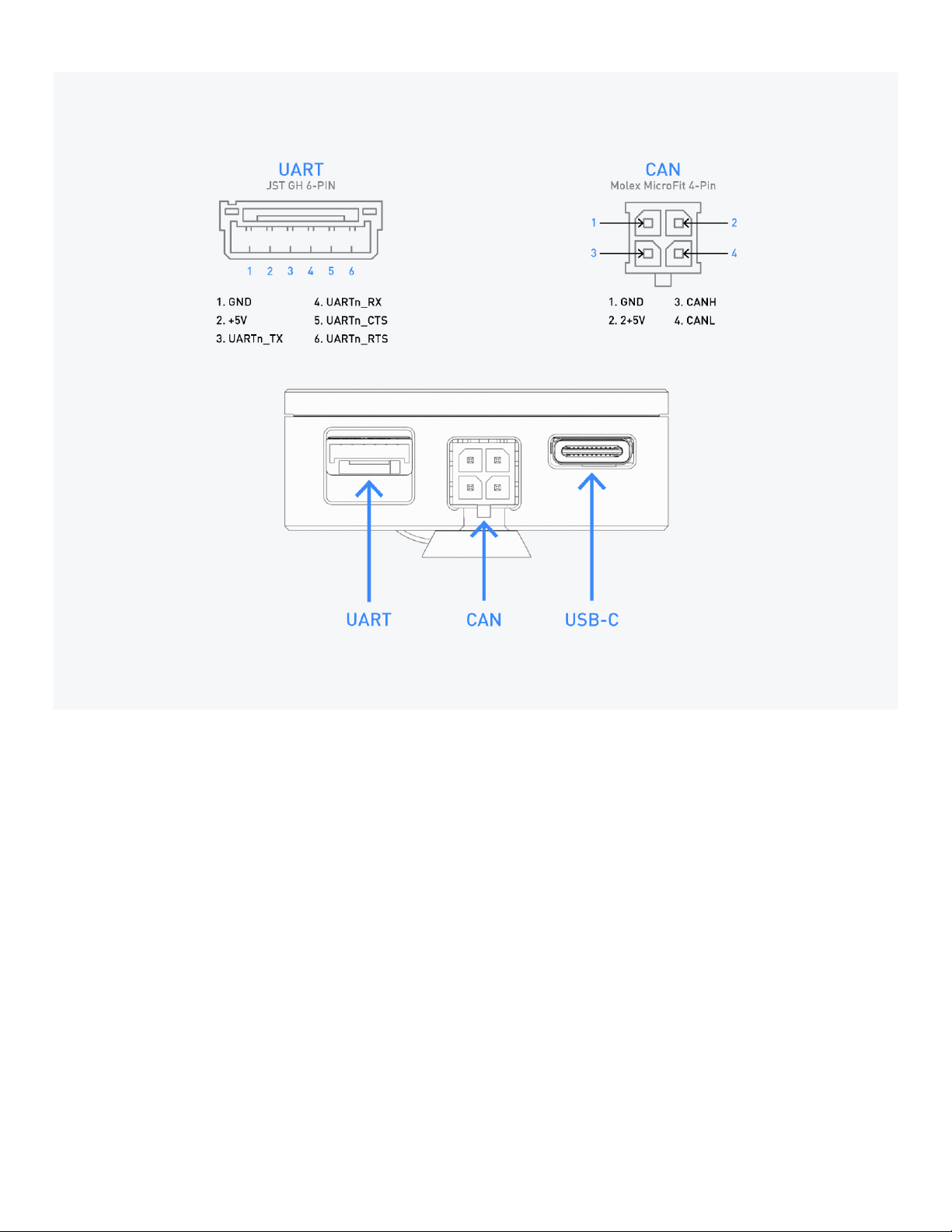

Connectors and Pinouts
