Freefly Alta 8 User Manual

AIRCRAFT FLIGHT MANUAL

77000048 | REVISION B | 01.16.2017

REVISION HISTORY

REVISION DATE DESCRIPTION

A March 2016 Initial Release

B January 2017 Added discussion of features available in SYNAPSE version 4.0.4. Added

Kinematic Position Mode. Added Orbit Mode. Updated Alarm Light
scenarios. Added procedure to disable ceiling and range limits. Updated
Autoland descent rate. Updated default settings, switch functions, and
data logging fields. General updates and typographical fixes.

ALTA 8 AIRCRAFT FLIGHT MANUAL
DOCUMENT NUMBER: 77000048

CONTENTS

2 Revision History
3 Table of Contents

6 ALTA 8 OVERVIEW
7 Disclaimer and Warning
9 Limitation of Liability
10 Introduction
11 Symbols, Abbreviations, and Terminology
14 Dimensions
16 Included Items
17 Specifications
21 Limitations
23 System Diagrams
27 ALTA Mobile App
28 Additional Required Components (not included)

29 SETTING UP ALTA 8
30 Unfolding/Folding ALTA 8
33 Radio Installation
38 Radio Channel Mapping
44 Configuring for MōVI
46 Isolator Cartridges
47 Battery Installation
52 Compass Calibration
55 Propellers
57 First Person View (FPV)
64 Tuning ALTA 8
68 ALTA 8 Flight Parameters
72 Resetting ALTA 8 WiFi Password

73 OPERATING ALTA 8
74 Flight Controller Modes
79 Home Switch

3| AIRCRAFT FLIGHT MANUAL

80 Orbit Switch
81 Disarm Safety Switch
82 Status Light
84 Orientation Lights
85 Alarms
86 ALTA App Monitor
87 Data Logging

88 NORMAL PROCEDURES
89 Unpacking and Setup
90 Before Starting
92 Before Takeoff
94 After Every Flight
96 After Last Flight

97 EMERGENCY PROCEDURES
98 Emergency Guidance
99 Alarm Indication (Flashing or Solid Red Light)
100 Pilot Loss of ALTA 8 Orientation
101 Unexpected Flight Controller Behavior
102 Battery Exhaustion
103 Radio Loss of Signal (LOS)
104 Loss of FPV Signal

105 PERFORMANCE
106 Weight / Endurance Performance Data
107 Allowable Gross Weight Gross Weight

108 MAINTAINING ALTA 8
109 General Information and Techniques
110 Maintenance Items
114 Firmware Update Process
115 Motor Alignment
118 Guidelines Following an Accident

4| AIRCRAFT FLIGHT MANUAL

119 TROUBLESHOOTING

124 APPENDIX
125 Appendix A. Default Tuning Values
126 Appendix B. Data Logging Fields

5| AIRCRAFT FLIGHT MANUAL

ALTA 8 OVERVIEW

6| AIRCRAFT FLIGHT MANUAL

DISCLAIMER AND WARNING

IMPORTANT - Please read this disclaimer and warning carefully and review
the ALTA 8 Aircraft Flight Manual (AFM) prior to flight. If you have any questions,
please contact support@freeflysystems.com prior to using the ALTA 8. You can review
the most current version of this AFM at www.freeflysystems.com/software-manuals/.

By using ALTA 8, you acknowledge that you have read, understand and agree to this
disclaimer. You agree that you are solely responsible for your conduct while using
ALTA 8, and for any direct or indirect consequences that may result from its use. You
agree to only use ALTA 8 for proper purposes that are in accordance with local and
airspace rules and regulations.

» ALTA 8 is not a toy and should be operated with extreme care, as improper

operation can cause damage to property, serious personal injury or death.

» As with any multi-rotor aircraft, ALTA 8 is a complex and technical

machine. Novice pilots should invest sufficient time on a flight
simulator and seek training from an experienced pilot prior to
operation. The ALTA 8 Aircraft Flight Manual and a flight simulator
are no substitute for training with an experienced pilot, particularly
when it comes to learning how to safely operate ALTA 8. Novice pilots
should never fly without the supervision of an experienced pilot.

» Always check ALTA 8 and its components prior to operation.

» Always maintain a safe distance from ALTA 8 when in use.

» Never attempt to touch ALTA 8 when the propellers are moving.

» Never fly ALTA 8 over or around people, power lines or other aircraft.

» Never fly with any propellers that have visible imperfections or damage.

» Always keep children and animals a safe distance away from

ALTA 8 when in use and when changing configurations.

» Only use propellers supplied by Freefly Systems

that are designed for use on ALTA 8.

» Always remove the propellers or power ALTA 8 using a low power

source when making a change to the configuration of ALTA 8 to
prevent propeller strikes in the event of unintentional motor starts.

» Always remove the configuration jumper when making

changes to the configuration of ALTA 8.

» Always test ALTA 8 with the propellers removed to make sure that the

motors are spinning in the correct direction and that the motor assignment
is correct with respect to the Synapse flight controller. If you have either
of these wrong, the ALTA 8 will be uncontrollable and dangerous.

7| AIRCRAFT FLIGHT MANUAL

» It is your responsibility to perform a full system

check of ALTA 8 prior to every flight.

» It is your responsibility to learn how to safely operate ALTA 8

and to adhere to all applicable rules and regulations.

» Fly at your own risk.

» ALTA 8 is a tuned system with custom components selected for each

application. Modification to, removal, or substitution of ALTA 8 components
will void the warranty and can lead to unsafe operating conditions.

8| AIRCRAFT FLIGHT MANUAL

LIMITATION OF LIABILITY

IN NO EVENT SHALL FREEFLY BE LIABLE TO BUYER FOR ANY INDIRECT,
CONSEQUENTIAL, PUNITIVE, INCIDENTAL, OR SPECIAL DAMAGES, OR ANY
DAMAGES WHATSOEVER RESULTING FROM THE USE OF ALTA OR FROM LOSS
OF USE, DATA OR PROFITS (HOWEVER CAUSED AND UNDER ANY THEORY OF
LIABILITY), EVEN IF FREEFLY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. IN NO EVENT SHALL FREEFLY’S LIABILITY FOR A PRODUCT (WHETHER
ASSERTED AS A TORT CLAIM, A CONTRACT CLAIM OR OTHERWISE) EXCEED THE
AMOUNTS PAID TO FREEFLY FOR SUCH PRODUCT. NOTWITHSTANDING ANYTHING
HEREIN, IN NO EVENT SHALL FREEFLY’S LIABILITY FOR ALL CLAIMS ARISING OUT
OF OR RELATING TO THIS AGREEMENT EXCEED THE AMOUNTS PAID BY BUYER TO
FREEFLY FOR PRODUCT IN THE LAST TWELVE (12) MONTHS. IN NO EVENT WILL
FREEFLY BE LIABLE FOR COSTS OF PROCUREMENT OR SUBSTITUTE GOODS BY
BUYER. THE LIMITATIONS SET FORTH HEREIN SHALL APPLY TO ALL LIABILITIES
THAT MAY ARISE OUT OF THIRD-PARTY CLAIMS AGAINST BUYER. THESE
LIMITATIONS SHALL APPLY NOTWITHSTANDING ANY FAILURE OF ESSENTIAL
PURPOSE OF ANY LIMITED REMEDY.

Freefly shall not be liable for damages or injuries incurred directly or indirectly from
the use of ALTA 8 including, but not limited to, the following situations:

» Failure of operator to follow proper instructions and safety

warnings found at www.freeflysystems.com.

» Failure of the operator to understand and operate the aircraft within the

operating limitations described in this manual.

» Failure of the operator to follow onboard safety

warnings while using ALTA 8.

» Failure of the operator to follow and comply with local rules and

regulations.

» Failure of the operator to inspect ALTA 8 and

its components prior to operation.

» Failure of the operator to properly maintain and/or service ALTA 8 through

an authorized Freefly Service Center with genuine ALTA 8 parts.

» Use of third-party products on ALTA 8.

» Use of ALTA 8 in a physically or mentally impaired capacity.

» Use of ALTA 8 without sufficient training.

» Use of ALTA 8 in unsafe conditions, including but not limited to, bad or

severe weather, such as rain, wind, snow, lightning, dust storms, etc.,
or in areas of magnetic or radio interference, such as power stations,
broadcasting and cell phone towers, government prohibited airspace, etc.

» Improper operation, misjudgment or risky behavior while using ALTA 8.

» Infringement of third party data, audio, or video

rights recorded when using ALTA 8.

9| AIRCRAFT FLIGHT MANUAL

INTRODUCTION

ALTA 8 is a professional multi-rotor aircraft designed for demanding
cinematic, television, and photographic applications. Within five
minutes, ALTA 8 can unfold from its carrying case to flying some of
the most capable cinema cameras on either the top or bottom of the
aircraft. The SYNAPSE flight controller is purpose-built for cinema
use, yielding precise yet smooth control.

This Aircraft Flight Manual has been prepared to describe the
complete operation of airframe and flight control systems, and the
normal maintenance of those items. Do not operate ALTA 8 without
reading and understanding this manual.

This manual is not a substitute for adequate flight training. Training
requirements can vary when operating in different countries or
under different flight conditions. Always consult local regulations
before flying ALTA 8. In areas where there are no flight training
requirements, it is the sole determination of the pilot-in-command
as to whether he or she has the appropriate level of training or
experience for a given flight. Always set and adhere to personal
minimums and fly within your own capabilities.

10| AIRCRAFT FLIGHT MANUAL

SYMBOLS, ABBREVIATIONS, AND TERMINOLOGY

WARNINGS, CAUTIONS AND NOTES

Throughout the manual, warnings, cautions and notes are used to highlight various
important procedures. These are defined as follows:

WARNING

Warnings are used to highlight proce­dures which, if not strictly observed,
may result in personal injury or loss
of life.

CAUTION

Cautions are used to highlight proce­dures which, if not strictly observed,
may cause damage to equipment.

NOTE

Notes are used to highlight specific
operating conditions or steps of a
procedure.

METEOROLOGICAL TERMINOLOGY

ISA International Standard Atmosphere in which:

The air is a dry, perfect gas;

The temperature at sea level is 15°
Celsius (59° Fahrenheit);

The pressure at sea level is 1013.2
mbar (29.92 inches Hg);

The temperature gradient from sea level
to the altitude at which the temperature is

-56.5°C (-69.7°F) is -0.00198°C (-0.003564°F)
per foot and zero above that altitude

MSL Mean Sea Level is the average height above

the surface of the sea for all stages of tide

AGL Above Ground Level is the height of

the aircraft above the ground

OAT Outside Air Temperature is the free air static

temperature surrounding the aircraft

11| AIRCRAFT FLIGHT MANUAL

Pressure Altitude Altitude measured from standard sea level

pressure (1013.2 mbar, 29.92 in. Hg) by a
pressure or barometric altimeter

It is the indicated pressure altitude corrected for
position and instrument error. In this Manual,
altimeter instrument errors are assumed to be zero

POWER TERMINOLOGY

Maximum Continuous
Power Output

Maximum Instantaneous
Peak Power Output

The maximum typical power output of a
motor averaged over the entire flight

The maximum power output of a motor during
any phase of flight, such as when maneuvering

FLIGHT AND POWERPLANT CONTROL

Throttle Stick The radio controller stick responsible for

throttle control. For Mode 2 controllers, this
is the vertical movement of the left control
stick. For Mode 1 controllers, this is the
vertical movement of the right control stick

Yaw Stick The radio controller stick responsible

for yaw (also called pan) control

For Mode 2 and Mode 1 controllers, this is the
lateral movement of the left control stick

Pitch Stick The radio controller stick responsible for

pitch control. For Mode 2 controllers, this is
the vertical movement of the right stick

For Mode 1 controllers, this is the
vertical movement of the left stick

Roll Stick The radio controller stick responsible for roll

control. For Mode 2 and Mode 1 controllers, this is
the lateral movement of the right control stick

Pitch/Roll Stick
or Cyclic Stick

The radio control stick responsible
for both pitch and roll control

For Mode 2 controllers, this is the right stick

12| AIRCRAFT FLIGHT MANUAL

WEIGHT AND BALANCE

Maximum Takeoff
Weight (MTOW)

Standard Empty Weight Weight of a standard aircraft

Basic Empty Weight Standard empty weight plus optional equipment

Useful Load Difference between take off weight

Payload Useful load less battery weight

Maximum allowable weight at liftoff

and basic empty weight

GENERAL TERMINOLOGY

LOS Loss of Signal

RTH Return-to-Home

sUAS Small Unmanned Aircraft System includes all

components of the system required for the flight of
an unmanned aircraft, including the radio controller,
data link and other related support equipment

13| AIRCRAFT FLIGHT MANUAL

DIMENSIONS

457

(18.0)

220

(8.6)

1325

(52.1)

1

2

3

4

5

6

7

8

1325

(52.1)

1720

(67.7)

457

(18.0)

(52.1)

1

2

3

4

5

6

7

8

1325

(52.1)

1720

(67.7)

1720

(67.7)

1325

(52.1)

8

7

1

6

5

4

2

3

UNFOLDED PLAN VIEW WITH BOOM NUMBERING SCHEME MM INCH

457

(18.0)

360

220

(8.6)

(14.1)

UNFOLDED SIDE VIEW WITH LANDING GEAR MM INCH

1325

UNFOLDED FRONT VIEW WITHOUT LANDING GEAR MM INCH

220

(8.6)

14| AIRCRAFT FLIGHT MANUAL

660

(25.9)

615

660

(25.9)

615

(24.2)

250

(9.8)

FOLDED SIDE VIEW MM INCH

660

(25.9)

(24.2)

250

(9.8)

FOLDED PLAN VIEW MM INCH

260

(10.2)

FOLDED FRONT VIEW MM INCH

15| AIRCRAFT FLIGHT MANUAL

INCLUDED ITEMS

1. Case

2. ALTA 8

3. Case Lid Foam

4. Isolator Cartridges

a. (6) Teal (Installed)

b. (6) Black

c. (6) Red

5. Documentation

6. Electronic Luggage Scale

7. USB -Futaba Power Cable

8. Inverted Landing Gear

9. A nte nna Tu b es

10. FPV Cables

a. Skyzone/BOSC AM

b. BOSCAM, small connector

c. ImmersionRC /Fat Shark

d. Ready Made RC

11. (2) M3 × 6 Flat Head for Accessory Mount

12. Quick Release Battery Tray

13. 5.5mm Wrench

14. Hex Drivers (1.5mm, 2.0mm, 2.5mm)

15. Accessory Mount

16. Double-Sided Tape

16| AIRCRAFT FLIGHT MANUAL

SPECIFICATIONS

DIMENSIONS

Unfolded Diameter
(does not include Props)

Folded Diameter
(does not include Props)

Height to base of Toad In The Hole (TITH) 263 mm

POWERPLANT

Number of Motors 8

Motor Type Direct Drive 3-Phase PMAC Outrunner

Motor Make and Model Freefly F45

Motor Max Continuous Power Output 350 W

Motor Max Instantaneous
Peak Power Output

Maximum RPM (flat rated) 6300 RPM

Equivalent Kv 384

Electronic Speed Controller Freefly Silent-Drive Sine Wave ESC

1325 mm

660 mm

950 W

PROPELLERS

Make and Model Freefly ALTA Propeller

Material Carbon fiber with balsa core

Propeller Orientation (4) CW and (4) CCW Props

Propeller Type 18 × 6 Folding

BATTERY

Nominal Battery Voltage 6S / 22.2V

Maximum Battery Size (GroundView) 240 × 175 × 80 mm

Maximum Battery Size (SkyView) 220 x 156 x 64 mm

Maximum Battery Quantity 2 Battery Packs (Parallel)

Minimum Battery Quantity 2 Battery Packs (Parallel)

Battery Connectors 2× EC5 (Parallel)

Required Minimum Battery
Discharge Rating (Per Pack)

250A / 500A Peak

17| AIRCRAFT FLIGHT MANUAL

WEIGHTS

Maximum Gross for Takeoff

Maximum Useful Load

Maximum Payload

3

Typical Standard Empty Weight: 6.2 kg (13.6 lbs)

WARNING

Always refer to the following aircraft limitations section for
complete information on allowable maximum gross weights
at different altitudes and temperatures before any flight.

1

2

18.1 kg (40.0 lbs)

12.0 kg (26.4 lbs)

9.1 kg (20.0 lbs)

SPECIFIC LOADINGS

Typical Specific Power

Thrust Ratio at MTOW

1

At sea level, ISA. Refer to the Weight Limitations section for complete loading

information.

2

Top and bottom mount. Includes batteries.

3

Payload weight top or bottom mount. Battery weight not included and mounted on

opposite side from payload.

4

At MTOW, sea level, ISA.

4

1

145 W/kg

1.85 : 1

18| AIRCRAFT FLIGHT MANUAL

FLIGHT CONTROLLER

Model Name Freefly SYNAPSE flight controller

Flight Modes Manual, Height Mode, Position Mode

(Classic, Kinematic), Return-to-Home

(RTH), Autoland, Orbit Mode

Supported Inputs: DSMX, DSM2, S.Bus,

S.Bus2, PPM, FPV SD

Supported Radios Futaba S.Bus & S.Bus2, DSMX,

DSM2 (Spektrum/JR), PPM,

PPM Invert, PPM Graupner

Supported Radio Controller
Telemetry Systems

Minimum Radio Controller
Channels Required

Supported GNSS GPS, GLONASS, Galileo

Supported SBAS QZSS, WAAS, EGNOS, MSAS

First-Person View System
Video Formats

Supported First-Person
View Transmitters

Supported First-Person View Cameras Ready Made RC

Futaba w/ built-in voltage sense port

NTSC, PAL

Skyzone, BOSCAM,

ImmersionRC, Fat Shark

5

(RMRC-700XVN Recommended)

First-Person View OSD Telemetry User Configurable

Installed Transceivers Wi-Fi 2.4 GHz b/g/n

Data Logging Rate 25 Hz

LIGHTING AND INDICATION

Status Light 1 Watt Red, 1 Watt White LED

Orientation Lights 3-Watt RGB LED

Orientation Light Color Options Red, Yellow, Blue, Purple,

Green, White, Off

ISOLATION SYSTEM

Vibration Isolation System O-Rings

Option 1: Soft / Light Payloads Red O-Rings

Option 2: Medium / Medium Payloads Teal O-Rings

Option 3: Stiff / Heavy Payloads Black O-Rings

19| AIRCRAFT FLIGHT MANUAL

PAYLOAD MOUNTING

Mounting Locations Bottom and Top Mount

Mounting System Freefly Toad In The Hole

(TITH) Quick Release

FPV Camera Mount Between Booms 8 & 1

FPV Transmitter Mount Boom 2

20| AIRCRAFT FLIGHT MANUAL

LIMITATIONS

NOTE

These limitations are advisory in nature and do not extend or
restrict limitations provided by Governing Aviation Authorities.

POWERPLANT LIMITATIONS

Maximum RPM 6300 RPM

Maximum Battery Voltage 25.2 Volts

Minimum Average Battery Voltage 19.2 Volts

ENVIRONMENTAL LIMITATIONS

Do not fly ALTA 8 in temperatures exceeding 45ºC (113ºF) or below -20ºC(-4ºF).

FLIGHT CONTROLLER LIMITS

Maximum Pitch/Roll Angle 45°

Maximum Yaw Rate 150° / second

5

5

Battery temperature ratings must be observed.

21| AIRCRAFT FLIGHT MANUAL

WEIGHT LIMITS

Press Alt

Maximum

Gross Weight

(lb)

40.0

40.0

39.2

37.8

36.4

35.1

33.8

32.6

31.3

30.2

29.0

18.1

18.1

17.8

17.2

16.5

15.9

15.3

14.8

14.2

13.7

13.2

40.0

39.3

37.8

36.5

35.2

33.9

32.6

31.4

30.2

29.1

28.0

18.1

17.8

39.3

37.9

17.2

16.5

15.9

15.4

14.8

14.2

13.7

13.2

12.7

36.6

35.2

34.0

32.7

31.5

30.3

29.2

28.1

27.0

17.8

17.2

16.6

16.0

15.4

14.8

14.3

13.8

13.2

12.7

12.3

38.0

36.7

35.4

34.1

32.8

31.6

30.5

29.3

28.2

27.2

26.1

17.2

16.6

16.0

15.5

14.9

14.3

13.8

13.3

12.8

12.3

11.9

36.8

35.5

34.2

33.0

31.8

30.6

29.5

28.4

27.3

26.3

25.3

16.7

16.1

15.5

15.0

14.4

13.9

13.4

12.9

12.4

11.9

11.5

Maximum

Gross Weight

(kg)

Maximum

Gross Weight

(lb)

Maximum

Gross Weight

(kg)

Maximum

Gross Weight

(lb)

Maximum

Gross Weight

(kg)

Maximum

Gross Weight

(lb)

Maximum

Gross Weight

(kg)

Maximum

Gross Weight

(lb)

Maximum

Gross Weight

(kg)

Sea Level

305m (1000ft)

610m (2000ft)

914m (3000ft)

1219m (4000ft)

1524m (5000ft)

1829m (6000ft)

2134m (7000ft)

2438m (8000ft)

2743m (9000ft)

3048m (10000ft)

0ºC (32ºF) 10ºC (50ºF) 20ºC (68ºF) 30ºC (86ºF) 40ºC (104ºF)

ALTA 8 ALLOWABLE GROSS WEIGHT

As altitude and temperature increase, the density of the air decreases. Consequently, ALTA 8’s thrust will decrease. The

following table describes maximum gross weight limits with respect to altitude and temperature.

Maximum Payload 9.1 kg (20.0 lbs)

Maximum Takeoff Weight See following table

22| AIRCRAFT FLIGHT MANUAL

SYSTEM DIAGRAMS

sUAS OVERVIEW

GPS Satellite

HD Video Link,

Preview Monitor*

*NOT INCLUDED

Radio Controller*

2.4GHz Mō VI Controller*

FPV Rx,

Preview Monitor*

ALTA App

23| AIRCRAFT FLIGHT MANUAL

FLIGHT CONTROL

ESC

ESC

8

A.

B.

SYNAPSE

Flight

Controller

1

P WM

C AN

A. Spektrum Receiver

DSMX, DSM 2

B. Futaba Receiver or Generic Receiver

S.BUS, S.BUS 2 or PPM

ESC

2

ESC

ESC

Status

Light

8 Position Lights

ESC

5

4

3

24| AIRCRAFT FLIGHT MANUAL

POWER SYSTEM

Motor

Lights 7

Motor

Lights 6

RECIEVER

FUSE

Motor

Lights 8

Motor

Lights 1

SYNAPSE

FP V C A MFP V T x

Controller

12v

REGULATORS

Flight

5v 5v

Fu tab a T el.

FUSE

RECIEVER

Motor

Lights 2

Motor

Lights 3

Motor

Lights 5

Flight

Battery

EC5 Connector

Flight

Battery

Motor

Lights 4

Note: Do not modify, augment, or
add components to the electrical
power system of the ALTA.
Unauthorized modifications may
result in unsafe operation.

25| AIRCRAFT FLIGHT MANUAL

FPV EQUIPMENT

8

FPV Camera Cable

FPV Camera Lead

Pre-installed

FPV Camera

(optional)

1

FPV Tx
(optional)

2

SYNAPSE

Flight

Controller

5

FPV Tx Lead

Pre-installed

4

FPV Tx Cable

Boscam/Skyzone or Fat Shark/ImmersionRC

3

26| AIRCRAFT FLIGHT MANUAL

ALTA MOBILE APP

The ALTA App is used to configure ALTA 8 parameters, update ALTA 8 firmware,
and to monitor ALTA 8’s status during flight. To download the ALTA App, search for
“Freefly ALTA” in the App Store or on Google Play™.

Parameters may only be adjusted while ALTA 8 is on the ground and disarmed. In
addition, radio mapping parameters can only be adjusted when the Configuration
Jumper is removed. For more information on radio mapping, see the Radio Mapping
section of this manual.

The ALTA App will be actively maintained, and additional functionality may be added
over time. For information on individual app updates, refer to the App release notes.

NOTE

When making configuration changes with the ALTA App, wait
three seconds for the app to automatically save changes to
ALTA 8 before shutting off the app or the mobile device.

27| AIRCRAFT FLIGHT MANUAL

ADDITIONAL REQUIRED COMPONENTS (NOT INCLUDED)

RADIO CONTROLLER

ALTA 8 supports a variety of radio controllers as outlined in the Flight Controller
Specifications. A minimum of five (5) channels are required, with four (4) used for
flight control, and the remaining one (1) used for mode selection.

However, a radio controller with at least 10 channels is highly recommended to
make use of Velocity and Climb Rate Clamps, Return-to-Home (RTH), Disarm Safety,
and Orbit Mode functions. It is recommended to use a radio controller with a three
way switch for the Mode, Home, and Orbit functions, a two or three way switch for
the disarm safety function, and a knob or slider input for both the Velocity and Climb
Rate Clamp functions.

FLIGHT BATTERY

ALTA 8 can accommodate a variety of Lithium Polymer (LiPo) flight battery packs.
Battery packs must be 6S, having a nominal voltage of 22.2 V. Only run ALTA 8 using
two packs at a time. Each pack must have a continuous discharge rating of 250
amps or greater, and a peak discharge rating of 500 amps or greater. For additional
information on expected flight durations, refer to the Performance Section of this
manual.

28| AIRCRAFT FLIGHT MANUAL

SETTING UP ALTA 8

29| AIRCRAFT FLIGHT MANUAL

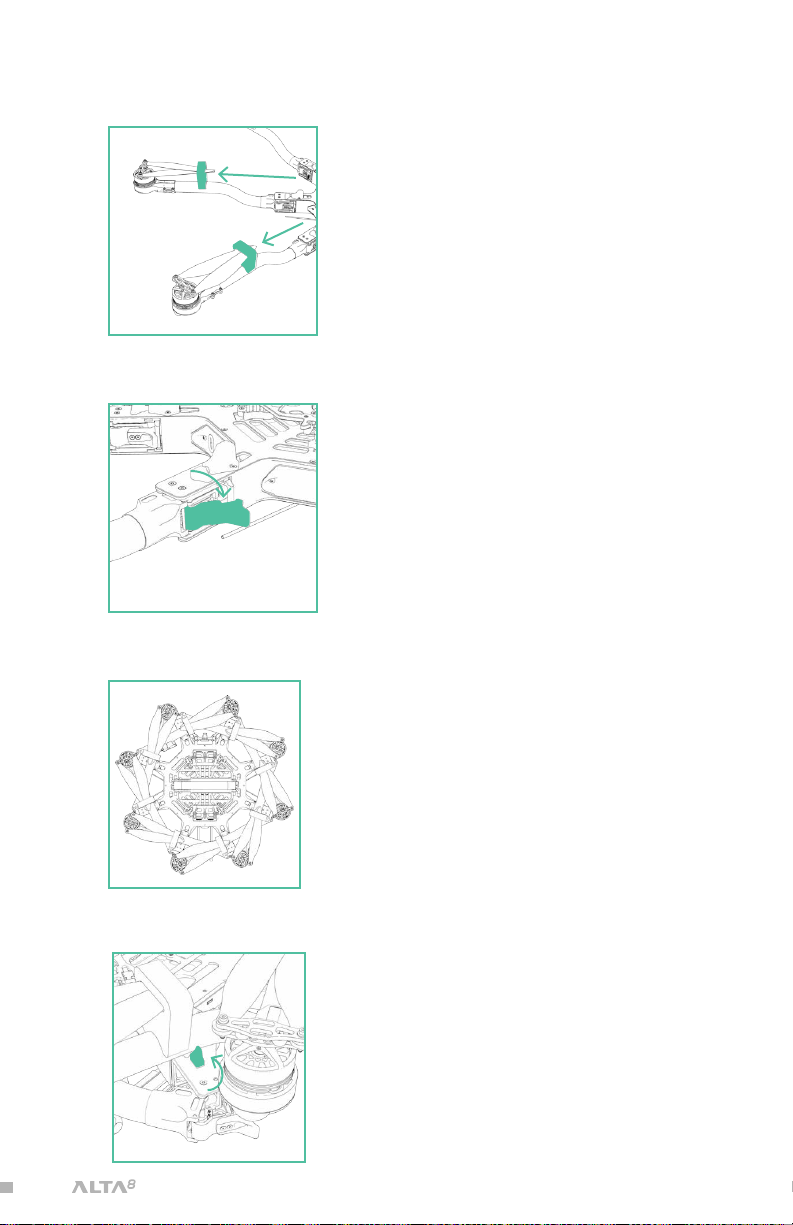

UNFOLDING ALTA 8

ALTA 8 features swan-neck booms that fold into a compact size for
travel. They are secured in an open position for flight using over­center latches.

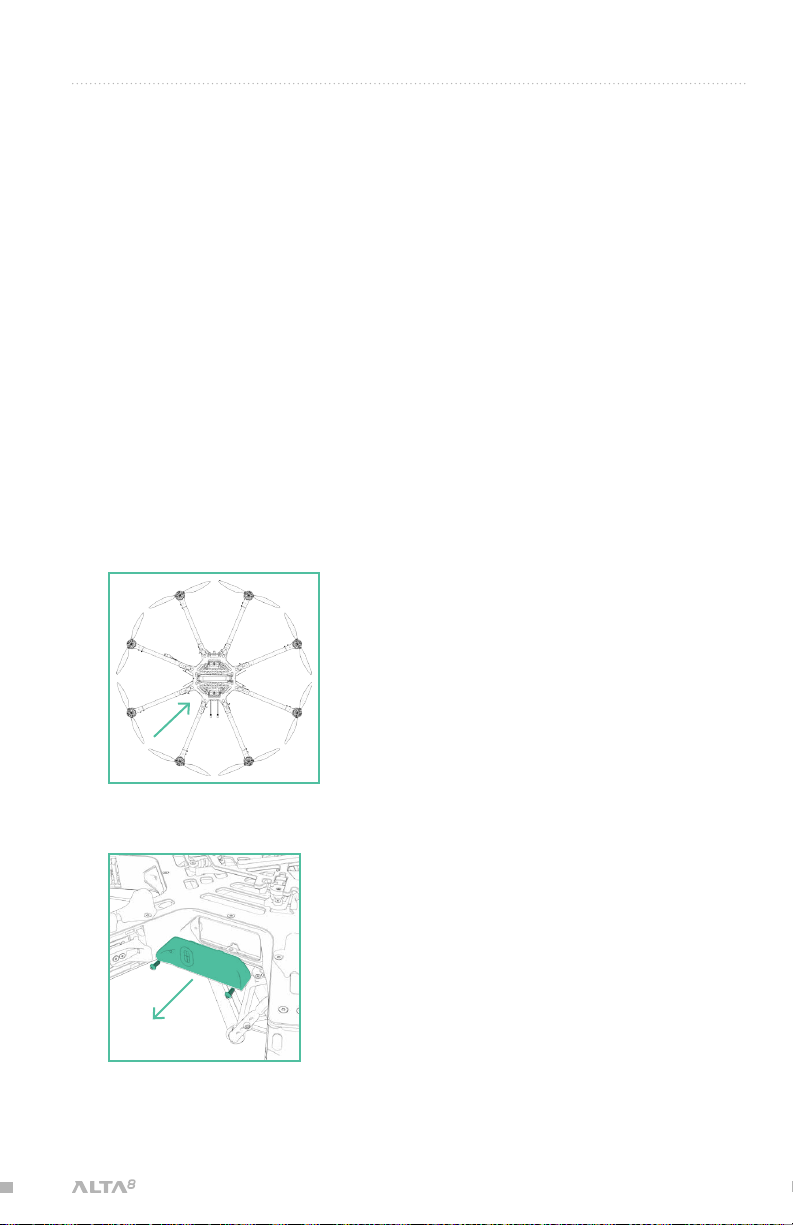

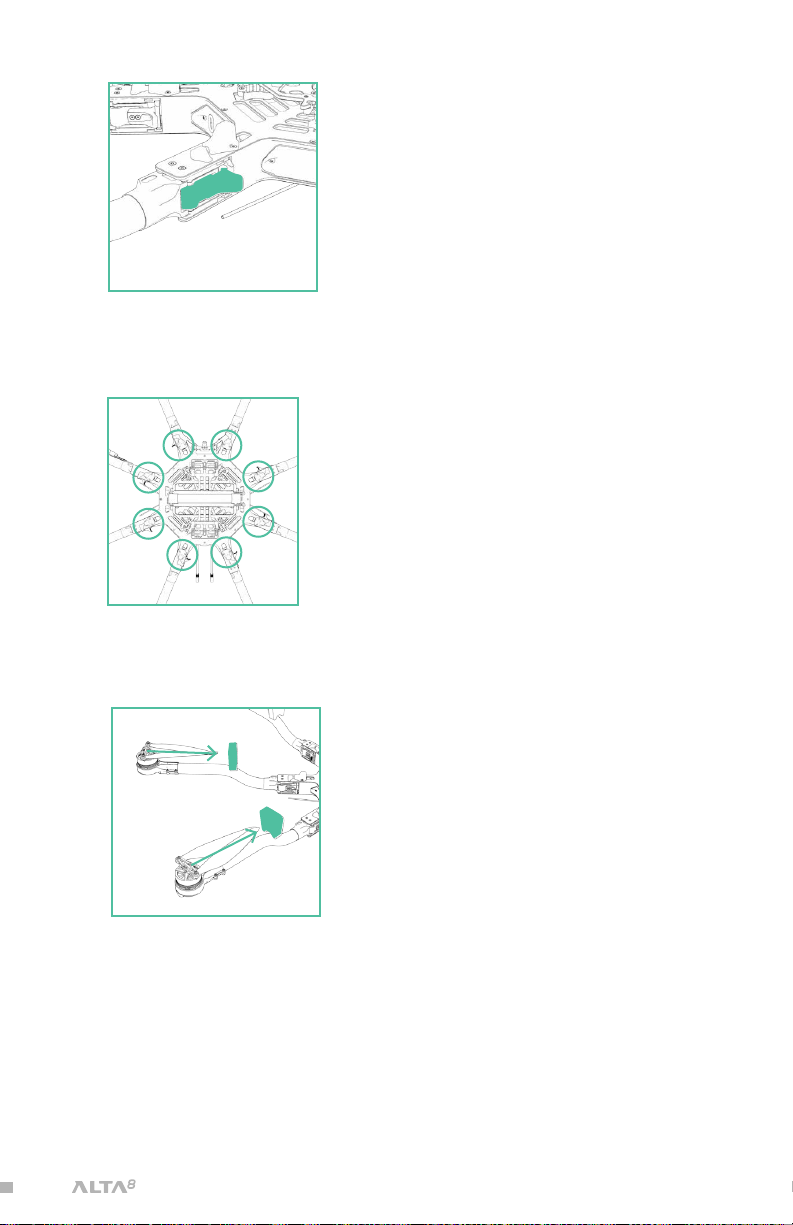

TO UNFOLD ALTA 8

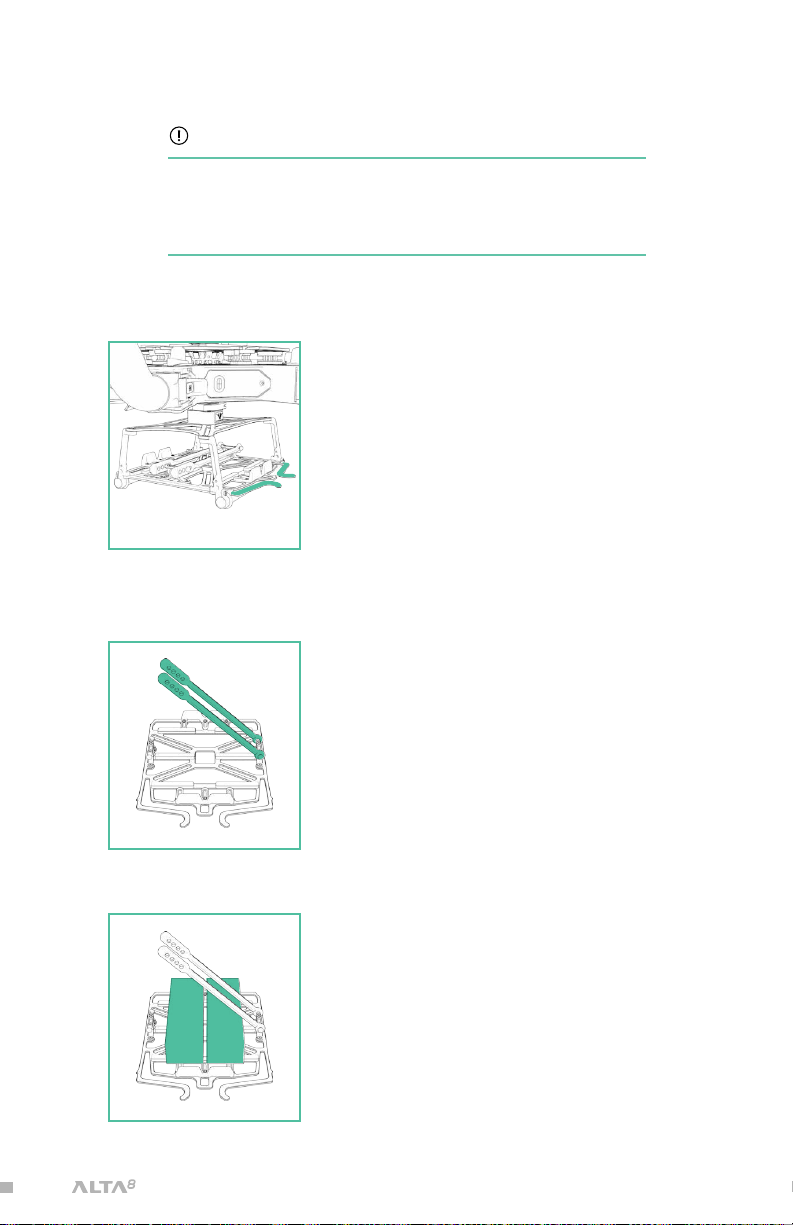

1. Remove ALTA 8 from case

2. Fold down all eight boom retention clips

3. Open ALTA 8 booms. ALTA 8 can become unbalanced and tip

over while unfolding booms individually, so unfold opposite
boom pairs simultaneously to keep balance.

30| AIRCRAFT FLIGHT MANUAL
