Franklin WP7500 User Manual
Thank you for purchasing the WP7500.
Please read this operation manual carefully before using the product.
This unit contains four dictionaries and reference works: the Britannica
Concise Encyclopedia, Concise Oxford American Dictionary, Concise
Oxford American Thesaurus and Oxford Dictionary of Difficult Words.
You can expand your English vocabulary further through use of the
Spellchecker, the seven Solvers, the 11 Word Games, and the EZ-Learn
function.
The display screen can be switched to Large, Middle or Small.
(See page 55.)
The screen display examples used in this manual are shown in the
“Middle” format.
Since this unit contains the most recent publishers updates, there
will be some minor differences between the data displayed here and
that in the print books.
EC DECLARATION OF CONFORMITY
This is to certify that this equipment fully conforms to the protection requirements of the following
EC Council Directives on the approximation of the laws of the member states relating to:-
Directives Title
89/336/EEC Electromagnetic Compatibility
Applicable Standards
EN55022: 1998 Electromagnetic Compatibility - Emissions (Radiated)
EN55024: 1998 Electromagnetic Compatibility - Immunity (Radiated Susceptibility, ESD)
SEIKO UK Limited SC House, Vanwall Road, Maidenhead, Berks. SL6 4UW U.K.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
The photographs, illustrations and phonetic symbols contained in
the Dictionary and Encyclopedia in the book version are not included.
Britannica Concise Encyclopedia © 2006 Encyclopædia Britannica, Inc.
Encyclopædia Britannica, Britannica and the Thistle logo are registered trademarks of
Encyclopædia Britannica, Inc. All rights reserved.
Concise Oxford American Dictionary © 2006 by Oxford University Press, Inc
Concise Oxford American Thesaurus © 2006 by Oxford University Press, Inc
Oxford Dictionary of Difficult Words © 2004 by Oxford University Press, Inc
Oxford Essential Dictionary of Abbreviations © 2004 by Oxford University Press, Inc
New American English Word List © 2006 by Oxford University Press, Inc
Franklin Technology © 1985-2006 Franklin Electronic Publishers, Inc. Burlington, NJ All rights
reserved.
Ryobi’s font is employed in the font of product. © 2006 RYOBI LIMITED
is a registered trademark of Seiko Corporation.
is a registered trademark of Seiko Instruments Inc.
© 2006 Seiko Instruments Inc.
Note: this device should be disposed of through your local electronic product recycling system
- do not throw away in your domestic rubbish.
CONTENTS
Preparation for using the Unit... 2
Installing Battery ................... 2
Resetting ............................... 2
Contrast Adjustment ............. 3
Demo Function...................... 3
Changing Battery .................. 3
Functions and Features ............ 4
The Keys and their Functions ... 6
Encyclopedia ............................ 8
Headword Search ................. 8
Jump function ..................... 10
Spelling Guide..................... 11
Category Search ................. 12
Dictionary ................................ 16
Basic Procedure.................. 16
Thesaurus ............................... 20
Basic Procedure.................. 20
Synonyms Search ............... 22
Dictionary of Difficult Words ... 24
Basic Procedure.................. 24
Spellchecker ........................... 26
Solvers .................................... 30
Crossword Solver................ 30
Anagram Solver................... 31
Phrase Finder ...................... 32
Definition Search................. 33
Encyclopedic Search .......... 35
Abbreviation ........................ 37
Letter Changer .................... 38
Games..................................... 40
Hangman............................. 40
User Hangman .................... 42
Jumble................................. 43
User Jumble ........................ 44
Crossword Quiz................... 45
Time Bomb.......................... 46
Memory ............................... 47
Hidden................................. 48
Articles ................................ 49
Definitions ........................... 50
Word Building...................... 51
EZ-Learn ................................. 52
Changing the Character size... 55
Calculator / Converters........... 56
Calculator ............................ 56
Converters........................... 57
Setting function....................... 60
Help function........................... 65
Proper Use .............................. 66
Specifications ......................... 66
ONE YEAR LIMITED WARRANTY.......
67
1
Preparation for using the Unit
Installing Battery
The unit is powered by one “AAA” size battery.
Before using the unit, please install the battery as follows.
1. Turn the unit over.
2. Slide the tab to the right and
unlock
then
battery cover.
3. Insert one “AAA” battery upon the
ribbon according to the polarity ( + , – )
marks inside the battery compartment.
4. After replacing the battery cover, slide
the tab to the left and
cover.
and remove the
lock
the battery
Contrast Adjustment
After resetting, the contrast adjustment
display will appear.
Press or to adjust the
contrast of the LCD display Level 1 to
Level 30. (Initial setting = 15)
Press to set it. ( See page 64. )
Demo Function
When you turn on the power, a
demonstration display will begin to
explain the contents of the unit.
You can stop the demonstration by
pressing any of the keys.
* If you want to turn off the demonstration
display, press and select “
Message
. ( See page 60. )
”. Select “
Disable
Demo
” and press
Changing Battery
...
Press the “RESET” button on the
5.
bottom of the unit.
6. The contrast adjustment display will
appear. (See page 3.)
Resetting
If the unit does not operate properly after the battery has been replaced,
or if at any time the unit fails to operate properly, gently press the
RESET
“
NOTE: Resetting product erases the EZ-Learn List in the memory.
2 3
” button on the bottom of the unit.
The battery mark will appear at the right of the screen when the battery
is almost exhausted, meaning that it is time to replace it.
• Press the “RESET” button on the bottom of the unit after battery
replacement.
• Make sure that power is switched off before replacing battery.
• If the unit is subjected to an electrostatic discharge it may lock up, the
battery should be removed and replaced in order to overcome this problem.
CAUTION
• The battery may pose a choking hazard to small children.
•Keep the battery and product away from small children.
• Do not expose the battery to open flame or intense heat.
• Rechargeable battery cannot be used. / Do not try to recharge battery.
• Remove the battery from the unit if you do not intend to use it for a long
duration.
Functions and Features
1 Encyclopedia
You will find information on just about every field of human
knowledge, with more than 25,000 entries.
You can search for the article you’re looking for from the category to
which it belongs. Encyclopedia entry words and articles all come from
the Britannica Concise Encyclopedia.
2 Dictionary
High speed search of over 180,000 words, phrases and definitions
covering current and historical English, as well as hundreds of specialist
and technical subjects. Dictionary entry words, definitions and
grammatical information all come from the Concise Oxford American
Dictionary.
3 Thesaurus
The unit offers a high speed search of over 4 million synonym links,
with over 350,000 alternative words and opposite words to make what
you write and say more interesting. The thesaurus entries, including
examples, sense groupings, and all alternative and opposite words, are
taken from the Concise Oxford American Thesaurus.
4Dictionary of Difficult Words
Dictionary of Difficult Words: Features more than 10,000 entries
covering words that, while outside most people's working vocabulary,
are often encountered in literature, in technical writings (such as
computing or medicine), and in various other subject areas. Entries
contain pronunciations, parts of speech, concise definitions, example
sentences showing the word used in context, and selected etymologies.
5 Spellchecker
Instant phonetic spelling correction for over 130,000 words ensures you
will always have the answer at your fingertips.
6 Solvers
Phrase Finder, Definition Search
searchability of the Dictionary and Encyclopedia.
Crossword, Anagram, Abbreviation
puzzle solving situations.
and
Encyclopedic Search
and
Letter Changer
offer greater
offer help for
7Word Games
You can take on the challenge of 11 different word games set to any one
of three levels of difficulty.
Hangman, User Hangman, Jumble, User Jumble, Crossword Quiz, Time
Bomb, Memory, Hidden, Articles, Definitions, Word Building
8 EZ-Learn
The EZ-Learn function allows you to create your own word list from the
Encyclopedia, Dictionary, Thesaurus, Dictionary of Difficult Words,
Spellchecker, Solvers and Games.
9 Calculator
A full function calculator including memory and % functions. 12 digits,
1 Memory
10
Converters
The conversion function enables you to convert foreign currencies and
metric/imperial units of length, area, volume, weight, capacity, power,
and temperature. You can also convert foreign clothing sizes of shirts,
shoes, hats etc. for men, women and children.
11
Setting function
You can customize the following operating conditions:
Demo Message, Game Level, Game Scores,
Sorting, Solver Level, Auto Power Off Timer, Key sound, LCD Contrast
12
Other Features
Jump function
This function enables you to look up a word displayed on the
explanation screen in any dictionary of your choosing, and to register it
in the EZ-Learn word list.
Character size function
The size of the character display can be expanded or reduced.
Help function
A simple explanation of how to operate the various functions can be
displayed on the screen at each operational stage in each mode.
Demo function
A demonstration display explains the contents of the unit.
EZ-Learn
Word,
EZ-Learn
4 5
The Keys and their Functions
10 Used instead of one letter if you don’t know how to spell a word.
11 Used instead of one or more letters if you don’t know how to spell a
word.
12 For scrolling through the entries.
13 Enters a single blank space when pressed once.
Cursor key / Jump key
14 For scrolling up or down lines.
Cursor key
15 Cursor key / Jump key
16 Executes the functions.
17 Activates Spelling Guide function.
18 Selects Calculator mode, Currency, Metric/Imperial and Clothing
Size Converters.
19 Activates Setting function.
20 Activates Help function.
21 For deleting the last input character.
Returns the display to the previous state/level.
22 Activates Character size function.
23 Letter, numeral and symbol input keys.
•When the power is turned back on using , the unit will show the
display used before the power was last turned off.
1Turns the power ON and OFF.
2 Selects Encyclopedia mode.
3 Selects Dictionary mode.
4 Selects Thesaurus mode.
5 Selects Dictionary of Difficult Words mode.
6 Selects Solver mode.
7Selects Game mode.
8 Selects EZ-Learn mode.
9Clears the entry.
• The unit can also be turned ON with the mode keys.
• In order to avoid unnecessary wear of the battery, the power will turn off
automatically if the keys are not operated for a prescribed length of
time. (The initial setting is approximately 3 minutes. The time duration
can be changed in settings.)
6 7
Encyclopedia
Headword Search
1 Press .
6 To clear the display and search for
another word, simply enter your new
word.
Example: cypress
2 Type a word.
Example: quilting
Every time you enter a letter, the closest
match(es) will be displayed.
Use or to select the
headword as necessary.
3 Press .
An explanation of the selected headword
will be displayed.
* Press to return to the headword
selection screen.
* The mark will appear if there is
insufficient space to display the whole
entry.
4 Press to see the rest of an entry.
Press to scroll up.
Entering and Correcting Letters
•Use to enter a space.
• If there is no headword corresponding to the sequence of letters you
have entered, the words with the closest spelling will be displayed.
• Corrections can be made by using .
•Use or to move the cursor.
• The entire display can be cleared by pressing .
Looking up words whose spelling you aren’t sure of
When entering the letters, you can enter “? ” or “*” in place of any letters
you aren’t sure of.
Use to enter “ ?”.
This is used in place of a single character.
Use to enter “*”.
This is used in place of one or more
characters or words.
* Press to advance to the next
screen.
5 To scroll alphabetically up or down
through the headword list, press
or .
1 Type a word.
Example: la*d?r
The corresponding headword list will be
displayed.
2 Use or to select the
headword as necessary.
Example: lavender
3 Press .
8 9
Jump function
5 Press .
This function enables you to look up a word displayed on the explanation
screen in any dictionary of your choosing, and to register it in the EZ-Learn
word list.
Example: lavender
1 Press to select the first word you
can look up. Selected word will begin to
flash on and off.
Press to select the last word.
* Press to return to the previous
screen or to disable the cursor.
2 Select another word using the cursor
keys.
Example: species
3 Press .
* After you’ve looked up the definition or
synonyms, you can return to the
previous display by pressing .
* If there is a formula in an entry, the
FORMULA
Select the marker and then press
to display the formula.
marker will be displayed.
Spelling Guide
Pressing while entering letters enables you to perform a phonetic
search within the range of the headwords in the Encyclopedia.
1 Type a word.
Example: sycology
* If there is no headword corresponding to
the sequence of letters you have entered,
the words closest in spelling will be
displayed in order.
2 Press .
A list of words that are phonetically
4 Select Dictionary, Thesaurus,
Encyclopedia, Dictionary of Difficult
Words or EZ-Learn List by using
or .
Example: Select Encyclopedia.
similar to the entered word will be
displayed.
Use or to select the
headword as necessary.
3 Press .
DICT
THES
ENCY
ODDW
Add To
10 11
Search for definitions in the Dictionary
Search for synonyms in the Thesaurus
Search for articles in the Encyclopedia
Search for definitions in the Dictionary of Difficult Words
EZ-Learn
List
: Add the selected word to the EZ-Learn List.
* Return to the list by pressing .
* This function cannot be used for an
Encyclopedia category search.
(See page 12.)
Category Search
1 Press .
2 Press or to select Category
Search.
3 Type a category name.
Example: music
Every time you enter a letter, the closest
match(es) will be displayed.
7 Press to see the rest of an entry.
Press to scroll up.
* Press to advance to the next
screen.
Use or to select the category
as necessary.
4 Press .
5 Type a word.
Example: fantasia
Every time you enter a letter, the
corresponding headword list in the
category will change.
Use or to select the
headword as necessary.
6 Press .
An explanation of the selected headword
will be displayed.
* Press to return to the headword
selection screen.
8 To clear the display and search for
another word in the same category,
simply enter your new word.
Example: lennon
* The mark will appear if there is
insufficient space to display the whole
entry.
12 13

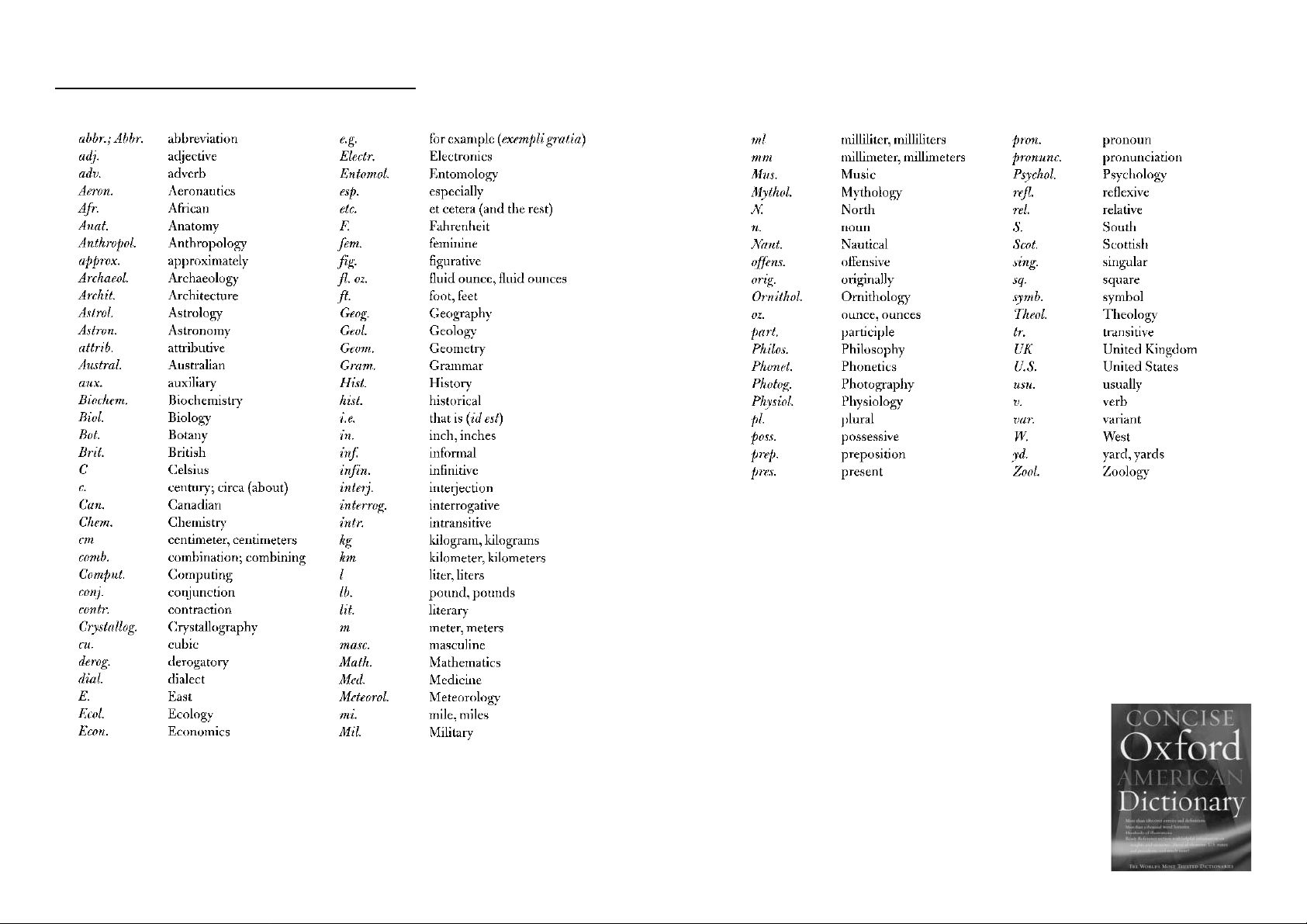

Abbreviations used in the Encyclopedia
MEMO
14 15
Dictionary
Basic Procedure
1 Press .
2 Type a word.
Example: unique
Every time you enter a letter, the
corresponding headword list will
change.
Use or to select the
headword required.
5 To scroll alphabetically up or down
through the Dictionary’s headword list,
press or .
6 To clear the display and search for
another word, simply enter your new
word.
Example: thread
* When there is a derivative in the
headword list, it will be displayed with
the base form in round brackets.
Example: threadlike (thread)
3 Press .
The unit shows headwords,
pronunciations, parts of speech,
inflected forms and definitions.
* Press to return to the headword
selection screen.
* The mark will appear if there is
insufficient space to display the whole
entry.
ODDW
* The
headword is recorded as a headword in
the Dictionary of Difficult Words.
* If there is a usage note or a list in an
entry, the
displayed after the headword.
marker will appear if the
USAGE
or
LIST
marker will be
4 Press to see the rest of an entry.
Press to scroll up.
* Press to advance to the next
screen.
* When there are phrases, phrasal verbs,
derivatives or origins, they will be
displayed after the last headword definition.
Entering and Correcting Letters
•Use to enter a space.
• If there is no headword corresponding to the sequence of letters you
have entered, the words with the closest spelling will be displayed.
• Corrections can be made by using .
•Use or to move the cursor.
• The entire display can be cleared by pressing .
Looking up words whose spelling you aren’t sure of
When entering the letters, you can enter “? ” or “*” in place of any letters
you aren’t sure of. (See page 9.)
Jump function
This function enables you to look up a word displayed on the explanation
screen in any dictionary of your choosing, and to register it in the EZ-Learn
word list. (See page 10.)
Spelling Guide
Pressing while entering letters enables you to perform a phonetic
search within the range of the headwords in the Dictionary. (See page 11.)
16 17
Loading...
