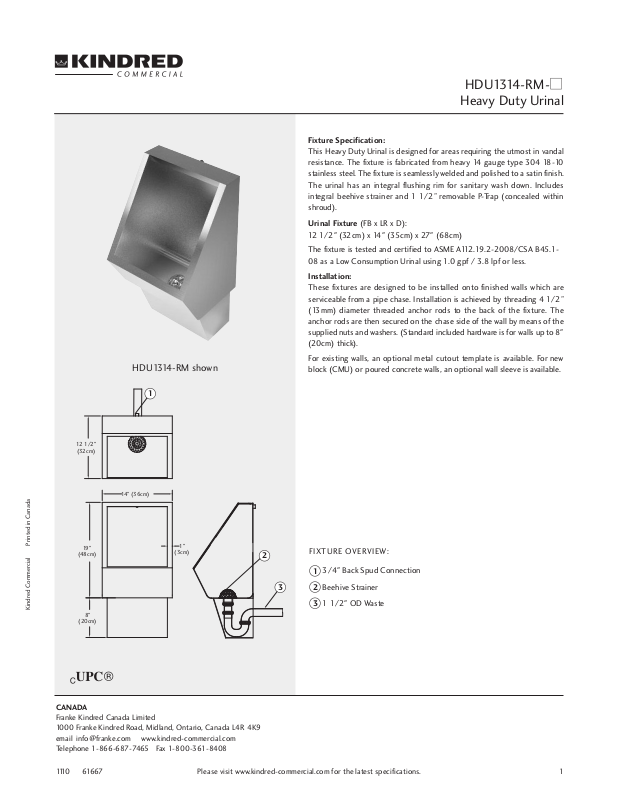

HDU1314-RM-□
Heavy Duty Urinal
Fixture Specification:
This Heavy Duty Urinal is designed for areas requiring the utmost in vandal
resistance. The fixture is fabricated from heavy 14 gauge type 304 18-10
stainless steel. The fixture is seamlessly welded and polished to a satin finish.
The urinal has an integral flushing rim for sanitary wash down. Includes
integral beehive strainer and 1 1/2” removable P-Trap (concealed within
shroud).
Urinal Fixture (FB x LR x D):
12 1/2" (32cm) x 14" (35cm) x 27" (68cm)
The fixture is tested and certified to ASME A112.19.2-2008/CSA B45.108 as a Low Consumption Urinal using 1.0 gpf / 3.8 lpf or less.
Installation:
These fixtures are designed to be installed onto finished walls which are
serviceable from a pipe chase. Installation is achieved by threading 4 1/2”
(13mm) diameter threaded anchor rods to the back of the fixture. The
anchor rods are then secured on the chase side of the wall by means of the
supplied nuts and washers. (Standard included hardware is for walls up to 8"
(20cm) thick).
For existing walls, an optional metal cutout template is available. For new
block (CMU) or poured concrete walls, an optional wall sleeve is available.
Kindred Commercial Printed in Canada
1
2
3
FIXTURE OVERVIEW:
3/4" Back Spud Connection
1
Beehive Strainer
2
1 1/2" OD Waste
3
Kindred Commercial Printed in Canada
CANADA
Franke Kindred Canada Limited
1000 Franke Kindred Road, Midland, Ontario, Canada L4R 4K9
email info@franke.com www.kindred-commercial.com
Telephone 1-866-687-7465 Fax 1-800-361-8408
1110 61667
1Please visit www.kindred-commercial.com for the latest specifications.
24"
(61cm)
7"
(18cm)
7"
(18cm)
11 1/2"
(29cm)
16"
(
41cm)
20.08"
(51cm)
4
5 1/2"
(116cm)
1/4"
(
.6cm)
17.42"
(44cm)
Finished Floor
14" (36cm)
12" (31cm)
6"
(15cm)
ø
1"
(3cm)
ø1 1/2" (4cm)
14" (36cm)
19"
(48cm)
8"
(20cm)
1"
(3cm)
12 1/2"
(32cm)
HDU1314-RM-□
CHECK ONE BOX PER SECTION
Standard Project Specific Options
Flush Valve □ Flush valve by others (specify punching) □ - FVU SloanRoyal 613-1 (specify wall thickness)
Flush Valve Supply Connection □ 3/4" NPT Male Rear Spud
Urinal Waste Outlet □ 1 1/2" OD Plain Outlet
Available Installation Elements (ordered separately)
Heavy Duty Urinal
Wall Sleeve (specify thickness)
□ None □ WS-HDU1314-A (for walls 3 5/8" thick)
□ WS-HDU1314-B (for walls 5 5/8" thick)
□ WS-HDU1314-C (for walls 6" thick)
□ WS-HDU1314-D (for walls 7 5/8" thick)
□ WS-HDU1314-E (for walls 8" thick)
□ WS-HDU1314-X (for custom thickness ____________
Metal Templates (one per project) □ None □ MT-HDU1314
HDU1314-RM-□
Rough-in Information
please specify)
APPROVED FOR MANUFACTURE
Kindred Commercial Printed in Canada
The latest rough in information is supplied with each fixture. Do not rough in without first verifying dimensions. Franke Kindred Canada reserves the right to make design and specification changes without prior
notice. Franke Kindred Canada will not assume any responsibility for the use of obsolete data. Please visit www.kindred-commercial.com for the latest specifications.
CANADA
Franke Kindred Canada Limited
Customer:
Name and Title (print):
Signature:
Date:
Quantity:
Model:
Sleeve or Template # (if required):
1000 Franke Kindred Road, Midland, Ontario, Canada L4R 4K9
email info@franke.com www.kindred-commercial.com
Telephone 1-866-687-7465 Fax 1-800-361-8408
2
Please visit www.kindred-commercial.com for the latest specifications.
