Foxconn G45M User Manual

G45M Series
Motherboard
User’s Manual
Statement:
This manual is the intellectual property of Foxconn, Inc. Although the information
in this manual may be changed or modied at any time, Foxconn does not obligate
Trademark:
All trademarks are the property of their respective owners.
Version:
User’s Manual V1.1 for G45M Series motherboard. P/N: 3A2216800-000-G
Symbol description:
Caution: refers to important information that can help you to use motherboard
better, and tells you how to avoid problems.
Warning: indicating a potential risk of hardware damage or physical injury may
exist.
WEEE:
The use of this symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could other­wise be caused by inappropriate waste handling of this product. For more detailed
information about recycling of this product, please contact your local city ofce, your
household waste disposal service or the shop where you purchased this product.
More information:
If you want more information about our products, please visit Foxconn’s website: http://www.foxconnchannel.com
C
A
U
T
I
O
N
!
W
A
R
N
I
N
G
!
© All rights reserved.
All trade names are registered trademarks of respective manufacturers listed.
All images are for reference only, please refer to the physical motherboard for specic features.
Declaration of conformity
HON HAI PRECISION INDUSTRY COMPANY LTD
66 , CHUNG SHAN RD., TU-CHENG INDUSTRIAL DISTRICT,
TAIPEI HSIEN, TAIWAN, R.O.C.
declares that the product
Motherboard G45M/G45M-S
is in conformity with
(reference to the specication under which conformity is declared in
accordance with 89/336 EEC-EMC Directive)
■ EN 55022: 1998/A2: 2003 Limits and methods of measurements of radio
disturbance characteristics of information technology equipment
■ EN 61000-3-2/:2000 Electromagnetic compatibility (EMC)
Part 3: Limits Section 2: Limits for harmonic current emissions (equipment input current <= 16A per phase)
■ EN 61000-3-3/A1:2001 Electromagnetic compatibility (EMC)
Part 3: Limits
Section 2: Limits of voltage uctuations and icker in low
voltage supply systems for equipment with rated current <= 16A
■ EN 55024/A2:2003 Information technology equipment-Immunity
characteristics limits and methods of measurement
Signature : Place / Date : TAIPEI/2008
Printed Name : James Liang
Declaration of conformity
Trade Name: FOXCONN Model Name: G45M/G45M-S Responsible Party: PCE Industry Inc. Address: 458 E. Lambert Rd. Fullerton, CA 92835 Telephone: 714-738-8868 Facsimile: 714-738-8838
Equipment Classication: FCC Class B Subassembly
Type of Product: Motherboard Manufacturer: HON HAI PRECISION INDUSTRY COMPANY LTD Address: 66 , CHUNG SHAN RD., TU-CHENG INDUSTRIAL DISTRICT, TAIPEI HSIEN, TAIWAN, R.O.C.
Supplementary Information:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Tested to comply with FCC standards.
Signature : Date : 2008
Installation Precautions
Please carefully read the following procedures to install your computer :
It is suggested to select high-quality, certied fans in order to avoid damage
to the motherboard and CPU due to high temperature. Never turn on the computer if the CPU fan is not properly installed.
We cannot guarantee that your system can operate normally when your
CPU is overclocked. Normal operation depends on the overclocking capac­ity of your device.
If there is any, when connecting USB, audio, 1394a, RS232 COM, IrDA or
S/PDIF cables to the internal connectors on the motherboard, make sure their pinouts are matching with the connectors on the motherboard. Incorrect connections might damage the motherboard.
When handling the motherboard, avoid touching any metal leads or connec­tors.
If there is a PCI Express x16 graphics card installed in your system, we
recommend using a 24-pin ATX power supply to get the best performance.
Before turning on the power, please make sure the power supply AC input
voltage setting has been congured to the local standard.
To prevent damage to the motherboard, do not allow screws to come in contact
with the motherboard circuit or its components. Also, make sure there are no leftover screws or metal components placed on the motherboard or within the computer casing.
If you are uncertain about any installation steps or have a problem related to
the use of the product, please consult a certied computer technician.
C
A
U
T
I
O
N
!
Electrostatic discharge (ESD) is the sudden and momentary electric current
that ows between two objects at different electrical potentials. Normally it
comes out as a spark which will quickly damage your electronic equipment. Please wear an electrostatic discharge (ESD) wrist strap when handling components such as a motherboard, CPU or memory.
Ensure that the DC power supply is turned off before installing or removing
CPU, memory, expansion cards or other peripherals. It is recommended to unplug the AC power cord from the power supply outlet. Failure to unplug the power supply cord may result in serious damage to your system.
W
A
R
N
I
N
G
!
TAble of CoNTeNTS
Chapter 1 Product Introduction
Product Specications ..............................................................................2
Layout.......................................................................................................4
Back Panel Connectors ............................................................................5
Chapter 2 Hardware Install
Install the CPU and CPU Cooler ..............................................................8
Install the Memory ..................................................................................11
Install an Expansion Card ......................................................................13
Install other Internal Connectors ............................................................14
Jumpers ..................................................................................................19
Chapter 3 bIoS Setup
Enter BIOS Setup ...................................................................................21
Main Menu..............................................................................................21
System Information ................................................................................23
Central Control Unit ................................................................................25
Advanced BIOS Features.......................................................................28
Advanced Chipset Features ...................................................................31
Integrated Peripherals ............................................................................35
Power Management Setup .....................................................................40
PnP/PCI Conguration ...........................................................................42
PC Health Status ....................................................................................43
BIOS Security Features..........................................................................44
Load Optimal Defaults ............................................................................45
Save Changes and Exit ..........................................................................45
Discard Changes and Exit ......................................................................45
Chapter 4 CD Instruction
Utility CD content....................................................................................47
Install driver and utility ............................................................................48
FOX ONE
Main Page ........................................................................................50
CPU Control .....................................................................................54
Frequency Control ............................................................................56
Limit Setting......................................................................................57
Voltage Control .................................................................................59
Fan Control.......................................................................................60
FOX LiveUpdate
Local Update ....................................................................................61
Website :
http://www.foxconnchannel.com
Support Website :
http://www.foxconnsupport.com
Worldwide online contact Support :
http://www.foxconnchannel.com/support/online.aspx
CPU, Memory, VGA Compatibility Supporting Website :
http://www.foxconnchannel.com/product/Motherboards/compatibility.aspx
Support
Online Update ..................................................................................63
Congure .........................................................................................66
About & Help ....................................................................................68
FOX LOGO .............................................................................................69
FOX DMI ................................................................................................70
Chapter 5 RAID Conguration
RAID Conguration Introduction.............................................................73
Intel® Matrix Storage Manager ...............................................................75
Create a RAID Driver Diskette ...............................................................76
BIOS Conguration ................................................................................78
Create RAID in BIOS..............................................................................78
Install a New Windows XP ...................................................................102
Existing Windows XP with RAID built as data storage .........................106
Technical Support :
Thank you for buying Foxconn G45M Series motherboard. Foxconn products are engineered to maximize computing power, providing only what you need for break-through performance.
With advanced overclocking capability and a range of connectivity features for today multi-media computing requirements, G45M/ G45M-S enables you to unleash more power from your computer.
This chapter includes the following information:
■ Product Specications
■ Layout
■ Back Panel Connectors
1
2
1-1 Product Specications
CPU Support LGA775 socket Intel® CPU: CoreTM 2 Quad/Core
TM
2 Extreme/Core
TM
2 Duo/
Pentium® Dual-Core/
Celeron® Dual-Core/Celeron® (Conroe-L)processors Support 45nm processors Front Side Bus 1600 (oc*) /1333/1066/800MHz FSB (oc* : Overclocking) Chipset North Bridge: Intel® G45 South Bridge: Intel® ICH10 (G45M) / Intel® ICH10R (G45M-S) Memory 4 x 240-pin DDR2 DIMM sockets Support up to 16GB of system memory Dual channel DDR2 800/667MHz architecture Audio Realtek 8-channel audio chip High Denition Audio 2/4/5.1/7.1-channel Support for S/PDIF out Support Jack-Sensing function LAN Realtek 10/100/1000Mb/s LAN chip Expansion Slots 1 x PCI Express x16 slot 1 x PCI Express x1 slot 2 x PCI slots Onboard Serial ATA 6 x SATA connectors 300MB/s data transfer rate Support hot plug and NCQ (Native Command Queuing ) USB Support hot plug Support up to 12 x USB 2.0 ports (4 rear panel ports, 4 onboard USB headers supporting 8 extra ports) Supports USB 2.0 protocol up to 480Mb/s Internal Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x Floppy disk drive connector 6 x SATA connectors
4 x USB 2.0 connectors (supporting 8 x USB devices)
1 x CPU fan header (4-pin) 1 x System fan header (4-pin) 1 x NB fan header (4-pin) 1 x Front Panel connector 1 x CD_IN connector 1 x Front Audio connector 1 x IR/CIR connector 1 x Chassis intrusion alarm header (INTR) 1 x S/PDIF_OUT connector 1 x Speaker connector 1 x TPM connector 1 x 1394 connector (Only available in G45M-S)
3
1
3
1 x COM1 connector Back Panel 1 x PS/2 keyboard port Connectors 1 x PS/2 mouse port 1 x HDMI port 1 x VGA port 1 x 1394a port (Only available in G45M-S) 4 x USB 2.0 ports 1 x RJ-45 LAN port 8-channel audio ports 1 x Display Port Hardware Monitor System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System overheating shutdown CPU/System fan speed control PCI Express x1 Support 250MB/s (500MB/s concurrent) bandwidth Low power consumption and power management features PCI Express x16 Support 8GB/s (16GB/s concurrent) bandwidth
Low power consumption and power management features
Green Function Support ACPI (Advanced Conguration and Power Interface)
Support S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4
(suspend to disk), and S5 (soft - off) Bundled Software FOX ONE FOX LiveUpdate FOX LOGO FOX DMI Operating System Support for Microsoft® Windows® Vista/XP Form Factor Micro ATX Form Factor, 9.6 inches x 9.6 inches (24.4cm x 24.4cm)
This motherboard does not support Windows® 2000.
CA
UTIO
N
!
1
4
1-2 layout
Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
1. 8-pin ATX 12V Power Connector
2. NB (North Bridge) Fan Header
3. North Bridge: Intel ® G45
4. PCI Express x16 Slot
5. PCI Express x1 Slot
6. Clear CMOS Jumper
7. PCI Slots
8. S/PDIF_OUT Connector
9. Front Audio Connector
10. CD_IN Connector
11. Speaker Connector
12. 1394a Connector (G45M-S)
13. Front USB Connectors
14. Front Panel Connector
15. SATA Connectors
16. SYS_FAN Header
17. COM1 Header
18. South Bridge: Intel ® ICH10 (G45M) Intel ® ICH10R (G45M-S)
19. 24-pin ATX Power Connector
20. Floppy Connector
21. TPM Connector
22. Chassis Intrusion Alarm Header
23. IrDA/CIR Connector
24. DDR2 DIMM Slots
25. CPU_FAN Header
26. LGA 775 CPU Socket
1
13
9
15
22
21
17
3
20
12
161018
19
14
4
2
23
11
26
24
25
67
8
5
5
1
5
1-3 back Panel Connectors
DisplayPort
LAN Port
PS/2 Mouse Port
Audio Ports
Line Out
Microphone In
Subwoofer
Rear Speaker
Side Speaker
Line In
6
3
USB Ports
5
4
1
2
PS/2 Keyboard Port
7
1394a Port
HDMI Port
VGA Port
8
9
1. PS/2 Mouse port Use the upper port (green) to connect a PS/2 mouse.
2. PS/2 Keyboard Port
Use the lower port (purple) to connect a PS/2 keyboard.
3. DisplayPort
The DisplayPort standard species a high-bandwidth, bidirectional display interconnect that
enables a common interface approach for internal and external display connectivity. It replaces both DVI and LVDS, addresses the current issues with DVI and its derivatives, and ensures
signicant future extensibility to meet customer needs. You need to connect to a display device
with a DisplayPort interface.
4. HDMI Port
The HDMI (High-Denition Multimedia Interface) provides an all-digital audio/video interface to
transmit the uncompressed audio/video signals and is HDCP compliant. Connect the HDMI au­dio/video to this port. The HDMI Technology can support a maximum resolution of 1920x1080p, but the actual resolutions supported depend on the monitor being used.
5. VGA Port
To connect with external display devices, such as monitor or LCD display.
For VGA port, DisplayPort and HDMI port, any two of them can work together, but three ports are not able to work at the same time. If an independent Graphics card is installed, all these three onboard ports will be turned off automatically.
C
A
U
TI
O
N
!
With current chipset driver, in different HDMI resolutions, the display may not center at or occupy the full screen. Please select a suitable resolution for your usage or look for a new driver update from our website.
CA
U
T
IO
N
!
1
6
6. USb Ports
The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as an
USB keyboard/mouse, USB printer, USB ash drive and etc.
7. 1394a Port (Only available in G45M-S) This port is used to connect a 1394a device.
8. RJ-45 lAN Port The Ethernet LAN port provides Internet connection at up to 10/100/1000Mb/s data rate.
9. Audio Ports
For the denition of each audio port, please refer to the table below :
Port 2-channel 4-channel 5.1-channel 7.1-channel
Blue Line In Line In Line In Line In
Green Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Microphone In Microphone In Microphone In Microphone In
Orange - - Center/Subwoofer Out Center/Subwoofer Out
Black - Rear Speaker Out Rear Speaker Out Rear Speaker Out
Grey - - - Side Speaker Out
Active
LED
Link LED
LAN Type
Left: Active Right: Link
Status Description Status Description
1000M
Off No Link Off No Link
Green
Blinking
Data Activ-
ity
Off 10 Mb/s Connection
Green 100 Mb/s Connection
Orange 1000 Mb/s Connection
This chapter introduces the hardware installation process, including the installation of the CPU, memory, power supply, slots, pin headers and the mounting of jumpers. Caution should be exercised during the installation of these modules. Please refer to the motherboard layout prior to any installation and read the contents in this chapter carefully.
This chapter includes the following information :
■ Install the CPU and CPU Cooler
■ Install the Memory
■ Install an Expansion Card
■ Install other Internal Connectors
■ Jumpers
Please visit this website for more supporting information about CPU, Memory and VGA for your motherboard :
http://www.foxconnchannel.com/product/Motherboards/compatibility.aspx
8
2
8
2-1 Install the CPU and CPU Cooler
Install the CPU
Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.
Read the following guidelines before you begin to install the CPU :
Make sure that the motherboard supports the CPU.
Always turn off the computer and unplug the power cord from the power supply before
installing the CPU to prevent hardware damage.
■ Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or
you may locate the notches on both sides of the CPU and alignment keys on the CPU socket.)
■ Apply an even and thin layer of thermal grease on the surface of the CPU.
■ Do not turn on the computer if the CPU cooler is not installed, otherwise overheating
and damage of the CPU may occur.
■ Set the CPU host frequency in accordance with the CPU specications. It is not
recommended that the system bus frequency be set beyond hardware specications
since it does not meet the standard requirements for the peripherals. If you wish to
set the frequency beyond the standard specications, please do so according to your
hardware specications including the CPU, graphics card, memory, hard drive, etc.
Hyper-Threading Technology System Requirements: (Go to Intel's website for more information about the Hyper-Threading Technology)
■ An Intel
®
CPU that supports HT Technology
■ A chipset that supports HT Technology
■ An operating system that is optimized for HT Technology
■ A BIOS that supports HT Technology and has it enabled
C
A
U
T
I
O
N
!
LGA775 CPU Socket
Alignment Key
Pin-1 corner of the CPU Socket
LGA775 CPU
Notch Pin-1 triangle marking
of CPU
9
2
9
Follow the steps to install the CPU onto the CPU socket :
1. Remove protective socket cover. 2. Release the CPU socket lever.
3. Lift the metal cover on the CPU socket.
5. When CPU is properly seated, replace the metal cover and push the CPU socket lever back to its locked position.
4. Check pin one marking (triangle) with the pin one corner of the CPU socket, align the CPU notches with the socket alignment keys and gently put the CPU onto the socket.
Before installing the CPU, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the CPU.
CA
U
TI
O
N
!
10
2
10
Install the CPU Cooler
Follow the steps below to correctly install the CPU cooler on the motherboard. (The following procedures use Foxconn cooler as the example.)
1. Apply and spread an even thermal grease on the surface of CPU.
2. Place the four bolts of the CPU cooler to the holes of the motherboard, push them straight down from the top, and the bolts will be fastened on the motherboard. That's it.
3. Check the solder side of the motherboard, the push pin should be
xed as depicted in the picture.
3
2
1
4. Attach the 4-wire CPU cooler connector to the CPU FAN header on the motherboard .
Release bolts of CPU cooler from motherboard :
1.Turning the push pin (bolt) along with the direction of arrow (counterclockwise).
2. Pull the push pin straight up.
3. Turning push pin clockwise to its default position.
Use extreme care when removing the CPU cooler because the thermal grease may adhere to the CPU. Inadequately removing the CPU cooler may damage the CPU.
C
A
U
T
I
O
N
!
11
2
11
2-2 Install the Memory
Dual Channel Memory Conguration
This motherboard provides four DDR2 memory sockets and supports Dual Channel Technology. When memory is installed, the BIOS will automatically check the memory in your system.
Four DDR2 memory sockets are divided into two channels and each channel has two memory sockets as following: Channel 0 : DIMM1, DIMM2 Channel 1 : DIMM3, DIMM4
The combinations of DIMM modules are :
DIMM1 DIMM2 DIMM3 DIMM4
Single Channel DS/SS - - ­Single Channel DS/SS DS/SS -
Single Channel - - DS/SS ­Single Channel - - DS/SS DS/SS
Dual Channel DS/SS - DS/SS ­Dual Channel - DS/SS - DS/SS Dual Channel DS/SS DS/SS DS/SS DS/SS
(DS : Double Side, SS : Single Side, - : No Memory)
It is recommended that memory of the same capacity, brand, speed, and chips be
used and please select dual channel rst to achieve optimum performance.
C
A
U
T
I
O
N
!
Read the following guidelines before you begin to install the memory :
Make sure that the motherboard supports the memory. It is recommended that memory
of the same capacity, brand, speed, and chips be used.
Always turn off the computer and unplug the power cord from the power outlet before
installing the memory to prevent hardware damage.
Memory modules have a foolproof design. A memory module can be installed in only
one direction. If you are unable to insert the memory, switch the direction.
C
A
U
T
I
O
N
!
12
2
12
Installing a Memory
If you take a look at front side of memory module, it has asymmetric pin counts on both sides separated
by a notch in the middle, so it can only t in one direction. Follow the steps below to correctly install
your memory modules into the sockets.
Step 1: Spread the clips at both ends of the memory socket. Place the memory module onto the socket, then put
your ngers on top edge of the module, and push it down rmly and seat it vertically into the memory
socket.
Step 2: The clips at both ends of the socket will snap into place when the memory module is securely inserted.
Before installing a memory module, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the memory module. Be sure to install DDR2 DIMMs on this motherboard.
C
A
U
T
I
O
N
!
Notch
112-Pin128-Pin
13
2
13
2-3 Install an expansion Card
follow the steps below to correctly install your expansion card in the expansion slot.
1. Locate an expansion slot that supports your card. Remove the metal slot cover from the chassis back panel.
2. Align the card with the slot, and press down on the card until it is fully seated in the slot.
3. Make sure the metal contacts on the card are completely inserted into the slot.
4. Secure the card's metal bracket to the chassis back panel with a screw.
5. After installing all expansion cards, replace the chassis cover.
6. Turn on your computer. If necessary, go to BIOS Setup to make any required BIOS changes for your expansion card(s).
7. Install the driver provided with the expansion card in your operating system.
Installing and Removing a PCI express x16 Graphics Card :
• Installing a Graphics Card:
Gently insert the graphics card into the PCI Express x16 slot. Make sure the graphics card is locked by the latch at the end of the PCI Express x16 slot.
• Removing the Card:
Push the latch at the end of the PCI Express x16 slot to release the card and then pull the card straight up from the slot.
■ Make sure the motherboard supports the expansion card. Carefully read the manual
that came with your expansion card.
Always turn off the computer and unplug the power cord from the power outlet before
installing an expansion card to prevent hardware damage.
C
A
U
T
I
O
N
!
PCI
PCI Express x1
PCI Express x16
14
2
14
2-4 Install other Internal Connectors
Power Connectors
This motherboard uses an ATX power supply. In order not to damage any device, make sure all the devices have been installed properly before applying the power supply.
24-pin ATX Power Connector : PWR1
PWR1 is the ATX power supply connector. Make sure that the power supply cable and pins are properly aligned with the connector on the motherboard. Firmly plug the power supply cable into the connector and make sure it is secure.
8-pin ATX 12 V Power Connector : PWR2
Connect the 8-pin ATX 12V power supply to PWR2 and provides power to the CPU.
20-Pin Power
Pin No. 24
Pin # Denition Pin # Denition
1 3.3V 13 3.3V 2 3.3V 14 -12V 3 GND 15 GND 4 +5V 16 PS_ON(Soft On/Off) 5 GND 17 GND 6 +5V 18 GND 7 GND 19 GND 8 Power Good 20 NC
9 +5V SB(Stand by +5V) 21 +5V 10 +12V 22 +5V 11 +12V 23 +5V 12 3.3V 24 GND
PWR1
24
13
12
1
We recommend you using a 24-pin power supply. If you are using a 20-pin power supply, you need to align the ATX power connector according to the picture.
C
A
U
T
I
O
N
!
Pin # Denition Pin # Denition
1 GND 5 +12V 2 GND 6 +12V 3 GND 7 +12V 4 GND 8 +12V
145
8
PWR2
GND
+12V
15
2
15
Audio Connector : f_AUDIo
The audio connector supports HD Audio standard. It provides the Front Audio output choice.
S/PDIf oUT Connector : SPDIf_oUT
The connector is used for S/PDIF output.
IrDA/CIR Connector : IR/CIR
This header supports infrared wireless transmitting and receiving device.
floppy Disk Drive Connector : floPPY
This motherboard includes a standard oppy disk
drive (FDD) connector, supporting 360KB, 720KB,
1.2MB, 1.44MB, and 2.88MB FDDs.
SPDIF_OUT
+5V
EMPTY
SPDIF_OUT
GND
1 2 3 4
PORT1_L PORT1_R
PORT2_L
SENSE_SEND
SENSE1_RETURN
PRESENCEJ
EMPTY SENSE2_RETURN
AUD_GND
1
2
109
F_AUDIO
PORT2_R
Connect a 4-pin power plug
We recommend you using an 8-pin ATX 12V power supply. If you are using a 4-pin power supply, you need to align the ATX power connector according to the picture on the right.
C
A
U
T
I
O
N
!
+5V
EMPTY
IRRX
GND IRTX
+5VSB CIRRX
CIRTX GND EMPTY
IR/CIR
1 2
9 10
16
2
16
front Panel Connector : fP1
This motherboard includes one connector for connecting the front panel switch and LED Indicators.
Hard Disk leD Connector (HDD-leD)
Connect to the chassis front panel IDE indicator LED. It indicates the active status of the hard disks. This 2-pin connector is directional with +/- sign.
Reset Switch (ReSeT-SW)
Attach the connector to the Reset switch on the front panel of the case; the system will restart when the switch is pressed.
Power leD Connector (PWR-leD)
Connect to the power LED indicator on the front panel of the chassis. The Power LED indicates the system’s status. When the system is in operation (S0 status), the LED is on. When the system gets into sleep mode (S1) , the LED is blinking; When the system is in S3/S4 sleep state or power off mode (S5), the LED is off. This 2-pin connector is directional with +/- sign.
Power Switch Connector (PWR-SW)
Connect to the power button on the front panel of the chassis. Push this switch allows the system to be turned on and off rather than using the power supply button.
Serial ATA Connectors: SATA_1/2/3/4/5/eSATA1
The Serial ATA connector is used to connect with SATA Hard Disk or CD devices which support this feature. The current Serial ATA II interface allows up to 300MB/s data transfer rate. Note: There will be an ESATA cable in the package, you can use it to connect an ESATA hard disk to the ESATA1 port on the motherboard.
Speaker Connector : SPeAKeR
The speaker connector is used to connect speaker of the chassis.
EMPTY
HDD-LED
RESET-SW
NC
+
­PWR-SW
+
-
PWR-LED
1
2
10
9
FP1
GND TX+ TX­GND RX­RX+
GND
1
SATA_1/2/3/4/5
NC
SPKJ
EMPTY
SPEAKER
SPKJ
1 2 3 4
GND TX+ TX­GND RX­RX+
GND
1
ESATA1
17
2
17
Audio Connector : CD_IN
CD_IN is a Sony standard audio connector, it can be connected to a CD/DVD-ROM drive through a CD/DVD audio cable.
USb Connectors : f_USb1/2/3/4
In addition to the four USB ports on the rear panel, this product also provides four 10-pin USB headers on its motherboard. By connecting through USB cables with them, user can quickly expand another eight USB ports on the front panel.
fan Connectors : CPU_fAN, SYS_fAN, Nb_fAN
There are three main fan headers on this motherboard. The fan speed can be controlled and monitored in “PC Health Status” section of the BIOS Setup. These fans can be automatically turned off after the system enters S3, S4 and S5 sleeping states.
Chassis Intrusion Alarm Header : INTR
The connector can be connected to a security switch on the chassis. The system can detect the chassis intrusion through the function of this connector. If eventually the chassis is closed, the system will send a message out.
1394a Connector : f_1394 (only available in G45M-S)
The 1394a expansion cable can be connected to either the front (provided that the front panel of your chassis is equipped with the appropriate interface) or real panel of the chassis.
F_USB 1/2/3/4
NC
GND
VCC D+
D-
D+
GND
D-
VCC
EMPTY
1
2
109
CD_IN
CD_L GND CD_R
1
CPU_FAN / SYS_FAN /
NB_FAN
GND POWER SENSE CONTROL
1
INTR
GND
INTRUDERJ
1
GND
+12V
TPA-
TPB-
GND TPB+ +12V
GND
TPA+
EMPTY
1
2
10
9
F_1394
18
2
18
CoM Connector : CoM1
This motherboard supports one serial RS232 COM port for legacy compatibility. User must purchase another RS232 cable with a 9-pin D-sub connector at one end to connect with the external RS232 device and another end with 10-pin female connector to connect with COM1
connector in the motherboard.
TPM Connector : TPM
The TPM (Trusted Platform Module) provides the ability to the PC to run applications more secure and to make transactions and communication more trustworthy. To utilize this function, you should purchase additional device and install it.
LCLK
LFRAMEn
LRESETn
LAD3
VDD
LAD0
NC_2
NC_1
GND
LPCPDn
GND EMPTY
LAD2
NC_3
LAD1 GND NC_4
SERIRQ CLKRUNin NC_5
1 2
19 20
TPM
RLSD SOUT
RI
GND
RTS
DSR
DTR
CTS EMPTY
SIN
1
2
109
COM1
19
2
19
2-5 Jumpers
For some features needed, users can change the jumper settings on this motherboard to modify them. This section explains how to use the various functions of this motherboard by changing the jumper settings. Users should read the following content carefully prior to modifying any jumper setting.
Description of Jumpers
1. For any jumper on this motherboard, pin 1 can be identied by the bold silkscreen next to it.
However, in this manual, pin 1 is simply labeled as “1”.
2. The following table explains different types of the jumper settings. "Closed" means placing a jumper cap on the two pins to temporarily short them. The shorting can also be done by touching two pins by a screwdriver for a few seconds, but using jumper cap is recommended. It can prevent hazardous ESD (Electrical Static Discharge) problem.
ClearCMoS Jumper: ClR_CMoS
The motherboard uses CMOS RAM to store the basic hardware information (such as BIOS data, date, time information, hardware password...etc.). Clear CMOS data is the fast way to go back to
factory default when the BIOS settings were mistakenly modied.
The steps to clear CMOS data are :
1. Turn off the computer, unplug the power cord from the power outlet.
2. Remove jumper cap from pins 2-3, put it onto pins 1-2 to short them. This will clear CMOS data.
3. Return the setting to its original with pins 2-3 closed.
4. Plug in the power cord to your computer and turn it on.
5. Go to BIOS Setup to congure new system as described in next chapter.
Jumper Diagram Denition Description
1-2 Set Pin 1 and Pin 2 closed 2-3 Set Pin 2 and Pin 3 closed
1
1
1
Clear
1 2 3
Normal (Default)
1 2 3
CLR_CMOS
■ Disconnect the power cable before adjusting the jumper settings.
■ Do not clear the CMOS while the system is turned on.
W
A
R
N
I
N
G
!
This chapter tells how to change system settings through the BIOS Setup menus. Detailed descriptions of the BIOS parameters are also provided. You have to run the Setup Program when the following cases occur :
1. An error message appears on the screen during the system Power On Self Test (POST) process.
2. You want to change the default CMOS settings.
This chapter includes the following information :
■ Enter BIOS Setup
■ Main Menu
■ System Information
■ Central Control Unit
■ Advanced BIOS Features
■ Advanced Chipset Features
■ Integrated Peripherals
■ Power Management Setup
■ PnP/PCI Conguration
■ PC Health Status
■ BIOS Security Features
■ Load Optimal Defaults
Save Changes and Exit
Discard Changes and Exit
Since BIOS could be updated some other times, the BIOS information described in this manual is for reference only. We do not guarantee the content of this manual will remain consistent with the newly released BIOS at any given time in the future. Please visit our website for updated manual if it is available.
3
21
enter bIoS Setup
The BIOS is the communication bridge between hardware and software, correctly setting up the BIOS parameters is critical to maintain optimal system performance. Power on the computer, when the message "Press <Del> to enter Setup, <eSC> to boot menu" appears at the bottom of the screen, you can press <DEL> key to enter Setup.
Main Menu
The main menu allows you to select from a list of setup functions together with two exit choices.
Use the arrow keys to select a specic item and press <Enter> to go to the sub-menu.
Each item in the main menu is explained below:
► System Information
It displays the basic system conguration, such as BIOS Version, CPU Name, memory size
plus system date, time and Floppy drive. They all can be viewed or set up through this menu.
► Central Control Unit
Some special proprietary features (such as overclocking) can be set up through this menu.
► Advanced BIOS Features
The advanced system features can be set up through this menu. There are boot up settings.
► Advanced Chipset Features
The values for the chipset can be changed through this menu, and the system performance can be optimized.
► Integrated Peripherals
All onboard peripherals can be set up through this menu. There are IDE devices, Super I/O
CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc.
System Information ► PnP/PCI Conguration
► Central Control Unit ► PC Health Status
► Advanced BIOS Features ► BIOS Security Features
► Advanced Chipset Features Load Optimal Defaults
► Integrated Peripherals Save Changes and Exit
► Power Management Setup Discard Changes and Exit
↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit F1:General Help
F9:Optimized Defaults Configure Time and Date. Display System Information... v02.61 (c) Copyright 1985-2006, American Megatrends, Inc.
► System Information
We do not suggest that you change the default values in the BIOS Setup, and we shall not be responsible for any damage which resulted from the change you made.
C
A
U
T
I
O
N
!
3
22
devices such as Serial I/O and other USB devices... etc.
► Power Management Setup
All the items related with Green function features can be set up through this menu.
► PnP/PCI Conguration
This setup enables you to read/change Fan speeds, and displays temperatures and voltages of your CPU/System.
► PC Health Status
This setup enables you to read/change Fan speeds, and displays temperatures and
voltages of your CPU/System.
► BIOS Security Features
The Supervisor/User password can be set up through this menu to prevent unauthorized use of your computer. If you set a password, the system will ask you to key in correct password before boot or access to Setup.
► Load Optimal Defaults
The optimal performance settings can be loaded through this menu. However, it may offer bet­ter performance in some ways (such as less I/O cards, less memory ...etc.), still, it may cause problem if you have more memory or I/O cards installed. It means, if your system loading is heavy, set to optimal default may sometimes come out an unstable system. What you need
now is to adjust BIOS setting one by one, trial and error, to nd out the best setting for your
current system.
► Save Changes and Exit
Save setting values to CMOS and exit.
► Discard Changes and Exit
Do not change anything and exit the setup.
3
23
System Information
This sub-menu is used to set up the standard BIOS features, such as the date, time, oppy drive
and so on. Use the arrow up/down keys to select an item, then use the <+> or <-> keys to change the setting.
► System Time (hh:mm:ss)
This item allows you to congure the desired time. Use [ENTER] to enter the setting, then use
[TAB] to move forward a eld. Use [+] or [-] to input the value.
The three elds of the setting are <hour> : <minute> : <second> respectively.
► System Date (mm:dd:yy)
<weekday><month><date> <year> format. Day—weekday from Sun. to Sat., this message is automatically displayed by BIOS (Read Only). Month—month from 1 to 12. Date—date from 1 to 31. Year—year, set up by users.
Use [ENTER], [TAB] or [SHIFT-TAB] to select a eld. Use [+] or [-] to input the value.
► Primary/Secondary IDE Master/Slave, Third/Fourth IDE Master
While entering setup, BIOS automatically detects the presence of IDE devices. This item displays the drive information of IDE devices. Please refer to mapping table in next page.
► Floppy A
This option allows you to select which kind of the Floppy Disk Drive is installed in your system.
It can be [360KB, 5
1
/
4
"], [1.2MB, 5
1
/
4
"], [720KB, 3
1
/
2
"], [1.44MB, 3
1
/
2
"], [2.88 MB, 3
1
/
2
"] and
[Disabled].
► Halt On
This category determines whether or not the computer will stop if an error is detected during powering up.
[All Errors] : All errors can result in system halt.
[All Errors But...] : All errors but keyboard or mouse or oppy can result in system halt. The
halt condition can be enabled/disabled in the next three settings.
CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. System Information
System Time (hh:mm:ss) [17 : 33 : 49] Help Item System Date (mm:dd:yy) [Tue , 04/29/2008] Use [Enter], [TAB] ► Primary IDE Master
[Not Detected] or [SHIFT-TAB] to
► Primary IDE Slave [ATAPI CDROM]
select a eld. ► Secondary IDE Master [Not Detected] ► Secondary IDE Slave [Hard Disk]
Use [+] or [-] to ► Third IDE Master [Not Detected]
change system time.
► Fourth IDE Master
[Not Detected]
Floppy A [1.44 MB 31/2"]
Halt On
[All Errors, But ...]
Keyboard [Disabled] Mouse [Disabled] Floppy [Disabled]
Model Name : G45M
BIOS Version :815F1D21 Memory :1024MB
↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit F1:General Help
F9:Optimized Defaults
17
3
24
► Keyboard
The system boot will not stop for a keyboard error if you enabled this item.
► Mouse
The system boot will not stop for a mouse error if you enabled this item.
► Floppy
The system boot will not stop for a floppy error if you enabled this item.
► Model Name
Model name of this product.
► BIOS Version
It displays the current BIOS version. User can check this information and discuss with the eld
service people if a BIOS upgrade is needed.
► Memory
This item displays the current memory size. The size is depending on how many memory mod­ules were installed in your system before powering on.
► MAC Address
This item shows the onboard LAN MAC address.
► CPU Name
It displays the current CPU name.
3
25
Central Control Unit
CMOS Setup Utility - Copyright (C) 1985-2008, American Megatrends, Inc. Central Control Unit
Smart power LED [Disabled] Help Item ► O.C. Configuration [Press Enter] ► Voltage Options
[Press Enter]
Disabled Enabled
↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit F1:General Help
F9:Optimized Defaults
[Disabled]
Options
► Smart Power LED
Smart Power LED is a feature built on your motherboard to indicate different states during Power On Self Test (POST). The LED is located at the front panel, and it displays POST state by different long-short blinking intervals. You can always leave this state enabled.
System Status Power LED Status Stop Blinking Condition Normal Always On Always On No Memory Continue blinking On (1sec.), Off (1sec.) Reboot & Memory OK No Display Continue blinking On (2sec.), Off (2sec.) Reboot & Display OK
Post Error Message
Quick blinking twice (1/3sec. On, 1/3sec. Off), one long On (1sec.), continuously.
Enter Setup or Skip
No CPU Fan Continue blinking On (1/2sec.), Off (1/2sec.) Reboot & Fan OK
► O.C. Conguration / Voltage Options
Press <Enter> to go to its submenu.
3
26
O.C. Conguration
CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc.
O.C. Conguration
Spread Spectrum
Help Item
CPU Clock [333]
PCI Express Clock
[100]
CPU: DRAM Clock Ratio [Disabled] I
Target Memory Speed :667MHz Disabled
*********** Over Clock Step Up*********** Enabled
Start CPU Clock: 333MHz
Next CPU Clock: 338MHz Status:
Stopped. Step of Setup Over Clock [ 5]
Run Setup Over Clock [Press Enter]
↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit F1:General Help
F9:Optimized Defaults
[Enabled]
Options
► Spread Spectrum
If you enabled this function, it can signicantly reduce the EMI (Electromagnetic Interference)
generated by the system, so to comply with FCC regulation. But if overclocking is activated, you had better disable it.
► CPU Clock
This option is used to adjust the CPU clock.
► PCI Express Clock
This option is used to adjust the speed of PCI Express slot. It may enhance the graphics card speed.
► CPU:DRAM Clock Ratio
This option is used to select the clock ratio between CPU and DRAM. The normal memory
speed of DDR2 is equal to twice that of DRAM clock.
[Auto]: Set CPU:DRAM clock ratio automatically according to the range of CPU clock.
[Disabled]: Set CPU:DRAM ratio as real ratio.
You also can select the CPU:DRAM ratio manually through the options: [1:1.25], [1:1.66],
[1:1], [1:0.83].
***********over Clock Step Up***********
► Start CPU Clock
This displays the current CPU clock value under overclocking test.
► Next CPU Clock
This displays the next CPU clock value which will be used in overclocking test.
► Status
This displays the overclocking state. It can be “Running“ or ”Stopped.”.
► Step of Setup Over Clock
This is the clock step increment when running overclock test. It is implemented in running “Run Setup Over Clock” option, that CPU will start its overclocking by stepping this value.
Item value ranges from 1 to 15. You can change the value by pressing keys [+]/[-] or
inputting the value directly.
3
27
► Run Setup Over Clock
This setting is used to detect a CPU clock value which can be run in your overcolck system
without risk. Select [OK], and press [Enter], then BIOS will increase CPU clock step by step,
drive the system to its maximal speed until it can not drive any more and restarts itself. During
the process, you can press [q] or [Q] to stop it.
When the overclock test is running, you must always remember the current CPU clock value on the screen. When the maximal clock value is reached, system will restart itself, and a mes­sage displays :
System recovers from Setup Over Clock Press F1 to Resume
You can then press [F1] to continue, press [Del] to enter BIOS again, and select "O.C. Con-
guration" menu, enter an appropriate CPU clock value (smaller than the latest CPU clock
value shown on the screen before your PC restarts ) in “CPU Clock” option, and start running your overclock system.
Voltage options
CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc.
Voltage Options
Voltage Options
Help Item
CPU Voltage Setting [0] DIMM Voltage Control [Disabled] NB Voltage Control [Disabled]
↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit F1:General Help
F9:Optimized Defaults
0
Adjustment CPU VID Voltage via ITE8720 range:1.1V~1.58V step :6.25mV
► CPU Voltage Setting
This option is used to change the CPU voltage in a step of 6.25mV. The voltage can be incre­mented from +1.1V to +1.58V.
► DIMM Voltage Control
This option is used to change the DIMM voltage in a step of 50mV. The voltage can be incre­mented from +50mV to +600mV.
► NB Voltage Control
This option is used to change the North Bridge voltage in a step of 50mV. The voltage can be incremented from +50mV to +600mV.
3
28
Advanced bIoS features
CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. Advanced BIOS Features
► CPU Conguration
[Press Enter] Help Item
► Boot Device Priority
[Press Enter]
► Hard Disk Drives [Press Enter] Congure CPU.
► Removable Drives [Press Enter] Quick Boot [Enabled] Quiet Boot [Enabled] Floppy Drive Seek [Disabled] Bootup Num-Lock [On] BIOS Write Protect [Disabled]
↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit F1:General Help
F9:Optimized Defaults
[Press Enter]
► CPU Conguration
Press <Enter> to go to its submenu.
► Boot Device Priority
This option is used to select the priority for boot devices. After pressing <Enter>, you can select the device using the Up/Down arrow keys, and change the device priority using <+> or <->; you can exit this menu by pressing <Esc>.
► Hard Disk Drives
This option is used to specify the boot priority sequence from available hard disk drives.
► Removable Drives
This option is used to specify the boot priority sequence from available removable drives.
► Quick Boot
While Enabled, this option allows BIOS to skip certain tests while booting, this will shorten the time needed to boot the system.
► Quiet Boot
This item is used to enable/disable the quiet boot.
[Disabled] : Displays the normal POST messages.
[Enabled] : Displays OEM customer logo instead of POST messages.
► Floppy Drive Seek
This item controls whether the BIOS will be checking for a oppy drive while booting up. If it
cannot detect one (either due to improper conguration or physical unavailability), it will appear
an error message. Disabling this function, then POST will not detect the oppy.
► Bootup Num-Lock
This item denes if the keyboard Num Lock key is active when your system is started. The
available settings are: On (default) and Off.
► BIOS Write Protect
To protect the system BIOS from virus attack, there is a BIOS write-protection mechanism provided. Super BIOS Protect function protects your BIOS from being affected by viruses, e.g. CIH.
3
29
CPU Conguration
CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc.
CPU Conguration
Manufacturer : Intel Help Item Intel(R) Core(TM)2 Quad CPU Q9450 @2.66GHz
Speed : 2.66GHz This can enable
FSB Speed : 1333MHz in order to enable or Cache L1 :128KB
disable the “Enhanced Cache L2 :12288KB Halt State".
Ratio Actual Value:8
C1E Function [Enabled] Hardware Prefetcher [Enabled] Adjacent Cache Line Prefetch [Enabled] Limit CPUID MaxVal [Disabled] Virtualization Technology [Enabled] Execute Disable Bit [Enabled] Core Multi-Procesing [Enabled] PECI [Disabled] EIST Function [Enabled]
↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit F1:General Help
F9:Optimized Defaults
[Enabled]
► C1E Function
C1E represents Enhanced HALT State. It is a feature which Intel CPU uses to reduce power consumption when in halt state. C1E drops the CPU's multiplier and voltage to lower levels when a HLT (halt) command is issued. This item is used to enable/disable the C1E support.
► Hardware Prefetcher
The processor has a hardware prefetcher that automatically analyzes its requirements and prefetches data and instructions from the memory into the Level 2 cache that are likely to be required in the near future. This reduces the latency associated with memory reads. When enabled, the processor’s hardware prefetcher will be enabled and allowed to automati­cally prefetch data and code for the processor. When disabled, the processor’s hardware prefetcher will be disabled.
► Adjacent Cache Line Prefetch (Appears only when CPU supports)
The processor has a hardware adjacent cache line prefetch mechanism that automatically fetches an extra 64-byte cache line whenever the processor requests for a 64-byte cache line. This reduces cache latency by making the next cache line immediately available if the proces­sor requires it as well. When enabled, the processor will retrieve the currently requested cache line, as well as the subsequent cache line. When disabled, the processor will only retrieve the currently requested cache line.
► Limit CPUID MaxVal
This item is used to enable or disable CPUID maximum value limit conguration. Set Limit
CPUID MaxVal to 3, it should be [Disabled] for WinXP.
► Virtualization Technology (Appears only when CPU supports)
Virtualization (i.e. Intel® Vanderpool Technology) allows a platform to run multiple operating systems and applications in independent partitions or “containers.” One physical compute system can function as multiple “virtual” systems. Vanderpool Technology can help improve future virtualization solutions. This item will be displayed only when the CPU is supporting this
3
30
feature and the setting is used to enable/disable it.
► Execute Disable Bit
This item is used to enable/disable the Execute Disable Bit feature. Intel's Execute Disable Bit functionality can help prevent certain classes of malicious buffer
overow attacks when combined with a supporting operating system.
Execute Disable Bit allows the processor to classify areas in memory by where application code can execute and where it cannot. When a malicious worm attempts to insert code in the buffer, the processor disables code execution, preventing damage and worm propagation. Replacing older computers with Execute Disable Bit-enabled systems can halt worm attacks, reducing the need for virus-related repairs. By combining Execute Disable Bit with anti-virus,
rewall, spyware removal, e-mail ltering software, and other network security measures, IT
managers can free IT resources for other initiatives.
► Core Multi-Processing
It is used to enable or disable the feature and will be displayed only if your CPU is supporting this feature.
► PECI
PECI stands for Platform Environment Control Interface. The PECI bus, allowing access to this data from chipset components, is a proprietary single-wire interface with a variable data transfer speed (from 2 kbit/s to 2 Mbit/s). From a control standpoint, the main difference between PECI and the previously used thermal monitoring methods is that PECI reports a negative value expressing the difference between the current temperature and the thermal throttle point (at which the CPU reduces speed or shuts down to prevent damage due to overheating) instead of the absolute temperature. For example, for a CPU with maximal temperature of 85 °C and a current temperature reading of 35 °C, the value reported by PECI would be -50 °C.
► EIST Function
You can select the EIST (Processor Power Management, PPM) through this item.
Enhanced Intel SpeedStep® technology (EIST) allows the system to dynamically adjust processor voltage and core frequency, which can result in decreased average power consumption and decreased average heat production. There are some system require­ments must be met, including CPU, chipset, motherboard, BIOS and operation system. Please refer to Intel Website for more information.
C
A
U
T
I
O
N
!
3
31
Advanced Chipset features
► North Bridge Conguration/ South Bridge Conguration
Press <Enter> to go to its submenu.
North Bridge Conguration
► Video Function Congure
Press <Enter> to go to its submenu.
► Memory Remap Feature
This item is used to enable/disable memory remapping around memory hole. PCI doesn't actually care much which addresses are used, but by convention the PC platform puts them at the top of the 32-bit address space. For many years it wasn't possible or practical to put that much RAM into a PC. But now it is, so it's up to the memory controller and host
CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc.
Advanced Chipset Features
Advanced Chipset Settings
Help Item
WARNING: Setting wrong values in below sections Configure North Bridge may cause system to malfunction. features.
► North Bridge Conguration
[Press Enter]
► South Bridge Conguration
[Press Enter]
↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit F1:General Help
F9:Optimized Defaults
[Press Enter]
CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc.
North Bridge Conguration
North Bridge Chipset Conguration
Help Item
► Video Function Congure
[Press Enter]
Memory Remap Feature [Enabled]
PCI MMIO Allocation: 4GB To 3328MB
Memory Speed Adjust [Auto] Memory Timing by SPD [Enabled]
IGD Graphics Mode Select [Enabled, 64MB]
IGD GTT Graphics memory size [No VT mode, 2MB]
PEG Port [Auto]
↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit F1:General Help
F9:Optimized Defaults
[Press Enter]
3
32
bridge to gure out what to do. Many systems cause that high RAM to simply be ignored,
resulting in the loss of effective RAM. More complex systems will take the RAM that would occupy that 3.5-4GB address space and re-map it into the 4.0-4.5 address space. The RAM doesn't care because it's just an array of storage cells, it's up to the memory controller to as­sociate addresses with those storage cells. Of course, that only works if you're using a 64-bit (or 32bit physical address extension (PAE) enabled) OS that can deal with physical addresses larger than 32 bits. Once this option is enabled, the BIOS can see 8192 MB of memory.
► Memory Speed Adjust
This item is used to adjust the memory speed. Select [Auto] for SPD enable mode. You also
can select a value manually such as [667 MHz] or [800 MHz].
► Memory Timing by SPD
This item is used to enable/disable provision of DRAM timing by SPD device. The Serial Presence Detect (SPD) device is a small EEPROM chip, mounted on a memory module. It contains important information about the module's speed, size, addressing mode and various other parameters, so that the motherboard memory controller (chipset) can better access the memory device.
► IGD Graphics Mode Select
This item is used to select the amount of system memory used by internal graphics device.
► IGD GTT Graphic Memory Size
This item shows the amount of main memory that is pre-allocated to support the Internal Graphics Translation Table(0-2MB).
► PEG Port
This item is used to enable/disable PCI Express graphics port.
Video Function Congure
► DVMT Mode
Dynamic Video Memory Technology (DVMT) dynamically allocates system memory for use
CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc.
Video Function Congure
Video Function Congure
Help Item
DVMT Mode [DVMT Mode] DVMT/FIXED Memory [256MB]
DVMT Mode
↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit F1:General Help
F9:Optimized Defaults
[DVMT Mode]
Options
3
33
as video memory to ensure the most efcient use of available resources for maximum 2D/3D
graphics performance. The amount of video memory allocated depends upon the amount requested by the operating system. When the memory is no longer required, it is returned to the operating system for use by other applications or system functions. DVMT allocates memory based on system needs. This BIOS option allows you to adjust the amount of memory available for DVMT.
Fixed is a memory allocation method addition to the Unied Memory Architecture (UMA) concept,
wherein a static amount of page-locked graphics memory is allocated during driver initialization.
This xed amount of memory will provide the user with a guaranteed graphics memory at all
times, and will no longer be available to the OS. DVMT is an enhancement of the UMA concept, where in the graphics driver allocates memory as needed for running graphics applications. If a user is not performing any graphics-intensive operations, most of the DVMT memory can be utilized by the OS for other uses. We recommend using DVMT setting for better overall system performance.
► DVMT/FIXED Memory
Select graphics memory size for Fixed or DVMT usage. This setting is only applicable for WinXp.
South Bridge Conguration
► SMBUS Controller
The System Management Bus is a specic implementation of an I
2
C bus. The SMBus speci-
cation describes the data protocols, device addresses, and electrical requirements that are
superimposed on the I2C bus specication. The SMBus is used to physically transport com­mands and information between the Smart Battery, SMBus Host, Smart Battery Charger, and other SMBus Devices. This item is used to enable/disable System Management Bus controller.
► SLP_S4# Min. Assertion Width
SLP_S4# is a signal for power plane control. This signal shuts off power to all non-critical systems when in the S4 (Suspend to Disk) or S5 (Soft Off) state.
CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc.
South Bridge Conguration
South Bridge Chipset Conguration
Help Item
SMBUS Controller [Enabled]
SLP_S4# Min. Assertion Width [1 to 2 seconds] Enabled
Disabled
ASPM [Disabled]
↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit F1:General Help
F9:Optimized Defaults
[Enabled]
Options
3
34
This setting indicates the minimum assertion width of the SLP_S4# signal to ensure that the
DRAMs have been safely power-cycled. Setting values are: [4 to 5 seconds], [3 to 4 seconds],
[2 to 3 seconds], [1 to 2 seconds].
► ASPM
Active State Power Management (ASPM) allows power to be incrementally reduced to indi-
vidual serial links in a PCI Express fabric as a link becomes less active. ASPM is dened in
the PCI Express base specication. Enables or disables ASPM for a Link, based on the overall
system power policy, the hardware capabilities of the Link, and the latency of the Link. Hard­ware performs the actual power management operations of transitioning Links between Link
power states and resynchronizing Links. The conguration of the PCI Express implementation
on a system affects the amount of power savings that can actually be achieved. This item is used to enable/disable this feature.
3
35
Integrated Peripherals
CMOS Setup Utility - Copyright (C) 1985-2008, American Megatrends, Inc. Integrated Peripherals
► OnChip ATA Devices
[Press Enter] Help Item
► OnBoard Devices
[Press Enter]
► SuperIO Conguration
[Press Enter] OnChip ATA Devices
► USB Conguration
[Press Enter]
↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit F1:General Help
F9:Optimized Defaults
[Press Enter]
► OnChip ATA Devices/OnBoard Devices/SuperIO Configuration/USB Configuration
Press <Enter> to go to relative submenu.
onchip ATA Devices
CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc.
OnChip ATA Devices
SATA#1 Conguration [Enhanced]
Help Item
Configure SATA#1 as [IDE] SATA#2 Conguration
[Enhanced]
Disabled Compatible Enhanced
↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit F1:General Help
F9:Optimized Defaults
[Enhanced]
Options
► SATA#1 Configuration
SATA#1 are the SATA ports 1, 2, 3, 4 of the motherboard. This item allows you select the
mode of the SATA ports. Setting values are: [Disabled], [Compatible], [Enhanced].
► Configure SATA#1 as
This item is used to set the operation mode of your SATA ports 1, 2, 3, 4. Setting values are:
[IDE]; [RAID]; [AHCI].
[IDe] - This congures the SATA ports to support IDE mode.
3
36
[RAID] - When you enable RAID, it means all your SATA drives must also support AHCI. [AHCI] - The Advanced Host Controller Interface (AHCI) specication describes the register
level interface for a Host Controller for Serial ATA. The specication includes a description of
the hardware/software interface between system software and the host controller hardware. AHCI provides more advanced features including SATA features, but some SATA drives may
not support AHCI, unless they are labeled with AHCI support in its specication.
If your motherboard supporting AHCI, and you have a SATA device, which also supports AHCI, then you can select IDE option to have fair performance (only PATA, SATA level), or you can select AHCI to get its best performance.
► SATA#2 Configuration
SATA#2 are the SATA ports 5,6 of the motherboard. This item allows you select the mode of
the SATA ports. Setting values are: [Disabled], [Enhanced].
onboard Devices
CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc.
OnBoard Devices
OnBoard LAN [Enabled] Help Item
OnBoard LAN Boot ROM [Disabled] OnBoard 1394
[Enabled]
USB Functions [Enabled] I
HDA Controller
[Enabled] Disabled
Auto Detect PCI Clock [Disabled] Enabled ► Trusted Computing
[Press Enter]
↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit F1:General Help
F9:Optimized Defaults
[Enabled]
Options
► OnBoard LAN
This item is used to enable or disable the onboard LAN controller.
► OnBoard LAN Boot ROM
This item is used to enable or disable the onboard LAN boot optional ROM. A LAN boot ROM lets you set up a diskless workstation on the network. By installing a boot ROM in the network board, you can enable a client PC system on the network to be booted remotely.
► OnBoard 1394
This item is used to enable or disable the onboard 1394 devices.
► USB Functions
This item is used to enable or disable USB function.
► HDA Controller
This item is used to enable or disable the HD Audio Controller.
► Auto Detect PCI Clock
This option is used to auto detect PCI slots. When enabled, the system will turn off clock of the empty PCI slot to reduce EMI (Electromagnetic Interference).
3
37
► Trusted Computing
Press <Enter> to go to relative submenu.
Trusted Computing
CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc.
Trusted Computing
Trusted Computing
Help Item
TCG/TPM Support [No] Enable/Disable TPM
TCG (TPM 1.1/1.2) support in BIOS
↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit F1:General Help
F9:Optimized Defaults
[No]
► TCG/TPM Support
Trusted Computing Group (TCG) members develop and promote open, vendor-neutral,
industry standard specications for trusted computing building blocks and software interfaces
across multiple platforms TPM (Trusted Platform Module) is a specication promoted by TCG. A Trusted Platform Mod- ule offers facilities for secure generation of cryptographic keys.
The TPM Work Group is chartered to create the Trusted Platform Module (TPM) specica-
tion. The denition of the TPM architecture comes from the TC and the TPM Work Group
denes the implementation of that architecture. Work group members should have a working
knowledge of security in relation to the design and usage of cryptographic modules. Members should also have a working knowledge of cryptographic techniques including public-key cryp­tography, cryptographic algorithms and protocols. This item is used to enable/disable the function of TCG/TPM support.
3
38
SuperIO Conguration
CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc.
SuperIO Conguration
SuperIO Conguration
Help Item
OnBoard Floppy Controller
[Enabled] Allows BIOS to Enable
Serial Port1 [Enabled]
or disable oppy
IrDA Function [Enabled] controller.
IrDA Duplex Mode
[Half Duplex]
OnBoard CIR Port [Disabled]
↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit F1:General Help
F9:Optimized Defaults
[Enabled]
► OnBoard Floppy Controller
This item is used to enable/disable Floppy Controller.
► Serial Port1
This item is used to enable/disable Serial Port 1.
► IrDA Function
This item is used to enable/disable onboard infrared chip function.
► IrDA Duplex Mode
This item enables you to determine the transfer mode of the onboard infrared chip.
► OnBoard CIR Port
This item species the base I/O port address of the onboard Consumer IR (CIR) port. The
setting values are: [Disabled] (default) ; [3E0] ; [2E0] ; [298] . Set this value to [Disabled] can
prevent the Onboard CIR Port from accessing any system resources. When the value of this
option is set to [Disabled], the consumer infrared port becomes unavailable.
► OnBoard CIR IRQ
When the value of “OnBoard CIR Port” is set to [3E0], [2E0] or [298], this item is used to set
the onboard CIR IRQ.
3
39
USB Conguration
CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc.
USB Conguration
USB Devices Enabled :
Help Item
1 Keyboard, 1 Mouse
Enables support for
Legacy USB Support [Enabled]
legacy USB
USB 2.0 Controller Mode [High Speed]
BIOS EHCI Hand-Off [Enabled]
► USB Storage Conguration
[Press Enter]
↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit F1:General Help
F9:Optimized Defaults
[Enabled]
► Legacy USB Support
This item is used to enable the support for USB devices on legacy OS. If you have a USB keyboard or mouse, set to auto or enabled.
► USB 2.0 Controller Mode
This item is used to set the transmission rate mode of USB 2.0. The available settings are :
[High Speed] in 480Mbps; [Full Speed] in 12Mbps.
► BIOS EHCI Hand-Off
Windows XP supports a number of features in the Enhanced Host Controller Interface (EHCI)
specication, but there are a few features that are not implemented. Microsoft said preliminary
support for EHCI BIOS handoff will be available in Windows XP SP2. This item allows you to enable support for OS without EHCI hand-off feature. This is a workaround for OS without EHCI hand-Off support . The EHCI ownership change should claim by EHCI driver.
If USB devices are connected to the computer, the following item will appear :
► USB Storage Configuration
After pressing <Enter>, you can set the reset delay for the USB mass storage device. There
are many different emulation types of this USB device, such as oppy, hard disk and CDROM
can be selected.
3
40
Power Management Setup
CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. Power Management Setup
ACPI Suspend Type [S1 (POS)] Help Item Power On after Power Fail [Power Off] Wake On PME [Enabled] Select the ACPI Wake On USB Devices [Enabled] state. Wake On PS2 Keyboard [Enabled] Wake On PS2 Mouse [Enabled]
Resume On RTC [Disabled]
↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit F1:General Help
F9:Optimized Defaults
[S1 (POS)]
ACPI (Advanced Conguration and Power Interface) is an open industry standard interfaces
enabling OS-directed conguration, power management, and thermal management of mobile,
desktop, and server platforms. It denes ve sleeping states, they are :
S1 - The S1 sleeping state is a low wake latency sleeping state. In this state, no system
context is lost (CPU or chip set) and hardware maintains all system context. (also called Power on Suspend)
S2 - The S2 sleeping state is a low wake latency sleeping state. This state is similar to the S1
sleeping state except that the CPU and system cache context is lost (the OS is respon­sible for maintaining the caches and CPU context). Control starts from the processor’s reset vector after the wake event.
S3 - The S3 sleeping state is a low wake latency sleeping state where all system context is lost
except system memory. CPU, cache, and chip set context are lost in this state. Hardware
maintains memory context and restores some CPU and L2 conguration context. Control
starts from the processor’s reset vector after the wake event. (also called Suspend to RAM)
S4 - The S4 sleeping state is the lowest power, longest wake latency sleeping state supported
by ACPI. In order to reduce power to a minimum, it is assumed that the hardware platform has powered off all devices. Platform context is maintained. (also called Suspend to Disk)
S5 - The S5 state is similar to the S4 state except that the OS does not save any context. The
system is in the “soft” off state and requires a complete boot when it wakes. Software uses a different state value to distinguish between the S5 state and the S4 state to allow for initial boot operations within the BIOS to distinguish whether or not the boot is going to
wake from a saved memory image.
3
41
► ACPI Suspend Type
This item is used to set the energy saving mode of the ACPI function. When you select “S1 (POS)” mode, the power is always on and computer can be resumed at any time. When you select “S3 (STR)” mode, the power will be down after a period of time. The status of the computer before it entering STR will be saved in memory, and the computer can quickly return to previous state when the STR function wakes.
► Power On after Power Fail
This item is used to set which state the PC will take with when it resumes after an AC power loss.
► Wake On PME
This item is used to enable/disable the PME to generate a wake up.
► Wake On USB Devices
This item is used to enable/disable the USB devices to generate a wake up.
► Wake On PS2 Keyboard
This item is used to enable/disable the PS2 keyboard to generate a wake up.
► Wake On PS2 Mouse
This item is used to enable/disable the PS2 mouse to generate a wake up.
► Resume On RTC
This item is used to enable/disable RTC alarm event to generate a wake up. RTC is system real time clock.
3
42
PnP/PCI Conguration
CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc.
PnP/PCI Conguration
Initial Graphics Adapter [PEG/PCI]
Help Item
PCI IDE BusMaster [Enabled]
↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit F1:General Help
F9:Optimized Defaults
[PEG/PCI]
Select which graphics controller is used as the primary boot device.
► Initial Graphics Adapter
This item is used to select which graphics controller is used as the primary boot device.
► PCI IDE BusMaster
This item is used to enable/disable the use of PCI IDE busmastering. Enable this option can specify that the IDE controller on the PCI local bus has mastering capabilities.
3
43
PC Health Status
CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc. PC Health Status
CPU Temperature :44
o
C/111 oF Help Item
System Temperature :24
o
C/75 oF
CPU Fan Speed :4440 RPM
System Fan Speed :N/A
Disabled NB Fan Speed :N/A Enabled Reset VCore :1.296V
Memory 1.8V :1.792V
Vcc +3.30V :3.408V
+12.0V :11.968V MCH 1.1V :1.120V
Case Open Warning [Disabled] Smart Fan [Enabled]
↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit F1:General Help
F9:Optimized Defaults
[Disabled]
Options
► CPU Temperature/System Temperature
The CPU/System temperature are automatically detected and displayed by the system.
► CPU Fan Speed/System Fan Speed/NB Fan Speed
The CPU fan/System fan speed are automatically detected and displayed by the system.
► VCore/Memory 1.8V/Vcc +3.30V/+12.0V/MCH 1.1V
The current voltages are automatically detected and displayed by the system.
► Case Open Warning
This item is used to enable or disable case open warning function.
► Smart Fan
This option is used to enable or disable smart fan function.
3
44
bIoS Security features
CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc.
BIOS Security Features
Security Settings
Help Item
Supervisor Password : Installed Install or change the User Password : Installed password.
Change Supervisor Password [Press Enter]
User Access Level [Full Access]
Change User Password [Press Enter]
Clear User Password [Press Enter]
Password Check [Setup]
Boot Sector Virus Protection [Disabled]
↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit F1:General Help
F9:Optimized Defaults
[Press Enter]
► Change Supervisor Password
This item is used to install or change supervisor password. After you input Supervisor password, it then will ask you to input user password optionally.
► User Access Level
This item is used to set user access level. The available settings are:
[No Access]: Prevent user access to the setup utility. [View Only]: Allow access to the setup utility but the elds can not be changed. [Limited]: Allow only limited elds to be changed, such as date and time. [Full Access]: Allow any eld to be changed except the supervisor password.
► Change User Password
This item is used to install or change user password.
► Clear User Password
This item will be displayed only when a User Password was set before. It is used to clear the user password.
► Password Check
When it is set to [Setup], a password is required to enter the BIOS setup; select [Always], a
password is required not only to enter BIOS setup, but also on each boot of your PC.
► Boot Sector Virus Protection
This item is used to enable/disable boot sector virus protection.
Enter New Password :
3
45
load optimal Defaults
Optimal defaults are the best settings of this motherboard. Always load the Optimal defaults after updating the BIOS or after clearing the CMOS values. Select this option and press Enter, it will pop out a dialogue box to let you load the defaults. Select <OK> and then press <Enter> to load the defaults. Select <Cancel> and press <Enter>, it will not load. By this default, BIOS have set the optimal performance parameters of system to improve the performances of system components. But if the optimal performance parameters to be set cannot be supported by your hardware devices (for example, too many expansion cards were installed), the system might fail to work.
Save Changes and exit
When you select this option and press <Enter>, a message will be displayed in the center of the screen:
Select [OK] to save your changes to CMOS and exit the program, select [Cancel] or <ESC> to return to the main
menu.
Discard Changes and exit
If you select this option and press <Enter>, the following message will be displayed in the center of the screen:
Select [OK] to exit CMOS without saving your modications, select [Cancel] or <ESC> to return to the main menu.
Save configuration changes and exit setup?
[OK] [Cancel]
[OK]
Discard changes and exit setup?
[OK] [Cancel]
[OK]
Load Optimal Defaults?
[OK] [Cancel]
[OK]
The utility CD that came with the motherboard contains useful software and several utility drivers that enhance the motherboard features.
This chapter includes the following information:
■ Utility CD content
■ Install driver and utility
■ FOX ONE
■ FOX LiveUpdate
■ FOX LOGO
■ FOX DMI
Note : Because each module is independent, so the section number will be reorganized and unique to each module, please understand.
47
4
47
Utility CD content
This motherboard comes with one Utility CD. You can simply put it into your CD/DVD-ROM drive, and the main menu will be displayed on your PC screen to guide you how to install.
1. Install Driver
Use these options to install all the drivers for your system. You should install the drivers in order, and you need to restart your computer after all the drivers have been installed.
A. Intel Chipset Driver B. Realtek HDA Audio Driver C. Realtek 811X LAN Driver D. Intel VGA Driver E. Intel RAID Driver
2. Software Utilities
Use these options to install additional software programs. FOX ONE is a very powerful user interface program which allows you to change your system setting without going to BIOS. Some auto features help user to improve (or overclock) your system without being a computer literate.
A. FOX ONE B. FOX LiveUpdate C. FOX LOGO D. FOX DMI E. Microsoft DirectX 9.0 F. Adobe Acrobat Reader G. Norton Internet Security
48
4
48

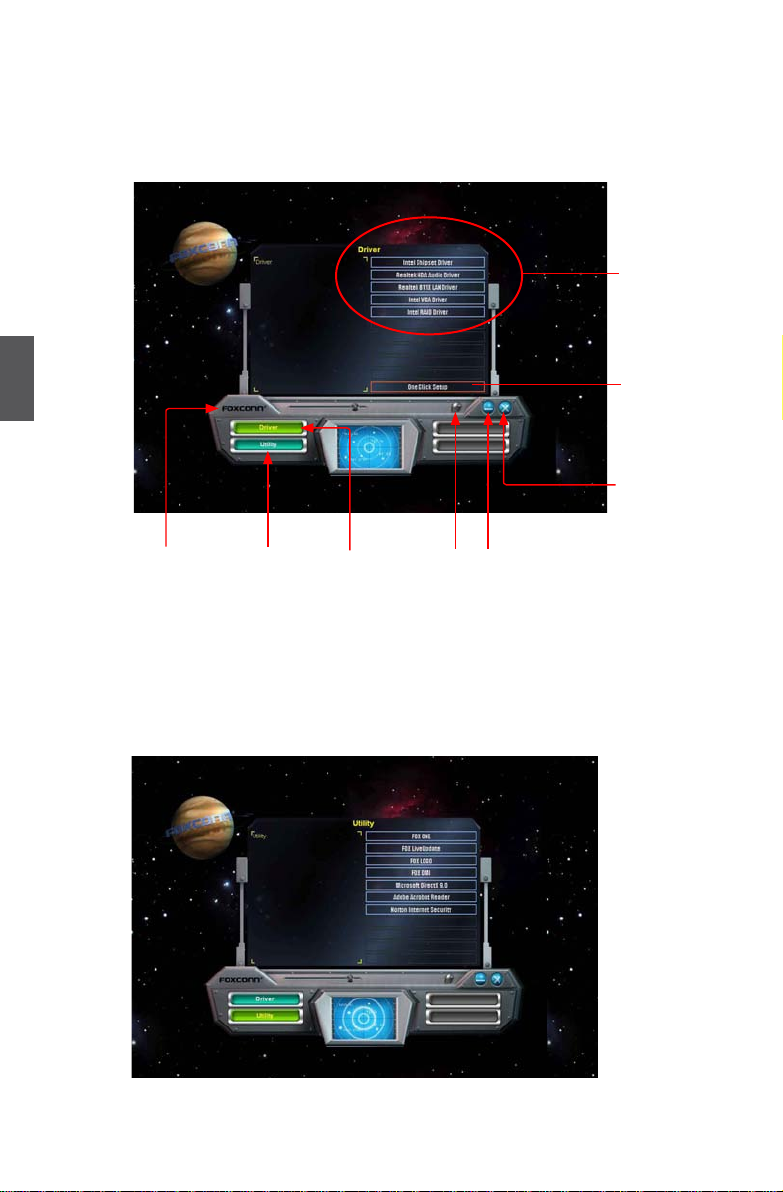

Install driver and utility
1. Install Driver
You must click "Intel Chipset Driver" to install it rst. After that, you can click "One Click Setup" to
install all the other drivers left, or you can click on each individual driver to install it manually.
2. Install Utility
You can select the specic utility to install.
Manual Installation Step by Step
Automatic Installation by One Click.
Select to Install Utilities
Select to Install Drivers
Click to visit Foxconn's website
Browse CD
Exit the program
Drop to System Tray
49
4
49
foX oNe
FOX ONE is a powerful utility for easily modifying system settings. It also allows users to monitor various temperature values, voltage values, frequencies and fan speeds at any time.
With FOX ONE, you can :
■ Modify system performance settings, such as the CPU and memory bus speeds,
CPU voltages, fan speeds, and other system performance options.
■ Monitor hardware temperatures, voltages, frequencies and fan speeds.
Supporting Operating Systems :
■ Windows 2000 ■ Windows XP (32-bit and 64-bit)
■ Windows 2003 (32-bit and 64-bit) ■ Windows Vista (32-bit and 64-bit)
Using FOX ONE :

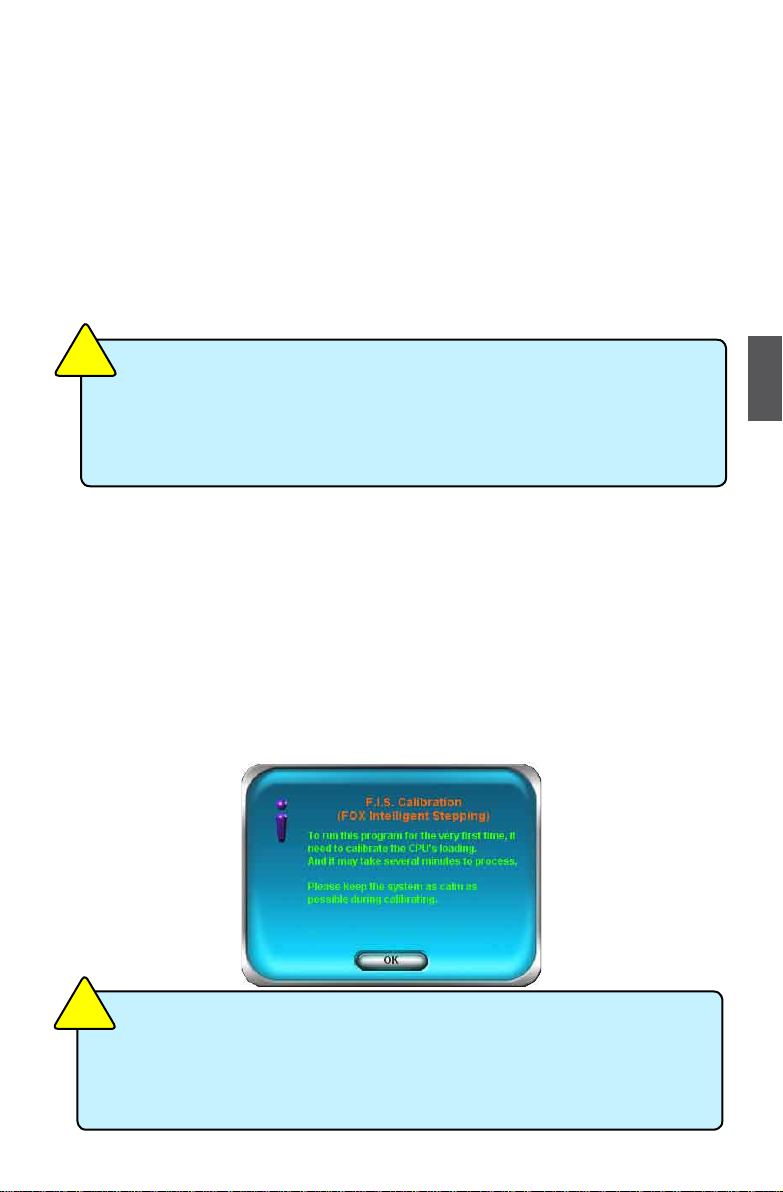

The very rst time you run FOX ONE, F.I.S. Calibration function (FOX Intelligent
Stepping) will require you to calibrate the CPU’s loading. Click “OK” to proceed and start the Utility. F.I.S. is a feature of FOX ONE, which can automatically adjust your CPU clock based on your current system loading.
Before you running the FOX ONE program, the system parameters (such as CPU clock, voltage...etc.) are controlled by BIOS settings. After you run FOX ONE, it will take over, and the controlling right will be transferred to FOX ONE. Later, if you exit FOX ONE, then BIOS control will be back again.
C
A
U
T
I
O
N
!
Depending on hardware support, voltage monitoring and Fox Intelligent Stepping features are optional and only supported in some models. If the option is selectable, it also means the feature is supported.
■ Voltage Monitoring is supported only in FOX ONE Premium & Deluxe products.
■ Fox Intelligent Stepping is supported only in FOX ONE Deluxe products.
C
A
U
T
I
O
N
!
50
4
50
1. Main Page
Toolbar
Use the toolbar to navigate to other pages.
Alert lamp
When the system is in healthy state, the color of alert lamp is green. When the system is in abnormal state, the alert lamp color is red.
Switch button
Click this button, it will simplify the whole FOX ONE control panel to a smaller information bar (i.e. Simple Mode) as depicted below, you can drag this bar to any place on your screen to help you monitoring system status.
Click here to go back to FOX ONE full screen
Click here will drop the FOX ONE to Windows system tray
Exit FOX ONE
Show CPU Information
Toolbar
Alert Lamp
Switch Button
Exit Minimum
Homepage
Monitor Frequency/Voltage/Fan speed/Temperature value
Conguration
Skin Button
51
4
51
Skin button
There are more choices of FOX ONE screen panels. Click this button, you can select your favorite skin (FOX ONE Panel).
exit
Click this button to exit the program.
Minimum
Click this button to drop the FOX ONE to Windows system tray located at the lower right corner of your screen.
Homepage
Click this button to visit Foxconn motherboard website : http://www.foxconnchannel.com
Apply the changes
Click the new skin picture to select the new skin
Cancel the changes
52
4
52

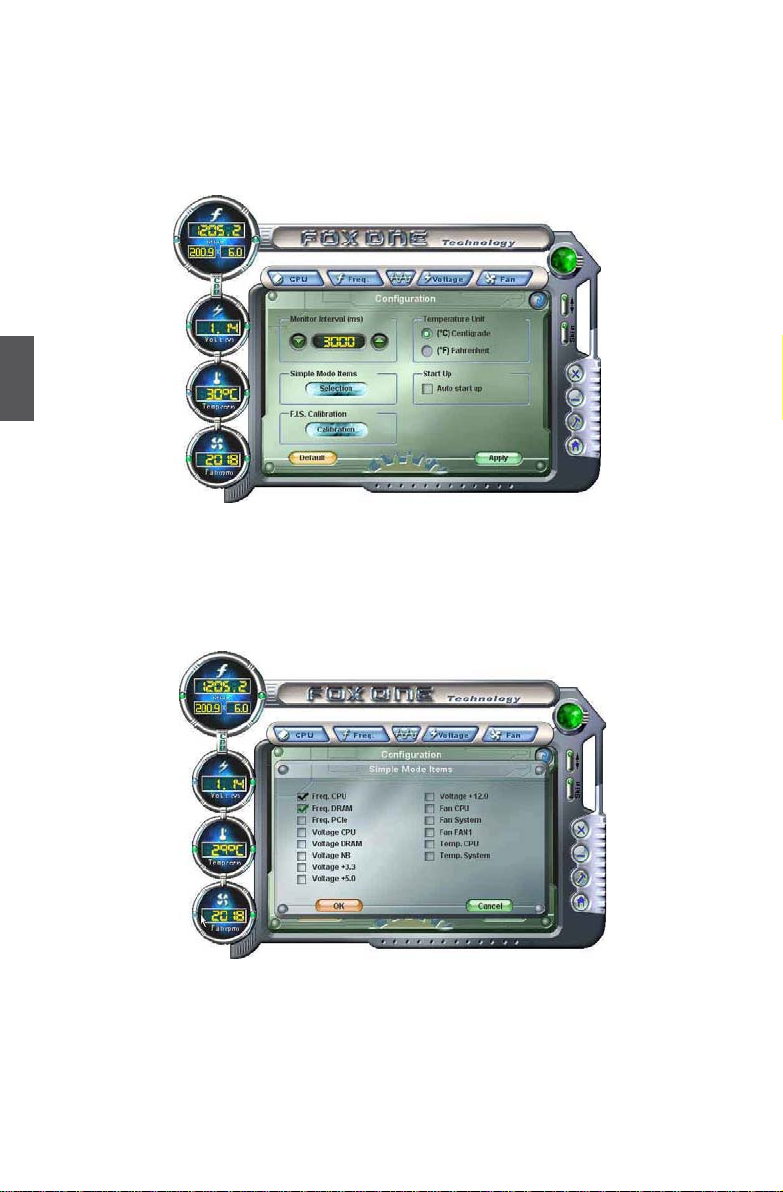

Conguration
This menu allows you to congure :
1). Monitor interval (ms) :
This is to dene the interval of different messages of system settings which are to
be displayed on Simple Mode screen. Minimum value is 1 second.
2). Simple Mode : To select which message of system settings are to be displayed in the Simple Mode. Messages such as CPU frequency, voltage...etc., they can be displayed one by one in Simple Mode.
3). F.I.S. Calibration (FOX Intelligent Stepping, Optional) This function will re-calibrate the CPU's loading, and it may take several minutes to proceed. The FOX ONE calibration process will apply different loadings to your CPU, record PWM IC voltage together with the CPU clock running at these
loadings, so it can dene and estimate within a particular range of system loading,
what the CPU clock should be.
53
4
53
Step 1 : Click Calibration icon, a message pops out to ask for continue. Select Yes.
Step 2 : After data is collected, it will ask you to restart your computer now.
Later on, when the FOX ONE program is activated, and F.I.S. feature (in CPU Page) is also enabled, FOX ONE will automatically adjust your CPU clock according to your system loadings. (Loadings are like Power Gaming, Data Mining...etc.)
54
4
54
2. CPU Page - CPU Control
This page lets you select (or overclock) CPU clock to meet the current performance level of the system. The fastest and suitable CPU clock running for current system can be calculated by FOX ONE automatically or manually input by yourselves.
Manual :
You can press the up/down button to adjust your CPU clock.
Auto :
Click this button to let FOX ONE check the highest CPU clock you can use. System will raise the CPU clock step by step until it hangs, you can then push the RESET button on your PC panel to restart the system. When system restarts, run FOX ONE again, it will display a recommended highest CPU clock for you, click <Yes> to apply it.
A message informs you to push RESET button later if
the system hangs nally.
Click Yes to continue.
Press Auto button to let FOX ONE check the highest CPU clock you can use.
Go to CPU page
FIS Features : Select the different benchmarks
Adjust by manual
Apply the changes
Reset the changes
55
4
55
You can see the system is raising CPU clock until the system hangs. Push RESET button on the front panel of your system to restart the computer.
Run FOX ONE program again, it will inform you the previous test found that 255MHz is the recommended CPU clock for your system. Click Yes to apply it to your system.
Now, your system is running at a CPU clock of 255MHz.
56
4
56
foX Intelligent Stepping (f.I.S., optional)
Select FOX Intelligent Stepping will allow your system to automatically adjust your CPU clock rate based on different system loadings. For example, if you select Power Gaming, CPU clock will be driven to run at its maximum speed. While in Energy Saving, CPU will lower down its speed to a minimum. The four benchmarks - Power
Gaming, Data Mining, Ofce and Energy Saving, the references of their system
loading were calculated and dened in the FIS Calibration option of Conguration
menu. Select Auto, CPU will automatically adjust its clock according to current system loading.
3. frequency Page - frequency Control
This page lets you set memory and PCI Express frequencies by manual.
Go to Freq. page
Close this page
Reset the changes
Apply the changes
Select the option you want to set
Adjust by manual
57
4
57
4. limit Setting
4.1 limit Setting - CPU Temperature
This page lets you to set CPU high limit temperature and enable the alert function.
4.2 limit Setting - System Temperature
This page lets you to set system high limit temperature and enable the alert function.
Go to Limit Setting page
Set high limit by dragging the lever
Show current CPU temperature value
Enable alert function when the CPU temperature is higher than high limit value
Show current high limit value of the CPU temperature
Set high limit by dragging the lever
Show current system temperature value
Enable alert function when the system temperature is higher than high limit value
Show current high limit value of system temperature
58
4
58
4.3 limit Setting - CPU fan
This page lets you to set CPU fan low limit rpm and enable the alert function.
4.4 limit Setting - System fan
This page lets you to set system fan low limit rpm and enable the alert function.
Set low limit rpm by dragging the lever
Show current CPU fan rpm value
Enable alert function when the CPU fan runs slower than the low limit rpm value
Show current low limit rpm value of CPU fan
Set low limit rpm by dragging the lever
Show current system fan rpm value
Enable alert function when the system fan runs slower than low limit rpm value
Show current low limit rpm value of system fan
59
4
59

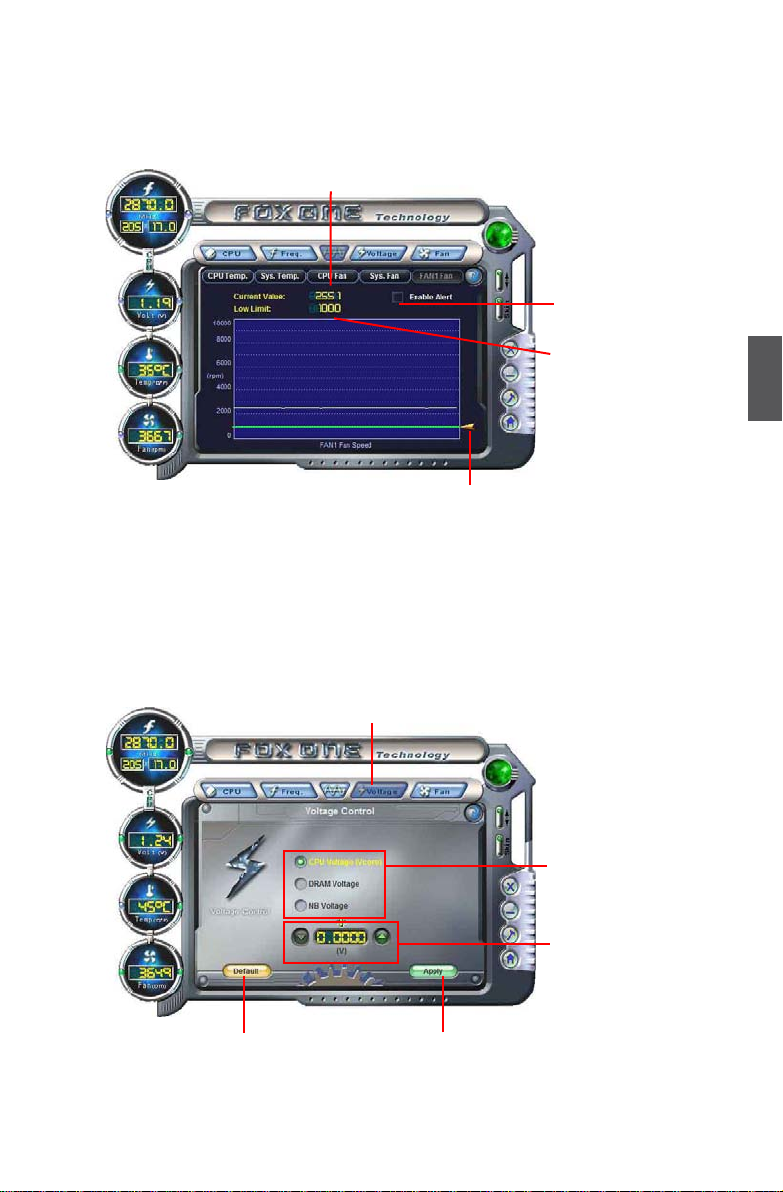

4.5 limit Setting - fAN1 fan
This page lets you to set FAN1 fan low limit rpm and enable the alert function.
5. Voltage Page - Voltage Control (optional)
This page lets you set CPU voltage, memory voltage and North Bridge voltage manually. CPU voltage can be stepped up/down by a unit of 12.5mV, while memory is
0.05V/step, and North Bridge is 0.04V/step.
Set low limit rpm by dragging the lever
Show current FAN1 fan rpm value
Enable alert function when the FAN1 fan runs slower than low limit rpm value
Show current low limit rpm value of FAN1 fan
Go to Voltage page
Select the option you want to set
Adjust by manual
Reset the changes
Apply the changes
60
4
60

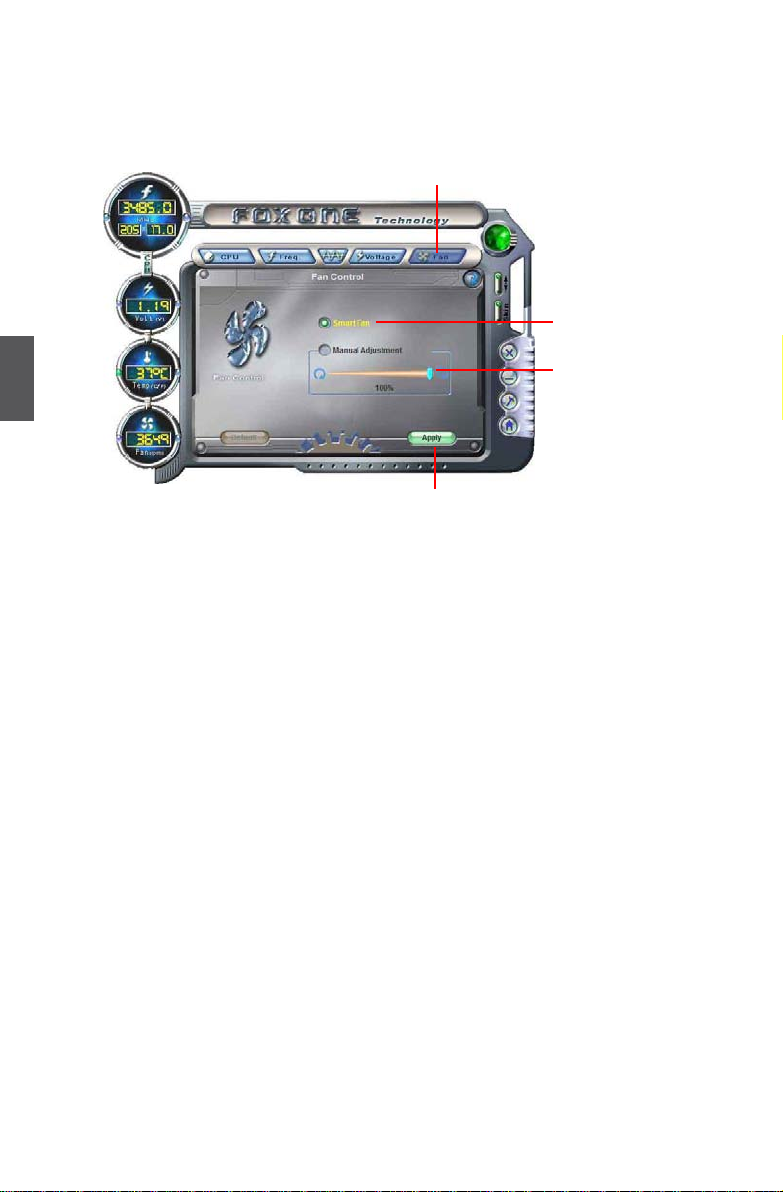

6. fan Page - fan Control
This page lets you enable Smart Fan function or set the fan speed by manual. When Smart Fan is selected, you must use a 4-pin CPU cooler in your system.
Go to Fan page
Set fan speed by dragging the lever
Enable or disable smart fan function
Apply the changes
61
4
61

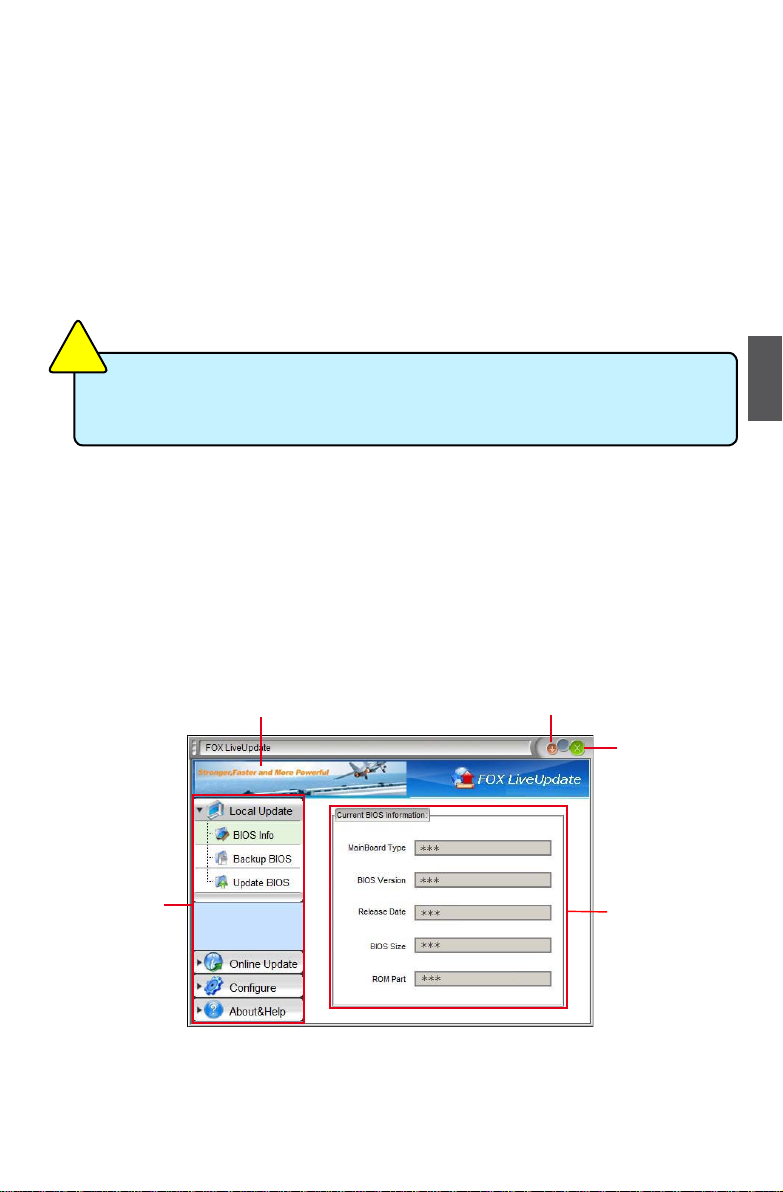

foX liveUpdate
FOX LiveUpdate is a useful utility to backup and update your system BIOS, drivers and utilities by local or online.
Supporting Operating Systems :
■ Windows 2000
■ Windows XP (32-bit and 64-bit)
■ Windows 2003 (32-bit and 64-bit)
■ Windows Vista (32-bit and 64-bit)
Using foX liveUpdate :
1. local Update
1-1 local Update - bIoS Information
This page lets you know your system BIOS information.
*** : please refer to the physical motherboard for detail.
Exit
Toolbar
Minimum
Show current BIOS information
Link to website
Please set the BIOS setting “BIOS Write Protect” or “Super BIOS Protect” to [Disabled]
when running this application.
C
A
U
T
I
O
N
!
62
4
62

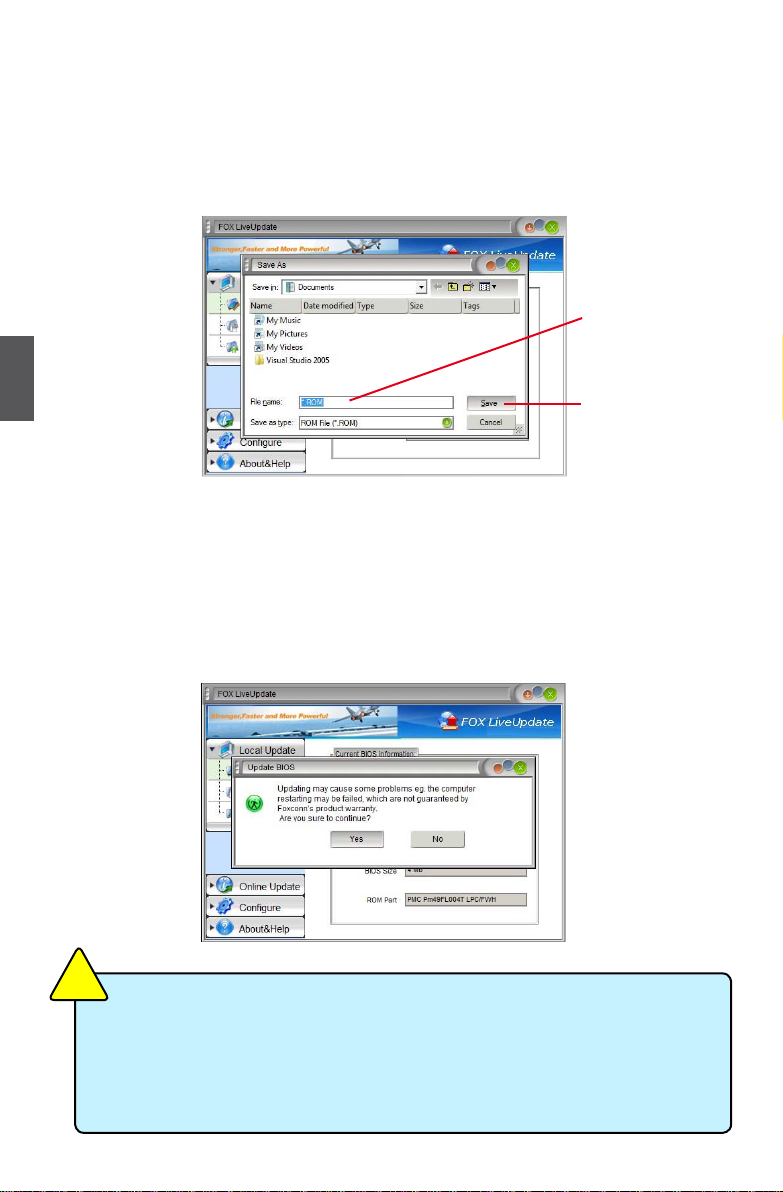

1-2 local Update - backup
This page can backup your system BIOS. You can click “Backup”, and key in a le name, then
click “Save” to nish the backup operation. The extension of this backup le is ".BIN" for Award
BIOS and ".ROM" for AMI BIOS. Default directory is "C:\Desktop\My Documents" in Windows XP
and "Documents" in Vista. Make sure you can remember the le name together with the directory
which it is stored, prevented that you may need them to recover your BIOS later.
1-3 local Update - Update
This page helps you to update your BIOS from a local le. After click “Update”, An alert message
will be displayed to ensure if you really want to continue, click “Yes” to conrm. A setup wizard
will guide you to load a local BIOS le to nish the operation. You must remember from which
directory to load your new BIOS le (with an extension of ".BIN" for Award BIOS, ".ROM" for AMI
BIOS) before the setup wizard starts.
Key in a BIOS name
Click here
FOX LiveUpdate can automatically backup old BIOS before update. This feature can be
enabled in the "Congure-System" setup. Please refer to "Congure-System" section
for more detail. The default backup directory is C:\LiveUpdate_Temp, but the backup
le name will be automatically generated. It is hard to nd it out from a backup directory,
and we recommend you using Explorer to check date/time message of this backup le
to nd it out and write its name down to remember it.
C
A
U
T
I
O
N
!
63
4
63

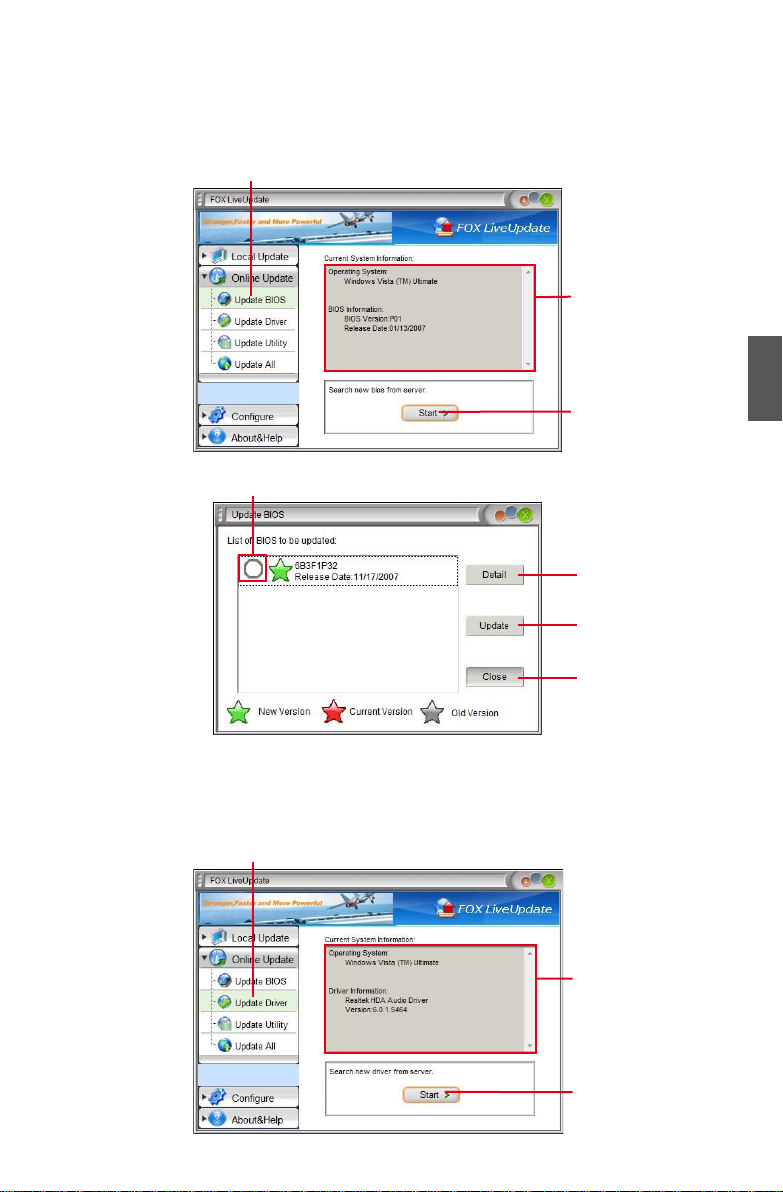

2. online Update
2-1 online Update - Update bIoS
This page lets you update your system BIOS from Internet. Click “start”, it will search the new
BIOS from Internet. Then follow the wizard to nish the update operation.
2-2 online Update - Update Driver
This page lets you update your system drivers from Internet. Click “start”, it will search the new
drivers from Internet. Then follow the wizard to nish the update operation.
Click here
Current information
Search new BIOS from Internet
Browse detailed information
Update BIOS
Close the window
Select BIOS to update
Click here
Current information
Search new drivers from Internet
64
4
64

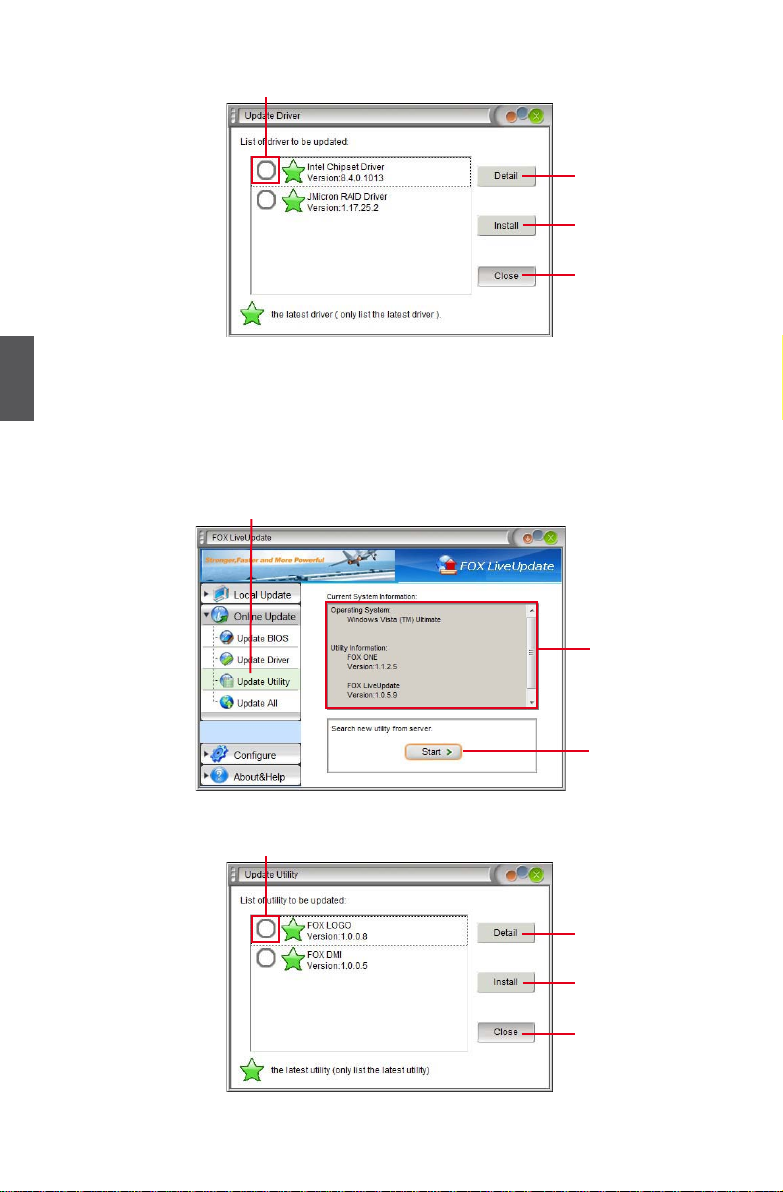

2-3 online Update - Update Utility
This page lets you update utilities from Internet. Click “start”, it will search the new utilities from
Internet. Then follow the wizard to nish the update operation.
Browse detailed information
Install the selected driver
Close the window
Select the driver to update
Click here
Current information
Search new utilities from Internet
Browse detailed information
Install the selected utility
Close the window
Select the utility to update
65
4
65

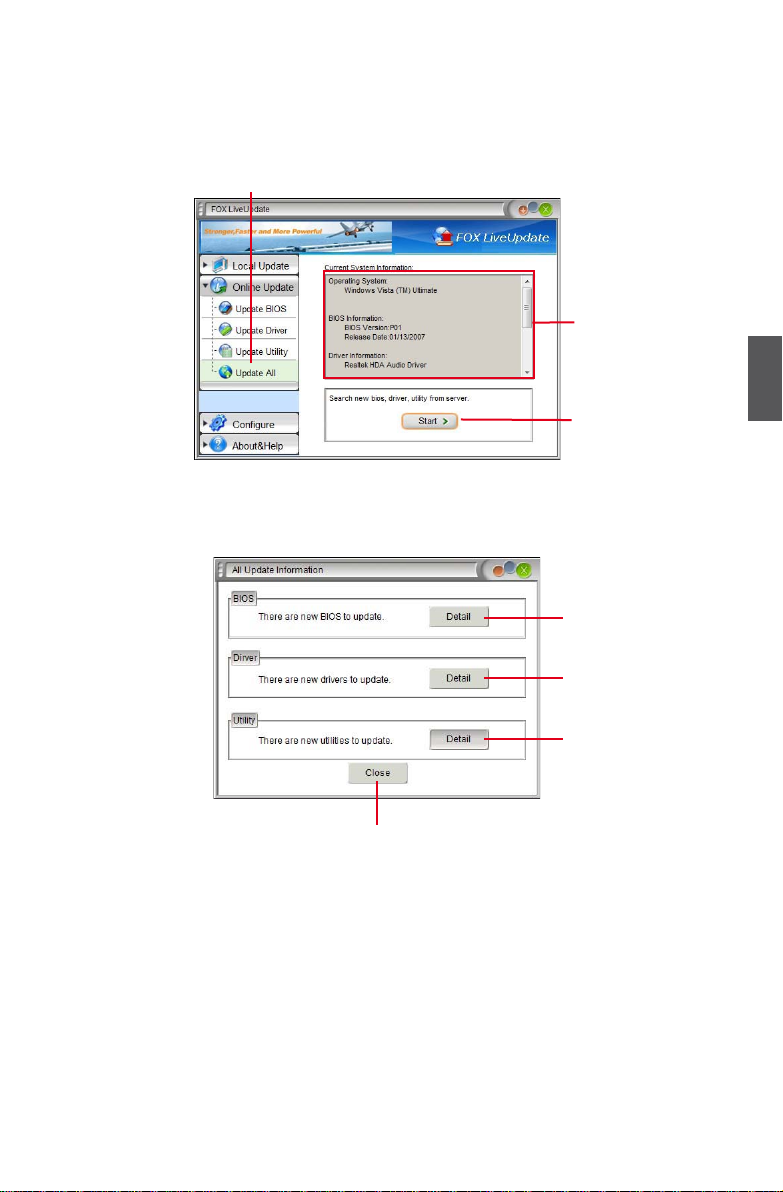

2-4 online Update - Update All
This page lets you update your system drivers from Internet. Click “start”, it will search all new
BIOS/drivers/utilities from Internet. Then follow the wizard to nish the update operation.
Click here
Current information
Search all new BIOS/ drivers/utilities from Internet
Browse detailed BIOS information
Close the window
Browse detailed driver information
Browse detailed utility information
66
4
66
3. Congure
3-1 Congure - option
This page lets you set auto search options. After you enable the auto search function, FOX
LiveUpdate will start its searching from Internet and if any qualied item found, it will pop out a
message on the task bar to inform you to do the next step.
Double click on the icon as show below, you can see the detailed information.
Double click here
Apply the changes
Reset to default value
Click here
Set auto search options
Select search which kind of versions
Set auto search the latest FOX LiveUpdate
67
4
67
When you enable "Auto Search FOX LiveUpdate", if your FOX LiveUpdate version is older, it will auto search from internet and prompt you to install the new version.
3-2 Congure - System
This page lets you set the backup BIOS location and change different skin of the FOX LiveUpdate utility.
Click here
Set the location of
download les or
auto backup BIOS
Determine if the FOX LiveUpdate can auto run when the system starts up
Select different skin of the software
Apply the changes
Reset to default value
Prompt you to install the new FOX LiveUpdate
68
4
68

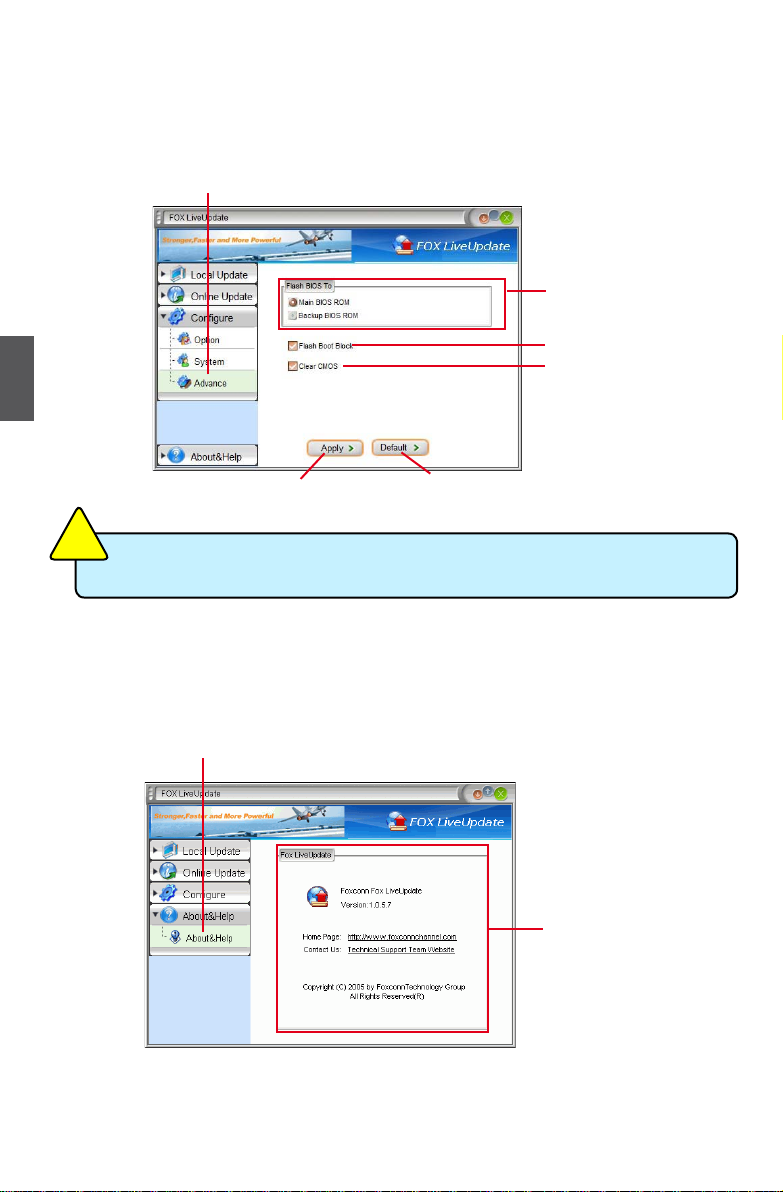

3-3 Congure - Advance
This page lets you select to ash BIOS / Boot Block and clear CMOS. If you choose Flash Boot
Block, it means BIOS is not protective, and you must make sure the ash process is continuous
and without any interruption.
4. About & Help
This page shows some information about FOX LiveUpdate.
C
A
U
T
I
O
N
!
We recommend that you had better keep the default setting unchanged to avoid any damage.
Click here
Select which BIOS ROM
to ash(Only available to
motherboard with backup BIOS ROM )
Apply the changes
Reset to default value
Select to ash Boot Block
Select to clear CMOS
Click here
Show information about FOX LiveUpdate
69
4
69
foX loGo
FOX LOGO is a simple and useful utility to backup, change and delete the boot time Logo. The boot Logo is the image that appears on screen during POST (Power-On Self-Test).
You can prepare a JPG image (1024x768) le, then use FOX LOGO to open it and
change the boot time Logo. Boot time Logo will be displayed if you enable the BIOS "Quiet Boot" setting in "Advanced BIOS Features" menu.
Supporting Operating Systems :
■ Windows 2000
■ Windows XP (32-bit and 64-bit)
■ Windows 2003 (32-bit and 64-bit)
■ Windows Vista (32-bit and 64-bit)
Using foX loGo:
Main Page
When you change Logo or delete current Logo, the system will ash BIOS le auto­matically. During this time, please DO NOT shut down the application and the system,
or the motherboard will be damaged seriously.
W
A
R
N
I
N
G
!
Minimize
Exit
Website About
Backup
Change
Delete
Main screen
70
4
70
foX DMI
FOX DMI is a full Desktop Management Interface viewer, and it provides three DMI data formats : Report, Data Fields and Memory Dump. With DMI information, system maker can easily analyze and troubleshoot your mother­board if there is any problem occurred.
Supporting Operating Systems :
■ Windows 2000
■ Windows XP (32-bit and 64-bit)
■ Windows 2003 (32-bit and 64-bit)
■ Windows Vista (32-bit and 64-bit)
Using foX DMI:
Please operate this utility as the comments shows.
Click here to select the DMI Data format you need
Click here to select the type you want to view.
This chapter will cover two topics :
■ Installing a new Windows XP (Vista) in a brand new RAID
system.
■ Existing Windows XP (Vista) system with new RAID built as
data storage.
It includes the following information :
■ RAID Conguration Introduction
■ Intel
®
Matrix Storage Manager
■ Create a RAID Driver Diskette
■ BIOS Conguration
■ Create RAID in BIOS
■ Install a New Windows XP
■ Existing Windows XP with RAID built as data storage
Note: This chapter is applicable only for G45M-S
The RAID BIOS Setup pictures shown in this chapter are for reference only, please refer to the practical screen.
5
72
Installing a new Windows XP (Vista) in a brand new RAID system.
1. Follow 5-1 to create a RAID driver diskette.
(Windows Vista has in-box driver by its own and can skip this step).
2. Follow 5-2 to set BIOS setting SATA mode to RAID or AHCI.
3. Follow 5-3 to create RAID in BIOS.
4. Follow 5-4 to Install Windows Operating System.
What kinds of hardware and software you need here :
1. A oppy drive.
2. A CD-ROM drive.
3. Several SATA hard disks.
4. A RAID driver diskette.
5. A motherboard driver CD. (To create RAID driver diskette if it is not bundled.)
6. Windows XP or Vista Install CD.
existing Windows XP (Vista) system with new RAID built as data storage.
Follow 5-5 to go through the processes to build a new RAID data storage in your existing Windows XP system, it includes :
1. Copy RAID driver setup program to your hard disk. (Vista can skip)
2. Follow 5-2 to set BIOS setting SATA mode to RAID or AHCI.
3. Follow 5-3 to create RAID in BIOS.
4. Run setup program to install Intel® Matrix Storage Manager driver into your current
Windows XP system. (Vista can skip this step)
5. Format new RAID partitions.
What kinds of hardware and software you need here :
1. A CD-ROM drive.
2. Several SATA hard disks.
3. A motherboard driver CD.
5
73
RAID Conguration Introduction
RAID (Redundant Array of Independent Disks) is a method for computer data storage schemes that divide and/or replicate data among multiple hard drives. RAID can be designed to provide increased data reliability (fault tolerance) or increased I/O (input/ output) performance, or both. The motherboard comes with the Intel ICH9R. The
following RAID congurations are provided for users.
There are three major key concepts in RAID:
1. Mirroring : The copying of data to more than one disk;
2. Striping : The splitting of data across more than one disk;
3. Error correction : Where redundant data is stored to allow problems to be detected
and possibly xed (known as fault tolerance).
Different RAID levels use one or more of these techniques, depending on the system requirements. The main aims of using RAID are to improve reliability, important for protecting information that is critical to a business, for example a database of customer orders; or where speed is important, for example a system that delivers video on demand TV programs to many viewers.
The conguration affects reliability and performance in different ways. The problem
with using more disks is that it is more likely that one will go wrong, but by using error checking the total system can be made more reliable by being able to survive and repair the failure. Basic mirroring can speed up reading data as a system can read different data from both the disks, but it may be slow for writing if it insists that
both disks must conrm that the data is correctly written. Striping is often used for
performance, where it allows sequences of data to be read off multiple disks at the same time. Error checking typically will slow the system down as data needs to be read from several places and compared. The design of RAID systems is therefore a compromise and understanding the requirements of a system is important. Modern
disk arrays typically provide the facility to select the appropriate RAID conguration.
RAID is often used in high availability systems, where it is important that the system keeps running as much of the time as possible.
5
74
RAID 0 (Stripe)
RAID 0 reads and writes sectors of data interleaved among multiple drives. If any disk member fails, it affects the entire array. The disk array data capacity is equal to the number of drive members times the capacity of the smallest member. The striping block size can be set from 4KB to 128KB. RAID 0 does not support fault tolerance.
RAID 1 (Mirror)
RAID 1 writes duplicate data onto a pair of drives and reads both sets of data in parallel. If one of the mirrored drives suffers a mechanical failure or does not respond, the remaining drive will continue to function. Due to redundancy, the drive capacity of the array is the capacity of the smallest drive. Under a RAID 1 setup, an extra drive called the “spare drive” can be attached. Such a drive will be activated to replace a failed drive that is part of a mirrored array. Due to the fault tolerance, if any RAID 1 drive fails, data access will not be affected as long as there are other working drives in the array.
RAID 5 (Parity)
RAID 5 provides data striping at the byte level and also stripes error correction information. This results in excellent performance and good fault tolerance. Level 5 is one of the most popular implementations of RAID.
RAID 10 (0+1)
RAID 10 is a combination of striping and mirroring. This conguration provides optimal
speed and reliability, but you need four SATA hard disks.
Comparison Table :
Solution Hard Disks No. Capacity Performance Reliability Application
RAID0 >=2 All Highest Dangerous Look for speed RAID1 2 50% Read faster Excellent 100% Data backup RAID5 >=3 N-1 Read faster
Write slower
Good Limited budget
RAID10 >=4
(Even number)
Smallest
*2
High Excellent Unlimited budget
5
75
Intel® Matrix Storage Manager
The Intel® Matrix Storage technology supports RAID 0 ,RAID 1, RAID 5, and RAID 10 (0+1) functions. It allows you to get high performance with fault tolerance, big capacity, or data safety provided by different RAID functions.
In this section, we will use four SATA hard disks as an example to guide you how
to congure your RAID system. There are two 232.9GBs, one 298.1GB, and one
279.5GB. A creation of second volume will also be well described.
In each screen, there is also a message bar about each key’s function, such as <Tab>, <Enter>, <Del>...etc. it is to help making your selection easier.
Two topics will be introduced :
1). Installing a new Windows XP in a brand new RAID system.
2). existing Windows XP system with new RAID built as data storage.
Steps to Install Serial ATA Hard Disks :
1. Install SATA hard disks into the drive bays.
2. Connect one end of the SATA cable to motherboard’s SATA connector, and the other end to SATA hard disk.
3. Connect SATA power cable to the power connector of SATA hard disk.
Before installing the SATA hard disks, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the hardware.
C
A
U
T
I
O
N
!
Both AHCI and RAID modes need to install Intel® Matrix Storage driver.
Set SATA mode in BIOS to AHCI, you can skip RAID BIOS creation steps,
but the software driver installation of Intel® Matrix Storage Manager shall follow the same rule as described for RAID.
W
A
R
N
I
N
G
!
5
76

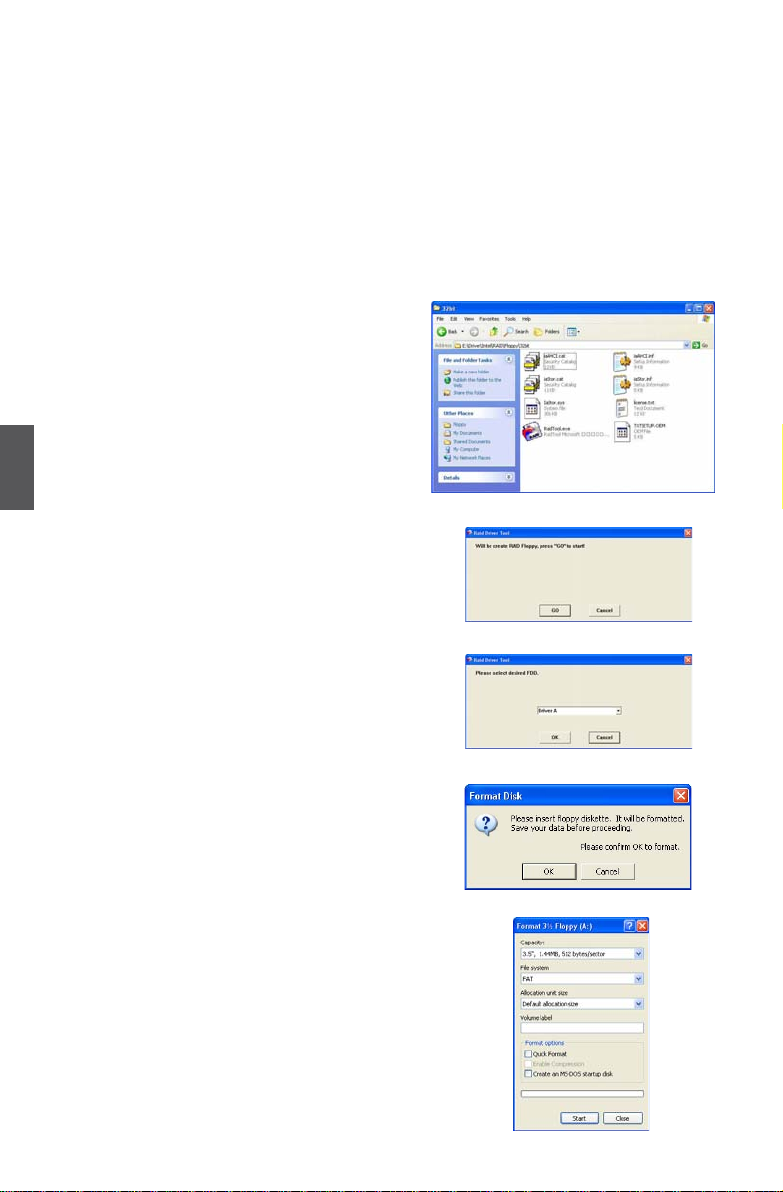

1. Find a PC, put a diskette into its oppy
drive A:, this diskette will be formatted later. Put the driver CD into CD/DVD-ROM drive.
2. Depending on which platform your system is, normally, it is a 32-bit XP sys­tem. Use Windows explorer, and go to CD:\Driver\Intel\RAID\floppy\32bit, click on RaidTool icon to start the creation.
3. Click on “GO” to Start.
4. Select the desired destination FDD drive. It can be the default drive A: or any USB FDD. Click “OK” to continue.
5. Insert a diskette, click “OK” to continue.
6. You can input a volume label for this dis­kette, click on “Start” to format.
7. Click on "OK" to go through this warning
5-1 Create a RAID driver diskette
If you want to install a brand new Windows XP on a AHCI or RAID system, you need to
congure the SATA Mode in BIOS to either AHCI or RAID rst. You also need to create
a RAID driver diskette for use in installing your Windows XP system. Windows Vista has native RAID driver in itself, you can skip these steps.
5
77
message.
8. Format nished. Click "OK" to continue copying of
RAID driver into this diskette.
9. Check if the diskette contains the driver les.
Later, when in the process of installing Windows
XP in your RAID system, it will ask you to use
this oppy diskette to provide driver for additional
specic devices, for example, a RAID device.
10. Install Serial ATA Hard Disks :
11-1. Shut down your computer. 11-2. Install SATA hard disks into the drive bays, connect all power and SATA
cables.
5
78
5-2 BIOS Conguration
1. Enter the BIOS setup by pressing <DEL> key during the POST(Power On Self Test).
2. Select the “Integrated Peripherals” from the “Main menu”, then select the “OnChip
ATA Device” item and press <Enter> to go to the conguration items.
3. Select and Set the “Congure SATA#1 as” option to [RAID].
4. Press <F10> to save the setting then PC will reboot itself.
5-3 Create RAID in bIoS
enter RAID bIoS Setup
When BIOS is restarted, it will display a message asking you to press <Ctrl>+<I> keys simultaneously to enter the main menu of Intel® Matrix Storage Manager Option ROM
Utility. Press the <Ctrl>+<I> to enter Conguration Utility.
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
1. Create RAID Volume 3. Reset Disks to Non-RAID
2. Delete RAID Volume 4. Exit
RAID Volume : * = Data is Encrypted None Dened.
Physical Disks: Port Drive Model Serial # Size Type/Status(Vol ID)
0 WDC WD2500JS-60N WD-WCANKC865380 232.9GB
Non-RAID Disk
2 Maxtor 6L250S0 L50SKP4G 232.9GB
Non-RAID Disk
4 ST3320620SV 9QF4YJGQ 298.1GB
Non-RAID Disk
5 ST3300831AS 3NF02XH2 279.5GB
Non-RAID Disk
[↑↓]-Select [ESC]-Exit [ENTER]-Select Menu
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
[ DISK/VOLUME INFORMATION ]
[ MAIN MENU ]
1. Create RAID Volume
CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc.
OnChip ATA Devices
SATA#1 Conguration [Enhanced]
Help Item
Configure SATA#1 as [RAID] SATA#2 Conguration
[Enhanced]
↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit F1:General Help
F9:Optimized Defaults
[RAID]
Options
IDE RAID AHCI
5
79
Create RAID Volume Create RAID 0 (1st Volume)
1. Select “1. Create RAID Volume” from the menu and press <Enter>.
The menu appears :
2. In "Name" item, you can input a device name for the RAID0 system and press <Enter> to apply it. Here, we name it as TryRAID0 to replace the default Volume0.
3. In “RAID level” item, you can use Up or Down arrow key to make a selection from one of RAID0, 1, 5, 10 items. Select RAID0 (Stripe) and press <Enter>.
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
Choose the RAID level:
RAID 0: Stripes data (performance).
RAID1: Mirrors data (redundancy).
RAID 10: Mirrors data and stripes the mirror.
RAID 5: Stripes data and parity.
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
[ HELP ]
Name:
RAID Level:
Disks:
Strip Size:
Capacity:
TryRAID0 RAID0(Stripe) Select Disks 128KB
0.0 GB Create Volume
RAID0(Stripe)
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
[ CREATE VOLUME MENU ]
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
Enter a unique volume name that has no special characters and is
16 characters or less.
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
[ CREATE VOLUME MENU ]
[ HELP ]
Name:
RAID Level:
Disks:
Strip Size:
Capacity:
Volume0 RAID0(Stripe) Select Disks 128KB
0.0 GB Create Volume
Volume0
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
5
80
4. It then goes to “Disks” item. Press <Enter> to choose the hard disks for this RAID0 system.
5. From the hard drive list, use Up or Down arrow key to reach the hard disks you want to combine them as RAID0, then press <Space> key to select them. A triangle sign will appear to indicate the drive selected. Here, we select two 232.9GB hard disks as
an example. Press <Enter> key to nish the selection.
Creating RAID 1
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
Name:
RAID Level:
TryRAID0 RAID0(Stripe)
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
Port Drive Model Serial # Size Status
0 WDC WD2500JS-60N WD-WCANKC865380 232.9GB Non-RAID Disk
2 Maxtor 6L250S0 L50SKP4G 232.9GB Non-RAID Disk 4 ST3320620SV 9QF4YJGQ 298.1GB Non-RAID Disk 5 ST3300831AS 3NF02XH2 279.5GB Non-RAID Disk
Select 2 to 6 disks to use in creating the volume
[↑↓]-Prev/Next [SPACE]-SelectDisk [ENTER]-Done
[ SELECT DISKS ]
0 WDC WD2500JS-60N WD-WCANKC865380 232.9GB Non-RAID Disk
[ CREATE VOLUME MENU ]
Creating RAID 1
Name:
RAID Level:
Volume0 RAID0(Stripe)
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
Port Drive Model Serial # Size Status
0 WDC WD2500JS-60N WD-WCANKC865380 232.9GB Non-RAID Disk
2 Maxtor 6L250S0 L50SKP4G 232.9GB Non-RAID Disk 4 ST3320620SV 9QF4YJGQ 298.1GB Non-RAID Disk 5 ST3300831AS 3NF02XH2 279.5GB Non-RAID Disk
Select 2 to 6 disks to use in creating the volume
[↑↓]-Prev/Next [SPACE]-SelectDisk [ENTER]-Done
2 Maxtor 6L250S0 L50SKP4G 232.9GB Non-RAID Disk
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
[ CREATE VOLUME MENU ]
[ SELECT DISKS ]
5
81
6. It is now entering “Strip Size” menu. Use Up or Down arrow key to select the desired strip size. The available values range from 4KB to 128KB. The strip value should be selected based on different applications. Some suggested choices are :
16K - Best for sequential transfer. 64K - Good general purpose strip size. 128K - Best performance for most desktops and workstations . The default value is 128K for RAID0. Press <Enter>.
7. In “Capacity” line, it displays there are maximum 232.9GB * 2 = 465.8GB available. As we want to introduce how to create two disk volumes (like logical devices C: and
D:) in a RAID0 system, so we only key in 200GB here to build the rst volume. Later,
we will also describe how the second volume is generated. Input 200GB, and press <Enter>.
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
The default value indicates the maximum capacity using the selected
disks. Entering a lower capacity allows you to create a second
volume on these disks
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
Name:
RAID Level:
Disks:
Strip Size:
Capacity:
TryRAID0 RAID0(Stripe) Select Disks 128KB
465.8 GB Create Volume
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
[ HELP ]
465.8
[ CREATE VOLUME MENU ]
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
The following are typical values:
RAID0 - 128KB RAID10 - 64KB RAID5 - 64KB
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
Name:
RAID Level:
Disks:
Strip Size:
Capacity:
TryRAID0 RAID0(Stripe) Select Disks 128KB
465.8 GB Create Volume
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
[ HELP ]
128KB
[ CREATE VOLUME MENU ]
5
82
8. In “Create Volume” item, press <Enter>.
A warning message will appear :
9. Press <Y> to create the volume and return to the main menu, a 200GB RAID0 system
is normally congured.
WARNING: ALL DATA ON SELECTED DISKS WILL BE LOST. Are you sure you want to create this volume ? (Y/N) :
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
1. Create RAID Volume 3. Reset Disks to Non-RAID
2. Delete RAID Volume 4. Exit
RAID Volume : * = Data is Encrypted ID Name Level Stripe Size Status Bootable
0 TryRAID0 RAID0(Stripe) 128KB 200.0GB
Normal Yes
Physical Disks: Port Drive Model Serial # Size Type/Status(Vol ID)
0 WDC WD2500JS-60N WD-WCANKC865380 232.9GB
Member Disk(0)
2 Maxtor 6L250S0 L50SKP4G 232.9GB
Member Disk(0)
4 ST3320620SV 9QF4YJGQ 298.1GB
Non-RAID Disk
5 ST3300831AS 3NF02XH2 279.5GB
Non-RAID Disk
[↑↓]-Select [ESC]-Exit [ENTER]-Select Menu
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
[ DISK/VOLUME INFORMATION ]
[ MAIN MENU ]
1. Create RAID Volume
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
Press ENTER to create the specified volume.
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
Name:
RAID Level:
Disks:
Strip Size:
Capacity:
TryRAID0 RAID0(Stripe) Select Disks 128KB 200 GB
Create Volume
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
[ HELP ]
Create Volume
[ CREATE VOLUME MENU ]
5
83
Create RAID0 (2nd Volume)
1. Select “1. Create RAID Volume” from the menu and press <Enter>.
The menu appears :
2. In "Name" item, we name it as TryRAID0-1 for second volume.
3. In “RAID level” item, you can use Up or Down arrow key to make a selection, only RAID0, 1 can be selected. Select RAID0 (Stripe) and press <Enter>.
(Note : You also can try to select RAID1 for the second volume as an experiment here)
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
Enter a unique volume name that has no special characters and is
16 characters or less.
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
[ HELP ]
Name:
RAID Level:
Disks:
Strip Size:
Capacity:
Volume0 RAID0(Stripe) Select Disks 128KB
0.0 GB Create Volume
Volume0
[ CREATE VOLUME MENU ]
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
Choose the RAID level:
RAID 0: Stripes data (performance).
RAID1: Mirrors data (redundancy).
RAID 10: Mirrors data and stripes the mirror.
RAID 5: Stripes data and parity.
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
[ HELP ]
Name:
RAID Level:
Disks:
Strip Size:
Capacity:
TryRAID0-1 RAID0(Stripe) Select Disks 128KB
0.0 GB Create Volume
RAID0(Stripe)
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
[ CREATE VOLUME MENU ]
5
84
4. It then goes to “Disks” item. Press <Enter> to choose the hard disks for this RAID0 second volume system.
5. From the hard disk list, select the previously congured RAID0 hard disks, and press
<Space> key to select them. Two triangle signs will appear to indicate the selections. Press <Enter> to continue.
Creating RAID 1
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
Name:
RAID Level:
TryRAID0-1 RAID0(Stripe)
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
[ CREATE VOLUME MENU ]
Port Drive Model Serial # Size Status
0 WDC WD2500JS-60N WD-WCANKC865380 232.9GB Member Disk
2 Maxtor 6L250S0 L50SKP4G 232.9GB
Member Disk 4 ST3320620SV 9QF4YJGQ 298.1GB Non-RAID Disk 5 ST3300831AS 3NF02XH2 279.5GB Non-RAID Disk
Select 2 to 6 disks to use in creating the volume
[↑↓]-Prev/Next [SPACE]-SelectDisk [ENTER]-Done
0 WDC WD2500JS-60N WD-WCANKC865380 232.9GB Member Disk
[ SELECT DISKS ]
Creating RAID 1
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
Name:
RAID Level:
TryRAID0-1 RAID0(Stripe)
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
[ CREATE VOLUME MENU ]
Port Drive Model Serial # Size Status
0 WDC WD2500JS-60N WD-WCANKC865380 232.9GB Member Disk
2 Maxtor 6L250S0 L50SKP4G 232.9GB Member Disk 4 ST3320620SV 9QF4YJGQ 298.1GB Non-RAID Disk 5 ST3300831AS 3NF02XH2 279.5GB Non-RAID Disk
Select 2 to 6 disks to use in creating the volume
[↑↓]-Prev/Next [SPACE]-SelectDisk [ENTER]-Done
0 WDC WD2500JS-60N WD-WCANKC865380 232.9GB Member Disk
[ SELECT DISKS ]
5
85
6. It goes to “Strip Size” menu directly. Capacity automatically displays 265.8GB, and at this time, you can not input any value in capacity as there is no additional volume available.
The available values of Strip Size range from 4KB to 128KB. The strip value should be selected based on different applications. Some suggested choices are : 16K - Best for sequential transfer. 64K - Good general purpose strip size. 128K - Best performance for most desktops and workstations . The default value is 128K. Press <Enter>.
7. Select “Create Volume” and press <Enter>.
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
The following are typical values:
RAID0 - 128KB RAID10 - 64KB RAID5 - 64KB
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
Name:
RAID Level:
Disks:
Strip Size:
Capacity:
TryRAID0-1 RAID0(Stripe) Select Disks 128KB
265.8 GB Create Volume
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
[ HELP ]
128KB
[ CREATE VOLUME MENU ]
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
Press ENTER to create the specified volume.
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
Name:
RAID Level:
Disks:
Strip Size:
Capacity:
TryRAID0-1 RAID0(Stripe) Select Disks 128KB
265.8 GB Create Volume
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
[ HELP ]
Create Volume
[ CREATE VOLUME MENU ]
5
86
A message will appear :
Press <Y> to create the volume and return to the main menu. Two RAID0 volumes
were congured.
Are you sure you want to create this volume ? (Y/N) :
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
1. Create RAID Volume 3. Reset Disks to Non-RAID
2. Delete RAID Volume 4. Exit
RAID Volume : * = Data is Encrypted ID Name Level Stripe Size Status Bootable
0 TryRAID0 RAID0(Stripe) 128KB 200.0GB
Normal Yes
1 TryRAID0-1 RAID0(Stripe) 128KB 265.8GB
Normal Yes
Physical Disks: Port Drive Model Serial # Size Type/Status(Vol ID)
0 WDC WD2500JS-60N WD-WCANKC865380 232.9GB
Member Disk(0,1)
2 Maxtor 6L250S0 L50SKP4G 232.9GB
Member Disk(0,1)
4 ST3320620SV 9QF4YJGQ 298.1GB
Non-RAID Disk
5 ST3300831AS 3NF02XH2 279.5GB
Non-RAID Disk
[↑↓]-Select [ESC]-Exit [ENTER]-Select Menu
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
[ DISK/VOLUME INFORMATION ]
[ MAIN MENU ]
1. Create RAID Volume
5
87
Create RAID 1
1. Select “1.Create RAID Volume” from the main menu and press <Enter>.
2. In "Name" item, you can input a device name for the RAID1 system and press <Enter> to apply it. Here, we name it as TryRAID1 to replace the default Volume0.
3. In “RAID level” item, you can use Up or Down arrow key to make a selection from one of RAID0, 1, 5, 10 items. Select RAID1 (Mirror) and press <Enter>.
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
Enter a unique volume name that has no special characters and is
16 characters or less.
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
[ HELP ]
Name:
RAID Level:
Disks:
Strip Size:
Capacity:
Volume0 RAID0(Stripe) Select Disks 128KB
0.0 GB Create Volume
TryRAID1
[ CREATE VOLUME MENU ]
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
Choose the RAID level:
RAID 0: Stripes data (performance).
RAID1: Mirrors data (redundancy).
RAID 10: Mirrors data and stripes the mirror.
RAID 5: Stripes data and parity.
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
[ HELP ]
Name:
RAID Level:
Disks:
Strip Size:
Capacity:
TryRAID1 RAID0(Stripe) Select Disks 128KB
0.0 GB Create Volume
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
RAID1(Mirror)
[ CREATE VOLUME MENU ]
5
88
4. It then goes to “Disks” item. Press <Enter> to choose the hard disks for this RAID1 system.
5. From the hard drive list, use Up or Down arrow key to reach the hard disks you want to combine them as RAID1, then press <Space> key to select them. A triangle sign will appear to indicate the drive selection. Here, we select one 232.9GB and one
298.1GB hard disks. Press <Enter> key to nish the selection.
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
Name:
RAID Level:
TryRAID1 RAID1(Mirror)
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
Port Drive Model Serial # Size Status
0 WDC WD2500JS-60N WD-WCANKC865380 232.9GB Non-RAID Disk
2 Maxtor 6L250S0 L50SKP4G 232.9GB Non-RAID Disk 4 ST3320620SV 9QF4YJGQ 298.1GB Non-RAID Disk 5 ST3300831AS 3NF02XH2 279.5GB Non-RAID Disk
Select 2 to 6 disks to use in creating the volume
[↑↓]-Prev/Next [SPACE]-SelectDisk [ENTER]-Done
0 WDC WD2500JS-60N WD-WCANKC865380 232.9GB Non-RAID Disk
[ CREATE VOLUME MENU ]
[ SELECT DISKS ]
Name:
RAID Level:
Volume0 RAID0(Stripe)
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
Creating RAID 1
Port Drive Model Serial # Size Status
0 WDC WD2500JS-60N WD-WCANKC865380 232.9GB Non-RAID Disk
2 Maxtor 6L250S0 L50SKP4G 232.9GB Non-RAID Disk 4 ST3320620SV 9QF4YJGQ 298.1GB Non-RAID Disk 5 ST3300831AS 3NF02XH2 279.5GB Non-RAID Disk
Select 2 to 6 disks to use in creating the volume
[↑↓]-Prev/Next [SPACE]-SelectDisk [ENTER]-Done
4 ST3320620SV 9QF4YJGQ 298.1GB Non-RAID Disk
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
[ CREATE VOLUME MENU ]
[ SELECT DISKS ]
5
89
6. It will skip “Strip Size” menu for RAID1.
7. In “Capacity” item, use the default value, and press <Enter>. The size of the smaller hard disk 232.9GB is becoming the default value, and it indicates the maximum capacity.
8. Select “Create Volume” and press <Enter>. A warning message will appear :
Press <Y> to create the volume and return to the main menu.
WARNING: ALL DATA ON SELECTED DISKS WILL BE LOST. Are you sure you want to create this volume ? (Y/N) :
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
1. Create RAID Volume 3. Reset Disks to Non-RAID
2. Delete RAID Volume 4. Exit
RAID Volume : * = Data is Encrypted ID Name Level Stripe Size Status Bootable
0 TryRAID1 RAID1(Mirror) N/A 232.9GB
Normal Yes
Physical Disks: Port Drive Model Serial # Size Type/Status(Vol ID)
0 WDC WD2500JS-60N WD-WCANKC865380 232.9GB
Non-RAID Disk
2 Maxtor 6L250S0 L50SKP4G 232.9GB
Member Disk(0)
4 ST3320620SV 9QF4YJGQ 298.1GB
Member Disk(0)
5 ST3300831AS 3NF02XH2 279.5GB
Non-RAID Disk
[↑↓]-Select [ESC]-Exit [ENTER]-Select Menu
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
[ DISK/VOLUME INFORMATION ]
[ MAIN MENU ]
1. Create RAID Volume
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
The default value indicates the maximum capacity using the selected
disks. Entering a lower capacity allows you to create a second
volume on these disks
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
Name:
RAID Level:
Disks:
Strip Size:
Capacity:
TryRAID0 RAID0(Stripe) Select Disks N/A
465.8 GB Create Volume
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
[ HELP ]
232.9
[ CREATE VOLUME MENU ]
5
90
Create RAID 10 (0+1)
1. Select “1.Create RAID Volume” from the main menu and press <Enter>.
2. In "Name" item, you can input a device name for the RAID10 system and press <Enter> to apply it. Here, we name it as TryRAID10 to replace the default Volume0.
3. In “RAID level” item, you can use Up or Down arrow key to make a selection from one of RAID0, 1, 5, 10 items. Select RAID10(RAID0+1) and press <Enter>.
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
Enter a unique volume name that has no special characters and is
16 characters or less.
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
[ HELP ]
Name:
RAID Level:
Disks:
Strip Size:
Capacity:
Volume0 RAID0(Stripe) Select Disks 128KB
0.0 GB Create Volume
TryRAID10
[ CREATE VOLUME MENU ]
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
Choose the RAID level:
RAID 0: Stripes data (performance).
RAID1: Mirrors data (redundancy).
RAID 10: Mirrors data and stripes the mirror.
RAID 5: Stripes data and parity.
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
[ HELP ]
Name:
RAID Level:
Disks:
Strip Size:
Capacity:
TryRAID10 RAID0(Stripe) Select Disks 64KB
0.0 GB Create Volume
RAID10(RAID0+1)
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
[ CREATE VOLUME MENU ]
5
91
4. After exiting from "RAID level", it goes directly to "Stripe Size" item. Because all four disks are selected for RAID10, so there is no need to go to Disks option.
5. Use Up or Down arrow key to select the desired strip size when entering “Strip Size” menu. The default value is 64K.
6. In “Capacity” item, use the default value, and press <Enter>. The default value is twice the smallest hard disk size, that is, 232.9GB * 2 = 465.8GB.
7. Select “Create Volume” and press <Enter>. A warning message will appear :
Press <Y> to create the volume and return to the main menu.
WARNING: ALL DATA ON SELECTED DISKS WILL BE LOST. Are you sure you want to create this volume ? (Y/N) :
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
1. Create RAID Volume 3. Reset Disks to Non-RAID
2. Delete RAID Volume 4. Exit
RAID Volume : * = Data is Encrypted ID Name Level Stripe Size Status Bootable
0 TryRAID10 RAID10(RAID0+1) N/A 232.9GB
Normal Yes
Physical Disks: Port Drive Model Serial # Size Type/Status(Vol ID)
0 WDC WD2500JS-60N WD-WCANKC865380 232.9GB
Member Disk(0)
2 Maxtor 6L250S0 L50SKP4G 232.9GB
Member Disk(0)
4 ST3320620SV 9QF4YJGQ 298.1GB
Member Disk(0)
5 ST3300831AS 3NF02XH2 279.5GB
Member Disk(0)
[↑↓]-Select [ESC]-Exit [ENTER]-Select Menu
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
[ DISK/VOLUME INFORMATION ]
[ MAIN MENU ]
1. Create RAID Volume
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
The following are typical values:
RAID0 - 128KB RAID10 - 64KB RAID5 - 64KB
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
Name:
RAID Level:
Disks:
Strip Size:
Capacity:
TryRAID10 RAID10(RAID0+1) Select Disks 64KB
465.8 GB Create Volume
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
[ HELP ]
64KB
[ CREATE VOLUME MENU ]
5
92
Create RAID5 (Parity)
1. Select “1.Create RAID Volume” from the main menu and press <Enter>.
2. In "Name" item, you can input a device name for the RAID5 system and press <Enter> to apply it. Here, we name it as TryRAID5 to replace the default Volume0.
3. In “RAID level” item, you can use Up or Down arrow key to make a selection from one of RAID0, 1, 5, 10 items. Select RAID5(Parity) and press <Enter>.
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
Enter a unique volume name that has no special characters and is
16 characters or less.
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
[ HELP ]
Name:
RAID Level:
Disks:
Strip Size:
Capacity:
Volume0 RAID0(Stripe) Select Disks 128KB
0.0 GB Create Volume
TryRAID5
[ CREATE VOLUME MENU ]
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
Choose the RAID level:
RAID 0: Stripes data (performance).
RAID1: Mirrors data (redundancy).
RAID 10: Mirrors data and stripes the mirror.
RAID 5: Stripes data and parity.
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
[ HELP ]
Name:
RAID Level:
Disks:
Strip Size:
Capacity:
TryRAID5 RAID0(Stripe) Select Disks 64KB
0.0 GB Create Volume
RAID5(Parity)
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
[ CREATE VOLUME MENU ]
5
93
4. It then goes to “Disks” item. Press <Enter> to choose the hard disks for this RAID5 system.
5. From the hard drive list, use Up or Down arrow key to reach the hard disks you want to combine them as RAID5, then press <Space> key to select them. A triangle sign will appear to indicate the drive selection. Here, we select 232.9GB, 298.1GB and
279.5GB hard disks for an example. Press <Enter> key to nish the selection.
Creating RAID 1
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
Name:
RAID Level:
TryRAID5 RAID5(Parity)
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
Port Drive Model Serial # Size Status
0 WDC WD2500JS-60N WD-WCANKC865380 232.9GB Non-RAID Disk
2 Maxtor 6L250S0 L50SKP4G 232.9GB Non-RAID Disk 4 ST3320620SV 9QF4YJGQ 298.1GB Non-RAID Disk 5 ST3300831AS 3NF02XH2 279.5GB Non-RAID Disk
Select 2 to 6 disks to use in creating the volume
[↑↓]-Prev/Next [SPACE]-SelectDisk [ENTER]-Done
0 WDC WD2500JS-60N WD-WCANKC865380 232.9GB Non-RAID Disk
[ CREATE VOLUME MENU ]
[ SELECT DISKS ]
Name:
RAID Level:
Volume0 RAID0(Stripe)
Intel(R) Matrix Storage Manager option ROM v5.0.0.1011 ICH9R wRAID5
Copyright(C) 2003-04 Intel Corporation All Rights Reserved.
Creating RAID 1
Port Drive Model Serial # Size Status
0 WDC WD2500JS-60N WD-WCANKC865380 232.9GB Non-RAID Disk
2 Maxtor 6L250S0 L50SKP4G 232.9GB Non-RAID Disk 4 ST3320620SV 9QF4YJGQ 298.1GB Non-RAID Disk
5 ST3300831AS 3NF02XH2 279.5GB Non-RAID Disk
Select 2 to 6 disks to use in creating the volume
[↑↓]-Prev/Next [SPACE]-SelectDisk [ENTER]-Done
5 ST3300831AS 3NF02XH2 279.5GB Non-RAID Disk
Intel(R) Matrix Storage Manager option ROM v8.5.0.1013 ICH10R wRAID5
Copyright(C) 2003-08 Intel Corporation. All Rights Reserved.
[↑↓]-Change [TAB]-Next [ESC]-Previous Menu [ENTER]-Select
[ CREATE VOLUME MENU ]
[ SELECT DISKS ]
Loading...
