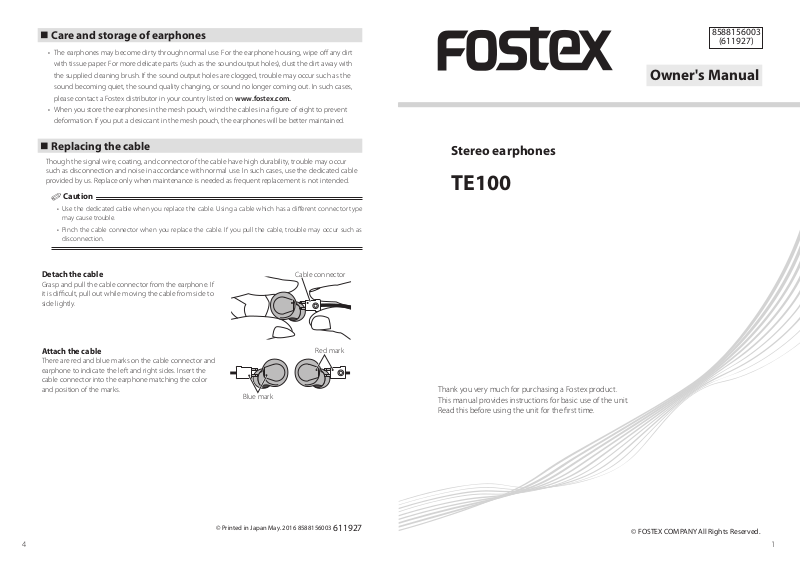

Fostex TE100 Owners Manual

 Care and storage of earphones

• The earphones may become dirty through normal use. For the earphone housing, wipe o any dirt

with tissue paper. For more delicate parts (such as the sound output holes), dust the dirt away with

the supplied cleaning brush. If the sound output holes are clogged, trouble may occur such as the

sound becoming quiet, the sound quality changing, or sound no longer coming out. In such cases,

please contact a Fostex distributor in your country listed on www.fostex.com.

• When you store the earphones in the mesh pouch, wind the cables in a gure of eight to prevent

deformation. If you put a desiccant in the mesh pouch, the earphones will be better maintained.

8588156003

(611927)

Owner's Manual

 Replacing the cable

Though the signal wire, coating, and connector of the cable have high durability, trouble may occur such as disconnection and noise in accordance with normal use. In such cases, use the dedicated cable provided by us. Replace only when maintenance is needed as frequent replacement is not intended.

Caution

✐

• Use the dedicated cable when you replace the cable. Using a cable which has a dierent connector type may cause trouble.

• Pinch the cable connector when you replace the cable. If you pull the cable, trouble may occur such as disconnection.

Detach the cable

Grasp and pull the cable connector from the earphone. If it is dicult, pull out while moving the cable from side to side lightly.

Attach the cable

There are red and blue marks on the cable connector and earphone to indicate the left and right sides. Insert the cable connector into the earphone matching the color and position of the marks.

Blue mark

Cable connector

Red mark

Stereo earphones

TE100

Thank you very much for purchasing a Fostex product. This manual provides instructions for basic use of the unit. Read this before using the unit for the rst time.

611927

 Contents

• Earphone ×1

• Ear tip × 4 types

• Cleaning brush × 1

• Mesh pouch × 1

• Pelican case × 1

• Owner's manual (this book) × 1

• Safety sheet × 1

 Wearing the earphones

1 Conrm the left and right sides.

The side with red marks on the cable

connector and earphone is the right side.

Furthermore, there is a protrusion on the

cable connector of the right side.

Left

Cable connector

Red mark

Earphone

Protrusion

Right

 Specications

Type Sealed hybrid type

Driver Dynamic + BA

Impedance 17 Ω

Frequency characteristic 10 to 20 kHz

Sensitivity 108 dB

Maximum input 20 mW

Plug Φ 3.5 mm stereo mini

Cable length 1.2 m

Detachable parts 2 pins

Weight 10 g (excluding cable)

 Connection

Connects to devices compatible with stereo mini plug.

Device compatible with stereo mini plug such as a portable player

2 Fit the earphones into your ears.

Put the cable over the top of your ear and

t the earphone into your ear.

3 Adjust the cable slack.

Slide the cable adjuster at the point where

the cables meet, and adjust the slack of

left and right cables.

Cable adjuster

When the cables are at the front, slide the cable adjuster up to under your chin.

When the cables are at the back, slide the cable adjuster up to the back of your head.

 Mounting the ear tips

If the ear tips do not t your ears, sound cannot reach your ears properly. To enjoy better sound, t the ear tips snugly into your ear. There are 4 types of supplied ear tips. Choose the best size for your ears.

Caution

✐

Mount the ear tips to earphones rmly to prevent them from becoming detached while in use.

Detach the ear tips

Grasp the earphone rmly, and pinch and detach the ear tip with your ngers.

Attach the ear tips

Push the ear tip onto the earphone until it completely covers the head of the earphone.

2 3
