Fostex PD-6-DV40 User Manual

PD-6
PORTABLE LOCATION RECORDER
DV40
DVD MASTER RECORDER
D
Having been a leading pioneer in the field of
only natural that Fostex, the inventors of timecode
DAT and portable timecode DAT, should start the next
revolution in digital recording - Timecode DVD-RAM.
REMOVABLE DVD-RAM & RECORDING FORMATS
Fostex chose DVD-RAM as the most suitable
successor to DAT after extensive research and
testing. DVD-RAM has excellent reliability and has
already established itself as the film industry’s
preferred media format due to its built-in error
correction and longevity. This security is enhanced by
the Fostex’s proprietory ‘Verify/Write’ technology
which constantly examines the recorded data being
stored on DVD-RAM, in real-time, for error-free
recording. Plus, ensuring compatibility throughout the
industry and maximising the DVD-RAM technology,
the DV40 and PD-6 can record multiple channels of
simultaneous audio (4 with the DV40 and no less than
6 with the PD-6), in a vast number of permutations
and in BWF (PD-6 and DV40) or SDII (DV40 only)
formats.
IN A CLASS OF THEIR OWN
With the superb audio quality, up to 24-bit / 192kHz
1
available, the flexible and comprehensive timecode
facilities and the sheer usability of both machines
means that the PD-6 and DV40 are not just class
leaders, they’re in a class of their own.
Removable media revolution
UNIVERSAL DISC FORMAT
As the UDF (Universal Disc Format) is utilized, discs can be read by any computer OS (Windows, Mac, etc.) which makes for easy transfer of audio files to and from the recorders for external editing.
UdF
File Format
TIMECODE DVD-RAM RECORDING
DVD
Sound Mixer Chris Munro pioneered and developed the ‘magless dailies’ concept, originally with the Fostex PD-4 timecode DAT, and has refined it with the use of Fostex's DVD-RAM products. In fact, Chris was honoured with the Charles Parkhouse Award for his work in this area of production sound. The day’s audio can be loaded into a non-linear editor such as Avid Film Composer
2
complete with all the automatically­generated scene, take, reel information and more in just a couple of minutes for each hour of audio directly from the DV40 or PD-6’s DVD­RAM disc, with no additional software! After syncing to picture, an export to another DVD-RAM disc produces the 'daily disc'. The editor gets all his labelling done for him by the acquisition machine, along with a guide audio track; the production team watch rushes in original digital audio; and most importantly, the production saves tens of thousands of dollars in no longer having to use (and store!) expensive mag stock, while wiping off hours from the whole post process.
‘Magless Dailies’
DVD Master Recorder
DV40
DVD Location Recorder
PD-6
PD-6
ON SET
Audio acquisition direct to DVD-RAM in
BWF. Scene, slate, take, reel &
timecode automatically stamped to
each file/take.
EDIT SUITE
Fast import of the day's audio files, direct
from DVD-RAM, into Avid Film Composer. All
takes already automatically labelled. After
sync to picture, quick export of the audio track
to the DVD-RAM 'daily disc'.
No real-time batch digitizing of audio into editor - save time
No expensive making of mag stock for daily rushes - save money
SCREENING ROOM
'Dailies disc' can be played on a DV40
synced to the screening room's
projector with instant lock and hi-
speed playback features as standard.
D
No need to covert or batch digitize audio
TIME & BUDGET
SAVING
D
No need to make
mag stock
TIME & BUDGET
SAVING
ALL STANDARD REFERENCES
All the standard clock references of word and video are included with the ability to resolve to incoming timecode.
Sync
word & video
FLEXIBLE RECORDING
The DV40 and PD-6 are capable of recording up to 24bit audio depending on recording mode used.
24
bit
Audio quality
1
192kHz available on DV40 only
2
Dependent on version
PROFESSIONAL
DVD-RAM is robust, resilient, removable and has a longevity
that a hard disc simply cannot offer. Quite simply it is the
best professional mastering recording format available, as
the rapid take up in the film industry shows.
However, the DVD-RAM technology needed a serious research
and development process before it could handle the rigours and
demands of multiple track, timecode-locked audio.
And that’s exactly what Fostex undertook when developing the DV40, the world’s first 4-
track Timecode DVD-RAM master recorder.
REFINING THE TECHNOLOGY - CONTINUOUS DEVELOPMENT
The DV40 was, and is, a revelation. Here is a rackmount unit which can record up to 4
tracks of digital audio to removable DVD-RAM UDF discs in either BWF or SDII formats
and with full timecode facilities. A machine which elegantly addresses the challenges
presented by today’s ‘random access’ requirements.
The reaction from sound mixers, post production facilities, broadcast professionals and
recording houses was outstanding: they could see that the DV40 could save them time,
could enhance their workflow, could improve their productivity.
But that was only the start - from the moment of launch, Fostex made it clear that the
DV40 would benefit from continual development with users encouraged to request
features and suggest improvements resulting in software updates being made available
via the www.fostexdvd.net web site.
PORTABLE TIMECODE DVD-RAM
With the DVD-RAM technology ‘proved’ in a standalone machine, it was time for a
portable solution. A PD-2 / PD-4 user survey and wide-ranging feedback from DV40
users yielded a wish list of features which included: Six audio tracks, highly accurate
timecode, a minimum 10 second pre-record buffer, flexible power requirements and
management, slate microphone, auxiliary send / return, power for mic receivers, a high
quality mixer and a user interface in keeping with their existing DAT recorders.
Fostex listened to what the sound mixers wanted and involved them in the development
process every step of the way.
The result is the PD-6 Location Recorder.
Format of choice. Format of the future.
DVD-RAM
D
Fostex Timecode DVD-RAM recorders are currently being used in major film, TV and post production applications in the USA, Europe and beyond. Fostex actively encourages user feedback and continually develops the products incorporating new features and enhancing usability...
In Action...
Chris Munro - Sound Mixer
One of the world’s leading Production Sound Mixers and a BAFTA and Oscar™ award winner, Chris used Fostex Timecode DVD­RAM technology for audio acquisition on the latest James Bond hit ‘Die
Another Day’. Chris has pioneered the ‘magless dailies’ process, (see bottom left), which saved the production a small fortune. Always in demand, Chris is recognised as setting quality standards in the film industry.
Movie Production
Joe Kenworthy - NYPD Blue
Sound mixer Joe uses Fostex Timecode DVD-RAM machines for audio acquisition on the ever­popular NYPD Blue TV series. “The big thing for me is that I get a digital file from the beginning, and all our
digital editing machines can take those files and begin to work, with less transfer time. We are using a first-generation signal all the way through the chain, which keeps quality high, and it’s quicker, with no conversions involved.”
TV Production
Jay Hartigan - Shooters Post
Jay has been a production sound mixer for the past 25 years and is one of three owners of Shooters Post & Transfer, a Philadelphia based production facility. “Every day we transfer 1/4"
production sound to our DV-40 for film transfer. It turns what was once a slow, tedious sync session into a fast easy job. Once the field sound is on DVD­RAM we no longer have to wait for the audio to sync. It’s always right there.”
Post Production
hours, minutes, seconds
& frames ahead of the rest.
03H 02M 52S 0
PROFESSIONAL
BWF recording file format (interleave 1 file mode) in either 2, 4, 5 & 6 track modes along with simultaneous two file recording modes of 1+5 and 2+4 tracks for guide track audio
Fostex Verify/Write feature constantly examines data being recorded to DVD-RAM
UDF (Universal Disc Format) on DVD-RAM allows discs to be mounted & read instantly on both PC and Mac platforms
On-board timecode generator with +/-1ppm accuracy and built-in backup offers all frame rates including 23.976 and 29.97+ drop and pull-up/down. Generator can be 24H, Rec Run, Free Run or external complete with jam, while output can be repro or generator derived
Avid™ compatibility. BWF files recorded on the PD-6 can be imported directly into Avid Film Composer
2
along with information about Scene, Take, Reel Number, Event, etc. being transported and read from the file’s Metadata. The Metadata area is user-editable for future expansion
Circle Take with dedicated key, to mark files/takes for easy identification leading to quick imports referenced in the EDL
Up to 100 cue points per file/take
Alpha numeric keypad for quick file/take & track naming, EDL manipulation, location, etc.
Option of SDII™ and AIFF file recording modes are planned via software update
EDL management built-in to create & edit multiple ALE (Avid™ Log Exchange) compatible edit decision lists per DVD-RAM.
IEEE1394 (FireWire) interface for fast mirror and restore. When interfaced to a PC, PD-6 DVD-RAM discs can be mounted on desktop
USB port for keyboard connection (utilise keyboard shortcuts, easy data entry etc.)
Pre Record enables PD-6 to constantly buffer up to 10 secs of audio (no more missed takes)
128 x 64 highly visable, low power consumption back-lit dot matrix display offers various modes including alternative level meter resolution indication modes
Auxiliary bus input/output provides for remote camera working and monitoring (e.g. HD cam) with switchable output between +4dBu, -10dBu and -60dBu to cater for most camera manufacturers requirements. Provided on industry standard 10-pin Hirose connector
Two auxiliary 12volt outputs on industry standard Hirose 4-pin connectors provide power for radio mic receivers, etc. to allow for truly self-contained operation on location
Future software developments and updates via DVD-RAM cartridge and downloadable via PC from the dedicated web site: www.fostexdvd.net
Flexible monitoring through headphones and/or built in speaker & amplifier. All track combinations can be monitored post-disc either individually, in summed mono or stereo modes. MS monitoring as standard. Aux return and stereo bus live monitoring is provided plus individual channel PFL. All accessed through just two rotary and one toggle switch
Slate microphone and tone generator on-board
Digital I/O software selectable between AES/EBU or S/PDif with auto and manual input sensing switchable in pairs: 1+2, 3+4 and 5+6
NP-1 type battery provides an estimated 2 hours of operation
External Word & Video sync inputs (auto selection) and Word Output plus parallel remote connector
Optional AATON connector complies with ASCII & LTC I/O specifications for external loggers, timecode synchronisers, etc.
Automated file/take naming routine speeds set-up time between takes complying to US and Euro standards. Individual track naming rolls through to next file/take until changed by user, if required
Comprehensive software selectable UBIT output format combinations including Scene, Take, Event no., etc.
Proprietory expansion connector to allow PD-6 to dock with planned Fostex rack-mounting full-size DVD-RAM & power supply unit for extended recording time on location
Main Features
When Fostex embarked on the process to design a successor to the industry standard PD-2
and PD-4 portable timecode DAT machines, we knew we had set ourselves no easy task.
Having invented both timecode and portable timecode DAT, Fostex location recorders had
become, and still are, the most widely used and respected DAT machines for film &
television sound production around the world, helping their users earn respect, gain work
and to win many coveted international awards.
That’s why we knew it was important to follow the design and philosophy processes that
had made our previous machines the first choice of sound mixing professionals. Namely, to
prove the technology in a stationary, stand-alone format and obtain comprehensive & wide-
ranging user-feedback prior to taking it out into the field.
Every aspect was looked at and offered up for evaluation; the recording media, the
functionality of the mixer, the interfacing connections, the timecode implementation and, of
course, the user interface.
The result of this process in which some of the
world’s top sound mixers took part, is the new
Fostex PD-6 Portable Location Recorder, a
recorder which offers spectacular 24-bit / 96kHz
audio quality and six independent audio tracks.
A recorder offering timecode-locked DVD-RAM
recording to an easy to use 8cm removable media
which answers all the new challenges for location
recording today.
And a recorder featuring a full-function, feature-
rich 6-channel mixer, ‘easy access’ monitoring
and all the connectivity one would expect, and
need, from a thoroughly professional unit.
The new PD-6 Portable Location Recorder. Nothing
in the field comes close.
DVD Location Recorder
PD-6

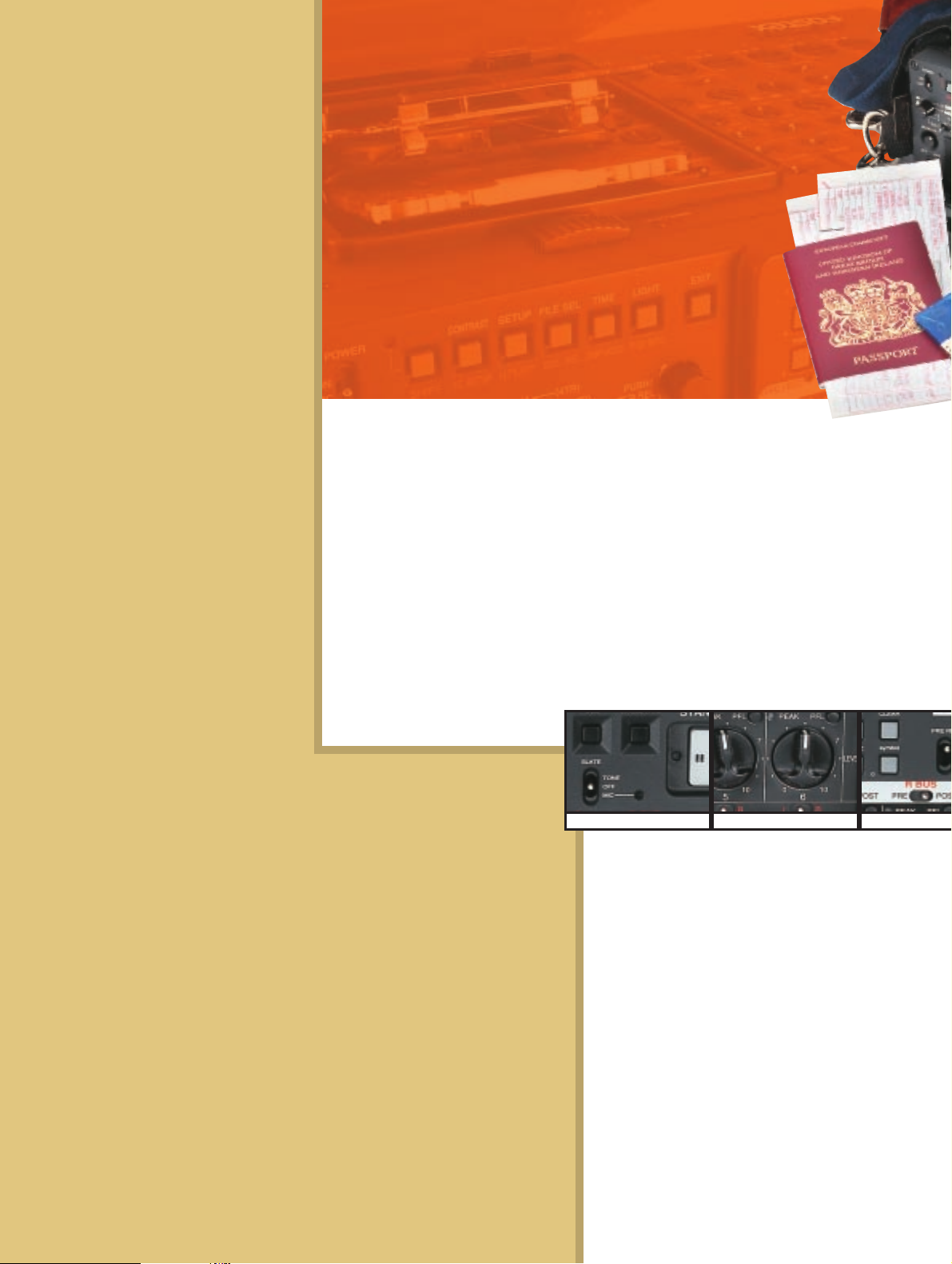

6 channel mixer 10 sec (256MB) prslate microphone
FULLY FEATURED ON­BOARD MIXER
The six channel mixer accepts either microphone level, with both T-Power (12V) and Phantom power (48V) available, or line level. Phase reverse is provided on the three even channels while each channel features adjustable input gain; a generous defeatable and variable high pass filter and an individual defeatable limiter, with software selectable characteristics and linking, suited to location recording. The most ingenious part of the mixer however is the routing capability: working in conjunction with each channel’s level control mounted on the face of the PD-6, the ‘Disc Feed’ switch allows the recording section of the machine to derive its audio ‘feed’ PRE the channel level control, meaning levels are set once with the earlier trim pot, leaving the front level controls for bus mixing; POST of the channel level control providing for regular level adjustment on the easily-accessible controls; or from the Stereo Bus, routed by the PAN switch providing
not only simple stereo mixing of all six channels, but also by using a combination of the modes, parallel mix (guide) tracks can be made whilst recording of either five tracks (mono guide track) or four tracks (stereo guide track). We call these "1+5" and "2+4" recording modes as separate BWF files are created. Additional features such as PFL monitoring and peak led indication on each channel complete this very flexible mixer.
F
43
SF
DVD LOCATION RECORDER WITH TIMECODE
D
hours,
minutes,
seconds &
frames ahead
of the rest.
Mic / Line
P48V
T12V
L Bus
PRE
To Rec
POST
Bus
PFL
R Bus
Mic Amp
(Phase 2/4/6)
HPF
PAN
Limiter
Input Gain
Level
DISC FEED
Mixer
Block Diagram
REVOLUTIONARY REMOVABLE MEDIA
Location recorders need a removable media, it was one of the requests that we heard from the field again and again. Part of the success of the portable timecode DAT format was the fact that at the end of the shoot, the days work’s there in your hand. We knew that normal DVD-RAM drives, are not really built for the rigours of location recording and certainly not suited to being slung over a shoulder. Therefore we decided upon a brand-new 8cm DVD-RAM
drive. A drive specially developed for the rigours of portable use and a drive designed from the ground-up to provide vibration stability, high speed access and most importantly, high reliability. Already proving itself in motion pictures, tv productions and outside broadcast, the removable 8cm DVD-RAM cartridges provide two 1.46GB sides, offering, for example, 108 minutes per disc of 4 track recording at 48KHz/16-bit. And the discs fit right into conventional DVD drives.
MIXER
MEDIA
PROFESSIONAL
BWF or SDII™ audio file formats in 16-bit or 24-bit resolution (on the same disc)
Fostex Verify/Write feature constantly examines data being recorded to DVD-RAM (not 96kHz/4tr or 192kHz/2tr)
UDF (Universal Disc Format) on DVD-RAM allows discs to be mounted & read instantly on both PC and Mac platforms
Mono, stereo or 4-track recording modes. Full on-board copy, paste, insert, cut and erase features with high precision scrubbing
Full timecode facilities

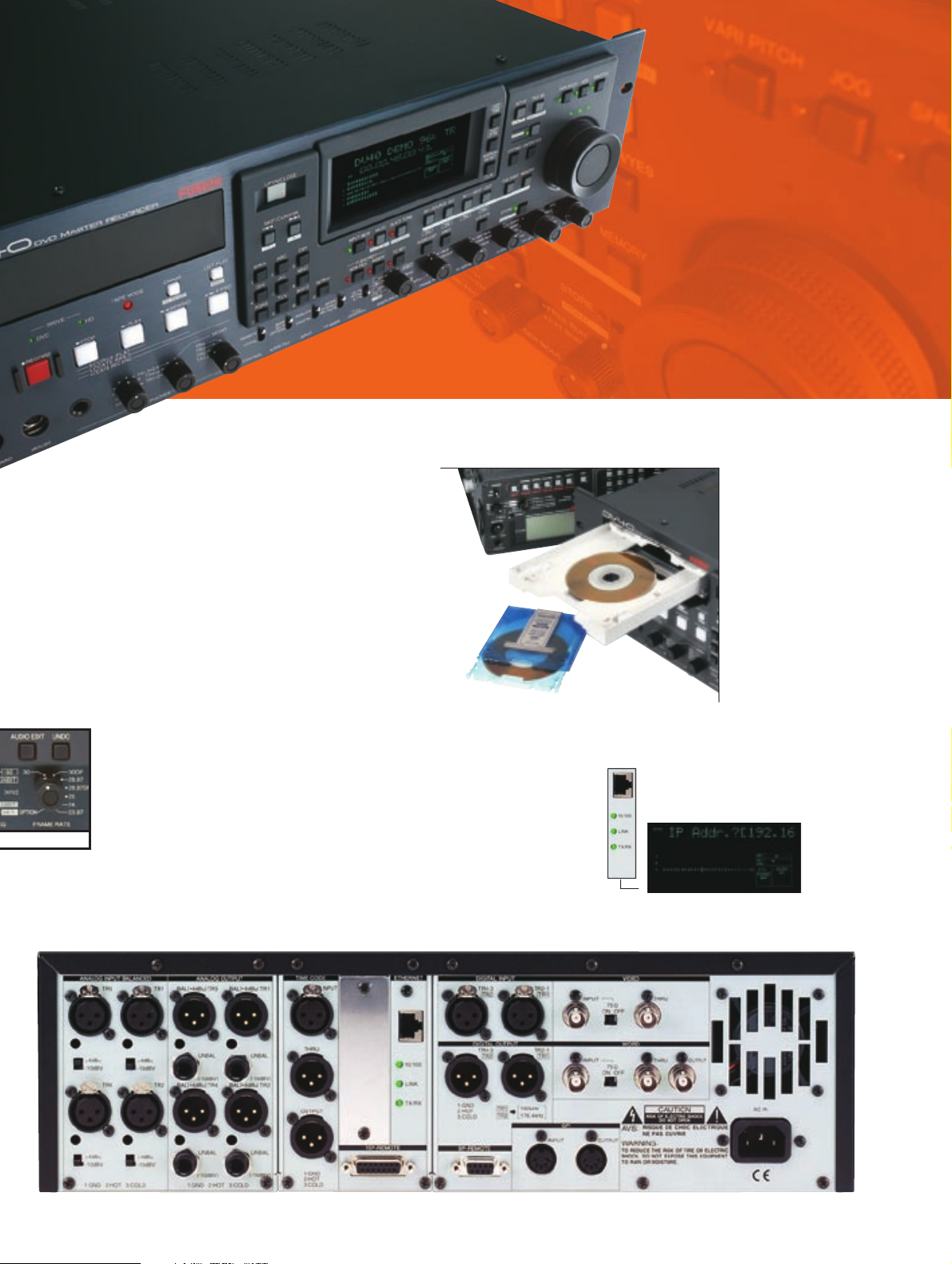

Avid™ compatibility. BWF files recorded on the DV40 can be imported directly into Avid Film Composer (depending on software version) along with information about Scene, Take, Reel Number, Event, etc. being transported and read from the files Metadata. The Metadata area is user-editable for future expansion
Circle Take to mark files/takes for easy identification leading to quick imports and EDL references
Up to 100 cue points per file/take
Alpha numeric keypad for quick file/take & track naming, EDL manipulation, location, etc.
Large high-resolution (200 pulses per rotate) jog/shuttle dial and clever digital tracking technology result in super-accurate audio scrubbing
EDL management built-in to create & edit multiple ALE (Avid™ Log Exchange) compatible edit decision lists per DVD-RAM.
Large multi-function fluorescent display, oversized illuminated transport keys
Future software developments and updates implemented via CD or DVD and built-in Ethernet via PC available for download from the dedicated web site: www.fostexdvd.net
Excellent compatibility - can read other manufacturers DVD-RAM discs containing FAT16 formatted BWF files
External Word & Video sync inputs and Word Output plus parallel remote connector
Dedicated ADR (Automatic Dialogue Replacement) software features built-in
Comprehensive I/O including 24 bit/192kHz on balanced XLR and 1/4" phone jacks; AES/EBU digital
10/100 BASE-T Ethernet networking for easy integration into production networks
DAT ‘cloning’. Monitors timecode input during recording of DAT to DVD-RAM and creates a new file automatically whenever timecode goes ‘discontinuous’
Automated file/take naming routine speeds set-up time between takes complying to US and Euro standards. Individual track naming rolls through to next file/take until changed by user, if required
Comprehensive software selectable UBIT output format combinations including Scene, Take, Event no., etc.
Optional Model 5050
With the new optional Model 5050 card fitted, the DV40 can read the 6 track files created by the PD-6 simply by removing the 8cm DVD-RAM from its case and placing it in the DV40's tray. In addition, analog outputs 5 & 6 are provided on balanced XLR connectors as well as AES/EBU on XLR. A software update provided with Model 5050 allows the meters to be switched between all six channels.
Main Features
Working hand-in-hand with post production facilities, sound mixers, radio
stations and ADR suites, Fostex’s continual development of the DV40
mastering machine means that it‘s ready to handle every application and
exception in today’s, and tomorrow’s, constantly changing and challenging audio
environments.
Able to record four simultaneous non-destructive audio tracks to DVD-RAM at up to 24 bit /
192kHz resolution and with its elegant timecode implementation, the DV40 has quickly become
the machine of choice for many film and tv productions in the US, Europe and beyond helping to
streamline the production process and hence reduce costs.
Post production houses too have warmed to the DV40. The handy Universal Disc Format (UDF),
which allows DV40 media to be mounted and read by Macintosh and PC workstations, easy
media network integration and ultra-fast, rock solid synchronisation, is revolutionising many
productions from LA to London.
Of course what really sets the DV40 apart is its
elegant handling of timecode as it addresses the
challenges presented by today’s ‘random access’
requirements: able to synchronise with both external
word and video signals, the built-in timecode
generator is fully featured and even includes the new
23.976 frame HD camera mode.
Continuous development has seen the recent
introduction of the Model 5050 card which allows the
DV40 to read the 6 track files created by the PD-6,
new enhanced ‘take’ (file) naming complying with US
and European clapper board standards and EDL
management tools allowing ALE (Avid Log Exchange)
compatibility.
The perfect production partner to a PD-6 or the
ultimate timecode master recorder. The DV40 is all
this. And more.
timecode generator clear fluorescent display alpha numeric key pad headphone monitoring freque
DVD Master Recorder
DV40
03H 02M 52S 05F 43
SF
PROFESSIONAL DVD MASTER RECORDERPROFESSIONAL DVD MASTER RECORDER
D
hours,
minutes,
seconds &
frames ahead
of the rest.
SEAMLESS INTEGRATION
PD-6 8cm DVD-RAM discs can be played out on a DV-40 by simply removing them from the caddy and placing in the DVD-RAM tray. It‘s this kind of simple and seamless integration which makes the PD-6 / DV40 such a formidable production team. The DV40 provides high precision scrubbing for PD-6 DVD­RAM discs, easy ethernet networking plus extensive audio / timecode manipulation.
Plus, with it’s on-board Ethernet networking capabilities recorded files can easily be transferred around the post house’s media network. In addition to UDF PD-6/DV40 files, DV40 can also read files created on other manufacturers recorders in FAT16, BWF Interleaved format complete with timecode information.
dv40 and pd-6
INCREDIBLY WELL CONNECTED
Each of the four audio channels feature balanced XLR
inputs individually switchable between +4dBu and –10dBV
and the highest quality 24bit/192kHz AD converters. The
outputs are provided on both balanced XLR again with
24bit/192kHz DA converters as well as 1/4" unbalanced
phone jacks for easy monitoring hook-up.
Flexible headphone monitoring is provided on the front
panel with switchable source selection for Track 1+2,
Track 3+4, Track 1+3/2+4 and each track individually.
Digital input and output for all four channels is taken care
of via the AES/EBU format (doubling up for 176.4/192kHz)
on XLR connectors, while the standard complement of timecode, video sync and word clock inputs and outputs are also present. Interoperability and system integration is taken care of via 9 and 15 pin RS-422 connectors, the latter also providing a 12V 400mA power source for future remote control applications. Both these interfaces comply to the Sony 9-Pin protocol for standard VTR emulation and Fostex’s own extended instruction set. The 10Base-T/100-BaseTX Ethernet (RJ-45) port and a firmware-selectable GPI (General Purpose Interface) for remote control, fader starts and file search rounds off this most comprehensive set of interface capabilities.
interfacing
FLEXIBLE RECORDING
The DV40 is capable of recording up to 24bit / 192kHz depending on recording mode used. In addition, other formats offered: (see chart on page 7) 16bit / 44.1kHz, 16bit / 48kHz, 24bit /
44.1kHz, 24bit / 48kHz, 24bit / 88.2kHz, 24bit / 96kHz and 24bit / 176.4kHz
24
bit
Resolution
192
kHz
Frequency
DV40 is equipped with 10/100Base-T Ethernet as standard. Once the IP address is set DV40 files will be available via your media network.
JUST LIKE TAPE
The large high-resolution (200 pulses per rotate) jog/shuttle dial and clever digital tracking technology result in incredible audio scrubbing. It really is just like using tape.
audio
scrubbing
PROFESSIONAL TIMECODE DVD-RAM RECORDING
Maximum Output Level +24dBu
PD-6
GENERAL
Recording Device E-IDE DVD-RAM (8cm) Recording Format BWF (SDII™ & AIFF planned future option) Recording Medium 8cm DVD-RAM Sampling Frequency 44.1 / 48 / 88.2 / 96kHz Quantization 16bit (44.1 / 48kHz)
Recording Tracks 6, Timecode x1 Track Mode 2tr 44.1 / 48 / 88.2 / 96kHz (verify write : on) 4tr 44.1 / 48kHz
INPUT / OUTPUT CONNECTORS (0dBu = 0.775Vrms)
ANALOG AUDIO INPUT CH. 1-6 (Line/Mic selectable)
Connector XLR-3-31 type (Pin2:Hot)
Input Level -30 - +4dBu (+/-5dB, Line)
Maximum Input Level +24dBu (Line) / -40dBu (Mic)
Input Impedance More than 10k ohm
ANALOG AUDIO OUTPUT TR. 1 - 6
Connector XLR-3-32 type (Pin2:Hot)
Reference Output Level +4dBu
Maximum Output Level +24dBu
Output Load Impedance More than 10k ohm
AUX INPUT / OUTPUT
Connector 10pin – male / balanced (Hirose)
Reference Input Level +4dBu
Maximum Input Level +24dBu
Input Impedance More than 10k ohm
Reference Output Level +4dBu / -10dBu / -60dBu (switchable)
24bit (44.1kHz / 48 / 88.2 / 96kHz)
5tr 44.1 / 48kHz 6tr 44.1 / 48kHz 2+4tr 44.1 / 48kHz 1+5tr 44.1 / 48kHz
-60 - -26dBu (+/-5dB, Mic)
Output Load Impedance More than 10k ohm
DIGITAL INPUT / OUTPUT CONNECTOR
Connector D-sub 25pin (auto software selection) Input Format IEC60958 (S/P DIF) or
Output Format IEC60958 (S/P DIF) or
LTC INPUT
Connector XLR-3-31 type (Pin2:Hot), balanced Format SMPTE/EBU Reference Input Level 2Vp-p Minimum Input Level 0.25Vp-p Input Impedance More than 20k ohm
LTC OUTPUT
Connector XLR-3-32 type (Pin2:Hot), balanced Format SMPTE/EBU Reference Output 2Vp-p Output Impedance Less than 1k ohm Output Load Impedance More than 600 ohm
VIDEO / WORD INPUT
Connector BNC (auto software selection) Reference Input Level TTL level (w/ 75ohm termination SW)
WORD OUTPUT
Connector BNC Output Level TTL level
AATON INPUT / OUTPUT (Option)
Connector LEMO 5pin
Format Complies to ASCII & LTC I/O IEEE1394 P1394a Draft 2.0 4 pin USB Serial A Receptable HEADPHONE OUTPUT SOLO or STEREO/MONO: 1+2, MS,
Connector 6mm dia stereo phone jack
Load Impedance More than 32 ohm
Maximum Output Level 200mW (at 32 ohm)
IEC60958 (AES/EBU), auto selection
IEC60958 (AES/EBU), auto selection
3/5+4/6, 1/3/5+2/4/6, 3/5+2/4/6, 1/3+2/4, ST. AUX IN, ST. BUS
Specifications
DV40
GENERAL
Recording Medium E-IDE DVD-RAM
File Format SDII™ / BWF Sampling Frequency 44.1 / 48 / 88.2 / 96 / 176.4 / 192kHz Quantization 16bit (44.1/48kHz)
Recording Track see chart on previous page
INPUT / OUTPUT - (0dBu=0.775Vrms, 0dBV=1Vrms) Reference Input Level +4dBu / -10dBV (Balanced)
Analog Input (Tr 1 – 4)
Connector XLR-3-31 type (Balanced) (1:GND / 2:HOT / 3:COLD) Input Impedance 10k ohm or more Rated Input Level +4dBu Max. Input Level +24dBu
Analog Output (Tr 1 – 4)
Connector XLR-3-32 type (Balanced) (1:GND / 2:HOT / 3:COLD) Output Load impedance 600 ohm or more Rated Output Level +4dBu Max. Output Level +24dBu
Monitor Output (Tr 1 – 4)
Connector Ø 6mm phone jack (Unbalanced) Output Load Impedance 10k ohm or more Rated Output Level -10dBV Max. Output Level +10dBV
Headphones Output
Connector Ø 6mm stereo phone jack Load Impedance 8 ohm or more Max. Output Level 100mW (at 32ohm)
(optional 2.5" hard disk is mountable)
24bit (44.1 / 48 / 88.2 / 96 / 176.4 / 192kHz)
Digital Input (Tr 1 – 2, Tr 3 – 4)
Connector XLR-3-31 type (Balanced) (1:GND / 2:HOT / 3:COLD)
Format IEC60958 (S/P DIF) or IEC60958 (AES/EBU) Digital Output (Tr 1 – 2, Tr 3 – 4)
Connector XLR-3-32 type (Balanced) (1:GND / 2:HOT / 3:COLD)
Format IEC60958 (S/P DIF) or IEC60958 (AES/EBU) GPI In (On/Off selectable)
Connector DIN 5 pin GPI Out (On/Off selectable)
Connector DIN 5 pin TC Input
Connector XLR-3-31 type (Balanced) (1:GND / 2:HOT / 3:COLD)
Format SMPTE / EBU
Rated Input 2Vp-p
Transfer Rate 2.4kbit / sec (SMPTE)
Input Impedance 20k ohm or more
Min. Input Level 0.25Vp-p TC Output
Connector XLR-3-32 type (Balanced) (1:GND / 2:HOT / 3:COLD)
Format SMPTE / EBU
Rated Output 2Vp-p
Output Impedance 1k ohm or less
Load Impedance 600 ohm or more TC Thru (Direct output of input TC)
Connector XLR-3-32 type (Balanced) (1:GND / 2:HOT / 3:COLD) Video Input (with 75 ohm terminate SW)
Connector BNC
Rated Input Level 1V p-p Video Thru (Direct output of input Video signal)
Connector BNC WORD Input (with 75 ohm terminate SW)
Connector BNC
Rated Input Level TTL level
PARALLEL REMOTE
Connector MINI DIN 8pin female
DC12V - 18V IN
Connector XLR-4-32 type
DC12V OUT
Connector HR10A-7R-4S (Hirose 4pin female) x2 Max. 0.5A (Total combined)
PERFORMANCE
R/P Frequency Response 20Hz to 20kHz +/-1dB (fs : 44.1 / 48kHz)
Signal to Noise Ratio
Line: 100dB (ADC-DAC, 24bit,
Mic: 87dB (ADC-DAC, 24bit, ref:-20dB, fs:48kHz) typical Dynamic Range 100dB (ADC-DAC, 24bit, ref:-18dB, fs:48kHz) typical T.H.D. Less than 0.01% (1kHz, -1dB, ADC-DAC, 24bit,
Reference Recording Level -18 / -20dB (switchable) Cue Point Chunk 100 Power Life 2 hours continuous operation estimated,
PHYSICAL
Power Requirement NP-1 type battery
Power Consumption 25W Dimension 334 (W) x 109 (H) x 241 (D)mm Weight 3.5kg (w/o battery)
OPTIONAL ACCESSORIES
ZP-6 Carrying Case AD-15B/C AC Adaptor ATC-4 AATON Interface
WORD Output
Connector BNC
Rated Output Level TTL level WORD Thru (Direct output of input WORD)
Connector BNC 9P-REMOTE (RS-422)
Connector D-sub 9 pin
Protocol Sony 9 pin protocol (Controlled) 15P-REMOTE (RS-422)
Connector D-sub 15 pin
Protocol Sony 9 pin protocol (Controlled) ETHERNET
Connector RJ-45
Format IEEE802.3 (10BASE-T & 100BASE-TX standard) PS/2 port x2 Mouse port for PC & Keyboard port
PERFORMANCE
R/P Frequency Response 20Hz to 20kHz +/- 1dB (fs : 44.1/48kHz)
Signal to Noise Ratio 110dB (typical) Dynamic Range 110dB (typical) Pitch Control 0.0% - max. 200.0% (0.1% step) Reference Record Level -12dB / -18dB / -20dB (switchable on software) Crossfade 10msec (default) LOCATE MEMORY
Main Memory 100
Cue Point/File Memory
(per file) 100
PHYSICAL
Power Handling 120VAC / 230VAC Dimensions 482 (W) x 141 (H) x 381 (D)mm Weight 7.4kg
20Hz to 40kHz +/-1dB (fs : 88.2 / 96kHz)
ref:-20dB, fs:48kHz) typical
ref:-18dB, fs:48kHz typical)
NP-1 type Li-ion
AC Adaptor - option model AD-15B/C DC 12V - 18V
20Hz to 40kHz +/- 2dB (fs : 88.2/96kHz) 20Hz to 80kHz +/- 3dB (fs : 176.4/192kHz)
DVD Recording Times
DV40 16-BIT 24-BIT
4.7GB 44.1kHz 48kHz 44.1kHz 48kHz 88.2kHz 96kHz 192kHz MONO 838 770 558 513 279 256 128 2-TRK 419 385 279 256 139 128 *64 4-TRK 209 192 139 128 69 *64 N/A
DVD
TIMECODE DVD-RAM RECORDING
www.fostexdvd.net
Fostex Corporation, 3-2-35 Musashino, Akishima, Tokyo, Japan 196-0021 Tel: +81 (0)42-546-4974 Fax: +81 (0)42-546-9222
In accordance with our policy of continuous development, we reserve the right to change specifications without notice. E&OE. All trademarks acknowledged.
PD-6 16-BIT 24-BIT
1.46GB 44.1kHz 48kHz 44.1kHz 48kHz 88.2kHz 96kHz 2-TRK 118 108 78 72 39 36 4-TRK 59 54 39 36 N/A N/A 5-TRK 47 43 31 28 N/A N/A 6-TRK 39 36 26 24 N/A N/A
Distributor / Authorised Dealer
All times are in minutes per-side of a DVD-RAM disc
* without Verify-Write
Loading...
