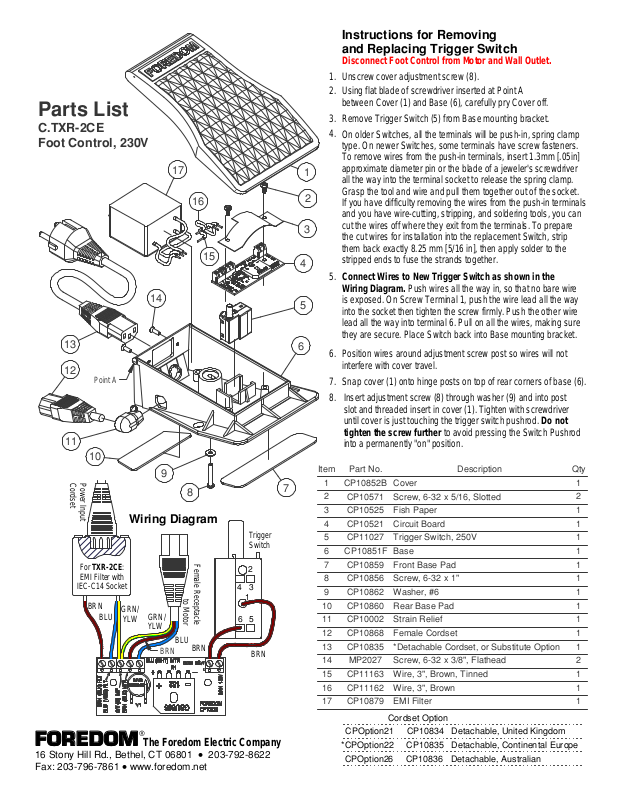

Foredom CTXR-2CE User Manual

Parts List

C.TXR−2CE
Foot Control, 230V

17

16

15

14

13

12

Point A

11

10

}

GRN/
YLW

9

BRN

BLU

8

Trigger
Switch

Female Receptacle

to Motor

BRN

2

3

4

1

6

5

BRN

Power Input

Cordset

Wiring Diagram

For TXR-2CE:
EMI Filter with

IEC-C14 Socket

BRN

BLU

GRN/

YLW

FOREDOM The Foredom Electric Company

16 Stony Hill Rd., Bethel, CT 06801 • 203−792−8622
Fax: 203−796−7861

• www.foredom.net

Instructions for Removing
and Replacing Trigger Switch

Disconnect Foot Control from Motor and Wall Outlet.

1.

Unscrew cover adjustment screw (8).

2.

Using flat blade of screwdriver inserted at Point A
between Cover (1) and Base (6), carefully pry Cover off.

3.

Remove Trigger Switch (5) from Base mounting bracket.

4.

On older Switches, all the terminals will be push-in, spring clamp
type. On newer Switches, some terminals have screw fasteners.
To remove wires from the push-in terminals, insert 1.3mm [.05in]

1

2

3

4

5

6

7

approximate diameter pin or the blade of a jeweler's screwdriver
all the way into the terminal socket to release the spring clamp.
Grasp the tool and wire and pull them together out of the socket.
If you have difficulty removing the wires from the push -in termi na ls
and you have wire-cutting, stripping, and soldering tools, you can
cut the wires off where they exit from the terminals. To prepare
the cut wires for installation into the replacement Switch, strip
them back exactly 8.25 mm [5/16 in], then apply solder to the
stripped ends to fuse the strands together.

5.

Connect Wires to New Trigger Switch as shown in the
Wiring Diagram.

Push wires all the way in, so that no bare wire
is exposed. On Screw Terminal 1, push the wire lead all the way
into the socket then tighten the screw firmly. Push the other wire
lead all the way into terminal 6. Pull on all the wires, making sure
they are secure. Place Switch back into Base mounting bracket.

Position wires around adjustment screw post so wires will not

6.
interfere with cover travel.

7.

Snap cover (1) onto hinge posts on top of r ear corners of base (6).

8.

Insert adjustment screw (8) through washer (9) and into post
slot and threaded insert in cover (1). Tighten with screwdriver
until cover is just touching the trigger switch pushrod.

tighten the screw further

to avoid pressing the Switch Pushrod

into a permanently "on" position.

DescriptionPart No.Item
1
2
3

CP10525
4
5
6
7

CP10859
8
9

CP10862

10

CP10860

11
12
13
14
15
16
17

CP10879

CPOption21 CP10834 Detachable, United Kingdom

*CPOption22 CP10835 Detachable, Continental Europe

CPOption26 CP10836 Detachable, Australian

CoverCP10852B
Screw, 6−32 x 5/16, SlottedCP10571
Fish Paper
Circuit BoardCP10521
Trigger Switch, 250VCP11027
BaseCP10851F
Front Base Pad
Screw, 6−32 x 1"CP10856
Washer, #6
Rear Base Pad
Strain ReliefCP10002
Female CordsetCP10868
*Detachable Cordset, or Substitute OptionCP10835
Screw, 6−32 x 3/8", FlatheadMP2027
Wire, 3", Brown, TinnedCP11163
Wire, 3", BrownCP11162
EMI Filter

Cordset Option

Do not

Qty

1
2
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
