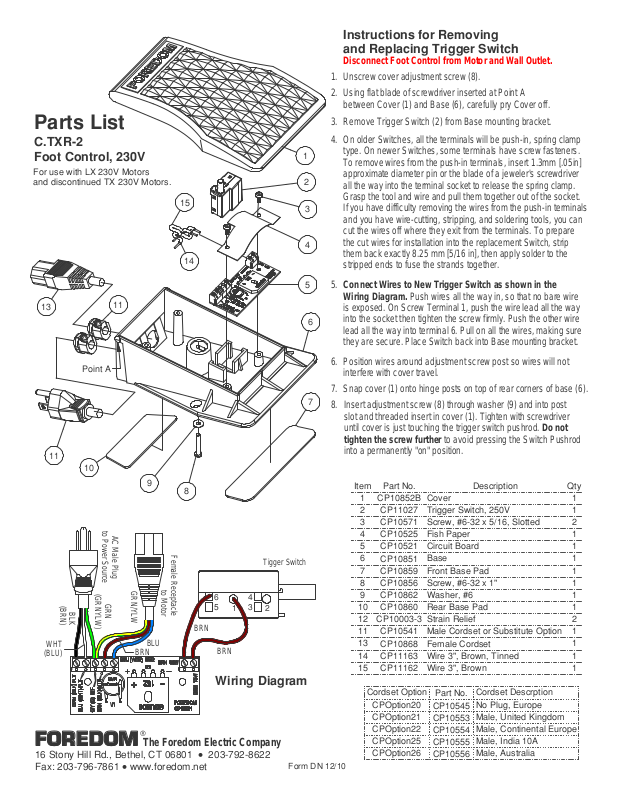

Foredom CTXR-2 User Manual

Parts List

C.TXR−2
Foot Control, 230V

For use with LX 230V Motors
and discontinued TX 230V Motors.

13

11

15

14

Instructions for Removing
and Replacing Trigger Switch

Disconnect Foot Control from Motor and Wall Outlet.

1.

Unscrew cover adjustment screw (8).

2.

Using flat blade of screwdriver inserted at Point A
between Cover (1) and Base (6), carefully pry Cover off.

3.

Remove Trigger Switch (2) from Base mounting bracket.

4.

On older Switches, all the terminals will be push-in, spring clamp

1

2

3

4

5

6

type. On newer Switches, some terminals have screw fasteners.
To remove wires from the push-in terminals, insert 1.3mm [.05in]
approximate diameter pin or the blade of a jeweler's screwdriver
all the way into the terminal socket to release the spring clamp.
Grasp the tool and wire and pull them together out of the socket.
If you have difficulty removing the wires from the push-in terminals
and you have wire-cutting, stripping, and soldering tools, you can
cut the wires off where they exit from the termi nals. To prepare
the cut wires for installation into the replacement Switch, strip
them back exactly 8.25 mm [5/16 in], then apply solder to the
stripped ends to fuse the strands together.

5.

Connect Wires to New Trigger Switch as shown in the
Wiring Diagram. Push wires all the way in, so that no bare wire

is exposed. On Screw Terminal 1, push the wire lead all the way
into the socket then tighten the screw firmly. Push the other wire
lead all the way into terminal 6. Pull on all the wires , mak ing sure
they are secure. Place Switch back into Base mounting bracket.

Point A

11

10

WHT

(BLU)

(BRN)

BLK

9

to Power Source

AC Male Plug

(GRNYLW)

GRN/YLW

GRN

BLU

BRN

Female Receptacle

to Motor

8

Tigger Switch

BRN

4
3

1

2

6
5

BRN

Wiring Diagram

}

FOREDOM The Foredom Electric Company

16 Stony Hill Rd., Bethel, CT 06801 • 203−792−8622
Fax: 203−796−7861

• www.foredom.net

6.

7.

7

8.

Form DN 12/10

Position wires around adjustment screw post so wires will not
interfere with cover travel.

Snap cover (1) onto hinge posts on top of rear corners of base (6).
Insert adjustment screw (8) through washer (9) and into post

slot and threaded insert in cover (1). Tighten with screwdriver
until cover is just touching the trigger switch pushrod.

tighten the screw further

to avoid pres s ing the Switch Pushrod

Do not

into a permanently "on" position.

1
2
3
4

CP10525
5
6

CP10851
7

CP10859
8
9

CP10862

10

CP10860

12
11
13
14

CP11163

15

CP11162

Cordset Option

CPOption20
CPOption21
CPOption22
CPOption25
CPOption26

DescriptionPart No.Item
CoverCP10852B
Trigger Switch, 250VCP11027
Screw, #6−32 x 5/16, SlottedCP10571
Fish Paper
Circuit BoardCP10521
Base
Front Base Pad
Screw, #6−32 x 1"CP10856
Washer, #6
Rear Base Pad
Strain ReliefCP10003−3
Male Cordset or Substitute OptionCP10541
Female CordsetCP10868
Wire 3", Brown, Tinned
Wire 3", Brown

Part No.
CP10545
CP10553
CP10554
CP10555
CP10556

Cordset Descrption
No Plug, Europe
Male, United Kingdom
Male, Continental Europe
Male, India 10A
Male, Australia

Qty

1
1
2
1
1
1
1
1
1
1
2
1
1
1
1
