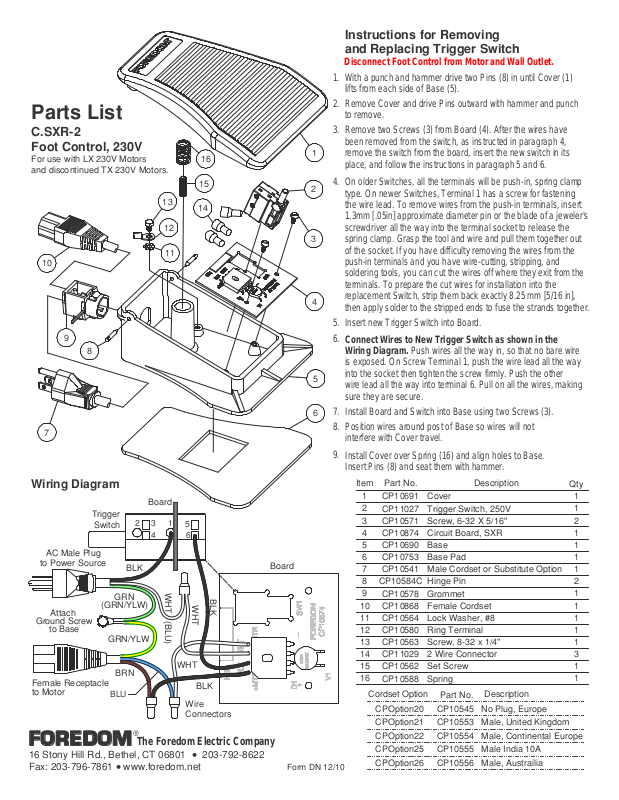

Parts List
C.SXR−2
Foot Control, 230V
For use with LX 230V Motors
and discontinued TX 230V Motors.
13
12
11
10
9
8
7
Wiring Diagram
Board
Trigger
Switch
AC Male Plug
to Power Source
Attach
Ground Screw
to Base
Female Receptacle
to Motor
2
BLK
GRN
(GRN/YLW)
GRN/YLW
BRN
BLU
}
1
3
4
WHT (BLU)
FOREDOM The Foredom Electric Company
16 Stony Hill Rd., Bethel, CT 06801 • 203−792−8622
Fax: 203−796−7861
• www.foredom.net
16
15
14
5
6
WHT
WHT
BLK
Wire
Connectors
BLK
Board
Form DN 12/10
Instructions for Removing
and Replacing Trigger Switch
Disconnect Foot Control from Motor and Wall Outlet.
1.
With a punch and hammer dr ive two Pins (8) in until Cover (1)
lifts from each side of Base (5).
2.
Remove Cover and drive Pins outward with hammer and punch
to remove.
3.
Remove two Screws (3) from Board (4). After the wires have
been removed from the switch, as instructed in paragraph 4,
1
2
3
4
5
6
remove the switch from the board, insert the new switch in its
place, and follow the instructions in para graph 5 and 6.
4.
On older Switches, all the terminals will be push-in, spring clamp
type. On newer Switches, Terminal 1 has a screw for fastening
the wire lead. To remove wires from the push-in terminals, insert
1.3mm [.05in] approximate di ameter pin or the blade of a jeweler's
screwdriver all the way into th e terminal socket to release the
spring clamp. Grasp the tool and wire and pull them together out
of the socket. If you have difficulty removing the wires from the
push-in terminals and you have wire-cutting, stripping, and
soldering tools, you can cut the wires off where they exit from the
terminals. To prepare the cu t wires for installation into the
replacement Switch, strip them back exactly 8.25 mm [5/16 in],
then apply solder to the stripped ends to fuse the strands together.
5.
Insert new Trigger Switch into Board.
6.
Connect Wires to New Trigger Switch as shown in the
Wiring Diagram.
Push wires all the way in, so that no bare wire
is exposed. On Screw Terminal 1, push the wire lead all the way
into the socket then tighten the screw firmly. Push the other
wire lead all the way into terminal 6. Pull on all the wires, making
sure they are secure.
7.
Install Board and Switch into Base using two Screws (3).
8.
Position wires around post of Base so wires will not
interfere with Cover travel.
9.
Install Cover over Spring (16) and align holes to Base.
Insert Pins (8) and seat them with hammer.
DescriptionPart No.Item
1
2
3
4
5
CP10690
6
CP10753
7
8
CP10584C
9
10
11
CP10564
12
CP10580
13
14
15
16
Cordset Option
CPOption20 CP10545 No Plug, Europe
CPOption21 CP10553 Male, United Kingdom
CPOption22 CP10554 Male, Continental Europe
CPOption25 CP10555 Male India 10A
CPOption26 CP10556 Male, Austrailia
CoverCP10691
Trigger Switch, 250VCP11027
Screw, 6−32 X 5/16"CP10571
Circuit Board, SXRCP10874
Base
Base Pad
Male Cordset or Substitute OptionCP10541
Hinge Pin
GrommetCP10578
Female CordsetCP10868
Lock Washer, #8
Ring Terminal
Screw, 8−32 x 1/4"CP10563
2 Wire ConnectorCP11029
Set ScrewCP10562
SpringCP10588
Part No.
Description
Qty
1
1
2
1
1
1
1
2
1
1
1
1
1
3
1
1
