Introduction

The following warning may be required by California law:

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

ICONS

Indicates a safety alert. Read the following section on Warnings.

Indicates vehicle information related to recycling and other environmental concerns will follow.

Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards protecting the environment.

Indicates a message regarding child safety restraints. Refer to Seating and safety restraints for more information.

Indicates that this Owner Guide contains information on this subject. Please refer to the Index to locate the appropriate section which will provide you more information.

Introduction

WARNINGS

Warnings provide information which may reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment.

BREAKING-IN YOUR VEHICLE

There are no particular breaking-in rules for your vehicle. During the first 1 600 km (1 000 miles) of driving, vary speeds frequently. This is recommended to give the moving parts a chance to break in.

INFORMATION ABOUT THIS GUIDE

The information found in this guide was in effect at the time of printing. Ford may change the contents without notice and without incurring obligation.

EMISSION WARRANTY

The New Vehicle Limited Warranty includes Bumper to Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 7.3L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Air Bag-Front

Air Bag-Side Child Seat

Child Seat Installation Warning

Brake System Anti-Lock Brake System

Brake Fluid Non-Petroleum Based

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

Fuel Pump Reset Windshield Wash/Wipe

See Owner’s Guide

Child Seat Tether Anchorage

Traction Control

Windshield Defrost/Demist

Power Windows Front/Rear

Rear Window Defrost/Demist

Power Window Lockout

Vehicle Symbol Glossary

MAX

MIN

Introduction

Child Safety Door Lock/Unlock

Interior Luggage Compartment Release Symbol

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

Emission System Engine Air Filter

Passenger Compartment Air Filter

Jack

Check fuel cap

Instrumentation

Instrument cluster

Turn signal control

(pg. 82)

Wiper/washer

control

(pg. 82)

(pg. 8)

Gearshift (includes O/D

OFF control)

(pg. 174)

Driver air bag

(pg. 144)

Instrument panel

Headlamp

control

(pg. 27)

dimmer control

(pg. 28)

Advanced tire

warning control

(pg. 231)

Traction control*

(pg. 169)

Speed control

(pg. 79)

Message center controls*

(pg. 17)

Instrumentation

Reverse sensing system*

(pg. 75)

Audio system

(pg. 39)

Power adjustable pedals*

(pg. 78)

Climate control system

(pg. 29)

* if equipped

Instrumentation

WARNING LIGHTS AND CHIMES

O/D OFF

TEMP

120

100

160

km/h

120

200

MPH

BRAKE

TRAC

ACTIVE

RPMX1000

THEFT

FUEL

TRAC

OFF

Some Warning Lights will show in the cluster equipped with a Message Center as words.

Low fuel

Illuminates as an early reminder of a low fuel condition indicated on the fuel gauge (refer to Fuel gauge in this chapter for more information). When refueling, after the light comes on, the amount of fuel that is added will be less than the advertised capacity since there is fuel still in the tank. The ignition must be in the ON position for this lamp to illuminate. The lamp will also illuminate for several seconds after the ignition is turned to the ON position regardless of the fuel level to ensure your bulb is working.

Charging system

Illuminates when the ignition is turned to the ON position and the engine is off. The light also illuminates when the battery is not charging properly, requiring electrical system service.

Traction ControlY active (if equipped)

Momentarily illuminates when the ignition is turned to the ON position. It also illuminates when the Traction

TRAC

ACTIVE

Controly system begins applying and releasing the brakes and adjusting the engine characteristics to limit a

Instrumentation

wheelspin condition. It will be lit for a minimum of four seconds or for the duration of the Traction Controly event.

For more information, refer to the Driving chapter.

Traction ControlY off light (if equipped)

Momentarily illuminates when the ignition is turned to ON position and illuminates when the Traction Controly system has been disabled (by the driver or as a result of a system failure). For more information, refer to the Driving chapter.

Safety belt

Momentarily illuminates when the ignition is turned to the ON position to remind you to fasten your safety belts. For more information, refer to the Seating and safety restraints chapter.

Anti-theft system

Refer to SecuriLocky passive anti-theft system in the Controls and features chapter.

TRAC

OFF

THEFT

Turn signal

Illuminates when the left or right turn signal or the hazard lights are turned on. If one or both of the indicators stay on continuously or flash faster, check for a burned-out turn signal bulb. Refer to Bulbs in the Maintenance and care chapter.

Instrumentation

Anti-lock brake system (ABS)

Momentarily illuminates when the ignition is turned to the ON position to ensure the circuit is functional. If the light remains on or fails to illuminate, have the system serviced immediately. With the ABS light on, the anti-lock brake system is disabled and normal braking is still effective unless the brake warning light also remains illuminated with the parking brake released.

Air bag readiness

Momentarily illuminates when the ignition is turned ON. If the light fails to illuminate, continues to flash or remains on, have the system serviced immediately.

High beams

Illuminates when the high beam headlamps are turned on.

Engine oil pressure

Momentarily illuminates when the ignition is turned to the ON position and the engine is off. Illuminates when the oil pressure falls below the normal range. Stop the vehicle as soon as safely possible and switch off the engine immediately. Check the oil level and add oil if needed. Refer to Engine oil in the Maintenance and care chapter.

ABS

Brake system warning

Momentarily illuminates when the ignition is turned to the ON position to ensure the circuit is functional. Also illuminates if the parking brake is engaged. If the brake warning lamp does not illuminate at these times, or remains on after releasing the parking brake, seek service immediately.

BRAKE

Instrumentation

One of the following conditions may exist:

• low brake fluid level in the reservoir.

• Brake force distribution system failure. The ABS light will also

illuminate if this condition is present.

O/D off

Illuminates when the Transmission Control Switch (TCS), refer to

Overdrive control in the Controls and Features chapter, has been

pushed turning the transmission overdrive function OFF. When the light is on, the transmission does not operate in the overdrive mode, refer to the Driving chapter for transmission function and operation.

The light may also flash steadily if a transmission malfunction is detected. If the light does not come on when the Transmission Control Switch is depressed or if the light flashes steadily, have your vehicle serviced as soon as possible, damage to the transmission could occur.

Check engine

Your vehicle is equipped with a computer that monitors the engine’s emission control system. This system is commonly known as the On Board Diagnostics System (OBD II). This OBD II system protects the environment by ensuring that your vehicle continues to meet government emission standards. The OBD II system also assists the service technician in properly servicing your vehicle.

The Check Engine indicator light illuminates when the ignition is first turned to the ON position to check the bulb. If it comes on after the engine is started, one of the engine’s emission control systems may be malfunctioning. The light may illuminate without a driveability concern being noted. The vehicle will usually be drivable and will not require towing.

What you should do if the check engine light illuminates

Light turns on solid:

This means that the OBD II system has detected a malfunction.

O/D

OFF

Instrumentation

Temporary malfunctions may cause your Check Engine light to illuminate. Examples are:

1. The vehicle has run out of fuel. (The engine may misfire or run poorly.)

2. Poor fuel quality or water in the fuel.

3. The fuel cap may not have been properly installed and securely tightened.

These temporary malfunctions can be corrected by filling the fuel tank with high quality fuel of the recommended octane and/or properly installing and securely tightening the gas cap. After three driving cycles without these or any other temporary malfunctions present, the Check Engine light should turn off. (A driving cycle consists of a cold engine startup followed by mixed city/highway driving.) No additional vehicle service is required.

If the Check Engine light remains on, have your vehicle serviced at the first available opportunity.

Light is blinking:

Engine misfire is occurring which could damage your catalytic converter. You should drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced at the first available opportunity.

Under engine misfire conditions, excessive exhaust temperatures

could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Check fuel cap

Momentarily illuminates when the ignition is turned to the ON position to ensure your bulb is working. When this light turns on, check the fuel filler cap. Continuing to operate the vehicle with the check fuel cap light on, can activate the Service Engine Soon/Check Engine warning light. When the fuel filler cap is properly re-installed, the light(s) will turn off after a period of normal driving. This period will vary depending on driving conditions.

CHECK

FUEL

CAP

Instrumentation

It may take a long period of time for the system to detect an improperly installed fuel filler cap.

For more information, refer to Fuel filler cap in the Maintenance and care chapter.

Door ajar

Illuminates when the ignition is in the ON position and any door is open. It may also momentarily illuminate after the engine is started and all doors are closed.

Bulb Warning

Illuminates when the ignition is in the ON position and one of the exterior bulbs has burned out.

Low washer fluid

Illuminates when the ignition is turned to the ON position and when the windshield washer fluid is low.

Low tire warning

Illuminates for approximately three seconds when the ignition is turned to the ON position to indicate the low tire warning system is enabled. If the light remains on while driving, the tire pressures should be checked. Refer to Low tire warning in the Maintenance and care chapter.

Safety belt warning chime

Sounds to remind you to fasten your safety belts. For information on the safety belt warning chime, refer to the Seating

and safety restraints chapter.

Instrumentation

Belt minder chime

Sounds intermittently to remind you to fasten your safety belts. For information on the safety belt minder chime, refer to the Seating

and safety restraints chapter.

Supplemental restraint system (SRS) warning chime

For information on the SRS warning chime, refer to the Seating and safety restraints chapter.

Key-in-ignition warning chime

Sounds when the key is left in the ignition in the OFF/LOCK or ACC position and the driver’s door is opened.

Headlamps on warning chime

Sounds when the headlamps or parking lamps are on, the ignition is off (and the key is not in the ignition) and the driver’s door is opened.

Turn signal chime

Sounds when the turn signal lever has been activated to signal a turn and not turned off after the vehicle is driven more than 0.8 km (1/2 mile).

GAUGES

O/D OFF

TEMP

120

100

160

km/h

120

200

MPH

BRAKE

TRAC

ACTIVE

RPMX1000

THEFT

FUEL

TRAC

OFF

Instrumentation

Fuel gauge

Displays approximately how much fuel is in the fuel tank (when the key is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or after refueling. The ignition should be in

the OFF position while the vehicle is being refueled. When the gauge first indicates empty, there is a small amount of reserve fuel in the tank. When refueling the vehicle from an empty indication, the amount of fuel that can be added will be less than the advertised capacity due to the reserve fuel.

Tachometer

Indicates the engine speed in revolutions per minute.

Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

FUEL

RPMX1000

Speedometer

Indicates the current vehicle speed.

MPH

120

100

160

km/h

200

120

Instrumentation

Engine coolant temperature gauge

Indicates the temperature of the engine coolant. At normal operating temperature, the needle remains within the normal area (the area between the “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine immediately and let the engine cool. Refer to Engine coolant in the Maintenance and care chapter.

Never remove the coolant reservoir cap while the engine is

running or hot.

This gauge indicates the temperature of the engine coolant, not the coolant level. If the coolant is not at its proper level the gauge indication will not be accurate.

Odometer

Registers the total kilometers (miles) of the vehicle.

TEMP

Trip odometer

Registers up to 1 600 kilometers (1 000 miles) of individual journeys. To display, depress the control. To reset, depress and hold the control for 2 seconds. To set back to odometer, depress the control again.

trip mi

Instrumentation

MESSAGE CENTER (IF EQUIPPED)

With the ignition in the ON position, the message center, located on your instrument cluster, displays important vehicle information through a constant monitor of vehicle systems. You may select display features on the message center for a display of status preceded by a brief indicator chime. The system will also notify you of potential vehicle problems with a display of system warnings followed by a long indicator chime.

Selectable features

Info menu

This control displays the following control displays:

• Compass/Outside Temperature

• Distance to Empty

• Average Fuel Economy

• Trip Elapsed Drive Time

• Display On/Off

Setup menu

Press this control for the following displays:

• Language

• Units (English/Metric)

• System Check

• Single/Dual Display Mode

Reset

Press this control to select and reset functions shown in the INFO menu and SETUP menu.

Language

1. Select this function from the SETUP menu for the current language to be displayed.

km/h

200

120

INFO

SETUP

RESET

Instrumentation

2. Pressing the RESET control cycles the message center through each of the language choices.

3. Press and hold the RESET control to set the language choice.

Units (English/Metric)

1. Select this function from the SETUP menu for the current units to be displayed.

2. Press the RESET control to change from English to Metric.

System check

Selecting this function from the SETUP menu causes the message center to cycle through each of the systems being monitored. For each of the monitored systems, the message center will indicate either an OK message or a warning message for three seconds.

Pressing the RESET control cycles the message center through each of the systems being monitored.

The sequence of the system check report is as follows:

1. oil life in XX%

2. charging system

3. washer fluid level

4. brake fluid level

5. doors closed (driver and passenger side). This message can only be reset by closing the door(s). If the RESET control is pressed, PLEASE CLOSE DOOR will be displayed.

6. rear liftgate status

7. exterior lamps (headlamps, front turn, brake, tail and cornering/side repeater lamp status)

Instrumentation

8. Traction Controly or AdvanceTracy (if equipped)

9. fuel level

10. distance to empty

Single/Dual Display Mode

1. Select this function from the SETUP menu for the current display mode.

2. Press the RESET control to change from the Single to the Dual display.

System warnings

System warnings alert you to possible problems or malfunctions in your vehicle’s operating systems.

In the event of a multiple warning situation, the message center will cycle the display to show all warnings by displaying each one for 4 seconds.

The message center will display the last selected feature if there are no more warning messages. This allows you to use the full functionality of the message center after you acknowledge the warning by pressing the RESET control and clearing the warning message.

Warning messages that have been reset are divided into two categories:

• They will reappear on the display ten minutes from the reset.

• They will not reappear until an ignition OFF-ON cycle has been

completed.

This acts as a reminder that these warning conditions still exist within the vehicle.

Driver’s door ajar Warning cannot Passenger door ajar Driver rear door ajar Passenger rear door ajar Check charging system Warning returns Transmission overheated Check transmission Low fuel level

be reset

after 10 minutes

Instrumentation

Liftgate ajar Warning returns Low brake fluid level Check tail lamps Check headlamps Check rear turn lamps Check front turn lamps Check cornering/side repeater lamps (if equipped) Change oil soon Oil change required Check traction control (if equipped) Check advancetrac (if equipped) Low washer fluid Check turn signal on reminder

DRIVER’S DOOR AJAR. Displayed when the driver’s door is not completely closed.

PASSENGER DOOR AJAR. Displayed when the passenger side door is not completely closed.

DRIVER’S REAR DOOR AJAR. Displayed when the driver’s rear door is not completely closed.

PASSENGER REAR DOOR AJAR. Displayed when the passenger side rear door is not completely closed.

LIFTGATE AJAR. Displayed when the liftgate is not completely closed. CHECK CHARGING SYSTEM. Displayed when the electrical system is

not maintaining proper voltage. If you are operating electrical accessories when the engine is idling at a low speed, turn off as many of the electrical loads as soon as possible. If the warning stays on or comes on when the engine is operating at normal speeds, have the electrical system checked as soon as possible.

LOW FUEL LEVEL. Displayed as an early reminder of a low fuel condition.

CHECK TRANSMISSION. Indicates the transmission is not operating properly. If this warning stays on, contact your dealer as soon as possible.

TRANSMISSION OVERHEATED. Indicates the transmission is overheating. This warning may appear when towing heavy loads or when

after the ignition key is turned from OFF to ON

Instrumentation

driving in a low gear at a high speed for an extended period of time. Stop the vehicle as soon as safely possible, turn off the engine and let it cool. Check the transmission fluid and level. Refer to Transmission fluid in the Maintenance and care chapter. If the warning stays on or continues to come on, contact your dealer for transmission service as soon as possible.

CHECK BRAKE LAMPS. Displayed when the brake lamps are activated and at least one is burned out. Check the lamps as soon as possible and have the burned out lamp replaced. The center high-mount brakelamp is not monitored.

CHECK HEADLAMPS. Displayed when the headlamps are activated and at least one is burned out. Check the lamps as soon as possible and have the burned out lamp replaced. Refer to Replacing headlamp bulbs in the Maintenance and care chapter.

CHECK TAIL LAMPS. Displayed when the tail lamps are activated and at least one is burned out. Check the lamps as soon as possible and have the burned out lamp replaced.

CHECK FRONT TURN LAMPS. Displayed when the turn signals are activated and at least one is burned out. Check the lamps as soon as safely possible and have the burned out lamp replaced.

CHECK REAR TURN LAMPS. Displayed when the turn signals are activated and at least one is burned out. Check the lamps as soon as possible and have the burned out lamp replaced.

CHECK SIDE REPEATER LAMPS (if equipped). Displayed when the turn signals are activated and at least one is burned out. Check the lamps as soon as possible and have the burned out lamp replaced.

TURN SIGNAL ON REMINDER. Displayed when the turn signal is activated and the vehicle is driven more that 0.8 km (1/2 mile).

LOW WASHER FLUID. Indicates the washer fluid reservoir is less than one quarter full. Check the washer fluid level. Refer to Windshield washer fluid in the Maintenance and care chapter.

CHECK TRACTION CONTROL (if equipped). Displayed when the Traction Controly system is not operating properly. If this warning stays on, contact your dealer for service as soon as possible. For further information, refer to Traction controly in the Driving chapter.

CHECK ADVANCETRAC (if equipped). Displayed when the AdvanceTracy system is not operating properly. If this message is displayed on the message center the AdvanceTracy system might be

Instrumentation

partially operable. If this warning stays on while the engine is running, contact your dealer for service as soon as possible. For further information, refer to AdvanceTracy stability enhancement system in the Driving chapter.

CHANGE OIL SOON/OIL CHANGE REQUIRED. Displayed when the engine oil life remaining is 5 percent or less. When oil life left is between 5% and 0%, the CHANGE OIL SOON message will be displayed. When oil life left reaches 0%, the OIL CHANGE REQUIRED message will be displayed.

An oil change is required whenever indicated by the message center. USE ONLY RECOMMENDED ENGINE OILS.

To reset the oil monitoring system to 100% after each oil change [approximately 8 000 km (5 000 miles) or 180 days] perform the following:

1. Press the SETUP control to access the System Check function.

2. Press and release the RESET control to display “OIL LIFE XX% HOLD RESET NEW’’.

3. Press and hold the RESET control for 2 seconds to display “IF NEW OIL HOLD RESET’’.

4. Press and hold the RESET control to display OIL LIFE SET TO 100%. Your oil life is now reset.

To reset the oil monitoring system to your personalized oil life %:

1. Press the SETUP control to access the System Check function.

Instrumentation

2. Press and release the RESET control to display “OIL LIFE XX% HOLD RESET NEW’’.

3. Press and hold the RESET control for 2 seconds to display “IF NEW OIL HOLD RESET’’.

4. Release the RESET control momentarily, then press RESET and SETUP controls at the same time to activate a service mode which will display OIL LIFE XX% RESET TO ALTER.

5. Press RESET until you find your personalized OIL LIFE XX%.

6. With your personalized OIL LIFE XX% displayed, press SETUP to continue the system check.

DATA ERR. These messages indicate improper operation of the vehicle network communication between electronic modules.

• Fuel Computer

• Oil life

• Charging system

• Door sensor

• Liftgate sensor

• Exterior lamps

• Traction control

• Washer fluid

• Brake Fluid

• Compass

• Outside temperature

Contact your dealer as soon as possible if these messages occur on a regular basis.

Instrumentation

Compass display (if equipped)

The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antenna. Magnetic or metallic objects placed in, on or near the vehicle may also affect compass accuracy.

Usually, when something affects the compass readings, the compass will correct itself after a few days of operating your vehicle in normal conditions. If the compass still appears to be inaccurate, a manual calibration may be necessary. Refer to Compass zone/calibration

adjustment.

Most geographic areas (zones) have a magnetic north compass point that varies slightly from the northerly direction on maps. This variation is four degrees between adjacent zones and will become noticeable as the vehicle crosses multiple zones. A correct zone setting will eliminate this error. Refer to Compass zone/calibration adjustment.

Compass zone/calibration adjustment

Perform this adjustment in an open area free from steel structures and high voltage lines.

For optimum calibration, turn off all electrical accessories (heater/air conditioning, wipers, etc.) and make sure all vehicle doors are shut.

1. Turn ignition to the ON position.

2. Start the engine.

3. Determine your magnetic zone by referring to the zone map.

4. From Info menu, select the Compass/Outside Temperature function.

Instrumentation

5. Press and hold the RESET control until the message center display changes to show the current zone setting.

6. Release the reset control, then slowly press down again.

7. Press the SETUP control repeatedly until the correct zone setting for your geographic location is displayed on the message center. To exit the zone setting mode press and release the RESET control.

8. Press the RESET control to start the compass calibration function.

9. Slowly drive the vehicle in a circle (less than 5 km/h [3 mph]) until the CIRCLE SLOWLY TO CALIBRATE indicator changes to CALIBRATION COMPLETED. This will take up to three circles to complete calibration.

10. The compass is now calibrated.

FUEL ECON AVG

Select this function from the INFO menu to display your average fuel economy in liters/100 km or miles/gallon.

If you calculate your average fuel economy by dividing liters of fuel used by 100 kilometers traveled (miles traveled by gallons used), your figure may be different than displayed for the following reasons:

• your vehicle was not perfectly level during fill-up

• differences in the automatic shut-off points on the fuel pumps at

service stations

• variations in top-off procedure from one fill-up to another

• rounding of the displayed values to the nearest 0.1 liter (gallon)

Instrumentation

1. Drive the vehicle at least 8 km (5 miles) with the speed control system engaged to display a stabilized average.

2. Record the highway fuel economy for future reference. It is important to press the RESET control after setting the speed

control to get accurate highway fuel economy readings.

DIST TO EMPTY (DTE)

Selecting this function from the INFO menu will give you an estimate of how far you can drive with the fuel remaining in your tank under normal driving conditions. Remember to turn the ignition OFF when refueling your vehicle. Otherwise, the display will not show the addition of fuel for a few kilometers (miles).

The DTE function will display LOW FUEL LEVEL and sound a tone for 1 second when you have low fuel level indicated on the fuel gauge.

TRIP ELAPSED DRIVE TIME

Select this function from the INFO menu to display your trip elapsed drive time and will display and accumulate when the key is in the RUN position.

1. Press the INFO control until the message center display shows the TRIP ELAPSED TIME XXXX.

2. Hold the RESET control down for two seconds to clear display.

DISPLAY ON/OFF

Select this function from the INFO menu to turn your message center display OFF or ON.

Controls and features

HEADLAMP CONTROL

Rotate the headlamp control to the first position to turn on the parking lamps. Rotate to the second position to also turn on the headlamps.

Daytime running lamps (DRL) (if equipped)

Turns the highbeam headlamps on with a reduced output. To activate:

• the key must be in the ON position,

• the headlamp control is in the OFF or Parking lamps position.

Always remember to turn on your headlamps at dusk or during

inclement weather. The Daytime Running Light (DRL) System does not activate your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

High beams

Push forward to activate. Pull toward you to deactivate.

Controls and features

Flash to pass

Pull toward you to activate and release to deactivate.

Battery saver

The battery saver will shut off the exterior lamps 10 minutes after the ignition switch has been turned off and the headlamp control is in the HEADLAMP position. The system will not turn off the parking lamps if the headlamp control is in the PARK position. For interior lights, refer to Illuminated entry in this chapter.

PANEL DIMMER CONTROL

Use to adjust the brightness of the instrument panel lighting during headlamp and parklamp operation.

• Rotate control to full up position to turn on all interior lights.

• Rotate control to next position (adjustment dial) and move up and down to adjust the instrument panel lights.

• Rotate to the first or second lower detent position to turn on the instrument panel lights to full brightness.

This control also has other features that are activated when any door is

opened:

• Rotate to full up position or next position (adjustment dial) to turn on all interior lights.

Rotate to first lower detent position to activate “sleeping baby mode” —

•

dome lamps will remain off and only the lower lamps will illuminate.

• The second lower detent position (full down) will shut off all interior lights.

The dome lamp will not illuminate if the control switch is in the OFF position.

Controls and features

AUTOLAMP CONTROL (IF EQUIPPED)

The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control.

The autolamp system also keeps the lights on for a fixed period of time after the ignition switch is turned to OFF.

• To turn autolamps on, rotate the control counterclockwise.

• To turn autolamps off, rotate the control clockwise to OFF.

CLIMATE CONTROL SYSTEM Manual heating system (if equipped)

AUTO

Fan speed control

Controls the volume of air circulated in the vehicle.

Controls and features

Temperature control

Controls the temperature of the airflow inside the vehicle.

Mode selector control

Controls the direction of the airflow to the inside of the vehicle.

•

• OFF-Outside air is shut out and the fan will not operate. For short

•

• (Floor) — Allows for maximum heating by distributing outside

• (Floor and defrost) — Distributes outside air through the

• (Defrost) — Distributes outside air through the windshield

(Panel) — Distributes outside air through the instrument panel

registers.

periods of time only, use this mode to prevent undesirable odors from entering the vehicle.

(Panel and floor) — Distributes outside air through the

instrument panel registers and the floor ducts.

air through the floor ducts.

windshield defroster ducts and the floor ducts.

defroster ducts. It can be used to clear ice or fog from the windshield.

Operating tips

• In humid weather conditions, place the climate control system in before driving. This will reduce fogging on your windshield. Once the windshield has been cleared, select the desired position.

• To reduce humidity buildup inside the vehicle in cold weather conditions, do not drive with the climate control system in the OFF position.

Controls and features

• Under normal weather conditions, your vehicle’s climate control system should be left in any position other than OFF when the vehicle is parked. This allows the vehicle to “breathe” through the outside air inlet duct.

• Under snowy or dirty weather conditions, your vehicle’s climate control system should be left in the OFF position when the vehicle is parked. This allows the climate control system to be free from contamination of outside pollutants.

• Do not place objects under the front seat that may interfere with the airflow to the rear seats.

• Remove any snow, ice or leaves from the air intake area at the base of the windshield.

• Do not place objects over the defroster outlets. These objects can block airflow and reduce your ability to see through your windshield. Avoid placing small objects on top of the instrument panel. These objects may fall down into the defroster outlets and block airflow, in addition to damaging the climate control system.

Do not place objects on top of the instrument panel, as these objects may become projectiles in a collision or sudden stop.

Controls and features

Manual heating and air conditioning system (if equipped)

• Manual heating and air conditioning system without rear controls (if equipped)

MAX

A/C

• Manual heating and air conditioning system with rear controls (if equipped)

FRONT

REAR

OFF

REAR CTL

Fan speed control

Controls the volume of air circulated in the vehicle.

MAX

A/C

Temperature control

Controls and features

MAX

A/C

OFF

FRONT

REAR

REAR CTL

Controls the temperature of the airflow for the front part of the passenger compartment.

MAX

A/C

OFF

FRONT

REAR

REAR CTL

With the rear fan switch on the main control set to any fan speed (except OFF), the rear temperature control:

• regulates the temperature of the airflow for the rear passenger compartment.

• determines the air distribution to the rear registers.

The rear climate control distributes air in the following manner:

• Cool air is delivered from the overhead registers.

• Warm air is delivered from the lower (floor) register.

• Mid-temperature range air is delivered from both the overhead and

floor registers.

Controls and features

Mode selector control

The mode selector control allows you to adjust the direction of the airflow to the front part of the passenger compartment.

The air conditioning can operate in all modes. However, the air conditioning will only function if the outside temperature is about 6°C (43°F) or higher.

Since the air conditioner removes considerable moisture from the air during operation, it is normal if clear water drips on the ground under the air conditioner drain while the system is working and even after you have stopped the vehicle.

• MAX A/C-Uses recirculated air to cool the vehicle. MAX A/C is noisier than

A/C

, but more economical and will cool the inside of the vehicle faster. In this mode, the air conditioning will automatically engage if the outside temperature is about 6°C (43°F) or higher. However, the indicator will not light unless

A/C

is selected. If selected before using MAX A/C, the indicator light will remain lit. Airflow will be from the instrument panel registers. This mode can also be used to prevent undesirable odors from entering the vehicle.

•

(Panel)-Distributes outside air through the instrument panel registers. Heating and air conditioning capabilities are provided in this mode. Push

A/C

to cool the vehicle below the outside temperature.

• OFF-Outside air is shut out and the fan will not operate. For short periods of time only, use this mode to prevent undesirable odors from entering the vehicle.

• (Panel and floor)-Distributes outside air through the instrument panel registers and the floor ducts. Heating and air conditioning capabilities are provided in this mode. Push below the outside temperature. For added customer comfort, when the temperature control knob is anywhere in between the full hot and full cold positions, the air distributed through the floor ducts will be slightly warmer than the air sent to the instrument panel registers.

•

(Floor)-Allows for maximum heating by distributing outside air through the floor ducts. Heating and air conditioning capabilities are provided in this mode. Push

A/C

to cool the vehicle below the outside

temperature.

MAX

A/C

was previously

A/C

to cool the vehicle

Controls and features

•

(Floor and defrost)-Distributes outside air through the windshield defroster ducts and the floor ducts. Heating and air conditioning capabilities are provided in this mode. In this mode, the air conditioning will automatically engage if the outside temperature is about 6°C (43°F) or higher. However, the indicator will not light unless

A/C

was previously selected before using Floor/Defrost, the indicator

A/C

is selected.

light will remain lit. For added customer comfort, when the temperature control knob is anywhere in between the full hot and full cold positions, the air distributed through the floor ducts will be slightly warmer than the air sent to the windshield defrost ducts.

• (Defrost)-Distributes outside air through the windshield defroster ducts. It can be used to clear ice or fog from the windshield. If the temperature is about 6°C (43°F) or higher, the air conditioner will automatically dehumidify the air to reduce fogging. However, the indicator will not light unless

A/C

is selected.

Cooling your vehicle with outside air

Cooling your vehicle with air conditioned outside air is quieter but less economical than using recirculated air. It also has less cooling capacity.

In order to cool your vehicle using outside air:

1. Turn the mode selector to

A/C

2. Press

. The indicator light next to the

, or .

A/C

control will illuminate.

3. Slide the temperature control knob to the left.

4. Turn the fan speed control to the position of your choice.

During periods of high humidity, vapor may be emitted from the air outlets when using the A/C system with outside air. This can be corrected by using MAX A/C to cool the vehicle.

Operating tips

• In humid weather conditions, place the climate control system in before driving. This will reduce fogging on your windshield. Once the windshield has been cleared, operate the climate control system as desired.

• To reduce humidity buildup inside the vehicle in cold weather conditions, do not drive with the climate control system in the OFF or MAX A/C position.

• To reduce humidity buildup inside the vehicle in warm weather conditions, do not drive with the climate control system in the OFF position.

Controls and features

• Under normal weather conditions, your vehicle’s climate control system should be left in any position other than MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” through the outside air inlet duct.

• If your vehicle has been parked with the windows closed during warm weather conditions, the air conditioner will perform more efficiently in cooling the vehicle if driven for two or three minutes with the windows open. This will force most of the hot, stale air out of the vehicle. Once the vehicle has been “aired out”, operate the climate control system as desired.

• Do not place objects under the front seat that will interfere with the airflow to the rear seats.

• Remove any snow, ice or leaves from the air intake area at the base of the windshield.

To aid in side window defogging/demisting in cold weather conditions:

1. Select

2. Set the temperature control to full heat

3. Set the fan speed to High

4. Direct the outer panel vents towards the side windows

To increase airflow to the outer panel vents, close the central panel vents.

Controls and features

Do not place objects on top of the instrument panel, as these objects may become projectiles in a collision or sudden stop.

Rear passenger compartment climate control system (if equipped)

This system allows the rear seat occupants to adjust their climate comfort level.

The rear seat climate control system is controlled from the main climate control system on the instrument panel:

MAX

A/C

OFF

FRONT

REAR

REAR CTL

• If the main climate control system on the instrument panel is set to OFF, the rear climate control system will also be off.

• If the rear passenger compartment climate control lever is set to OFF, the rear climate controls will be off.

• If the rear fan control on the main climate control system is set in any of the fan speed positions, air will be distributed from the rear seat registers at the corresponding speed.

• If the rear fan control on the main climate control system is set to REAR CTL, rear seat passengers can control their own fan speed and temperature and upper or lower air distribution.

Controls and features

The rear climate system fan speed control allows rear passengers to control the volume of air that is distributed from the rear registers.

The temperature/mode selection control allows rear passengers to select the temperature, as well as whether the air is distributed from the overhead registers or the floor register, or a mix between the two.

The temperature/mode selection control allows you to select any temperature setting for your desired comfort level and gives you three choices for air distribution:

It is important to note that whenever the temperature/mode selection control is set to a specific temperature setting, the system automatically determines the air distribution location:

• Cool temperature range settings allow the air to be distributed through the overhead registers.

• Mild (mid temperature range settings) allow the air to be distributed through both the overhead registers and the floor register.

• Warm temperature range settings allow the air to be distributed through the floor register.

REAR WINDOW DEFROSTER (IF EQUIPPED)

The rear defroster control is located on the instrument panel.

Press the defroster control to clear the rear window of thin ice and fog.

• The small LED will illuminate when the defroster is activated.

The engine must be running to operate the rear window defroster.

Controls and features

The defroster turns off automatically after 10 minutes or when the ignition is turned to the OFF position. To manually turn off the defroster before 10 minutes have passed, push the control again.

USING YOUR AUDIO SYSTEM AM/FM Stereo

VOL

PUSH

TONE

CLK

AM / FM STEREO

1 2 3 4 AM/FM

Your vehicle is equipped with a delayed accessory feature. This feature enables the audio playing media to continue playing up to 10 minutes after the ignition has been turned off, or until a door is opened.

Volume/power control

Press the control to turn the audio system on or off.

TONE VOL

ST DX

SEEK TUNE

VOL

PUSH

Controls and features

Turn the control to raise or lower volume.

VOL

PUSH

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

AM/FM select

The AM/FM select control works in radio mode.

AM/FM

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.

Tune adjust

The tune control works in radio mode.

Tune adjust in radio mode

• Press to move to the next frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

• Press

to move to the next frequency up the band (whether or not

a listenable station is located there). Hold for quick movement.

Seek function

The seek function control works in radio mode.

Seek function in radio mode

• Press to find the next listenable station down the frequency band.

• Press

to find the next

listenable station up the frequency band.

SEEK TUNE

SEEK

TUNE

Controls and features

Radio station memory preset

The radio is equipped with four station memory preset controls. These controls can be used to select up to four preset AM stations and eight FM stations (four in FM1 and four in FM2).

Setting memory preset stations

1. Select the frequency band with the AM/FM select control.

2. Select a station. Refer to Tune adjust or Seek function for more

information on selecting a station.

3. Press and hold a memory preset control until the sound returns,

indicating the station is held in memory on the control you selected.

1 2 3 4

Bass adjust

The bass adjust control allows you to increase or decrease the audio system’s bass output.

Press the TONE control once, then use the volume knob to adjust the desired level.

Treble adjust

The treble adjust control allows you to increase or decrease the audio system’s treble output.

Press the TONE control twice, then use the volume knob to adjust the desired level.

Speaker balance adjust

Speaker sound distribution can be adjusted between the right and left speakers.

Press the TONE control three times, then use the volume knob to adjust the desired level.

TONE

CLK

TONE

CLK

TONE

CLK

VOL

PUSH

VOL

PUSH

VOL

PUSH

Controls and features

Speaker fade adjust (if equipped)

Speaker sound can be adjusted between the front and rear speakers.

Press the TONE control four times, then use the volume knob to adjust the desired level.

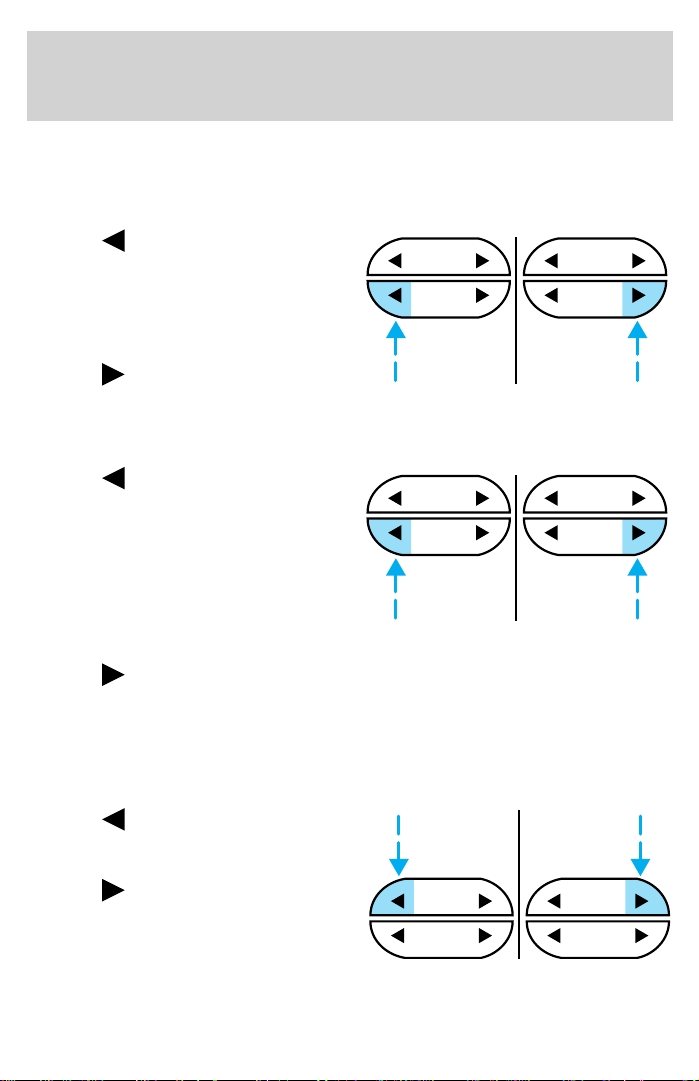

Setting the clock

Press CLK to toggle between listening frequencies and clock mode.

To set the hour, press and hold the CLK control until CLOCK SET appears in the display and press the SEEK control:

TONE

CLK

TONE

CLK

VOL

PUSH

•

to decrease hours and to increase hours.

To set the minute, press and hold the CLK control until CLOCK SET appears in the display and press the TUNE control:

•

to decrease minutes and to increase minutes.

The CLK control will allow you to switch between media display mode (radio station, stereo information, etc.) and clock display mode (time). When in clock mode, the media

SEEK SEEK

TUNE TUNE

TONE

CLK

SEEK

TUNE

SEEK

TUNE

Controls and features

information will display for ten seconds, when the radio is turned on, and then revert to clock information. Anytime that the media is changed, (new radio station, etc.), the media information will again display for ten seconds before reverting back to the clock. In media mode, the media information will always be displayed.

AM/FM Stereo/Cassette (CD changer compatible)

VOL - PUSH ON

BASS TREB BAL FADE

CLK

TAPE

AMS

SEEK

TUNE

DISCS

SCAN

SIDE

REW

SHUFFLECOMPCD

1 - 2

321456

Volume/power control

Press the control to turn the audio system on or off.

VOL - PUSH ON

Controls and features

Turn the control to raise or lower volume.

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

VOL - PUSH ON

AM/FM select

The AM/FM select control works in radio, tape and CD changer modes (if equipped).

AM FM

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.

AM/FM select in tape mode

Press this control to stop tape play and begin radio play.

AM/FM select in CD changer mode (if equipped)

Press this control to stop CD play and begin radio play.

Tune adjust

The tune control works in radio and CD changer modes (if equipped).

Tune adjust in radio mode

• Press to move to the next frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

SEEK

TUNE

DISCS

Controls and features

• Press to move to the next frequency up the band (whether or not a listenable station is located there). Hold for quick movement.

Tune adjust for CD changer (if equipped)

• Press to select the previous disc in the CD changer. (Play will begin on the first track of the disc unless the CD changer is in shuffle mode. Refer to Shuffle feature for more information. Hold the control to continue reversing through the disc.

• Press

to select the next disc in the CD changer. Hold the control

to fast-forward through the remaining discs.

Seek function

The seek function control works in radio or CD changer mode.

Seek function in radio mode

• Press to find the next listenable station down the frequency band.

• Press

to find the next listenable station up the frequency band.

Seek function for CD changer (if equipped)

• Press to seek to the previous track of the current disc. If a selection has been playing for three seconds or more and you press

, the CD changer will

replay that selection from the beginning.

• Press to seek forward to the next track of the current disc. After the last track has been completed, the first track of the current disc will automatically replay.

Scan function

The scan function works in radio or CD changer mode (if equipped).

SEEK

TUNE

DISCS

SEEK

TUNE

DISCS

SEEK

TUNE

DISCS

SCAN

Controls and features

Scan function in radio mode

Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the SCAN control again to stop the scan mode.

Scan function in CD changer mode (if equipped)

Press the SCAN control to hear a brief sampling of all selections on the CD. (The CD scans in a forward direction, wrapping back to the first track at the end of the CD.) To stop on a particular selection, press the SCAN control again.

Radio station memory preset

The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations ( six in FM1 and six in FM2).

Setting memory preset stations

1. Select the frequency band with the AM/FM select control.

2. Select a station. Refer to Tune adjust or Seek function for more

information on selecting a station.

3. Press and hold a memory preset control until the sound returns,

indicating the station is held in memory on the control you selected.

SHUFFLECOMPCDCD

321456

Bass adjust

The bass adjust control allows you to increase or decrease the audio system’s bass output.

BASS

Treble adjust

The treble adjust control allows you to increase or decrease the audio system’s treble output.

Speaker balance adjust

Speaker sound distribution can be adjusted between the right and left speakers.

Speaker fade adjust

Speaker sound can be adjusted between the front and rear speakers.

Controls and features

TREB

BAL

FADE

Tape select

• To enter tape mode while in radio or CD changer mode, press the TAPE control.

• If no tape is found, NO TAPE appears in the display.

CLK

TAPE

AMS

Controls and features

Automatic Music Search

The Automatic Music Search feature allows you to quickly locate the beginning of the tape selection being played or to skip to the next selection.

To activate the feature, momentarily depress the TAPE AMS button. Then, press either REW (for the beginning of the current selection) or FF (to advance to the next selection). The tape deck stops and returns to play mode when the AMS circuit senses a blank section on the tape.

In order to ensure proper operation of the AMS feature, the tape MUST have a blank section of at least four seconds duration between programs.

CD changer select (if equipped)

• To enter CD changer mode while in radio or tape mode, press the CD control.

CLK

TAPE

AMS

AM FM

Rewind

The rewind control works in tape and CD changer (if equipped) modes. To rewind in tape mode, press the

SIDE/REW control.

SIDE

1 - 2

REW FF

Press the 1–2/FF control to stop rewinding the tape.

To rewind in CD changer mode, press the CD control (preset 1).

Press the control again to deactivate rewind mode.

SIDE

1 - 2

REW FF

Controls and features

Fast forward

The fast forward control works in tape and CD changer modes. To fast forward in tape mode, press

the 1–2/FF control. Tape direction will automatically

reverse when the end of the tape is reached.

Press the SIDE/REW control to stop the fast forward of the tape.

SIDE

1 - 2

REW FF

SIDE

1 - 2

REW FF

To fast forward in CD changer mode, press the CD control (preset 2).

Press the control again to deactivate fast forward mode.

Compression feature (if equipped)

Compression adjust brings soft and loud CD passages together for a more consistent listening level.

Press the COMP control to activate and deactivate compression adjust.

Shuffle feature (if equipped)

The shuffle feature operates in CD changer mode and plays all tracks on the current disc in random order. The shuffle feature continues to the next disc after all tracks are played.

Press the SHUFFLE control to start this feature. Random order play will continue until the SHUFFLE control is pressed again.

Tape direction select

Press SIDE and 1–2 at the same time to play the alternate side of a tape.

COMP

SHUFFLE

SIDE

1 - 2

REW FF

Controls and features

Eject function

Press the control to stop and eject a tape.

DolbyTnoise reduction

Dolbyt noise reduction operates only in tape mode. Dolbyt noise reduction reduces the amount of hiss and static during tape playback.

Press the control to activate (and deactivate) Dolbyt noise reduction. Dolbyt noise reduction is manufactured under license from Dolbyt

Laboratories Licensing Corporation. “Dolbyt” and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

Setting the clock

Press CLK to toggle between listening frequencies and clock mode while in radio mode.

To set the hour, press and hold the CLK control and press the SEEK control:

CLK

TAPE

AMS

•

To set the minute, press and hold the CLK control and press the TUNE control:

to decrease hours and to increase hours.

SEEK

TUNE

DISCS

CLK

TAPE

AMS

Controls and features

• to decrease minutes and

•

to increase minutes.

SEEK

TUNE

DISCS

The CLK control will allow you to switch between media display mode (radio station, stereo information, etc.) and clock display mode (time). When in clock mode, the media information will display for 10 seconds, when the radio is turned on, and then revert to clock information. Anytime that the media is changed, (new radio station, etc.), the media information will again display for 10 seconds before reverting back to the clock. In media mode, the media information will always be displayed.

Premium AM/FM Stereo/Cassette/Single CD (CD changer compatible)

VOL PUSH ON

AM FM

SEEK TUNE

FM 1 AMC

BL RF

DOLBY B NR

SCAN

BASS TREB SEL BAL

DISC

TAPE

EJ CD

FADE

MUTE

AUTO

CLK

REW FF

SIDE 1-2 COMP SHUFFLE

123456

Controls and features

Volume/power control

Press the control to turn the audio system on or off.

Audio power can also be turned on by pressing the AM/FM select control or the tape/CD select control. Audio power is turned off by using the volume/power control.

VOL

PUSH ON

Turn control to raise or lower volume.

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

AM/FM select

The AM/FM select control works in radio, tape and CD modes.

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.

AM/FM select in tape mode

Press this control to stop tape play and begin radio play.

AM/FM select in CD or CD changer mode (if equipped)

Press this control to stop CD play and begin radio play.

VOL

PUSH ON

AM FM

Controls and features

Tune adjust

The tune control works in radio or CD changer mode.

Tune adjust in radio mode

• Press to move to the next frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

• Press

to move to the next frequency up the band (whether or not a listenable station is located there). Hold for quick movement.

Tune adjust for CD changer (if equipped)

• Press

to select the next disc in the CD changer. Hold the control

to fast-forward through the remaining discs.

Seek function

The seek function control works in radio, tape or CD mode.

Seek function in radio mode

• Press to find the next listenable station down the frequency band.

• Press

to find the next listenable station up the frequency band.

SEEK

TUNE

SEEK

TUNE

SEEK SEEK

TUNE TUNE

SEEK

TUNE

SEEK

TUNE

Controls and features

Seek function in tape mode

• Press to listen to the previous selection on the tape.

• Press

Seek function for CD or CD changer (if equipped)

• Press to seek to the previous track of the current disc. If a selection has been playing for three seconds or more and you press replay that selection from the beginning.

• Press next track of the current disc. After the last track has been completed, the first track of the current disc will automatically replay.

Scan function

The scan function works in radio, tape or CD mode.

Scan function in radio mode

Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the control again to stop the scan mode.

Scan function in tape mode

Press the SCAN control to hear a short sampling of all selections on the tape. (The tape scans in a forward direction. At the end of the tape’s first side, direction automatically reverses to the opposite side of the tape.) To stop on a particular selection, press the control again.

Scan function in CD or CD changer mode (if equipped)

Press the SCAN control to hear a short sampling of all selections on the CD. (The CD scans in a forward direction, wrapping back to the first track at the end of the CD.) To stop on a particular selection, press the control again.

Radio station memory preset

The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).

to listen to the next selection on the tape.

, the CD changer will

SEEK SEEK

TUNE TUNE

to seek forward to the

SCAN

Controls and features

Setting memory preset stations

AM FM

1. Select the frequency band with the AM/FM select control.

2. Select a station. Refer to Tune adjust or Seek function for more

information on selecting a station.

REW FF SIDE 1-2 COMP SHUFFLE

123456

3. Press and hold a memory preset control until the sound returns,

indicating the station is held in memory on the control you selected.

Autoset memory preset

Autoset allows you to set strong radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations.

Starting autoset memory preset

1. Select a frequency using the AM/FM select controls.

2. Press the AUTO control.

3. When the first six strong stations

are filled, the station stored in memory preset control 1 will start playing.

If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available.

These stations are temporarily stored in the memory preset controls (until deactivated) and are accessed in the same manner of your original presets.

To deactivate autoset and return to your audio system’s manually set memory stations, press the AUTO control again.

AUTO

CLK

Controls and features

Bass adjust

The bass adjust control allows you to increase or decrease the audio system’s bass output.

Press the BASS control then press:

• to decrease the bass output and

• to increase the bass output.

Treble adjust

The treble adjust control allows you to increase or decrease the audio system’s treble output.

Press the TREB control then press:

• to decrease the treble output and

• to increase the treble output.

Speaker balance adjust

Speaker sound distribution can be adjusted between the right and left speakers.

Press the BAL control then press:

•

to shift sound to the left and to shift sound to the right.

BASS TREB

SEL

BASS TREB

SEL

BAL FADE

SEL

Speaker fade adjust

Speaker sound can be adjusted between the front and rear speakers.

BAL FADE

Controls and features

Press the FADE control then press:

•

• to shift the sound to the rear.

to shift the sound to the

front and

SEL

Tape/CD select

• To begin tape play (with a tape loaded into the audio system) while in the radio or CD mode, press the TAPE control. Press the button during rewind or fast forward to stop the rewind or fast forward function.

• To begin CD play (if CD(s) are loaded), press the CD control. The first track of the disc will begin playing. If returning from radio or tape mode, CD play will begin where it stopped last.

With the dual media audio system, press the CD control to toggle between single CD and CD changer play (if equipped).

Do not insert any promotional (odd shaped or sized) discs, or discs with removable labels into the CD player as jamming may occur.

TAPE CD

Rewind

The rewind control works in tape and CD modes.

• In tape mode, radio play will continue until rewind is stopped (with the TAPE control) or the beginning of the tape is reached.

• In CD mode, pressing the REW control rewinds the CD within the current track.

REW

Fast forward

The fast forward control works in tape and CD modes.

Controls and features

• In the tape mode, tape direction will automatically reverse when the end of the tape is reached.

• In CD mode, pressing the control fast forwards the CD within the current track.

Tape direction select

Press SIDE 1–2 to play the alternate side of a tape.

SIDE 1-2

Eject function

Press the EJ control to stop and eject a tape.

Press the EJ control to stop and eject a CD.

DolbyTnoise reduction

Dolbyt noise reduction operates in tape mode. Dolbyt noise reduction reduces the amount of hiss and static during tape playback.

Press the reduction.

Dolbyt noise reduction is manufactured under license from Dolbyt Laboratories Licensing Corporation. “Dolbyt” and the double-D symbol Corporation.

Compression adjust

Compression adjust brings soft and loud CD passages together for a more consistent listening level.

Press the COMP control to activate and deactivate compression adjust.

control to activate (and deactivate) the Dolbyt noise

are trademarks of Dolbyt Laboratories Licensing

COMP

Controls and features

Shuffle feature

The shuffle feature operates in CD mode (if equipped) and plays all tracks on the current disc in random order. If equipped with the CD changer, the shuffle feature continues to the next disc after all tracks on the current disc are played.

Press the SHUFFLE control to start this feature. Random order play will continue until the SHUFFLE control is pressed again.

Setting the clock

To set the hour, press and hold the CLK control and press SEEK:

SHUFFLE

AUTO

CLK

•

To set the minute, press and hold the CLK control and press TUNE:

to decrease hours and to increase hours.

SEEK SEEK

TUNE TUNE

AUTO

CLK

Controls and features

• to decrease minutes and

•

to increase minutes.

If your vehicle has a separate clock

SEEK

TUNE

SEEK

TUNE

module, (other than the digital radio display), the CLK button will not function in the above manner.

The CLK button will allow you to switch between media display mode (radio station, stereo information,

AUTO

etc.) and clock display mode (time). When in clock mode, the media information will display for 10 seconds, when the radio is turned

CLK

on, and then revert to clock information. Anytime that the media is changed, (new radio station, etc.), the media information will again display for 10 seconds before reverting back to the clock. In media mode, the media information will always be displayed.

Mute mode

Press the control to mute the playing media. Press the control again to return to the playing media.

MUTE

Rear seat controls (if equipped)

The Rear Seat Controls (RSC) allow the rear seat passengers to operate the radio, tape, CD, or CD changer (if equipped).

VOLUME MEDIA

MEM

SEEK

Controls and features

REW FF SIDE 1-2 COMP SHUFFLE

123456

To turn on the rear seat controls, press the memory preset controls 3 and 5 at the same time. The

Pressing 3 and 5 at the same time again will turn the rear seat controls off. If there is a discrepancy between the rear seat and the front audio

controls, (i.e, both trying to listen to the same playing media), the front audio system will receive the desired selection.

Adjusting the volume

Press the + control to increase volume.

Press the — control to decrease volume.

From the RSC controls, the speaker volume can not be set higher than the current volume radio setting. Once in headphone mode, the RSC volume controls will only change volume in the headphones to a desired level and will have no effect on the front speakers (muting the speakers will not mute the headphones).

Using headphones/Personal Audio System

The Personal Audio System allows the rear seat passengers to listen to one media source (radio, tape, CD, or CD changer if equipped) while the front seat passengers listen to another. However, front and rear seat passengers can not listen to two different radio stations simultaneously.

Plug a 3.5 mm headphone (not included) into either one of the two jacks. Press the / control to operate the headphones.

The rear speakers will cut out once the speaker on/off control is pressed. A soft audible sound may be heard from the rear speakers. The front speaker will remain playing for the front passengers. Press the control again to deactivate the headphones (Personal Audio System).

will appear in the radio display.

VOLUME MEDIA

MEM

SEEK

Controls and features

Media select

Push the MEDIA control to toggle between AM, FM1, FM2, tape, CD, or CD changer (if equipped).

Memory preset control

Push the MEM control successively to allow rear seat passengers to scroll through the six memory presets in AM, FM1, or FM2.

Push the MEM control in CD changer mode (if equipped) to advance to the next disc.

Seek function

• Press to find the next listenable station down the frequency band.

• Press

to find the next listenable station up the frequency band.

In tape mode, use the SEEK function to access the next previous

selection.

In CD or CD changer mode (if equipped), use the SEEK function to access the next or the previous selection.

VOLUME MEDIA

MEM

SEEK

Controls and features

Premium AM/FM Stereo In Dash Six CD Radio

SHUF COMP

SCAN

LOAD

PUSH ON

DISC

TUNE

SEEK REW FF

1 2 3 4 5 6

Volume/power control

Press the control to turn the audio system on or off.

PUSH ON

Turn the control to raise or lower volume.

MUTE

BALBASS

SEL

FADETREB

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

Controls and features

AM/FM select

The AM/FM select control works in radio and CD modes.

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.

AM/FM select in CD mode

Press this control to stop CD play and begin radio play.

Tune adjust

The tune control works in radio or CD mode.

Tune adjust in radio mode

• Press to move to the next frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

• Press

to move to the next frequency up the band (whether or not

a listenable station is located there). Hold for quick movement.

Tune adjust for CD mode

• Press to select the previous disc. (Play will begin on the first track of the disc unless shuffle mode is engaged.) Refer to Shuffle feature for more information. Hold the control to continue reversing through the discs.

• Press

to select the next disc. Hold the control to fast-forward

through the remaining discs.

Seek function

The seek function works in radio or CD mode.

AM FM

Controls and features

Seek function in radio mode

• Press to find the next listenable station down the frequency band. SEEK DOWN will display.

• Press SEEK UP will display.

Seek function in CD mode

• Press to seek to the previous track of the current disc. If the beginning of the disc is reached, the CD player seeks to the beginning of the last track on the current disc and begins playing.

• Press the last track has been completed, the first track of the current disc will automatically replay.

Scan function

The scan function works in radio or CD mode.

Scan function in radio mode

Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the SCAN control again to stop the scan mode.

Scan function in CD mode

Radio station memory preset

The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).

to find the next listenable station up the frequency band.

to seek forward to the next track of the current disc. After

Controls and features

Setting memory preset stations

1. Select the frequency band with the AM/FM select control. Press the

AM/FM control to toggle between AM, FM1, or FM2.

2. Press the SEEK control to access the next listenable station up or

down the frequency band. Press the TUNE control to go up or down the listening band in individual increments.

3. Select a station. Refer to Seek function for more information on

selecting a station.

4. Press and hold a memory preset control. The playing media will mute

momentarily. When the sound returns, the station is held in memory on the control you selected. The display will read SAVED.

Autostore

Autostore allows you to set the strongest local radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations.

Starting autostore

1. Press and momentarily hold the AM/FM control.

2. AUTOSET will flash in the display

as the frequency band is scrolled through.

3. When the six strongest stations

are filled, the station stored in memory preset control 1 will start playing.

If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available.

To deactivate autoset and return to your audio system’s manually set memory stations, press the AM/FM control again.

Controls and features

CD select

CD mode may be entered by pressing the CD control and the LOAD control. Load the CD into the audio system. The first track of the disc will begin playing. After that, CD play will begin where it stopped last.

If an alternative CD is desired, press the corresponding preset control (1–6) of a loaded CD, or press the TUNE control to access the other loaded CDs.

NO CD will display if the CD control is activated when there is not a CD present in the audio system.

NO CD will illuminate in the display if the CD control and a present number (that is currently empty) are pressed. The system will play the next available disc.

If your vehicle is equipped with a CD changer, pressing the CD control again will allow you to toggle between accessing the multi disc system and the CD changer. The display will read CD or CDDJ.

Do not insert any promotional (odd shaped or sized) discs, or discs with removable labels into the CD player as jamming may occur.

Display description

Six circles are always lit in the digital display. These signify the six CD slots in the audio system. When a disc is loaded into a particular slot (1–6), the number inside that specific circle lights. If the circle is empty, there is no CD in that particular slot.

Load

The load feature allows you to load single CDs into the player internal to the radio.

This six disc CD player is equipped with a CD door. Compact discs should only be inserted into the player after the door has been opened by the player. Do not attempt to force the door open. Compact discs should only be loaded by pressing the LOAD control.

Press the LOAD control. (You can choose which slot will be loaded by pressing the desired preset number. If you do not choose a slot, the system will choose the next available one.) Wait until the CD door opens.

Controls and features

Load the CD into the player. LOADING CD# is displayed. When the CD has been loaded, the door will close and the CD will begin to play. For example, to load a CD into slot #2, press the LOAD control and then press preset #2.

Auto load

This feature allows you to autoload up to 6 discs into the multi disc CD player internal to the radio.

Press and hold the LOAD control until AUTOLOAD # is displayed. The CD door will open. Load the desired disc, one at a time. The CD is loaded into position and the audio system will display CD#. Each time the CD door opens, INSERT CD# is displayed. The door will close and the player will move to the next slot after each disc has been loaded. The process is repeated until all 6 slots are full. The audio system plays the last CD loaded and the display is updated. If some slots are already full and autoload is activated, the system will fill all empty slots.

Eject

Press the EJ control to stop and eject a CD. You can choose which CD will be ejected by pressing the EJ control and the desired preset number (1–6). For example, to eject CD#2, press the EJ control and then press the preset #2 control. If you do not choose a specific CD, the player will eject the current CD.

If a CD is ejected and not removed from the door of the CD player, the player will automatically reload the CD. This feature may be used when the ignition is ON or OFF.

Auto eject

Press and momentarily hold the EJ control to engage auto eject. All CDs which are present in the player will be ejected one at a time. If a CD is ejected and not removed from the door of the CD player, the player will automatically reload the CD. This feature may be used when the ignition is ON or OFF.

Controls and features

Rewind

The rewind control works in CD modes.

Press and hold the REW control until the desired selection is reached. If the beginning of the disc is reached, the CD will begin play at the first track. Release the control to disengage rewind mode.

When in rewind mode, your audio system will automatically lower the volume level of the playing media.

Fast forward

The fast forward control works in CD modes.

Press and hold the FF control until the desired selection is reached. If the end of the disc is reached, the CD will return to the first track on the first disc. Release the control to disengage fast forward mode.

When in fast forward mode, your audio system will automatically lower the volume level of the playing media.

Shuffle feature

Press the SHUF control until the desired shuffle mode is displayed. The audio system will then engage the desired shuffle mode.

When engaged, the shuffle feature has two different modes: SHUFFLE DISC and SHUFFLE TRK.

SHUFFLE DISC randomly plays tracks from all the discs presently in the audio system.

SHUFFLE TRK plays all the tracks on the current disc in random order.

Compression feature

The compression feature operates in CD mode and brings soft and loud CD passages together for a more consistent listening level.

Press the COMP control until COMP ON is displayed.

Controls and features

Bass adjust

The bass adjust control allows you to increase or decrease the audio system’s bass output.

Press the BASS control. Use the SEL control to increase or decrease the amount of bass.

Treble adjust

The treble adjust control allows you to increase or decrease the audio system’s treble output.

Press the TREB control. Use the SEL control to increase or decrease the amount of treble.

Speaker balance adjust

Speaker sound distribution can be adjusted between the right and left speakers.

Press the BAL control. Use the SEL control to adjust the sound between the speakers.

Speaker fade adjust

Speaker sound can be adjusted between the front and rear speakers.

Press the FADE control. Use the SEL control to adjust the sound between the front and rear speakers.

Menu mode

The MENU control allows you to access many different features within your audio system. There are three sets of menus available depending upon which mode or feature is activated.

While in FM mode, two menus are available. If RDS is turned off, you can access the following:

BASS

TREB

BASS

TREB

BAL

FADE

BAL

FADE

SEL

Controls and features

• SELECT HOURS — Refer to Setting the clock.

• SELECT MINUTES — Refer to Setting the clock.

• RDS OFF — Refer to Radio data system.

If RDS is turned on, you can access the following:

• TRAFFIC ON/OFF-Refer to Traffic announcements.

• FIND type-Refer to Radio data system.

• SHOW (NAME, TYPE, NONE)-Refer to Radio data system.

• RDS ON— Refer to Radio data system.

• SELECT HOURS — Refer to Setting the clock.

• SELECT MINUTES —Refer to Setting the clock.

When in CD mode, you can access: SELECT HOURS, SELECT MINUTES or COMP ON/OFF.

SELECT HOURS, SELECT MINUTES— Allows you to adjust the hours and minutes. Refer to Setting the clock.

TRAFFIC ON/OFF— Traffic announcements can be programmed as local or distant. Refer to Traffic announcements.

RDS ON/OFF— This feature allows your audio system to receive text information from RDS-equipped FM radio stations. Refer to.RDS feature.

FIND type — Allows you to select your desired FM program type and search for that selection.

SHOW — Allows you to select from NAME (displays the name of the radio station), TYPE (displays the RDS program type: rock, jazz, etc.), or NONE (deactivates the RDS display).

Radio data system (RDS) feature

This feature allows your audio system to receive text information from RDS-equipped FM radio stations.

To activate RDS:

• When in FM mode, press the MENU control until RDS OFF displays.

• Press the SEL control to engage this feature (RDS ON).

SEL

Controls and features

RDS features:

Once the RDS feature is on, press the MENU control to scroll through the following selections:

Traffic announcements

This feature allows you to hear traffic announcements while in CD mode. These announcements are broadcast by traffic capable RDS stations.

When in this mode, traffic announcements will interrupt radio and CD play.

• Press the MENU control until TRAFFIC is displayed.

• Press the SEL control to engage the feature. The display will read

TRAFFIC ON.

This feature also allows you to control the volume of traffic announcements. With the display reading TRAFFIC ON, adjust the volume using the volume control to the desired level. The volume level will show at the bottom of the display. Interrupting traffic announcements will be at the selected volume level.

To disengage the feature, press the MENU control until TRAFFIC ON displays. Press the SEL control. The display will read TRAFFIC OFF.

Traffic announcements not available in most U.S. markets.

Program type

This feature allows you to search for RDS stations selectively by their program type.

Press the MENU control until FIND program type is displayed.

Use the SEL control to select the program type. With the feature on, use the SEEK or SCAN control to find the desired program type from the following selections:

• Classic

• Country

• Info

• Jazz

• Oldies

• R&B

SEL

Controls and features

• Religious

• Rock

• Soft

• Top 40

Show

This feature allows you to select the type of RDS broadcast information the radio will regularly show in the display.

With RDS activated, press the MENU control until SHOW is displayed.

Use the SEL control to select TYPE (displays the RDS program type: rock, jazz, etc), NAME (displays the name of the radio station) or NONE (deactivates the RDS display).

Mute mode

Press the control to mute the playing media. Press the control again to return to the playing media.

SEL

Setting the clock

Press the MENU control until SELECT HOUR or SELECT MINUTE is displayed.

Use the SEL control to manually set the time.

• Press

to increase hours/

minutes.

• Press to decrease hours/ minutes.

SEL

Controls and features

Cleaning compact discs

Inspect all discs for contamination before playing. If necessary, clean discs only with an approved CD cleaner and wipe from the center out to the edge. Do not use circular motion.

CD and CD changer care

• Handle discs by their edges only. Never touch the playing surface.

• Do not expose discs to direct sunlight or heat sources for extended

periods of time.

• Do not insert more than one disc into each slot of the CD changer magazine.

Do not insert any promotional (odd shaped or sized) discs, or discs with removable labels into the CD player as jamming may occur.

Cleaning cassette player (if equipped)

Clean the tape player head with a cassette cleaning cartridge after 10 to 12 hours of play in order to maintain the best sound and operation.

Cassette and cassette player care

• Use only cassettes that are 90 minutes long or less.

• Do not expose tapes to direct sunlight, high humidity, extreme heat or

extreme cold. Allow tapes that may have been exposed to extreme temperatures to reach a moderate temperature before playing.

• Tighten very loose tapes by inserting a finger or pencil into the hole and turning the hub.

• Remove loose labels before inserting tapes.

• Do not leave tapes in the cassette player for a long time when not

being played.

Radio frequency information

The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission(CRTC) establish the frequencies AM and FM stations may use for their broadcasts. Allowable frequencies are:

AM 530, 540–1600, 1610 kHz FM 87.7, 87.9–107.7, 107.9 MHz Not all frequencies are used in a given area.

Controls and features

Radio reception factors

Three factors can affect radio reception:

• Distance/strength. The further an FM signal travels, the weaker it is. The listenable range of the average FM station is approximately 40 km (24 miles). This range can be affected by “signal modulation.” Signal modulation is a process radio stations use to increase their strength/volume relative to other stations.

• Terrain. Hills, mountains and tall buildings between your vehicle’s antenna and the radio station signal can cause FM reception problems. Static can be caused on AM stations by power lines, electric fences, traffic lights and thunderstorms. Moving away from an interfering structure (out of its “shadow”) returns your reception to normal.

• Station overload. Weak signals are sometimes captured by stronger signals when you pass a broadcast tower. A stronger signal may temporarily overtake a weaker signal and play while the weak station frequency is displayed.

The audio system automatically switches to single channel reception if it will improve the reception of a station normally received in stereo.

Audio system warranties and service

Refer to the “Warranty Guide” for audio system warranty information. If service is necessary, see your dealer or a qualified technician.

LOW TIRE WARNING (IF EQUIPPED)

Refer to the Tire section of the Maintenance and Care chapter for

more information.

Tire

Reset

REVERSE SENSING SYSTEM (IF EQUIPPED)

The reverse sensing system (RSS) sounds a tone to warn the driver of obstacles near the rear bumper when the reverse gear is selected.

Controls and features

To help avoid personal injury, please read and understand the

limitations on the reverse sensing system described below. Reverse sensing is only an assist for some (generally large and fixed) objects when moving in reverse on a flat surface at “parking speeds” of approximately 6 km/h (4 mph) or less. The weather may also affect the function of RSS. RSS may have reduced performance, or be activated in inclement weather. It is the driver’s responsibility for ensuring that their path is clear when operating the vehicle.

To help avoid personal injury, always use caution when in

reverse and when using the reverse sensing system.

This system is not designed to prevent contact with small or

moving objects. The system is designed to provide a warning to assist the driver in detecting large stationary objects to avoid damaging the vehicle. The system may not detect smaller objects, particularly those close to the ground.

The RSS will assist the driver in detecting certain objects while the vehicle slowly moves in reverse at speeds less than 6 km/h (4 mph). The RSS is not effective at speeds greater than 6 km/h (4 mph) and may not detect certain angular or moving objects.

The reverse sensing system detects obstacles within approximately 1.8 meters (5.9 ft.) of the rear bumper with a decreased coverage area at the outer corners of the bumper, (refer to the figures for approximate zone coverage areas). As you move closer to the obstacle, the rate of the tone increases. When the distance to the obstacle is less than

25.0 cm (10 in.), the tone will sound continuously. If the system detects a stationary or receding object further than 25.0 cm (10 in.) from the side of the vehicle, the tone will sound for only three seconds. Once the system detects an object approaching, the tone will sound again.

Controls and features

The reverse sensing system is automatically enabled when the gear selector is placed in R (Reverse) and the ignition is ON. A reverse sensing control allows the driver to disable the reverse sensing system only when the ignition is ON, and the gear selector is in R (Reverse).

The OFF indicator remains illuminated when the system is disabled. The system defaults to ON every time the reverse gear is selected. Press the control to disable or enable the system.

The indicator will remain illuminated to indicate a failure of the reverse sensing system.

Always keep the sensors (located on the rear bumper/fascia) free from dirt, snow and ice (do not clean the sensors with sharp objects). These elements may cause the system to operate inaccurately.

OFF

Controls and features

If the vehicle sustains damage to the rear bumper/fascia, leaving it misaligned or bent, the sensing zone may be altered causing inaccurate measurement of obstacles or false alarms.

POWER ADJUSTABLE FOOT PEDALS (IF EQUIPPED)

The accelerator and brake pedal should only be adjusted when the vehicle is stopped and the gearshift lever is in the P(Park) position.

Press and hold the rocker control to adjust accelerator and brake pedal.

• press the bottom of the control to adjust the pedals toward you

• press the top of the control to adjust the pedals away from you

The adjustment allows for approximately 76mm (3 inches) of maximum travel.

Never adjust the accelerator and brake pedal with feet on pedals or while the vehicle is moving.

TRACTION CONTROLY (IF EQUIPPED)

This control can be used to turn the Traction Controly on or off. Refer to the Traction Controly section of the Driving chapter for more information.

T/C

Controls and features

POSITIONS OF THE IGNITION

1. ACCESSORY, allows the electrical

accessories such as the radio to operate while the engine is not

running.

2. LOCK, locks the steering wheel,

automatic transmission gearshift lever and allows key removal.

3. OFF, shuts off the engine and all

accessories without locking the steering wheel.

4. ON, all electrical circuits operational. Warning lights illuminated. Key

position when driving.

5. START, cranks the engine. Release the key as soon as the engine

starts.

SPEED CONTROL (IF EQUIPPED)

If your vehicle is equipped with AdvanceTracy system, the speed control will automatically disengage when the road conditions change. When driving conditions permit you can return to speed control by pressing RES on the speed control. For more information on the AdvanceTracy system see AdvanceTracy Stability Enhancement System section in the Driving chapter.

To turn speed control on

• Press ON.

Vehicle speed cannot be controlled until the vehicle is traveling at or above 48 km/h (30 mph).

Do not use the speed control in heavy traffic or on roads that are winding, slippery, or unpaved.

Do not shift the gearshift lever into N (Neutral) with the speed control on.

OFF

Controls and features

To turn speed control off

• Press OFF or

• Turn off the vehicle ignition.

Once speed control is switched off, the previously programmed set speed will be erased.

To set a speed

• Press SET+. For speed control to operate, the speed control must be ON and the vehicle speed must be greater than 48 km/h (30 mph).

If you drive up or down a steep hill, your vehicle speed may vary momentarily slower or faster than the set speed. This is normal.

Speed control cannot reduce the vehicle speed if it increases above the set speed on a downhill. If your vehicle speed is faster than the set speed while driving on a downhill, you may want to shift to the next lower gear or apply the brakes to reduce your vehicle speed.

If your vehicle slows down more than 16 km/h (10 mph) below your set speed on an uphill, your speed control will disengage. This is normal. Pressing RES will re-engage it.

OFF

Do not use the speed control in heavy traffic or on roads that are winding, slippery, or unpaved.

To set a higher set speed

• Press and hold SET +. Release the control when the desired vehicle speed is reached or

• Press and release SET + to operate the Tap-Up function. Each press will increase the set speed by 1.6 km/h (1 mph) or

• Accelerate with your accelerator pedal. When the desired vehicle speed is reached, press and release SET +.

Controls and features

You can accelerate with the accelerator pedal at any time during speed control usage. Releasing the accelerator pedal will return your vehicle to the previously programmed set speed.

To set a lower set speed

• Press and hold CST −. Release the control when the desired speed is reached or

• Press and release CST − to operate the Tap-Down function. Each press will decrease the set speed by 1.6 km/h (1 mph) or

• Depress the brake pedal. When the desired vehicle speed is reached, press SET +.

To disengage speed control

• Depress the brake pedal.

Disengaging the speed control will not erase the previously programmed set speed.

Pressing OFF will erase the previously programmed set speed.

To return to a previously set speed

• Press RES. For RES to operate, the vehicle speed must be faster than 48 km/h (30 mph).

OFF

Controls and features

TURN SIGNAL CONTROL

• Push down to activate the left turn signal.

• Push up to activate the right turn signal.

WINDSHIELD WIPER/WASHER CONTROLS

Rotate the windshield wiper control to the desired interval, low or high speed position.

The bars of varying length are for intermittent wipers. When in this position rotate the control upward for fast intervals and downward for slow intervals.

Push (tap) the end of the stalk briefly for a single swipe (no wash). Push and hold for three swipes with wash. Push and hold for a longer wash (up to ten seconds).

Mist Function

To operate the Mist function of the windshield wipers, push and release the windshield washer control quickly. The wipers will cycle one or two times.

Controls and features

Rear window wiper/washer controls

For rear wiper operation, rotate the rear window wiper and washer control to the desired position. Select:

INT 2 — One second interval rear wiper.

INT1—Tensecond interval rear wiper. OFF — Rear wiper and washer off. For rear wash cycle, rotate (and hold as desired) the rear wiper/washer

control to either position. From either position, the control will automatically return to the INT2 or

OFF position.

OVERDRIVE CONTROL Activating overdrive

(Overdrive) is the normal drive position for the best fuel economy.

The overdrive function allows automatic upshifts and downshifts through all available gears.

Deactivating overdrive

Press the Transmission Control Switch (TCS) located on the end of the gearshift lever. The O/D OFF indicator light will illuminate on the instrument cluster.

The transaxle will operate in all gears except overdrive. To return to normal overdrive mode, press the Transmission Control Switch again. The O/D OFF indicator light will no longer be illuminated.

When you shut off and re-start your vehicle, the transaxle will automatically return to normal

(Overdrive) mode.

For additional information about the gearshift lever and the transmission control switch operation refer to the Automatic Transaxle Operation section of the Driving chapter.

O/D

ON/OFF

O/D

ON/OFF

Controls and features

TILT STEERING WHEEL (IF EQUIPPED)

Pull the tilt steering control toward you to move the steering wheel up or down. Hold the control while adjusting the wheel to the desired position, then release the control to lock the steering wheel in position.

Never adjust the steering wheel when the vehicle is moving.

HAZARD FLASHER

For information on the hazard flasher control, refer to Hazard flasher in the Roadside emergencies chapter.

Controls and features

POWER WINDOWS (IF EQUIPPED)

Press and hold the rocker switches to open and close windows.

• Press the top portion of the rocker switch to close.

AUTO

• Press the bottom portion of the rocker switch to open.

AUTO

One touch down

• Press AUTO completely down and release quickly. The driver’s window will open fully. Depress again to stop window operation.

One touch down can be deactivated during operation by pushing down on the top part of the driver power window control.

AUTO

Controls and features

Accessory delay

With accessory delay, the window switches may be used for up to ten minutes after the ignition switch is turned to the OFF position or until any door is opened.

Power vent windows (if equipped)

Your vehicle may be equipped with rear power vent windows which are operated the same as the front power windows.

POWER SIDE VIEW MIRRORS (IF EQUIPPED)

To adjust your mirrors:

1. Select

2. Move the control in the direction

you wish to tilt the mirror.

to adjust the left mirror or to adjust the right mirror.

3. Return to the center position to lock mirrors in place.

Controls and features

Heated outside mirrors (if equipped)

Both mirrors are heated automatically to remove ice, mist and fog when the rear window defrost is activated.

Do not remove ice from the mirrors with a scraper or attempt to readjust the mirror glass if it is frozen in place. These actions could cause damage to the glass and mirrors.

Signal mirrors (if equipped)

When the turn signal is activated, the appropriate mirror will show a blinking yellow arrow. When the park lamps are on, the blinking arrow will be dimmer.

The arrow provides an additional warning to other drivers that your vehicle is about to turn.

When the sliding door is open, the indicator in the appropriate mirror will flash indicating people may be entering/exiting the vehicle.

Fold-away mirrors

Pull the side mirrors in carefully when driving through a narrow space, like an automatic car wash.

Controls and features

POWER DOOR LOCKS (IF EQUIPPED)

Press control to unlock all doors.

Press control to lock all doors.

Memory lock

If you lock your doors with the power lock switch or the remote transmitter while the sliding door is open, the door will automatically lock after it is closed.

Smart locks

With the key in the ignition, in any switch position, and either the driver’s or passenger’s door open, the doors cannot be locked using the front door lock switches.

CHILDPROOF DOOR LOCKS

When these locks are set, the rear sliding doors cannot be opened from the inside. The doors can be opened from the outside when the doors are unlocked.

The childproof locks are located on front edge of each sliding door and must be set separately for each door. Setting the lock for one door will not automatically set the lock for both doors.

Move lock control up to engage the lock. Move control down to disengage childproof locks.

If your vehicle is equipped with Power Sliding Door(s), refer to the Power Sliding Door section of this chapter for more information on how the childproof locks operate with this system.

Controls and features

MEMORY SEATS/REARVIEW MIRRORS/ADJUSTABLE PEDALS (IF EQUIPPED)

This system allows automatic positioning of the driver seat, outside rearview mirrors, and adjustable pedals to two programmable positions.

The memory seat control is located on the driver door.

• To program position one, move the driver seat to the desired position using the seat controls. Press the SET control. The SET control indicator light will briefly illuminate. While the light is illuminated, press control 1.

• To program position two, repeat the previous procedure using control

A position can only be recalled when the transmission gearshift is in Park. A memory seat position may be programmed at any time.

The memory seat positions are also recalled when you press your remote entry transmitter UNLOCK control.

To program the memory seat to remote entry transmitter, refer to Remote entry system in the Controls and features chapter.

SET

AUTOMATIC DIMMING INSIDE REAR VIEW MIRROR (IF EQUIPPED)

Your vehicle is equipped with an inside rear view mirror which has an auto-dimming function. The electronic day/night mirror will change from the normal state to the non-glare state when bright lights (glare) reach the mirror. When the mirror detects bright light from front or behind, it will automatically adjust (darken) to minimize glare.

Do not block the sensor on the backside of the mirror since this may impair proper mirror performance.

Controls and features

Press the control to turn the mirror OFF or AUTO.

The mirror will automatically return to the normal state whenever the vehicle is placed in R (Reverse)(when the mirror is on) to ensure a bright clear view when backing up.

ILLUMINATED VISOR MIRROR (IF EQUIPPED)

To turn on the visor mirror lamps, lift the mirror cover.

HOMELINKT UNIVERSAL TRANSCEIVER WITH TRAVELNOTET (IF EQUIPPED)

The HomeLinkt Universal Transceiver, located on the driver’s visor, provides a convenient way to replace up to three hand-held transmitters with a single built-in device. This feature will learn the radio frequency codes of most current transmitters to operate garage doors, entry gates, security systems, entry door locks, and home or office lighting.

OFF AUTO

When programming your HomeLinkt Universal Transceiver, to a garage door or gate be sure that people and objects are out of

the way to prevent potential harm or damage.

Do not use the HomeLinkt Universal Transceiver with any garage door opener that lacks safety stop and reverse features as required by U.S. federal safety standards (this includes any garage door opener model manufactured before April 1, 1982). A garage door which cannot detect an object, signaling the door to stop and reverse, does not meet current U.S. federal safety standards. For more information on this matter, call toll-free: 1–800–355–3515 or on the Internet at HomeLink.jci.com.

Programming

Do not program the HomeLinkt Universal Transceiver with the vehicle parked in the garage.

Controls and features

1. Prepare for programming the

HomeLinkt Universal Transceiver by erasing the three factory default codes by holding down the two outside buttons until the red light begins to flash after 20 seconds. Release both buttons.

2. Hold the end of your hand-held

transmitter 5–14 cm (2–5 inches) away from the HomeLinkt Universal Transceiver surface (located on your visor) while keeping the red light in view.

3. Using both hands simultaneously

press and hold the hand-held transmitter button and the desired HomeLinkt button. Do not release the buttons until step 4 has been completed.

Some entry gates and garage door openers may require you to replace step 3 with the procedure in the “Canadian Programing” section.

4. The red light will flash slowly and then rapidly. Release both buttons

when the red light flashes rapidly.

5. Follow steps 2 through 4 to program the remaining two buttons.

If you do not successfully program the HomeLinkt Universal Transceiver after repeated attempts, refer to Rolling code programing which follows, or call toll-free customer assistance: 1–800–355–3515 or on the Internet at HomeLink.jci.com.

REC DEL PLAY

Canadian Programming

During programming, your hand-held transmitter may automatically stop transmitting after two seconds which may not be long enough to program the HomeLinkt Universal Transceiver.

Controls and features

To program your hand-held transmitters:

• continue to hold the button on the HomeLinkt Universal Transceiver.

• press and re-press the hand-held transmitter button every two seconds until the red light changes from a slow to a fast flash.

Operating the HomeLinkT Universal Transceiver

Once programmed, the HomeLinkt Universal Transceiver can be used in place of hand-held transmitters. To operate, simply press and release the appropriate HomeLinkt button (the red light will illuminate, indicating the signal is being transmitted).

Rolling code programming

Rolling code garage door openers (or other rolling code devices) which are “code protected” and manufactured after 1996, may be determined by the following:

• Reference the device owner’s manual for verification

• The hand-held transmitter appears to program the HomeLinkt

Universal Transceiver but does not activate the device.

• Press and hold the trained HomeLinkt button. The device has the rolling code feature if the indicator light flashes rapidly and then turns solid after two seconds.

After completing the “Programming” functions, follow these steps to train a garage door opener with the rolling code feature:

1. Locate the training button on the garage door motor head unit.

Refer to the garage door opener manual or call 1–800–355–3515 or on the Internet at HomeLink.jci.com. if there is difficulty locating the training button.

2. Press the training button on the garage door motor head unit (which

will activate the “training” light ).

REC DEL PLAY

Controls and features

3. Press and release the

programmed HomeLinkt button. Press and release the HomeLinkt button a second time to complete the training process. (Some garage door openers may require this procedure to be done a third time to complete the training).

The 2nd or 3rd press from step 3 will activate the door. The HomeLinkt Universal Transceiver has now been trained to the receiver. The remaining two buttons may now be programmed if this has not previously been done.

Erasing HomeLinkT buttons

Individual buttons cannot be erased, however, to erase the three programmed buttons:

1. Hold down the two outside

buttons until the red light begins to flash after 20 seconds.

2. Release both buttons.

Reprogramming a single HomeLinkTbutton

To program a device to HomeLinkt using a HomeLinkt button previously trained, follow these steps:

1. Press and hold the desired HomeLinkt button. Do NOT release until

step 4 has been completed.

2. When the indicator light begins to flash slowly (after 20 seconds),

position the hand-held transmitter 5–14 cm (2 to 5 inches) away from the HomeLinkt surface.

3. Press and hold the hand-held transmitter button.

4. The HomeLinkt indicator light will flash, first slowly and then rapidly.

When the indicator light begins to flash rapidly, release both buttons. The previous device has now been erased and the new device can be

activated by pushing the HomeLinkt button that has just been programmed.

REC DEL PLAY

Controls and features

Operating TravelNoteT

TravelNotet records and stores messages for up to three minutes in total length with simple controls. When you get an idea or remember something important while you’re driving, you don’t have to try to scribble it down or pull off the side of the road. All you have to do is push a button and begin speaking.

To record a message:

1. Press and release the REC

button one time to start recording. (An audible tone will sound, confirming the onset of recording).

2. Press and release the REC

button a second time to end recording. (An audible tone will sound again, confirming the end of recording and the red indicator light will turn off.)

3. While a message is being recorded, the indicator light will be a solid

red.

4. If the message exceeds the available memory space, two tones will

sound, the indicator light will flash amber and recording will end. The indicator light will flash amber and an “error” tone will sound if the

REC button is pressed when memory is full. To play a message:

1. Press and release the PLAY

button to play the message.

2. Press and hold the PLAY button

to hear all the messages in consecutive order starting with the most recent.

3. If the PLAY button is pressed while a message is being listened to,

TravelNote will skip to the beginning of the next message.

4. During all PLAY functions, the indicator light will be a solid green.

The indicator light will flash amber and an “error” tone will sound if the PLAY button is pressed but no message is currently in memory.

REC DEL PLAY

Controls and features

To delete a message:

1. Press and release the DEL button

while listening to a message or shortly after. The indicator light will flash green twice.

2. To delete all recorded messages,

simultaneously press and release the PLAY and REC buttons at the same time. The indicator light will flash green twice.

If the DEL button is inadvertently pressed or the time allotted (five seconds) has passed, the indicator light will flash amber and an “error” tone will sound.

INTERIOR LAMPS Dome lamps (if equipped)

The front dome lamp is located overhead between the driver and passenger seats.

The dome lamp will stay on if the control is moved to the passenger side position. When the control is in the middle position, the lamp will only come on when a door is opened. If the control is moved to the driver’s side position, the lamp will not come on at all.

The dome lamp will illuminate whenever a front door is opened. If either front door has been opened from the outside, the lamp will remain on for 15 seconds after the door is shut. If any other door has been opened from the inside, the lamp will shut off immediately after the door is closed.

REC DEL PLAY

Controls and features

Rear courtesy/reading lamps (if equipped)

The courtesy lamp lights can be turned on with rocker switch at any time.

Rear dome lamp

The dome lamp lights when:

• any door is opened.

• the instrument panel dimmer

switch is held up until the courtesy lamps come on.

• any of the remote entry controls are pressed and the ignition is OFF.

With the ignition key in the ACC or ON position, the rear dome lamp can be turned ON or OFF by sliding the control.

OVERHEAD CONSOLE (IF EQUIPPED)

The appearance of your vehicle’s overhead console will vary according to your option package.

Forward storage bins and conversation mirror (if equipped)

The storage compartments may be used to store sunglasses or similar objects. The conversation mirror allows the driver to view the rear seating area. This does not replace your rear view mirror. Refer to

Power Sliding Doors (PSD) (if equipped) in this chapter for

operation of doors.

Controls and features

Installing a garage door opener (if equipped)

The storage compartment can be converted to accommodate a variety of aftermarket garage door openers:

• Remove the storage clip from the aftermarket transmitter.

• Place Velcroy hook onto side of aftermarket transmitter opposite of actuator control.

• Place the transmitter into storage compartment, control down.

• Place the provided height adaptors onto the back of the GARAGE control as needed.

• Press the GARAGE control to activate the transmitter.

Map lamps (if equipped)

The map lamps and controls are located on the dome lamp. Press the controls on either side of each map lamp to activate the lamps.

Controls and features

Power Sliding Door (if equipped)

The overhead console consists of the Power Sliding Door (PSD) ON/OFF control (with indicator light) and the right and left hand side PSD control(s).

With this option, you can open and close the sliding door(s) with the controls inside your vehicle. With the remote keyless entry system, you can also operate the PSD with the remote transmitter. Refer to Remote Entry System in this chapter.

The PSD feature has control(s) accessible by passengers in the second row seating positions. The control(s) are located on the trim panel in front of the sliding door. Press and release the control to open the PSD on that side of the vehicle.

Press the left side of the ON/OFF control in the overhead console to turn off the PSD. This prevents opening the PSD using the rear seat control(s) or the handle; but the door(s) can be opened manually with the handle. The controls in the overhead console for right or left side and the Remote Entry System will remain functional with the system shut OFF.

The sliding door must be unlocked for it to operate. The key does not have to be in the ignition. To help avoid accidental operation of the Power Sliding Door, disable the PSD second row passenger controls by pushing the overhead console control to OFF. When the key is in the ignition in RUN, the PSD will only open if the transaxle is in PARK (P). The transaxle does not have to be in PARK (P) to close the door.

OFF

SLIDING DOOR

Controls and features

Opening the PSD

With the ON/OFF control in the ON position, either sliding door can be opened by:

• operating the remote transmitter. Refer to Remote Entry System in this chapter.

• pushing and releasing the overhead console right hand or left hand control

• pushing and releasing the right hand or left hand second row passenger control

• manually pulling the inside or outside sliding door handle and release

The door will open fully using these options. With the ON/OFF control in the OFF position, either sliding door can be

opened by pulling the inside or outside handle and sliding the door all the way back manually.

The left hand PSD will not open (manually or power) if the fuel door is open regardless of the ON/OFF control position.

Closing the PSD

With the ON/OFF control in the ON position, either sliding door can be closed by:

• operating the remote transmitter. Refer to Remote Entry System in this chapter.

• pushing and releasing the overhead console right hand or left hand control

• pushing and releasing the right hand or left hand second row passenger control

• manually rolling the door several inches towards the closed position and release

The door will close completely and latch using these options. With the ON/OFF control in the OFF position, either sliding door can be

closed by pulling the inside or outside handle and sliding the door all the way forward to the latched position manually.

Controls and features

Safety/Obstructions

If anything obstructs the Power Sliding Door while it is closing, the door will automatically reverse to the open position, provided it meets sufficient resistance.

Resetting the PSD

The power sliding door may operate incorrectly or not at all because of the following condition:

• a low voltage or dead battery

• disconnecting the battery

• if the PSD fuse (fuse #6 ) is removed or blown. Refer to Fuses and

relays in the Roadside emergencies chapter.

If any of these conditions occur, reset the PSD by:

1. Check to see if power sliding door is unlocked and securely closed.

2. Make sure the gearshift is in (P) Park. Push the power door control on the overhead console to open the door.

4. Wait five (5) seconds and close the door by pressing the power door

control on the overhead console.

5. Wait five (5) seconds and repeat Steps 3 and 4 and go on to step 6.

6. Repeat steps 3–5 for opposite door.

If the door does not rest in the fully open position, repeat Steps 1–4 again. If the door still does not operate correctly:

7. Turn the ignition switch to OFF.

8. Remove the PSD fuse (fuse #6) from the passenger fuse panel and

leave it out for thirty (30) seconds. Refer to Fuses and relays in the Roadside emergencies chapter.

9. Reinstall the fuse and wait ten (10) seconds.

10. Repeat steps 1–6 above.

If the door still does not operate correctly, see your dealer for service.

Sliding Door Child Safety Lock

Your vehicle is equipped with a sliding door child safety lock that helps prevent passengers from operating the sliding door by using the inside door handle. This lock is on both doors if equipped. The child safety lock lever is located in the inside of the sliding door, on the front edge of the door. Lift the control up to engage the child lock.

100

FORD Windstar 2001 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction

Instrumentation

Controls and features
