FORD Windstar 1999 User Manual

Contents
Before driving
Introduction 2
Instrumentation 4
Controls and features 25
Seating and safety restraints 105
Starting and driving
Starting 147
Driving 151
Roadside emergencies 167
Servicing
Maintenance and care 188
Capacities and specifications 236
Reporting safety defects 242
Index 243
All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company.
Copyrightr1998 Ford Motor Company
1

Introduction

ICONS
Indicates a safety alert. Read the following section on Warnings.
Indicates vehicle information related to recycling and other environmental concerns will follow.
Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards protecting the environment.
Indicates a message regarding child safety restraints. Refer to Seating and safety restraints for more information.
Indicates that this Owner Guide contains information on this subject. Please refer to the Index to locate the appropriate section which will provide you more information.
2
Introduction
WARNINGS
Warnings provide information which may reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment.
BREAKING-IN YOUR VEHICLE
There are no particular breaking-in rules for your vehicle. During the first 1 600 km (1 000 miles) of driving, vary speeds frequently. This is necessary to give the moving parts a chance to break in.
INFORMATION ABOUT THIS GUIDE
The information found in this guide was in effect at the time of printing. Ford may change the contents without notice and without incurring obligation.
3
Instrumentation
Turn signal and
wiper/washer control
(pg. 74)
AUTO
P
Instrument
cluster
(pg. 6)
Driver side air
bag
(pg. 124)
O/D
5
4
6
3
FUEL
F
E
mi
TRAC
7
ACTIVE
TRAC
2
OFF
1
RPMX1000
THEFT
60
40
80
20
40
MPH
OFF
80
TEM
120
BRAKE
100
160
km/h
Headlamp control
(pg. 25)
4
Instrument panel
dimmer control
(pg. 25)
Speed control*
(pg. 70)
Instrumentation
Reverse sensing
Gearshift (includes
overdrive button)
(pg. 157)
O/D
P
H
ON/OFF
Message center
controls*
(pg. 14)
INFO
SETUP
RESET
system* (pg. 67)
Electronic sound
system
(pg. 37)
Traction control*
(pg. 153)
Climate control
(pg. 27)
systems
VOL - PUSH ON
OFF
T/C
AM FM
SEEK
SCAN
TUNE
REW FF
123456
DISC
FM1
ST
FM1
ST
FRONT
REAR
EJ CD
MAX
A/C
DOLBY B NR
BASS TREB SEL BAL
SIDE 1-2 COMP SHUFFLE
OFF
REAR CONT
EJ
MUTE
TAPE
AUTO
CLK
FADE
A/C
* if equipped
5
Instrumentation
WARNING LIGHTS AND CHIMES
O/D OFF
80
120
km/h
100
160
120
200
TEMP
TRAC
H
MPH
40
40
60
80
BRAKE
5
4
TRAC
ACTIVE
RPMX1000
6
7
20
THEFT
FUEL
F
E
mi
3
TRAC
2
OFF
1
Low fuel
Illuminates as an early reminder of a low fuel condition indicated on the fuel gauge. The light comes on when there is approximately 1/16th of a tank indicated on the fuel gauge (refer to Fuel gauge in this chapter for more information). The ignition must be in the ON position for this lamp to illuminate. The lamp will also illuminate for several seconds after the ignition is turned to the ON position regardless of the fuel level.
Charging system
Illuminates when the ignition is turned to the ON position and the engine is off. The light also illuminates when the battery is not charging properly, requiring electrical system service.
Traction ControlY active (if equipped)
This light momentarily illuminates when the ignition is turned to ON. It also illuminates when the Traction Controly system begins applying and releasing the brakes and adjusting the
ACTIVE
engine characteristics to limit a wheelspin condition. It will be lit for a minimum of four seconds or for the duration of the Traction Controly event.
For more information, refer to the Driving chapter.
6
Instrumentation
Traction ControlY off light (if equipped)
This light momentarily illuminates when the ignition is turned to ON position and illuminates when the Traction Controly system has been disabled (by the driver or as a result of a system failure). For more information, refer to the Driving chapter.
Safety belt
Momentarily illuminates when the ignition is turned to the ON position to remind you to fasten your safety belts. For more information, refer to the Seating and safety restraints chapter.
Anti-theft system
Refer to SecuriLocky passive anti-theft system in the Controls and features chapter.
Turn signal
Illuminates when the left or right turn signal or the hazard lights are turned on. If one or both of the indicators stay on continuously or flash faster, check for a burned-out turn signal bulb. Refer to Exterior bulbs in the Maintenance and care chapter.
TRAC
OFF
THEFT
7
Instrumentation
Anti-lock brake system (ABS)
Momentarily illuminates when the ignition is turned to the ON position and the engine is off. If the light remains on or fails to illuminate, have the system serviced immediately. With the ABS light on, the anti-lock brake system is disabled and normal braking is still effective unless the brake warning light also remains illuminated with parking brake released.
Air bag readiness
Momentarily illuminates when the ignition is turned ON. If the light fails to illuminate, continues to flash or remains on, have the system serviced immediately.
High beams
Illuminates when the high beam headlamps are turned on.
Engine oil pressure
Momentarily illuminates when the ignition is turned to the ON position and the engine is off. Illuminates when the oil pressure falls below the normal range. Stop the vehicle as soon as safely possible and switch off the engine immediately. Check the oil level and add oil if needed. Refer to Engine oil in the Maintenance and Care chapter.
ABS
8
Instrumentation
Brake system warning
Momentarily illuminates when the ignition is turned to the ON position, the engine is off and the parking brake is engaged. If the brake warning lamp does not illuminate at this time, seek service immediately. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately.
O/D off
Illuminates when the ignition is turned to the ON position and transmission control switch has been pushed. When the light is on, the transmission does not shift into overdrive. If the light does not come on when the transmission control switch is depressed or if the light flashes when you are driving, have your vehicle serviced.
Check engine
Your vehicle is equipped with a computer that monitors the engine’s emission control system. This system is commonly known as the On Board Diagnostics System (OBD II). This OBD II system protects the environment by ensuring that your vehicle continues to meet government emission standards. The OBD II system also assists the service technician in properly servicing your vehicle.
The Check Engine indicator light illuminates when the ignition is first turned to the ON position to check the bulb. If it comes on after the engine is started, one of the engine’s emission control systems may be malfunctioning. The light may illuminate without a driveability concern being noted. The vehicle will usually be drivable and will not require towing.
BRAKE
!
O/D
OFF
9
Instrumentation
What you should do if the check engine light illuminates
Light turns on solid:
This means that the OBD II system has detected a malfunction. Temporary malfunctions may cause your Check Engine light to
illuminate. Examples are:
1. The vehicle has run out of fuel. (The engine may misfire or run poorly.)
2. Poor fuel quality or water in the fuel.
3. The fuel cap may not have been properly installed and securely tightened.
These temporary malfunctions can be corrected by filling the fuel tank with good quality fuel and/or properly installing and securely tightening the gas cap. After three driving cycles without these or any other temporary malfunctions present, the Check Engine light should turn off. (A driving cycle consists of a cold engine startup followed by mixed city/highway driving.) No additional vehicle service is required.
If the Check Engine light remains on, have your vehicle serviced at the first available opportunity.
Light is blinking:
Engine misfire is occurring which could damage your catalytic converter. You should drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced at the first available opportunity.
Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior
floor coverings or other vehicle components, possibly causing a fire.
Door ajar
Illuminates when the ignition is in the ON or START position and any door is open.
10
Instrumentation
Bulb Warning
Illuminates when the ignition is in the ON position and one of the exterior bulbs has burned out.
Low washer fluid
Illuminates when the ignition is turned to ON and when the windshield washer fluid is low.
Safety belt warning chime
Chimes to remind you to fasten your safety belts. For information on the safety belt warning chime, refer to the Seating
and safety restraints chapter.
Supplemental restraint system (SRS) warning chime
For information on the SRS warning chime, refer to the Seating and safety restraints chapter.
Key-in-ignition warning chime
Sounds when the key is left in the ignition in the OFF/LOCK or ACC position and the driver’s door is opened.
Headlamps on warning chime (if equipped)
Sounds when the headlamps or parking lamps are on, the ignition is off (and the key is not in the ignition) and the driver’s door is opened.
Turn signal chime (if equipped)
Sounds when the turn signal lever has been activated to signal a turn and not turned off after the vehicle is driven more than 0.8 km (1/2 mile).
11
Instrumentation
GAUGES
O/D OFF
80
120
km/h
100
160
120
200
F
TEMP
FUEL
H
MPH
40
40
60
80
BRAKE
5
4
TRAC
ACTIVE
RPMX1000
6
7
20
THEFT
FUEL
F
E
mi
3
TRAC
2
OFF
1
Fuel gauge
Displays approximately how much fuel is in the fuel tank (when the key is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion. The ignition should be in the OFF position while
E
the vehicle is being refueled. When the gauge first indicates empty, there is a small amount of reserve fuel in the tank. When refueling the vehicle from empty indication, the amount of fuel that can be added will be less than the advertised capacity due to the reserve fuel.
Tachometer
Indicates the engine speed in revolutions per minute.
Driving with your tachometer pointer continuously at the top of the scale may damage the engine.
12
5
4
3
6
7
2
1
RPMX1000
Instrumentation
Speedometer
Indicates the current vehicle speed.
60
H
120
80
160
km/h
200
100
120
40
80
20
40
MPH
Engine coolant temperature gauge
Indicates the temperature of the engine coolant. At normal operating
TEMP
temperature, the needle remains within the normal area (the area between the “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine immediately and let the engine cool. Refer to Engine coolant in the Maintenance and care chapter.
Never remove the coolant reservoir cap while the engine is running or hot.
This gauge indicates the temperature of the engine coolant, not the coolant level. If the coolant is not at its proper level the gauge indication will not be accurate.
Odometer
Registers the total kilometers (miles) of the vehicle.
mi
13
Instrumentation
Trip odometer
Registers the kilometers (miles) of individual journeys. To display, depress the control. To reset, depress and hold the control for 2 seconds.
MESSAGE CENTER (IF EQUIPPED)
With the ignition in the ON position, the message center, located on your
km/h
200
120
instrument cluster, displays important vehicle information through a constant monitor of vehicle systems. You may select display features on the message center for a display of status preceded by a brief indicator chime. The system will also notify you of potential vehicle problems with a display of system warnings followed by a long indicator chime.
Selectable features
Info menu
This control displays the following control displays:
Compass/Outside Temperature
Distance to Empty
Average Fuel Economy
Instant Fuel Economy
(if equipped)
Trip Elapsed Drive Time
Display On/Off
INFO
SETUP
RESET
trip mi
14
Instrumentation
Setup menu
Press this control for the following displays:
Language
Units (English/Metric)
System Check
Single/Dual Display Mode
Reset
Press this control to select and reset functions shown in the INFO menu and SETUP menu.
System check
Selecting this function from the SETUP menu causes the message center to cycle through each of the systems being monitored. For each of the monitored systems, the message center will indicate either an OK message or a warning message for three seconds.
Pressing the RESET control cycles the message center through each of the systems being monitored.
The sequence of the system check report is as follows:
1. oil life in XX%
2. charging system
3. washer fluid level
4. brake fluid level
5. doors closed (driver and passenger side). This message can only be reset by closing the door(s). If the RESET control is pressed, PLEASE CLOSE DOOR will be displayed.
6. rear liftgate status
7. exterior lamps (headlamps, front turn, brake, tail and cornering/side repeater lamp status)
8. traction control (if equipped)
9. fuel level
10. distance to empty
15
Instrumentation
Language
1. Select this function from the SETUP menu for the current language to be displayed.
2. Pressing the RESET control cycles the message center through each of the language choices.
3. Press and hold the RESET control to set the language choice.
Units (English/Metric)
1. Select this function from the SETUP menu for the current units to be displayed.
2. Press the RESET control to change from English to Metric.
Single/Dual Display Mode
1. Select this function from the SETUP menu for the current display mode.
2. Press the RESET control to change from the Single to the Dual display.
System warnings
System warnings alert you to possible problems or malfunctions in your vehicle’s operating systems.
In the event of a multiple warning situation, the message center will cycle the display to show all warnings by displaying each one for 4 seconds.
>
>
16
Instrumentation
The message center will display the last selected feature if there are no more warning messages. This allows you to use the full functionality of the message center after you acknowledge the warning by pressing the RESET control and clearing the warning message.
Warning messages that have been reset are divided into two categories:
They will reappear on the display ten minutes from the reset.
They will not reappear until an ignition OFF-ON cycle has been
completed.
This acts as a reminder that these warning conditions still exist within the vehicle.
Driver’s door ajar Warning cannot be reset Passenger door ajar Driver rear door ajar Passenger rear door ajar Check charging system Warning returns after Transmission overheated Check transmission Low fuel level Liftgate ajar Warning returns after the Low brake fluid level Check tail lamps Check headlamps Check rear turn lamps Check front turn lamps Check cornering/side repeater lamps
(if equipped) Change oil soon Oil change required Check traction control Low washer fluid Check turn signal on reminder
10 minutes
ignition key is turned from OFF to ON
17
Instrumentation
DRIVER’S DOOR AJAR. Displayed when the driver’s door is not completely closed.
PASSENGER DOOR AJAR. Displayed when the passenger side door is not completely closed.
DRIVER’S REAR DOOR AJAR. Displayed when the driver’s rear door is not completely closed.
PASSENGER REAR DOOR AJAR. Displayed when the passenger side rear door is not completely closed.
LIFTGATE AJAR. Displayed when the liftgate is not completely closed. CHECK CHARGING SYSTEM. Displayed when the electrical system is
not maintaining proper voltage. If you are operating electrical accessories when the engine is idling at a low speed, turn off as many of the electrical loads as soon as possible. If the warning stays on or comes on when the engine is operating at normal speeds, have the electrical system checked as soon as possible.
LOW FUEL LEVEL. Displayed when you have approximately 1/16th of a tank indicated on the fuel gauge.
CHECK TRANSMISSION. Indicates the transmission is not operating properly. If this warning stays on, contact your dealer as soon as possible.
TRANSMISSION OVERHEATED. Indicates the transmission is overheating. This warning may appear when towing heavy loads or when driving in a low gear at a high speed for an extended period of time. Stop the vehicle as soon as safely possible, turn off the engine and let it cool. Check the transmission fluid and level. Refer to Transmission fluid in the Maintenance and care chapter. If the warning stays on or continues to come on, contact your dealer for transmission service as soon as possible.
CHECK BRAKE LAMPS. Displayed when the brake lamps are activated and at least one is burned out. Check the lamps as soon as safely possible and have the burned out lamp replaced. The center high-mount brakelamp is not monitored.
CHECK HEADLAMPS. Displayed when the headlamps are activated and at least one is burned out. Check the lamps as soon as safely possible and have the burned out lamp replaced. Refer to Replacing headlamp bulbs in the Maintenance and care chapter.
18
Instrumentation
CHECK TAIL LAMPS. Displayed when the tail lamps are activated and at least one is burned out. Check the lamps as soon as safely possible and have the burned out lamp replaced.
CHECK FRT TURN LAMPS. Displayed when the turn signals are activated and at least one is burned out. Check the lamps as soon as safely possible and have the burned out lamp replaced.
CHECK REAR TURN LAMPS. Displayed when the turn signals are activated and at least one is burned out. Check the lamps as soon as safely possible and have the burned out lamp replaced.
CHECK REAR TURN LAMPS. Displayed when the turn signals are activated and at least one is burned out. Check the lamps as soon as safely possible and have the burned out lamp replaced.
CHECK SIDE REPEATER LAMPS (if equipped). Displayed when the turn signals are activated and at least one is burned out. Check the lamps as soon as safely possible and have the burned out lamp replaced.
TURN SIGNAL ON REMINDER. Displayed when the turn signal is activated and the vehicle is driven more that 0.8 km (1/2 mile).
LOW WASHER FLUID. Indicates the washer fluid reservoir is less than one quarter full. Check the washer fluid level. Refer to Windshield washer fluid in the Maintenance and care chapter.
CHECK TRACTION CONTROL (if equipped). Displayed when the Traction Controly system is not operating properly. If this warning stays on, contact your dealer for service as soon as possible. For further information, refer to Traction controly in the Driving chapter.
CHANGE OIL SOON/OIL CHANGE REQUIRED. Displayed when the engine oil life remaining is 5 percent or less. When oil life left is between 5% and 0%, the CHANGE OIL SOON message will be displayed. When oil life left reaches 0%, the OIL CHANGE REQUIRED message will be displayed.
An oil change is required whenever indicated by the message center. USE ONLY RECOMMENDED ENGINE OILS.
To reset the oil monitoring system to 100% approximately 8 000 km (5 000 miles or 180 days) (or your personalized oil reset percentage) after each oil change:
Press RESET and SETUP controls at the same time to activate a service mode which will display OIL LIFE % HOLD RESET NEW.
19
Instrumentation
Press the SETUP control to access the System Check function. Press RESET to start the System Check.
Press and hold the RESET control.
Press RESET and SETUP controls for personalized setting.
After a successful reset, the message center will display OIL LIFE RESET TO 100%.
DATA ERR. These messages indicate improper operation of the vehicle network communication between electronic modules.
Fuel Computer
Oil life
Charging system
Door sensor
Liftgate sensor
Exterior lamps
Traction control
Washer fluid
Brake Fluid
Compass
Outside temperature
Contact your dealer as soon as possible if these messages occur on a regular basis.
%
%
%
20
Instrumentation
Compass display (if equipped)
The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antenna. Magnetic or metallic objects placed in, on or near the vehicle may also affect compass accuracy.
Usually, when something affects the compass readings, the compass will correct itself after a few days of operating your vehicle in normal conditions. If the compass still appears to be inaccurate, a manual calibration may be necessary. Refer to Compass zone/calibration
adjustment.
Most geographic areas (zones) have a magnetic north compass point that varies slightly from the northerly direction on maps. This variation is four degrees between adjacent zones and will become noticeable as the vehicle crosses multiple zones. A correct zone setting will eliminate this error. Refer to Compass zone/calibration adjustment.
21
Instrumentation
Compass zone/calibration adjustment
Perform this adjustment in an open area free from steel structures and high voltage lines.
For optimum calibration, turn off all electrical accessories (heater/air conditioning, wipers, etc.) and make sure all vehicle doors are shut.
1. Turn ignition to the ON position.
2. Start the engine.
3. Determine your magnetic zone by
referring to the zone map.
4. From Info menu, select the
Compass/Outside Temperature function.
5. Press and hold the RESET
control until the message center display changes to show the current zone setting.
1
2
3
4
5
6
78
15
14
13
12
11
10
9
6. Release the reset control, then
slowly press down again.
7. Press the SETUP control
repeatedly until the correct zone setting for your geographic location is displayed on the message center. To exit the zone setting mode press and release the RESET control.
8. Press the RESET control to start
the compass calibration function.
22
Instrumentation
9. Slowly drive the vehicle in a
circle (less than 5 km/h [3 mph]) until the CIRCLE SLOWLY TO CALIBRATE indicator changes to CALIBRATION COMPLETED. This will take up to three circles to complete calibration.
10. The compass is now calibrated.
FUEL ECON AVG
Select this function from the INFO menu to display your average fuel economy in liters/100 km or miles/gallon.
If you calculate your average fuel economy by dividing liters of fuel used by 100 kilometers traveled (miles traveled by gallons used), your figure may be different than displayed for the following reasons:
your vehicle was not perfectly level during fill-up
differences in the automatic shut-off points on the fuel pumps at
service stations
variations in top-off procedure from one fill-up to another
rounding of the displayed values to the nearest 0.1 liter (gallon)
1. Drive the vehicle at least 8 km (5 miles) with the speed control
system engaged to display a stabilized average.
2. Record the highway fuel economy for future reference.
It is important to press the RESET control after setting the speed control to get accurate highway fuel economy readings.
DIST TO EMPTY (DTE)
Selecting this function from the INFO menu will give you an estimate of how far you can drive with the fuel remaining in your tank under normal driving conditions. Remember to turn the ignition OFF when refueling your vehicle. Otherwise, the display will not show the addition of fuel for a few kilometers (miles).
23
Instrumentation
The DTE function will display LOW FUEL LEVEL and sound a tone for 1 second when you have low fuel level indicated on the fuel gauge.
INST ECON (instantaneous fuel economy)(if equipped)
Select this function to calculate the instantaneous fuel economy of your running vehicle. For example, you can see what your fuel economy is in heavy traffic or on an open highway.
Your vehicle must be moving to calculate instantaneous fuel economy. When your vehicle is not moving, this function shows the approximate amount of fuel in the fuel tank in whole numbers (liters or gallons). If your tank is full or nearly full, the display will be “F”. If your tank is empty or nearly empty, the display will be “E”. Instantaneous fuel economy cannot be reset.
TRIP ELAPSED DRIVE TIME
Select this function from the INFO menu to display your trip elapsed drive time and will display and accumulate when the key is in the RUN position.
1. Press the INFO control until the message center display shows the
TRIP ELAPSED TIME XXXX.
2. Hold the RESET control down for two seconds to clear display.
DISPLAY ON/OFF
Select this function from the INFO menu to turn your message center display OFF or ON.
24

Controls and features

PANEL DIMMER CONTROL
Use to adjust the brightness of the instrument panel lighting during headlamp and parklamp operation.
Rotate control to full up position to turn on all interior lights.
Rotate control to next position (adjustment dial) and move up and down to adjust the instrument panel lights.
Rotate to the first or second lower detent position to turn on the instrument panel lights to full brightness.
This control also has other features that are activated when any door is
opened:
Rotate to full up position or next position (adjustment dial) to turn on all interior lights.
Rotate to first lower detent position to activate “sleeping baby mode”— dome lamps will remain off and only the lower lamps will illuminate.
The second lower detent position (full down) will shut off all interior lights.
HEADLAMP CONTROL
Rotate the headlamp control to the first position to turn on the parking lamps. Rotate to the second position to also turn on the headlamps.
25
Controls and features
Battery saver
The battery saver will shut off the exterior lamps 10 minutes after the ignition switch has been turned off and the headlamp control is in the HEADLAMP position. The system will not turn off the parking lamps if the headlamp control is in the PARK position. For interior lights, refer to Illuminated entry in this chapter.
Daytime running lamps (DRL) (if equipped)
Turns the highbeam headlamps on with a reduced output. To activate:
the key must be in the ON position,
the headlamp control is in the OFF or Parking lamps position.
Always remember to turn on your headlamps at dusk or during
inclement weather. The Daytime Running Light (DRL) System does not activate your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.
High beams
Push forward to activate.
Flash to pass
Pull toward you to activate and release to deactivate.
26
Controls and features
AUTOLAMP CONTROL (IF EQUIPPED)
The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control.
The autolamp system also keeps the lights on for a fixed period of time after the ignition switch is turned to OFF.
To turn autolamps on, rotate the control counterclockwise.
To turn autolamps off, rotate the control clockwise to OFF.
CLIMATE CONTROL SYSTEM Manual heating system (if equipped)
AUTO
Fan speed control
Controls the volume of air circulated in the vehicle.
27
Controls and features
Temperature control
Controls the temperature of the airflow inside the vehicle.
Mode selector control
Controls the direction of the airflow to the inside of the vehicle.
Under normal conditions, your vehicle’s climate control system should be left in any position other than OFF when the vehicle is parked. This allows the vehicle to “breathe” through the outside air inlet duct.
OFF-Outside air is shut out and the fan will not operate. For short
(Floor) — Allows for maximum heating by distributing outside
(Floor and defrost) — Distributes outside air through the
(Panel) — Distributes outside air through the instrument panel
registers.
periods of time only, use this mode to prevent undesirable odors from entering the vehicle.
(Panel and floor) — Distributes outside air through the
instrument panel registers and the floor ducts.
air through the floor ducts.
windshield defroster ducts and the floor ducts.
(Defrost) — Distributes outside air through the windshield
defroster ducts. It can be used to clear ice or fog from the windshield.
28
Controls and features
Operating tips
In humid weather, select before driving. This will prevent your windshield from fogging. After a few minutes, select any desired position.
To prevent humidity buildup inside the vehicle, don’t drive with the climate control system in the OFF position.
Don’t put objects under the front seat that will interfere with the airflow to the back seats.
Remove any snow, ice or leaves from the air intake area (at the bottom of the windshield under the hood).
When placing objects on top of your instrument panel, be careful to not place them over the defroster outlets. These objects can block airflow and reduce your ability to see through your windshield. Also, avoid placing small objects on top of your instrument panel. These objects can fall down into the defroster outlets and block airflow and possibly damage your climate control system.
To get maximum heating performance from the second row floor vents (located under the front row seats), place the front mode selector control in the setting.
(floor) position and set the fan speed to its highest
Do not place objects on top of the instrument panel, as these objects may become projectiles in a collision or sudden stop.
29
Controls and features
Manual heating and air conditioning system (if equipped)
Manual heating and air conditioning system without rear controls (if equipped)
MAX
A/C
A/C
Manual heating and air conditioning system with rear controls (if equipped)
FRONT
REAR
OFF
REAR CTL
Fan speed control
Controls the volume of air circulated in the vehicle.
30
MAX
A/C
A/C
Temperature control
Controls and features
MAX
A/C
A/C
OFF
FRONT
REAR
REAR CTL
Controls the temperature of the airflow for the front part of the passenger compartment.
MAX
A/C
A/C
OFF
FRONT
REAR
REAR CTL
With the rear fan switch on the main control set to any fan speed (except OFF), the rear temperature control:
regulates the temperature of the airflow for the rear passenger compartment.
determines the air distribution to the rear registers.
The rear climate control distributes air in the following manner:
Cool air is delivered from the overhead registers.
Warm air is delivered from the lower (floor) register.
Mid-temperature range air is delivered from both the overhead and
floor registers.
31
Controls and features
Mode selector control
The mode selector control allows you to adjust the direction of the airflow to the front part of the passenger compartment.
The air conditioning can operate in all modes. However, the air conditioning will only function if the outside temperature is about 4°C (40°F) or above.
Since the air conditioner removes considerable moisture from the air during operation, it is normal if clear water drips on the ground under the air conditioner drain while the system is working and even after you have stopped the vehicle.
Under normal conditions, your vehicle’s climate control system should be left in any position other than MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” through the outside air inlet duct.
MAX A/C-°Uses recirculated air to cool the vehicle. MAX A/C is noisier than
A/C
(A/C), but more economical and will cool the inside of the vehicle faster. In this mode, the air conditioning will automatically engage if the outside temperature is about 4°C (40°F) or above. However, the indicator will not light unless the selected. If the (A/C) control was previously selected before using MAX A/C, the indicator light will remain lit. Airflow will be from the instrument panel registers. This mode can also be used to prevent undesirable odors from entering the vehicle.
(Panel)-Distributes outside air through the instrument panel registers. Heating and air conditioning capabilities are provided in this mode. Push the
A/C
(A/C) control in order to cool the vehicle below
the outside temperature.
OFF-Outside air is shut out and the fan will not operate. For short periods of time only, use this mode to prevent undesirable odors from entering the vehicle.
MAX
A/C
A/C
(A/C) control is
32
Controls and features
(Panel and floor)-Distributes outside air through the instrument panel registers and the floor ducts. Heating and air conditioning capabilities are provided in this mode. Push the order to cool the vehicle below the outside temperature. For added customer comfort, when the temperature control knob is anywhere in between the full hot and full cold positions, the air distributed through the floor ducts will be slightly warmer than the air sent to the instrument panel registers.
(Floor)-Allows for maximum heating by distributing outside air through the floor ducts. Heating and air conditioning capabilities are provided in this mode. Push the
A/C
(A/C) control in order to cool the
vehicle below the outside temperature.
(Floor and defrost)-Distributes outside air through the windshield defroster ducts and the floor ducts. Heating and air conditioning capabilities are provided in this mode. In this mode, the air conditioning will automatically engage if the outside temperature is about 4°C (40°F) or above. However, the indicator will not light unless
A/C
the
(A/C) control is selected. If the A/C control was previously selected before using Floor/Defrost, the indicator light will remain lit. For added customer comfort, when the temperature control knob is anywhere in between the full hot and full cold positions, the air distributed through the floor ducts will be slightly warmer than the air sent to the instrument panel registers.
(Defrost)-Distributes outside air through the windshield defroster ducts. It can be used to clear ice or fog from the windshield. If the temperature is about 4°C (40°F) or higher, the air conditioner will automatically dehumidify the air to prevent fogging. However, the indicator will not light unless the
A/C
(A/C) control is selected.
Cooling your vehicle with outside air
Cooling your vehicle with air conditioned outside air is quieter but less economical than using recirculated air. It also has less cooling capacity.
In order to cool your vehicle using outside air:
1. Turn the mode selector to
(panel), (panel and floor) or
(floor).
A/C
2. Press the
(A/C) control. The indicator light next to the
control will illuminate.
3. Slide the temperature control knob to the left.
4. Turn the fan speed control to the position of your choice.
A/C
(A/C) control in
A/C
(A/C)
33
Controls and features
During periods of high humidity, vapor may be emitted from the air outlets when using the A/C system with outside air. This can be corrected by using MAX A/C to cool the vehicle.
Operating tips
In humid weather, select before driving. This will prevent your windshield from fogging. After a few minutes, select any desired position.
To prevent humidity buildup inside the vehicle, don’t drive with the climate control system in the OFF position.
Don’t put objects under the front seat that will interfere with the airflow to the back seats.
Remove any snow, ice or leaves from the air intake area (at the bottom of the windshield under the hood).
If your vehicle has been parked with the windows closed during hot weather, the air conditioner will do a much faster job of cooling if you drive for two or three minutes with the windows open. This will force most of the hot, stale air out of the vehicle. Then operate your air conditioner as you would normally.
When placing objects on top of your instrument panel, be careful to not place them over the defroster outlets. These objects can block airflow and reduce your ability to see through your windshield. Also, avoid placing small objects on top of your instrument panel. These objects can fall down into the defroster outlets and block airflow and possibly damage your climate control system.
To get maximum heating performance from the second row floor vents (located under the front row seats), place the front mode selector control in the setting.
If the air conditioner works well in MAX A/C, but not in any other mode when the A/C control is selected, this may indicate that the
passenger compartment air filter (if equipped) needs to be replaced.
(floor) position and set the fan speed to its highest
34
Do not place objects on top of the instrument panel, as these objects may become projectiles in a collision or sudden stop.
Controls and features
Rear passenger compartment climate control system (if equipped)
This system allows the rear seat occupants to adjust their climate comfort level.
The rear seat climate control system is controlled from the main climate control system on the instrument panel:
MAX
A/C
A/C
OFF
FRONT
REAR
REAR CTL
If the main climate control system on the instrument panel is set to OFF, the rear climate control system will also be off.
If the rear passenger compartment climate control lever is set to OFF, the rear climate controls will be off.
If the rear fan control on the main climate control system is set in any of the fan speed positions, air will be distributed from the rear seat registers at the corresponding speed.
If the rear fan control on the main climate control system is set to REAR CTL, rear seat passengers can control their own fan speed and temperature and upper or lower air distribution.
35
Controls and features
The rear climate system fan speed control allows rear passengers to control the volume of air that is distributed from the rear registers.
The temperature/mode selection control allows rear passengers to select the temperature, as well as whether the air is distributed from the overhead registers or the floor register, or a mix between the two.
The temperature/mode selection control allows you to select any temperature setting for your desired comfort level and gives you three choices for air distribution:
It is important to note that whenever the temperature/mode selection control is set to a specific temperature setting, the system automatically determines the air distribution location:
Cool temperature range settings allow the air to be distributed
Mild (mid temperature range settings) allow the air to be distributed
Warm temperature range settings allow the air to be distributed
(Panel)
(Panel and floor)
(Floor)
through the overhead registers.
through both the overhead registers and the floor register.
through the floor register.
36
Controls and features

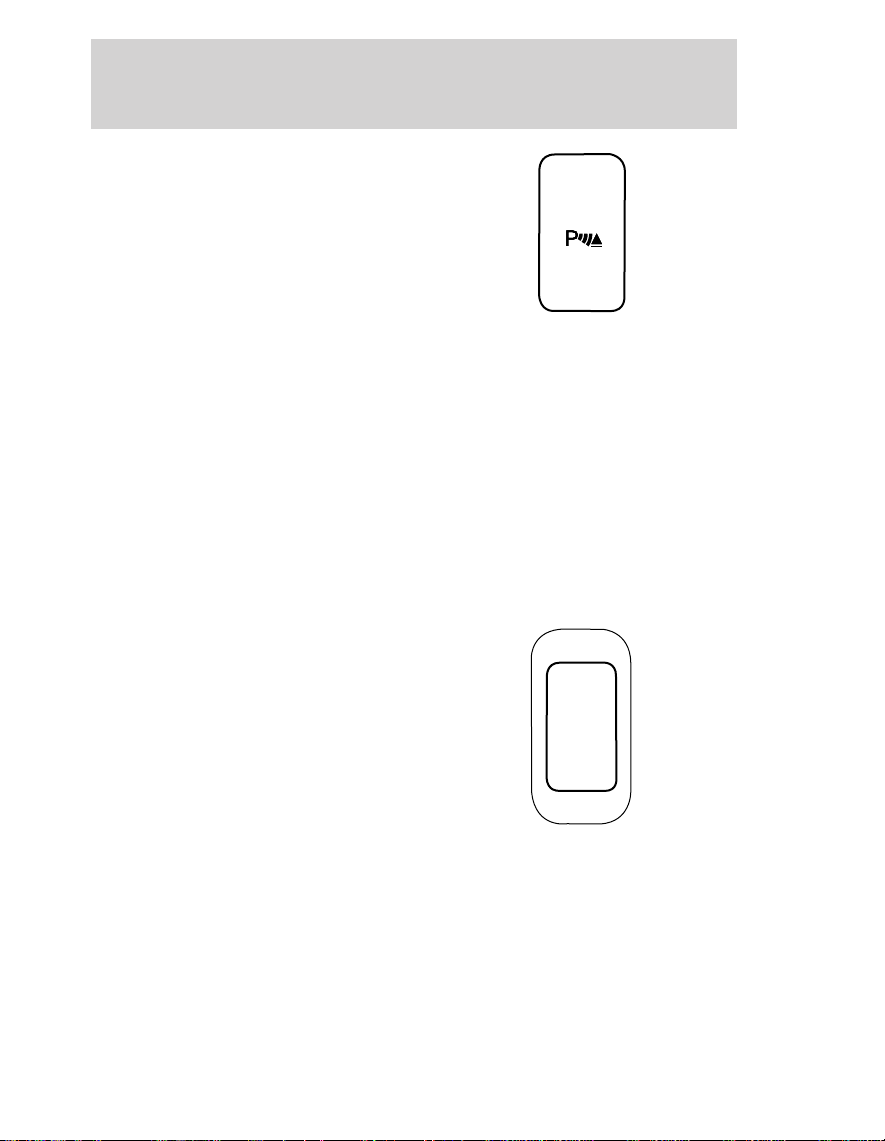

REAR WINDOW DEFROSTER (IF EQUIPPED)
The rear defroster control is located on the instrument panel.
Press the defroster control to clear the rear window of thin ice and fog.
The small LED will illuminate when the defroster is activated.
The engine must be running to operate the rear window defroster. The defroster turns off automatically after 10 minutes or when the
ignition is turned to the OFF position. To manually turn off the defroster before ten minutes have passed, push the control again.
USING YOUR AUDIO SYSTEM AM/FM Stereo
VOL
PUSH
ON
TONE
CLK
TONE VOL
ST DX
FM
12
SEEK TUNE
AM / FM STEREO
1 2 3 4 AM/FM
Your vehicle is equipped with a delayed accessory feature. This feature enables the audio playing media to continue playing up to 10 minutes after the ignition has been turned off, or until a door is opened.
37
Controls and features
Volume/power control
Press the control to turn the audio system on or off.
VOL
PUSH
ON
Turn the control to raise or lower volume.
VOL
PUSH
ON
If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.
AM/FM select
The AM/FM select control works in radio mode.
AM/FM
AM/FM select in radio mode
This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.
Tune adjust
The tune control works in radio mode.
38
Controls and features
Tune adjust in radio mode
Press to move to the next frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.
Press a listenable station is located there). Hold for quick movement.
to move to the next frequency up the band (whether or not
Seek function
The seek function control works in radio mode.
Seek function in radio mode
Press to find the next listenable station down the frequency band.
Press listenable station up the frequency band.
to find the next
Radio station memory preset
The radio is equipped with four station memory preset controls. These controls can be used to select up to four preset AM stations and eight FM stations (four in FM1 and four in FM2).
Setting memory preset stations
1. Select the frequency band with the AM/FM select control.
2. Select a station. Refer to Tune adjust or Seek function for more
information on selecting a station.
3. Press and hold a memory preset control until the sound returns,
indicating the station is held in memory on the control you selected.
SEEK TUNE
SEEK
TUNE
1 2 3 4
39
Controls and features
Bass adjust
The bass adjust control allows you to increase or decrease the audio system’s bass output.
With the electronic AM/FM stereo, press the TONE control once, then use the volume knob to adjust the level.
Treble adjust
The treble adjust control allows you to increase or decrease the audio system’s treble output.
With the electronic AM/FM stereo, press the TONE control twice, then use the volume knob to adjust the level.
Speaker balance adjust
Speaker sound distribution can be adjusted between the right and left speakers.
With the electronic AM/FM stereo, press the TONE control three times, then use the volume knob to adjust the level.
Speaker fade adjust (if equipped)
Speaker sound can be adjusted between the front and rear speakers.
With the electronic AM/FM stereo, press the TONE control four times, then use the volume knob to adjust the level.
TONE
CLK
TONE
CLK
TONE
CLK
TONE
CLK
VOL
PUSH
ON
VOL
PUSH
ON
VOL
PUSH
ON
VOL
PUSH
ON
40
Setting the clock
Press CLK to toggle between listening frequencies and clock mode.
To set the hour, press and hold the CLK control and press:
Controls and features
TONE
CLK
To set the minute, press and hold the CLK control and press:
to decrease hours and to increase hours.
SEEK SEEK
TUNE TUNE
TONE
CLK
41
Controls and features
to decrease minutes and
to increase minutes.
The CLK control will allow you to
SEEK
TUNE
SEEK
TUNE
switch between media display mode (radio station, stereo information, etc.) and clock display mode (time). When in clock mode, the media information will display for ten seconds, when the radio is turned on, and then revert to clock information. Anytime that the media is changed, (new radio station, etc.), the media information will again display for ten seconds before reverting back to the clock. In media mode, the media information will always be displayed.
AM/FM Stereo/Cassette (CD changer compatible)
VOL - PUSH ON
SEEK
TUNE
DISCS
AM FM
BASS TREB BAL FADE
CD
SCAN
EJ
SIDE
REW
1 - 2
FF
CLK
TAPE
AMS
CD
SHUFFLECOMPCD
321456
Your vehicle is equipped with a delayed accessory feature. This feature enables the audio playing media to continue playing up to 10 minutes after the ignition has been turned off, or until a door is opened.
42
Controls and features
Volume/power control
Press the control to turn the audio system on or off.
Turn the control to raise or lower volume.
If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.
AM/FM select
The AM/FM select control works in radio, tape and CD changer modes (if equipped).
VOL - PUSH ON
VOL - PUSH ON
AM FM
CD
AM/FM select in radio mode
This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.
AM/FM select in tape mode
Press this control to stop tape play and begin radio play.
43
Controls and features
AM/FM select in CD changer mode (if equipped)
Press this control to stop CD play and begin radio play.
Tune adjust
The tune control works in radio and CD changer modes (if equipped).
Tune adjust in radio mode
Press to move to the next frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.
Press
to move to the next frequency up the band (whether or not
a listenable station is located there). Hold for quick movement.
Tune adjust for CD changer (if equipped)
Press to select the previous disc in the CD changer. (Play will begin on the first track of the disc unless the CD changer is in shuffle mode. Refer to Shuffle feature for more information. Hold the control to continue reversing through the disc.
Press
to select the next disc in the CD changer. Hold the control
to fast-forward through the remaining discs.
Seek function
The seek function control works in radio or CD changer mode.
Seek function in radio mode
Press to find the next listenable station down the frequency band.
Press
to find the next listenable station up the frequency band.
SEEK
TUNE
DISCS
SEEK
TUNE
DISCS
SEEK
TUNE
DISCS
44
Controls and features
Seek function for CD changer (if equipped)
Press to seek to the previous track of the current disc. If a selection has been playing for three seconds or more and you press
, the CD changer will
replay that selection from the beginning.
Press to seek forward to the next track of the current disc. After the last track has been completed, the first track of the current disc will automatically replay.
Scan function
The scan function works in radio or CD changer mode (if equipped).
Scan function in radio mode
Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the SCAN control again to stop the scan mode.
Scan function in CD changer mode (if equipped)
Press the SCAN control to hear a brief sampling of all selections on the CD. (The CD scans in a forward direction, wrapping back to the first track at the end of the CD.) To stop on a particular selection, press the SCAN control again.
Radio station memory preset
The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations ( six in FM1 and six in FM2).
Setting memory preset stations
1. Select the frequency band with the AM/FM select control.
2. Select a station. Refer to Tune adjust or Seek function for more
information on selecting a station.
3. Press and hold a memory preset control until the sound returns,
indicating the station is held in memory on the control you selected.
SEEK
TUNE
DISCS
SCAN
45
Controls and features
321456
Bass adjust
The bass adjust control allows you to increase or decrease the audio system’s bass output.
Treble adjust
The treble adjust control allows you to increase or decrease the audio system’s treble output.
SHUFFLECOMPCDCD
BASS
TREB
Speaker balance adjust
Speaker sound distribution can be adjusted between the right and left speakers.
46
BAL
Controls and features
Speaker fade adjust
Speaker sound can be adjusted between the front and rear speakers.
FADE
Tape select
To enter tape mode while in radio or CD changer mode, press the TAPE control.
If no tape is found, NO TAPE appears in the display.
Automatic Music Search
The Automatic Music Search feature allows you to quickly locate the beginning of the tape selection being played or to skip to the next selection.
To activate the feature, momentarily depress the TAPE AMS button. Then, press either REW (for the beginning of the current selection) or FF (to advance to the next selection). The tape deck stops and returns to play mode when the AMS circuit senses a blank section on the tape.
In order to ensure proper operation of the AMS feature, the tape MUST have a blank section of at least 4 seconds duration between programs.
CLK
TAPE
AMS
CLK
TAPE
AMS
47
Controls and features
CD changer select (if equipped)
To enter CD changer mode while in radio or tape mode, press the CD control.
AM
FM
CD
Rewind
The rewind control works in tape and CD changer (if equipped) modes. To rewind in tape mode, press the
SIDE/REW control.
SIDE
1 - 2
REW FF
Press the 1–2/FF control to stop rewinding the tape.
SIDE
1 - 2
REW FF
To rewind in CD changer mode, press the CD control (preset 1).
Press the control again to deactivate rewind mode.
Fast forward
The fast forward control works in tape and CD changer modes. To fast forward in tape mode, press
the 1–2/FF control. Tape direction will automatically
reverse when the end of the tape is reached.
Press the SIDE/REW control to stop the fast forward of the tape.
CD
1
SIDE
1 - 2
REW FF
SIDE
1 - 2
REW FF
48
Controls and features
To fast forward in CD changer mode, press the CD control (preset 2).
Press the control again to deactivate fast forward mode.
Compression feature (if equipped)
Compression adjust brings soft and loud CD passages together for a more consistent listening level.
Press the COMP control to activate and deactivate compression adjust.
Shuffle feature (if equipped)
The shuffle feature operates in CD changer mode and plays all tracks on the current disc in random order. The shuffle feature continues to the next disc after all tracks are played.
Press the SHUFFLE control to start this feature. Random order play will continue until the SHUFFLE control is pressed again.
Tape direction select
Press SIDE and 1–2 at the same time to play the alternate side of a tape.
CD
2
COMP
5
SHUFFLE
6
SIDE
1 - 2
REW FF
Eject function
Press the control to stop and eject a tape.
EJ
49
Controls and features
DolbyTnoise reduction
Dolbyt noise reduction operates only in tape mode. Dolbyt reduces the amount of hiss and static during tape playback.
Press the The noise reduction system is manufactured under license from Dolby
Laboratories Licensing Corporation.
Setting the clock
Press CLK to toggle between listening frequencies and clock mode while in radio mode.
To set the hour, press and hold the CLK control and press:
control to activate (and deactivate) Dolbyt noise reduction.
4
CLK
TAPE
AMS
To set the minute, press and hold the CLK control and press:
50
to decrease hours and to increase hours.
SEEK SEEK
TUNE TUNE
CLK
TAPE
AMS
Controls and features
to decrease minutes and
to increase minutes.
SEEK
TUNE
SEEK
TUNE
The CLK control will allow you to switch between media display mode (radio station, stereo information, etc.) and clock display mode (time). When in clock mode, the media information will display for ten seconds, when the radio is turned on, and then revert to clock information. Anytime that the media is changed, (new radio station, etc.), the media information will again display for ten seconds before reverting back to the clock. In media mode, the media information will always be displayed.
Premium AM/FM Stereo/Cassette/Single CD/Premium Sound
VOL - PUSH ON
FM 1 AMC
BL RF
DISC
EJ
ST
MUTE
AM FM
SEEK TUNE
REW FF
DOLBY B NR
SCAN
BASS TREB SEL BAL
SIDE 1-2 COMP SHUFFLE
TAPE
EJ CD
FADE
AUTO
CLK
123456
Your vehicle is equipped with a delayed accessory feature. This feature enables the audio playing media to continue playing up to 10 minutes after the ignition has been turned off, or until a door is opened.
51
Controls and features
Volume/power control
Press the control to turn the audio system on or off.
Audio power can also be turned on by pressing the AM/FM select control or the tape/CD select control. Audio power is turned off by using the volume/power control.
VOL
-
PUSH ON
Turn control to raise or lower volume.
If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.
AM/FM select
The AM/FM select control works in radio, tape and CD modes.
AM/FM select in radio mode
This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.
AM/FM select in tape mode
Press this control to stop tape play and begin radio play.
AM/FM select in CD or CD changer mode (if equipped)
Press this control to stop CD play and begin radio play.
VOL
-
PUSH ON
AM FM
52
Controls and features
Tune adjust
The tune control works in radio or CD changer mode.
Tune adjust in radio mode
Press to move to the next frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.
Press
to move to the next frequency up the band (whether or not a listenable station is located there). Hold for quick movement.
Tune adjust for CD changer (if equipped)
Press to select the previous disc in the CD changer. (Play will begin on the first track of the disc unless the CD changer is in shuffle mode. Refer to Shuffle feature for more information. Hold the control to continue reversing through the remaining discs.
Press
to select the next disc in the CD changer. Hold the control to fast-forward through the remaining discs.
Seek function
The seek function control works in radio, tape or CD mode.
SEEK
TUNE
SEEK
TUNE
SEEK
TUNE
SEEK
TUNE
53
Controls and features
Seek function in radio mode
Press to find the next listenable station down the frequency band.
Press listenable station up the frequency band.
Seek function in tape mode
Press to listen to the previous selection on the tape.
Press
Seek function for CD or CD changer (if equipped)
Press to seek to the previous track of the current disc. If a selection has been playing for three seconds or more and you press replay that selection from the beginning.
Press next track of the current disc. After the last track has been completed, the first track of the current disc will automatically replay.
Scan function
The scan function works in radio, tape or CD mode.
to find the next
SEEK SEEK
TUNE TUNE
to listen to the next selection on the tape.
, the CD changer will
SEEK SEEK
to seek forward to the
TUNE TUNE
SCAN
Scan function in radio mode
Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the control again to stop the scan mode.
54
Controls and features
Scan function in tape mode
Press the SCAN control to hear a short sampling of all selections on the tape. (The tape scans in a forward direction. At the end of the tape’s first side, direction automatically reverses to the opposite side of the tape.) To stop on a particular selection, press the control again.
Scan function in CD or CD changer mode (if equipped)
Press the SCAN control to hear a short sampling of all selections on the CD. (The CD scans in a forward direction, wrapping back to the first track at the end of the CD.) To stop on a particular selection, press the control again.
Radio station memory preset
The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).
Setting memory preset stations
AM FM
1. Select the frequency band with the AM/FM select control.
2. Select a station. Refer to Tune adjust or Seek function for more
information on selecting a station.
REW FF SIDE 1-2 COMP SHUFFLE
123456
3. Press and hold a memory preset control until the sound returns,
indicating the station is held in memory on the control you selected.
Autoset memory preset
Autoset allows you to set strong radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations.
55
Controls and features
Starting autoset memory preset
1. Select a frequency using the AM/FM select controls.
2. Press the AUTO control.
3. When the first six strong stations
are filled, the station stored in memory preset control 1 will start playing.
If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available.
These stations are temporarily stored in the memory preset controls (until deactivated) and are accessed in the same manner of your original presets.
To deactivate autoset and return to your audio system’s manually set memory stations, press the AUTO control again.
Bass adjust
The bass adjust control allows you to increase or decrease the audio system’s bass output.
Press the BASS control then press:
to decrease the bass output and
to increase the bass output.
AUTO
CLK
BASS TREB
SEL
Treble adjust
The treble adjust control allows you to increase or decrease the audio system’s treble output.
56
BASS TREB
Press the TREB control then press:
to increase the treble output.
to decrease the treble output
and
Speaker balance adjust
Speaker sound distribution can be adjusted between the right and left speakers.
Press the BAL control then press:
to shift sound to the left and
to shift sound to the right.
Speaker fade adjust
Speaker sound can be adjusted between the front and rear speakers.
Press the FADE control then press:
to shift the sound to the front and
to shift the sound to the rear.
Controls and features
SEL
BAL FADE
SEL
BAL FADE
SEL
57
Controls and features
Tape/CD select
To begin tape play (with a tape loaded into the audio system) while in the radio or CD mode, press the TAPE control. Press the button during rewind or fast forward to stop the rewind or fast forward function.
To begin CD play (if CD(s) are loaded), press the CD control. The first track of the disc will begin playing. If returning from radio or tape mode, CD play will begin where it stopped last.
With the dual media audio system, press the CD control to toggle between single CD and CD changer play (if equipped).
TAPE CD
TAPE CD
Rewind
The rewind control works in tape and CD modes.
In tape mode, radio play will continue until rewind is stopped (with the TAPE control) or the beginning of the tape is reached.
In CD mode, pressing the REW control rewinds the CD within the current track.
REW
1
Fast forward
The fast forward control works in tape and CD modes.
In the tape mode, tape direction will automatically reverse when the end of the tape is reached.
In CD mode, pressing the control fast forwards the CD within the current track.
FF
2
Tape direction select
Press SIDE 1–2 to play the alternate side of a tape.
SIDE 1-2
3
58
Controls and features
Eject function
Press the EJ control to stop and eject a tape.
Press the EJ control to stop and eject a CD.
Dolby noise reduction
Dolby noise reduction reduces the amount of hiss and static during tape playback. Press the control to activate (and deactivate) the noise reduction.
Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. “Dolby” and the double-D symbol
are trademarks of Dolby Laboratories Licensing Corporation.
Compression adjust
Compression adjust brings soft and loud CD passages together for a more consistent listening level.
Press the COMP control to activate and deactivate compression adjust.
Shuffle feature
The shuffle feature operates in CD mode and plays all tracks on the current disc in random order. If equipped with the CD changer, the shuffle feature continues to the next disc after all tracks on the current disc are played.
Press the SHUFFLE control to start this feature. Random order play will continue until the SHUFFLE control is pressed again.
EJ
EJ
4
COMP
5
SHUFFLE
6
59
Controls and features
Setting the clock
To set the hour, press and hold the CLK control and press SEEK:
AUTO
CLK
To set the minute, press and hold the CLK control and press TUNE:
to decrease hours and to increase hours.
to decrease minutes and to increase minutes.
SEEK SEEK
TUNE TUNE
AUTO
CLK
SEEK
TUNE
SEEK
TUNE
60
Controls and features
If your vehicle has a separate clock module, (other than the digital radio display), the CLK button will not function in the above manner.
AUTO
CLK
The CLK button will allow you to switch between media display mode (radio station, stereo information, etc.) and clock display mode (time). When in clock mode, the media information will display for ten seconds, when the radio is turned on, and then revert to clock information. Anytime that the media is changed, (new radio station, etc.), the media information will again display for ten seconds before reverting back to the clock. In media mode, the media information will always be displayed.
Mute mode
Press the control to mute the playing media. Press the control again to return to the playing media.
EJ
MUTE
Rear seat controls (if equipped)
The Rear Seat Controls (RSC) allow the rear seat passengers to operate the radio, tape, CD, or CD changer (if equipped).
VOLUME MEDIA
MEM
SEEK
61
Controls and features
REW FF SIDE 1-2 COMP SHUFFLE
123456
To turn on the rear seat controls, press the memory preset controls 3 and 5 at the same time. The
Pressing 3 and 5 at the same time again will turn the rear seat controls off.
If there is a discrepancy between the rear seat and the front audio controls, (i.e, both trying to listen to the same playing media), the front audio system will receive the desired selection.
Adjusting the volume
Press the + control to increase volume.
Press the — control to decrease volume.
From the RSC controls, the speaker volume can not be set higher than the current volume radio setting. Once in headphone mode, the RSC volume controls will only change volume in the headphones to a desired level and will have no effect on the front speakers (muting the speakers will not mute the headphones).
Using headphones/Personal Audio System
The Personal Audio System allows the rear seat passengers to listen to one media source (radio, tape, CD, or CD changer if equipped) while the front seat passengers listen to another. However, front and rear seat passengers can not listen to two different radio stations simultaneously.
Plug a 3.6 mm headphone (not included) into either one of the two
jacks. Press the / control to operate the headphones.
will appear in the radio display.
VOLUME MEDIA
VOLUME MEDIA
MEM
MEM
SEEK
SEEK
62
Controls and features
The rear speakers will cut out once the speaker on/off control is pressed. A soft audible sound may be heard from the rear speakers. The front speaker will remain playing for the front passengers. Press the control again to deactivate headphones (Personal Audio System).
Media select
Push the MEDIA control to toggle between AM, FM1, FM2, tape, CD, or CD changer (if equipped).
VOLUME MEDIA
MEM
Memory preset control
Push the MEM control successively to allow rear seat passengers to scroll through the 6 memory presets
VOLUME MEDIA
MEM
in AM, FM1, or FM2. Push the MEM control in CD
changer mode (if equipped) to advance to the next disc.
Seek function
Press to find the next listenable station down the frequency band.
Press
to find the next
VOLUME MEDIA
MEM
listenable station up the frequency band.
In tape mode, use the SEEK function to access the next
selection.
In CD or CD changer mode (if equipped), use the SEEK function to access the next or previous selection.
/
SEEK
SEEK
SEEK
or previous
63
Controls and features
CD changer (if equipped)
The CD changer is located in the center console of your vehicle. Slide the door to access the CD
changer magazine.
Press
to eject the magazine.
Make sure only one disc is inserted in each slot. Each disc must be inserted with the label surface upward. You may insert up to six CDs.
DIGITAL AUDIO
COMPACT
6 5 4
6 COMPACT DISC MAGAZINE
3 2 1
64
Controls and features
The magazine does not need to be full for the changer to operate.
Radio power must be turned on to play the CDs in the changer. The magazine may be stored in the glove compartment when not being used.
The CD magazine may be inserted or ejected with the radio power off.
Troubleshooting the CD changer (if equipped)
The laser beam used in the compact disc player is harmful to the eyes. Do not attempt to disassemble the case.
If sound skips:
You may be traveling on a rough road, playing badly scratched discs or the disc may be dirty. Skipping will not scratch the discs or damage the player.
If your changer does not work, it may be that:
A disc is already loaded where you want to insert a disc.
The disc is inserted with the label surface downward.
The disc is dusty or defective.
The player’s internal temperature is above 60°C (140°F). Allow the
player to cool down before operating.
A disc with format and dimensions not within industry standards is inserted.
Cleaning compact discs
Inspect all discs for contamination before playing. If necessary, clean discs only with an approved CD cleaner and wipe from the center out to the edge. Do not use circular motion.
65
Controls and features
CD and CD changer care
Handle discs by their edges only. Never touch the playing surface.
Do not expose discs to direct sunlight or heat sources for extended
periods of time.
Do not insert more than one disc into each slot of the CD changer magazine.
Cleaning cassette player (if equipped)
Clean the tape player head with a cassette cleaning cartridge after ten to twelve hours of play in order to maintain the best sound and operation.
Cassette and cassette player care
Use only cassettes that are 90 minutes long or less.
Do not expose tapes to direct sunlight, high humidity, extreme heat or
extreme cold. Allow tapes that may have been exposed to extreme temperatures to reach a moderate temperature before playing.
Tighten very loose tapes by inserting a finger or pencil into the hole and turning the hub.
Remove loose labels before inserting tapes.
Do not leave tapes in the cassette player for a long time when not
being played.
Radio frequency information
The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Communications (CRTC) establish the frequencies AM and FM stations may use for their broadcasts. Allowable frequencies are:
AM 530, 540–1600, 1610 kHz FM 87.9, 88.1–107.1, 107.9 MHz Not all frequencies are used in a given area.
Radio reception factors
Three factors can affect radio reception:
Distance/strength. The further an FM signal travels, the weaker it is. The listenable range of the average FM station is approximately 40 km
66
Controls and features
(24 miles). This range can be affected by “signal modulation.” Signal modulation is a process radio stations use to increase their strength/volume relative to other stations.
Terrain. Hills, mountains and tall buildings between your vehicle’s antenna and the radio station signal can cause FM reception problems. Static can be caused on AM stations by power lines, electric fences, traffic lights and thunderstorms. Moving away from an interfering structure (out of its “shadow”) returns your reception to normal.
Station overload. Weak signals are sometimes captured by stronger signals when you pass a broadcast tower. A stronger signal may temporarily overtake a weaker signal and play while the weak station frequency is displayed.
The audio system automatically switches to single channel reception if it will improve the reception of a station normally received in stereo.
Audio system warranties and service
Refer to the “Warranty Guide” for audio system warranty information. If service is necessary, see your dealer or a qualified technician.
REVERSE SENSING SYSTEM (IF EQUIPPED)
The reverse sensing system (RSS) sounds a tone to warn the driver of obstacles near the rear bumper when the reverse gear is selected.
To help avoid personal injury, please read and understand the
limitations on the reverse sensing system described below. Reverse sensing is only an assist for some (generally large and fixed) objects when moving in reverse on a flat surface at “parking speeds” of approximately 6 km/h (4 mph) or less. It is the drivers responsibility for ensuring that their path is clear when operating the vehicle.
To help avoid personal injury, always use caution when in
reverse and when using the reverse sensing system.
67
Controls and features
This system is not designed to prevent contact with small or
moving objects. The system is designed to provide a warning to assist the driver in detecting large stationary objects to avoid damaging the vehicle. The system may not detect smaller objects, particularly those close to the ground.
The RSS will assist the driver in detecting certain objects while the vehicle slowly moves in reverse at speeds less than 6 km/h (4 mph). The RSS is not effective at speeds greater than 6 km/h (4 mph) and may not detect certain angular or moving objects. The weather may also affect the function of RSS. RSS may have reduced performance, or be activated in inclement weather.
The reverse sensing system detects obstacles within approximately
1.8 meters (5.9 ft.) of the rear bumper with a decreased coverage area at the outer corners of the bumper, (refer to the figures for approximate zone coverage areas). As you move closer to the obstacle, the rate of the tone increases. When the distance to the obstacle is less than 25.0 cm (10 in.), the tone will sound continuously. If the system detects a stationary or receding object further than 25.0 cm (10 in.) from the side of the vehicle, the tone will sound for only 3 seconds. Once the system detects an object approaching, the tone will sound again.
68
Controls and features
A reverse sensing control allows the driver to enable and disable the RSS
OFF
when the ignition is ON. The reverse sensing control indicator momentarily illuminates when the ignition is turned ON.
The OFF indicator remains illuminated when the system is disabled. The system defaults to ON every time the reverse gear is selected. Press the control to disable or enable the system.
The indicator will remain illuminated to indicate a failure of the reverse sensing system.
Always keep the sensors (located on the rear bumper/fascia) free from dirt, snow and ice (do not clean the sensors with sharp objects). These elements may cause the system to operate inaccurately.
If the vehicle sustains damage to the rear bumper/fascia, leaving it misaligned or bent, the sensing zone may be altered causing inaccurate measurement of obstacles.
TRACTION CONTROLY (IF EQUIPPED)
This control can be used to turn the Traction Controly on or off. Refer to the Traction Controly section of the Driving chapter for more information.
T/C
69
Controls and features
POSITIONS OF THE IGNITION
1. ACCESSORY, allows the electrical accessories such as the radio to
2
operate while the engine is not running.
2. LOCK, locks the steering wheel, automatic transmission gearshift lever and allows key removal.
1
3. OFF, shuts off the engine and all accessories without locking the steering wheel.
4. ON, all electrical circuits operational. Warning lights illuminated. Key position when driving.
5. START, cranks the engine. Release the key as soon as the engine starts.
SPEED CONTROL (IF EQUIPPED) To turn speed control on
Press ON. Vehicle speed cannot be controlled
until the vehicle is traveling at or above 48 km/h (30 mph).
ON
3
4
5
70
OFF
Do not use the speed control in heavy traffic or on roads that
are winding, slippery, or unpaved.
Do not shift the gearshift lever into N (Neutral) with the speed
control on.
Controls and features
To turn speed control off
Press OFF or
Turn off the vehicle ignition.
ON
OFF
Once speed control is switched off, the previously programmed set speed will be erased.
To set a speed
Press SET+ / SET−. For speed control to operate, the speed control must be ON and the vehicle speed must be greater than 48 km/h (30 mph).
RES
SET
CST
If you drive up or down a steep hill, your vehicle speed may vary momentarily slower or faster than the set speed. This is normal.
Speed control cannot reduce the vehicle speed if it increases above the set speed on a downhill. If your vehicle speed is faster than the set speed while driving on a downhill, you may want to shift to the next lower gear or apply the brakes to reduce your vehicle speed.
If your vehicle slows down more than 16 km/h (10 mph) below your set speed on an uphill, your speed control will disengage. This is normal. Pressing RES/RSM/RESUME will re-engage it.
Do not use the speed control in heavy traffic or on roads that are winding, slippery, or unpaved.
71
Controls and features
To set a higher set speed
Press and hold SET/SET ACC/SET ACCEL. Release the control when the desired vehicle speed is reached or
Press and release SET/SET ACC/SET ACCEL. Each press will increase the set speed by
1.6 km/h (1 mph) or
Accelerate with your accelerator pedal. When the desired vehicle speed is reached, press and release SET/SET ACC/SET ACCEL.
You can accelerate with the accelerator pedal at any time during speed control usage. Releasing the accelerator pedal will return your vehicle to the previously programmed set speed.
To set a lower set speed
Press and hold CST/COAST. Release the control when the desired speed is reached or
Press and release CST/COAST. Each press will decrease the set speed by 1.6 km/h (1 mph) or
RES
SET
CST
RES
SET
CST
Depress the brake pedal. When the desired vehicle speed is reached, press SET/SET ACC/SET ACCEL.
72
RES
SET
CST
To disengage speed control
Depress the brake pedal.
Disengaging the speed control will not erase the previously programmed set speed.
Pressing OFF will erase the previously programmed set speed.
To return to a previously set speed
Press RES/RSM/RESUME. For RES/RSM/RESUME to operate, the vehicle speed must be faster than 48 km/h (30 mph).
Controls and features
ON
OFF
RES
SET
CST
73
Controls and features
TURN SIGNAL CONTROL
Push down to activate the left turn signal.
Push up to activate the right turn signal.
WINDSHIELD WIPER/WASHER CONTROLS
Rotate the windshield wiper control to the desired interval, low or high speed position.
The bars of varying length are for intermittent wipers. When in this position rotate the control upward for fast intervals and downward for slow intervals.
Push the control on the end of the stalk to activate washer. Push and hold for a longer wash cycle. The washer will automatically shut off after ten seconds of continuous use.
Mist Function
To operate the Mist function of the windshield wipers, push and release the windshield washer control quickly. The wipers will cycle one or two times.
74
Controls and features
Rear window wiper/washer controls
For rear wiper operation, rotate the rear window wiper and washer control to the desired position. Select:
INT 2 — One second interval rear wiper.
INT1—Tensecond interval rear wiper.
OFF — Rear wiper and washer off. For rear wash cycle, rotate (and hold as desired) the rear wiper/washer
control to either From either position, the control will automatically return to the INT2 or
OFF position.
OVERDRIVE CONTROL Activating overdrive
(Overdrive) is the normal drive position for the best fuel economy.
The overdrive function allows automatic upshifts to second, third and fourth gear.
Deactivating overdrive
Press the Transmission Control Switch (TCS) located on the end of the gearshift lever. The O/D OFF indicator light will illuminate on the instrument cluster.
The transaxle will operate in gears one through three. To return to normal overdrive mode, press the Transmission Control Switch again. The O/D OFF indicator light will no longer be illuminated.
When you shut off and re-start your vehicle, the transaxle will automatically return to normal
position.
O/D
ON/OFF
O/D
ON/OFF
(Overdrive) mode.
75
Controls and features
TILT STEERING WHEEL (IF EQUIPPED)
Pull the tilt steering control toward you to move the steering wheel up or down. Hold the control while adjusting the wheel to the desired position, then release the control to lock the steering wheel in position.
Never adjust the steering wheel when the vehicle is moving.
HAZARD FLASHER
For information on the hazard flasher control, refer to Hazard flasher in the Roadside emergencies chapter.
76
Controls and features
POWER WINDOWS (IF EQUIPPED)
Press and hold the rocker switches to open and close windows.
Press the top portion of the rocker switch to close.
AUTO
Press the bottom portion of the rocker switch to open.
AUTO
One touch down
Press AUTO completely down and release quickly. The driver’s window will open fully. Depress again to stop window operation.
AUTO
77
Controls and features
Accessory delay
With accessory delay, the window switches may be used for up to ten minutes after the ignition switch is turned to the OFF position or until any door is opened.
Power vent windows (if equipped)
Your vehicle may be equipped with rear power vent windows which are operated the same as the front power windows.
POWER SIDE VIEW MIRRORS (IF EQUIPPED)
To adjust your mirrors:
1. Select
2. Move the control in the direction
you wish to tilt the mirror.
to adjust the left mirror or to adjust the right mirror.
3. Return to the center position to lock mirrors in place.
78
Heated outside mirrors (if equipped)
Both mirrors are heated automatically to remove ice, mist and fog when the rear window defrost is activated.
Do not remove ice from the mirrors with a scraper or attempt to readjust the mirror glass if it is frozen in place. These actions could cause damage to the glass and mirrors.
Fold-away mirrors
Pull the side mirrors in carefully when driving through a narrow space, like an automatic car wash.
Controls and features
POWER DOOR LOCKS (IF EQUIPPED)
Press U to unlock all doors and L to lock all doors.
UL
79
Controls and features
Memory lock
If you lock your doors with the power lock switch or the remote transmitter while the sliding door is open, the door will automatically lock after it is closed.
Smart locks
With the key in the ignition, in any switch position, and either the driver’s or passenger’s door open, the doors cannot be locked using the front door lock switches.
CHILDPROOF DOOR LOCKS
When these locks are set, the rear doors cannot be opened from the inside. The rear doors can be opened from the outside when the doors are unlocked.
The childproof locks are located on front edge of each rear door and must be set separately for each door. Setting the lock for one door will not automatically set the lock for both doors.
Move lock control up to engage the lock. Move control down to disengage childproof locks.
If your vehicle is equipped with Power Sliding Door(s), refer to the Power Sliding Door section of this chapter for more information on how the childproof locks operate with this system.
AUTOMATIC DIMMING INSIDE REAR VIEW MIRROR (IF EQUIPPED)
Your vehicle is equipped with an inside rear view mirror which has an auto-dimming function. The electronic day/night mirror will change from the normal state to the non-glare state when bright lights (glare) reach the mirror. When the mirror detects bright light from front or behind, it will automatically adjust (darken) to minimize glare.
Do not block the sensor on the backside of the mirror since this may impair proper mirror performance.
80
Controls and features
Press the control to turn the mirror OFF or AUTO.
The mirror will automatically return to the normal state whenever the vehicle is placed in R (Reverse)(when the mirror is on) to ensure a bright clear view when backing up.
ILLUMINATED VISOR MIRROR (IF EQUIPPED)
To turn on the visor mirror lamps, lift the mirror cover.
HOMELINKT UNIVERSAL TRANSCEIVER (IF EQUIPPED)
The HomeLinkt Universal Transceiver, located on the driver’s visor, provides a convenient way to replace up to three hand-held transmitters with a single built-in device. This feature will learn the radio frequency codes of most current transmitters to operate garage doors, entry gates, security systems, entry door locks, and home or office lighting.
When programming your HomeLinkt Universal Transceiver, to a garage door or gate be sure that people and objects are out of
the way to prevent potential harm or damage.
OFF AUTO
Do not use the HomeLinkt Universal Transceiver with any garage door opener that lacks safety stop and reverse features as required by U.S. federal safety standards (this includes any garage door opener model manufactured before April 1, 1982). A garage door which cannot detect an object, signaling the door to stop and reverse, does not meet current U.S. federal safety standards. For more information on this matter, call toll-free: 1–800–355–3515 or on the Internet at HomeLink.jci.com.
81
Controls and features
Programming
1. Prepare for programming the
HomeLinkt Universal Transceiver by erasing the three factory default codes by holding down the two outside buttons until the red light begins to flash after 20 seconds. Release both buttons.
2. Hold the end of your hand-held
transmitter 5–14 cm (2–5 inches) away from the HomeLinkt Universal Transceiver surface (located on your visor) while keeping the red light in view.
3. Using both hands simultaneously
press and hold the hand-held transmitter button and the desired HomeLinkt button. Do not release the buttons until step 4 has been completed.
4. The red light will flash slowly and
then rapidly. Release both buttons when the red light flashes rapidly.
5. Follow steps 2 through 4 to program the remaining two buttons.
If you do not successfully program the HomeLinkt Universal Transceiver after repeated attempts, refer to Rolling code programing which follows, or call toll-free customer assistance: 1–800–355–3515 or on the Internet at HomeLink.jci.com.
Canadian Programming
During programming, your hand-held transmitter may automatically stop transmitting after two seconds which may not be long enough to program the HomeLinkt Universal Transceiver.
82
Controls and features
To program your hand-held transmitters:
continue to hold the button on the HomeLinkt Universal Transceiver.
press and re-press the hand-held transmitter button every two seconds until the red light changes from a slow to a fast flash.
Operating the HomeLinkT Universal Transceiver
Once programmed, the HomeLinkt Universal Transceiver can be used in place of hand-held transmitters. To operate, simply press and release the appropriate HomeLinkt button (the red light will illuminate, indicating the signal is being transmitted).
Rolling code programming
Rolling code garage door openers (or other rolling code devices) which are “code protected” and manufactured after 1996, may be determined by the following:
Reference the device owner’s manual for verification
The hand-held transmitter appears to program the HomeLinkt
Universal Transceiver but does not activate the device.
Press and hold the trained HomeLinkt button. The device has the rolling code feature if the indicator light flashes rapidly and then turns solid after 2 seconds.
After completing the “Programming” functions, follow these steps to train a garage door opener with the rolling code feature:
1. Locate the training button on the garage door motor head unit.
Refer to the garage door opener manual or call 1–800–355–3515 or on the Internet at HomeLink.jci.com. if there is difficulty locating the training button.
2. Press the training button on the garage door motor head unit (which
will activate the “training” light.)
83
Controls and features
3. Press and release the
programmed HomeLinkt button. Press and release the HomeLinkt button a second time to complete the training process. (Some garage door openers may require this procedure to be done a third time to complete the training).
The 2nd or 3rd press from step 3 will activate the door. The HomeLinkt Universal Transceiver has now been trained to the receiver. The remaining two buttons may now be programmed if this has not previously been done.
Erasing HomeLinkT buttons
Individual buttons cannot be erased, however, to erase the three programmed buttons:
1. Hold down the two outside
buttons until the red light begins to flash after 20 seconds.
2. Release both buttons.
Reprogramming a single HomeLinkTbutton
To program a device to HomeLinkt using a HomeLinkt button previously trained, follow these steps:
1. Press and hold the desired HomeLinkt button. Do NOT release until
step 4 has been completed.
2. When the indicator light begins to flash slowly (after 20 seconds),
position the hand-held transmitter 5–14 cm (2 to 5 inches) away from the HomeLinkt surface.
3. Press and hold the hand-held transmitter button.
4. The HomeLinkt indicator light will flash, first slowly and then rapidly.
When the indicator light begins to flash rapidly, release both buttons. The previous device has now been erased and the new device can be
activated by pushing the HomeLinkt button that has just been programmed.
84
Controls and features
INTERIOR LAMPS Dome lamps (if equipped)
The front dome lamp is located overhead between the driver and passenger seats.
The dome lamp will stay on if the control is moved to the passenger side position. When the control is in the middle position, the lamp will only come on when a door is opened. If the control is moved to the driver’s side position, the lamp will not come on at all.
The dome lamp will illuminate whenever a front door is opened. If either front door has been opened from the outside, the lamp will remain on for 15 seconds after the door is shut. If any other door has been opened from the inside, the lamp will shut off immediately after the door is closed.
Rear courtesy/reading lamps (if equipped)
The courtesy lamp lights can be turned on with rocker switch at any time.
Rear dome lamp
The dome lamp lights when:
any door is opened.
the instrument panel dimmer
switch is held up until the courtesy lamps come on.
any of the remote entry controls are pressed and the ignition is OFF.
85
Controls and features
With the ignition key in the ACC or ON position, the rear dome lamp can be turned ON or OFF by sliding the control.
OVERHEAD CONSOLE (IF EQUIPPED)
The appearance of your vehicle’s overhead console will vary according to your option package.
Forward storage bins and conversation mirror (if equipped)
The storage compartments may be used to store sunglasses or similar objects. The conversation mirror allows the driver to view the rear seating area. This does not replace your rear view mirror. Refer to
Power Sliding Doors (PSD) (if equipped) in this chapter for
operation of doors.
Installing a garage door opener (if equipped)
The storage compartment can be converted to accommodate a variety of aftermarket garage door openers:
Remove the storage clip from the aftermarket transmitter.
Place Velcroy hook onto side of aftermarket transmitter opposite of actuator control.
Place the transmitter into storage compartment, control down.
86
Place the provided height adaptors onto the back of the GARAGE control as needed.
Press the GARAGE control to activate the transmitter.
Map lamps (if equipped)
The map lamps and controls are located on the dome lamp. Press the controls on either side of each map lamp to activate the lamps.
Power Sliding Door (if equipped)
The overhead console consists of the Power Sliding Door (PSD) ON/OFF control (with indicator light) and the right and left hand side PSD control(s).
Controls and features
SLIDING DOOR
OFF
ON
With this option, you can open and close the sliding door(s) with the controls inside your vehicle. With the remote keyless entry system, you can also operate the PSD with the remote transmitter. Refer to Remote Entry System in this chapter.
87
Controls and features
The PSD feature has control(s) accessible by passengers in the second row seating positions. The control(s) are located on the trim panel in front of the sliding door. Press and release the control to open the PSD on that side of the vehicle.
Press the left side of the ON/OFF control in the overhead console to turn off the PSD. This prevents opening the PSD using the rear seat control(s) or the handle; but the door(s) can be opened manually with the handle. The controls in the overhead console for right or left side and the Remote Entry System will remain functional with the system shut OFF
The sliding door must be unlocked for it to operate. The key does not have to be in the ignition. To help avoid accidental operation of the Power Sliding Door, disable the PSD second row passenger controls by pushing the overhead console control to OFF. When the key is in the ignition in RUN, the PSD will only open if the transaxle is in PARK (P). The transaxle does not have to be in PARK (P) to close the door.
Opening the PSD
With the ON/OFF control in the ON position, either sliding door can be opened by:
operating the remote transmitter. Refer to Remote Entry System in this chapter.
pushing and releasing the overhead console right hand or left hand control
pushing and releasing the right hand or left hand second row passenger control
manually pulling the inside or outside sliding door handle and release
The door will open fully using these options. With the ON/OFF control in the OFF position, either sliding door can be
opened by pulling the inside or outside handle and sliding the door all the way back manually.
The left hand PSD will not open (manually or power) if the fuel door is open regardless of the ON/OFF control position.
88
Controls and features
Closing the PSD
With the ON/OFF control in the ON position, either sliding door can be closed by:
operating the remote transmitter. Refer to Remote Entry System in this chapter.
pushing and releasing the overhead console right hand or left hand control
pushing and releasing the right hand or left hand second row passenger control
manually rolling the door several inches towards the closed position and release
The door will close completely and latch using these options. With the ON/OFF control in the OFF position, either sliding door can be
closed by pulling the inside or outside handle and sliding the door all the way forward to the latched position manually.
Safety/Obstructions
If anything obstructs the Power Sliding Door while it is closing, the door will automatically reverse to the open position, provided it meets sufficient resistance.
Resetting the PSD
The power sliding door may operate incorrectly or not at all because of the following condition:
a low voltage or dead battery
disconnecting the battery
if the PSD fuse (fuse #6) is removed or blown. Refer to Fuses and
relays in the Roadside emergencies chapter.
If any of these conditions occur, reset the PSD by:
1. Check to see if power sliding door is unlocked and securely closed.
2. Make sure vehicle is in (P) Park.
3. Push the power door control on the overhead console to open the
door.
4. Wait five (5) seconds and close the door by pressing the power door
control on the overhead console.
5. Wait five (5) seconds and repeat Steps 3 and 4 and go on to step 6.
89
Controls and features
6. Repeat steps 3–5 for opposite door.
If the door does not rest in the fully open position, repeat Steps 1–4 again. If the door still does not operate correctly:
7. Turn the ignition switch to OFF.
8. Remove the PSD fuse (fuse #6) from the passenger fuse panel and
leave it out for thirty (30) seconds. Refer to Fuses and relays in the Roadside emergencies chapter.
9. Reinstall the fuse and wait ten (10) seconds.
10. Repeat steps 1–6 above.
If the door still does not operate correctly, see you dealer for service.
Sliding Door Child Safety Lock
Your vehicle is equipped with a sliding door child safety lock that helps prevent passengers from operating the sliding door by using the inside door handle. This lock is on both doors if equipped. The child safety lock lever is located in the inside of the sliding door, on the front edge of the door. Lift the control up to engage the child lock.
If you have the optional power sliding door, disable the power sliding door by pushing the ON/OFF control in the overhead console to the OFF position. The power sliding door cannot be opened from the rear seat when both this feature and the child lock are engaged.
If you want to open the sliding door when the child safety lock is on:
Unlock the sliding door and open the door from the outside.
If you have the optional power sliding door, press the right or left
hand control on the overhead console to open the door.
CENTER CONSOLE (IF EQUIPPED)
Your vehicle may be equipped with a variety of console features. These include:
utility compartment
compact disc changer (if equipped)
90
Controls and features
POSITIVE RETENTION FLOOR MAT (IF EQUIPPED)
To install floor mats that have a retention post:
Position the floor mat so that the eyelet is over the pointed end of the retention post and rotate forward to lock in. Make sure that the mat does not interfere with the operation of the accelerator or the brake pedal. To remove the floor mat, reverse the installation procedure.
To install floor mats that have a screw in retainer:
1. Move the driver’s seat to the most rearward position
2. Position the driver’s side floor mat with the rear of the mat against left
(outboard) front edge of seat track mounting bracket.
3. Use a screwdriver to screw locator post into vehicle carpeting. Exert
pressure while turning to pierce the carpeting. When installed properly, the locator will not screw down tightly, but will
rotate freely. Use only Ford original Equipment floor mats. Do not stack multiple floor
mats over the Ford original equipment floor mats as they are not positively retained.
REMOTE ENTRY SYSTEM
The remote entry system allows you to:
lock or unlock all vehicle doors and liftgate without a key.
unlock/open a RH power sliding door and/or LH power sliding door (if
equipped).
activate the personal alarm.
arm and disarm the perimeter anti-theft system (if equipped).
The lock/unlock and power sliding door features will operate with the vehicle in P (Park) or N (Neutral) and the ignition in the OFF, ACC or RUN positions. The panic control feature only operates with the ignition in the OFF position.
91
Controls and features
Unlocking the doors
3–button remote
4–button remote
5–button remote
Press this control to unlock the driver door and disarm the anti-theft system (if equipped). The interior lamps will illuminate.
Press the control again within three seconds to unlock all doors and liftgate. If the control is pressed a third time within three seconds, the vehicle will chirp the horn once if all doors/hood are closed or twice if any door/hood is open.
92
Controls and features
Opening power sliding doors
4–button remote
5–button remote
Press this control twice within three seconds to open the power sliding door (if equipped). The interior lamps will illuminate. Press this control another two times within three seconds to close the power sliding door and turn off the interior lights.
93
Controls and features
Locking the doors
3–button remote
4–button remote
5–button remote
Press this control to lock all doors and liftgate, turn off the interior lights (if they were on) and arm the perimeter anti-theft system (if equipped).
To confirm doors/hood are closed and locked, press the control a second time within three seconds. The door(s) will lock again and the horn will chirp once.
If any of the doors are open or ajar, the horn will make two quick chirps, reminding you to properly close all doors/hood.
94
Sounding a panic alarm
3–button remote
4–button remote
5–button remote
Controls and features
Press this control to activate the personal panic alarm. The personal panic alarm will cycle the horn and turn signals on/off plus
illuminate the interior lights. To deactivate the alarm, press the control again or turn the ignition to
RUN or ACC.
95
Controls and features
This device complies with part 15 of the FCC rules and with RS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Illuminated entry
The interior lights will illuminate when the remote entry Unlock or Panic control is pressed with the doors closed or when unlocking or opening a power sliding door (if equipped).
The system automatically turns off after 25 seconds or when the ignition is turned to the RUN position. The panel dimmer control must not be set to the OFF position for the illuminated entry to operate.
The inside lights will not turn off if:
they have been turned on with the instrument panel dimmer control or
any door is open.
The battery saver will shut off the interior lamps 30 minutes after the last door is closed even if the panel dimmer control is left on.
Illuminated exit
The interior lights will illuminate when the key is removed from the ignition. When the headlamp control is on the “sleeping baby mode”, only the lower interior lights will illuminate.
The system automatically turns off after 25 seconds or when the driver’s door is opened. The panel dimmer control must not be set to the OFF position for the illuminated entry to operate.
96
Controls and features

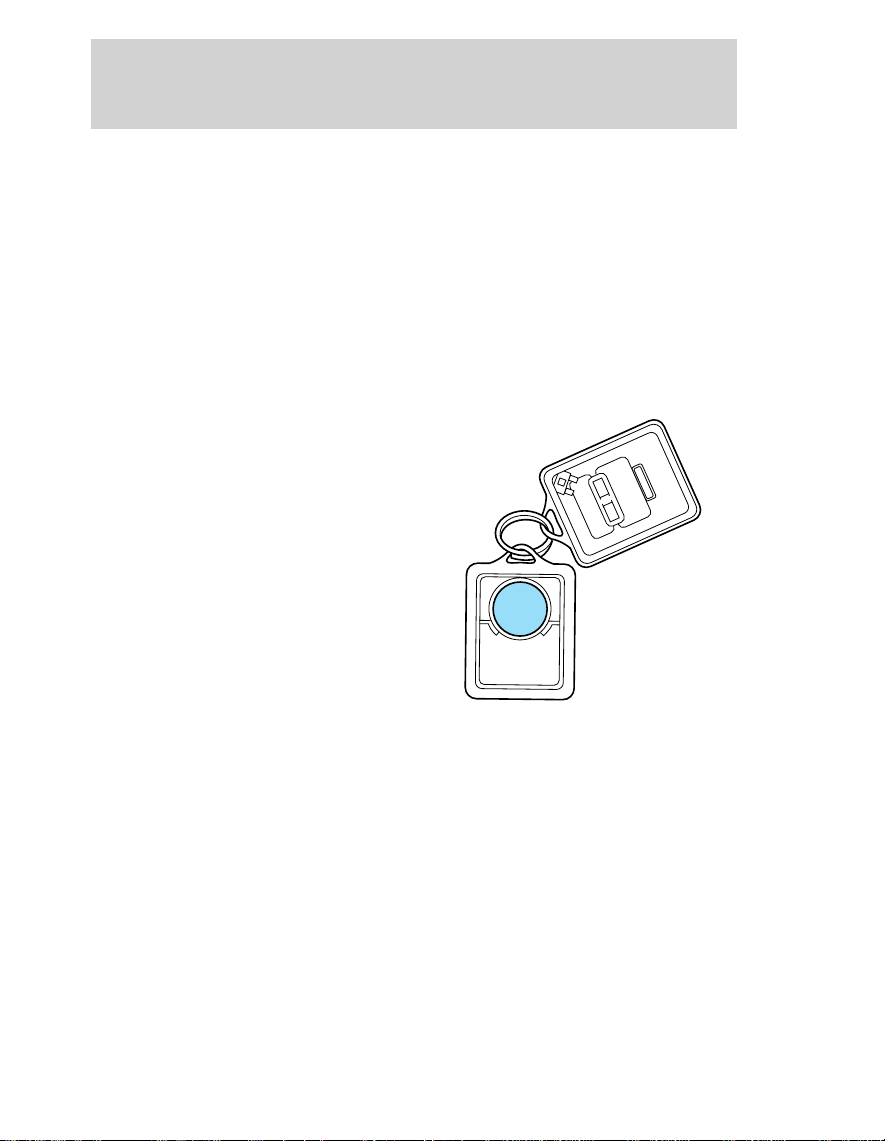

Replacing the battery
The transmitter is powered by one coin type three-volt lithium battery CR2032 or equivalent. Typical operating range will allow you to be up to 10 meters (33 feet) away from your vehicle. A decrease in operating range can be caused by:
weather conditions
nearby radio towers
structures around the vehicle
other vehicles parked next to the vehicle
To replace the battery:
1. Twist a thin coin between the two
halves of the transmitter near the key ring. DO NOT TAKE THE FRONT PART OF THE TRANSMITTER APART.
2. Place the positive (+) side of new
battery in the same orientation. Refer to the diagram inside the transmitter unit.
3. Snap the two halves back
together.
Replacement of the battery will not cause the remote transmitter to become deprogrammed from your vehicle. The remote transmitter should operate normally after battery replacement.
97
Controls and features
Replacing lost transmitters
3–button remote
4–button remote
5–button remote
If a transmitter has been lost or if you would like to purchase additional transmitters for your vehicle (up to four may be programmed), take all your vehicle’s transmitters to your dealer or perform the reprogramming procedure yourself. It will be necessary to reprogram all the transmitters to the vehicle at the same time while performing this procedure.
98
Controls and features
Reprogramming transmitters
To reprogram the transmitters yourself, place the key in the ignition and turn from OFF to ON eight times in rapid succession (within 10 seconds) ending in the ON position. After doors lock/unlock, press any control on all transmitters (up to four). With each control press of the transmitters, the door should cycle (lock/unlock) to confirm programming. When completed, turn the ignition to OFF. The door locks should cycle (lock/unlock) one last time to confirm completion of programming.
Autolock (if equipped)
This feature automatically locks all doors when:
all vehicle doors are closed
the ignition is in the RUN/START position
you shift into or through R (Reverse)
Relock
The autolock feature repeats when:
the ignition is in the RUN/START position
the vehicle speed is below 5 km/h (3 mph) and any door is opened
then closed
the vehicle speed exceeds 5 km/h (3 mph)
Deactivating/activating the autolock feature
The autolock/relock feature can be turned off by your dealer.
Deactivating/activating the illuminated exit feature
The illuminated exit feature can be turned off by your dealer.
PERIMETER ALARM SYSTEM (IF EQUIPPED)
The perimeter anti-theft system will help prevent your vehicle from unauthorized entry.
99
Controls and features
Arming the system
When armed, this system will help protect your vehicle from unauthorized entry. When unauthorized entry occurs, the system will flash the turn signal lamps and side repeaters and honk the horn.
The system is ready to arm whenever the key is removed from the ignition. Any of the following actions will prearm the alarm system:
Press the remote entry lock control
Press the interior power door lock control while the door is open
Twenty seconds after one of the above events occurs, any door/hood that is closed is armed.
Any door/hood that still open is prearmed and waiting for the door/hood to be closed.
Once that input is closed, the input will arm in 20 seconds and the exterior lamps may flash.
Disarming the system
You can disarm the system by any of the following actions:
Press the transmitter unlock control.
Unlock the doors with a key.
Turn a programmed SecuriLock key to RUN /START.
SECURILOCKY PASSIVE ANTI-THEFT SYSTEM
Your vehicle is equipped with a coded-key anti-theft system. Only the correct key will be able to start your vehicle. If your keys are lost or stolen, you must take your vehicle to your dealership for key reprogramming.
The SecuriLocky passive anti-theft system provides an advanced level of vehicle theft protection. Your vehicle’s engine can only be started with the two special SecuriLocky electronically coded keys provided with your vehicle. Each time you start your vehicle, the SecuriLocky key is read by the SecuriLocky passive anti-theft system. If the SecuriLocky key identification code matches the code stored in the SecuriLocky passive anti-theft system, the vehicle’s engine is allowed to start. If the SecuriLocky key identification code does not match the code stored in the system or if a SecuriLocky key is not detected (vehicle theft situation), the vehicle’s engine will not operate.
100
Loading...
