Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS

Congratulations on acquiring your new Mercury. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the following website:

• In the United States: www.ford.com

• In Canada: www.ford.ca

• In Mexico: www.ford.com.mx

• In Australia: www.ford.com.au

Additional owner information is given in separate publications.

This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on the Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch: In the event of an accident the

safety switch will automatically cut off the fuel supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE

Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,600 km (1,000 miles) of new vehicle operation. Vary your speed to allow parts to adjust themselves to other parts.

Drive your new vehicle at least 800 km (500 miles) before towing a trailer.

Do not add friction modifier compounds or special break-in oils during the first few thousand kilometers (miles) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Introduction

SPECIAL NOTICES

Emission warranty

The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 6.0L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle.

Event Data Recording

Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as:

• how various systems in your vehicle were operating;

• whether or not the driver and passenger seatbelts were buckled;

• how far (if at all) the driver was depressing the accelerator and/or the

brake pedal;

• how fast the vehicle was traveling; and

• where the driver was positioning the steering wheel.

To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Introduction

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

Please read the section Supplemental restraint system (SRS)

in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

Front seat mounted rear-facing child or infant seats should

NEVER be placed in front of an active passenger air bag.

MIDDLE EAST/NORTH AFRICA VEHICLE SPECIFIC INFORMATION

For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this

Owner’s Guide for all other required information and warnings.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Air Bag-Front

Air Bag-Side Child Seat

Child Seat Installation Warning

Child Seat Tether Anchor

Anti-Lock Brake System

Traction Control AdvanceTrac娂

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

See Owner’s Guide

Child Seat Lower Anchor

Brake System

Brake Fluid Non-Petroleum Based

Fuel Pump Reset Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Vehicle Symbol Glossary

Introduction

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release Symbol

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

Emission System Engine Air Filter

MAX

MIN

Passenger Compartment Air Filter

Check fuel cap

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Jack

Instrument Cluster

WARNING LIGHTS AND CHIMES

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, have the respective system inspected immediately.

Service engine soon: The Service engine soon indicator light

illuminates when the ignition is first turned to the ON position to check the bulb. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately.

Under engine misfire conditions, excessive exhaust temperatures

could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Check fuel cap: Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the Service engine soon warning light to come on. Refer to Fuel filler cap in the Maintenance and Specifications chapter.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Instrument Cluster

Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your dealership. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your servicing dealership.

Driving a vehicle with the brake system warning light on is

dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Have the vehicle checked by your dealer immediately.

Anti-lock brake system (if equipped): If the ABS light stays

illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately. Normal braking is still functional unless the brake warning light also is illuminated.

Air bag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately. A chime will also sound when a malfunction in the supplemental restraint system has been detected.

Safety belt: Reminds you to fasten your safety belt. A chime will also sound to remind you to fasten your safety belt.

BRAKE

ABS

Charging system: Illuminates when the battery is not charging properly.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Instrument Cluster

Engine oil pressure: Illuminates when the oil pressure falls below the normal range, refer to Engine oil in the Maintenance and specifications chapter.

Traction Control娂 active (if equipped): Flashes when the

Traction Control娂 is active. If the light remains on a malfunction has been detected; have the system serviced immediately, refer to the Driving chapter for more information.

Speed control (if equipped):

Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.

Securilock娂 Anti-theft system:

Flashes when the Securilock娂 Passive Anti-theft System has been activated. Refer to Securilock娂 Passive Anti-theft System in the Locks and Security chapter.

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb.

High beams: Illuminates when the high beam headlamps are turned on.

CRUISE

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened.

Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Instrument Cluster

GAUGES

Speedometer: Indicates the current vehicle speed.

Engine coolant temperature gauge: Indicates engine coolant

temperature. At normal operating temperature, the needle will be in the normal range (between “H” and

“C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

Never remove the coolant reservoir cap while the engine is

running or hot.

Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Instrument Cluster

Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade.

The FUEL icon and arrow indicates which side of the vehicle the fuel filler door is located.

Refer to Filling the tank in the Maintenance and Specifications chapter for more information.

Odometer: Registers the total kilometers (miles) of the vehicle.

Refer to Message Center in the Drivers Controls chapter on how to switch the display from Metric to English.

Trip odometer: Registers the kilometers (miles) of individual journeys. Press and release the message center INFO button until “TRIP” appears in the display (this represents the trip mode). Press and hold the RESET button for three seconds to reset.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Entertainment Systems

AM/FM STEREO CASSETTE/MACH姞 AUDIO SYSTEM WITH AM/FM STEREO CASSETTE (IF EQUIPPED)

1. Tape: Insert the cassette with the opening to the right. If a tape is already inserted into the system, press TAPE to begin tape play.

2. Clock: To set the hour, press and hold the H control. When the desired hour appears, release the control.

To set the minute, press and hold the M control. When the desired minute appears, release the control.

3. CD: Press to play the CD (if equipped).

Note: This system is CDDJ compatible, but CDDJ is an option with limited availability as defined in the order guide.

4. Bass: Press

/ to

BASS

decrease/increase the bass output.

5. Treble: Press

/ to

TREB

decrease/increase the treble output.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Entertainment Systems

6. Balance: Press / to shift sound to the left/right speakers.

7. Fade: Press

/ to shift

sound to the rear/front speakers.

8. Scan: Press SCAN to hear a brief sampling of all listenable radio stations, tape or CD selections. Press again to stop.

9. Shuffle: Press to play CD tracks in random order.

10. COMP (compression): While playing a CD, press to bring soft and loud passages together for a more consistent listening level.

11.

Dolby威 noise reduction:

Reduces tape noise and hiss while playing a tape, press to activate/deactivate.

12. Side 1–2: Press to change tape direction.

13. FF (fast forward): Press to advance the tape or CD.

BAL

FADE

14. REW (rewind): Press to rewind the tape or reverse the CD.

15. Memory preset buttons: To set a station: Select frequency band AM/FM1/FM2; tune to a station, press and hold a preset button until sound returns.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

16. Tune: Works in radio mode or CD mode. Press

/ to change

frequency down/up or previous/next disc.

17. Cassette door: Insert a cassette into the cassette door.

18. Seek: Press and release

/ for previous/next

listenable radio station, tape selection or CD track.

19. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.

Entertainment Systems

VOL PUSH ON

20. AM/FM: Press to choose a frequency band in radio mode (AM/FM1/FM2).

21. EJ (Eject): Press to eject a tape.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Entertainment Systems

AUDIO SYSTEM WITH AM/FM STEREO/SINGLE CD PLAYER (IF EQUIPPED)

1. Clock: To set the hour, press and hold the H control. When the desired hour appears, release the control.

To set the minute, press and hold the M control. When the desired minute appears, release the control.

2. Bass: Press decrease/increase the bass output.

/ to

BASS

3. Treble: Press decrease/increase the treble output.

4. Balance: Press sound to the left/right speakers.

5. Fade: Press sound to the rear/front speakers.

/ to

/ to shift

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

TREB

BAL

FADE

Entertainment Systems

6. Scan: Press to hear a brief sampling of all listenable radio stations or CD tracks. Press again to stop.

7. CD: Press to play a CD. Press again to toggle between single CD mode and CD Changer mode (if equipped).

8. Shuffle: Press to play CD tracks in random order.

9. COMP (compression): Press to bring soft and loud passages together for a more consistent listening level.

10. FF (fast forward): Press and hold until desired selection is reached.

11. REW (rewind): Press and hold until desired selection is reached.

12. Memory preset buttons: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns.

13. Tune: Press radio frequency down/up. With CD

changer (if equipped), press to select the previous/next CD.

14. Seek: Press and release

/ for previous/next

listenable radio station or previous/next CD track.

15. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.

/ to change

VOL PUSH ON

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Entertainment Systems

16. EJ (Eject): Press to eject a CD.

17. AM/FM: Press to choose a frequency band (AM/FM1/FM2).

CD CHANGER (IF EQUIPPED)

Your CD changer is either located in the trunk, the console or the right side cargo area storage compartment.

1. Slide the door to access the CD changer magazine.

2. Press

3. Turn the magazine (A) over.

4. Using the disc holder release knob (C), pull the disc holder (B) out of the magazine.

to eject the magazine.

Do not pull too hard on the disc holder as the disc holder may come completely out of the magazine. If this happens, reinsert the disc holder back into the magazine while pressing on the lever.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Entertainment Systems

5. Line up the CD with the groove of the disc holder. Ensure that the label on the CD faces downwards.

6. Press the disc holder until it locks securely into the magazine.

Ensure that the disc holder is evenly inserted and at the same level as the magazine (A). The unit will not operate if the disc holder is not inserted at the same level (B).

RADIO FREQUENCIES

AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are:

AM - 530, 540–1700, 1710 kHz FM- 87.7, 87.9–107.7, 107.9 MHz

RADIO RECEPTION FACTORS

There are three factors that can affect radio reception:

• Distance/strength: The further you travel from an FM station, the weaker the signal and the weaker the reception.

• Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception.

• Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

CASSETTE/PLAYER CARE

Do:

• Use only cassettes that are 90 minutes long or less.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Entertainment Systems

• Tighten very loose tapes by inserting a finger or pencil into the hole and turning the hub.

• Remove loose labels before inserting tapes.

• Allow tapes which have been subjected to extreme heat, humidity or

cold to reach a moderate temperature before playing.

• Clean the cassette player head with a cassette cleaning cartridge after 10–12 hours of play to maintain good sound/operation.

Don’t:

• Expose tapes to direct sunlight, extreme humidity, heat or cold.

• Leave tapes in the cassette player for a long time when not being

played.

CD/CD PLAYER CARE

Do:

• Handle discs by their edges only. Never touch the playing surface.

• Inspect discs before playing. Clean only with an approved CD cleaner

and wipe from the center out.

Don’t:

• Expose discs to direct sunlight or heat sources for extended periods of time.

• Insert more than one disc into each slot of the CD changer magazine.

• Clean using a circular motion.

CD units are designed to play commercially pressed 12 cm (4.75 in) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ball point pens may damage CDs. Please contact your dealer for further information.

AUDIO SYSTEM WARRANTY AND SERVICE

Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Climate Controls

MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED)

1. Temperature selection:

Controls the temperature of the airflow in the vehicle.

2. Passenger airbag indicator

light: Indicates whether the Passenger air bag is currently ON or OFF. Refer to Front passenger sensing system in the Seating and Safety Restraints chapter.

3. Air flow selections: Controls the direction of the airflow in the

vehicle. See the following for a brief description on each control.

MAX A/C: Uses recirculated air through the instrument panel registers to cool the vehicle. This mode maximizes the airflow and as it is re-cooling the interior air, it is more economical and efficient. May reduce undesirable odors from entering the vehicle.

A/C: Uses outside air to cool the vehicle. Air flows from the instrument panel register vents only.

: Distributes outside air through the instrument panel vents.

OFF: Outside air is shut out and the fan will not operate.

: Distributes outside air through the instrument panel and floor

vents.

: Distributes outside air through the floor vents.

: Distributes outside air through the windshield defroster vents and

floor vents.

: Distributes outside air through the windshield defroster vents.

4. Fan speed adjustment: Controls the volume of air circulated in the

vehicle.

5. Rear defrost control: Press to

defrost the rear window.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Climate Controls

OPERATING TIPS

• To reduce fog build up on the windshield during humid weather, place the air flow selector in the

• To reduce humidity build up inside the vehicle: do not drive with the air flow selector in the OFF or MAX A/C position.

• Under normal weather conditions, do not leave the air flow selector in MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” using the outside air inlet vents.

• Do not put objects under the front seats that will interfere with the airflow to the back seats.

• Remove any snow, ice or leaves from the air intake area at the base of the windshield.

To aid in side window defogging/demisting in cold weather:

1. Select

2. Adjust the temperature control to maintain comfort.

3. Set the fan speed to the highest setting.

4. Direct the outer instrument panel vents towards the side windows.

To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

position.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Climate Controls

ELECTRONIC AUTOMATIC TEMPERATURE CONTROL (EATC) SYSTEM (IF EQUIPPED)

12 13 14

AUTO

TEMP

OFF

5 3

A/C

PASS

AIRBAG

OFF

1. OFF: Outside air is shut out and

the fan will not operate.

2. A/C: Press to turn on and manually control the air conditioning in all

modes except

(Defrost). Press again to disengage. Press AUTO for

the system to automatically control the temperature.

3. Passenger airbag off: Indicates whether the passenger airbag is ON

or OFF. Refer to Front passenger sensing system in the Seating and safety restraints chapter.

Recirculation control: Used to manually enable or disable

recirculated air operation. When activated, recirculates air in the cabin thereby reducing the amount of time to cool down the interior of the vehicle. May also help reduce undesired odors from reaching the interior of the vehicle. Will work in all modes except Defrost. Recirculation turns off automatically when Floor, Floor/Defrost or Defrost is selected to reduce the humidity inside the vehicle.

5. Temperature control: Press this

control to select the temperature. The display window indicates the selected temperature.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Climate Controls

6. Auto: To engage automatic

temperature control, press AUTO to select the desired temperature using the temperature control. The system will automatically determine fan speed, airflow location, outside or recirculated air to heat or cool the vehicle to reach the desired temperature.

7. Fan Speed: Press to manually

increase/decrease fan speed. In manual mode, the display will show the system will automatically control fan speed to achieve the desired temperature.

8. Manual override controls:

Allows you to manually determine where airflow is directed. To return to full automatic control, press AUTO.

9. F

through the windshield defroster ducts. Can be used to clear ice or fog from the windshield. Outside air and A/C will be automatically engaged to assist in clearing the windshield.

10. Rear defrost control: Press to

defrost the rear window.

with a bar graph to indicate fan speed. When in AUTO mode,

: Distributes outside air

11.

ducts. The system will automatically provide outside air to reduce window fogging.

12.

equipped).

13.

registers (if equipped), the front and rear seat floor ducts.

14.

registers (if equipped).

Fahrenheit/Celsius temperature: Press A/C and F same time, to toggle between Fahrenheit and Celsius temperature. The set point temperatures in Celsius will be displayed in one degree increments.

: Distributes air through the windshield defroster ducts and floor

: Distributes air through the floor and rear seat floor ducts (if

: Distributes air through the instrument panel and center console

controls at the

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Climate Controls

OPERATING TIPS

• To reduce fog build up on the windshield during humid weather, place the air flow selector in the

• To reduce humidity build up inside the vehicle: do not drive with the control in the OFF mode or in recirculation mode without the A/C engaged.

• Under normal weather conditions, do not leave the air flow selector in OFF when the vehicle is parked. This allows the vehicle to “breathe” using the outside air inlet vents.

• Do not put objects under the front seats that will interfere with the airflow to the back seats.

• Remove any snow, ice or leaves from the air intake area at the base of the windshield.

To aid in side window defogging/demisting in cold weather:

1. Select

2. Select A/C.

3. Adjust the temperature control to maintain comfort.

4. Set the fan speed to the highest setting.

5. Direct the outer instrument panel vents towards the side windows.

To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

position.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

REAR WINDOW DEFROSTER

The rear defroster control is located on the instrument panel.

Press the rear defroster control to clear the rear window of thin ice and fog.

• A small LED will illuminate when the rear defroster is activated.

The ignition must be in the ON position to operate the rear window defroster.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Climate Controls

The defroster turns off automatically after 10 minutes or when the ignition is turned to the OFF position. To manually turn off the defroster before 10 minutes have passed, push the control again.

Do not use razor blades or other sharp objects to clean the inside of the rear window or to remove decals from the inside of the rear window. This may cause damage to the heated grid lines and will not be covered by your warranty.

Activating the rear window defroster will also activate the heated mirrors (if equipped). For more information refer to Heated outside mirrors in the Driver controls chapter.

CABIN AIR FILTER (IF EQUIPPED)

Your vehicle may be equipped with a Cabin air filter. The particulate air filtration system is designed to reduce the concentration of airborne particles such as dust, spores and pollen in the air being supplied to the interior of the vehicle. The particulate filtration system gives the following benefits to customers:

• Improves the customer’s driving comfort by reducing particle concentration

• Improves the interior compartment cleanliness

• Protects the climate control components from particle deposits

The filter is located just in front of the windshield under the cowl grille on the passenger side of the vehicle.

For more information, or to replace the filter, see your Ford, Lincoln or Mercury Dealer.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Lights

HEADLAMP CONTROL

Turns the lamps off.

Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.

Turns the headlamps on.

Autolamp control (if equipped)

The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control.

The autolamp system also keeps the lights on for a fixed period of time after the ignition switch is turned to OFF.

• To turn autolamps on, rotate the control counterclockwise.

• To turn autolamps off, rotate the control clockwise to OFF.

Lights

Foglamp control (if equipped)

The foglamps can be turned on when the headlamp control is in

the

or position and the

high beams are not turned on.

Pull headlamp control towards you to turn foglamps on. The foglamp indicator light

will illuminate.

Note: The foglamp “ON” indicator, in the headlamp switch, may be illuminated even though the foglamps are not on. The foglamps will illuminate once the ignition is in the run position.

Daytime running lamps (DRL) (if equipped)

Turns the headlamps on with a reduced output. To activate:

• the ignition must be in the ON position,

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Lights

• the headlamp control is set to OFF or parking lamp position and

• the parking brake must be disengaged.

Always remember to turn on your headlamps at dusk or during

inclement weather. The Daytime Running Lamp (DRL) system does not activate with your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

High beams

Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.

Flash to pass

Pull toward you slightly to activate and release to deactivate.

PANEL DIMMER CONTROL

Use to adjust the brightness of the instrument panel and all applicable switches in the vehicle during headlamp and parklamp operation.

Move the control to the full upright position, past detent, to turn on the interior lamps.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Lights

AIMING THE HEADLAMPS

The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident the alignment of your headlamps should be checked by a qualified service technician.

Vertical aim adjustment

1. Park the vehicle on a level surface approximately 7.6 meters (25 feet) from a vertical wall or screen directly in front of it.

• (1) Eight feet

• (2) Center height of lamp to

ground

• (3) Twenty five feet

• (4) Horizontal reference line

2. Measure the height of the headlamp bulb center from the ground and mark a 2.5 meter (8 foot) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well).

3. Turn on the low beam headlamps to illuminate the wall or screen and open the hood.

4. On the wall or screen you will observe an area of high intensity light. The top of the high intensity area should touch the horizontal reference line, if not, the beam will need to be adjusted.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Lights

To see a clearer light pattern for adjusting, you may want to block the light from one headlamp while adjusting the other.

5. Locate the vertical adjuster on each headlamp. Usinga4mm wrench, turn the adjuster either clockwise (to adjust down) or counterclockwise (to adjust up). The horizontal edge of the brighter light should touch the horizontal reference line.

6. HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS NON-ADJUSTABLE.

7. Close the hood and turn off the lamps.

TURN SIGNAL CONTROL

• Push down to activate the left turn signal.

• Push up to activate the right turn signal.

INTERIOR LAMPS

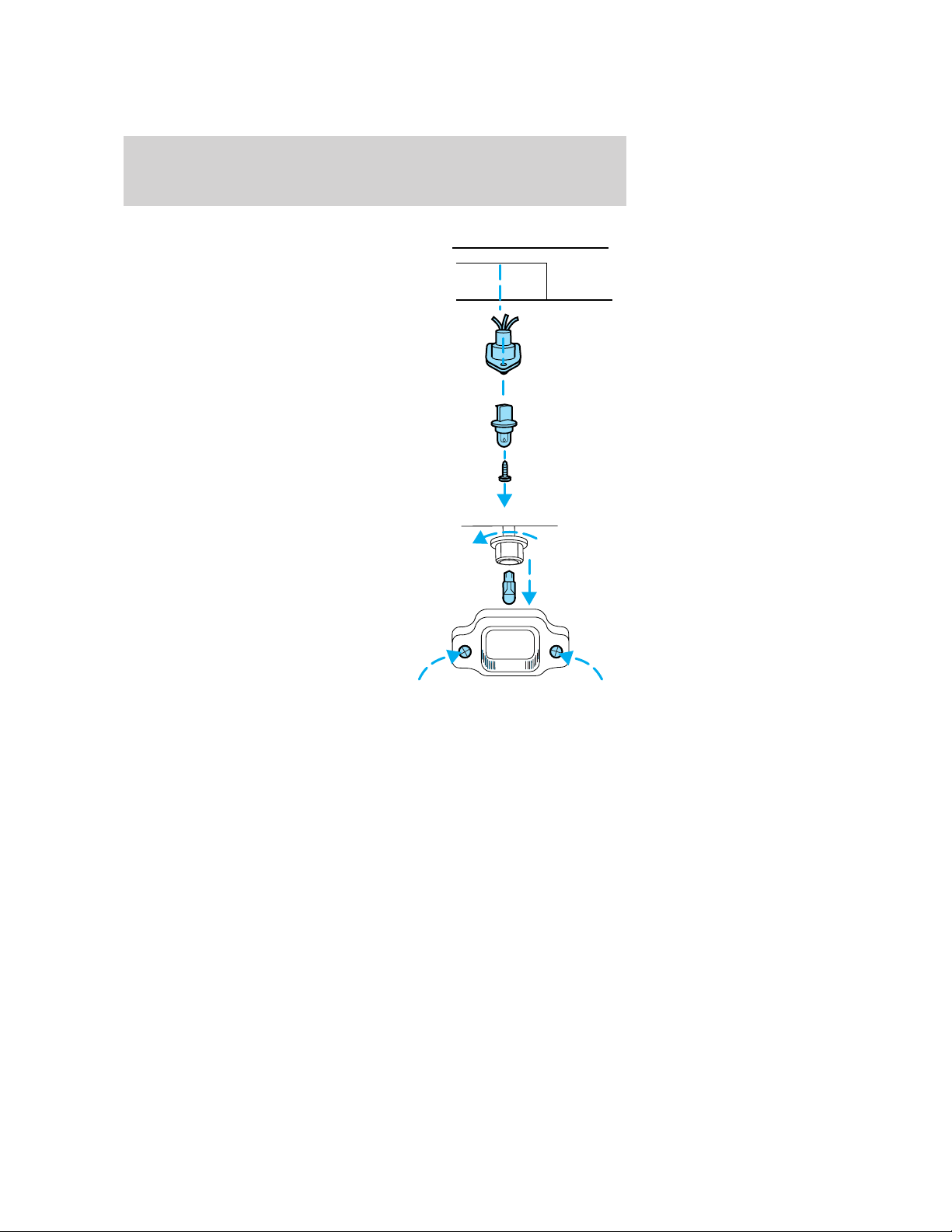

REPLACING THE INTERIOR BULBS

Check the operation of all bulbs frequently.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Lights

Dome lamps and map lamps

• ON or stay on.

• DOOR or middle position: The dome light will only come on if a door is opened.

• OFF or come on at all.

With the control in the middle position, the dome lamp will illuminate whenever a front door is opened. If either front door has been opened from the outside, the lamp will remain on for 25 seconds after the door is shut. If any other door has been opened from the inside, the lamp will shut off immediately after the door is closed.

The map lamp controls (if equipped) are located on the dome lamp. Press the controls on either side of each lens on each map lamp to activate the lamps.

If equipped with a moon roof, the map lamps are located on the moon roof control panel. Press the controls on either side of each map lamp to activate the lamps.

: The dome light will

: The lamp will not

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Lights

Rear dome lamp (if equipped)

The dome lamp lights when:

• any door is opened with the control in the middle position.

• the instrument panel dimmer switch is held up until the courtesy lamps come on.

• any of the remote entry controls are pressed and the ignition is OFF.

• the lamp control is moved to the passenger side position.

With the ignition key in the ACC or ON position, the rear dome lamp can be turned ON or OFF by sliding the control.

BULBS

Replacing exterior bulbs

Check the operation of all the bulbs frequently.

Using the right bulbs

Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to assure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time.

Function Number of bulbs

Front park/turn lamp 2

Headlamp 2

Tail lamp/brake 2 3057K Tail lamp/brake lamp

(wagon)

2 3057K

Trade number

3457 AK (amber)

9007 QL (9007 LL optional)

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Lights

Function Number of bulbs

Rear turn lamp 2 3157AK Rear side marker lamp 2 194 Rear turn lamp (wagon) 2 3456K Backup lamp 2 921 Backup lamp (wagon) 2 3156K License plate lamp 2 168 High-mount brake lamp

(wagon) High-mount brake lamp

(sedan) Rear side marker lamp

(wagon) Foglamp (if equipped) 2 H1LL Cargo lamp (wagon) 1 578 Dome lamp 2 12V6W Dome/map lamp 3 578 Visor vanity lamp

(passenger/driver) Floor console 2 194 Luggage compartment

lamp All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your dealer.

Must replace the hi-mount brake lamp

2 912

assembly

2 194

2 DE 3021

1 212–2

Trade number

Replacing the interior bulbs

Check the operation of all bulbs frequently.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Lights

Replacing headlamp bulbs

To remove the headlamp bulb:

1. Make sure headlamp switch is in

OFF position.

2. Remove the bolt from the

headlamp housing.

3. At the back of the headlamp, pry

up and remove the two retainer pins to release the headlamp assembly from the vehicle and pull headlamp forward.

4. Remove the protective dust shield

from the housing by turning the dust shield counterclockwise (when viewed from the rear).

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

5. Disconnect the electrical

connector from the bulb by pulling rearward.

6. Remove the bulb retaining ring by

rotating it counterclockwise.

7. Remove the old bulb from the

lamp assembly by pulling it straight out of the lamp assembly.

Lights

To install the new bulb:

Handle a halogen headlamp bulb carefully and keep out of

children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

1. Install the new bulb in lamp assembly by pushing straight in with the flat surface of the bulb’s plastic base facing upward. You may need to turn the bulb slightly to align the grooves in the plastic base with the tabs in the lamp assembly.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Lights

2. Install the bulb retaining ring over the plastic base and lock the ring by rotating clockwise until it snaps into place.

3. Connect the electrical connector to the bulb.

4. Install the protective dust shield and lock the shield by rotating it clockwise until it locks into position.

5. Carefully position the headlamp assembly onto the vehicle.

6. Hold the headlamp assembly snugly against the vehicle and install the retainer pins straight down to lock the lamp into place.

7. Before reinstalling the bolt, make sure the retainer pins are fully seated, and install bolt on headlamp housing.

8. Turn the headlamps on and make sure they work properly. If the headlamp was correctly aligned before you changed the bulb, you should not need to align it again.

Replacing front parking lamp/turn signal/cornering lamp bulbs

1. Make sure the headlamp control is in the OFF position.

2. Remove the bolt from the headlamp housing.

3. At the back of the headlamp, pry up and remove the two retainer pins to release the headlamp assembly from the vehicle and pull headlamp forward.

4. Rotate the bulb socket counterclockwise and remove it from the lamp assembly.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Lights

5. Carefully pull bulb straight out of the socket and push in the new bulb.

6. Install the bulb socket into the lamp assembly by rotating it clockwise.

7. Carefully position the headlamp assembly onto the vehicle.

8. Hold the headlamp assembly snugly against the vehicle and install the retainer pins straight down to lock the lamp into place.

9. Before reinstalling the bolt, make sure the retainer pins are fully seated, and install bolt on headlamp housing.

10. Turn the headlamps on and make sure they work properly. If the headlamp was correctly aligned before you changed the bulb, you should not need to align it again.

Replacing high-mount brakelamp assembly — Sedan only

To change the high-mount brake lamp assembly:

1. Pry the light assembly away from its housing and push rearward to disengage it from the retaining clips.

2. Lift the front of the light assembly from the parcel shelf.

3. Disconnect the light assembly wiring and replace the light assembly.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Lights

Replacing high-mount brakelamp bulbs — Wagon only

1. Open liftgate.

2. Remove two screw covers, screws and handle from liftgate.

3. Remove two screws and the lower trim panel from the liftgate.

4. Remove the upper trim panel.

5. Remove the rubber plug from the lower access hole in the upper portion of the liftgate.

6. Remove four nuts from the lamp assembly.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Lights

7. Carefully lift the lamp assembly away from the liftgate.

8. Remove the bulb socket by rotating it counterclockwise and pulling it out from the lamp assembly.

9. Carefully pull the bulb straight out of the socket and push in the new bulb.

10. To complete installation, follow the removal procedure in reverse order.

Replacing high-mount brakelamp bulbs — Decklid spoiler

Your vehicle may be equipped with a decklid spoiler that has a high mount stop lamp module containing integral multiple light emitting diodes (LED). If one or more LEDs burn out, the complete lamp module has to be replaced. See your dealer for the replacement LED module.

To replace the LED module:

1. Remove the two outboard grommets from the inside of the decklid

2. On the inside of the decklid, remove the three nuts that hold the spoiler on and remove the spoiler.

3. On the underside of the spoiler, remove the two decorative screw covers (on the LED module).

4. Remove the two screws that are holding the LED module in place.

5. Remove the wiring harness grommet and disengage the electrical connector.

6. Replace the LED module.

7. To complete installation, follow the removal procedure in reverse order.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Lights

Replacing license plate lamp bulbs

Wagon

1. Make sure headlamp switch is in OFF position and remove screw and the license plate lamp assembly from liftgate.

2. Remove bulb socket by turning counterclockwise.

3. Carefully pull the bulb out from the socket and push in the new bulb.

4. Install the lamp assembly on liftgate with screw.

Sedan

1. Make sure headlamp switch is in OFF position and remove two screws, grommets and the license plate lamp assembly from the trunk lid.

2. Carefully pull the bulb from the socket and push in the new bulb.

3. Install the lamp assembly on trunk lid with two grommets, ensuring the grommets are pushed all the way in to the trunk lid and secure with two screws.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Lights

Replacing tail/brake/turn signal/backup lamp bulbs

Sedan

The tail lamp, brake lamp, turn signal lamp and backup lamp bulbs are located in the same portion of the tail lamp assembly. Follow the same steps to replace either bulb.

1. Make sure headlamp switch is in OFF position and open trunk and remove two plastic mushroom nuts, three push pins and the plastic cover from inside the trunk to access the lamp assembly.

2. Carefully pull the carpet away to expose the lamp assembly hardware.

3. Remove four nut and washer assemblies and the lamp assembly from the vehicle.

4. Remove the bulb socket by rotating it counterclockwise, then pulling it out of the lamp assembly.

5. Pull the bulb from the socket and push in the new bulb.

6. Install the bulb socket into the lamp assembly by rotating it clockwise.

7. Install the lamp assembly on the vehicle with four nut and washer assemblies ensuring the washers on the nuts are flush with the body to prevent water from entering the trunk.

8. Carefully push the carpet back in to place and install the plastic cover inside the trunk with three push pins and two plastic mushroom nuts.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Lights

Wagon

The tail lamp/turn lamp/brake lamp/backup bulbs are located in the same portion of the tail lamp assembly, one just below the other. Follow the same steps to replace either bulb:

1. Make sure headlamp switch is in OFF position and open the liftgate to expose the lamp assemblies.

2. Remove the two bolts from the tail lamp assembly.

3. Carefully pull the lamp assembly from the tailgate.

4. Twist the bulb socket counterclockwise and remove from lamp assembly.

5. Pull the bulb straight out of the socket and push in the new bulb.

6. Install bulb socket in lamp assembly by turning clockwise.

7. Carefully install the tail lamp assembly on tailgate and secure with two bolts.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

MULTI-FUNCTION LEVER

Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate towards you to decrease the speed of the wipers.

Windshield washer: Push the end of the stalk:

• briefly: causes a single swipe of the wipers without washer fluid.

• a quick push and hold: the wipers will swipe three times with washer fluid.

• a long push and hold: the wipers and washer fluid will be activated for up to ten seconds.

Rear window wiper and washer (wagon only)

The rear wiper control is located under the headlamp controls. Press the wiper control to activate the rear wiper. Press again to turn off the wiper.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

Press the washer control to activate the rear washer. The wiper will come on when the washer control is pressed, if it is not already on.

Changing the wiper blades

1. Pull the wiper arm away from the

vehicle. Turn the blade at an angle from the wiper arm. Push the lock pin manually to release the blade and pull the wiper blade down toward the windshield to remove it from the arm.

2. Attach the new wiper to the

wiper arm and press it into place until a click is heard.

3. Replace wiper blades every 6

months for optimum performance.

TILT STEERING WHEEL

To adjust the steering wheel:

1. Pull and hold the steering wheel

release control toward you.

2. Move the steering wheel up or

down until you find the desired location.

3. Release the steering wheel

release control. This will lock the steering wheel in position.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

Never adjust the steering wheel when the vehicle is moving.

ILLUMINATED VISOR MIRROR (IF EQUIPPED)

Lift the mirror cover to turn on the visor mirror lamp. The visor will slide back and forth on the rod for increased sunlight coverage.

AUXILIARY POWER POINT

Power outlets are designed for accessory plugs only. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty.

Do not plug optional electrical accessories into the cigarette lighter. Use the power point.

Do not use the power point for operating the cigarette lighter element.

The Maximum power each power point can supply depends on the fuse rating. For example: a 20A fuse should supply a maximum of 240 Watts, a 15A fuse should supply a maximum of 180 Watts and a 10A fuse should supply a maximum of 120 Watts. Exceeding these limits will result in a blown fuse.

Always keep the power point caps closed when not being used.

The auxiliary power point is located on the instrument panel below the optional cigarette lighter (if equipped).

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

POWER WINDOWS

When closing the power

windows, you should verify they are free of obstructions and ensure that children and/or pets are not in the proximity of the window openings.

Press and hold the bottom part of the rocker switch to open the window. Press and hold the top part of the rocker switch to close the window.

One touch down

Allows the driver’s window to open fully without holding the control down. Press completely down on AUTO and release quickly. Press again to stop.

Window lock

The window lock feature allows only the driver to operate the power windows.

To lock out all the window controls except for the driver’s press the left side of the control. Press the right side to restore the window controls.

Accessory delay (if equipped)

With accessory delay, the window switches may be used for up to ten minutes after the ignition switch is turned to the OFF position or until any door is opened.

MIRRORS

Automatic dimming inside rear view mirror (if equipped)

Your vehicle is equipped with an inside rear view mirror which has an auto-dimming function. The electronic day/night mirror will automatically

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

change from the normal, clear state to the darkened, non-glare state when bright light (glare) reaches the mirror from behind the vehicle at night.

Do not block the sensor (1) on the either side of the mirror since this will impair proper mirror performance (i.e. hangtags, parking stickers, aftermarket window-tint etc.).

Use the control located on the mirror to turn the auto-dimming feature OFF or return it to AUTO. A LED (2) will light when the mirror is in AUTO mode. When the auto-dimming feature is OFF the mirror will remain in the normal. clear state.

When the mirror is in AUTO mode it will automatically return to the normal, clear state whenever the vehicle is placed in R (Reverse). This is to ensure a clear view when backing up.

Power side view mirrors

To adjust your mirrors:

1. Select L to adjust the left mirror or R to adjust the right mirror.

2. Move the control in the direction you wish to tilt the mirror.

3. Return to the center position to disable the adjust function.

Heated outside mirrors

Both mirrors are heated automatically to remove ice, mist and fog when the rear window defrost is activated.

Do not remove ice from the mirrors with a scraper or attempt to readjust the mirror glass if it is frozen in place. These actions could cause damage to the glass and mirrors.

(if equipped)

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

POWER ADJUSTABLE FOOT PEDALS (IF EQUIPPED)

The accelerator and brake pedal should only be adjusted when the vehicle is stopped and the gearshift lever is in the P (Park) position.

Press and hold the rocker control (located on the instrument panel) to adjust accelerator and brake pedal.

• Press the right side of the control to adjust the pedals toward you.

• Press the left side of the control to adjust the pedals away from you.

The adjustment allows for approximately 76 mm (3 inches) of maximum travel.

Never adjust the accelerator and brake pedal with feet on the

pedals while the vehicle is moving.

SPEED CONTROL (IF EQUIPPED)

With speed control set, you can maintain a speed of 48 km/h (30 mph) or more without keeping your foot on the accelerator pedal. Speed control does not work at speeds below 48 km/h (30 mph).

Do not use the speed control in heavy traffic or on roads that

are winding, slippery or unpaved.

Setting speed control

The controls for using your speed control are located on the steering wheel for your convenience.

1. Press the ON control and release it.

2. Accelerate to the desired speed.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

3. Press the SET ACC control and release it.

4. Take your foot off the accelerator pedal.

5. The CRUISE indicator light on the instrument cluster will turn on.

Note:

• Vehicle speed may vary momentarily when driving up and down a steep hill.

• If the vehicle speed increases above the set speed on a downhill, you may want to apply the brakes to reduce the speed.

• If the vehicle speed decreases more than 16 km/h (10 mph) below your set speed on an uphill, your speed control will disengage.

• If the vehicle speed decreases to 40 km/h (25 mph) or less, your speed control will disengage

Disengaging speed control

To disengage the speed control:

• Depress the brake pedal

Disengaging the speed control will not erase previous set speed.

Resuming a set speed

Press the RES (resume) control and release it. This will automatically return the vehicle to the previously set speed. The RES control will not work if the vehicle speed is not faster than 48 km/h (30 mph).

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

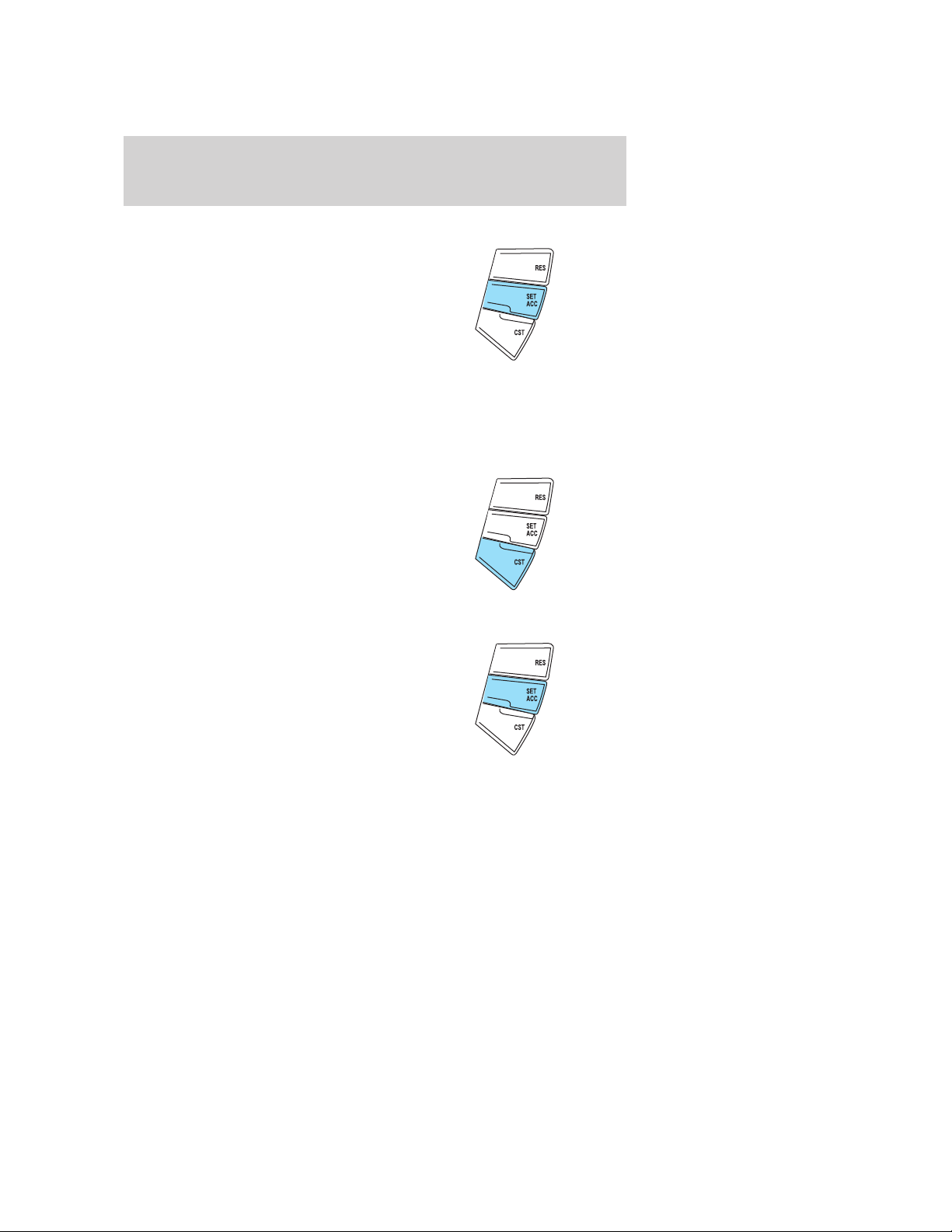

Increasing speed while using speed control

There are three ways to set a higher speed:

• Press and hold the SET ACC control until you get to the desired speed, then release the control.

• Press and release the SET ACC control to operate the Tap-Up function. Each tap will increase the set speed by 1.6 km/h (1 mph).

• Use the accelerator pedal to get to the desired speed. When the vehicle reaches that speed press and release the SET ACC control.

Reducing speed while using speed control

There are three ways to reduce a set speed:

• Press and hold the CST control until you get to the desired speed, then release the control.

• Press and release the CST control to operate the Tap-Down function. Each tap will decrease the set speed by 1.6 km/h (1 mph).

• Depress the brake pedal until the desired vehicle speed is reached, press the SET ACC control.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

Turning off speed control

There are two ways to turn off the speed control:

• Depress the brake pedal. This will not erase your vehicle’s previously set speed.

• Press the speed control OFF control.

Note: When you turn off the speed control or the ignition, your speed control set speed memory is erased.

MOON ROOF (IF EQUIPPED)

You can move the glass panel of the moon roof back to open or tilt up to ventilate the vehicle.

To open the moon roof: The moon roof is equipped with an automatic, one-touch, express opening feature. Press and release the rear portion of the control.

To close, press and hold the front portion of the control.

The moon roof has a sliding shade that can be opened or closed when the glass panel is shut. To close the shade, pull it toward the front of the vehicle

Do not let children play with the moon roof. They may seriously hurt themselves.

HOMELINK姞 WIRELESS CONTROL SYSTEM (IF EQUIPPED)

The HomeLink威 Wireless Control System, located on the driver’s visor, provides a convenient way to replace up to three hand-held transmitters with a single built-in device. This feature will learn the radio frequency codes of most current transmitters to operate garage doors, entry gate operators, security systems, entry door locks, and home or office lighting.

When programming your HomeLink威 Wireless Control System to a garage door or gate, be sure that people and objects are out of

the way to prevent potential harm or damage.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

Do not use the HomeLink威 Wireless Control System with any garage door opener that lacks safety stop and reverse features as required by U.S. federal safety standards (this includes any garage door opener model manufactured before April 1, 1982). A garage door which cannot detect an object, signaling the door to stop and reverse, does not meet current U.S. federal safety standards. For more information, contact HomeLink威 at: www.homelink.com or 1–800–355–3515.

Retain the original transmitter for use in other vehicles as well as for future programming procedures (i.e. new HomeLink威 equipped vehicle purchase). It is also suggested that upon the sale of the vehicle, the programmed Homelink威 buttons be erased for security purposes, refer to Programming in this section.

Programming

Do not program HomeLink威 with the vehicle parked in the garage.

Note: Your vehicle may require the ignition switch to be turned to the

ACC position for programming and/or operation of the HomeLink威.Itis also recommended that a new battery be placed in the hand-held transmitter of the device being programmed to HomeLink威 for quicker training and accurate transmission of the radio-frequency signal.

1. Press and hold the two outside

buttons releasing only when the red light begins to flash after 20 seconds. Do not repeat step one to program additional hand-held transmitters to the remaining two HomeLink威 buttons. This will erase previously programmed hand-held transmitter signals into HomeLink威.

2. Position the end of your

hand-held transmitter 2–8cm(1–3 inches) away from the HomeLink威 button you wish to program (located on your visor) while keeping the red light in view.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

3. Simultaneously press and hold

both the HomeLink威 and hand-held transmitter button. Do not release

the buttons until step 4 has been completed.

Some entry gates and garage door openers may require you to replace step 3 with procedures noted in the “Gate Operator and Canadian Programming” in this section for Canadian residents.

4. The red light will flash slowly and then rapidly. Release both buttons

when the red light flashes rapidly. (The rapid flashing light indicates acceptance of the hand-held transmitters’ radio frequency signals.)

5. Press and hold the just-trained HomeLink威 button and observe the red

light. If the light is a constant red, programming is complete and your device should activate when the HomeLink威 button is pressed and released. Note: To program the remaining two HomeLink威 buttons, begin with step 2 in the “Programming” section — do not repeat step 1.

Note: If the red light blinks rapidly for two seconds and then turns to a continuous red, proceed with steps 6 through 8 to complete programming of a rolling code equipped device.

6. At the garage door opener receiver (motor-head unit) in the garage,

locate the “learn” or “smart” button (usually near where the hanging antenna wire is attached to the unit).

7. Press and release the “learn” or “smart” button. (The name and color

of the button may vary by manufacturer.)

Note: There are 30 seconds in which to initiate step eight.

8. Return to the vehicle and firmly press, hold for two seconds and

release the HomeLink威 button. Repeat the press/hold/release sequence again, and, depending on the brand of the garage door opener (or other rolling code equipped device), repeat this sequence a third time to complete the programming.

HomeLink威 should now activate your rolling code equipped device. To program additional HomeLink威 buttons begin with step 2 in the “Programming” section. For questions or comments, please contact HomeLink at www.homelink.com or 1–800–355–3515.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

Gate Operator & Canadian Programming

During programming, your hand-held transmitter may automatically stop transmitting — not allowing enough time for HomeLink威 to accept the signal from the hand-held transmitter.

After completing steps 1 and 2 outlined in the “Programming” section, replace step 3 with the following:

Note: If programming a garage door opener or gate operator, it is advised to unplug the device during the “cycling” process to prevent overheating.

• Continue to press and hold the HomeLink威 button (note step 3 in the

“Programming” section) while you press and release — every two seconds (“cycle”) your hand-held transmitter until the frequency

signal has been accepted by the HomeLink威. The red indicator light will flash slowly and then rapidly after HomeLink威 accepts the radio frequency signal.

• Proceed with step 4 in the “Programming” section.

Operating the HomeLink姞 Wireless Control System

To operate, simply press and release the appropriate HomeLink威 button. Activation will now occur for the trained product (garage door, gate operator, security system, entry door lock, or home or office lighting etc.). For convenience, the hand-held transmitter of the device may also be used at any time. In the event that there are still programming difficulties, contact HomeLink威 at www.homelink.com or

1–800–355–3515.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

Erasing HomeLink姞 buttons

To erase the three programmed buttons (individual buttons cannot be erased):

• Press and hold the two outer HomeLink威 buttons until the red indicator light begins to flash-after 20 seconds. Release both buttons. Do not hold for longer that 30 seconds.

HomeLink威 is now in the train (or learning) mode and can be programmed at any time beginning with step 2inthe“Programming” section.

Reprogramming a single HomeLink姞 button

To program a device to HomeLink威 using a HomeLink威 button previously trained, follow these steps:

1. Press and hold the desired HomeLink威 button. Do NOT release the

button.

2. The red indicator light will begin to flash after 20 seconds. Without

releasing the HomeLink威 button, follow step 2 in the “Programming” section.

For questions or comments, contact HomeLink威 at www.homelink.com or 1–800–355–3515.

MESSAGE CENTER

With the ignition in the ON position, the message center, located on your instrument cluster, displays important vehicle information

through a constant monitor of vehicle systems. You may select

display features on the message center for a display of status preceded by a brief indicator chime. The system will also notify you of potential vehicle problems with a display of system warnings followed by a long indicator chime.

Selectable features

Reset

Press this control to select and reset functions shown in the INFO menu and SETUP menu.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

Info menu

This control displays the following control displays:

• Odometer

• Distance to Empty

• Average Fuel Economy

• Trip odometer

• Trip Elapsed Drive Time

• Outside air temperature (if

equipped)

• Compass (if equipped)

Odometer/Trip odometer

Refer to Gauges in the Instrument Cluster chapter.

Distance to empty (DTE)

Selecting this function from the INFO menu estimates approximately how far you can drive with the fuel remaining in your tank under normal driving conditions. Remember to turn the ignition OFF when refueling to allow this feature to correctly detect the added fuel.

The DTE function will display LOW FUEL LEVEL and sound a tone for one second when you have approximately 80 km (50 miles) to empty. If you RESET this warning message, this display and tone will return within 10 minutes.

DTE is calculated using a running average fuel economy, which is based on your recent driving history of 800 km (500 miles). This value is not the same as the average fuel economy display. The running average fuel economy is reinitialized to a factory default value if the battery is disconnected.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

Average fuel economy (AFE)

Select this function from the INFO menu to display your average fuel economy in liters/100 km or miles/U.S. gallon.

If you calculate your average fuel economy by dividing liters of fuel used by 100 kilometers traveled (miles traveled by gallons used), your figure may be different than displayed for the following reasons:

• Your vehicle was not perfectly level during fill-up

• Differences in the automatic shut-off points on the fuel pumps at

service stations

• Variations in top-off procedure from one fill-up to another

• Rounding of the displayed values to the nearest 0.1 liter (gallon)

1. Drive the vehicle at least 8 km (5 miles) with the speed control

system engaged to display a stabilized average.

2. Record the highway fuel economy for future reference.

It is important to press the RESET control after setting the speed control to get accurate highway fuel economy readings.

Distance to empty/Average fuel economy for FFV-equipped vehicles

Upon refueling, your vehicle must determine the percentage of Ethanol in the fuel. Until the percent of Ethanol is determined, DTE/AFE may not display the current values. The correct DTE/AFE will appear after driving a few miles.

Trip elapsed drive time

Select this function from the INFO menu to display a timer.

To operate the Trip Elapsed Drive Time perform the following:

1. Press and release RESET in order

to start the timer.

2. Press and release RESET to pause the timer.

3. Press and hold RESET for 2 seconds in order to reset the timer.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

Outside air temperature (if equipped)

Press and hold the INFO button for 2 seconds to display the outside temperature. To switch from a blank display to the temperature display or to the compass display hold the INFO button for 2 seconds.

To turn the display off or change the display from English to metric see your dealer.

Compass display (if equipped)

Select this function from the INFO menu. Press and hold the INFO button for 2 seconds to select the Compass/Odometer function.

The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antenna. Magnetic or metallic objects placed in, on or near the vehicle may also affect compass accuracy.

Usually, when something affects the compass readings, the compass will correct itself after a few days of operating your vehicle in normal conditions. If the compass still appears to be inaccurate, a manual calibration may be necessary. Refer to Compass zone/calibration

adjustment.

Most geographic areas (zones) have a magnetic north compass point that varies slightly from the northerly direction on maps. This variation is four degrees between adjacent zones and will become noticeable as the vehicle crosses multiple zones. A correct zone setting will eliminate this error. Refer to Compass zone/calibration adjustment.

Compass zone/calibration adjustment

Perform this adjustment in an open area free from steel structures and high voltage lines.

For optimum calibration, turn off all electrical accessories (heater/air conditioning, wipers, etc.) and make sure all vehicle doors are shut.

1. Turn ignition to the ON position.

2. Start the engine.

3. Press and hold the INFO button for 2 seconds to select the

Compass/Odometer function. (Do not select Trip, DTE, or AFE. The top of the message center must be blank).

Note: If the compass displays ⬙CAL 000000.0 mi⬙ instead of heading information, the compass will need to be calibrated. Slowly drive the

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

vehicle in a circle (less than 5km/h [3mph]) until the ⬙CAL⬙ indicator changes to display compass heading. This may take up to 3 circles to complete calibration.

4. Determine your magnetic zone by

referring to the zone map.

123

6 7 8 9 1011

5. Press and hold the RESET until

the message center display changes to show the current zone setting.

6. Release the RESET control, then

slowly press RESET down again.

7. Press the SET control repeatedly

until the correct zone setting for your geographic location is displayed on the message center. To exit the zone setting mode press and release the RESET control.

8. Press the RESET control to start

the compass calibration function.

14 13

9. Slowly drive the vehicle in a

circle (less than 5 km/h [3 mph]) until the CIRCLE SLOWLY TO CALIBRATE indicator changes to CALIBRATION COMPLETED. This will take up to three circles to complete calibration.

10. The compass is now calibrated.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

Setup menu

Press this control for the following displays:

• Language

• Units (English/Metric)

• System Check

Language

1. Select this function from the

SETUP menu for the current language to be displayed.

2. Pressing the RESET control

cycles the message center through each of the language choices.

3. Press and hold the RESET

control to set the language choice.

Units (English/Metric)

1. Select this function from the

SETUP menu for the current units to be displayed.

2. Press the RESET control to

change from English to Metric.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

System check

Selecting this function from the SETUP menu causes the message center to cycle through each of the systems being monitored. For each of the monitored systems, the message center will indicate either an OK message or a warning message for two to four seconds.

Pressing the RESET control cycles the message center through each of the systems being monitored.

The sequence of the system check report is as follows:

1. OIL PRESSURE

2. CHARGING SYSTEM

3. BRAKE FLUID LEVEL

4. FUEL LEVEL

5. DOORS CLOSED (If RESET control is pressed PLEASE CLOSE DOOR

will be displayed).

6. PARK BRAKE STATUS

7. ENGINE TEMP

8. BRAKE SYSTEM

9. TRACTION CONTROL (if equipped)

System warnings

System warnings alert you to possible problems or malfunctions in your vehicle’s operating systems.

In the event of a multiple warning situation, the message center will cycle the display to show all warnings by displaying each one for several seconds.

The message center will display the last selected feature if there are no more warning messages. This allows you to use the full functionality of the message center after you acknowledge the warning by pressing the RESET control and clearing the warning message.

Warning messages that have been reset are divided into three categories:

• They will not disappear until a condition is changed.

• They will reappear on the display ten minutes from the reset.

• They will not reappear until an ignition OFF-ON cycle has been

completed.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

This acts as a reminder that these warning conditions still exist within the vehicle.

Warnings Status

Driver’s door ajar Warning cannot be reset (CLOSE Passenger door ajar Left rear door ajar Right rear door ajar Park brake engaged RELEASE PARK BRAKE will be

Check engine temp Warning returns after 10 minutes Transmission overheated Check transmission Low fuel level Check fuel cap Check charging system Oil pressure low Check brake system Low brake fluid Warning returns after the ignition key Liftgate ajar (if equipped) Check Traction Control (if

equipped) Data error

DRIVER’S DOOR AJAR. Displayed when the driver’s door is not completely closed.

PASSENGER DOOR AJAR. Displayed when the passenger side door is not completely closed.

LEFT REAR DOOR AJAR. Displayed when the left rear door is not completely closed.

RIGHT REAR DOOR AJAR. Displayed when the right rear door is not completely closed.

PARK BRAKE ENGAGED. Displayed when the park brake is engaged. If the warning stays on after the park brake is off, contact your dealer as soon as possible.

CHECK ENGINE TEMPERATURE. Displayed when the engine coolant is overheating. Stop the vehicle as soon as safely possible, turn

DOOR TO RESET) will be displayed

displayed

is turned from OFF to RUN

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

off the engine and let it cool. Check the coolant and coolant level. Refer to Engine coolant in the Maintenance and specifications chapter. If the warning stays on or continues to come on, contact your dealer as soon as possible.

TRANSMISSION OVERHEATED. Indicates the transmission is overheating. This warning may appear when towing heavy loads or when driving in a low gear at a high speed for an extended period of time. Stop the vehicle as soon as safely possible, turn off the engine and let it cool. Refer to Transmission fluid in the Maintenance and specifications chapter. If the warning stays on or continues to come on, contact your dealer for transmission service as soon as possible.

CHECK TRANSMISSION. Indicates the transmission is not operating properly. If this warning stays on, contact your dealer as soon as possible.

LOW FUEL LEVEL. Displayed as an early reminder of a low fuel condition.

CHECK FUEL CAP. Displayed when the fuel filler cap is not properly installed. Check the fuel filler cap for proper installation. Refer to Fuel filler cap in the Maintenance and specifications chapter.

CHECK CHARGING SYSTEM. Displayed when the electrical system is not maintaining proper voltage. If you are operating electrical accessories when the engine is idling at a low speed, turn off as many of the electrical loads as possible. If the warning stays on or comes on when the engine is operating at normal speeds, have the electrical system checked as soon as possible.

OIL PRESSURE LOW. Displayed when the engine oil level is low. If this warning message is displayed, check the level of the engine oil. Refer to Engine oil in the Maintenance and specifications chapter for information about adding engine oil.

CHECK BRAKE SYSTEM. Displayed when the brake system needs servicing. If the warning stays on or continues to come on, contact your dealer as soon as possible.

LOW BRAKE FLUID. Indicates the brake fluid level is low and the brake system should be inspected immediately. Refer to Checking and adding brake fluid in the Maintenance and specifications chapter.

LIFTGATE AJAR (if equipped). Displayed when the liftgate is not completely closed.

CHECK TRACTION CONTROL (if equipped). Displayed when the Traction Control娂 system is not operating properly. If this warning stays

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

on, contact your dealer for service as soon as possible. For further information, refer to Traction control娂 in the Driving chapter.

DATA ERR. These messages indicate improper operation of the vehicle network communication between electronic modules.

• Fuel computer

• Charging system

• Coolant system

• Traction control (if equipped)

• Door sensor

• Brake fluid

• Compass (if equipped)

• Outside temperature (if equipped)

• Engine sensor

• Transmission sensor

• Fuel cap sensor

• Seat belt sensor

• Park brake

• Oil pressure sensor

Contact your dealer as soon as possible if these messages occur on a regular basis.

CENTER CONSOLE

Your vehicle may be equipped with a variety of console features. These include:

• Utility compartment

• Bin mat (snap-in)

• Cupholders (front and rear)

• Coin holder slots

• Compact disc changer (if equipped)

• Tissue holder

• Rear A/C vent

• Rear ashtray (see your Ford, Lincoln Mercury dealer to obtain rear

ashtray

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

Use only soft cups in the cupholder. Hard objects can injure you in a collision.

If your vehicle is equipped with the column shift and a bench seat, it has a center console in the center front seating position.

The center console has similar features as the full console. To open the storage compartment, raise the armrest and pull the strap on the seat up and toward the front of the vehicle. The rear seat area is provided with dual cupholders.

CELL PHONE USE

The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits.

Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in vehicle communications systems, telematics devices and portable two-way radios.

A driver’s first responsibility is the safe operation of the vehicle.

The most important thing you can do to prevent a crash is to avoid distractions and pay attention to the road. Wait until it is safe to operate Mobile Communications Equipment.

POSITIVE RETENTION FLOOR MAT

Position the driver floor mat so that the eyelet is over the pointed end of the retention post and rotate forward to lock in. Make sure that the mat does not interfere with the operation of the accelerator or the brake pedal. To remove the floor mat, reverse the installation procedure.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

INTERIOR TRUNK CONTROL (IF EQUIPPED)

Press the remote trunk release control on the instrument panel to the left of the steering wheel.

LIFTGATE (WAGON ONLY)

You can open and close the liftgate and the liftgate window from outside the vehicle. It cannot be opened from inside the cargo area.

• To open the liftgate window, unlock the liftgate (with the key, the power door locks or the remote entry transmitter) and push the key lock cylinder.

• To open the liftgate, unlock the liftgate and pull up on the handle under the license plate lamp shield.

To lock the liftgate and the liftgate window, press the lock button down on the inside of the liftgate, use the key, the power door locks, or the remote entry key fob.

The liftgate and liftgate window should be closed before driving your vehicle. If not, possible damage may occur to the liftgate lift cylinders and attaching hardware.

CARGO AREA FEATURES

Storage compartment (Wagon)

Your vehicle comes equipped with a storage compartment in the floor of the cargo area. An additional compartment is in the rear trim panel on the right. Always put the load you are carrying as far forward as possible.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

Cargo net (if equipped) (Wagon)

The cargo net secures lightweight objects in the cargo area. Attach the net to the anchors provided. Do not put more than 22 kg (50 lbs.) in the net.

This net is not designed to restrain objects during a

collision.

Cargo cover (if equipped)

Your vehicle may be equipped with a cargo area shade that covers the luggage compartment of your vehicle.

To install the shade:

1. Fasten the cover into the

mounting brackets (make sure the cover is right side up).

2. Pull the end of the shade toward

you and hook the sides into the notches (right side first) in the rear trim panels.

To reduce the risk of injuries, the fasteners for cargo area cover must be properly attached to the mounting clips on the rear trim

panels.

Do not place any objects on the cargo area cover. They may obstruct your vision or strike occupants of the vehicle in the

case of a sudden stop or collision.

The cover may cause injury in a sudden stop or accident if it is not securely installed.

Rewinding the shade

With extended use, the cargo shade may lose its spring tension. If this occurs, the shade must be manually rewound. This is a two-person operation.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

1. Remove the shade from the vehicle and extend it with the smooth

grain facing you.

2. Wrap the vinyl around the roller

tube twice. Tuck the edges of the vinyl inside the end cap with each wrap.

3. Fold the edges of the vinyl

towards the center, making sure that the edges clear the end cap slots. Use tape or a rubber band to hold the vinyl to the left side of the tube.

4. Push in the right end cap

(marked RH) about length to disengage the clutch and hold the end cap in while turning the roller tube toward you 14 times.

5. Let go of the right end cap. The

clutch will now engage and stop the shade from losing its spring tension.

6. Unfold the vinyl and place it into

the end cap slots.

7. Insert the shade into the side mounting brackets and check to make

sure that it operates properly.

The cover may cause injury in a sudden stop or accident if it is not securely installed.

Cargo utility hooks (Sedan)

The utility hooks located inside the trunk can be used to attach a cargo net to secure lightweight objects or hang small items on. Do not hang more than 12 kg (20 lbs) on the hooks.

The hooks are not designed to restrain objects during a collision.

⁄4of the total

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Driver Controls

LUGGAGE RACK (IF EQUIPPED)

The rear cross-bar can be adjusted to fit the item being carried. The front cross-bar does not move. Do not load more than 44 kg (100 lbs.) on the luggage rack.

To adjust cross-bar position:

1. Loosen the thumbwheel at both

ends of the cross-bar.

2. Slide the cross-bar to the desired

location.

3. Tighten the thumbwheel at both

ends of the cross-bar.

Use adjustable tie down loops to secure the load.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Locks and Security

KEYS

The key operates all locks on your vehicle. In case of loss, replacement keys are available from your dealer.

You should always carry a second key with you in a safe place in case you require it in an emergency.

Refer to SecuriLock娂 Passive Anti-Theft System for more information.

POWER DOOR LOCKS

Press control to unlock or lock all doors.

Power door lock disable feature (if equipped)

The UNLOCK inside the vehicle when:

• the ignition has been turned to the 3 (OFF) position, and

• 20 seconds elapse after all vehicle doors are closed and locked using

the remote entry transmitter, the keyless entry pad, or the power door lock control (while the accompanying door is open).

The UNLOCK

• a door has become ajar,

• the ignition is turned to the 4 (ON) position, or

• using the UNLOCK

unlocking via the keyless entry keypad.

Deactivating/activating power door lock disable feature

You must complete Steps 1-7 within 30 seconds or the procedure will have to be repeated. If the procedure needs to be repeated, you must wait 30 seconds.

1. Turn the ignition key to the 4 (ON) position.

2. Press the power door unlock control three times.

3. Turn the ignition key from the 4 (ON) to the 3 (OFF) position.

feature on your power door locks will not work from

feature will work again after:

control on your remote entry transmitter or

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Locks and Security

4. Press the power door unlock control three times.

5. Turn the ignition back to the 4 (ON) position. The horn will chirp.

6. Press the unlock control, then press the lock control. Note: The horn

will chirp twice if autolock was deactivated or chirp twice then honk (two short and one long chirp) if autolock was activated.

7. Press the power door unlock control and then the lock control again

in order to toggle the autolock/relock states.

8. Turn the ignition to the 3 (OFF) position. The horn will chirp once to

confirm the procedure is complete.

Childproof door locks

• When these locks are set, the rear doors cannot be opened from the inside.

• The rear doors can be opened from the outside when the doors are unlocked.

The childproof locks are located on rear edge of each rear door and must be set separately for each door. Setting the lock for one door will not automatically set the lock for both doors.

• Move lock control up to engage the childproof lock.

• Move control down to disengage childproof locks.

INTERIOR LUGGAGE COMPARTMENT RELEASE

Your vehicle is equipped with a mechanical interior luggage compartment release handle that provides a means of escape for children and adults in the event they become locked inside the luggage compartment.

Adults are advised to familiarize themselves with the operation and location of the release handle.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Locks and Security

To open the luggage compartment door (lid) from within the luggage compartment, pull the illuminated “T” shaped handle and push up on the trunk lid. The handle is composed of a material that will glow for hours in darkness following brief exposure to ambient light.

The “T” shaped handle will be located either on the luggage compartment door (lid) or inside the luggage compartment near the tail lamps.

Keep vehicle doors and

luggage compartment locked and keep keys and remote transmitters out of a child’s reach. Unsupervised children could lock themselves in the trunk and risk injury. Children should be taught not to play in vehicles.

On hot days, the temperature in the trunk or vehicle interior can

rise very quickly. Exposure of people or animals to these high temperatures for even a short time can cause death or serious heat-related injuries, including brain damage. Small children are particularly at risk.

REMOTE ENTRY SYSTEM (IF EQUIPPED)

This device complies with part 15 of the FCC rules and with RS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Locks and Security

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

The typical operating range for your remote entry transmitter is approximately 10 meters (33 feet). A decrease in operating range could be caused by:

• weather conditions,

• nearby radio towers,

• structures around the vehicle, or

• other vehicles parked next to your vehicle.

The remote entry system allows you to:

• lock or unlock all vehicle doors,

• open the trunk or the liftgate,

and

• sound the panic alarm.

If there is a problem with the remote entry system make sure to take ALL remote entry transmitters with you to the dealership, this will aid in troubleshooting the problem.

Unlocking the doors

1. Press and release to unlock the driver’s door. Note: The interior lamps will illuminate.

2. Press doors and the liftgate (wagon).

The remote entry system comes with an illuminated entry feature. This feature turns on the interior lamps for 25 seconds or until the ignition is turned to the the 4 (ON) position. If the dome lamp control is in the off position the illuminated entry feature will not work.

The inside lights will not turn off if:

• they have been turned on using the dimmer control or

• any door is open.

The battery saver feature will turn off the interior lamps 10 minutes after the ignition is turned to the 3 (OFF) position.

and release again within three seconds to unlock all the

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Locks and Security

Locking the doors

1. Press and release to lock all the doors and liftgate (wagon), turn off the interior lamps (if they were on) and arm the anti-theft system. Note: The parklamps will flash once if all doors and liftgate (wagon) are closed.

2. Press doors and liftgate are closed and locked. Note: The doors will lock again, the horn will chirp once, and the parklamps will flash once.

If any of the doors or liftgate (wagon) are not properly closed the horn will make two quick chirps, and the parklamps will not flash. As soon as all vehicle doors and the liftgate (wagon) are closed, the parklamps will flash once to confirm that all doors and liftgate (wagon) are closed.

Sounding a panic alarm

Press parklamps will flash for a maximum of 30 seconds. Press again or turn the ignition to the 4 (ON) position to deactivate, or wait for the alarm to timeout in 3 minutes.

Note: The panic alarm will only operate when the ignition is in the 1 (ACCESSORY), 2 (LOCK) or 3 (OFF) position.

Opening the trunk

and release again within three seconds to confirm that all the

to activate the alarm. Both the horn will sound and the

Press once to open the trunk or liftgate (wagon).

Replacing the battery

The remote entry transmitter uses one coin type three-volt lithium battery CR2032 or equivalent.

To replace the battery:

1. Twist a thin coin between the two halves of the remote entry transmitter near the key ring. DO NOT TAKE THE RUBBER COVER AND CIRCUIT BOARD OFF THE FRONT HOUSING OF THE REMOTE ENTRY TRANSMITTER.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Locks and Security

2. Do not wipe off any grease on the battery terminals on the back surface of the circuit board.

3. Remove the old battery.

4. Insert the new battery. Refer to the diagram inside the remote entry transmitter for the correct orientation of the battery. Press the battery down to ensure that the battery is fully seated in the battery housing cavity.

5. Snap the two halves back together. Note: Replacement of the battery will not cause the remote transmitter

to become deprogrammed from your vehicle. The remote transmitter should operate normally after battery replacement.

Replacing lost remote entry transmitters

If you would like to have your remote entry transmitter reprogrammed because you lost one, or would like to buy additional remote entry transmitters, you can either reprogram them yourself, or take all remote entry transmitters to your authorized dealer for reprogramming.

How to reprogram your remote entry transmitters

You must have all remote entry transmitters (maximum of four) available before beginning this procedure.

To reprogram the remote entry transmitters:

1. Ensure the vehicle is electronically unlocked.

2. Put the key in the ignition.

3. Turn the key from the 2 (LOCK) position to 3 (OFF).

4. Cycle eight times rapidly (within 10 seconds) between the 3 (OFF) position and 4 (ON). Note: The eighth turn must end in the 4 (ON) position.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Locks and Security

5. The doors will lock, then unlock, to confirm that the programming mode has been activated.

6. Within 20 seconds press any button on the remote entry transmitter. Note: If more than 20 seconds have passed you will need to start the procedure over again.

7. The doors will lock, then unlock, to confirm that this remote entry transmitter has been programmed.

8. Repeat Step 6 to program each additional remote entry transmitter.

9. Turn the ignition to the 3 (OFF) position after you have finished programming all of the remote entry transmitters. Note: After 20 seconds, you will automatically exit the programming mode.

10. The doors will lock, then unlock, to confirm that the programming mode has been exited.

Illuminated entry

The interior lamps illuminate when the remote entry system is used to unlock the door(s) or sound the personal alarm.

The illuminated entry system will turn off the interior lights if:

• the ignition is turned to the 4 (ON) position, or

• the remote transmitter lock control is pressed, or

• the vehicle is locked using the keyless entry keypad (if equipped), or

• after 25 seconds of illumination.

The dome lamp control (if equipped) must not be set to the off position for the illuminated entry system to operate.

The inside lights will not turn off if:

• they have been turned on with the dimmer control, or

• any door is open.

The battery saver will shut off the interior lamps 10 minutes after the ignition has been turned to the 3 (OFF) position.

Perimeter lamps illuminated entry

The exterior lamps illuminate when the vehicle is unlocked using the remote entry system.

On vehicles equipped with the autolamps feature, the following items will illuminate:

• Puddle lamps (if equipped)

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Locks and Security

• Head lamps

• Park lamps

• Tail lamps

On vehicles not equipped with the autolamps feature, only the following items will illuminate:

• Puddle lamps (if equipped)

• Park lamps

• Tail lamps

The system will automatically turn off if:

• the ignition switch is turned to the 4 (ON) position, or

• the remote entry transmitter lock control is pressed, or

• the vehicle is locked using the keyless entry keypad (if equipped), or

• after 25 seconds of illumination.

Deactivating/activating perimeter lamps

You may enable/disable this feature by having your vehicle serviced by your authorized dealer.

You may also perform the following power door lock sequence to enable/disable the perimeter lamps feature:

1. Turn the ignition to the 4 (ON) position, then press the power door unlock control 3 times.

2. Turn the ignition to the 3 (OFF) position, then press the power door unlock control 3 times.

3. Turn the ignition to the 4 (ON) position, and within five seconds press the power door unlock control 2 times. Note: The horn will chirp twice if the perimeter lamps feature was deactivated, or chirp twice then honk (two shorts, followed by one long) if the feature was activated.

4. Turn the ignition to the 3 (OFF) position to exit the procedure. Note: The horn will chirp once to confirm the procedure is complete.

Note: The puddle lamps (if equipped) cannot be deactivated; performing this procedure will only deactivate the head, park and tail lamps.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Locks and Security

KEYLESS ENTRY SYSTEM (IF EQUIPPED)

You can use the keyless entry keypad to:

• lock or unlock the doors without using a key.

• open the trunk or liftgate (wagon).

• activate or deactivate the autolock feature.

The keypad can be operated with the factory set 5–digit entry code; this code is located on the owner’s wallet card in the glove box, is marked on the computer module, and is available from your authorized dealer. You can also create your own 5–digit personal entry code.

When pressing the controls on the keypad, press the middle of the controls to ensure a good activation.

Programming a personal entry code

To create your own personal entry code:

1. Enter the factory set code. Note: The keyless entry keypad and

interior lights will illuminate and the driver’s door will unlock.

2. Within five seconds press the 1 • 2 on the keypad.

3. Enter your personal 5-digit code. Each number must be entered

within five seconds of each other.

4. The doors will again lock then unlock, to confirm that your personal

keycode has been programmed to the module.

Tips:

• Do not set a code that uses five of the same number.

• Do not use five numbers in sequential order.

• The factory set code will work even if you have set your own personal

code.

• If you set a second personal code it will erase your first personal code.

Note: To exit programming mode, either wait 5 seconds after pressing 1

• 2 on the keypad, or press the 7 • 8 and 9 • 0 pads simultaneously to

lock all vehicle doors and end programming mode.

1 2

4567890

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Locks and Security

Erasing personal codes

1. Enter the factory set 5–digit code. The keyless entry keypad and

interior lights will illuminate and the driver’s door will unlock.

2. Press and release the 1 • 2 within five seconds of completing step 1.

3. Press and hold the 1 • 2 for two seconds to erase the customer

programmed codes. All personal codes are now erased and only the factory set 5–digit code

will work. Note: To exit programming mode, either wait 5 seconds after pressing 1

• 2 on the keypad, or press the 7 • 8 and 9 • 0 pads simultaneously to

lock all vehicle doors and end programming mode.

Unlocking and locking the doors using keyless entry

To unlock the driver’s door, enter the factory set 5-digit code or your personal code. Each number must be pressed within five seconds of each other. The interior lamps will illuminate.

To unlock all doors and the liftgate (wagon), enter the factory set code or your personal code, then press the 3 • 4 control within five seconds.

To open the trunk or unlock the liftgate (wagon), enter the factory set code or your personal code, then press the 5 • 6 control within five seconds.

To lock all doors, press the 7 • 8 and the 9 • 0 at the same time. You do not need to enter the keypad code first.

Autolock (if equipped)

This feature automatically locks all vehicle doors when the following conditions are met:

• all the doors are closed,

• the engine is running,

• you shift into gear, putting the vehicle in motion, and.

• the vehicle’s speed is greater than 5 km/h (3 mph).

Relock

The autolock feature repeats when the following conditions are met:

• any door is opened then closed while the engine is running, and

• you shift into gear, putting the vehicle in motion, and

• the vehicle’s speed is greater than 5 km/h (3 mph).

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Locks and Security

To deactivate/reactivate the autolock feature using the power door unlock control

You must complete Steps 1-7 within 30 seconds or the procedure will have to be repeated. If the procedure needs to be repeated, you must wait 30 seconds.

1. Turn the ignition key to the 4 (ON) position.

2. Press the power door unlock control three times.

3. Turn the ignition key from the 4 (ON) to the 3 (OFF) position.

4. Press the power door unlock control three times.

5. Turn the ignition back to the 4 (ON) position. The horn will chirp.

6. Press the unlock control, then press the lock control. Note: The horn

will chirp twice if autolock was deactivated or chirp twice then honk (two short and one long chirp) if autolock was activated.

7. Press the power door unlock control and then the lock control again

in order to toggle the autolock/relock states.

8. Turn the ignition to the 3 (OFF) position. The horn will chirp once to

confirm the procedure is complete.

SECURILOCK姟 PASSIVE ANTI-THEFT SYSTEM

SecuriLock娂 passive anti-theft system is an engine immobilization system. This system is designed to prevent the engine from being started unless a coded key programmed to your vehicle is used. The use of the wrong type of coded key may lead to a “no-start” condition.

Your vehicle comes with two coded keys; additional coded keys may be purchased from your dealer. The dealer can program your spare keys to your vehicle or you can program the keys yourself. Refer to Programming spare keys for instructions on how to program the coded key.

Note: The SecuriLock娂 passive anti-theft system is not compatible with non-Ford aftermarket remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection.

Note: Large metallic objects, electronic devices that are used to purchase gasoline or similar items, or a second coded key on the same key chain may cause vehicle starting issues. You need to prevent these objects from touching the coded key while starting the engine. These objects will not cause damage to the coded key, but may cause a momentary issue if they are too close to the key when starting the engine. If a problem occurs, turn the ignition off, remove all objects on the key chain away from the coded key and restart the engine.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Locks and Security

Theft indicator

The theft indicator is located in the instrument cluster.

• When the ignition is in the 2 (LOCK) position, the indicator will flash once every 2 seconds to indicate the SecuriLock娂 system is functioning as a theft deterrent.

• When the ignition is in the 4 (ON) position, the indicator will glow for 3 seconds, then turn off to indicate normal system functionality.

If a problem occurs with the SecuriLock娂 system, the indicator will flash rapidly or glow steadily when the ignition is in the 4 (ON) position. If this occurs, the vehicle should be taken to an authorized dealer for service.

Automatic arming

The vehicle is armed immediately after switching the ignition to the 3 (OFF) position.

The

THEFT

every two seconds when the vehicle is armed.

Automatic disarming

Switching the ignition to the 4 (ON) position with a coded key disarms the vehicle.

• The out.

• If the flashes rapidly, have the system serviced by your dealer.

indicator will flash

THEFT

indicator will illuminate for three seconds and then go

THEFT

indicator stays on for an extended period of time or

Replacement keys

If your keys are lost or stolen and you don’t have an extra coded key, you will need to have your vehicle towed to a dealership. The key codes need to be erased from your vehicle and new coded keys will need to be programmed.

Replacing coded keys can be very costly. Store an extra programmed key away from the vehicle in a safe place to help prevent any inconveniences. Please visit an authorized dealer to purchase additional spare or replacement keys.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Locks and Security

Programming spare keys

You can program your own coded keys to your vehicle. Please read and understand the entire procedure before you begin.

Tips:

• A maximum of eight keys can be coded to your vehicle.

• Only use Securilock娂 keys.

• You must have two previously programmed coded keys (keys that

already operate your vehicle’s engine) and the new unprogrammed key(s) readily accessible.

• If no previously programmed coded keys are available, you must take your vehicle to your dealer to have the spare key(s) programmed.

1. Insert a previously programmed

coded key into the ignition.

2. Turn the ignition from the 3

(OFF) position to the 4 (ON) position. Keep the ignition in the 4 (ON) position for at least one second, but no more than 10 seconds.

3. Turn the ignition to the 3 (OFF) position, and remove the coded key

from the ignition.

4. Within ten seconds of removing the previously programmed coded key,

insert the other previously programmed coded key into the ignition.

5. Turn the ignition from the 3 (OFF) position to the 4 (ON) position.

Keep the ignition in the 4 (ON) position for at least one second but not more than 10 seconds.

6. Turn the ignition to the 3 (OFF) position, and remove the second key

from the ignition.

7. Within twenty seconds of removing the previously programmed coded

key, insert the unprogrammed key (new/valet key) into the ignition.

8. Turn the ignition from the 3 (OFF) position to the 4 (ON) position.

Keep the ignition in the 4 (ON) position for at least one second.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Locks and Security

9. Your new unprogrammed key is now programmed.

If the key has been successfully programmed it will start the vehicle’s engine and the theft indicator light will illuminate for three seconds and then go out. If the key was not successfully programmed, it will not start your vehicle’s engine and the theft indicator light will flash on and off rapidly. If failure repeats, bring your vehicle to your dealer to have the new key(s) programmed.

To program additional new unprogrammed key(s), repeat this procedure from Step 1 for each additional key.

PERIMETER ALARM SYSTEM (IF EQUIPPED)

The perimeter anti-theft system will warn you in the event of an unauthorized entry to your vehicle.

If there is any potential perimeter anti-theft problem with your vehicle, ensure ALL remote entry transmitters are taken to the dealership to aid in troubleshooting.

Arming the system

When armed, this system will respond if unauthorized entry is attempted. When unauthorized entry occurs, the system will flash the headlamps and/or parking lamps and will sound the horn.

The system is ready to arm whenever key is removed from the ignition. Either of the following actions will prearm the alarm system:

• Press the

• Press the 7 • 8 and the 9 • 0 on the keyless entry keypad (if

equipped) at the same time.

• Open a door and press the power door lock control to lock all the doors.

Note: The hood, each door and the liftgate (wagon) arm individually, and if any of them are open, they must be closed in order to be armed.

When you press the within three seconds:

• the horn will chirp twice to indicate the hood, each door and the liftgate (wagon) are closed.

• the horn will chirp twice to indicate that either the hood, a door or the liftgate (wagon) is still open.

control on the remote entry transmitter.

control on the remote entry transmitter twice

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Locks and Security

Disarming the system

You can disarm the system by any of the following actions:

• Unlock the doors by pressing the transmitter.

• Unlock the doors by using the keyless entry pad.

• Unlock the doors with a key. Turn the key full travel (toward the front

of the vehicle) to ensure the alarm disarms.

• Turn the ignition to the 4 (ON) position.

• Press the

shut the horn off when the alarm is sounding; the alarm system will still be armed.

Triggering the anti-theft system

The armed system will be triggered if:

• Any door, liftgate (wagon) or the hood is opened without using the key or the remote entry transmitter.

• The trunk key cylinder is forced.

control on the remote entry transmitter. This will only

control on your remote entry

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Seating and Safety Restraints

SEATING

Notes:

Reclining the seatback can cause an occupant to slide under the seat’s safety belt, resulting in severe personal injuries in the

event of a collision.

Do not pile cargo higher than the seatbacks to reduce the risk of injury in a collision or sudden stop.

Adjustable head restraints (if equipped)

Head restraints help to limit head motion in the event of a rear collision. The seats in your vehicle may have adjustable head restraints. Adjust your head restraint so that it is located directly or as close as possible behind your head.

Raise the head restraint by pulling it upward.

To lower the head restraint:

• Push the release control.

• Push down on the head restraint.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Seating and Safety Restraints

Using the manual lumbar support (if equipped)

The lumbar control is located on the front of the seat cushion.

Turn to adjust lumbar support.

Adjusting the front manual seat (if equipped)

Never adjust the driver’s seat or seatback when the vehicle is moving.

Always drive and ride with your seatback upright and the lap belt snug and low across the hips.

Lift handle to move seat forward or backward.

Pull lever up to adjust seatback.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Seating and Safety Restraints

Adjusting the front power seat (if equipped)

The control is located on the outboard side of the seat cushion.

Press to raise or lower the front portion of the seat cushion.

Press to raise or lower the rear portion of the seat cushion.

Press the control to move the seat forward, backward, up or down.

REAR SEATS

2nd seat/Split-folding rear seat (if equipped)

Fold the seatback(s) down.

When raising the seatback(s), make sure you hear the seat latch into place.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Seating and Safety Restraints

Make sure that the safety belt for the rear center passenger is properly routed over the rear seatback.

3rd seat (if equipped) (wagon only)

The third seat faces the rear of the vehicle. For height and weight limits, see the label on the seat cushion. When the seat is down, the back of your wagon has a flat surface for carrying cargo.

To open up the seat:

1. Unlock the floor panel with the

key, then use the handle to fold the floor panel toward the front of the car.

2. Remove the cargo cover. The

cargo cover must be removed or the seatback will not latch in the upright position.

3. Lift the remote latch release on

the left side of the compartment and fold the remaining floor panel until it latches. Make sure the seatback is locked in the upright position.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Seating and Safety Restraints

To close the seat, make sure the safety belts are properly stowed, then lift the remote latch release and push the seat down until it latches. Pull up on the handle and push the floor panel into place.

SAFETY RESTRAINTS

Personal Safety System

The Personal Safety System provides an improved overall level of frontal crash protection to front seat occupants and is designed to help further reduce the risk of air bag-related injuries. The system is able to analyze different occupant classifications and conditions and crash severity before activating the appropriate safety devices to help better protect a range of occupants in a variety of frontal crash situations.

Your vehicle’s Personal Safety System consists of:

• Driver and passenger dual-stage air bag supplemental restraints.

• Front safety belts with pretensioners, energy management retractors,

and safety belt usage sensors.

• Driver’s seat position sensor.

• Front crash severity sensor.

• Front passenger sensing system

• Passenger Air Bag Off indicator light.

• Restraints Control Module (RCM) with impact and safing sensors.

• Restraint system warning light and back-up tone.

• The electrical wiring for the air bags, crash sensor(s), safety belt

pretensioners, front safety belt usage sensors, driver seat position sensor, and indicator lights.

How does the personal safety system work?

The Personal Safety System can adapt the deployment strategy of your vehicle’s safety devices according to crash severity and occupant classification and conditions. A collection of crash and occupant sensors provides information to the Restraints Control Module (RCM). During a crash, the RCM activates the safety belt pretensioners and/or either none, one, or both stages of the dual-stage air bag supplemental restraints based on crash severity and occupant classification and conditions.

The fact that the pretensioners or air bags did not activate for both front seat occupants in a collision does not mean that something is wrong with

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Seating and Safety Restraints

the system. Rather, it means the Personal Safety System determined the accident conditions (crash severity, belt usage, etc.) were not appropriate to activate these safety devices. Front air bags and pretensioners are designed to activate only in frontal and near-frontal collisions, not rollovers, side-impacts, or rear-impacts unless the collision causes sufficient longitudinal deceleration.

Driver and passenger dual-stage air bag supplemental restraints

The dual-stage air bags offer the capability to tailor the level of air bag inflation energy. A lower, less forceful energy level is provided for more common, moderate-severity impacts. A higher energy level is used for the most severe impacts. Refer to Air bag Supplemental Restraints section in this chapter.

Front crash severity sensor

The front crash severity sensor enhances the ability to detect the severity of an impact. Positioned up front, it provides valuable information early in the crash event on the severity of the impact. This allows your Personal Safety System to distinguish between different levels of crash severity and modify the deployment strategy of the dual-stage air bags and safety belt pretensioners.

Driver’s seat position sensor

The driver’s seat position sensor allows your Personal Safety System to tailor the deployment level of the driver dual-stage air bag based on seat position. The system is designed to help protect smaller drivers sitting close to the driver air bag by providing a lower air bag output level.

Front passenger sensing system

For air bags to do their job they must inflate with great force, and this force can pose a potentially deadly risk to occupants that are very close to the air bag when it begins to inflate. For some occupants, like infants in rear-facing child seats, this occurs because they are initially sitting very close to the air bag. For other occupants, this occurs when the occupant is not properly restrained by seat belts or child safety seats and they move forward during pre-crash braking. The most effective way to reduce the risk of unnecessary injuries is to make sure all occupants are properly restrained. Accident statistics suggest that children are much safer when properly restrained in the rear seating positions than in the front.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Seating and Safety Restraints

Air bags can kill or injure a child in a child seat. NEVER place a

rear-facing child seat in front of an active air bag. If you must use a forward-facing child seat in the front seat, move the seat all the way back.

Always transport children 12 years old and under in the back

seat and always properly use appropriate child restraints.

The front passenger sensing system can automatically turn off the passenger front air bag. The system is designed to help protect small (child size) occupants from air bag deployments when they are improperly seated or restrained in the front passenger seat contrary to proper child-seating or restraint usage recommendations. Even with this technology, parents are STRONGLY encouraged to always properly restrain children in the rear seat. The sensor also turns off the air bag when the passenger seat is empty to prevent unnecessary replacement of the air bag(s) after a collision.

When the front passenger seat is occupied and the sensing system has turned off the passenger’s frontal air bag, the “pass air bag off” indicator will light and stay lit to remind you that the front passenger frontal air bag is off. See Front passenger sensing system in the airbags section of this chapter.

Front safety belt usage sensors

The front safety belt usage sensors detect whether or not the driver and front outboard passenger safety belts are fastened. This information allows your Personal Safety System to tailor the air bag deployment and safety belt pretensioner activation depending upon safety belt usage. Refer to Safety Belt section in this chapter.

Front safety belt pretensioners

The safety belt pretensioners are designed to tighten the front outboard safety belts firmly against the occupant’s body during a collision. This maximizes the effectiveness of the safety belts and helps properly position the occupant relative to the air bag to improve protection. The safety belt pretensioners can be either activated alone or, if the collision is of sufficient severity, together with the air bags.

Front safety belt energy management retractors

The front outboard safety belt energy management retractors allow webbing to be pulled out of the retractor in a gradual and controlled

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Seating and Safety Restraints

manner in response to the occupant’s forward momentum. This helps reduce the risk of force-related injuries to the occupant’s chest by limiting the load on the occupant. Refer to Safety Belt section in this chapter.

Determining if the Personal Safety System is operational

The Personal Safety System uses a warning light in the instrument cluster or a back-up tone to indicate the condition of the system. Refer to the Warning Light section in the Instrument Cluster chapter. Routine maintenance of the Personal Safety System is not required.

The Restraints Control Module (RCM) monitors its own internal circuits and the circuits for the air bag supplemental restraints, crash sensor(s), safety belt pretensioners, front safety belt buckle sensors, and the driver seat position sensor. In addition, the RCM also monitors the restraints warning light in the instrument cluster. A difficulty with the system is indicated by one or more of the following.

• The warning light will either flash or stay lit.

• The warning light will not illuminate immediately after ignition is

turned on.

• A series of five beeps will be heard. The tone pattern will repeat periodically until the problem and warning light are repaired.

If any of these things happen, even intermittently, have the Personal Safety System serviced at your dealership or by a qualified technician immediately. Unless serviced, the system may not function properly in the event of a collision.

Safety belt precautions

Always drive and ride with your seatback upright and the lap belt snug and low across the hips.

To reduce the risk of injury, make sure children sit where they can be properly restrained.

Never let a passenger hold a child on his or her lap while the vehicle is moving. The passenger cannot protect the child from

injury in a collision.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Seating and Safety Restraints

All occupants of the vehicle, including the driver, should always properly wear their safety belts, even when an air bag

supplemental restraint system (SRS) is provided.

It is extremely dangerous to ride in a cargo area, inside or

outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.

In a rollover crash, an unbelted person is significantly more likely

to die than a person wearing a seat belt.

Each seating position in your vehicle has a specific safety belt

assembly which is made up of one buckle and one tongue that are designed to be used as a pair. 1) Use the shoulder belt on the outside shoulder only. Never wear the shoulder belt under the arm. 2) Never swing the safety belt around your neck over the inside shoulder.

3) Never use a single belt for more than one person.

Always transport children 12 years old and under in the back

seat and always properly use appropriate child restraints.

Combination lap and shoulder belts

1. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Seating and Safety Restraints

2. To unfasten, push the release button and remove the tongue from the buckle.

Energy management retractors

Your vehicle has a seat belt system equipped with energy management retractors at the driver and front outboard passenger seating positions.

An energy management retractor is a device which pays out webbing in a controlled manner. This feature is designed to help further reduce the risk of force-related injuries to the occupant.

Seat belt systems equipped with an energy management retractor must be replaced if they were in use during a frontal collision which resulted in deployment of the frontal air bags. Refer to the Safety belt maintenance section in this chapter.

Vehicle sensitive mode

This is the normal retractor mode, which allows free shoulder belt length adjustment to your movements and locking in response to vehicle movement. For example, if the driver brakes suddenly or turns a corner sharply, or the vehicle receives an impact of approximately 8 km/h (5 mph) or more, the combination safety belts will lock to help reduce forward movement of the driver and passengers.

Automatic locking mode

In this mode, the shoulder belt is automatically pre-locked. The belt will still retract to remove any slack in the shoulder belt. The automatic locking mode is not available on the driver safety belt.

This mode should be used any time a child safety seat is installed in the vehicle. Children 12 years old and under should be properly restrained in the rear seat whenever possible. Refer to Safety restraints for children or Safety seats for children later in this chapter.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Seating and Safety Restraints

How to use the automatic locking mode

• Buckle the combination lap and shoulder belt.

• Grasp the shoulder portion and pull downward until the entire belt is pulled out.

• Allow the belt to retract. As the belt retracts, you will hear a clicking sound. This indicates the safety belt is now in the automatic locking mode.

How to disengage the automatic locking mode

Ford Motor Company recommends that all safety belt assemblies

and attaching hardware should be inspected by a qualified technician after any collision. Safety belt assemblies not in use during a collision should also be inspected and replaced if either damage or improper operation is noted.

Disconnect the combination lap/shoulder belt and allow it to retract completely to disengage the automatic locking mode and activate the vehicle sensitive (emergency) locking mode.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Seating and Safety Restraints

After any vehicle collision, the seat belt system at all outboard

seating positions (except driver, which has no “automatic locking retractor” feature) must be checked by a qualified technician to verify that the “automatic locking retractor” feature for child seats is still functioning properly. In addition, all seat belts should be checked for proper function.

BELT AND RETRACTOR ASSEMBLY MUST BE REPLACED if

the seat belt assembly “automatic locking retractor” feature or any other seat belt function is not operating properly when checked according to the procedures in Workshop Manual.

Failure to replace the Belt and Retractor assembly could

increase the risk of injury in collisions.

Safety belt pretensioner

Your vehicle is equipped with safety belt pretensioners at the driver and front outboard passenger seating positions.

The safety belt pretensioners are designed to activate when the safety belt is fastened during certain frontal or near-frontal collisions, or in certain side collisions that result in side airbag activation (if the vehicle is equipped with side airbags). A safety belt pretensioner is a device which tightens the webbing of the lap and shoulder belts in such a way that they fit more snugly against the body.

When the front airbags are activated, the safety belt pretensioners for the driver and right front passenger seating positions will be activated when the respective safety belt is properly buckled. If a side airbag is activated, the safety belt pretensioner for that seating position will be activated if the seat belt is properly buckled.

The driver and front outboard passenger safety belt system (including retractors, buckles and height adjusters) must be replaced if the vehicle is involved in a collision that results in the activation of the safety belt pretensioners. Refer to the Safety belt maintenance section in this chapter.

The driver and the right front passenger seat belt system

(including retractors, buckles and height adjusters) must be replaced if the vehicle is involved in a collision that results in deployment of front air bags or side airbags and safety belt pretensioners.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Seating and Safety Restraints

Safety belt usage sensors

The driver and front outboard passenger safety belt buckles are equipped with sensors that detect if the safety belts are fastened. The sensors provide information to the Personal Safety System which can then adapt the air bag deployment or safety belt pretensioner activation based upon safety belt usage.

The Personal Safety System provides the most benefit to belted

occupants. The system monitors and tailors the air bag deployment based upon safety belt usage. Failure to properly wear your safety belt will increase your risk of injury.

Front safety belt height adjustment

Your vehicle has safety belt height adjustments for the driver and front passenger. Adjust the height of the shoulder belt so the belt rests across the middle of your shoulder.

To lower the shoulder belt height, pull the control down and slide the height adjuster down. To raise the height of the shoulder belt, slide the height adjuster up. To raise the height of the shoulder belt from its lowest position, pull the control down and slide the height adjuster up. Pull down on the height adjuster to make sure it is locked in place.

Position the safety belt height adjusters so that the belt rests

across the middle of your shoulder. Failure to adjust the safety belt properly could reduce the effectiveness of the seat belt and increase the risk of injury in a collision.

Lap belts

Adjusting the center front lap belt

The center front lap belt does not adjust automatically.

The lap belt should fit snugly and as low as possible around the

hips, not across the waist.

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Seating and Safety Restraints

Insert the tongue into the correct buckle (the buckle closest to the direction the tongue is coming from). To lengthen the belt, turn the tongue at a right angle to the belt and pull across your lap until it reaches the buckle. To tighten the belt, pull the loose end of the belt through the tongue until it fits snugly across the hips.

Shorten and fasten the belt when not in use.

Safety belts for rear-facing occupants (wagon only)

Never use child safety seats in the third seat of a wagon.

Your vehicle is equipped with safety belts containing an adjust tongue at the rear-facing seating positions.

When the adjust tongue of the lap/shoulder combination seat belt is latched into the buckle, the tongue will allow the lap portion to become shorter, but locks the webbing in place to restrict it from becoming longer.

Before you reach and latch a combination lap and shoulder belt having an adjust tongue into the buckle, you may have to lengthen the lap belt portion of it. To lengthen the lap belt, pull some webbing out of the shoulder belt retractor. While holding the webbing below the tongue, grasp the tongue so that it is parallel to the webbing and slide the tongue upward. Provide enough length so that the tongue can reach the buckle.

To fasten the belt, pull the combination lap and shoulder belt from the retractor so that the shoulder belt portion of the safety belt crosses your

100

2004 Sable (sab) Owners Guide (post-2002-fmt) USA English (fus)

Ford Sable 2004 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

Instrument Cluster

Entertainment Systems

Climate Controls

Lights

Driver Controls

Locks and Security

Seating and Safety Restraints
