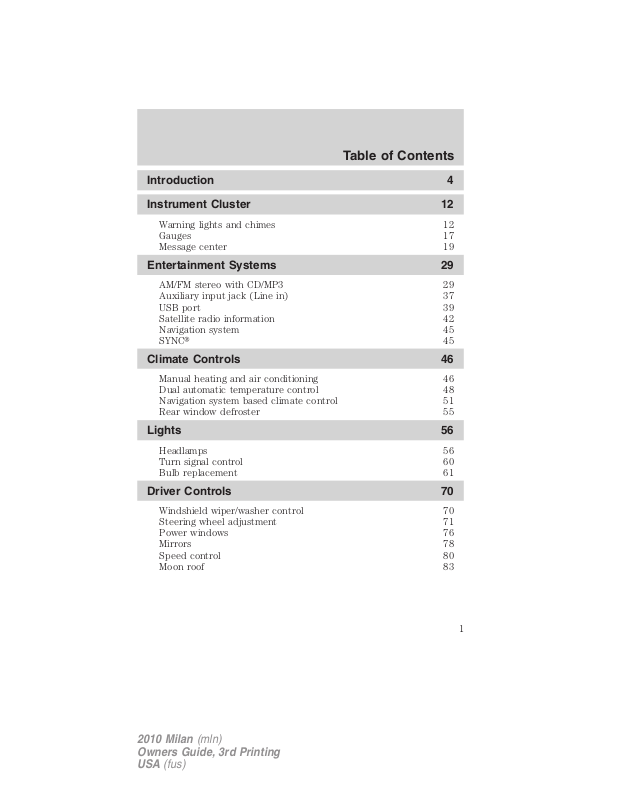

Introduction 4

Instrument Cluster 12

Warning lights and chimes 12 Gauges 17 Message center 19

Entertainment Systems 29

AM/FM stereo with CD/MP3 29 Auxiliary input jack (Line in) 37 USB port 39 Satellite radio information 42 Navigation system 45 SYNC威 45

Climate Controls 46

Manual heating and air conditioning 46 Dual automatic temperature control 48 Navigation system based climate control 51 Rear window defroster 55

Lights 56

Headlamps 56 Turn signal control 60 Bulb replacement 61

Driver Controls 70

Windshield wiper/washer control 70 Steering wheel adjustment 71 Power windows 76 Mirrors 78 Speed control 80 Moon roof 83

Page 2

Table of Contents

Locks and Security 86

Keys 86 Locks 87 Anti-theft system 99

Seating and Safety Restraints 105

Seating 105 Safety restraints 118 Airbags 132 Child restraints 148

Tires, Wheels and Loading 167

Tire information 167 Tire inflation 169 Tire Pressure Monitoring System (TPMS) 182 Vehicle loading 187 Trailer towing 193 Recreational towing 193

Driving 196

Starting 196 Brakes 201 AdvanceTrac威 203 Transmission operation 210 Reverse sensing system 217 Rear-view camera system 219

Roadside Emergencies 234

Getting roadside assistance 234 Hazard flasher switch 235 Fuel pump shut-off 236 Fuses and relays 236 Changing tires 243 Wheel lug nut torque 249 Jump starting 251 Wrecker towing 256

Page 3

Table of Contents

Customer Assistance 258

Reporting safety defects (U.S. only) 264 Reporting safety defects (Canada only) 264

Cleaning 265

Maintenance and Specifications 273

Engine compartment 275 Engine oil 278 Battery 283 Engine coolant 285 Fuel information 292 Air filter(s) 310 Part numbers 313 Maintenance product specifications and capacities 314 Engine data 317

Accessories 320

Ford Extended Service Plan 322

Index 325

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Page 4

Introduction

CONGRATULATIONS

Congratulations on acquiring your new Mercury. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the following website:

• In the United States: www.ford.com

• In Canada: www.ford.ca

• In Mexico: www.ford.com.mx

• In Australia: www.ford.com.au

Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available

and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on the Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

WARNING: Fuel pump shut-off switch: In the event of an

accident the safety switch will automatically cut off the fuel supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

Page 5

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Page 6

Introduction

PERCHLORATE MATERIAL

Certain components of this vehicle such as airbag modules, seat belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

BREAKING-IN YOUR VEHICLE

Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in.

Do not add friction modifier compounds or special break-in oils since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

SPECIAL NOTICES

New Vehicle Limited Warranty

For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide/Customer Information Guide that is provided to you along with your Owner’s Guide.

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

WARNING: Please read the section Airbag Supplemental

Restraint System (SRS) in the Seating and Safety Restraints

chapter. Failure to follow the specific warnings and instructions could result in personal injury.

WARNING: Front seat mounted rear-facing child or infant seats

should NEVER be placed in front of an active passenger airbag.

Page 7

Introduction

DATA RECORDING

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them vehicle diagnostic information received through a direct connection to your vehicle when diagnosing or servicing your vehicle. For U.S. only (if equipped), if you choose to use the SYNC威 Vehicle Health Report, you consent that certain diagnostic information may also be accessed electronically by Ford Motor Company and Ford authorized service facilities, and that the diagnostic information may be used for any purpose. See your SYNC威 supplement for more information.

Event Data Recording

Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as:

• how various systems in your vehicle were operating;

• whether or not the driver and passenger seatbelts were

buckled;

• how far (if at all) the driver was depressing the accelerator and/or the brake pedal;

• how fast the vehicle was traveling;

• where the driver was positioning the steering wheel; and

• longitude and latitude of vehicle at last location, using GPS

technology and advanced vehicle sensors.

To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties

Page 8

Introduction

may seek to access the information independently of Ford Motor Company and Ford of Canada. To the extent that any law pertaining to Event Data Recording applies to SYNC威 or its features, please note the following: Once 911 Assist (if equipped) is enabled (set ON), 911 Assist may, through any paired and connected cell phone, disclose to emergency services that the vehicle has been in a crash involving the deployment of an airbag or, in certain vehicles, the activation of the fuel pump shut-off. Certain versions or updates to 911 Assist may also be capable of electronically or verbally disclosing to 911 operators the vehicle location, and/or other details about the vehicle or crash to assist 911 operators to provide the most appropriate emergency services. If you do not want to disclose this information, do not activate the feature. See your SYNC威 supplement for more information. Additionally, when you connect to Traffic, Directions and Information (if equipped, U.S. only), the service uses GPS technology and advanced vehicle sensors to collect the vehicle’s current location, travel direction, and speed (“vehicle travel information”) only to help provide you with the directions, traffic reports, or business searches you request. If you do not want Ford or its vendors to receive this information, do not activate the service. Ford Motor Company and the vendors it uses to provide you with this information do not store your vehicle travel information. For more information, see Traffic, Directions and Information, Terms and Conditions. See your SYNC威 supplement for more information.

CELL PHONE USE

The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits.

Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.

Page 9

Introduction

WARNING: Driving while distracted can result in loss of vehicle

control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

EXPORT UNIQUE (NON–UNITED STATES/CANADA) VEHICLE SPECIFIC INFORMATION

For your particular global region, your vehicle may be equipped with features and options that are different from the features and options that are described in this Owner’s Guide. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Guide is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Guide for all other required

information and warnings.

Page 10

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Airbag - Front

Airbag - Side

Child Seat Tether Anchor

Anti-Lock Brake System Parking Brake System

Brake Fluid Non-Petroleum Based

Stability Control System Speed Control

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

See Owner’s Guide

Child Seat Lower Anchor

Brake System

Parking Aid System

Fuel Pump Reset Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

Page 11

Vehicle Symbol Glossary

Introduction

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

Service Engine Soon Engine Air Filter

MAX

MIN

Passenger Compartment Air Filter

Check Fuel Cap

Jack

Low Tire Pressure Warning

Page 12

Instrument Cluster

WARNING LIGHTS AND CHIMES

Standard instrument cluster shown; metric and optional clusters similar

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause extensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulbs work. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information.

Service engine soon: The service engine soon indicator light illuminates when the ignition is first turned to the on position to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the service engine soon light will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds the service engine soon light blinks eight times, it means that the vehicle is not ready for I/M testing. See the Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter.

Page 13

Instrument Cluster

Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and contact your authorized dealer as soon as possible.

WARNING: Under engine misfire conditions, excessive exhaust

temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the on position when the engine is not running, or in a position between on and start, or by applying the parking brake when the ignition is turned to the on position. If the brake system warning light does not illuminate at this time, contact your authorized dealer as soon as possible. Illumination after releasing the parking brake indicates low brake fluid level or a brake system malfunction. Contact your authorized dealer as soon as possible.

WARNING: Driving a vehicle with the brake system warning

light on is dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Contact your authorized dealer as soon as possible. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected. Contact your authorized dealer as soon as possible. Normal braking is still functional unless the brake warning light also is illuminated.

BRAKE

ABS

Page 14

Instrument Cluster

Airbag readiness: If this light fails to illuminate when the ignition is turned to on, continues to flash or remains on, contact your authorized dealer as soon as possible. A chime will sound when there is a malfunction in the indicator light.

Safety belt: Reminds you to fasten your safety belt. A Belt-Minder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and Safety Restraints chapter to activate/deactivate the Belt-Minder威 chime feature.

Charging system: Illuminates when the battery is not charging properly. If it stays on while the engine is running, there may be a malfunction with the charging system. Contact your authorized dealer as soon as possible. This indicates a problem with the electrical system or a related component.

Engine oil pressure: Illuminates when the oil pressure falls below the normal range, refer to Engine oil in the Maintenance and Specifications chapter.

AdvanceTrac威/Traction control:

Illuminates when the AdvanceTrac威/Traction control is active. If the light remains on, contact your authorized dealer as soon as possible. Refer to the Driving chapter for more information.

AdvanceTrac威/Traction control off light: Illuminates when

AdvanceTrac威/Traction control has been disabled by the driver. Refer to the Driving chapter for more information.

OFF

Page 15

Instrument Cluster

Overdrive cancel and grade assist (if equipped): Illuminates

when the overdrive function of the transmission has been turned off and the grade assist function has been turned on, refer to the Driving chapter.

Low tire pressure warning:

Illuminates when your tire pressure is low. If the light remains on at start up or while driving, the tire pressure should be checked. Refer to Inflating your tires in the Tires, Wheels and Loading chapter. When the ignition is first turned to on, the light will illuminate for three seconds to ensure the bulb is working. If the light does not turn on or begins to flash, contact your authorized dealer as soon as possible. For more information on this system, refer to Tire pressure monitoring system (TPMS) in the Tires, Wheels and Loading chapter.

Speed control: The speed control system uses two different–colored indicator lights to indicate what mode the system is in:

• On (amber light): Illuminates when the speed control system is turned on. Turns off when the speed control system is engaged or turned off.

• Engaged (green light): Illuminates when the speed control system is engaged. Turns off when the speed control system is disengaged.

Door ajar: Illuminates when the ignition is in the on position and any door or decklid is open.

Anti-theft system: Flashes when the securiLock威 passive anti-theft System has been activated.

Throttle Control/Transmission:

Illuminates when a powertrain or a AWD fault has been detected. Contact your authorized dealer as soon as possible.

Page 16

Instrument Cluster

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators flash faster, check for a burned out bulb.

High beams: Illuminates when the high beam headlamps are turned on.

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the off or accessory position and the driver’s door is opened.

Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.

Parking brake on warning chime: Sounds when the parking brake is engaged and the vehicle is driven. If the warning remains after the parking brake is disengaged, contact your authorized dealer as soon as possible.

Message center activation chime: Sounds when some messages appear in the message center display for the first time.

Turn signal on warning chime: Sounds when the turn signal has been left on for an extended period of time.

Perimeter alarm warning chime: Sounds when using a key to unlock the driver’s doors and the perimeter alarm is armed.

Page 17

Instrument Cluster

GAUGES

Standard instrument cluster shown, metric and optional clusters similar

Speedometer: Indicates the

current vehicle speed.

Engine coolant temperature gauge: Indicates engine coolant

temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section,

the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

Page 18

Instrument Cluster

WARNING: Never remove the coolant reservoir cap while the engine is running or hot.

Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the on position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade.

The fuel icon and arrow indicates which side of the vehicle the fuel filler door is located.

Refer to Filling the tank in the Maintenance and Specifications chapter for more information.

Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Odometer: Registers the total miles (kilometers) of the vehicle.

Refer to Message center in the Instrument cluster chapter on how to switch the display from Metric to English.

Trip odometer: Registers the miles (kilometers) of individual journeys. Press and release the message center INFO button until TRIP A or TRIP B appears in the display (this represents the trip mode). Press and hold the RESET button for two seconds to reset.

Page 19

Instrument Cluster

MESSAGE CENTER

With the ignition in the on position, the message center, located on your instrument cluster, displays important vehicle information

through a constant monitor of vehicle systems. You may select

display features on the message center for a display of status. The system will also notify you of potential vehicle problems with a display of system warnings followed by a long indicator chime.

Selectable features

Reset

Press this to select and reset functions shown in the INFO menu and SETUP menu.

Info menu

This control displays the following control displays:

• Odometer

• Trip Odometer A or B

• Distance to Empty

• Average Fuel Economy

• Instantaneous Fuel Economy

• Trip Elapsed Drive Time

• Blank

Odometer/Trip odometer

Refer to Gauges in this chapter.

Page 20

Instrument Cluster

Distance to empty (DTE)

Selecting this function from the INFO menu estimates approximately how far you can drive with the fuel remaining in your tank under normal driving conditions. Remember to turn the ignition off when refueling to allow this feature to correctly detect the added fuel.

The DTE function will display LOW FUEL LEVEL when you have approximately 50 miles (80 km), to empty. If you reset this warning message, it will return at approximately 25 miles (40 km), 10 miles (16 km) and 0 miles (0 km) miles to empty.

DTE is calculated using a running average fuel economy, which is based on your recent driving history of 500 miles (800 km). This value is not the same as the average fuel economy display. The running average fuel economy is reinitialized to a factory default value if the battery is disconnected.

Average fuel economy (AFE)

Select this function from the INFO menu to display your average fuel economy in miles/gallon or liters/100 km.

If you calculate your average fuel economy by dividing distance traveled by gallons of fuel used (liters of fuel used by 100 kilometers traveled), your figure may be different than displayed for the following reasons:

• Your vehicle was not perfectly level during fill-up

• Differences in the automatic shut-off points on the fuel pumps at

service stations

• Variations in top-off procedure from one fill-up to another

• Rounding of the displayed values to the nearest 0.1 gallon (liter)

To determine your average highway fuel economy, do the following:

1. Drive the vehicle at least 5 miles (8 km) with the speed control

system engaged to display a stabilized average.

2. Record the highway fuel economy for future reference.

It is important to press RESET (press and hold RESET for two seconds in order to reset the function) after setting the speed control to get accurate highway fuel economy readings.

Page 21

Instrument Cluster

For more information refer to Essentials of good fuel economy in the Maintenance and Specifications chapter.

Instantaneous fuel economy (IFE)

Select this function from the INFO menu to display your instantaneous fuel economy. This will display your fuel economy as a bar graph ranging

from excellent economy.

Your vehicle must be moving to calculate instantaneous fuel economy. When your vehicle is not moving, this function shows illuminated. Instantaneous fuel economy cannot be reset.

Trip elapsed drive time

Select this function from the INFO menu to display a timer.

To operate the Trip Elapsed Drive Time perform the following:

1. Press and release RESET in order

to start the timer.

2. Press and release RESET to pause the timer.

3. Press and hold RESET for two seconds in order to reset the timer.

Setup menu

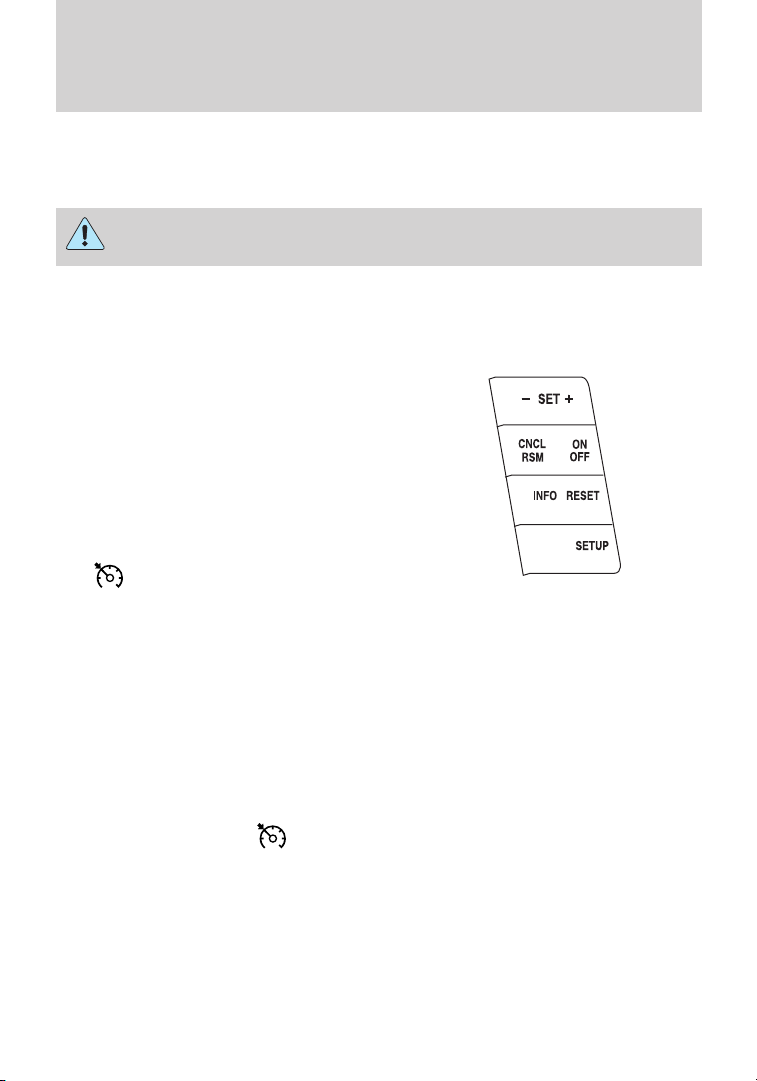

Press this control for the following displays:

• System Check

• Oil Life

• Units (English/Metric)

• Autolamp (if equipped)

• Autolock

• Autounlock

• Blind spot monitoring system (if equipped)

• Cross traffic alert system (if equipped)

• Reverse sensing system (if equipped)

• Language

poor economy to

, one or no bars

Page 22

Instrument Cluster

System check

Selecting this function from the SETUP menu causes the message center to cycle through each of the systems being monitored.

Pressing RESET cycles the message center through each of the systems being monitored.

Some monitored systems show a message only if a warning is present. The sequence of the system check report is as follows:

1. XXX% OIL LIFE

2. All DOORS CLOSED

3. TRUNK CLOSED

4. BLIND SPOT SYSTEM (if equipped)

5. CROSS TRAFFIC SYSTEM (if equipped)

6. BRAKE SYSTEM

7. FUEL LEVEL

Oil Life XXX%

An oil change is required whenever indicated by the message center and according to the recommended maintenance schedule. USE ONLY RECOMMENDED ENGINE OILS.

To reset the oil monitoring system to 100% after each oil change (approximately 7,500 miles [12,000 km] or 12 months) perform the following:

1. Press and release SETUP to

display “OIL LIFE XXX% HOLD RESET = NEW”.

2. Press and hold RESET for two

seconds and release. Oil life is set to 100% and “OIL LIFE SET TO 100%” is displayed.

Note: To change oil life 100% miles value from 7,500 miles (12,000 km) or 12 months to another value, proceed to Step 3.

Page 23

Instrument Cluster

3. Once “OIL LIFE SET TO XXX%” is displayed, release and press

RESET switch to change the Oil Life Start Value. Each release and press will reduce the value by 10%.

Note: Oil life start value of 100% equals 7,500 miles (12,000 km) or 12 months. For example, setting oil life start value to 60% sets the oil life start value to 4,500 miles (7,200 km) and 219 days.

Units (English/Metric)

1. Select this function from the

SETUP menu for the current units to be displayed.

2. Press RESET to change from

English to Metric.

Autolamp delay (if equipped)

This feature keeps your headlights on for up to three minutes after the ignition is switched off.

1. To disable/enable the autolamp

delay feature, select this function from the SETUP menu for the current display mode.

2. Press RESET to select the new

autolamp delay values of 0, 10, 20, 30, 60, 90, 120 or 180 seconds.

Autolock

This feature automatically locks all vehicle doors when the vehicle is shifted into any gear, putting the vehicle in motion.

1. To disable/enable the autolock

feature, select this function from the SETUP menu for the current display mode.

2. Press the RESET button to turn

autolock on or off.

Page 24

Instrument Cluster

Autounlock

This feature automatically unlocks all vehicle doors when the driver’s door is opened within 10 minutes of the ignition being turned off.

1. To disable/enable autounlock

feature, select this function from the SETUP menu for the current display mode.

2. Press RESET to turn autounlock

on or off.

Blind spot system (if equipped)

The blind spot information system is designed to assist the driver by monitoring the side areas on both sides of the vehicle.

1. Select this function from the

SETUP menu to disable the system.

2. Press RESET to turn blind spot

off or on.

Cross traffic alert system (if equipped)

The cross traffic alert system is designed to assist the driver by monitoring the areas toward the rear of the vehicle.

1. Select this function from the

SETUP menu to disable/enable the system.

2. Press RESET to cross traffic off

or on.

Park aid (Reverse sensing system) (if equipped)

This feature sounds a warning tone to warn the driver of obstacles near the rear bumper, and functions only when R (Reverse) gear is selected.

1. Select this function from the

SETUP menu to disable the reverse sensing system feature.

2. Press RESET to turn the rear

park assist off. When R (Reverse) gear is selected, PARK AID OFF will be displayed.

Page 25

Instrument Cluster

Language

1. Select this function from the

SETUP menu for the current language to be displayed.

2. Waiting four seconds or pressing

RESET cycles the message center through each of the language choices.

Selectable languages are English, Spanish, or French.

3. Press and hold RESET for two seconds to set the language choice.

System warnings

System warnings alert you to possible problems or malfunctions in your vehicle’s operating systems.

In the event of a multiple warning situation, the message center will cycle the display to show all warnings by displaying each one for several seconds.

The message center will display the last selected feature if there are no more warning messages. This allows you to use the full functionality of the message center after you acknowledge the warning by pressing the RESET and clearing the warning message.

Warning messages that have been reset are divided into three categories:

• They will not disappear until a condition is changed.

• They will reappear on the display 10 minutes from the reset.

• They will not reappear until an ignition off/on cycle has been

completed.

This acts as a reminder that these warning conditions still exist within the vehicle.

Warnings that return after 10 minutes: PARK BRAKE ENGAGED — Displayed when the park brake is

engaged. If the warning stays on after the park brake is off, contact your authorized dealer as soon as possible.

CHECK BRAKE SYSTEM — Displayed when the brake system needs servicing. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible.

Warnings that return after the ignition key is turned from off to on:

DRIVER DOOR AJAR — Displayed when the driver’s door is not

completely closed.

Page 26

Instrument Cluster

PASSENGER DOOR AJAR — Displayed when the passenger side door is not completely closed.

REAR LEFT DOOR AJAR — Displayed when the rear left door is not completely closed.

REAR RIGHT DOOR AJAR — Displayed when the rear right door is not completely closed.

FUEL LEVEL LOW — Displayed as an early reminder of a low fuel condition.

CHECK FUEL FILL INLET — Displayed when the fuel fill inlet may not be properly closed. Refer to Easy Fuel™ “no cap” fuel system in the Maintenance and Specifications chapter.

BRAKE FLUID LEVEL LOW — Indicates the brake fluid level is low and the brake system should be inspected immediately. Refer to Brake fluid in the Maintenance and Specifications chapter.

CHECK PARK AID (if equipped) — Displayed when the transmission is in R (Reverse) and the Reverse Sensing System (Park Aid) is disabled. Refer to Reverse sensing system (Park Aid) in this section to enable.

LOW TIRE PRESSURE — Displayed when one or more tires on your vehicle have low tire pressure. Refer to Inflating your tires in the Tires, Wheels and Loading chapter.

TIRE PRESSURE MONITOR FAULT — Displayed when the Tire Pressure Monitoring System is malfunctioning. If the warning stays on or continues to come on, contact your authorized dealer as soon as possible.

TIRE PRESSURE SENSOR FAULT — Displayed when a tire pressure sensor is malfunctioning, or your spare tire is in use. For more information on how the system operates under these conditions, refer to

Tire Pressure Monitoring System (TPMS) in the Tires, Wheels and Loading chapter. If the warning stays on or continues to come on,

contact your authorized dealer as soon as possible. POWER STEERING ASSIST FAULT — The power steering system

has disabled power steering assist due to a system error, service is required.

SERVICE POWER STEERING — The power steering system has detected a condition that requires service.

SERVICE POWER STEERING NOW — The power steering system has detected a condition that requires service immediately.

SERVICE ADVANCETRAC — Displayed when the AdvanceTrac威 system has detected a condition that requires service.

Page 27

Instrument Cluster

TRUNK AJAR — Displayed when the trunk is not completely closed. REMOVE OBJECTS NEAR PASS SEAT — Displayed when objects

are by the passenger seat. After the objects are moved away from the seat, if the warning stays on or continues to come on, contact your authorized dealer as soon as possible.

ENGINE OIL CHANGE SOON — Displayed when the engine oil life remaining is 10% or less.

OIL CHANGE REQUIRED — Displayed when the oil life left reaches 0%.

BLIND SPOT SYSTEM FAULT (if equipped) — Displayed when a fault with the blind spot information system has a fault. Contact your authorized dealer as soon as possible.

CROSS TRAFFIC SYSTEM FAULT (if equipped) — Displayed when a fault with the cross traffic alert system has a fault. Contact your authorized dealer as soon as possible.

BLIND SPOT NOT AVAILABLE (if equipped) — Displayed when blind spot information system is not available. See Blind spot information system in the Driver controls chapter.

CROSS TRAFFIC NOT AVAILABLE (if equipped) — Displayed when cross traffic alert is not available. See Blind spot information system in the Driver controls chapter.

SENSOR BLOCKED SEE MANUAL (if equipped) — Displayed when the blind spot information system/cross traffic alert system sensors are blocked. See Blind spot information system in the Driver controls chapter.

VEHICLE COMING FROM LEFT (if equipped) — Displayed when the blind spot information system with cross traffic alert (CTA) system is operating and senses a vehicle. See Blind spot information system in the Driver controls chapter.

VEHICLE COMING FROM RIGHT (if equipped) — Displayed when the blind spot information system with cross traffic alert (CTA) system is operating and senses a vehicle. See Blind spot information system in the Driver controls chapter.

TO STOP ALARM START VEHICLE — Displayed when the perimeter alarm system is armed and the vehicle is entered using the key on the driver’s side door. In order to prevent the perimeter alarm system from triggering, the ignition must be turned to start before the 12 second chime expires. See Perimeter alarm system in the Locks and Security chapter.

Page 28

Instrument Cluster

CHECK AWD (if equipped) — Displayed when a problem exists with the AWD system. Contact your authorized dealer as soon as possible.

Temporary messages: INTKEY COULD NOT PROGRAM — Displayed when an attempt is

made to program an invalid key or more than the maximum number of integrated keys allowed. For more information on integrated key, refer to the Locks and Security chapter.

Page 29

Entertainment Systems

AUDIO SYSTEMS

AM/FM/single CD or in-dash CD6/MP3 satellite compatible sound system

WARNING: Driving while distracted can result in loss of vehicle

Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the radio and other electrical accessories may be used for up to 10 minutes after the ignition is turned off or until either front door is opened.

Note: Your vehicle is equipped with a unique audio system. If your display shows six small circles in the display, your audio system is a CD6 system. If not, your system is a Single CD system.

Setting the clock

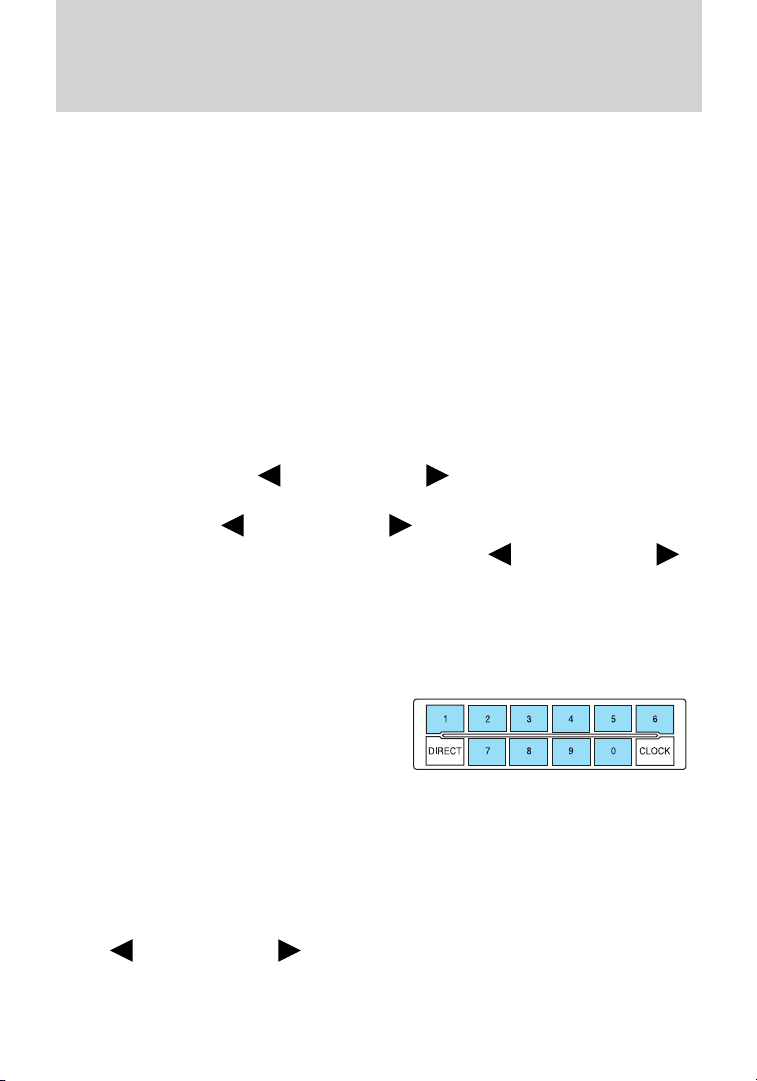

To set the time, press CLOCK#. The display will read SET TIME. Use the memory preset numbers (0–9) to enter in the desired time–hours and minutes. The clock will then begin from that time.

Page 30

Entertainment Systems

AM/FM Radio

/ VOL (Power/Volume): Press to turn the radio on/off. Turn the

knob to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off,

the volume will come back on at a nominal listening level when the ignition switch is turned back on.

AM/FM: Press repeatedly to select AM/FM1/FM2 frequency band. TUNE: Turn the knob to go up/down the frequency band in individual

increments. DIRECT: Press DIRECT and then select the desired radio frequency

(i.e. 93.9) using the memory preset numbers (0–9).

SEEK/TRACK: Press previous/next strong radio station.

SCAN: Press for a brief sampling of all strong radio stations. MEMORY PRESETS (0–9): When tuned to any station, press and hold

a preset button until sound returns and PRESET # SAVED appears in the display. You can save up to 30 stations, 10 in AM, 10 in FM1 and FM2.

Saving presets automatically– Autoset allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2.

To activate the autoset feature: Press MENU repeatedly until AUTO PRESET ON/OFF appears in the display. Use toggle AUTO PRESET to ON, and either wait five seconds for the search

to initiate or press OK to immediately initiate the search. If you press another control within those five seconds, the search will not initiate. The 10 strongest stations will be filled and the station stored in preset 1 will begin playing.

If there are fewer then 10 strong stations, the system will store the last one in the remaining presets.

RDS (Radio Data System) Radio

Available only in FM mode. This feature allows you to search RDS-equipped stations for a certain category of music format: CLASSIC, COUNTRY, JAZZ/RB, ROCK, etc.

To activate: Press MENU repeatedly until RDS (ON/OFF) appears in the display. Use OFF, you will not be able to search for RDS equipped stations or view

the station name or type. 30

SEEK/TRACK to toggle RDS ON/OFF. When RDS is

SEEK/TRACK to access the

SEEK/TRACK to

Page 31

Entertainment Systems

CAT/FOLD (Category/Folder): This feature allows you to select from various music categories.

To change RDS categories: Press MENU repeatedly until RDS ON/OFF appears in the display. Use PRESS UP OR DOWN TO CHANGE RDS CATEGORY will appear in the display. Press

desired category appears in the display, press find the next station playing that selection or press SCAN for a brief

sampling of all stations playing that category of music.

CD/MP3 Player

CD: Press to enter CD/MP3 mode. If a disc is already loaded into the system, CD/MP3 play will begin where it ended last. If no CD is loaded, NO DISC will appear in the display.

LOAD: For a single CD system– This control is not operational. To load a CD,

simply insert the disc, label side up, into the CD slot. For a CD6 system– Press LOAD. When the display reads SELECT SLOT, choose the desired slot number using memory presets 1–6. When the display reads LOAD CD#, load the desired disc, label side up. If you do not choose a slot within five seconds, the system will choose for you. Once loaded, the first track will begin to play.

To auto load up to six discs– Press and hold LOAD until the display reads AUTOLOAD#. Load the desired disc, label side up. The system will prompt you to load discs for the remaining available slots. Insert the discs, one at a time, label side up, when prompted. Once loaded, the disc in preset #1 will begin to play.

Press the number preset buttons (1–6) to choose the disc you want to play.

EJECT: For a single CD system– press EJECT to eject the CD. For a CD6 system– press EJECT and select the desired CD slot by

pressing the corresponding memory preset #. The display will read EJECTING #. When the system has ejected the CD, the display will read REMOVE CD #. Remove the CD. If you do not remove the CD, the system will reload the disc. To auto eject all loaded discs– Press and hold EJECT. The system will eject all discs and prompt you when to remove them.

/ to scroll through all possible categories. When the

/ to toggle RDS to ON. Press CAT.

SEEK/TRACK to

Page 32

Entertainment Systems

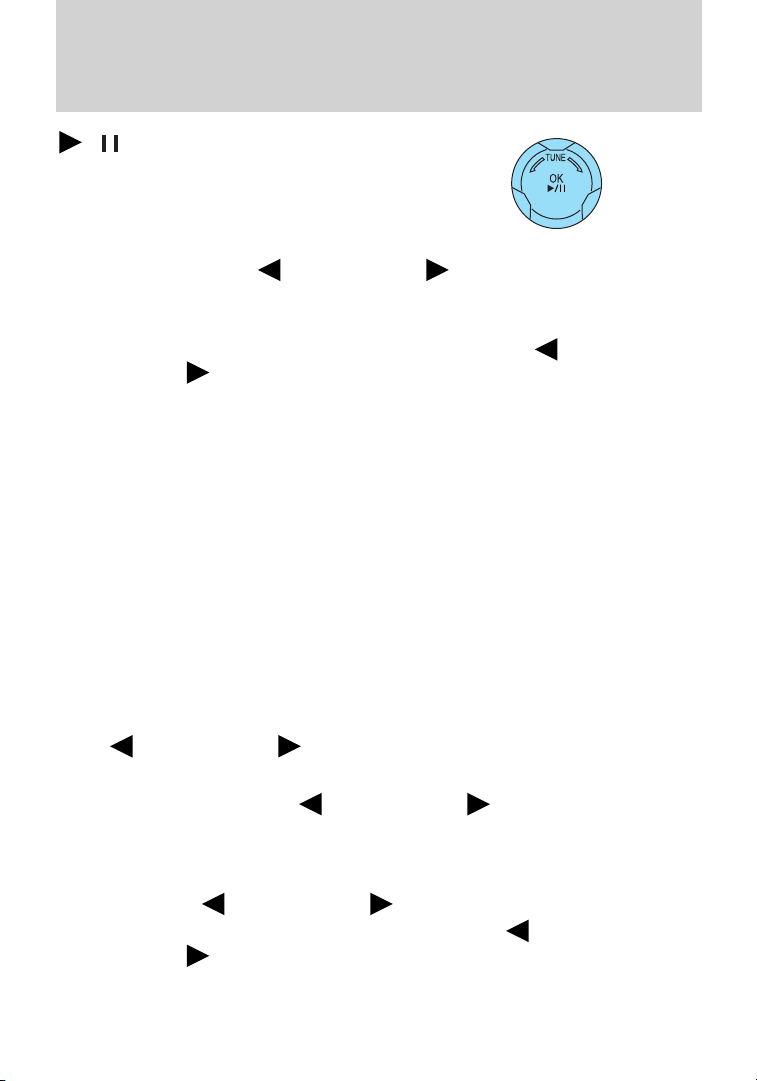

/ Play/Pause: Press to

play/pause a track when playing a CD.

SEEK/TRACK: Press previous/next track.

CAT (Category) / FOLD (Folder):

In MP3 mode only– Press CAT/FOLD and then press SEEK/TRACK to access the previous/next folder.

SCAN: Press for a brief sampling of all tracks on the current disc or MP3 folder.

DIRECT:

In CD mode– Press DIRECT. The display will read DIRECT TRACK MODE SELECT TRACK. Enter the desired track number using the memory preset buttons (0–9). The system will then begin playing that track.

In MP3 folder mode– Press DIRECT and the memory preset buttons (0–9) of the desired folder. The system will advance to that specific folder.

TEXT:

In MP3 mode only– Press TEXT repeatedly to view Album (AL), Folder (FL), Song (SO) and Artist (AR) in the display, if available.

In TEXT MODE: Sometimes the display requires additional text to be displayed. When the</>indicatorisactive,pressTEXT and then

press

COMPRESSION: Press MENU repeatedly until COMPRESSION ON/OFF appears in the display. Use ON/OFF. When COMPRESSION is ON, the system will bring the soft and

loud CD passages together for a more consistent listening level. SHUFFLE: Press MENU repeatedly until SHUFFLE ON/OFF appears in

the display. Use you wish to engage shuffle mode right away, press

SEEK/TRACK to begin random play. Otherwise, random play will begin when the current track is finished playing. The system will only shuffle the currently playing disc.

SEEK/TRACK to view the additional display text.

SEEK/TRACK to access the

SEEK/TRACK to toggle between

SEEK/TRACK to toggle between ON/OFF. If

Page 33

Entertainment Systems

Satellite Radio (if equipped)

Satellite radio is available only with a valid SIRIUS威 radio subscription. Check with your authorized dealer for availability.

SIRIUS: Press repeatedly to access satellite radio mode, if equipped. Press repeatedly to cycle through SAT1, SAT2 and SAT3 modes.

TUNE/OK: Turn the knob to go to the next / previous available SIRIUS威 satellite station.

DIRECT: Press DIRECT then enter the desired channel (i.e. 002) using the memory preset buttons (0–9). If you only enter one digit, press OK and the system will go to that satellite channel. If you enter three digits, the system will automatically go to that channel, if available. You may cancel your entry by pressing DIRECT. If an invalid station number is entered, INVALID CHANNEL will appear in the display and the system will continue playing the current station.

SEEK/TRACK: Press previous/next channel. If a specific category is selected, (Jazz, Rock, News, etc.), press

channel in the selected category. Press and hold to fast seek through the previous/next channels.

SCAN: Press SCAN for a brief sampling of all available SIRIUS威 satellite channels. If a specific category is selected, (Jazz, Rock, News, etc.) press SCAN for a brief sampling of all available SIRIUS威 satellite channels within the selected category.

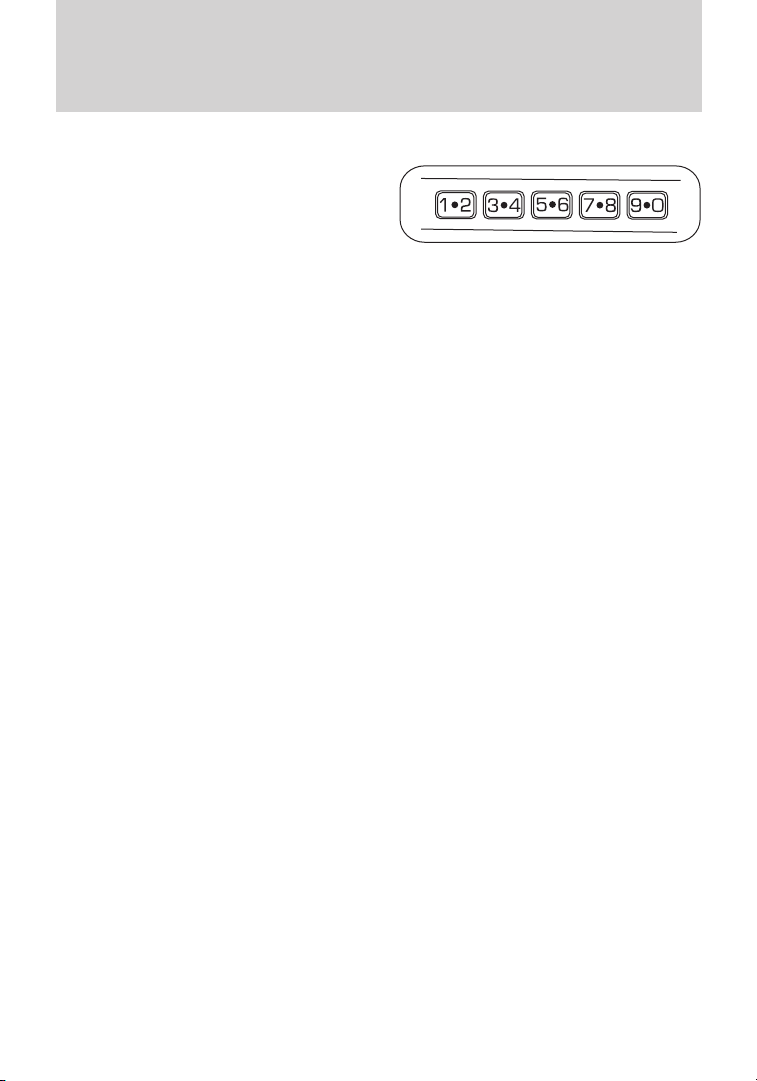

MEMORY PRESETS (0–9): There are 30 available presets, 10 each for SAT1, SAT2 and SAT3. To save satellite channels in your memory presets, tune to the desired channel then press and hold a memory preset number (0–9) until sound returns.

TEXT: Press and release to display the artist and song title. While in TEXT MODE, press again to scroll through the Artist (AR), Song (SO), Channel (CH) and Category (CA).

In TEXT MODE: Sometimes the display requires additional text to be displayed. When the</>indicatorisactive,pressTEXT and then

press

SEEK/TRACK to view the additional display text.

SEEK/TRACK to seek to the

SEEK/TRACK to seek to the previous/next

SEEK/TRACK

Page 34

Entertainment Systems

CAT (Category) / FOLD (Folder): Press to toggle between turning the most recently selected satellite radio category on or off. The category icon (CAT) will illuminate in the display when a specific category is selected (the icon will not illuminate during CATEGORY ALL). If no category has ever been selected, NO CATEGORY SELECTED will display.

Note: Separate categories can be set for SAT1, SAT2 or SAT3. Refer to Satellite radio menu for further information on selecting a satellite radio category.

SATELLITE RADIO MENU: Press MENU when satellite radio mode is active to access. Press OK to enter into the satellite radio menu.

Press

• CATEGORY MENU- Press OK to enter category mode. Press Categories (Pop, Rock, News, etc.) Press OK when the desired

category appears in the display. After a category is selected, press (i.e. ROCK). You may also select CATEGORY ALL to seek all available

SIRIUS威 categories and channels. Press OK to close and return to the main menu.

• SONG SEEK MENU- Press OK to enter song seek menu. Press a. SAVE THIS SONG: Press OK to save the currently playing song’s

title in the system’s memory. (If you try to save something other than a song, CANT SAVE will appear in the display.) When the chosen song is playing on any satellite radio channel, the system will alert you with an audible prompt. Press OK while SONG ALERT is in the display and the system will take you to the channel playing the desired song. You can save up to 20 song titles. If you attempt to save more than 20 titles, the display will read REPLACE SONG? Press OK to access the

saved titles and press the song title appears in the display that you would like to replace,

press OK. SONG REPLACED will appear in the display. b. DELETE A SONG: Press OK to delete a song from the system’s

memory. Press song appears in the display that you would like to delete, press OK.

The song will appear in the display for confirmation. Press OK again and the display will read SONG DELETED. If you do not want to

delete the currently listed song, press RETURN or CANCEL.

/ to cycle through the following options:

/ to scroll through the list of available SIRIUS威 channel

/ to search for that specific category of channels only

/ to scroll through the following options:

/ to cycle through the saved titles. When

/ to cycle through the saved songs. When the

/ to select either

Page 35

Entertainment Systems

Note: If there are no songs presently saved, the display will read NO SONGS. c. DELETE ALL SONGS: Press OK to delete all song’s from the system’s memory. The display will read ARE YOU SURE ? Press OK to confirm deletion of all saved songs and the display will read ALL DELETED. Note: If there are no songs presently saved, the display will read NO SONGS. d. DISABLE ALERTS/ENABLE ALERTS: Press OK to enable/disable the satellite alert status which alerts you when your selected songs are playing on a satellite radio channel. (The system default is disabled.) SONG ALERTS ENABLED/DISABLED will appear in the display. The menu listing will display the opposite state. For example, if you have chosen to enable the song alerts, the menu listing will read DISABLE as the alerts are currently on, so your other optionistoturnthemoff.

• CHANNEL LOCKOUT MENU- Press OK to enter the Channel Lockout menu. Press the options:

a. LOCK/UNLOCK THIS CHANNEL: Press OK when LOCK/UNLOCK THIS CHANNEL is displayed and the display will read ENTER PIN. Enter your four-digit PIN (initial PIN is 1234) and the system will lock/unlock the channel and CHANNEL LOCKED or UNLOCKED will be displayed. Note: You must be tuned to the specific channel you want to lock/unlock when using this feature. b. CHANGE PIN: Press OK when CHANGE PIN is displayed. The display will read ENTER OLD PIN. Enter your current (old) PINand when the system accepts your entry it will display ENTER NEW PIN. Enter your new four-digit PIN and the system will save the new PIN and PIN SAVED will display. c. UNLOCK ALL CHANNELS: Press OK when UNLOCK ALL CHANNELS is displayed and the display will read ENTER PIN. Enter your four-digit PIN and the system will unlock all channels and the display will read CHANNEL UNLOCKED. d. RESET PIN: Press OK when RESET PIN is displayed. The display will read ARE YOUR SURE. Press OK again to automatically reset the PIN to its initial password setting (1234). PIN RESET TO DEFAULT PIN will be displayed. e. RETURN: Press OK when RETURN is displayed and the system will exit back to the satellite radio menu.

/ to scroll through the following

Page 36

Entertainment Systems

Sound Adjustments

Press SOUND repeatedly to cycle through the following features:

BASS: Press

SEEK/TRACK to adjust the level of bass.

TREBLE: Press

BALANCE: Press

the left (L) and right (R) speakers.

FADE: Press back (B) and front (F) speakers.

SPEED COMPENSATED VOLUME: With this feature on, radio volume automatically gets louder with increasing vehicle speed to compensate for road and wind noise.

The default setting is off.

Use 1–7: Increasing the level from 1 (lowest setting) to 7 (highest setting)

allows the radio volume to automatically change slightly with vehicle speed to compensate for road and wind noise.

Recommended level is 1–3; SPEED OFF turns the feature off and level 7 is the maximum setting.

ALL SEATS (Occupancy mode, if equipped): Press SOUND repeatedly to reach the Occupancy mode setting. Press

SEEK/TRACK to select and optimize sound for ALL SEATS, DRIVERS SEAT or REAR SEATS.

Extra Features

AUX: Press repeatedly to cycle through LINE IN (auxiliary audio mode), and SYNC威 (if equipped).

For location and further information on auxiliary audio mode, refer to Auxiliary input jack later in this chapter.

If your vehicle is equipped with SYNC威, please refer to the SYNC威 information included with your vehicle for further information.

OK: Your vehicle may be equipped with special phone and media features which will require you to confirm commands by pressing OK. For further information, refer to the SYNC威 information included with your vehicle for further information.

SEEK/TRACK to adjust between SPEED OFF and levels

SEEK/TRACK to adjust the level of treble.

SEEK/TRACK to adjust the audio between

SEEK/TRACK to adjust the audio between the

Page 37

Entertainment Systems

(Phone): If your vehicle is equipped with SYNC威, press to access SYNC PHONE features. For further information, please refer to the SYNC威 information included with your vehicle for further information. If your vehicle is not equipped with SYNC威, the display will read NO PHONE.

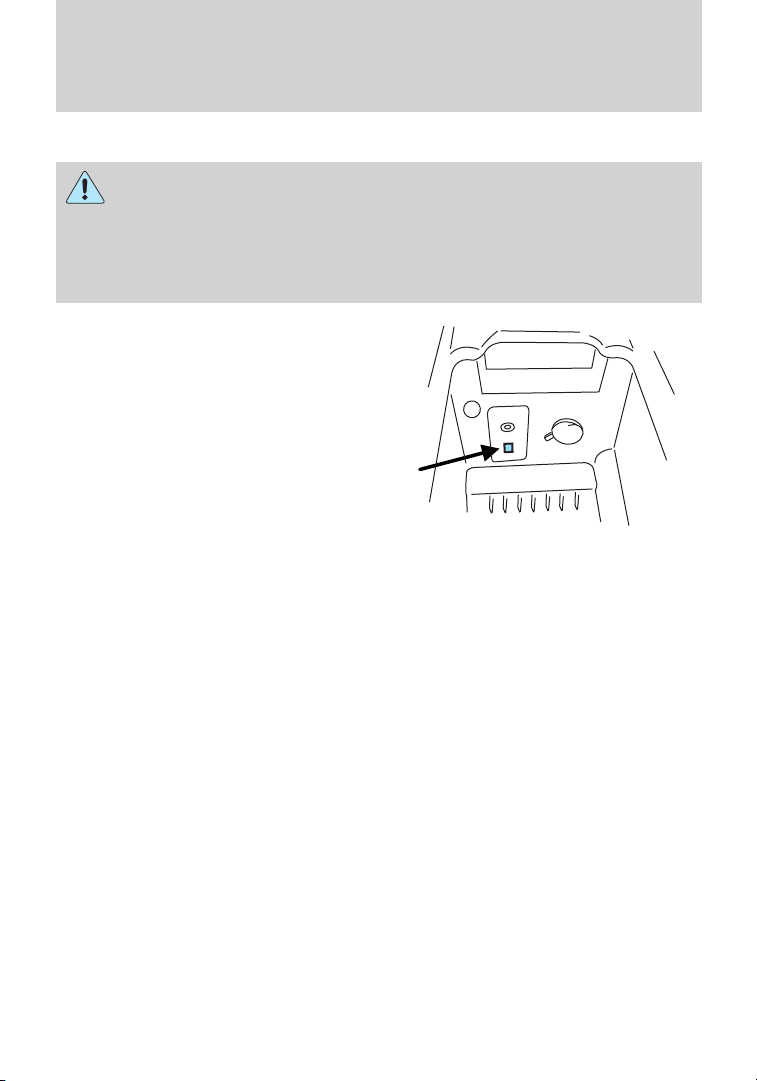

Auxiliary input jack (Line in)

WARNING: Driving while distracted can result in loss of vehicle

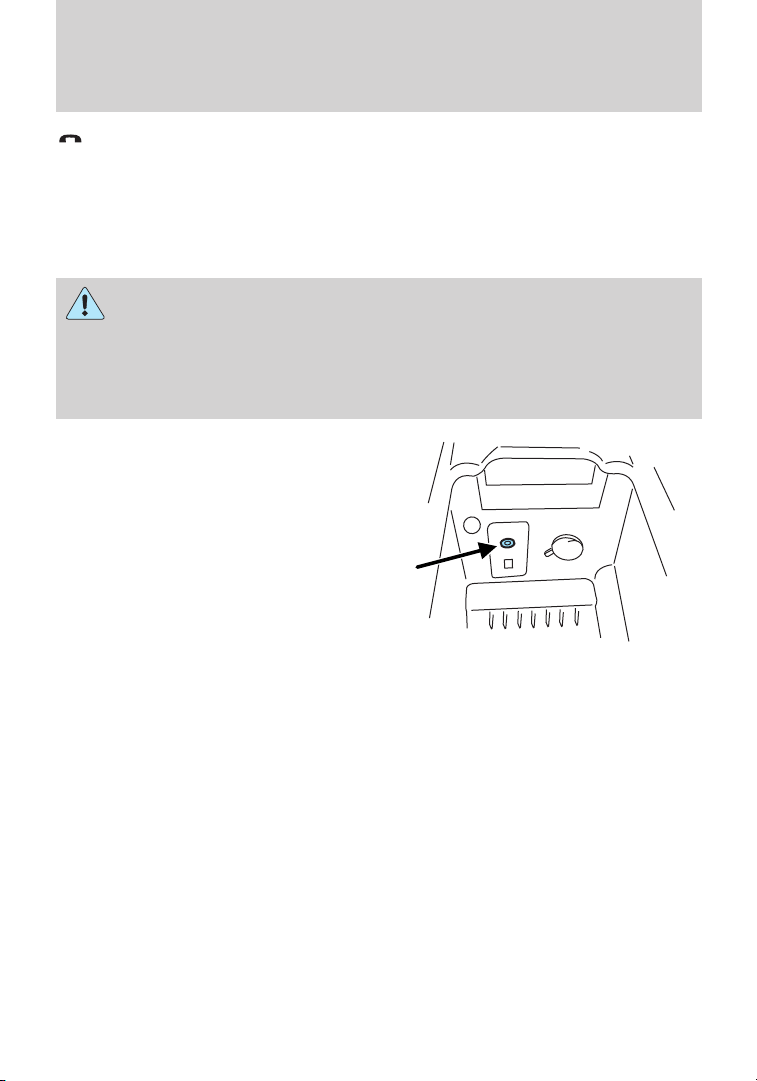

Your vehicle is equipped with an auxiliary input jack (AIJ). The auxiliary input jack provides a way to connect your portable music player to the in-vehicle audio system. This allows the audio from a portable music player to be played through the vehicle speakers with high fidelity. To achieve optimal performance, please observe the following instructions when attaching your portable music device to the audio system. If your vehicle is equipped with a navigation system, refer to Auxiliary

input jack section in the Audio features chapter of your Navigation System supplement.

Required equipment:

1. Any portable music player designed to be used with headphones

2. An audio extension cable with stereo male 1/8 in. (3.5 mm) connectors at each end

To play your portable music player using the auxiliary input jack:

1. Begin with the vehicle parked and the radio turned off.

2. Ensure that the battery in your portable music player is new or fully charged and that the device is turned off.

3. Attach one end of the audio extension cable to the headphone output of your player and the other end of the audio extension cable to the AIJ in your vehicle.

Page 38

Entertainment Systems

4. Turn the radio on, using either a tuned FM station or a CD loaded into the system. Adjust the volume to a comfortable listening level.

5. Turn the portable music player on and adjust the volume to 1/2 the volume.

6. Press AUX on the vehicle radio repeatedly until LINE, LINE IN or SYNC LINE IN appears in the display. You should hear audio from your portable music player, although it may be low.

7. Adjust the sound on your portable music player until it reaches the level of the FM station or CD by switching back and forth between the AUX and FM or CD controls.

Troubleshooting:

1. Do not connect the audio input jack to a line level output. Line level outputs are intended for connection to a home stereo and are not compatible with the AIJ. The AIJ will only work correctly with devices that have a headphone output with a volume control.

2. Do not set the portable music player’s volume level higher than is necessary to match the volume of the CD or FM radio in your audio system as this will cause distortion and will reduce sound quality. Many portable music players have different output levels, so not all players should be set at the same levels. Some players will sound best at full volume and others will need to be set at a lower volume.

3. If the music sounds distorted at lower listening levels, turn the portable music player volume down. If the problems persists, replace or recharge the batteries in the portable music player.

4. The portable music player must be controlled in the same manner when it is used with headphones as the AIJ does not provide control (play, pause, etc.) over the attached portable music player.

5. For safety reasons, connecting or adjusting the settings on your portable music player should not be attempted while the vehicle is moving. Also, the portable music player should be stored in a secure location, such as the center console or the glove box, when the vehicle is in motion. The audio extension cable must be long enough to allow the portable music player to be safely stored while the vehicle is in motion.

Page 39

Entertainment Systems

USB port (if equipped)

WARNING: Driving while distracted can result in loss of vehicle

Your vehicle may be equipped with a USB port inside your center console. This feature allows you to plug in media playing devices, memory sticks, and also to charge devices if they support this feature. For further information on this feature, refer to Accessing and using your USB port in the SYNC威 supplement or Navigation System supplement.

GENERAL AUDIO INFORMATION

Radio frequencies:

AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are:

AM: 530, 540–1700, 1710 kHz FM: 87.7, 87.9–107.7, 107.9 MHz

Radio reception factors:

There are three factors that can affect radio reception:

• Distance/strength: The further you travel from an FM station, the weaker the signal and the weaker the reception.

• Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception.

• Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

Page 40

Entertainment Systems

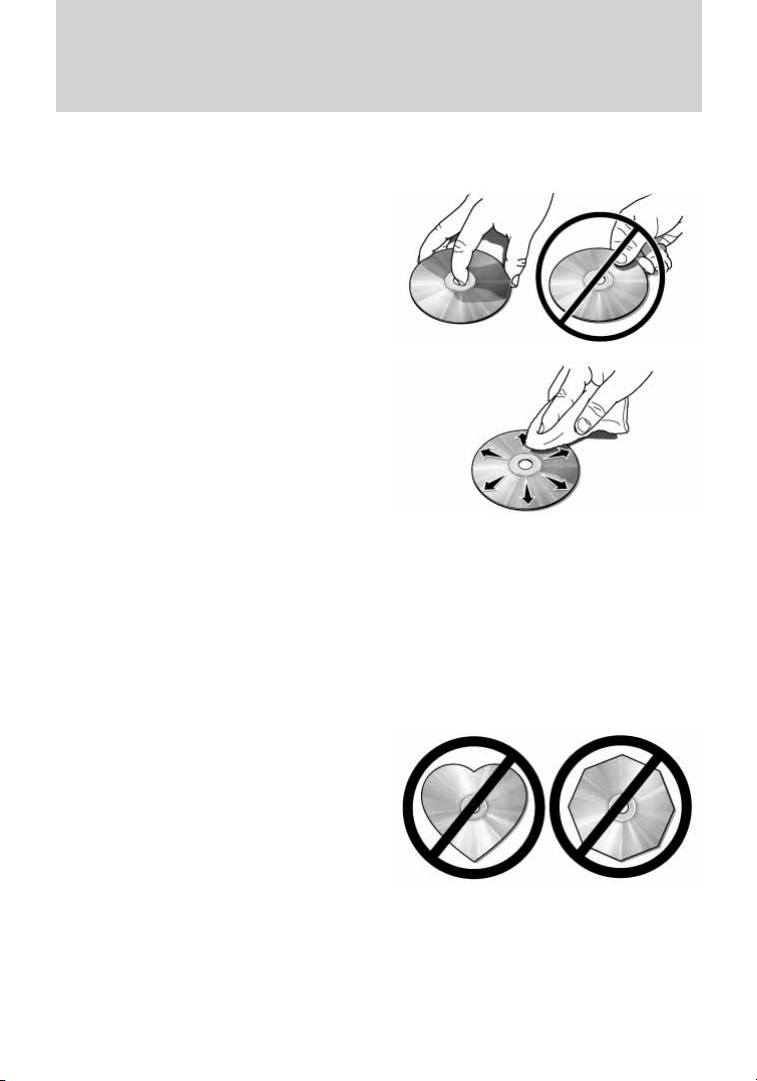

CD/CD player care

Do:

• Handle discs by their edges only. (Never touch the playing surface).

• Inspect discs before playing.

• Clean only with an approved CD

cleaner.

• Wipe discs from the center out.

Don’t:

• Expose discs to direct sunlight or heat sources for extended periods of time.

• Clean using a circular motion.

CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players.

Do not use any irregular shaped CDs or discs with a scratch protection film attached.

Page 41

Entertainment Systems

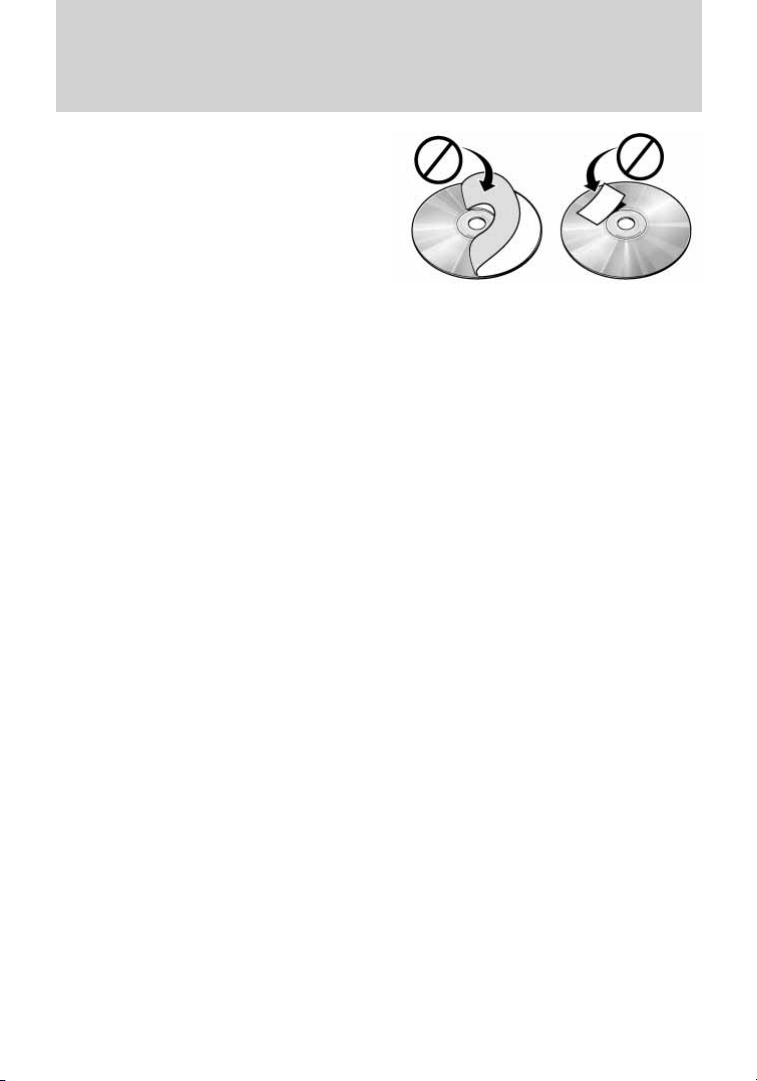

CDs with homemade paper (adhesive) labels should not be inserted into the CD player as the label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information.

Audio system warranty and service

Refer to the Warranty Guide/Customer Information Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

MP3 track and folder structure

Your MP3 system recognizes MP3 individual tracks and folder structure as follows:

• There are two different modes for MP3 disc playback: MP3 track mode (system default) and MP3 folder mode. For more information on track and folder mode, refer to Sample MP3 structure in the following section.

• MP3 track mode ignores any folder structure on the MP3 disc. The player numbers each MP3 track on the disc (noted by the .mp3 file extension) from T001 to a maximum of T255. Note: The maximum number of playable MP3 files may be less depending on the structure of the CD and exact model of radio present.

• MP3 folder mode represents a folder structure consisting of one level of folders. The CD player numbers all MP3 tracks on the disc (noted by the .mp3 file extension) and all folders containing MP3 files, from F001 (folder) T001 (track) to F253 T255.

• Creating discs with only one level of folders will help with navigation through the disc files.

Page 42

Entertainment Systems

Sample MP3 structure

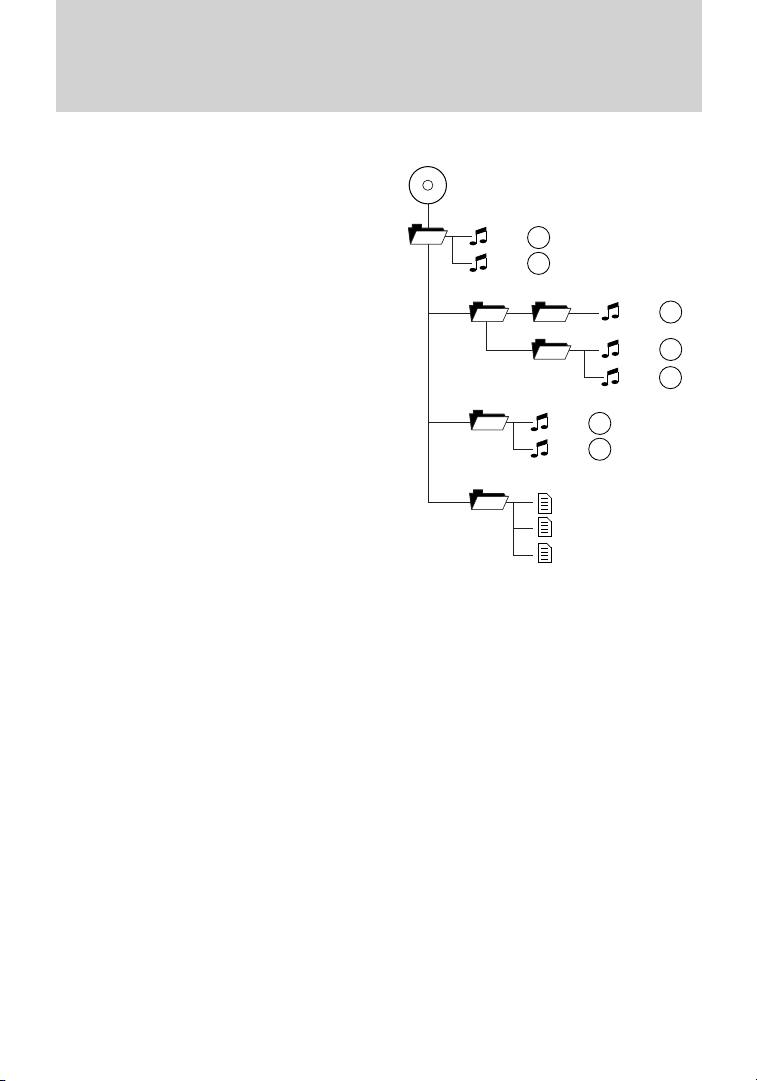

If you are burning your own MP3 discs, it is important to understand how the system will read the structures you create. While various files may be present, (files with extensions other than mp3), only files with the .mp3 extension will be played. Other files will be ignored by the system. This enables you to use the same MP3 disc for a variety of tasks on your work computer, home computer and your in vehicle system.

In track mode, the system will display and play the structure as if it were only one level deep (all .mp3 files will be played, regardless of being in a specific folder). In folder mode, the system will only play the .mp3 files in the current folder.

.mp3

.doc

.ppt

.xls

.mp3

Satellite radio information (if equipped)

Satellite radio channels: SIRIUS威 broadcasts a variety of music, news, sports, weather, traffic and entertainment satellite radio channels. For more information and a complete list of SIRIUS威 satellite radio channels, visit www.sirius.com in the United States, www.sirius-canada.ca in Canada, or call SIRIUS威 at 1–888–539–7474.

Satellite radio reception factors: To receive the satellite signal, your vehicle has been equipped with a satellite radio antenna located on the roof of your vehicle. The vehicle roof provides the best location for an unobstructed, open view of the sky, a requirement of a satellite radio system. Like AM/FM, there are several factors that can affect satellite radio reception performance:

• Antenna obstructions: For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and other material as far away from the antenna as possible.

Page 43

Entertainment Systems

• Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and thunderstorms can interfere with your reception.

• Station overload: When you pass a ground based broadcast repeating tower, a stronger signal may overtake a weaker one and result in an audio mute.

Unlike AM/FM audible static, you will hear an audio mute when there is a satellite radio signal interference. Your radio display may display NO SIGNAL to indicate the interference.

SIRIUS威 satellite radio service: SIRIUS威 satellite radio is a subscription based satellite radio service that broadcasts music, sports, news and entertainment programming. A service fee is required in order to receive SIRIUS威 service. Vehicles that are equipped with a factory installed SIRIUS威 satellite radio system include hardware and a limited subscription term, which begins on the date of sale or lease of the vehicle.

For information on extended subscription terms, the online media player and other SIRIUS威 features, please contact SIRIUS威 at 1–888–539–7474.

Note: SIRIUS威 reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes.

Satellite radio electronic serial number (ESN): This 12–digit Satellite Serial Number is needed to activate, modify or track your satellite radio account. You will need this number when communicating with SIRIUS威. While in satellite radio mode, you can view this number on the radio display by pressing the AUX and preset 1 controls simultaneously.

Page 44

Entertainment Systems

Radio Display Condition Action Required

ACQUIRING Radio requires more

than two seconds to

produce audio for the

selected channel.

SAT FAULT Internal module or

system failure

present.

INVALID CHNL Channel no longer

available.

UNSUBSCRIBED Subscription not

available for this

channel.

NO TEXT Artist information not

available.

NO TEXT Song title information

not available.

No action required.

This message should

disappear shortly.

If this message does

not clear within a short

period of time, or with

an ignition key cycle,

your receiver may have

a fault. See your

authorized dealer for

service.

This previously

available channel is no

longer available. Tune to another channel. If

the channel was one of

your presets, you may

choose another channel

for that preset button.

Contact SIRIUS威 at 1–888–539–7474 to

subscribe to the

channel or tune to

another channel.

Artist information not

available at this time on

this channel. The system is working

properly.

Song title information

not available at this

time on this channel.

The system is working

properly.

Page 45

Entertainment Systems

Radio Display Condition Action Required

NO TEXT Category information

not available.

NO SIGNAL Loss of signal from

the SIRIUS威 satellite

or SIRIUS威 tower to the vehicle antenna.

UPDATING Update of channel

programming in

progress.

CALL SIRIUS威 1–888–539–7474

Satellite service has

been deactivated by

SIRIUS威 satellite

radio.

Category information

not available at this

time on this channel.

The system is working

properly.

You are in a location

that is blocking the

SIRIUS威 signal (i.e.,

tunnel, under an

overpass, dense foliage,

etc). The system is

working properly. When

you move into an open

area, the signal should

return.

No action required. The

process may take up to

three minutes.

Call SIRIUS威 at

1–888–539–7474 to

re-activate or resolve

subscription issues.

NAVIGATION SYSTEM (IF EQUIPPED)

Your vehicle may be equipped with a navigation system. Refer to the Navigation System supplement for further information.

SYNC姞 (IF EQUIPPED)

Your vehicle may be equipped with SYNC威, a hands-free communications and entertainment system with special phone and media features. For more information, please refer to the SYNC威 supplement or to the SYNC威 section in the Navigation System supplement (if equipped).

Page 46

Climate Controls

MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED)

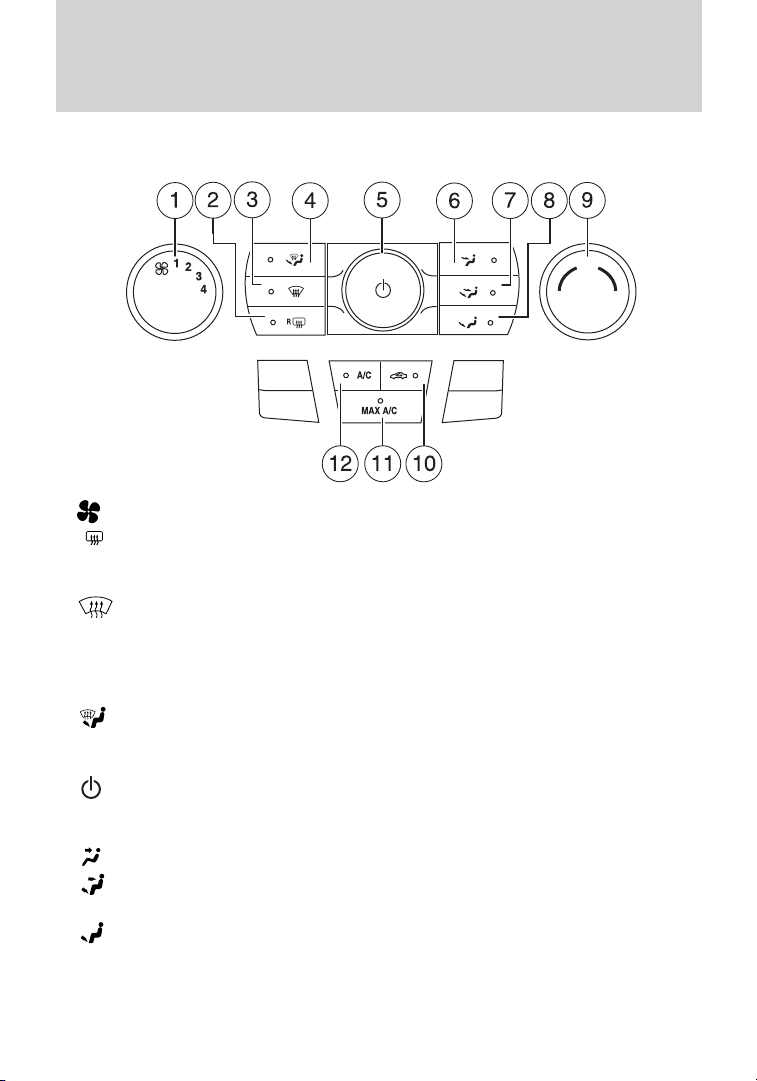

Fan speed adjustment: Turn to select fan speed.

Rear defroster: Press to activate/deactivate the rear window defroster. Refer to Rear window defroster later in this chapter for more information.

3. vents and demister vents. Can be used to clear the windshield of fog and thin ice. The system will automatically provide outside air to reduce window fogging. Press this button again to return to the previous air flow selection.

4. vents, floor vents and rear seat floor vents. The system will automatically provide outside air to reduce window fogging.

5. When the system is off, outside air is prevented from entering the vehicle through the vents.

7. vents, floor vents and rear seat floor vents (if equipped).

8. seat floor vents (if equipped).

9. Temperature control: Controls the temperature of the airflow in the vehicle.

Defrost: Distributes outside air through the windshield defroster

: Distributes air through the windshield defroster vents, demister

Power: Press to activate/deactivate the climate control system.

: Distributes air through the instrument panel vents.

: Distributes air through the instrument panel vents, demister

: Distributes air through the demister vents, floor vents and rear

Page 47

Climate Controls

10. Recirculated air: Press to activate/deactivate air recirculation in the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except automatically in all airflow modes except MAX A/C. When the ignition switch is turned off and back on, the climate system will return to the recirculated air mode only if the A/C button LED is illuminated and the

air distribution selection is either Recirculation may turn off automatically in some airflow modes to reduce

fog potential.

11. MAX A/C: Distributes recirculated air through the instrument panel vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press the MAX A/C button again for normal A/C operation.

12. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. Engages

automatically in MAX A/C,

Outside temperature (if equipped): The outside temperature will appear in the display and is labeled EXT TEMP.

Operating tips

• To reduce fog build-up on the windshield during humid weather,

select

• To reduce humidity build-up inside the vehicle, do not drive with the

system off or with

• Do not put objects under the front seats that will interfere with the

airflow to the back seats.

• Remove any snow, ice or leaves from the air intake area at the base of

the windshield.

• To improve the time to reach comfort in hot weather, drive with the

windows slightly open for 2-3 minutes after start up or until the vehicle has been “aired out.”

(defrost) or (floor/defrost).

(defrost). Recirculated air may turn off

(panel) or (panel/floor).

(defrost) and (floor/defrost).

(recirculated air) engaged and A/C off.

Page 48

Climate Controls

and put the vehicle’s transmission into the P (Park) gear position (automatic transmission only) to continue to receive cool air from your A/C system.

For maximum cooling performance in MAX A/C mode:

1. Select MAX A/C.

2. Select the coolest temperature setting.

3. Set the fan to the highest speed initially. As the interior starts to cool down, adjust the fan speed to maintain comfort.

To aid in side window defogging/demisting in cold weather:

1. Select

2. Select A/C.

3. Adjust the temperature control to maintain comfort.

4. Set the fan speed to the highest setting.

5. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents

located in the middle of the instrument panel.

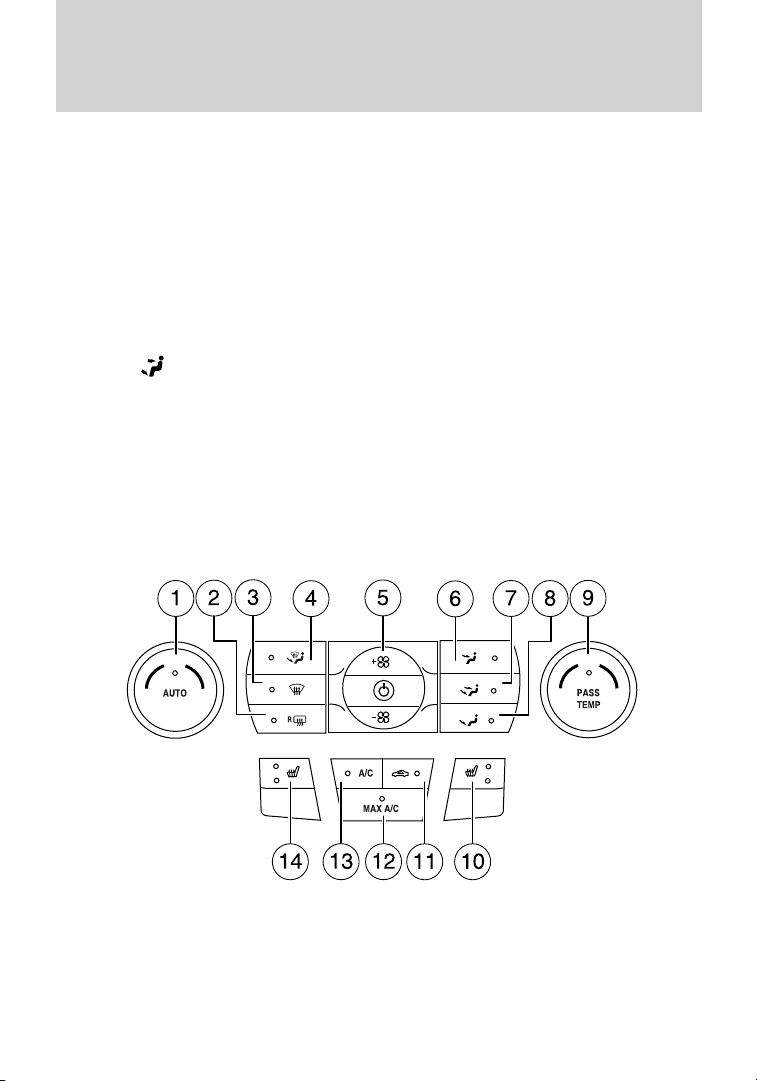

DUAL AUTOMATIC TEMPERATURE CONTROL (IF EQUIPPED)

Outside temperature (if equipped): The outside temperature will appear in the display and is labeled EXT TEMP.

Temperature conversion: To switch between Fahrenheit and Celsius, refer to Setup menu in the Message center section of the Instrument Cluster chapter.

Page 49

Climate Controls

1. AUTO/Driver temperature: Press to engage full automatic operation. Select the desired temperature using the temperature control. The system will automatically determine fan speed, airflow distribution, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature. Turn to increase/decrease the temperature on the driver side of the vehicle. The control also adjusts the passenger side temperature when PASS TEMP is disengaged. The recommended initial setting is between 72°F (22°C) and 75°F (24°C), then adjust for comfort. The driver side temperature setting will appear in the upper left corner of the display.

Rear defroster: Press to activate/deactivate the rear window

2. defroster. Refer to Rear window defroster later in this chapter for more information.

4. vents, floor vents and rear seat floor vents. The system will automatically provide outside air to reduce window fogging. To return to full automatic control, press AUTO.

5. system. When the system is off, outside air is prevented from entering the vehicle through the vents. Press + fan speed manually. To return to full automatic control, press AUTO.

6. full automatic control, press AUTO.

7. vents, floor vents and rear seat floor vents. To return to full automatic control, press AUTO.

8. seat floor vents. To return to full automatic control, press AUTO.

Defrost: Distributes outside air through the windshield defroster

: Distributes air through the windshield defroster vents, demister

Power/ : Press to activate/deactivate the climate control

or – to select the desired

: Distributes air through the instrument panel vents. To return to

: Distributes air through the instrument panel vents, demister

: Distributes air through the demister vents, floor vents and rear

Page 50

Climate Controls

9. PASS TEMP (passenger temperature): Press to engage/disengage separate passenger side temperature control. Turn to increase/decrease the temperature on the passenger side of the vehicle. The recommended initial setting is between 72°F (22°C) and 75°F (24°C), then adjust for comfort. The passenger side temperature setting will appear in the upper right corner of the display.

10. activate/deactivate the passenger heated seat. See Heated seats in the Seating and Safety Restraints chapter.

11. the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except automatically in all airflow modes except MAX A/C. When the ignition switch is turned off and back on, the climate system will return to the recirculated air mode only if the A/C button LED is illuminated and the

air distribution selection is either Recirculation may turn off automatically in some airflow modes to reduce

fog potential.

12. MAX A/C: Distributes recirculated air through the instrument panel vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press the MAX A/C button again for normal A/C operation.

13. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. Engages

automatically in MAX A/C,

Passenger heated seat control (if equipped): Press to

Recirculated air: Press to activate/deactivate air recirculation in

(defrost). Recirculated air may turn off

(panel) or (panel/floor).

(defrost) and (floor/defrost).

14. activate/deactivate the driver heated seat. See Heated seats in the Seating and Safety Restraints chapter.

Driver heated seat control (if equipped): Press to

Page 51

Climate Controls

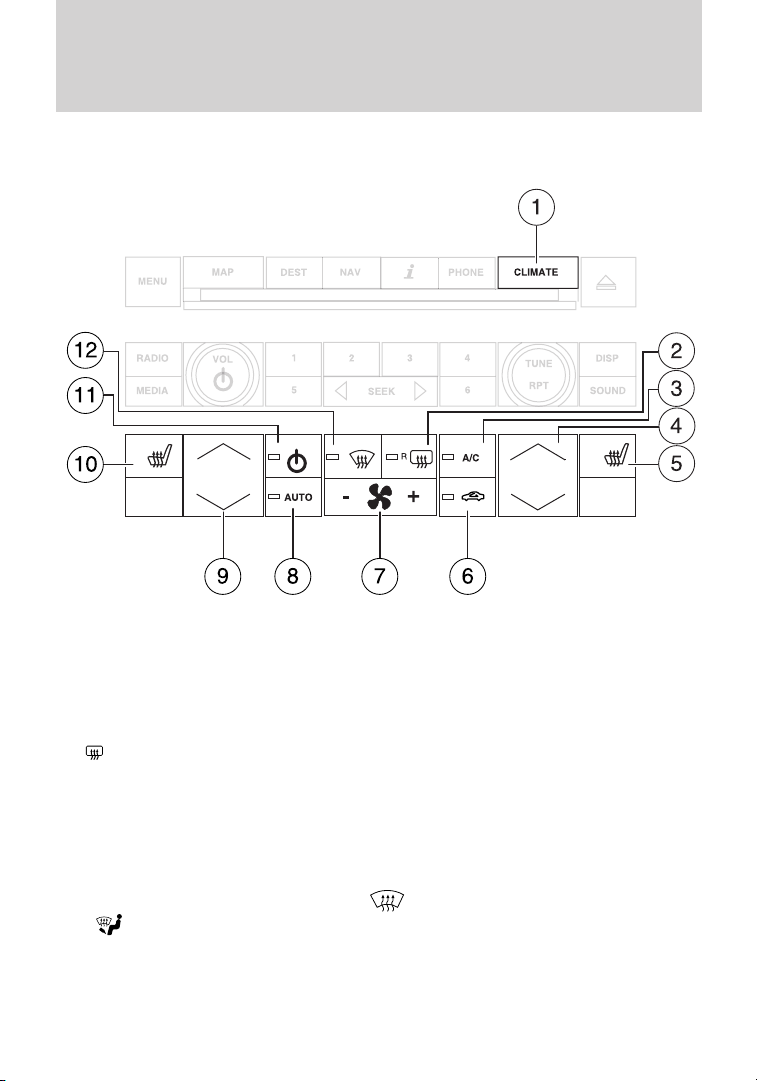

DUAL ZONE AUTOMATIC TEMPERATURE CONTROL (NAVIGATION BASED – IF EQUIPPED)

Temperature conversion: To switch between Fahrenheit and Celsius, refer to Message center in the Instrument Cluster chapter.

1. CLIMATE: Press to control the climate control system through the touch display screen. See Touchscreen functions later in this section.

Rear defroster: Press to activate/deactivate the rear window

2. defroster. Refer to Rear window defroster later in this chapter for more

information. If your vehicle is equipped with both rear defroster and heated mirrors, the same button will activate both.

3. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. A/C

engages automatically in MAX A/C, and

(floor/defrost).

4. Passenger temperature: Press to activate separate passenger temperature control to increase/decrease the air temperature on the passenger side of the vehicle.

(defrost)

Page 52

Climate Controls

5. Passenger heated seat (if equipped): Press to control the passenger heated seat. Refer to Heated seats in the Seating and Safety

Restraints chapter for more information.

6. the vehicle. Recirculated air may reduce the amount of time needed to

cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in

any airflow mode except automatically in all airflow selections except MAX A/C. When the ignition

switch is turned off and back on, the climate system will return to the recirculated air mode only if the A/C button LED is illuminated and the

air distribution selection is either Recirculation may turn off automatically in some airflow modes to reduce

fog potential.

7. – Manual fan speed will appear in the touch screen.

8. AUTO: Press to engage full automatic operation. The system will automatically determine fan speed, airflow distribution, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature.

9. Driver temperature: Press to increase/decrease the air temperature for the driver side of the vehicle. This control also adjusts the passenger side temperature when dual zone operation is disengaged.

10. heated seat. Refer to Heated seats in the Seating and Safety Restraints chapter for more information.

11. When the system is off, outside air is prevented from entering the

vehicle. The climate status in the touchscreen will also be turned off.

12. defroster vents and demister vents. Can be used to clear the windshield

of fog and thin ice. The system will automatically provide outside air to reduce window fogging. Press this button again to return to the previous air flow selection. To return to full automatic mode, press AUTO.

Recirculated air: Press to activate/deactivate air recirculation in

(defrost). Recirculated air may turn off

(panel) or (floor/panel).

+ Fan speed control: Press to decrease/increase the fan speed.

Driver heated seat (if equipped): Press to control the driver

Power: Press to activate/deactivate the climate control system.

Defrost: Distributes outside air through the windshield

Page 53

Climate Controls

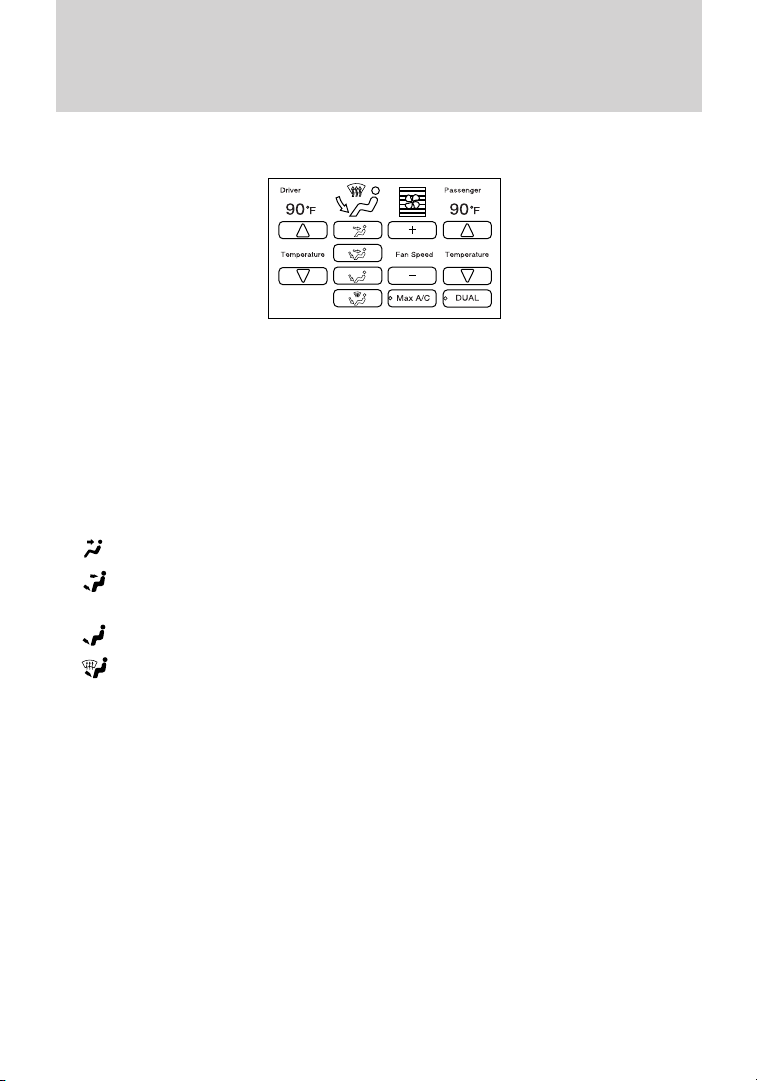

TOUCHSCREEN FUNCTIONS

Temperature conversion: To switch between Fahrenheit and Celsius, refer to Message center in the Instrument Cluster chapter.

Temperature: Press the up and down arrows on the left side of the screen to increase/decrease the airflow temperature for the driver side of the vehicle. This control also adjusts the passenger side temperature when dual zone operation is disengaged. Press the up and down arrows on the right side of the screen to increase/decrease the airflow temperature for the passenger side of the vehicle.

: Distributes air through the instrument panel vents.

•

Fan Speed: Press to decrease/increase the fan speed. Dual: Press to activate/deactivate separate driver and passenger

temperature controls. Max A/C: Distributes recirculated air through the instrument panel

vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press the Max A/C button again for normal A/C operation.

: Distributes air through the instrument panel vents, floor vents,

rear seat floor vents and de-mister vents.

: Distributes air through the floor vents, rear seat floor vents.

: Distributes air through the windshield defroster vents, de-mister

vents, floor vents and rear seat floor vents. The system will automatically provide outside air to reduce window fogging.

To return to full automatic control, press AUTO on the main bezel.

Page 54

Climate Controls

VOICE COMMANDS IN CLIMATE MODE

Please refer to the Voice commands in climate mode section of the Navigation Supplement for more information on using voice commands

with the climate control system.

Operating tips

• To reduce fog build-up on the windshield during humid weather,

select

• To reduce humidity build-up inside the vehicle, do not drive with the

system OFF or with

• Do not put objects under the front seats that will interfere with the

airflow to the back seats.

• Remove any snow, ice or leaves from the air intake area at the base of

the windshield.

• To improve the A/C cool down, drive with the windows slightly open

for 2-3 minutes after start up or until the vehicle has been “aired out.”

During extreme high ambient temperatures when idling stationary for extended periods of time in gear, it is recommended to run the A/C in the MAX A/C position, reduce blower fan speed from the highest setting and put the vehicle’s transmission into the P (Park) gear position (for automatic transmissions) to continue to receive cool air from your A/C system.

For maximum cooling performance:

• Automatic operation:

1. Press AUTO for full automatic operation.

2. Do not override A/C or

3. Set the temperature to 60°F (16°C).

• Manual operation:

1. Select MAX A/C.

2. Select

(defrost) or (floor/defrost).

(recirculated air) engaged and A/C off.

(recirculated air).

or .

3. Select

4. Set the temperature to 60°F (16°C).

5. Set highest fan setting initially, then adjust to maintain comfort.

(recirculated air) to provide colder airflow.

Page 55

Climate Controls

To aid in side window defogging/demisting in cold weather:

1. Select

2. Select A/C.

3. Adjust the temperature control to maintain comfort.

4. Set the fan speed to the highest setting.

5. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents

located in the middle of the instrument panel.

REAR WINDOW DEFROSTER

The rear defroster control is located on the climate control panel and works to clear the rear window of fog and thin ice.

The engine must be running to operate the rear window defroster.

Press

to turn the rear window defroster on. An indicator light on the button will illuminate when active. The rear window defroster turns off automatically after a predetermined amount of time, if a low battery condition is detected or when the ignition is turned off or to the accessory position. To manually turn off the rear window defroster at any time, press the control again.

If your vehicle is equipped with both rear defroster and heated mirrors, the same button will activate both. Refer to Exterior mirrors in the Driver Controls chapter.

Do not use razor blades or other sharp objects to clean the inside of the rear window or to remove decals from the inside or the rear window. This may cause damage to the heated grid lines and will not be covered by your warranty.

Page 56

Lights

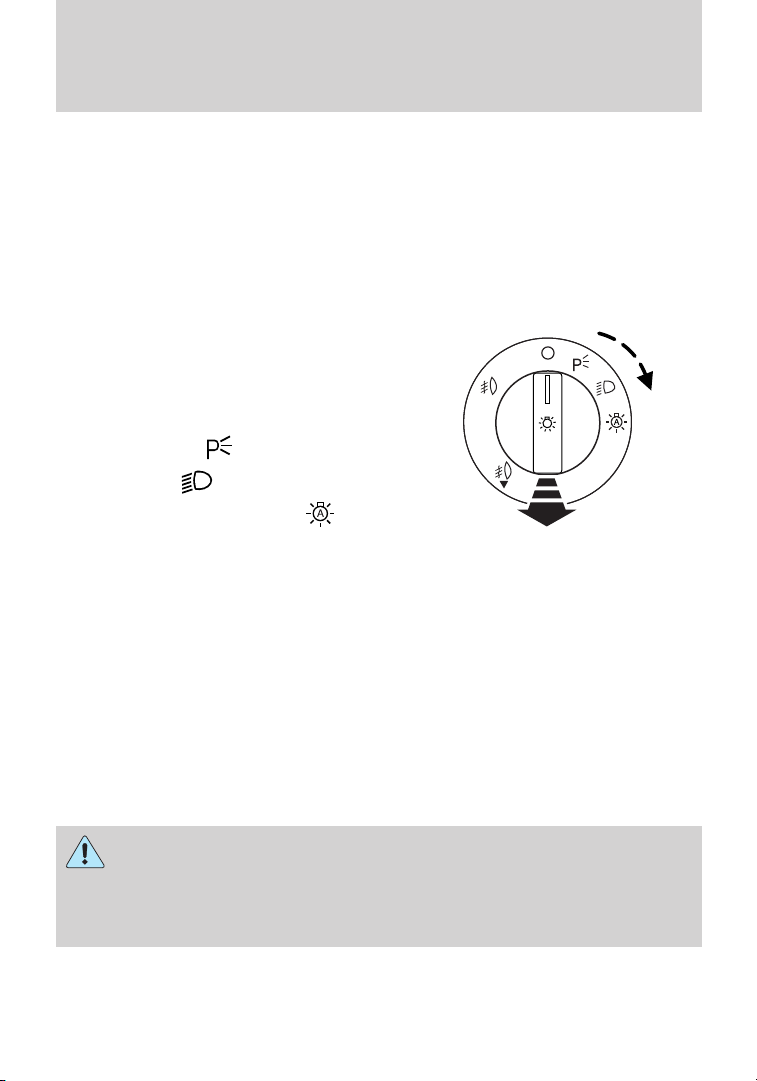

HEADLAMP CONTROL

Turns the lamps off.

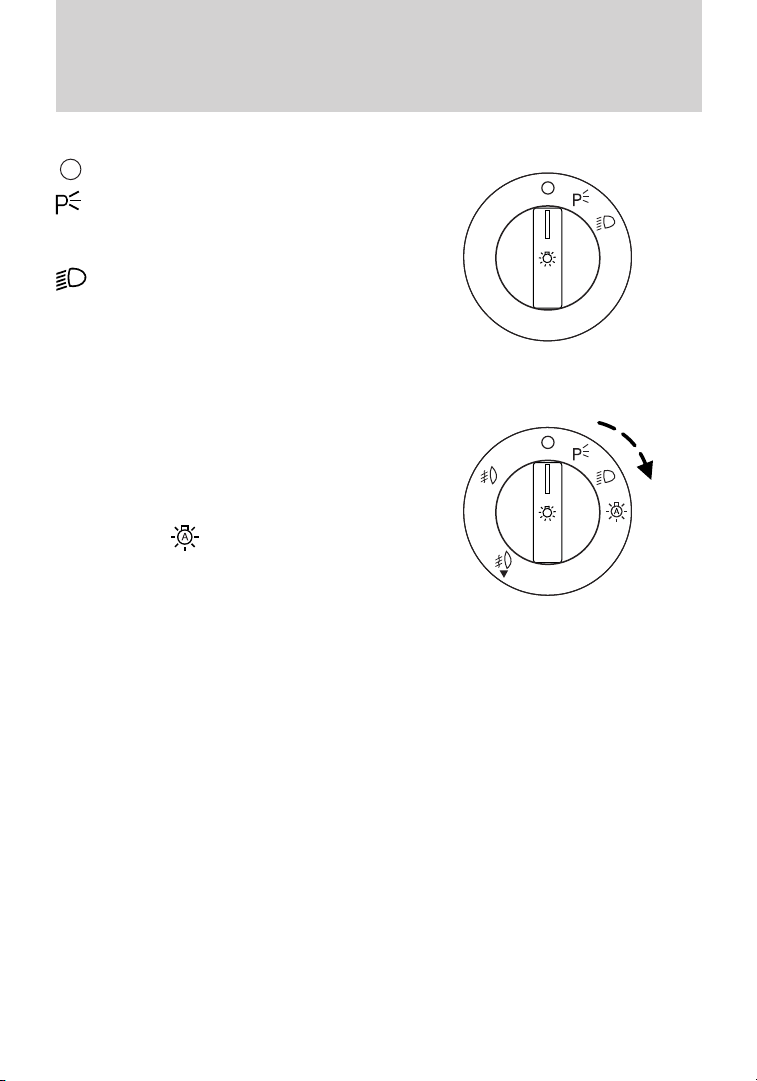

Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.

Turns the low beam headlamps

on.

Autolamp control (if equipped)

The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control.

• To turn autolamps on, rotate the

control to

• To turn autolamps off, rotate the

control from the autolamp position.

The autolamp system also keeps the lights on for a predetermined amount of time after the ignition switch is turned to off. You can change the amount of time the lamps stay on by using the programming procedure that follows:

Note: If the vehicle is equipped with autolamps, it will have the headlamps on with windshield wipers feature. If the windshield wipers are turned on, the exterior lamps will turn on with the headlamp control in the autolamp position.

Autolamps - Programmable exit delay

Programmable exit delay allows the length of the autolamp exit delay to be changed.

To program the auto lamp exit time delay:

1. Start with the ignition in the off position and the headlamp control in the autolamp position.

2. Turn the headlamp control to off.

3. Turn the ignition switch to on and then back to off. 56

Page 57

Lights

4. Turn the headlamp control to the autolamp position. The headlamps will turn on.

5. Wait the desired amount of time for the exit delay you want (up to three minutes), then turn the headlamps off.

See Message center in the Instrument Cluster section for more information.

Fog lamp control (if equipped)

With the ignition on, the fog lamps can be turned on when the headlamp control is pulled toward you and is in any of the following positions:

• Parking lamps

• Low beams

• Autolamps (when active)

The fog lamp indicator light will illuminate when the fog lamps have been turned on. The fog lamps will not operate when the high beams are active.

Daytime running lamps (DRL) (if equipped)

Turns the headlamps on with a reduced output.

To activate:

• the ignition must be in the on position,

• the headlamp control is in the off, autolamps or parking lamp position

and

• the transmission must be out of the P (Park) position.

WARNING: Always remember to turn on your headlamps at

dusk or during inclement weather. The Daytime Running Lamp (DRL) system does not activate the tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

Page 58

Lights

High beams

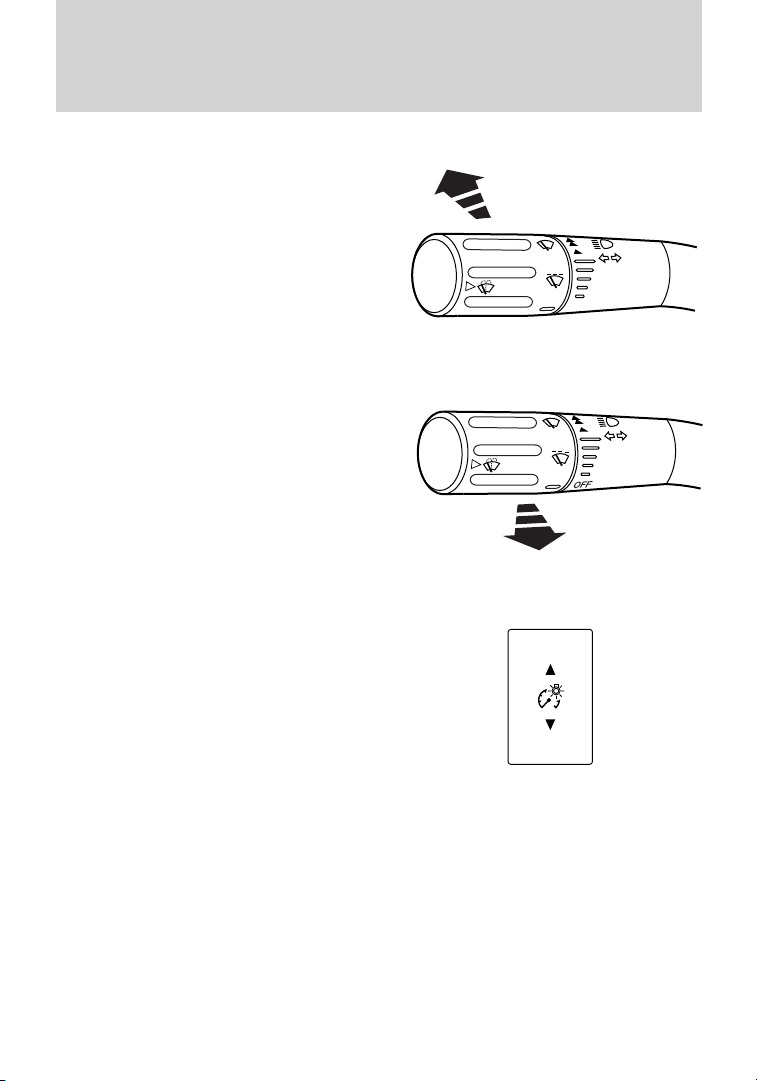

Push the lever toward the instrument panel to activate. Pull the lever toward you to deactivate.

Flash-to-pass

Pull toward you slightly to activate and release to deactivate.

PANEL DIMMER CONTROL

Use to adjust the brightness of the instrument panel and all applicable lit components in the vehicle during headlamp and parking lamp operation.

• Tapthetoporbottomofthe control to brighten/dim all interior lit components incrementally, or

• Press and hold at the first position the top or bottom of the control until the desired lighting level is reached.

• Press and hold the top of the control to the full on position to activate the “dome on” feature. This will turn on the interior courtesy lights. The lights will remain on until the bottom of the control is pressed.

Note: If the battery is disconnected, discharged, or a new battery is installed, the dimmer control requires re-calibration. Press the dimmer control from the full dim position to the full on position to reset. This will ensure that your displays are visible under all lighting conditions.

Page 59

Lights

AIMING THE HEADLAMPS

The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident, the alignment of your headlamps should be checked by your authorized dealer.

Vertical aim adjustment

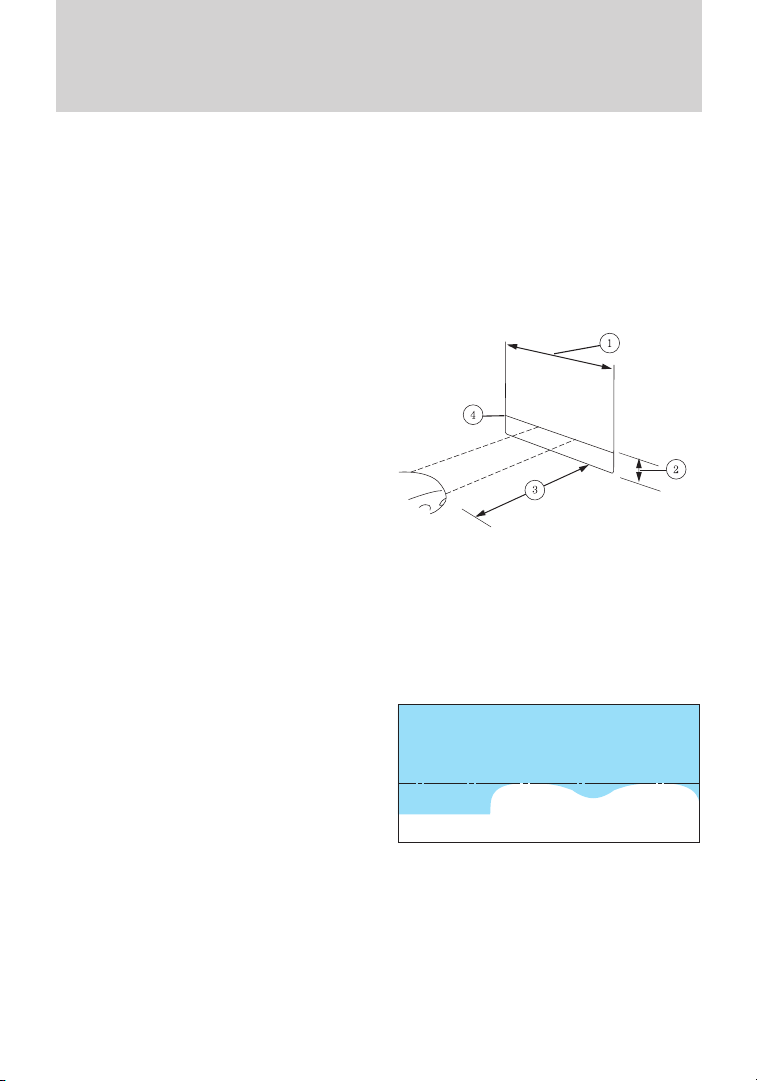

1. Park the vehicle directly in front of a wall or screen on a level surface,

approximately 25 feet (7.6 meters) away.

• (1) 8 feet (2.4 meters)

• (2) Center height of lamp to

ground

• (3) 25 feet (7.6 meters)

• (4) Horizontal reference line

2. Measure the height of the

headlamp bulb center from the ground and mark an 8 foot (2.4 meter) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well).

3. Turn on the low beam headlamps to illuminate the wall or screen and

open the hood.

To see a clearer light pattern for adjusting, you may want to block the light from one headlamp while adjusting the other.

4. On the wall or screen you will

observe an area of high intensity light. The top of the high intensity area should touch the horizontal reference line, if not, the beam will need to be adjusted using the next step.

Page 60

Lights

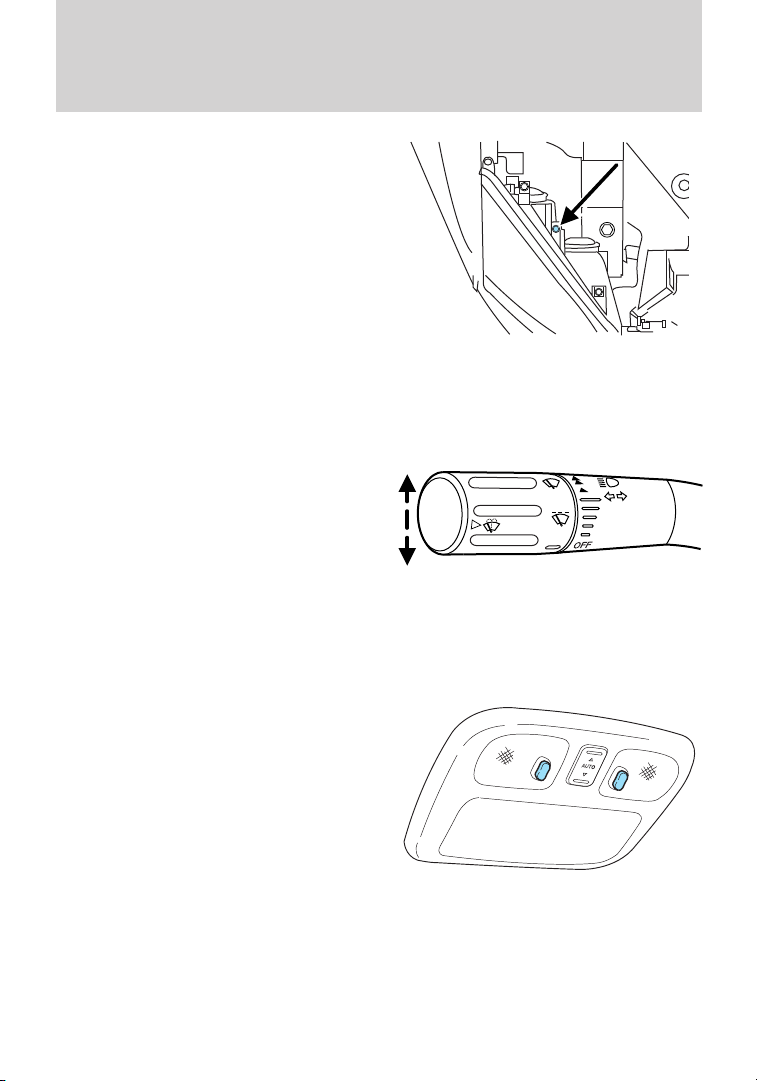

5. Locate the vertical adjuster on

each headlamp. Using a Phillips #2 screwdriver, turn the adjuster either clockwise (to adjust down) or counterclockwise (to adjust up). The horizontal edge of the brighter light should touch the horizontal reference line.

6. Close the hood and turn off the

lamps.

HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS NON-ADJUSTABLE.

TURN SIGNAL CONTROL

• Push down to activate the left turn signal.

• Push up to activate the right turn signal.

INTERIOR LAMPS

Dome lamps and map lamps

The map lamps are located on the overhead console. Press the controls to turn on the lamps.

Page 61

Lights

Your vehicle may also have reading lamps within the rear dome lamp(s).

Press the switches on either side of the dome lamp to turn on the lamps.

Ambient lighting (if equipped)

Illuminates footwells, storage bins and cupholders with a choice of several colors. The ambient lighting control is located on the instrument panel. To activate, press and release the control to cycle through the color choices plus the off state.

The lights come on whenever the ignition is in either the on or accessory position.

Note: The ambient lights will stay on until the ignition is placed in the off position and either of the front doors are opened or the accessory delay timer expires.

BULB REPLACEMENT

Lamp assembly condensation

Exterior lamps are vented to accommodate normal changes in pressure. Condensation can be a natural by-product of this design. When moist air enters the lamp assembly through the vents, there is a possibility that condensation can occur when the temperature is cold. When normal condensation occurs, a thin film of mist can form on the interior of the lens. The thin mist eventually clears and exits through the vents during normal operation. Clearing time may take as long as 48 hours under dry weather conditions.

Examples of acceptable condensation are:

• Presence of thin mist (no streaks, drip marks or droplets)

• Fine mist covers less than 50% of the lens

Examples of unacceptable moisture (usually caused by a lamp water leak) are:

• Water puddle inside the lamp

Page 62

Lights

• Large water droplets, drip marks or streaks present on the interior of the lens

Take your vehicle to dealer for service if any of the above conditions of unacceptable moisture are present.

Using the right bulbs

Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to ensure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time.

Function Number of bulbs

* Headlamp beam 2 HB3

* Front park/turn signal lamp 2

Sidemarker lamp N/A LED *Stop/tail lamp N/A LED

Rear turn signal lamp 2

Backup lamp 2 921 License plate lamp 2 C5W High-mount brake lamp 1 921 Fog lamp (if equipped) 2 H11 Map lamp 2 12V6W Dome/reading lamp 6 578 Visor vanity lamp - Slide on

Rail system (SOR) Puddle lamp (if equipped) 2 W5W Luggage compartment lamp 1 578 All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your authorized dealer. * To replace these lamps - see your authorized dealer.

Replacing interior bulbs

Check the operation of all bulbs frequently. 62

2 37 or 14V1CP

Trade

number

3457NAK

(amber)

3157 A

(amber)

Page 63

Lights

Replacing exterior bulbs

Check the operation of all the bulbs frequently.

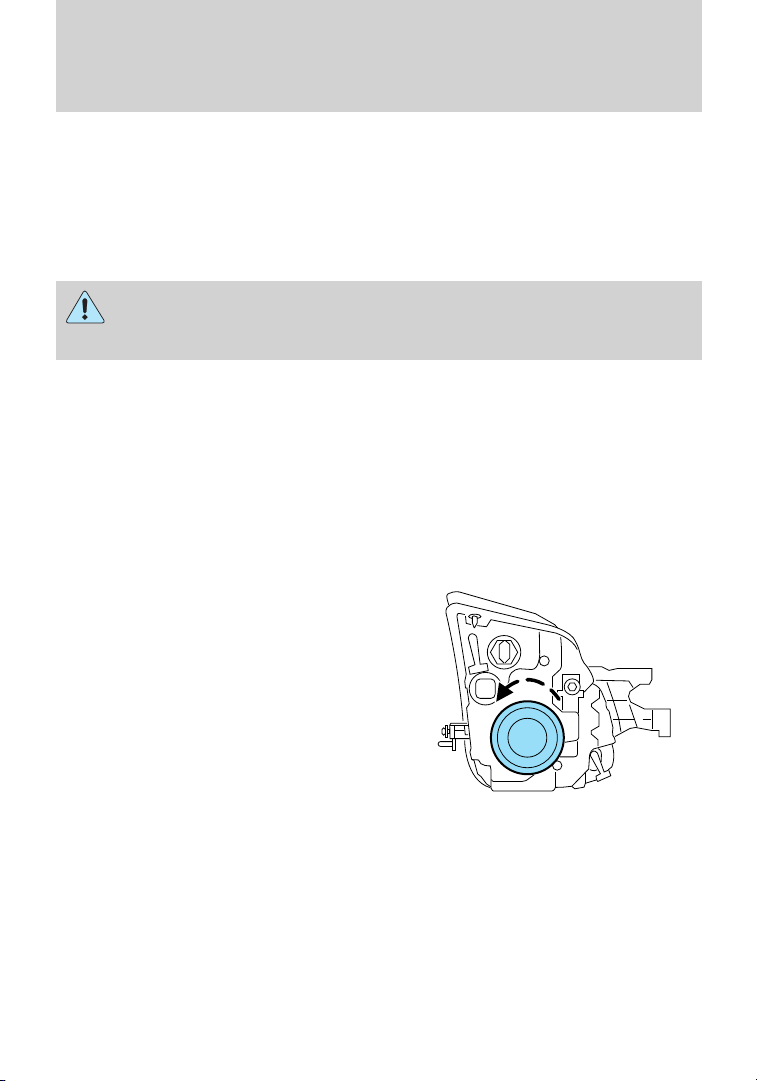

Replacing headlamp bulbs

High beam/low beam bulb replacement

For driver side replacement of this bulb, do the following:

WARNING: To reduce the risk of vehicle damage and/or personal burn injuries do not start your engine with the air

cleaner removed and do not remove it while the engine is running.

1. Release the clamps that secure the air filter housing cover. See

Changing the air filter element in the Maintenance & Specifications section for more information.

2. Carefully separate the two halves of the air filter housing.

3. Locate the mass air flow sensor electrical connector on the air outlet

tube. This connector will need to be unplugged.

4. Remove the air filter assembly.

5. Remove the rubber headlamp bulb access cover.

6. Remove the bulb socket by

rotating it counterclockwise, then pull it straight out of the lamp assembly.

7. Disconnect the electrical connector.

To install, reverse the removal procedure.

Page 64

Lights

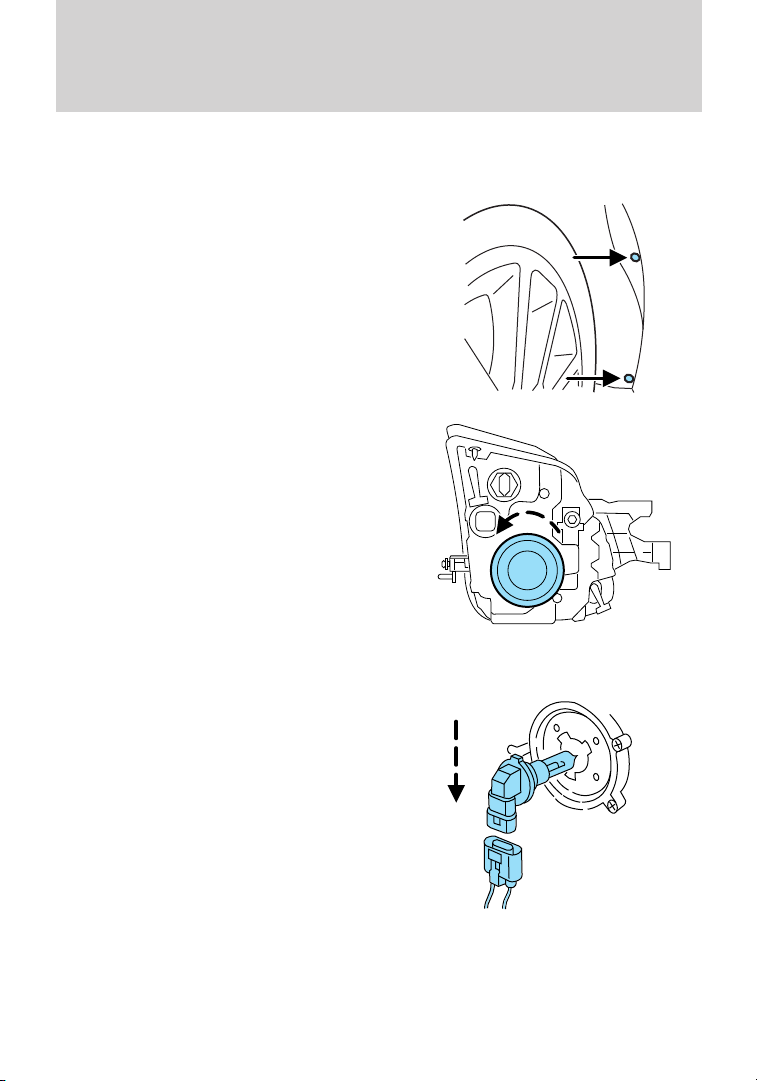

For passenger side replacement of this bulb, do the following:

1. Make sure headlamp control is in the off position, then open the hood.

2. At the wheel well, remove the

press pins from the splash shield.

3. Reaching through the wheel well,

remove the rubber bulb access cover from the housing.

4. Remove the bulb socket by rotating it counterclockwise, then pull it

straight out of the lamp assembly.

5. Disconnect the electrical

connector from the bulb socket and discard the old bulb socket.

Page 65

Lights

WARNING: Handle a halogen headlamp bulb carefully and keep

out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

6. Connect the new bulb socket to the electrical connector.

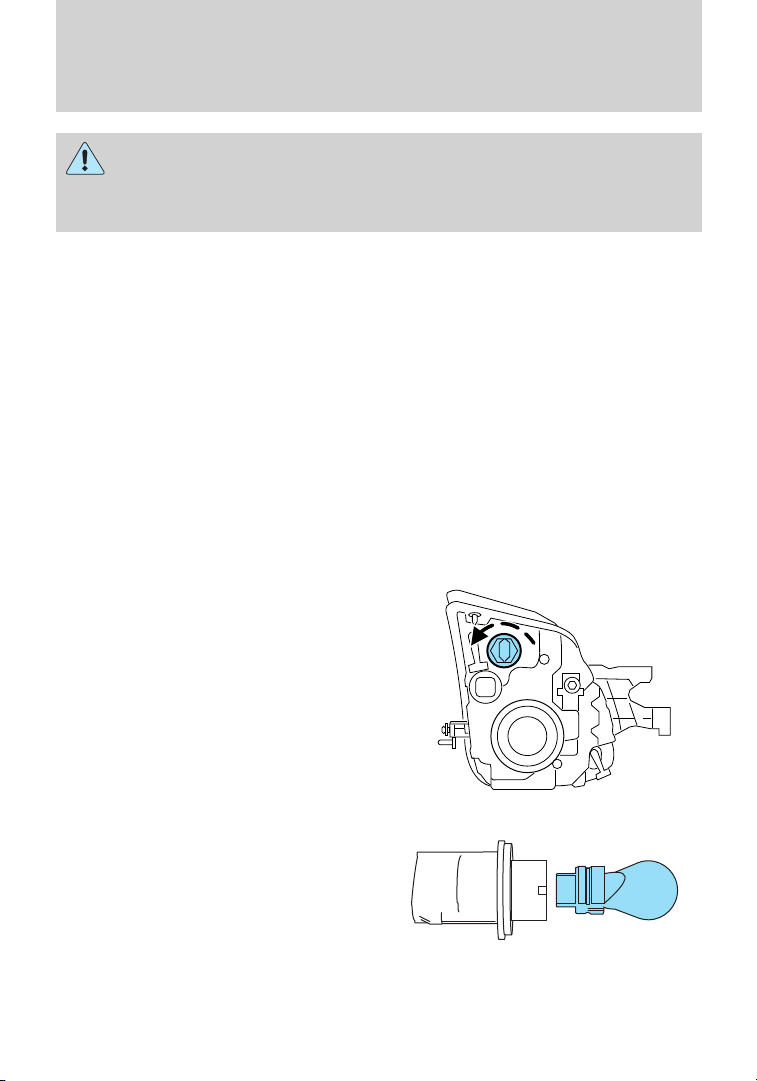

7. Install the new bulb socket into the lamp assembly by aligning the indexing fingers, then rotate clockwise to the locked position.

8. Install the rubber bulb access cover to the housing.

9. Re-apply pressure around the housing to make sure the protective rubber cover is completely seated.

10. Turn the headlamps on and make sure they work properly. If the headlamp was correctly aligned before you changed the bulb, you should not need to align it again.

Replacing front parking lamp/turn signal bulbs

1. Make sure headlamp control is in the off position, then open the hood.

2. Reach over the front bolster.

3. Remove the bulb socket by rotating it counterclockwise, then pull it out of the lamp assembly.

4. Carefully pull bulb straight out of socket and push in the new one.

5. Install new bulb socket into the lamp assembly by aligning the indexing fingers, then rotate clockwise to locked position.

Page 66

Lights

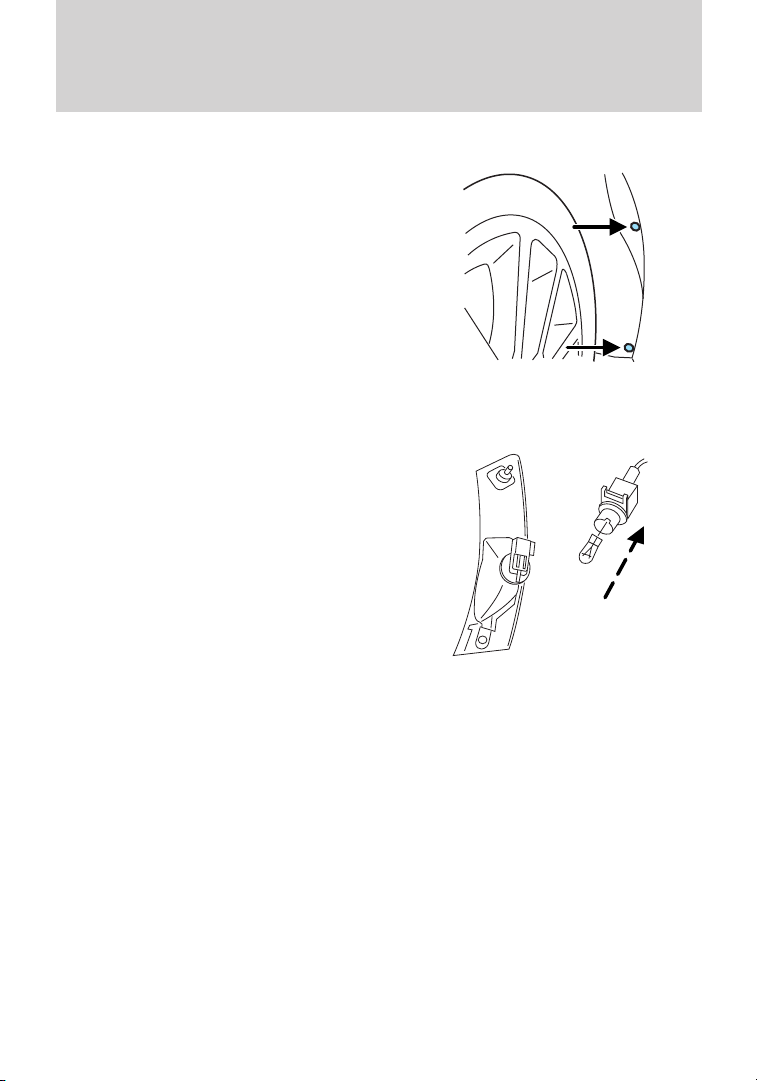

Replacing front side marker bulbs

1. Make sure the headlamp control is in the off position.

2. From underneath the vehicle, partially remove the tire splash shield by removing the press pins. After removing to allow free access to the front side marker lamp bulb and electrical wire harness, the splash shield should be able to be repositioned.

3. Rotate the lamp clockwise while holding the electrical connector in place. After rotating the lamp 90 degrees clockwise, pull and disengage the wire harness and bulb from the lamp.

4. With the bulb exposed, carefully remove the bulb from the socket by grasping the bulb and pulling it away from the wire harness.

Replace with a new bulb, and reverse the removal steps to complete the process.

Replacing stop/tail/turn/and side marker bulbs

Your vehicle is equipped with a rear lamp that has a stop/tail and side marker lamp module containing integral multiple light emitting diodes (LED). If one or more LEDs burn out, the complete lamp module has to be replaced. See your authorized dealer for the replacement lamp.

Replacing rear turn signal bulbs

1. Make sure the headlamp switch is in the off position and open the trunk.

2. Lift out trunk floor carpeting panel to access a luggage scuff plate (hard molding) shingles and a trunk side panel (dark grey, soft wheelhouse side trim panel) at the lamp area.

3. Carefully pull/push the trunk side panel (dark grey, soft wheelhouse side trim panel) outboard to expose the lamp assembly. The most

Page 67

Lights

effective point to grasp the trunk side panel when pulling it out from the luggage scuff plate is at it’s bottom edge where that edge meets the exposed sheet metal of the trunk floor.

Note: Do not allow the trunk side panel to remain bent and untucked from the luggage scuff plate (hard molding) for a long period of time. Doing so may result in permanent deformation.

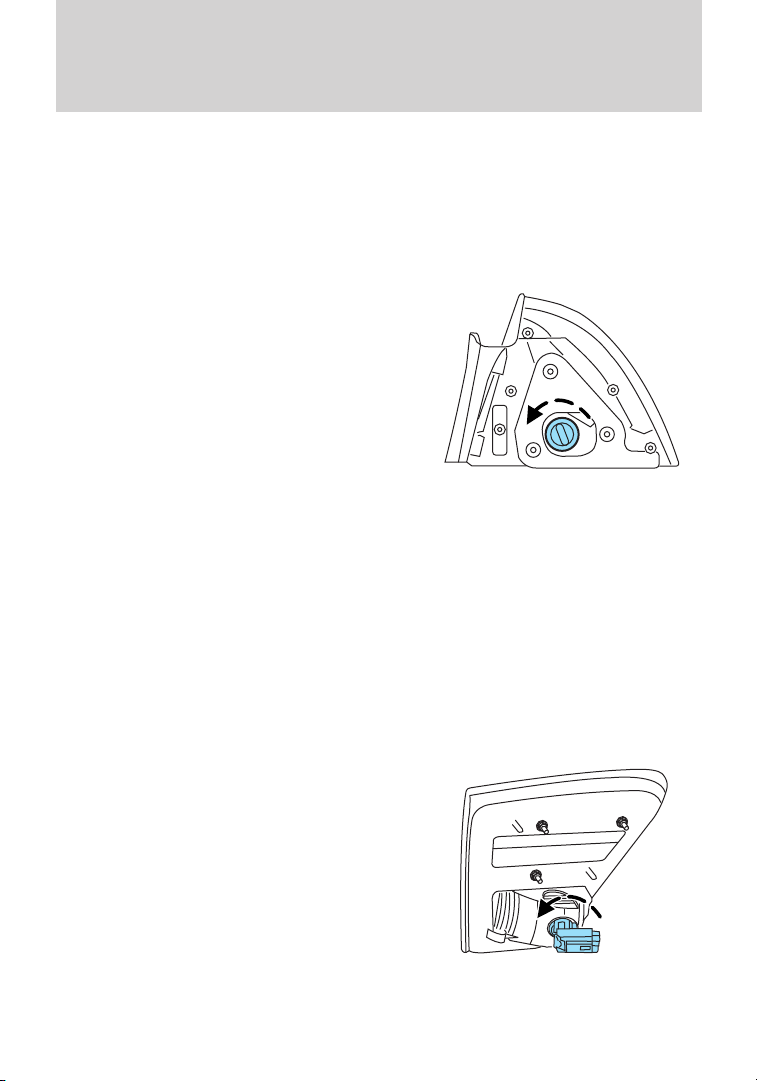

4. Remove the bulb socket by rotating it counterclockwise, then pulling it out of the lamp assembly.

5. Pull the bulb from the socket and push in the new bulb.

6. Install the bulb socket into the lamp assembly by rotating it clockwise.

7. Carefully push the trunk side panel (dark grey, soft wheelhouse side trim panel) back to the shingle position to the luggage scuff plate (hard molding).

8. Install trunk floor carpeting panel.

Replacing backup lamp bulbs

The backup lamp bulbs are located in the trunk lid.

1. Make sure the headlamp switch is in the off position and open trunk to access the lamp assembly.

2. Position the decklid trim aside by removing 3 to 4 pin-type retainers to expose the lamp assembly.

3. Remove the bulb socket by rotating it counterclockwise, then pulling it out of the lamp assembly.

4. Pull the bulb from the socket and push in the new bulb.

5. Install the bulb socket into the lamp assembly by rotating it clockwise.

6. Carefully reposition the trim back to its original position and secure the retainers.

Page 68

Lights

Replacing high-mount brake lamp bulb

1. Make sure the ignition control is in the off position.

2. Open the trunk and reach underneath the package tray to locate the lamp assembly.

3. Remove the bulb socket by rotating it counterclockwise, then pull it out of the lamp assembly.

4. Pull the bulb straight from the socket and push in the new bulb.

5. Install the bulb socket into the lamp assembly by rotating it clockwise.

Replacing license plate lamp bulbs

1. Make sure the headlamp switch is in the off position.

2. Remove the screws from the license plate lamp assembly.

3. Remove bulb socket by turning counterclockwise.

4. Carefully pull the bulb out from the socket.

Install new bulb(s) in reverse order.

Replacing fog lamp bulbs

1. Make sure the fog lamp switch is in the off position.

2. From underneath the vehicle, partially remove the tire splash shield by removing four drive screws.

After removing to allow free access to the front fog lamp bulb and electrical wire harness, the splash shield flap can be repositioned.

Page 69

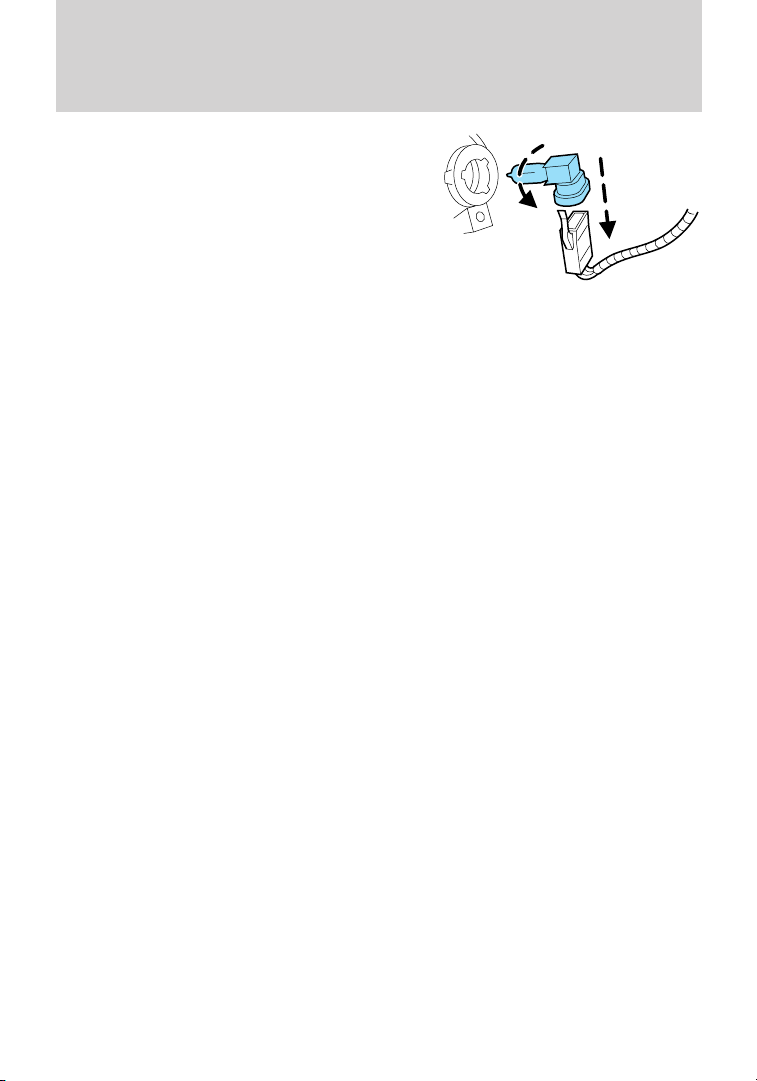

3. Rotate the harness/bulb assembly counterclockwise to remove from the fog lamp.

4. Carefully disconnect the bulb from the harness assembly via the two snap clips.

Install the new bulb in reverse order.

Lights

Page 70

Driver Controls

MULTI-FUNCTION LEVER

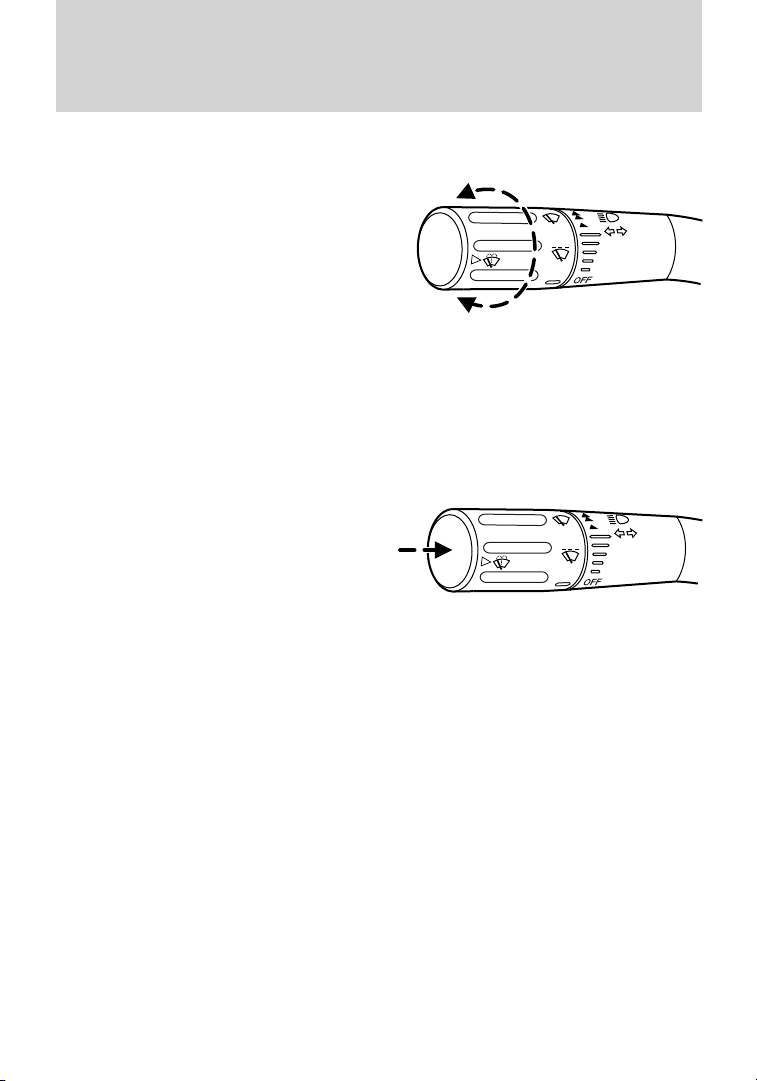

Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate towards you to decrease the speed of the wipers.

Speed dependent wipers: When the wiper control is set on the intermittent settings, the speed of the wipers will automatically adjust with the vehicle speed. The faster your vehicle is travelling the faster the wipers will go.

Windshield washer: Press the end of the stalk:

• briefly: causes a single swipe of the wipers without washer fluid.

• a quick press and hold: the wipers will swipe three times with washer fluid.

• a long press and hold: the wipers and washer fluid will be activated for up to ten seconds.

Courtesy wipe feature: One extra wipe will occur a few seconds after washing the front window to clear any excess washer fluid remaining on the windshield.

Note: Do not operate the washer when the washer reservoir is empty. This may cause the washer pump to overheat. Check the washer fluid level frequently. Do not operate the wipers when the windshield is dry. This may scratch the glass, damage the wiper blades and cause the wiper motor to burn out. Before operating the wiper on a dry windshield, always use the windshield washer. In freezing weather, be sure the wiper blades are not frozen to the windshield before operating the wipers.

Windshield wiper rainlamp feature (if equipped with Autolamp)

When the windshield wipers are turned on during daylight, and the headlamp control is in the autolamp position, the exterior lamps will turn on after a brief delay and will remain on until the wipers are turned off.

Page 71

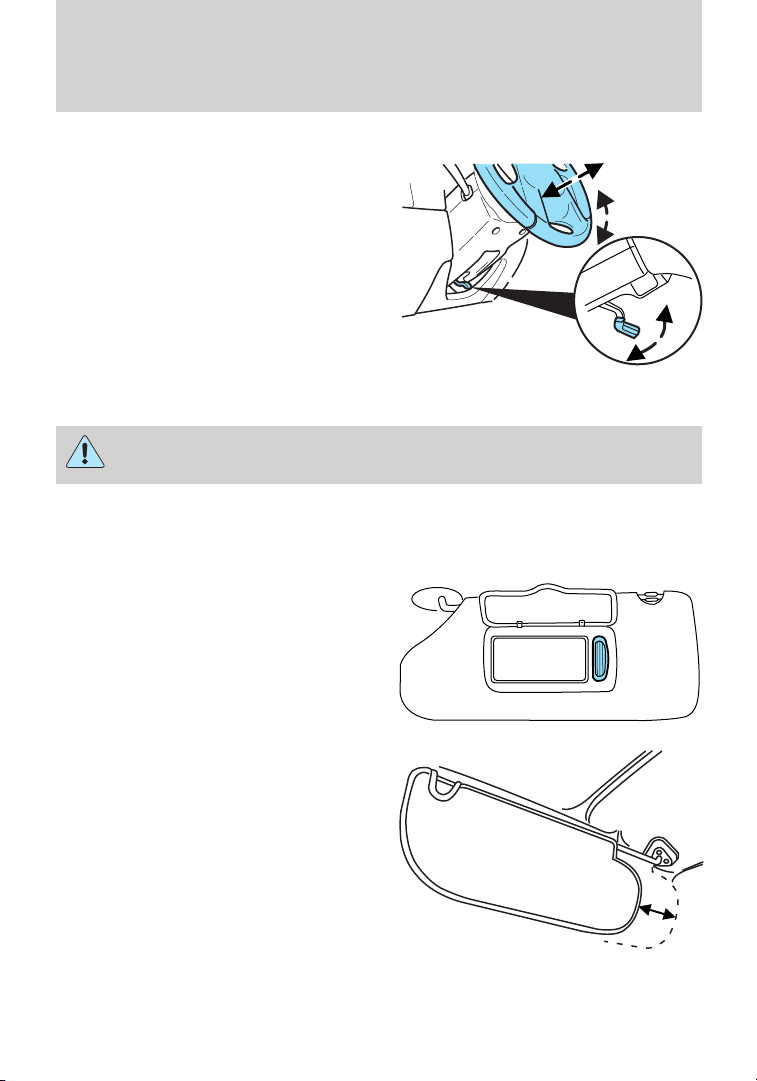

TILT/TELESCOPE STEERING WHEEL

To adjust the steering wheel:

1. Pull the lever down to unlock the

steering column.

2. While the lever is in the down

position, move the steering wheel up or down and in or out until you find the desired position.

3. While holding the steering wheel

in place, pull the lever up to its original position to lock the steering column.

WARNING: Never adjust the steering wheel when the vehicle is moving.

ILLUMINATED VISOR MIRROR

Lift the mirror cover to turn on the visor mirror lamps.

Driver Controls

Slide-on-rod feature

Rotate the visor towards the side window and extend it rearward for additional sunlight coverage.

Note: To stow the visor back into the headliner, visor must be retracted before moving it back towards the windshield.

Page 72

Driver Controls

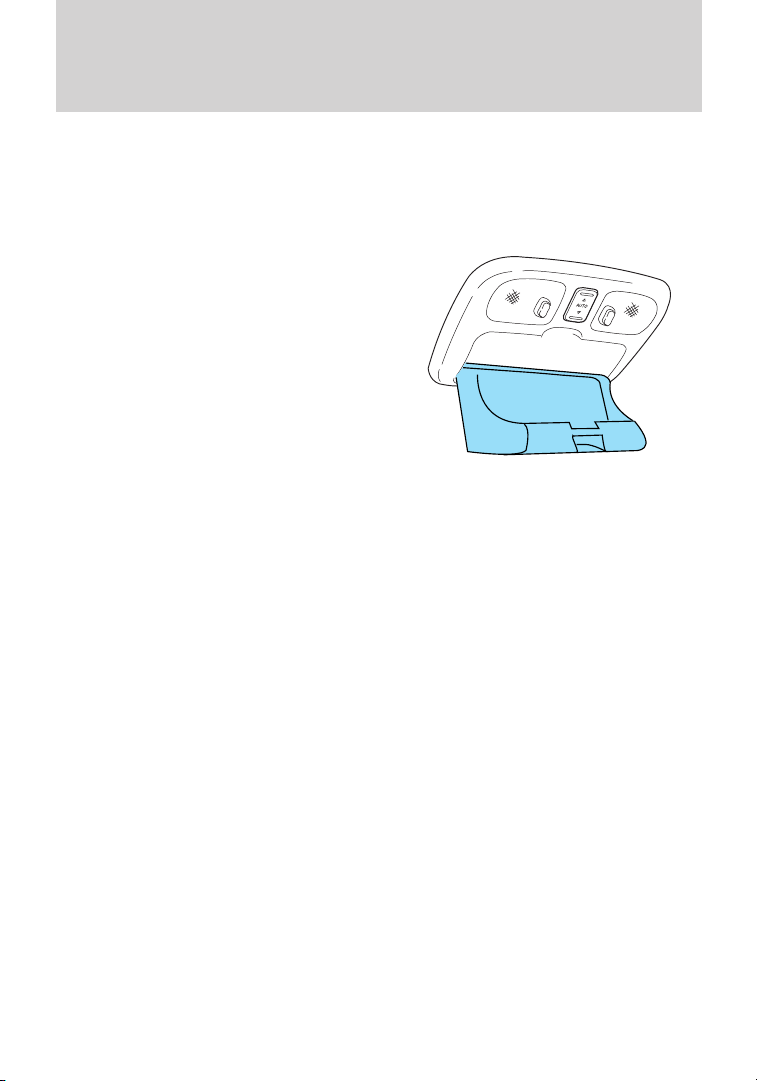

OVERHEAD CONSOLE

The appearance of your vehicle’s overhead console will vary according to your option package.

Storage compartment

Press on the rear edge of the compartment door to open.

The storage compartment may be used to secure sunglasses or a similar object.

ELECTRONIC COMPASS

The compass heading is displayed in the center integrated display (CID).

The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antenna. Magnetic or metallic objects placed in, on or near the vehicle may also affect compass accuracy.

Usually, when something affects the compass readings, the compass will correct itself after a few days of operating your vehicle in normal conditions. If the compass still appears to be inaccurate, a manual calibration may be necessary. Refer to Compass calibration

adjustment.

Most geographic areas (zones) have a magnetic north compass point that varies slightly from the northerly direction on maps. This variation is four degrees between adjacent zones and will become noticeable as the vehicle crosses multiple zones. A correct zone setting will eliminate this error. Refer to Compass zone adjustment.

Page 73

Compass zone adjustment

1. Determine which magnetic zone

you are in for your geographic location by referring to the zone map.

2. Turn ignition to the on position.

3. Press and hold the 7 and 9 radio

preset buttons together for approximately five seconds until ZONE XX appears in the CID.

4. Press and release the 7 and 9

radio preset buttons together, repeatedly until ZONE XX changes to the correct zone (1–15) in the CID.

5. The direction will display after

the buttons are released. The zone is now updated.

Driver Controls

123

6 7 8 9 1011

14 13

Compass calibration adjustment

Perform compass calibration in an open area free from steel structures and high voltage lines. For optimum calibration, turn off all electrical accessories (heater/air conditioning, wipers, etc.) and make sure all vehicle doors are shut.

1. Start the vehicle.

Page 74

Driver Controls

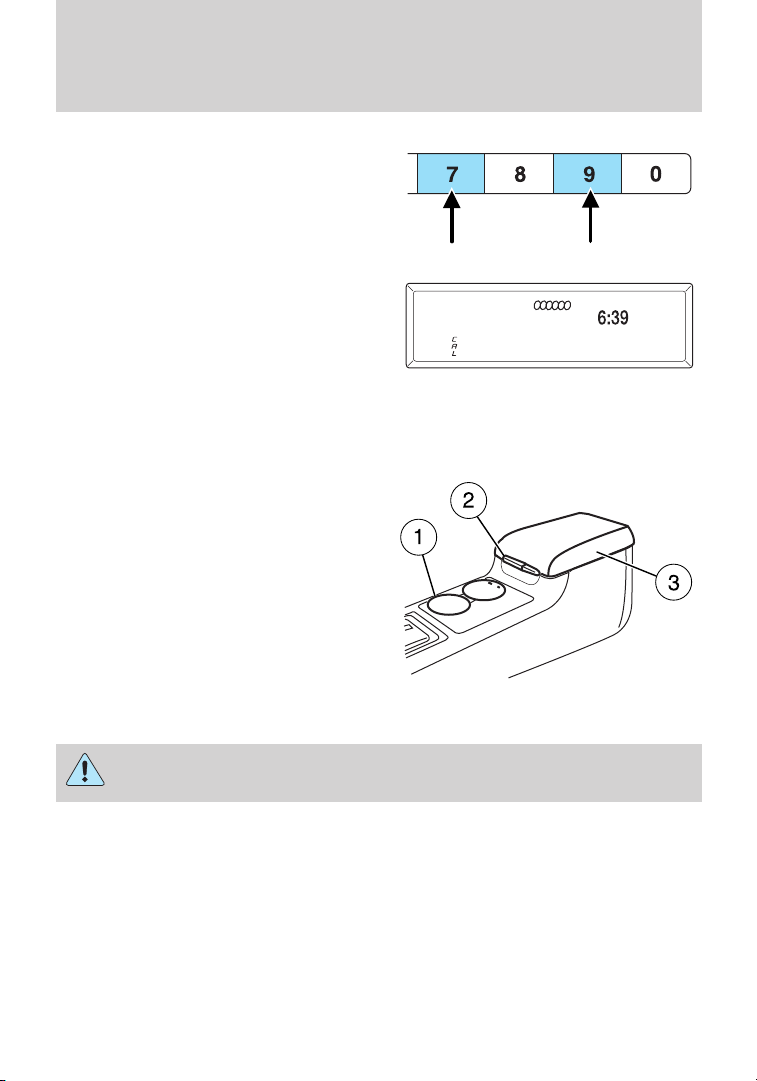

2. To calibrate, press and hold the 7

and 9 radio preset buttons together for approximately 10 seconds until CAL appears. Release the buttons.

3. Slowly drive the vehicle in a

circle (less than 3 mph [5 km/h]) until the CAL display changes to the direction value (N, S, E, W, etc.). It may take up to five circles to complete calibration.

4. The compass is now calibrated.

CENTER CONSOLE

Your vehicle may be equipped with a variety of console features. These include:

1. Cupholders (with ambient lighting

[if equipped]).

2. Secondary storage bin (on hinges

inside utility compartment).

3. Utility compartment with power

point, auxiliary input jack (AIJ), USB port (if equipped), and coin holder inside.

WARNING: Use only soft cups in the cup holder. Hard objects can injure you in a collision.

Page 75

Driver Controls

INSTRUMENT PANEL STORAGE COMPARTMENT

The storage compartment may be used to secure sunglasses or similar sized objects. Press the button to open the storage compartment.

AUXILIARY POWER POINT (12VDC)

Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet as this will damage the outlet and blow the fuse. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty.

Auxiliary power points can be found in the following locations:

• On the instrument panel

• In the center console utility compartment

Do not use the power point for operating the cigarette lighter element (if equipped).

To prevent the fuse from being blown, do not use the power point(s) over the vehicle capacity of 12 VDC/180W. If the power point is not working, a fuse may have blown. Refer to Fuses and relays in the Roadside Emergencies chapter for information on checking and replacing fuses.

To have full capacity usage of your power point, the engine is required to be running to avoid unintentional discharge of the battery. To prevent the battery from being discharged:

• do not use the power point longer than necessary when the engine is not running,

• do not leave battery chargers, video game adapters, computers and other devices plugged in overnight or when the vehicle is parked for extended periods.

Always keep the power point caps closed when not being used.

Page 76

Driver Controls

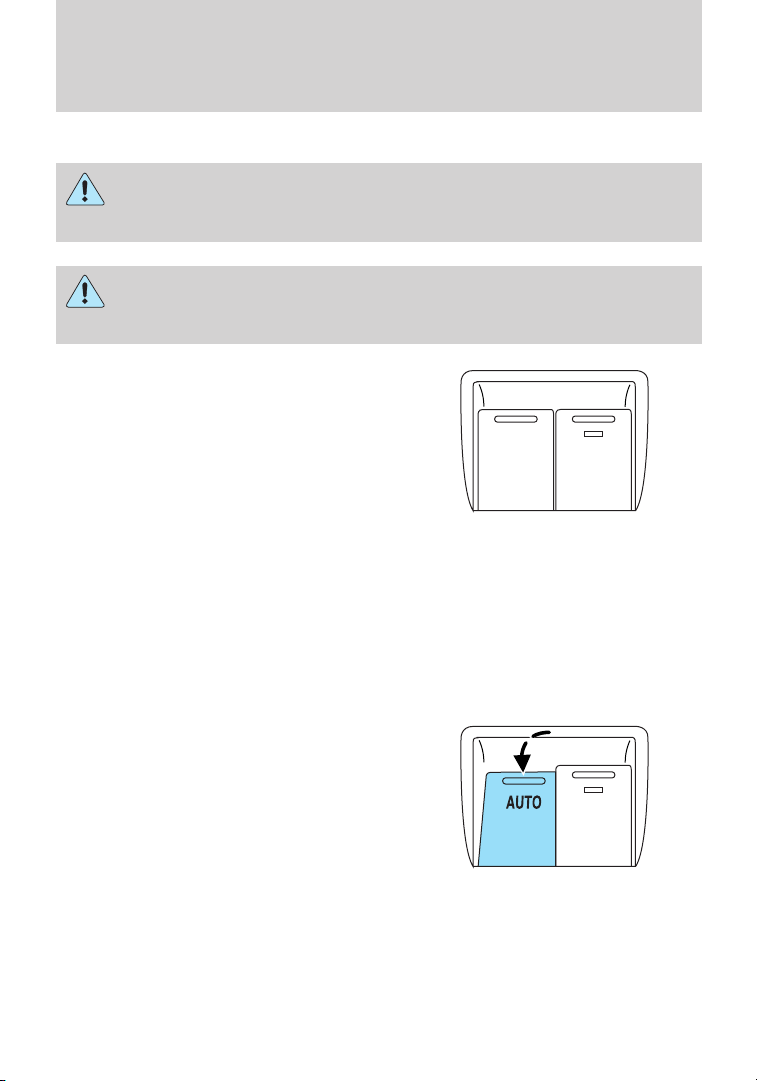

POWER WINDOWS

WARNING: Do not leave children unattended in the vehicle and do not let children play with the power windows. They may

seriously injure themselves.

WARNING: When closing the power windows, you should verify they are free of obstructions and ensure that children and/or

pets are not in the proximity of the window openings.

Press and pull the window switches to open and close windows.

• Press down (to the first detent) and hold the switch to open.

• Pull up (to the first detent) and hold the switch to close.

Rear Window Buffeting: When one or both of the rear windows are open, the vehicle may demonstrate a wind throb or buffeting noise. This noise can be alleviated by lowering a front window approximately 2–3 inches (5–8 cm).

One-touch up or down (driver’s window only)

This feature allows the driver’s window to open or close fully without holding the control down.

To operate one-touch down:

• Press the switch completely down to the second detent and release quickly. The window will open fully. Momentarily press the switch to any position to stop the window operation.

If the switch is pressed and held to the normal close or one-touch up position during a one-touch down event, the window will stop. If, after 1/2 second the switch is still held, the window will perform a normal close or one-touch up.

Page 77

Driver Controls

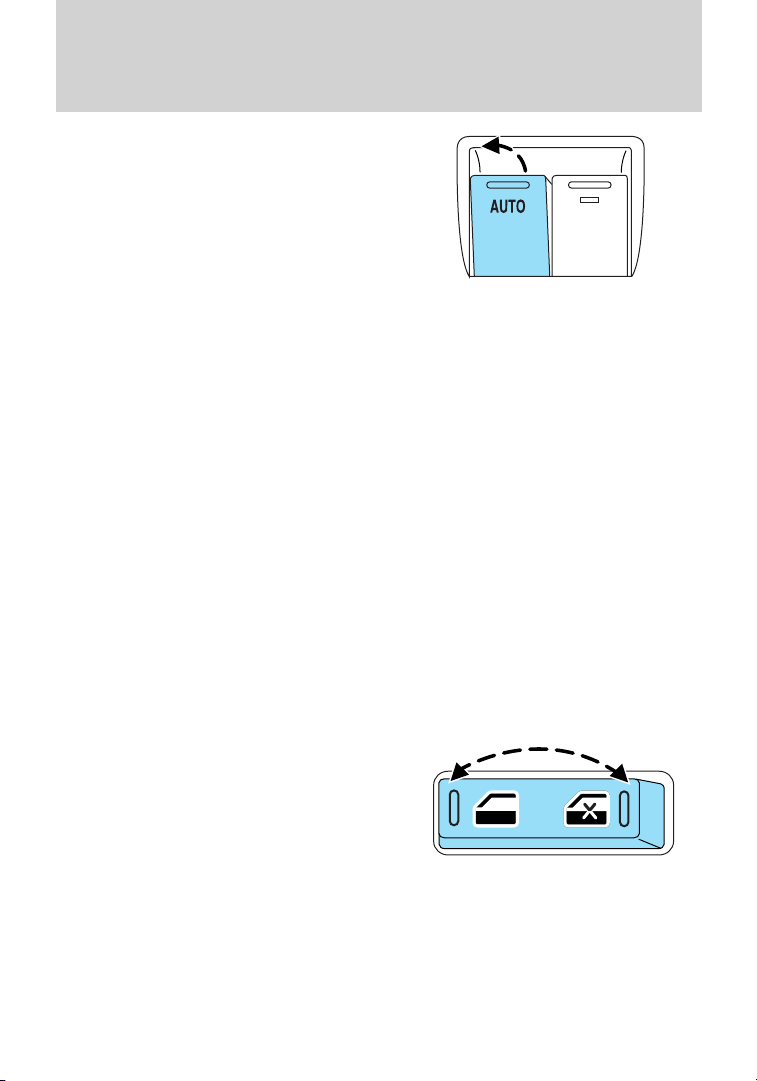

To operate one-touch up:

• Pull the switch completely up to the second detent and release quickly. The window will close fully. Momentarily press the switch to any position to stop the window operation.

If the switch is pressed and held to the normal open or one-touch down position during a one-touch up event, the window will stop. If, after 1/2 second the switch is still held, the window will perform a normal open or one-touch down.

Bounce-back

When an obstacle has been detected in the window opening as the window is moving upward, the window will automatically reverse direction and move down. This is known as “bounce-back”. If the ignition is turned off (without accessory delay being active) during bounce-back, the window will move down until the bounce-back position is reached.

Security override

To override a bounce-back condition, within two seconds after the window reaches the bounce-back position, pull and hold the switch up and the window will travel up with no bounce-back or pinch protection. If the switch is released before the window is fully closed, the window will stop. For example, this can be used to overcome the resistance of ice on the window or seals.

Window lock

The window lock feature allows only the driver and front passenger to operate the power windows.

To lock out all the window controls (except for the driver and front passenger) press the right side of the control. Press the left side to restore the window controls.

Accessory delay

With accessory delay, the window switches, audio system and moon roof (if equipped) may be used for up to 10 minutes after the ignition switch is turned off or until either front door is opened.

Page 78

Driver Controls

INTERIOR MIRROR

The interior rear view mirror has two pivot points on the support arm which lets you adjust the mirror up or down and from side to side.

WARNING: Do not adjust the mirror while the vehicle is in motion.

Automatic dimming interior rear view mirror (if equipped)

Your vehicle may be equipped with an interior rear view mirror that has an auto-dimming function. The electronic day/night mirror will change from the normal (high reflective) state to the non-glare (darkened) state when bright lights (glare) reach the mirror. When the mirror detects bright light from behind the vehicle, it will automatically adjust (darken) to minimize glare.

The mirror will automatically return to the normal state whenever the vehicle is placed in R (Reverse) to ensure a bright clear view when backing up.

Do not block the sensors on the front and back of the interior rear view mirror since this may impair proper mirror performance.

Do not clean the housing or glass of any mirror with harsh abrasives, fuel or other petroleum-based cleaning products.

Note: If equipped with a rearview camera system, a video image will be

displayed in the mirror or the navigation system display (if equipped) when the vehicle is put in (R) Reverse. Refer to Rearview camera system in the Driving chapter.

Page 79

Driver Controls

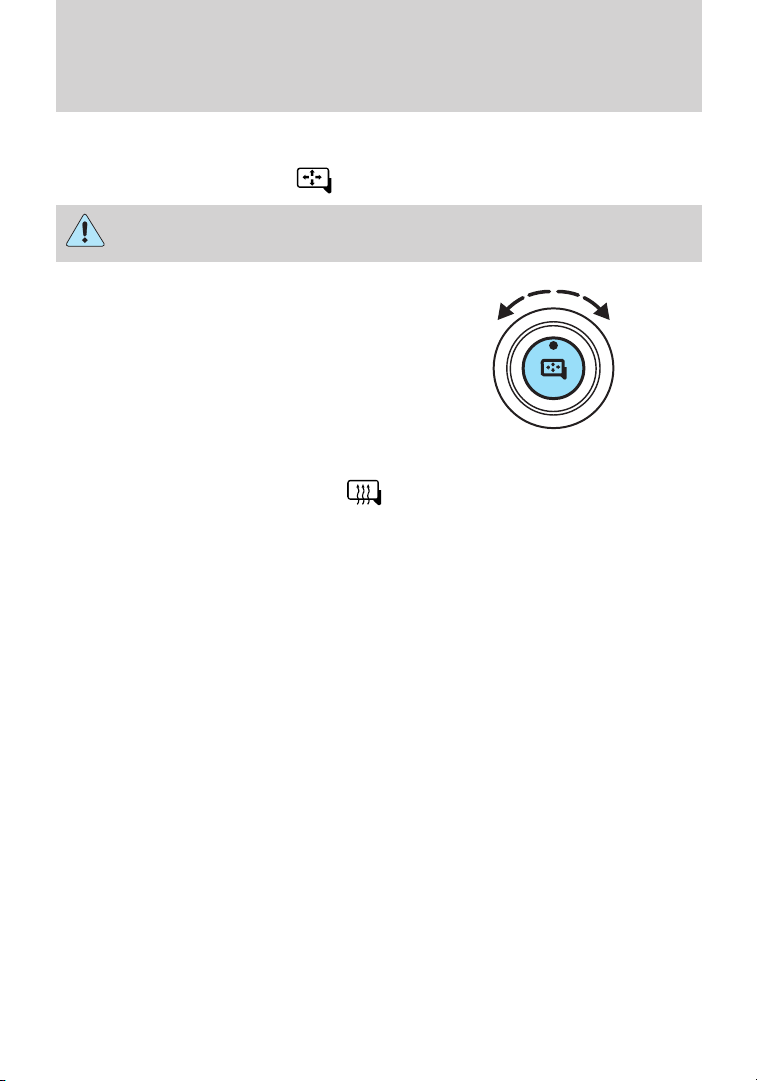

EXTERIOR MIRRORS

Power side view mirrors

WARNING: Do not adjust the mirror while the vehicle is in motion.

To adjust your mirrors:

1. Rotate the control clockwise to

adjust the right mirror and rotate the control counterclockwise to adjust the left mirror.

2. Move the control in the direction

you wish to tilt the mirror.

3. Return to the center position to lock mirrors in place.

Heated mirrors (if equipped)

Both mirrors are heated automatically to remove ice, mist and fog when the rear window defrost is activated.

Do not remove ice from the mirrors with a scraper or attempt to readjust the mirror glass if it is frozen in place. These actions could cause damage to the glass and mirrors.

Blind spot mirrors (if equipped)

Your vehicle may be equipped with blind spot information mirrors. See

Blind spot information system (BLIS威) with cross traffic alert (CTA)

in the Driving section.

Page 80

Driver Controls

SPEED CONTROL

With speed control set, you can maintain a set speed without keeping your foot on the accelerator pedal.

WARNING: Do not use the speed control in heavy traffic or on roads that are winding, slippery or unpaved.

Using speed controls

The speed controls are located on the steering wheel. The following buttons work with speed control:

– SET +: Press to set a speed or to increase or decrease the set speed.

CNCL (Cancel)/RSM (Resume):

Press to return cancel or resume a set speed.

ON/OFF: Press to turn speed controlonoroff.

The speed control system uses two instrument cluster:

• an amber indicator light which illuminates when the system is on, and

• a green indicator light which illuminates when the system is engaged.

Setting speed control

To set speed control:

4. Press and release ON.

5. Accelerate to the desired speed.

6. Press and release SET +.

7. Take your foot off the accelerator pedal.

8. The green indicator

Note:

• Vehicle speed may vary momentarily when driving up and down a steep hill.

• If the vehicle speed increases above the set speed on a downhill, you may want to apply the brakes to reduce the speed.

• If the vehicle speed decreases more than 10 mph (16 km/h) below your set speed on an uphill, your speed control will disengage.

indicator lights in the

light on the instrument cluster will turn on.

Page 81

Driver Controls

Disengaging speed control

To disengage speed control, tap the brake pedal or clutch pedal (if equipped) or press CNCL.

Disengaging the speed control will not erase the previous set speed.

Note: When you use the clutch pedal to disengage the speed control, the engine speed may briefly increase, this is normal.

Resuming a set speed

Press and release RSM. This will automatically return the vehicle to the previously set speed.

Increasing speed while using speed control

To increase the set speed:

• Press and hold SET + until you get to the desired speed, then release. You can also use SET + to operate the tap-up function. Press and release SET + to increase the vehicle set speed in 1 mph (1.6 km/h) increments.

• Use the accelerator pedal to get to the desired speed then press and release SET +.

Reducing speed while using speed control

To reduce the set speed:

• Press and hold – SET until you get to the desired speed, then release. You can also use – SET to operate the tap-down function. Press and release – SET to decrease the vehicle set speed in 1 mph (1.6 km/h) increments.

• Press the brake pedal or the clutch pedal (if equipped) until the desired vehicle speed is reached then press SET +.

Turning off speed control

To turn off the speed control, press OFF or turn off the ignition.

Note: When you turn off the speed control or the ignition, your speed control set speed memory is erased.

Page 82

Driver Controls

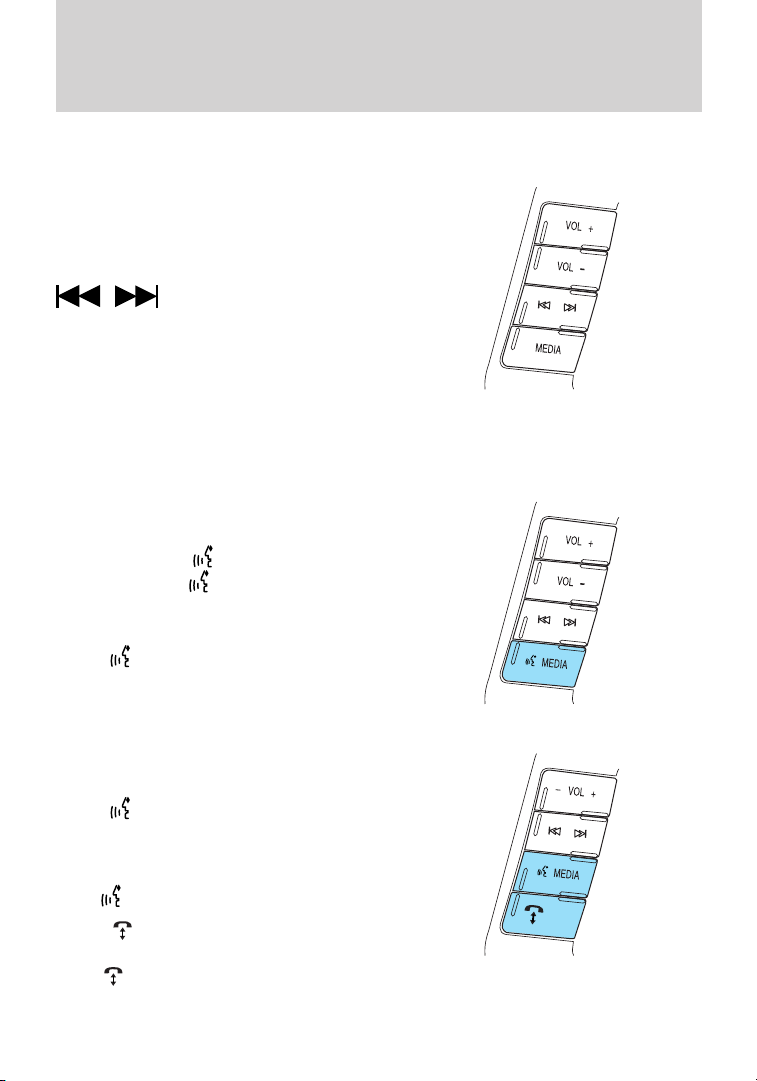

STEERING WHEEL CONTROLS (IF EQUIPPED) Radio control features

VOL + (Volume): Press to increase the volume.

VOL – (Volume): Press to decrease the volume.

(Seek): Press to select

the previous/next radio station preset, CD track or satellite radio channel (if equipped) depending on which media mode you are in.

MEDIA: Press repeatedly to select:

• AM, FM1, FM2, or CD

• SAT1, SAT2 or SAT3 (Satellite radio mode if equipped).

• LINE IN (Auxiliary input jack) (if equipped)

Navigation system hands free control features (if equipped)

Press and hold until the voice icon appears on

the navigation display to use the voice command feature.

Press command.

For further information on the navigation system, refer to the Navigation System supplement.

SYNC威 system hands free control feature (if equipped)

Press command feature. You will hear a tone and LISTENING will appear in the radio display. Press and hold

Press answer a phone call. Press and hold to end a call or exit phone mode.

to complete a voice

briefly to use the voice

to exit voice command.

to activate phone mode or

control briefly

Page 83

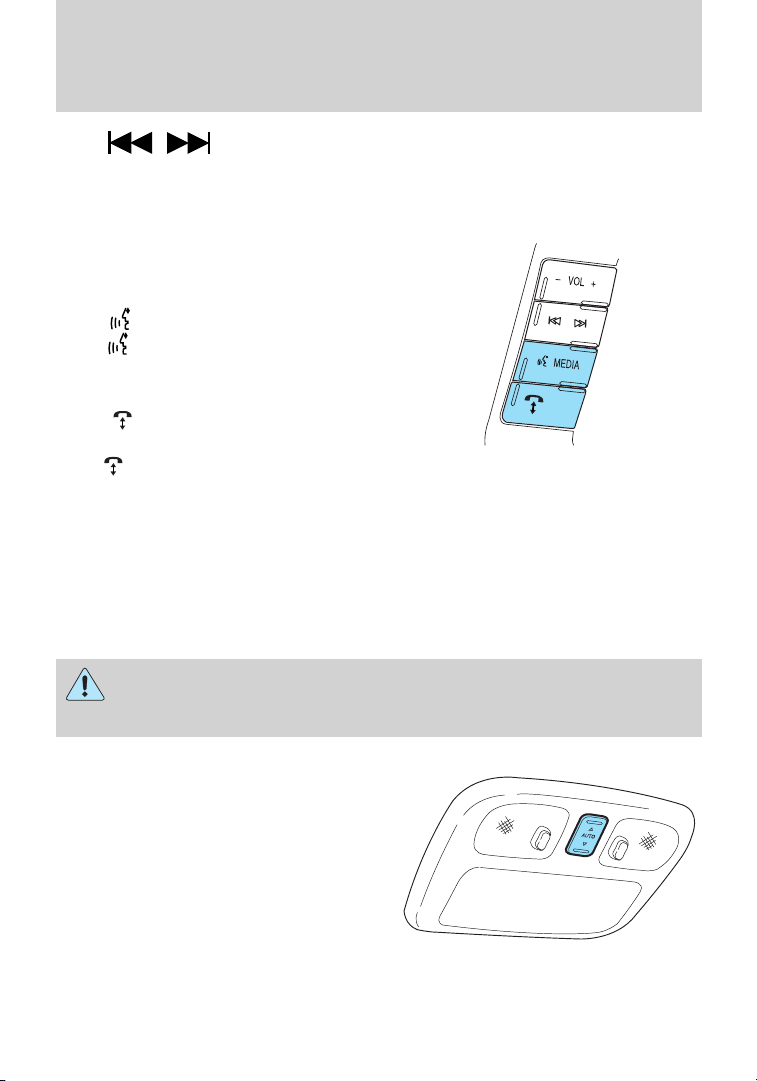

Driver Controls

Press to scroll through various menus and selections. Press OK to confirm your selection.

For further information on the SYNC威 system, refer to the SYNC威 supplement.

Navigation system/SYNC威 hands free control features (if equipped)

Press voice

Navigation display to use the voice command feature.

Press answer a phone call. Press and hold a call.

For further information on the Navigation system/SYNC威 system, refer to the Navigation System and SYNC威 supplements.

MOON ROOF (IF EQUIPPED)

You can move the glass panel of the moon roof back to open or tilt up (from the closed position) to ventilate the vehicle.

themselves.

control briefly until the

icon appears on the

to activate phone mode or

to exit phone mode or end

WARNING: Do not let children play with the moon roof or leave children unattended in the vehicle. They may seriously hurt

To open the moon roof:

The moon roof is equipped with an automatic, one-touch, express opening, closing and venting feature. Press and release the rear portion of the control. To stop motion at any time during the one-touch operation, press the control a second time.

Page 84

Driver Controls

WARNING: When closing the moon roof, you should verify that it is free of obstructions and ensure that children and/or pets are

not in the proximity of the moon roof opening.

To close the moon roof:

The moon roof is equipped with an automatic, one-touch, express closing feature. Press and release the front portion of the control. To stop motion at any time during the one-touch closing, press the control again.

Bounce-back:

When an obstacle has been detected in the moon roof opening as the moon roof is closing, the moon roof will automatically open and stop at a prescribed position. This is known as “bounce-back”. If the ignition is turned off (without accessory delay being active) during bounce-back, the moon roof will move until the bounce-back position is reached.

Bounce-back override:

To override bounce-back, press and hold the front portion of the control. For example: Bounce-back can be used to overcome the resistance of ice on the moon roof or seals. If during a bounce-back condition, the control is released to the neutral position, then held in the one-touch position within two seconds after the moon roof reaches the bounce-back position, the moon roof will travel with no bounce-back protection. If the control is released before the moon roof reaches fully closed or the ignition is turned off (without accessory delay being active), the moon roof will stop. Security override can be used if the moon roof movement is restricted in some way, for example, if there is ice on the moon roof or seals.

To vent:

• To tilt the moon roof into the vent position (when the glass panel is closed), press and release the front portion of the control.

• To close the moon roof from the vent position, press and hold the rear portion of the control until the glass panel stops moving.

The moon roof has a sliding shade that can be opened or closed when the glass panel is shut. To close the shade, pull it toward the front of the vehicle

Accessory delay:

With accessory delay, the window switches, audio system, and moon roof (if equipped) may be used for up to 10 minutes after the ignition switch is turned off or until any door is opened.

Page 85

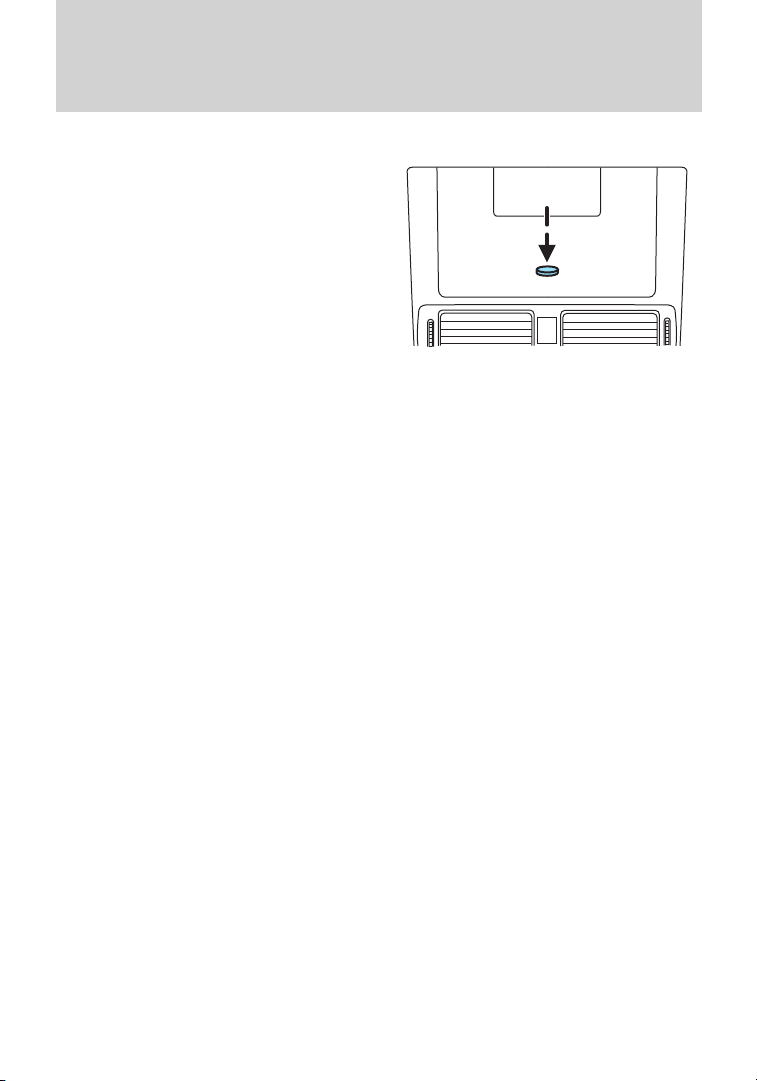

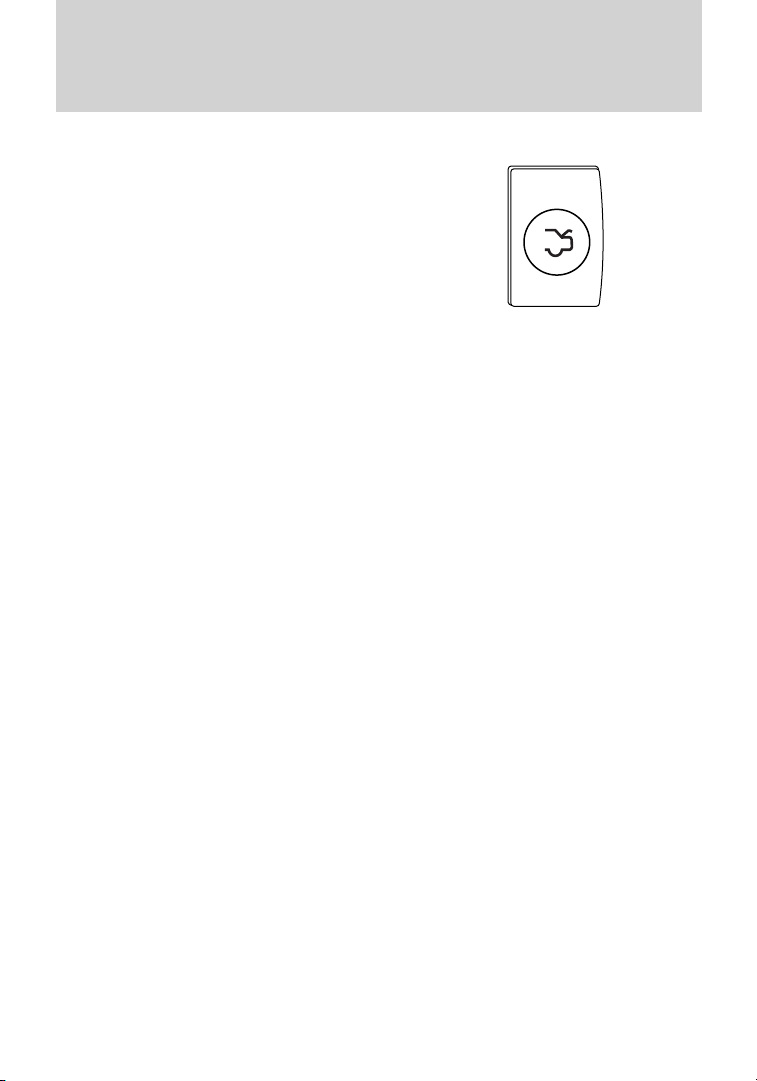

INTERIOR TRUNK CONTROL

Press the remote trunk release control on the instrument panel to the left of the steering wheel.

Driver Controls

Page 86

Locks and Security

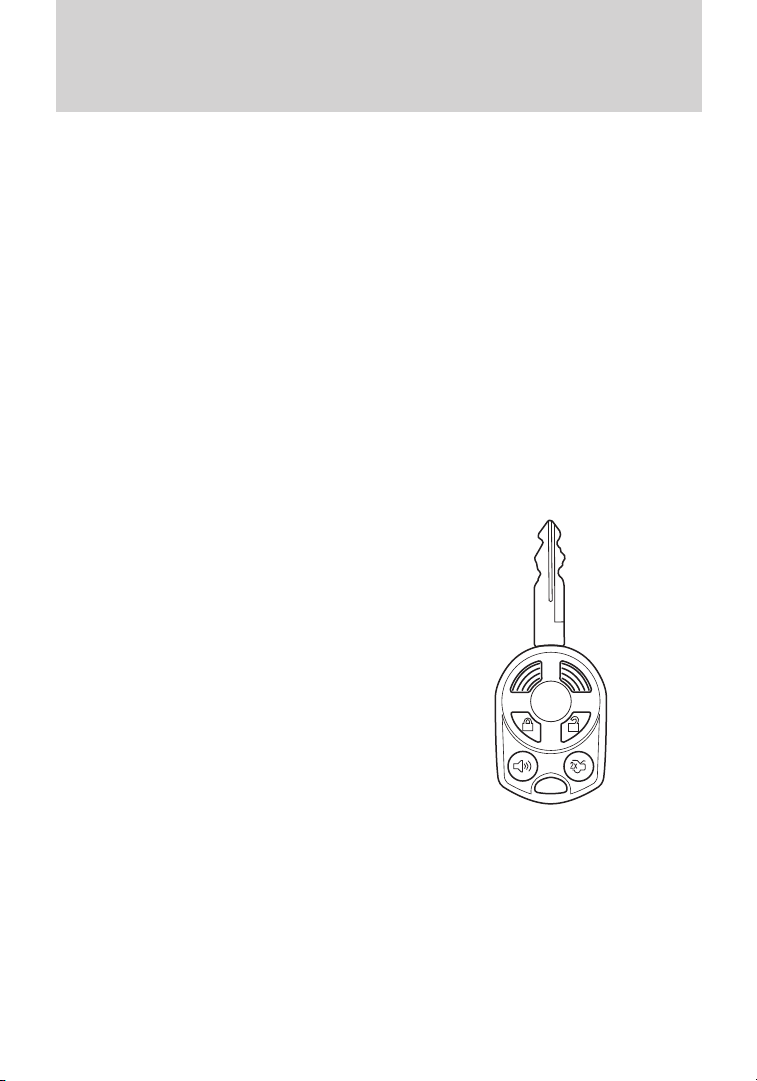

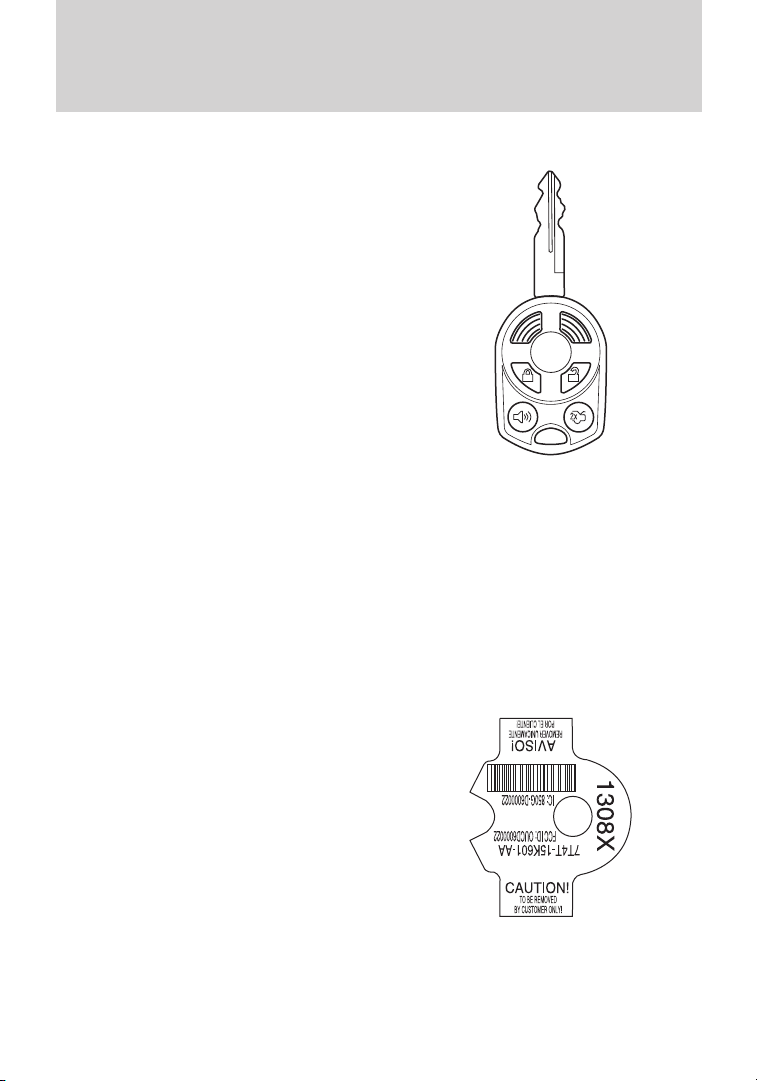

KEYS

Your vehicle is equipped with two Integrated Keyhead Transmitters (IKTs). The key blade functions as a programmed key which starts the vehicle and unlocks/locks all the doors. The transmitter portion functions as the remote entry transmitter.

Your IKTs are programmed to your vehicle; using a non-programmed key will not permit your vehicle to start. If you lose your authorized dealer supplied IKTs, replacement IKTs are available through your authorized dealer. Standard SecuriLock威 keys without remote entry transmitter functionality can also be purchased from your authorized dealer if desired.

Always carry a spare key with you in case of an emergency.

For more information regarding programming replacement IKTs, refer to the SecuriLock威 passive anti-theft system section later in this chapter.

Note: Your vehicle’s IKTs were issued with a security label that provides important vehicle key cut information. It is recommended that you keep the label in a safe place for future reference.

Page 87

Locks and Security

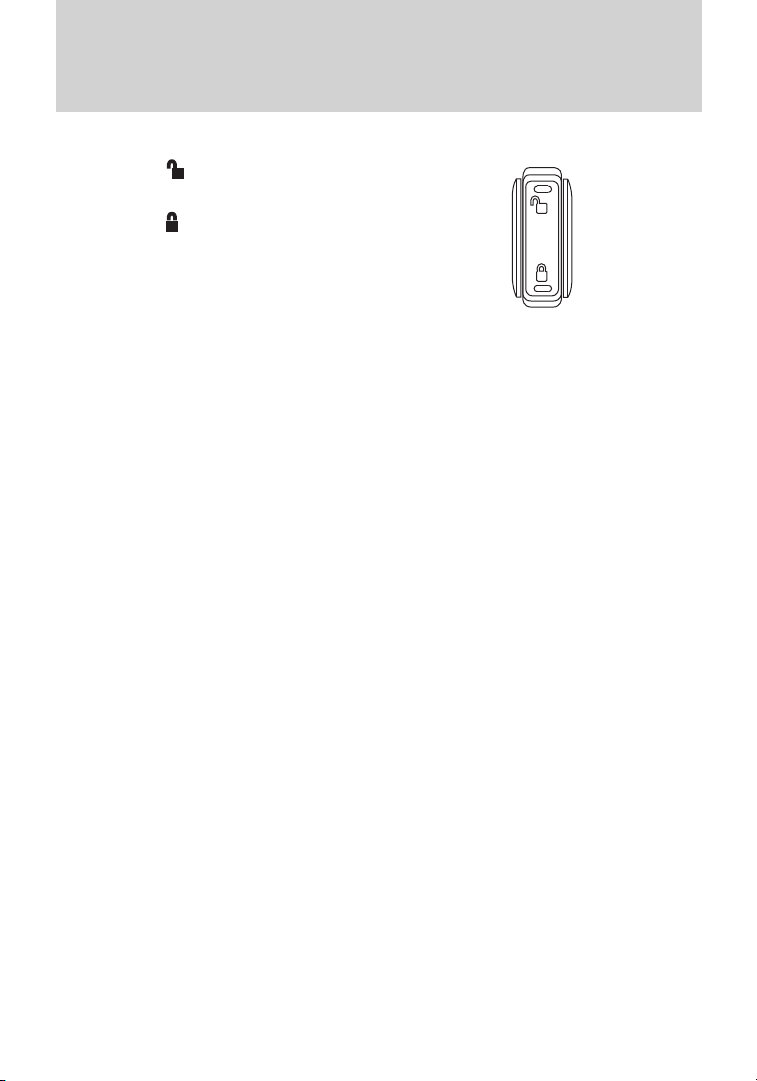

POWER DOOR LOCKS

• Press the doors.

Smart locks

This feature attempts to help prevent you from locking yourself out of the vehicle if your key is still in the ignition.

When you open one of the front doors and you lock the vehicle with the power door lock control (on the driver or passenger door trim panel), all the doors will lock, then all doors will automatically unlock reminding you that your key is still in the ignition.

The vehicle can still be locked, with the key in the ignition, using the manual lock control on the door, locking the driver’s door with a key, or using the lock control on the remote entry transmitter portion of your Integrated Keyhead Transmitter.

If both front doors are closed, the vehicle can be locked from any method, regardless of whether the key is in the ignition or not.

Autolock feature

The autolock feature will lock all the doors when:

• all the doors are closed,

• the ignition is in the on position,

• you shift into any gear putting the vehicle in motion, and

• the vehicle attains a speed greater than 12 mph (20 km/h).

The autolock feature repeats when:

• any door is opened then closed while the ignition is in the on position and the vehicle speed is 9 mph (15 km/h) or lower, and

• the vehicle then attains a speed greater than 12 mph (20 km/h).

control to unlock all

control to lock all

Page 88

Locks and Security

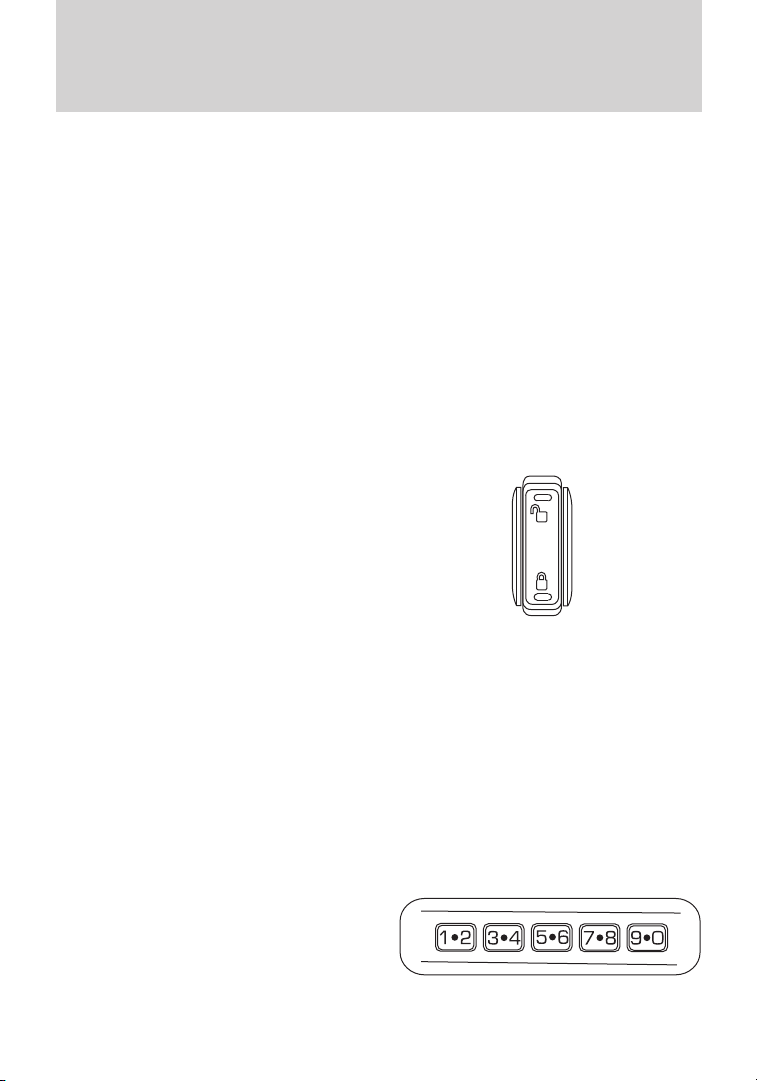

Deactivating/activating autolock feature

Your vehicle comes with the autolock features activated; there are four methods to enable/disable this feature:

• Through your authorized dealer,

• by using a power door unlock/lock sequence, or

• by using the keyless entry pad (if equipped).

• by using the instrument cluster message center. Refer to Message

center in the Instrument Cluster chapter.

Note: The autolock feature can be activated/deactivated independently of the autounlock feature.

Before starting, ensure the ignition is in the off position and all vehicle doors are closed. You must complete Steps 1–5 within 30 seconds or the procedure will have to be repeated. If the procedure needs to be repeated, wait a minimum of 30 seconds before beginning again.

1. Place the key in the ignition and

turn the ignition to the on position.

2. Press the power door unlock

control on the door panel three times.

3. Turn the ignition from the on

position to the off position.

4. Press the power door unlock control on the door panel three times.

5. Turn the ignition back to the on position. The horn will chirp one time

to confirm programming mode has been entered and is active.

6. To enable/disable the autolock feature, press the unlock control, then

press the lock control. The horn will chirp once if autolock was deactivated or twice (one short and one long chirp) if autolock was activated.

7. Turn the ignition to the off position. The horn will chirp once to

confirm the procedure is complete.

Keyless entry keypad procedure

1. Turn the ignition to the 1 off

position.

2. Close all the doors.

3. Enter factory–set 5–digit entry

code. 88

Page 89

Locks and Security

4. Press and hold the 3 • 4. While holding the 3 • 4pressthe7• 8.

5. Release the 7 • 8.

6. Release the 3 • 4.

The user should receive a horn chirp to indicate the system has been disabled or a chirp followed by a honk to indicate the system has been enabled.

Autounlock feature

The autounlock feature will unlock all the doors when:

• the ignition is in the on position, all the doors are closed, and the vehicle has been in motion at a speed greater than 12 mph (20 km/h);

• the vehicle has then come to a stop and the ignition is turned to the off or accessory position; and

• the driver door is opened within 10 minutes of the ignition being transitioned to the off or accessory position.

Note: The doors will not autounlock if the vehicle has been electronically locked before the driver door is opened.

Deactivating/activating autounlock feature

Your vehicle comes with the autounlock features activated; there are four methods to enable/disable this feature:

• Through your authorized dealer,

• by using a power door unlock/lock sequence, or

• by using the keyless entry keypad (if equipped) or

• by using the instrument cluster message center. Refer to Message

center in the Instrument Cluster chapter.

Note: The autounlock feature can be activated/deactivated independently of the autolock feature.

Page 90

Locks and Security

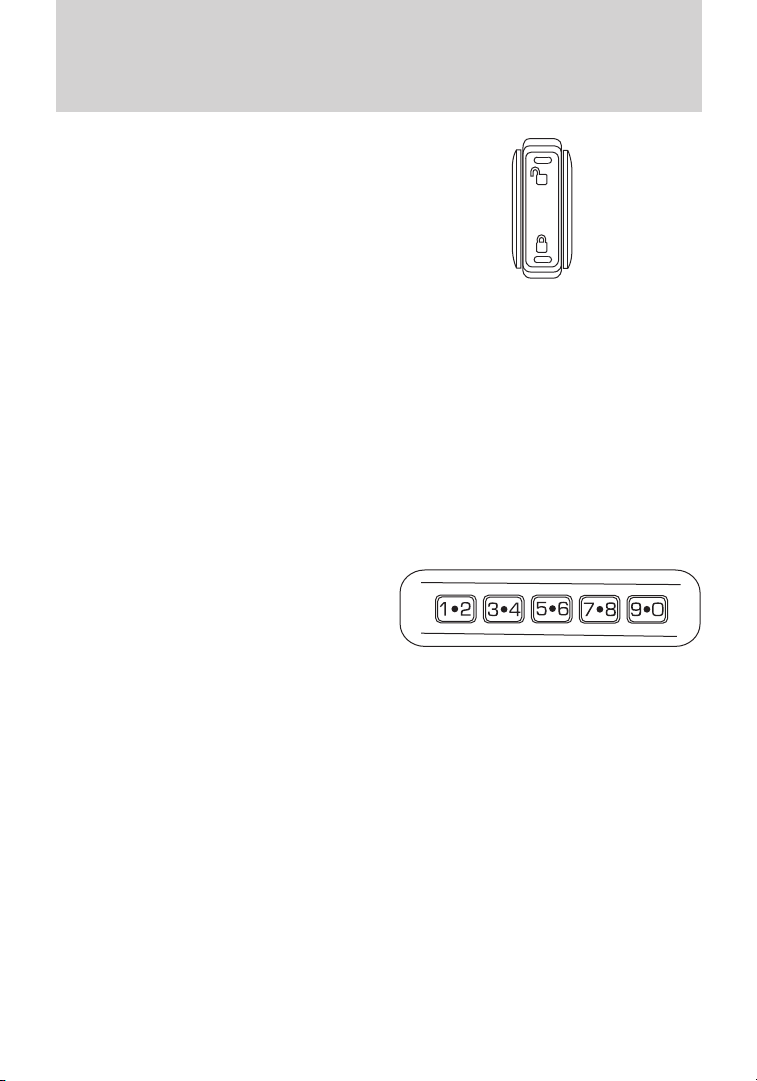

1. Place the key in the ignition and

turn the ignition to the on position.

2. Press the power door unlock

control on the door panel three times.

3. Turn the ignition from the on

position to the off position.

4. Press the power door unlock control on the door panel three times.

5. Turn the ignition back to the on position. The horn will chirp one time

to confirm programming mode has been entered and is active.

6. To enable/disable the autounlock feature, press the lock control, then

press the unlock control. The horn will chirp once if autounlock was deactivated or twice (one short and one long chirp) if autounlock was activated.

7. Turn the ignition to the off position. The horn will chirp once to

confirm the procedure is complete.

Keyless entry keypad procedure

1. Turn the ignition to the 1 off

position.

2. Close all the doors.

3. Enter factory–set 5–digit entry

code.

4. Press and hold the 3 • 4. While holding the 3 • 4, press and release

the 7 • 8. While still holding the 3 • 4, press and release the 7 • 8a second time.

5. Release the 3 • 4.

The user should receive a horn chirp to indicate the system has been disabled or a chirp followed by a honk to indicate the system has been enabled.

Page 91

Locks and Security

CHILDPROOF DOOR LOCKS

• When these locks are set, the rear doors cannot be opened from the inside.

• The rear doors can be opened from the outside when the doors are unlocked.

The childproof locks are located on rear edge of each rear door and must be set separately for each door. Setting the lock for one door will not automatically set the lock for both doors.

• Insert the key and turn to the lock position (key at an angle) to engage the childproof lock.

• Insert the key and turn to the unlock position (key horizontal) to disengage the childproof lock.

INTERIOR LUGGAGE COMPARTMENT RELEASE

Your vehicle is equipped with a mechanical interior luggage compartment release handle that provides a means of escape for children and adults in the event they become locked inside the luggage compartment.

Adults are advised to familiarize themselves with the operation and location of the release handle.

Page 92

Locks and Security

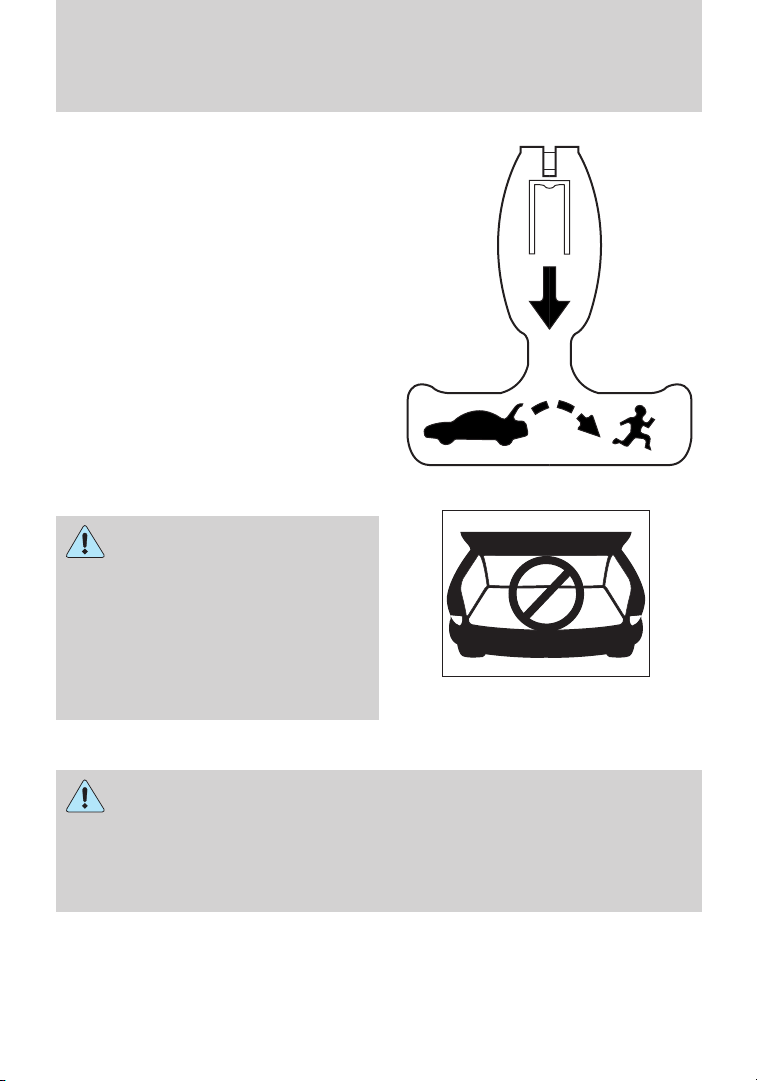

To open the luggage compartment door (lid) from within the luggage compartment, pull the illuminated “T” shaped handle and push up on the trunk lid. The handle is composed of a material that will glow for hours in darkness following brief exposure to ambient light.

The “T” shaped handle will be located either on the luggage compartment door (lid) or inside the luggage compartment near the tail lamps.

WARNING: Keep vehicle

doors and luggage compartment locked and keep keys and remote transmitters out of a child’s reach. Unsupervised children could lock themselves in the trunk and risk injury. Children should be taught not to play in vehicles.

WARNING: Do not leave children, unreliable adults, or animals

unattended in the vehicle. On hot days, the temperature in the trunk or vehicle interior can rise very quickly. Exposure of people or animals to these high temperatures for even a short time can cause death or serious heat-related injuries, including brain damage. Small children are particularly at risk.

Page 93

Locks and Security

REMOTE ENTRY SYSTEM

The Integrated Keyhead Transmitter (IKT) complies with part 15 of the FCC rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

The typical operating range for your IKT is approximately 33 feet (10 meters). A decrease in operating range could be caused by:

• weather conditions,

• nearby radio towers,

• structures around the vehicle, or

• other vehicles parked next to your vehicle.

The IKT allows you to:

• remotely unlock the vehicle doors.

• remotely lock all the vehicle doors.

• remotely open the trunk.

• activate the personal alarm.

• arm and disarm the perimeter

anti-theft system.

• operate the illuminated entry feature.

The remote entry lock/unlock feature operates in any ignition position except while the key is held in the start position. The panic feature operates with the key in the off position.

If there are problems with the remote entry system, make sure to take ALL Integrated Keyhead Transmitters with you to the authorized dealer in order to aid in troubleshooting the problem.

Page 94

Locks and Security

Unlocking the doors/two-stage unlock

1. Press and release to unlock the driver’s door. Note: The interior

lamps will illuminate.

2. Press

The remote entry system activates the illuminated entry feature; this feature turns on the lamps for 25 seconds or until the ignition is turned to the on position.

The battery saver feature will turn off the lamps 30 minutes after the ignition is turned to the off position.

Two-stage unlocking may be disabled or re-enabled by simultaneously pressing the two-stage unlock allows all vehicle doors to unlock simultaneously). The

turn lamps will illuminate twice to indicate that two-stage unlock was enabled or disabled.

Locking the doors

1. Press and release to lock all the doors. The turn lamps will flash.

2. Press

the doors are closed. Note: The doors will lock again, the horn will chirp and the turn lamps will illuminate once if all the doors and trunk are closed.

Note: If any door or the trunk is not closed, or if the hood is not closed in vehicles equipped with the perimeter alarm feature, the horn will chirp twice and the lamps will not illuminate.

and release again within five seconds to unlock all the doors.

and controls on the IKT for four seconds (disabling

and release again within three seconds to confirm that all

Car finder

Press lamps will flash. It is recommended that this method be used to locate your vehicle, rather than using the panic alarm.

Sounding a panic alarm

Press will flash for a maximum of three minutes. Press again or turn the ignition to the on position to deactivate, or wait for the alarm to time out in three minutes.

Note: The panic alarm will only operate when the ignition is in the off position.

twice within three seconds. The horn will chirp and the turn

to activate the alarm. The horn will sound and the turn lamps

Page 95

Locks and Security

Opening the trunk

Press twice within three seconds to open the trunk.

• Ensure that the trunk is closed and latched before driving your vehicle. Failure to properly latch the trunk may cause objects to fall out or block the driver’s rear view.

Replacing the battery

The integrated keyhead transmitter uses one coin type three-volt lithium battery CR2032 or equivalent.

To replace the battery:

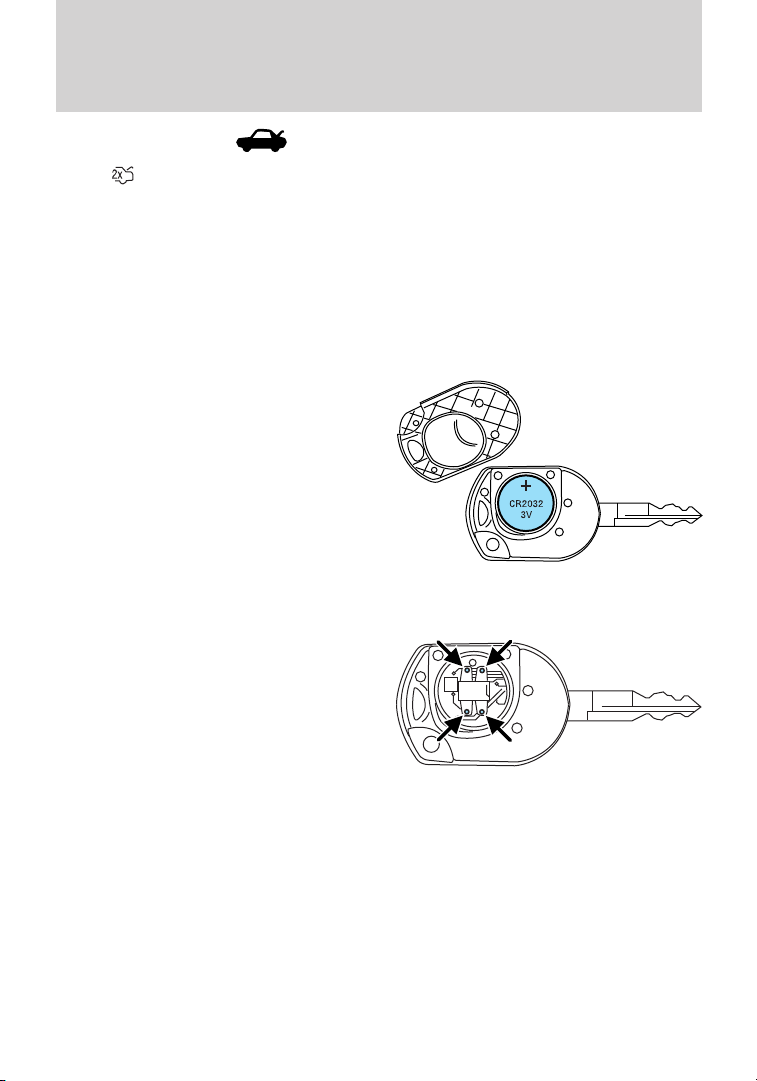

1. Twist a thin coin in the slot of the

IKT near the key ring in order to remove the battery cover. Note: Do not wipe off any grease on the battery terminals on the back surface of the circuit board.

2. Remove the old battery.

Note: Please refer to local regulations when disposing of transmitter batteries.

3. Insert the new battery. Refer to

the instructions inside the IKT for the correct orientation of the battery. Press the battery down to ensure that the battery is fully seated in the battery housing cavity.

4. Snap the battery cover back onto

the key.

Note: Replacement of the battery will not cause the IKT to become deprogrammed from your vehicle. The IKT should operate normally after battery replacement.

Replacing lost integrated keyhead transmitters (IKTs)

If you would like to have your integrated keyhead transmitters reprogrammed because you lost one, or would like to buy additional IKTs, you can either reprogram them yourself, or take all IKTs to your authorized dealer for reprogramming.

Page 96

Locks and Security

How to reprogram your integrated keyhead transmitters (IKTs)

To program a new integrated keyhead transmitter yourself, refer to Programming spare keys in the SecuriLock威 passive anti-theft system section of this chapter. Note: At least two IKTs are required to perform this procedure yourself.

Illuminated entry

The interior lamps and puddle lamps (if equipped) illuminate when the Integrated Keyhead Transmitter is used to unlock the door(s).

The illuminated entry system will turn off the lights if:

• the ignition is turned to the on position,

• the Integrated Keyhead Transmitter lock control is pressed,

• The vehicle is locked using the keyless entry keypad (if equipped), or

• after 25 seconds of illumination.

The lights will not turn off if:

• they have been turned on with the dimmer control, or

• any door is open.

Perimeter lamps illuminated entry

With the Integrated Keyhead Transmitter system, the following items will illuminate when the

• Parking lamps

• Tail lamps

• Headlamps

The lamps will automatically turn off:

• if the ignition switch is turned to the 3 (on) position,

• The vehicle is locked using the keyless entry keypad (if equipped), or

• after 25 seconds of illumination.

Note: On some vehicles, the perimeter lamps illuminated entry feature will not activate in daylight conditions.

Deactivating/activating perimeter lamps illuminated entry

You may enable/disable this feature by having your vehicle serviced by your authorized dealer.

You may also perform the following power door lock sequence to enable/disable the perimeter lamps feature. Note: Before starting, ensure the ignition is in the 1 (off) position and all vehicle doors are closed. You

control on the transmitter is pressed:

Page 97

Locks and Security

must complete Steps 1–5 within 30 seconds or the procedure will have to be repeated. If the procedure needs to be repeated, wait a minimum of 30 seconds before beginning again.

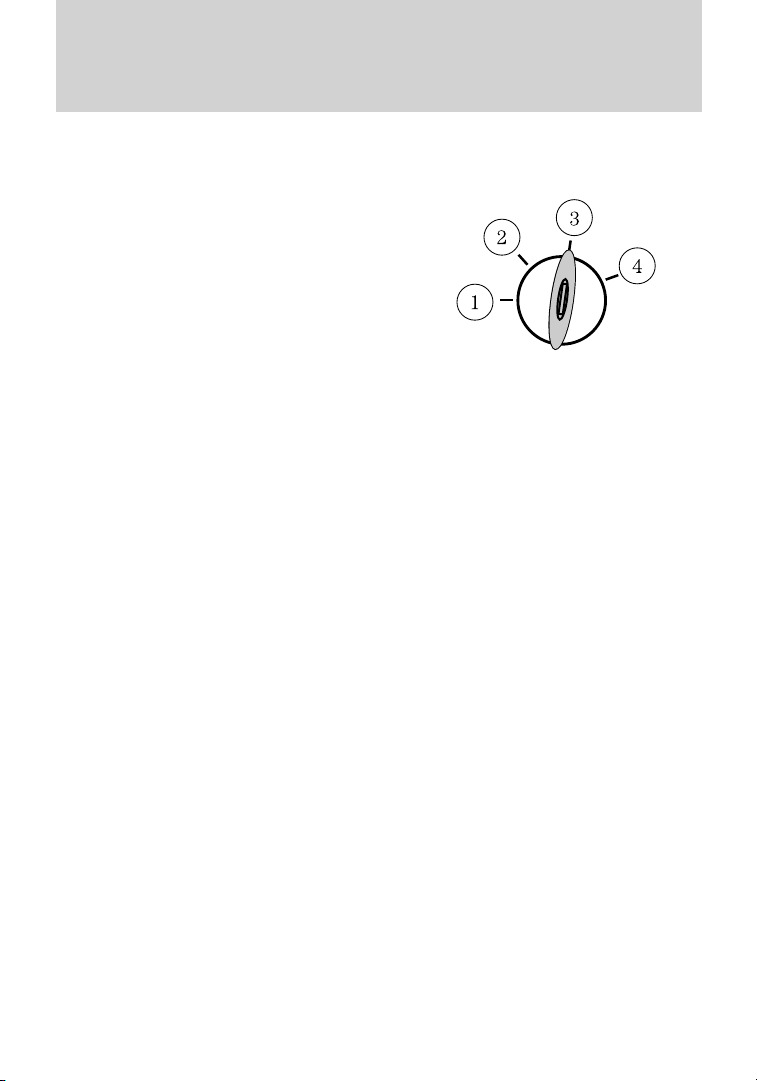

1. Place the key in the ignition and

turn the ignition to the 3 (on) position.

2. Press the power door unlock

control on the door panel three times.

3. Turn the ignition from the 3 (on)

position to the 1 (off) position.

4. Press the power door unlock control on the door panel three times.

5. Turn the ignition back to the 3 (on) position. The horn will chirp one

time to confirm programming mode has been entered and is active.

6. Press the power door unlock control twice within five seconds.

Note: The horn will chirp once to indicate the perimeter lighting feature has been deactivated. The horn will chirp once and honk once (one short and one long) to indicate the perimeter lighting feature has been activated.

7. Turn the ignition to the 1 (off) position to exit the procedure.

Note: The horn will chirp once to confirm the procedure is complete.

Illuminated exit

• When all vehicle doors are closed and the key is removed from the ignition, the interior lamps and the puddle lamps (if equipped) will illuminate.

The lamps will turn off if all the doors remain closed and

• 25 seconds elapse, or

• the key is inserted in the ignition.

Battery saver

The battery saver will shut off the lamps 30 minutes after the ignition has been turned to the 1 (off) position.

• If the dome lamps were turned on using the panel dimmer control, the battery saver will shut them off 30 minutes after the ignition has been turned to the off position.

• If the courtesy lamps were turned on because one of the vehicle doors or the trunk was opened, the battery saver will shut off them off 10 minutes after the ignition has been turned to the off position.

• The battery saver will shut off the headlamps 10 minutes after the ignition has been turned to the off position.

Page 98

Locks and Security

SECURICODE™ KEYLESS ENTRY SYSTEM

You can use the keyless entry keypad to:

• lock or unlock the doors without using a key.

• open the trunk.

The keypad can be operated with the factory set 5–digit entry code; this code is located on the owner’s wallet card in the glove box and is available from your authorized dealer. You can also create up to three of your own 5–digit personal entry codes.

When pressing the controls on the keypad, press the middle of the controls to ensure a good activation.

Programming a personal entry code

To create your own personal entry code:

1. Enter the factory set code.

2. Within five seconds press the 1 • 2 on the keypad.

3. Enter your personal 5-digit code. Each number must be entered

within five seconds of each other.

4. The doors will lock then unlock to confirm that your personal keycode

has been programmed to the module.

Tips:

• Do not set a code that uses five of the same number.

• Do not use five numbers in sequential order.

• The factory set code will work even if you have set your own personal

code.

Erasing personal code

1. Enter the factory set 5–digit code.

2. Within five seconds, press the 1 • 2 on the keypad and release.

3. Press and hold the 1 • 2 for two seconds. This must be done within

five seconds of completing Step 2. All personal codes are now erased and only the factory set 5–digit code

will work.

Anti-scan feature

If the wrong code has been entered seven times (35 consecutive button presses), the keypad will go into an anti-scan mode. This mode disables the keypad for one minute and the keypad lamp will flash.

Page 99

Locks and Security

The anti-scan feature will turn off after:

• one minute of keypad inactivity.

• pressing the

your Integrated Keyhead Transmitter.

• the ignition is turned on.

Unlocking and locking the doors using keyless entry

To unlock the driver’s door, enter the factory set 5-digit code or your personal code. Each number must be pressed within five seconds of each other. The interior lamps will illuminate. Note: If the two-stage unlocking feature is disabled, all doors will unlock; for more information regarding two-stage unlocking, refer to the Unlocking the doors/Two stage unlock section earlier in this chapter.

To unlock all doors, enter the factory set code or your personal code, then press the 3 • 4 control within five seconds.

To open the trunk, enter the factory set code or your personal code, then press the 5 • 6 control within five seconds.

To lock all doors, press and hold the 7 • 8 and the 9 • 0 at the same time (with the driver’s door closed). You do not need to enter the keypad code first.

SECURILOCK姞 PASSIVE ANTI-THEFT SYSTEM

SecuriLock威 passive anti-theft system is an engine immobilization system. This system is designed to help prevent the engine from being started unless a coded integrated keyhead transmitter (IKT) programmed to your vehicle is used. The use of the wrong type of coded key may lead to a “no-start” condition.

Your vehicle comes with two coded integrated keyhead transmitters; additional coded IKTs may be purchased from your authorized dealer. Standard SecuriLock威 keys without remote entry transmitter functionality can also be purchased from your authorized dealer if desired. The authorized dealer can program your spare IKTs to your vehicle or you can program the IKTs yourself. Refer to Programming spare keys for instructions on how to program the coded key.

Note: The SecuriLock威 passive anti-theft system is not compatible with non-Ford aftermarket remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection.

control on the remote entry transmitter portion of

Page 100

Locks and Security

Note: Large metallic objects, electronic devices that are used to purchase gasoline or similar items, or a second coded key on the same key chain may cause vehicle starting issues. You need to prevent these objects from touching the coded IKT while starting the engine. These objects will not cause damage to the coded IKT, but may cause a momentary issue if they are too close to the IKT when starting the engine. If a problem occurs, turn the ignition off, remove all objects on the key chain away from the coded IKT and restart the engine.

Note: Do not leave a duplicate coded key in the vehicle. Always take your keys and lock all doors when leaving the vehicle.

Anti-theft indicator

The anti-theft indicator is located in the instrument panel cluster.

• When the ignition is in the off position, the indicator will flash once every two seconds to indicate the SecuriLock威 system is functioning as a theft deterrent.

• When the ignition is in the on position, the indicator will glow for three seconds to indicate normal system functionality.

If a problem occurs with the SecuriLock威 system, the indicator will flash rapidly or glow steadily when the ignition is in the on position. If this occurs, turn the ignition off then back to on to make sure there was no electronic interference with the programmed key. If the vehicle doesn’t start, try to start it with the 2nd programmed key and if successful contact your authorized dealership for key replacement. If the indicator still flashes rapidly or glows steadily, the vehicle will not start, contact your authorized dealer as soon as possible for service.

Automatic arming

The vehicle is armed immediately after switching the ignition to the off position.

The theft indicator will flash every two seconds to act as a theft deterrent when the vehicle is armed.

100

Ford Milan 2010 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Introduction

CONGRATULATIONS

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

Warning symbols on your vehicle

Protecting the environment

PERCHLORATE MATERIAL

BREAKING-IN YOUR VEHICLE

SPECIAL NOTICES

New Vehicle Limited Warranty

Special instructions

DATA RECORDING

Service Data Recording

Event Data Recording

CELL PHONE USE

EXPORT UNIQUE (NON–UNITED STATES/CANADA) VEHICLE SPECIFIC INFORMATION

Instrument Cluster

WARNING LIGHTS AND CHIMES

GAUGES

MESSAGE CENTER

Selectable features

Reset

Info menu

Odometer/Trip odometer

Distance to empty (DTE)

Average fuel economy (AFE)

Instantaneous fuel economy (IFE)

Trip elapsed drive time

Setup menu

System check

Oil Life XXX%

Units (English/Metric)

Autolamp delay (if equipped)

Autolock

Autounlock

Blind spot system (if equipped)

Cross traffic alert system (if equipped)

Park aid (Reverse sensing system) (if equipped)

Language

System warnings

Entertainment Systems

AUDIO SYSTEMS

AM/FM/single CD or in-dash CD6/MP3 satellite compatible sound system

Setting the clock

AM/FM Radio

RDS (Radio Data System) Radio

CD/MP3 Player

Satellite Radio (if equipped)

Sound Adjustments

Extra Features

Auxiliary input jack (Line in)

USB port (if equipped)

GENERAL AUDIO INFORMATION

Satellite radio information (if equipped)

NAVIGATION SYSTEM (IF EQUIPPED)

Climate Controls

MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED)

Operating tips

DUAL AUTOMATIC TEMPERATURE CONTROL (IF EQUIPPED)

DUAL ZONE AUTOMATIC TEMPERATURE CONTROL (NAVIGATION BASED – IF EQUIPPED)

TOUCHSCREEN FUNCTIONS

VOICE COMMANDS IN CLIMATE MODE

Operating tips

REAR WINDOW DEFROSTER

Lights

HEADLAMP CONTROL

Autolamp control (if equipped)

Autolamps - Programmable exit delay

Fog lamp control (if equipped)

Daytime running lamps (DRL) (if equipped)

High beams

Flash-to-pass

PANEL DIMMER CONTROL

AIMING THE HEADLAMPS

Vertical aim adjustment
