DASHBOARD (LEFT-HAND DRIVE)
The presence and position of the controls, the instruments and the indicators may vary according to the versions.
1. Side vent – 2. Left stalk: external lights control – 3. Instrument panel and warning lights – 4. Right stalk: controls wiper, washer,
trip computer – 5. Central air vents – 6. Oddment/Car radio compartment – 7. Passenger side airbag – 8. Oddment compartment/
hidden document tray – 9. Heating/ventilation/climate control – 10. Power windows control – 11 Oddment compartment –
12. Gear lever – 13. Driver side airbag.
QUICK START
1
31 2 4 17
13
12
10
11
10
9 8
CD
ON/OFF
MENU
1
2
3
FM
AM
4
5
6
MUTE
V+
V-
AUD
AS
6 55
KA00001m
604.39.301 PP KA GB 18-07-2008 11:40 Pagina 1
Page 3
2
QUICK START
DASHBOARD (RIGHT-HAND DRIVE)
The presence and position of the controls, the instruments and the indicators may vary according to the versions.
1. Side air vent – 2. Passenger side air bag l – 3. Central air vents– 4. Oddment/radio compartment – 5. Left stalk:external lights
control – 6. Instrument panel and warning lights – 7. Right stalk: controls windscreen wiper, rear wiper trip computer –
8. Driver’s Air bag – 9. Control panel – 10. Power window control – 11. Gear lever – 12. Heating/ ventilation/climate control
controls – 13. Oddment compartment.
CD
ON/OFF
MENU
1
2
3
FM
AM
4
5
6
MUTE
V+
V-
AUD
AS
6
1
7
5
1
2
8
9
10
11
10
1213
43
3
KA00112m
604.39.301 PP KA GB 18-07-2008 11:40 Pagina 2
Page 4
QUICK START
3

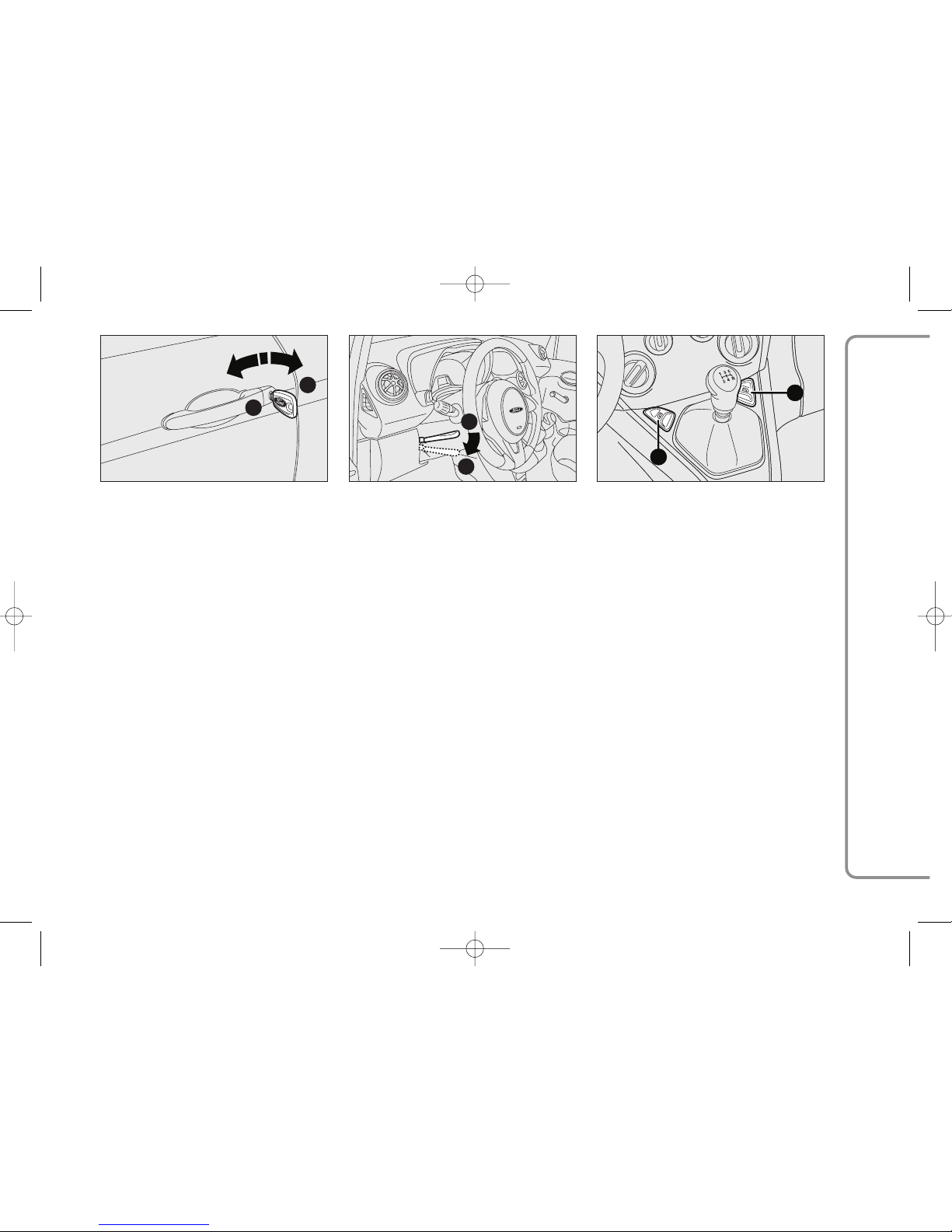

DOORS
LOCK/RELEASE FROM OUTSIDE
To open
Rotate the key to 1 and pull the handle
upward.
With remote control (where provided),
press the button
Ë
to open the doors.
To lock
Rotate the key to 2 with fully closed
door.
With remote control (where provided),
press the button
Á
to close the doors.
1
2
KA00033m
STEERING WHEEL
It can be adjusted vertically
(where provided).
For adjustment. bring the lever
downward to position 2 then position
the wheel and lock it bringing lever to
position 1.
1
2
KA00113m
FRONT WINDOW
WINDERS
(where provided)
The two buttons are located besides
the gear lever (one for each side):
A to open/close the left front window;
B to open/close the right front
window;
BAB
A
KA00035m
604.39.301 PP KA GB 18-07-2008 11:40 Pagina 3
Page 5
4
QUICK START
EXTERNAL LIGHTS
The left-hand stalk operates most of the
external lights. The external lights can
only be switched on when the ignition
key is on MAR. The instrument panel
and the various controls on the
dashboard will come on when the
external lights are switched on.
LIGHTS OFF
Knurled ring turned to symbol O.
SIDE LIGHTS
Turn the knurled ring to position
6
.
DIPPED BEAMS
Turn the knurled ring to position
2
.
MAIN BEAMS
With knurled ring in position
2
, push
the stalk forward toward the dashboard
(steady position).
KA00109m

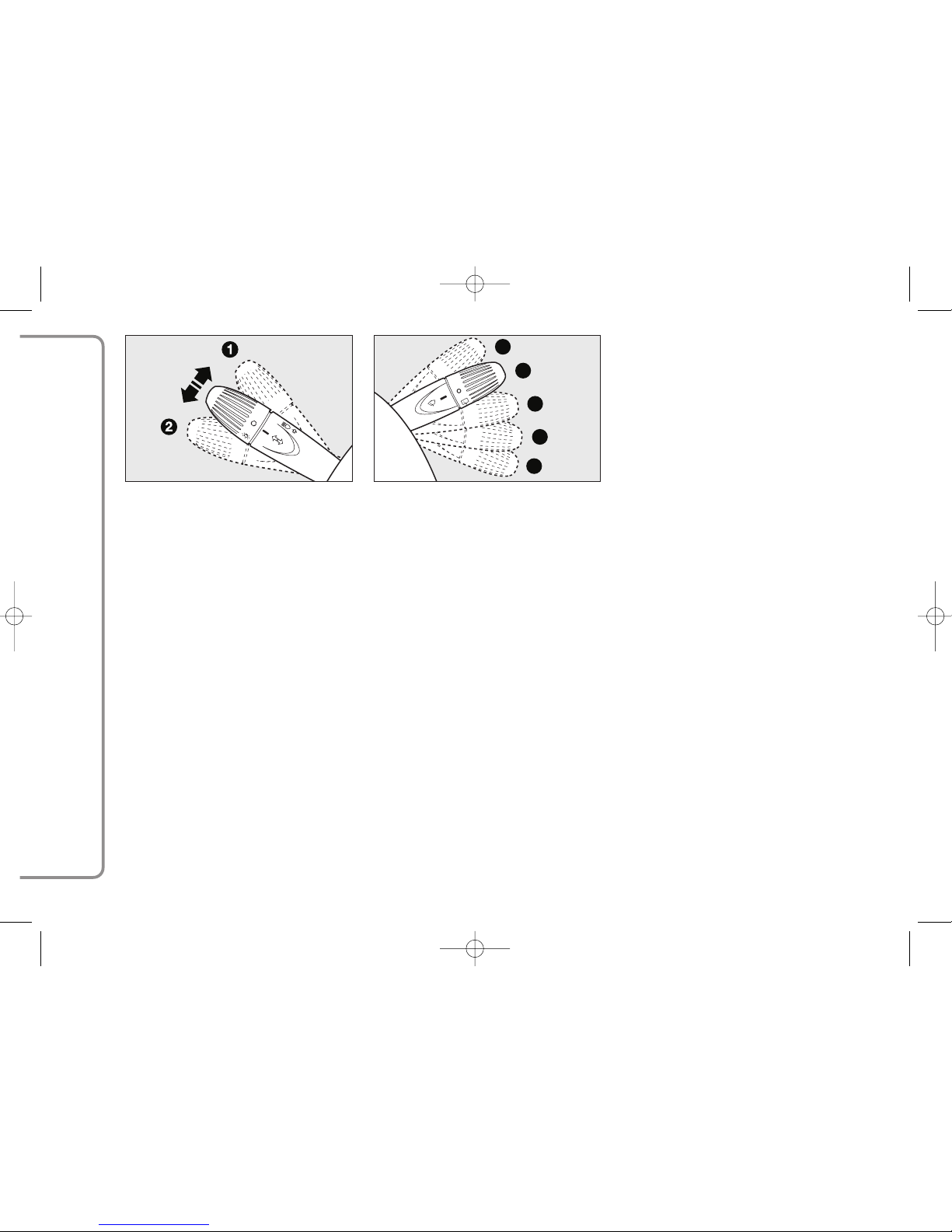

WINDOW WASHING
WINDSCREEN WASHER/WIPER
The stalk has 5 different positions
(4 speeds):
A windscreen wiper off.
B intermittent.
C continuous slow.
D continuous fast.
E temporary fast (unstable position).
“Smart washing” function
Pull the stalk towards the steering
wheel (unstable position) to operate the
windscreen washer jet.
REAR WINDOW WIPER/
REAR WINDOW WASHER
Turn the knurled ring to
'
to operate
the rear window wiper.
Pushing the stalk towards the
dashboard (unstable position) will
activate the rear window washer.
C
A
B
E
D
KA00111m
FLASHING
You can flash the beams pulling the stalk
toward the wheel (unstable position).
DIRECTION INDICATORS
Push the stalk to (stable) position:
up (position a): right-hand indicator
ON;
down (position b): left-hand indicator
ON.
604.39.301 PP KA GB 18-07-2008 11:40 Pagina 4
Page 6
QUICK START
5

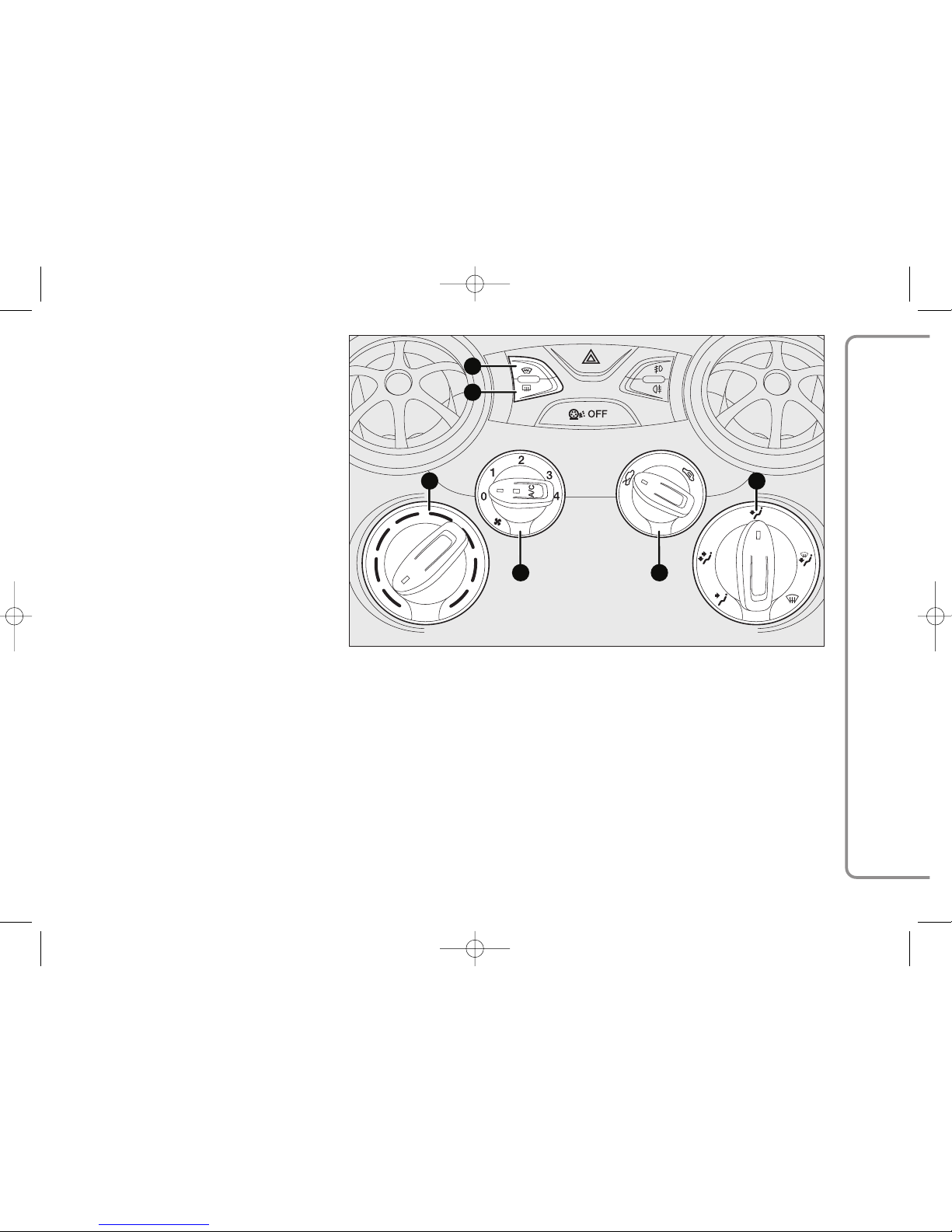

MANUAL CLIMATE
CONTROL SYSTEM
A Air temperature knob (red-hot /
blue-cold).
B Fan speed knob and climate control
system activation/deactivation.
C Air recycle knob.
D Air distribution knob.
E Heated rear screen
activation/deactivation button.
F Heated rear screen
activation/deactivation button.
KA00027m
DA
B
C
F
E
604.39.301 PP KA GB 18-07-2008 11:40 Pagina 5
Page 7
6
QUICK START

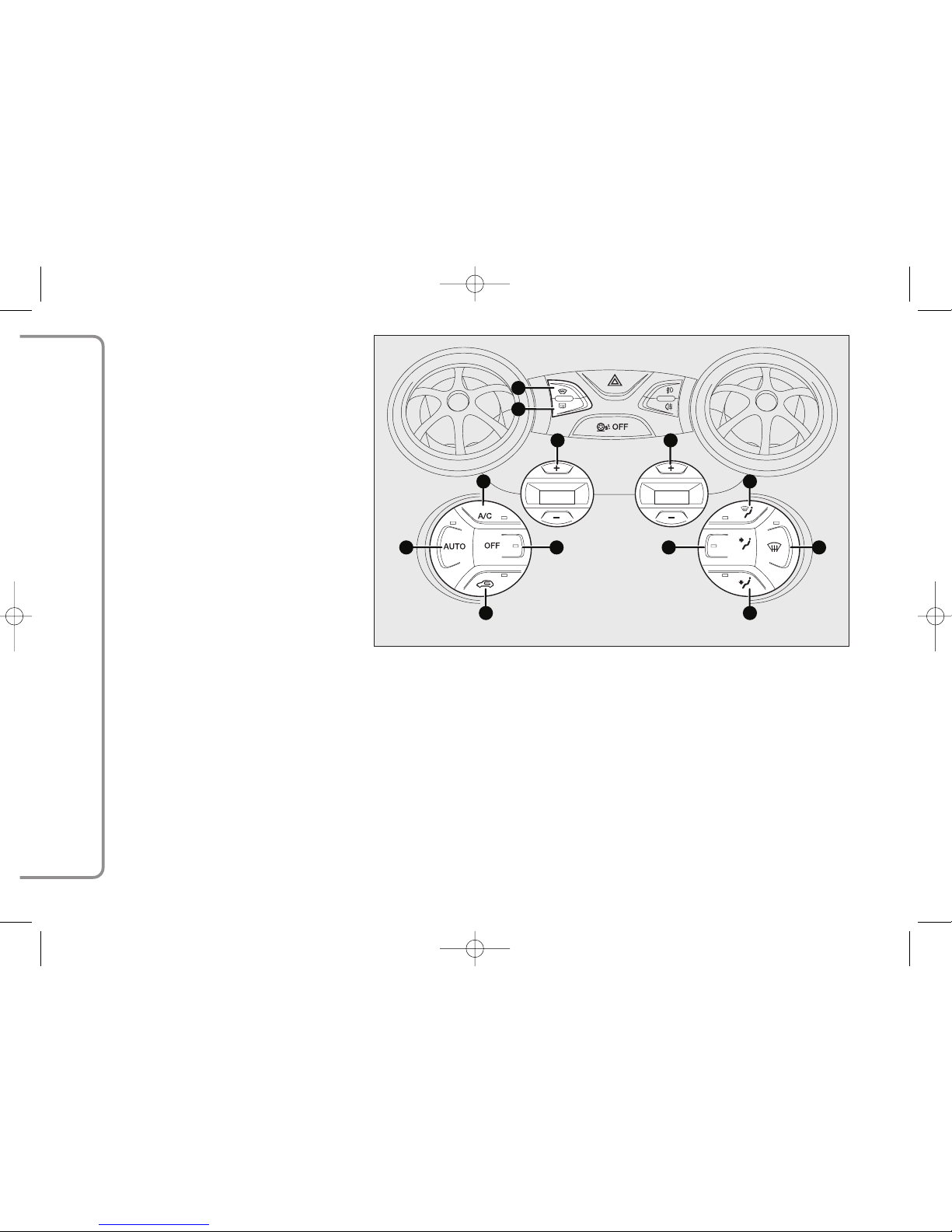

AUTOMATIC CLIMATE
CONTROL SYSTEM
Button AUTO - A
Activation of the automatic
function of the climate control
system
A/C button - B
compressor activation/deactivation
Button OFF - C
System switch off
Button
…
- D
Air recycle on/off button
Buttons +, –, E
Setting desired temperature
Buttons +, –, F
Adjusting fan speed
Buttons
y μ∂
- G H I
Manual air distribution selection
Button
-
- L
Front window fast
demisting/defrosting button
Demisting/defrosting heated
rear window
Press button M to activate this function.
Demisting/defrosting heated
rear window
Press button N to activate this function.
KA00028m
D
H
I
L
GB
A
C
E
F
N
M
604.39.301 PP KA GB 18-07-2008 11:40 Pagina 6
Page 8
QUICK START
7

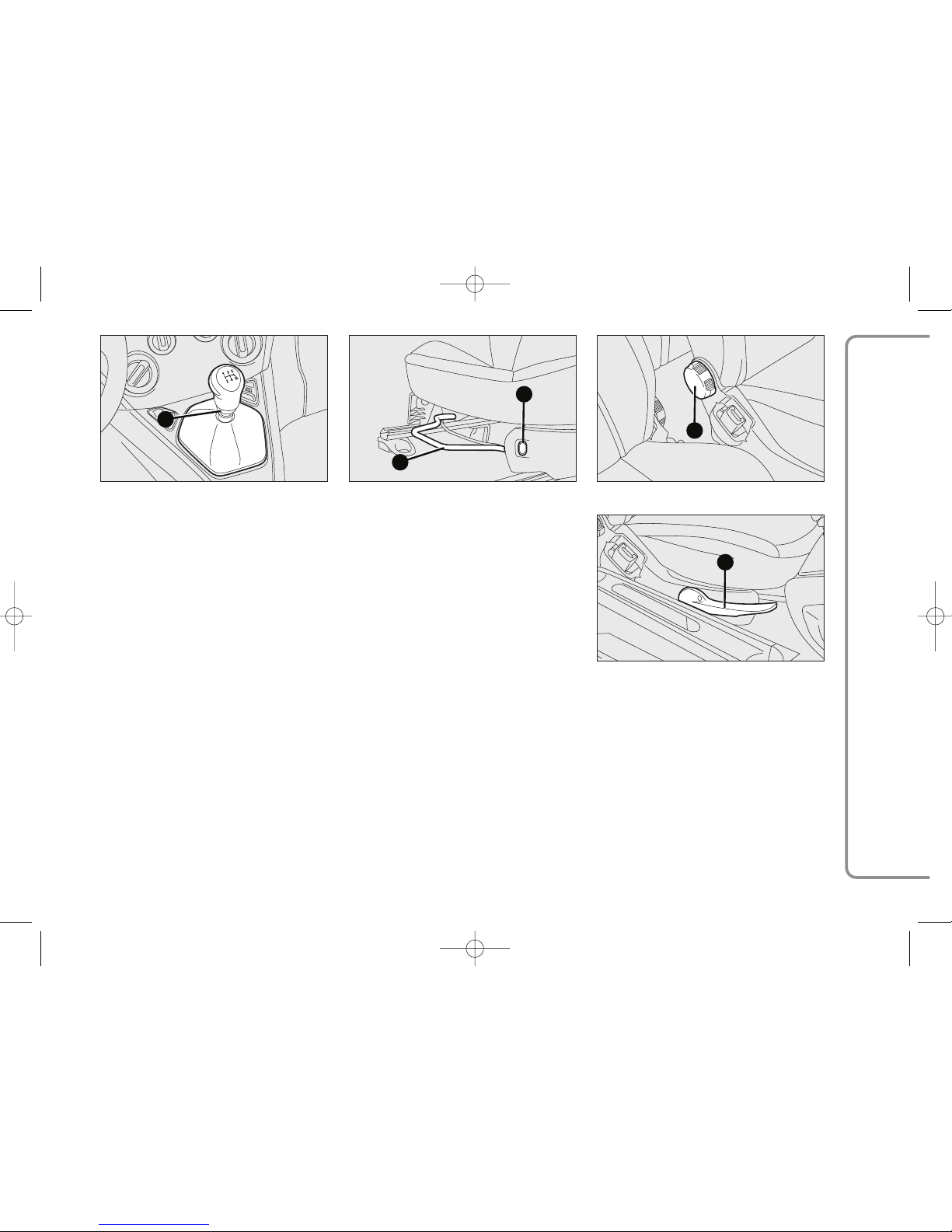

USING THE MANUAL
GEARBOX
To engage the gears, press the clutch
pedal fully and shift the gear lever into
one of the required positions
(the diagram is shown on the knob).
To engage reverse R from neutral,
raise ring A under the knob and at the
same time move the gearshift lever
rightwards and then backward.
A
KA00060m
SEATS
FRONT SEATS
Fore/aft adjustment
Lift lever A and push the seat forwards
and backwards.
Heated seats
Press button E to switch the seat
warming on/off.
Back rest angle adjustment
Turn knob B.
Seat height adjustment
Operate lever C to lift or lower the
rear area of the cushion to achieve the
most comfortable driving position.
A
E
KA00006m
B
KA00007m
C
KA00008m
604.39.301 PP KA GB 18-07-2008 11:40 Pagina 7
Page 9
8
QUICK START
2
3
4
6
5
1
D D
KA00018m

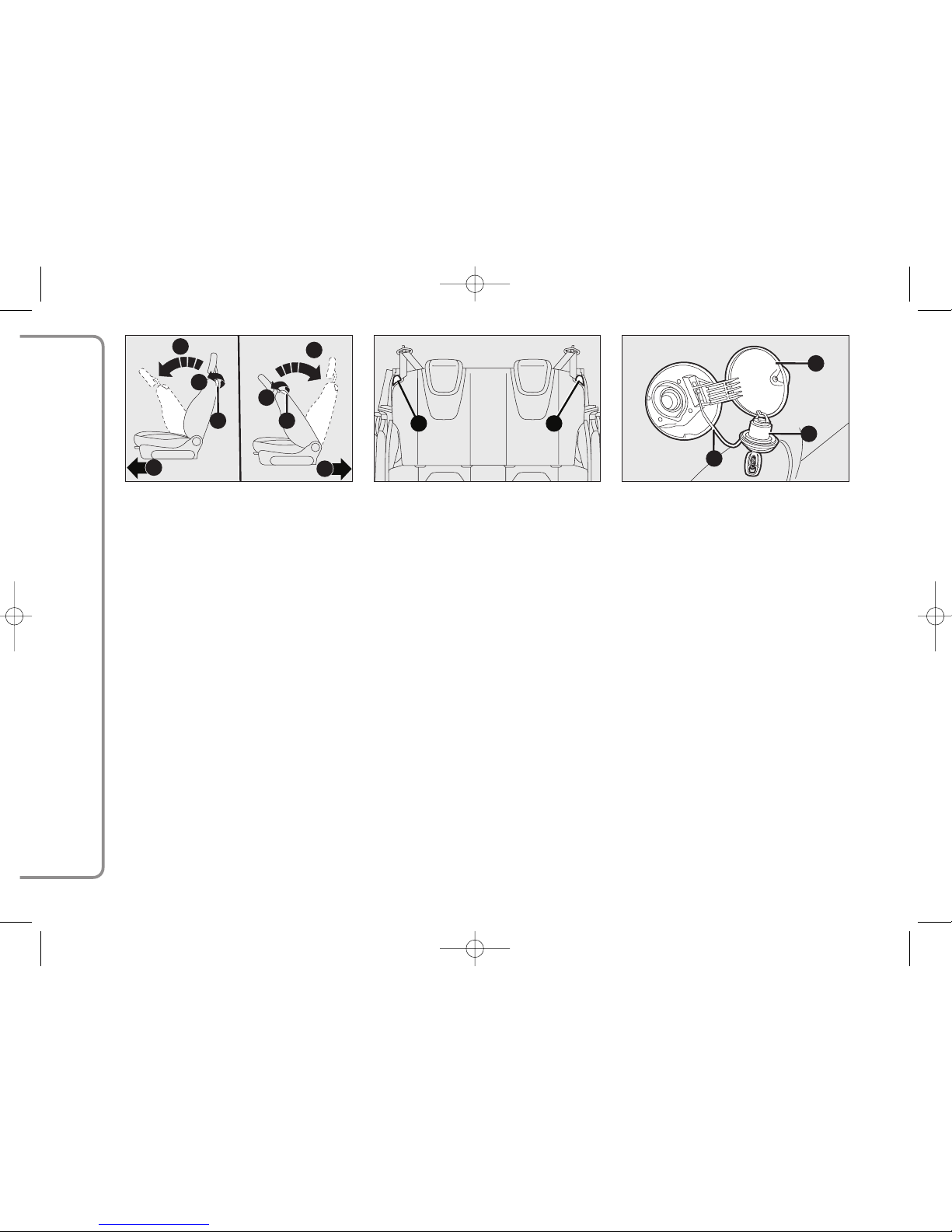

Backrest tilting
To tilt the seat, operate lever D
(movement a) and push the backrest
forward to lock (movement b); release
leverD and push the backrest to slide
the seat forward (movement c, applies
only to seats with easy entry).
BA
KA00019m
REAR SEATS
Backrest release
❒
For versions with joint seat, lift handles
A and B and guide the backrest onto
the cushion.
❒
For versions with separate seats, lift
handle A or B to release respectively
the left or right part of the backrest and
guide the backrest onto the cushion.
FUEL FILLER CAP
The cap B is provided with a loss
prevention device C which secures it to
the lid A.
Unscrew cap B using the ignition key.
C
A
B
KA00043m
Print N. 604.39.301 - 06/2008 - 1stEdition
