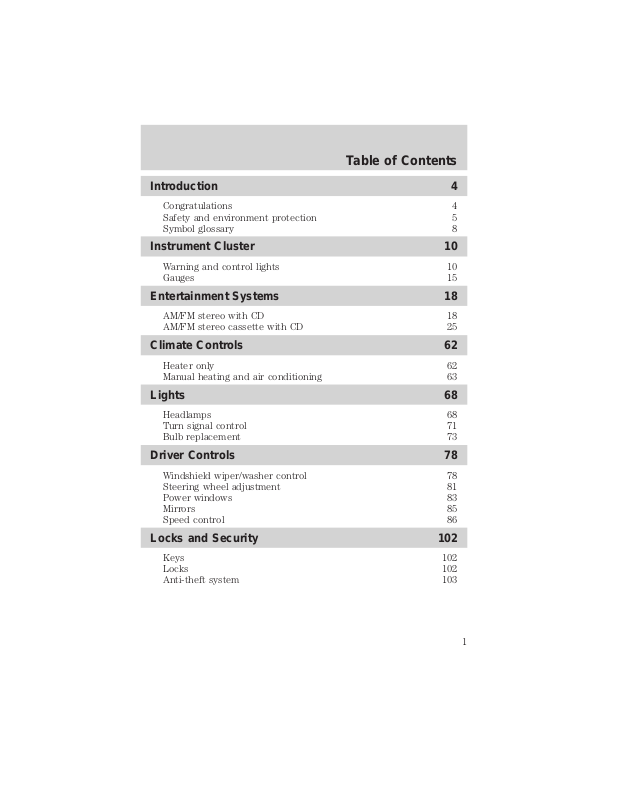

Introduction 4

Congratulations 4 Safety and environment protection 5 Symbol glossary 8

Instrument Cluster 10

Warning and control lights 10 Gauges 15

Entertainment Systems 18

AM/FM stereo with CD 18 AM/FM stereo cassette with CD 25

Climate Controls 62

Heater only 62 Manual heating and air conditioning 63

Lights 68

Headlamps 68 Turn signal control 71 Bulb replacement 73

Driver Controls 78

Windshield wiper/washer control 78 Steering wheel adjustment 81 Power windows 83 Mirrors 85 Speed control 86

Locks and Security 102

Keys 102 Locks 102 Anti-theft system 103

Table of Contents

Seating and Safety Restraints 113

Seating 113 Safety restraints 125 Air bags 136 Child restraints 144

Driving 154

Starting 154 Brakes 158 Transmission operation 163 Vehicle loading 178 Trailer towing 181 Recreational towing 185

Roadside Emergencies 186

Getting roadside assistance 186 Hazard flasher switch 187 Fuel pump shut-off switch 187 Fuses and relays 189 Changing tires 195 Jump starting 200 Wrecker towing 206

Customer Assistance 208

The dispute settlement board 211 Utilizing the mediation/arbitration 214 Getting assistance outside the U.S. and Canada 214 Ordering additional owner’s literature 215 Reporting safety defects (U.S. only) 217

Cleaning 218

Cleaning your vehicle 218 Underbody preservation 224

Table of Contents

Maintenance and Specifications 226

Hood 227 Engine compartment 229 Engine oil 231 Battery 235 Fuel information 242 Air filter(s) 256 Part numbers 262 Refill capacities 262 Lubricant specifications 265 Engine data 267 Vehicle dimensions 267

Accessories 271 Index 274

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Introduction

The following warning may be required by California law:

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS

Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle the greater the safety and pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the following website:

In the United States: www.ford.com In Canada: www.ford.ca In Australia: www.ford.com.au In Mexico: www.ford.com.mx Additional owner information is given in separate publications.

This Owner’s Guide describes every option and model variant

available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on the Owner’s Guide when reselling the

vehicle. It is an integral part of the vehicle.

Introduction

Fuel pump shut-off switch In the event of an accident the

safety switch will automatically cut off the fuel supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside emergencies chapter.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE

There are no particular guidelines for breaking-in your vehicle. During the first 1 600 km (1 000 miles) of driving, vary speeds frequently. This is recommended to give the moving parts a chance to break in.

Introduction

SPECIAL NOTICES Emission warranty

The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 7.3L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

By operating other electronic equipment (e.g. mobile telephone

without exterior aerial) electromagnetic fields can occur which can cause malfunctions of the vehicle electronics. Therefore you should observe the instructions of the equipment manufacturers.

Please read the section Air bag in the Seating and safety

restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

Front seat mounted rear facing child or baby seats should

NEVER be used in front of a passenger side air bag unless the air bag can be and is turned OFF.

Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than

other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of control or an accident.

Introduction

Using your vehicle with a snowplow

Do not use this vehicle for snowplowing.

Using your vehicle as an ambulance

Do not use this vehicle as an ambulance.

Your vehicle is not equipped with the Ford Ambulance Preparation Package.

Middle East/North Africa vehicle specific information

For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner

Guide for all other required information and warnings.

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Air Bag-Front

Air Bag-Side Child Seat

Child Seat Installation Warning

Brake System Anti-Lock Brake System

Brake Fluid Non-Petroleum Based

AdvanceTrac Master Lighting Switch

Hazard Warning Flasher Fog Lamps-Front

Fuse Compartment Fuel Pump Reset

See Owner’s Guide

Child Seat Tether Anchorage

Traction Control

Windshield Wash/Wipe

Rear Window Defrost/Demist

Windshield Defrost/Demist

Power Windows Front/Rear

Vehicle Symbol Glossary

Introduction

Power Window Lockout

Child Safety Door Lock/Unlock

Interior Luggage Compartment Release

Panic Alarm

Symbol

Engine Oil Engine Coolant

Engine Coolant Temperature

Battery

Do Not Open When Hot

Avoid Smoking, Flames, or Sparks

Battery Acid Explosive Gas

Fan Warning Power Steering Fluid

Maintain Correct Fluid Level

Engine Air Filter

MAX

MIN

Emission System

Passenger Compartment Air Filter

Jack Check fuel cap

Low tire warning

Instrument Cluster

WARNING LIGHTS AND CHIMES

4x4

O/D OFF

CHECK

FUEL CAP

BRAKE

THEFT

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, have

the respective system inspected immediately.

Service engine soon

Your vehicle is equipped with a computer that monitors the engine’s emission control system. This system is commonly known as the On Board Diagnostics System (OBD II). The OBD II system protects the environment by ensuring that your vehicle continues to meet government emission standards. The OBD II system also assists the service technician in properly servicing your vehicle.

The

indicator light illuminates when the ignition is first turned to the RUN position to check the bulb. If it comes on after the engine is started, one of the engine’s emission control systems may be malfunctioning. The light may illuminate without a driveability concern being noted. The vehicle will usually be drivable and will not require towing.

What you should do if the light illuminates

Light turns on solid:

This means that the OBD II system has detected a malfunction.

Instrument Cluster

Temporary malfunctions may cause your light to illuminate. Examples are:

The vehicle has run out of fuel. (The engine may misfire or run poorly.)

2. Poor fuel quality or water in the fuel.

3. The fuel cap may not have been properly installed and securely tightened.

These temporary malfunctions can be corrected by filling the fuel tank with high quality fuel of the recommended octane and/or properly installing and securely tightening the fuel cap. After three driving cycles without these or any other temporary malfunctions present, the should turn off. (A driving cycle consists of a cold engine startup followed by mixed city/highway driving.) No additional vehicle service is required.

If the light remains on, have your vehicle serviced at the first available opportunity.

Light is blinking:

Engine misfire is occurring which could damage your catalytic converter. You should drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced at the first available opportunity.

Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior

floor coverings or other vehicle components, possibly causing a fire.

light

Brake system warning

To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position (alternatively for some vehicles when the ignition is moved from the ON position to START position, the light will momentarily illuminate prior to reaching the START position). It also illuminates if the parking brake is engaged. If the brake system warning light does not illuminate as described, seek service immediately. Illumination after the parking brake is released indicates low brake fluid level or a brake system malfunction and the brake system should be serviced immediately by a qualified technician. Refer to Brakes in the Driving chapter for more information.

BRAKE

Instrument Cluster

Anti-lock brake system (ABS) (if equipped)

To confirm the anti-lock brake system (ABS) warning light is functional it will momentarily illuminate when the ignition is turned to the ON position (alternatively for some vehicles when the ignition is moved from the ON position to the START position, the light will momentarily illuminate just prior to reaching the START position). If the light remains on, continues to flash or fails to illuminate, have the ABS serviced immediately. If the ABS light remains on, it means the anti-lock brake system has malfunctioned and is disabled, however, the normal brake system will still function unless the brake warning light also remains illuminated and parking brake is off. Refer to Brakes in the Driving chapter for more information.

Safety belt

Illuminates to remind you to fasten your safety belts. For more information, refer to the Seating and safety restraints chapter.

Air bag readiness

Illuminates to confirm that the air bags (front and side) are operational. If the light fails to illuminate, continues to flash or remains on, have the system serviced immediately.

ABS

Charging system

Illuminates when the battery is not charging properly.

Engine oil pressure

Illuminates when the oil pressure falls below the normal range. Check the oil level and add oil if needed. Refer to Engine oil in the Maintenance and specifications chapter.

Instrument Cluster

Low fuel

Illuminates when the fuel level in the fuel tank is at, or near, empty (refer to Fuel gauge in this chapter for more information).

Speed control

Illuminates when the speed control is activated.

O/D off (if equipped)

Illuminates when the overdrive function has been turned OFF using the Transmission Control Switch (TCS) on end of gearshift. If the light does not come on or the light flashes steadily, have your vehicle serviced as soon as possible, damage to the transmission could occur.

Turn signals

Illuminates when the turn signals or the hazard lights are turned on. If the lights stay on continuously or flash faster, check for a burned-out bulb.

O/D

OFF

High beams

Illuminates when the high beam headlamps are turned on.

Door ajar

Illuminates when any door, liftgate or liftgate window is open.

Instrument Cluster

Anti-theft system

Refer to SecuriLocky passive anti-theft system in the Locks and Security chapter.

Low coolant (if equipped)

Illuminates when the coolant level in the coolant reservoir is low and more needs to be added. For more information on adding engine coolant, refer to Engine coolant in the Maintenance and specifications chapter.

Check fuel cap

Illuminates when the fuel cap is not installed correctly. Check the fuel cap for proper installation. When the fuel filler cap is properly re-installed, the light(s) will turn off after a period of normal driving. Continuing to operate the vehicle with the check fuel cap light on, can activate the Service Engine Soon/Check Engine warning light.

It may take a long period of time for the system to detect an improperly installed fuel filler cap.

For more information, refer to Fuel filler cap in the Maintenance and specifications chapter.

CHECK

FUEL

CAP

Four wheel drive indicator (if equipped)

Illuminates when the four-wheel drive is engaged. If the light continues to flash have the system serviced.

Safety belt warning chime

Sounds to remind you to fasten your safety belts.

BeltMinder chime

Sounds intermittently to remind you to fasten your safety belts.

4x4

Instrument Cluster

Supplemental restraint system (SRS) warning chime

Sounds when a malfunction in the supplemental restraint system (front or side airbags) has been detected. Have the supplemental restraint system inspected immediately.

Key-in-ignition warning chime

Sounds when the key is left in the ignition and the door, liftgate or liftgate window is opened.

Headlamps on warning chime

Sounds when the headlamps or parking lamps are on, the key is removed from the ignition and the driver’s door is opened.

GAUGES

4x4

CHECK

FUEL CAP

BRAKE

THEFT

O/D OFF

Engine coolant temperature gauge

Indicates the temperature of the engine coolant. At normal operating temperature, the needle remains within the normal area (the area between the “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine immediately and let the engine cool. Refer to Engine coolant in the Maintenance and specifications chapter.

Instrument Cluster

Never remove the coolant reservoir cap while the engine is running or hot. Steam and scalding liquid from a hot cooling

system can burn you badly.

This gauge indicates the temperature of the engine coolant, not the coolant level. If the coolant is not at its proper level the gauge indication will not be accurate.

Fuel gauge

Displays approximately how much fuel is in the fuel tank. The fuel gauge may vary slightly when the vehicle is in motion or on a grade.

When refueling the vehicle from empty indication, the amount of fuel that can be added will be less than the advertised capacity due to the reserve fuel.

The arrow near the fuel pump icon indicates which side of the vehicle the fuel filler door is located.

Speedometer

Indicates the current vehicle speed.

MPH

100

120

140

100

160

180

km/h

120

Odometer

Registers the total kilometers (miles) of the vehicle.

Trip odometer

Registers the kilometers (miles) of individual journeys. Press and hold the button for 1 or more seconds to reset. Press and release the button in less than 1 second to toggle between odometer and trip odometer.

Tachometer

Indicates the engine speed in revolutions per minute.

Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Instrument Cluster

Entertainment Systems

AM/FM STEREO / SINGLE CD RADIO

VOL - PUSH ON

BASSCDTREB BAL FADE

FM1

SCN

CLK

SEEK

TUNE

DISCS

CDCD

123456

Volume/power control

Press the control to turn the audio system on or off.

Turn the control to raise or lower volume.

DISC

COMP

SHUFFLE

VOL - PUSH ON

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

Entertainment Systems

AM/FM select

The AM/FM select control works in radio and CD modes.

AM FM

AM/FM select in radio mode

The AM/FM control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.

AM/FM select in CD or CD changer mode (if equipped)

The AM/FM control to stop CD play and begin radio play.

Tune adjust

The tune control works in radio mode.

Tune adjust in radio mode

• Press to move to the next

frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

• Press

to move to the next frequency up the band (whether or not

a listenable station is located there). Hold for quick movement.

Tune adjust in CD changer mode (if equipped)

• Press to move to the previous

disc. Hold for quick movement.

• Press to move to the next

disc. Hold for quick movement.

SEEK

TUNE

DISCS

SEEK

TUNE

DISCS

Seek function

The seek function control works in radio, CD or CD changer mode (if equipped).

Entertainment Systems

Seek function in radio mode

• Press to find the next

listenable station down the frequency band.

• Press

to find the next

listenable station up the frequency band.

Seek function in CD or CD changer mode (if equipped)

• Press to listen to the next

selection on the current disc.

• Press to listen to the previous

selection on the current disc.

Scan function

The scan function works in radio or CD mode.

Scan function in radio mode

Press the SCN control to hear a brief sampling of all listenable stations on the frequency band. Press the SCN control again to stop the scan mode.

Scan function in CD or CD changer mode (if equipped)

Press the SCN control to hear a short sampling of all selections on the current CD. (The CD scans in a forward direction, wrapping back to the first track at the end of the CD.) To stop on a particular selection, press the control again.

SEEK

TUNE

DISCS

SEEK

TUNE

DISCS

SCN

Radio station memory preset

The radio is equipped with four or six station memory preset controls. These controls can be used to select up to four or six preset AM stations and eight or twelve FM stations (four to six in FM1 and four to six in FM2).

Setting memory preset stations

1. Select the frequency band with the AM/FM select control.

2. Select a station. Refer to Tune adjust or Seek function for more information on selecting a station.

Entertainment Systems

3. Press and hold a memory preset control until the sound returns, indicating the station is held in memory on the control you selected.

123456

Autoset memory preset

Autoset allows you to set strong radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations.

Starting autoset memory preset

1. Select a frequency using the AM/FM select controls.

2. Press the control.

3. When the first six strong stations are filled, the station stored in memory preset control 1 will start playing.

If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available.

To deactivate autoset and return to your audio system’s manually set memory stations, press the control again.

SCN

AUTO

SET

Bass adjust

The bass adjust control allows you to increase or decrease the audio system’s bass output.

BASS

Entertainment Systems

Treble adjust

The treble adjust control allows you to increase or decrease the audio system’s treble output.

Speaker balance adjust

Speaker sound distribution can be adjusted between the right and left speakers.

Speaker fade adjust

Speaker sound can be adjusted between the front and rear speakers.

TREB

BAL

FADE

CD select

To begin CD play (if CD[s] are loaded), press the CD control. The first track of the disc will begin playing. After that, CD play will begin where it stopped last. Press the control again to begin CD changer play (if equipped).

AM FM

Entertainment Systems

Do not insert any promotional (odd shaped or sized) discs, or discs with removable labels into the CD player as jamming may occur.

Rewind

The rewind control works in CD and CD changer (if equipped) modes. To rewind in CD mode press the CD

control (preset 1). Pressing the control for less than

three seconds results in slow rewind. Pressing the control for more than three seconds results in fast rewind.

Fast forward

The fast forward control works in CD mode. To fast forward in CD mode, press

the CD control (preset 2). Pressing the control for less than

three seconds results in slow forward action. Pressing the control for more than three seconds results in fast forward action.

Eject function

Press the control to stop and eject a CD.

Compression feature

Compression adjust brings soft and loud CD passages together for a more consistent listening level.

Press the COMP control to activate and deactivate compression adjust.

COMP

Entertainment Systems

Shuffle feature

The shuffle feature operates in CD changer mode (if equipped) and plays all tracks on the current disc

SHUFFLE

in random order. Press the SHUFFLE control to start this feature. Random order play will

continue until the SHUFFLE control is pressed again.

Setting the clock

Press CLK to toggle between listening frequencies and clock mode while in radio mode.

SCN

To set the hour, press and hold the CLK control.

CLK

Press the SEEK control:

•

to decrease hours and to increase hours.

SEEK

TUNE

DISCS

To set the minute, press and hold the CLK control.

SCN

Press the TUNE control:

•

to decrease minutes and to increase minutes.

CLK

SEEK

TUNE

DISCS

Entertainment Systems

PREMIUM AM/FM STEREO/CASSETTE/SINGLE CD

VOL PUSH ON

FM 1 AMC

BL RF

AM FM

SEEK TUNE

REW FF

DOLBY B NR

SCAN

BASS TREB SEL BAL

SIDE 1-2 COMP SHUFFLE

123456

Volume/power control

Press the control to turn the audio system on or off.

Audio power can also be turned on by pressing the AM/FM select control or the TAPE/CD select control.

Turn control to raise or lower volume.

DISC

TAPE

EJ CD

VOL - PUSH ON

FADE

MUTE

AUTO

CLK

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

Entertainment Systems

AM/FM select

The AM/FM select control works in radio, tape and CD modes.

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.

AM/FM select in tape mode

Press this control to stop tape play and begin radio play.

AM/FM select in CD or CD changer mode (if equipped)

Press this control to stop CD play and begin radio play.

Tune adjust

The tune control works in radio or CD changer mode.

Tune adjust in radio mode

• Press to move to the next

frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

• Press

frequency up the band (whether or not a listenable station is located there). Hold for quick movement.

to move to the next

Tune adjust for CD changer (if equipped)

• Press to select the previous

disc in the CD changer. (Play will begin on the first track of the disc unless the CD changer is in shuffle mode. Refer to Shuffle feature for more information. Hold the control to continue reversing through the remaining discs.

• Press

to fast-forward through the remaining discs.

to select the next disc in the CD changer. Hold the control

AM FM

Entertainment Systems

Seek function

The seek function control works in radio, tape or CD mode.

Seek function in radio mode

• Press to find the next

listenable station down the frequency band.

• Press

listenable station up the frequency band.

Seek function in tape mode

• Press to listen to the previous selection on the tape.

• Press

Seek function for CD or CD changer (if equipped)

• Press to seek to the previous

track of the current disc. If a selection has been playing for three seconds or more and you press replay that selection from the beginning.

• Press

the last track has been completed, the first track of the current disc will automatically replay.

to find the next

to listen to the next selection on the tape.

, the CD changer will

to seek forward to the next track of the current disc. After

Scan function

The scan function works in radio, tape or CD mode.

SCAN

Scan function in radio mode

Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the control again to stop the scan mode.

Scan function in tape mode

Press the SCAN control to hear a short sampling of all selections on the tape. (The tape scans in a forward direction. At the end of the tape’s first side, direction automatically reverses to the opposite side of the tape.) To stop on a particular selection, press the control again.

Entertainment Systems

Scan function in CD or CD changer mode (if equipped)

Press the SCAN control to hear a short sampling of all selections on the CD. (The CD scans in a forward direction, wrapping back to the first track at the end of the CD.) To stop on a particular selection, press the control again.

Radio station memory preset

The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).

Setting memory preset stations

1. Select the frequency band with the AM/FM select control.

2. Select a station. Refer to Tune adjust or Seek function for more information on selecting a station.

3. Press and hold a memory preset control until the sound returns, indicating the station is held in memory on the control you selected.

REW FF SIDE 1-2 COMP SHUFFLE

123456

AM FM

Autoset memory preset

Entertainment Systems

Starting autoset memory preset

1. Select a frequency using the AM/FM select controls.

2. Press the control.

3. When the first six strong stations are filled, the station stored in memory preset control 1 will start playing.

If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available.

These stations are temporarily stored in the memory preset controls (until deactivated) and are accessed in the same manner as your original presets.

To deactivate autoset and return to your audio system’s manually set memory stations, press the AUTO control again.

Bass adjust

The bass adjust control allows you to increase or decrease the audio system’s bass output.

Press the BASS control then press:

•

• to increase the bass output.

to decrease the bass output

and

AUTO

CLK

BASS TREB

SEL

Treble adjust

The treble adjust control allows you to increase or decrease the audio system’s treble output.

BASS TREB

Entertainment Systems

Press the TREB control then press:

•

• to increase the treble output.

Speaker balance adjust

Speaker sound distribution can be adjusted between the right and left speakers.

Press the BAL control then press:

•

Speaker fade adjust

Speaker sound can be adjusted between the front and rear speakers.

Press the FADE control then press:

•

• to shift the sound to the rear.

to decrease the treble output

and

to shift sound to the left and to shift sound to the right.

to shift the sound to the

front and

SEL

BAL FADE

SEL

BAL FADE

SEL

Entertainment Systems

Tape/CD select

• To begin tape play (with a tape

loaded into the audio system) while in the radio or CD mode, press the TAPE control. Press again during rewind or fast forward to stop the rewind or fast forward function.

• To begin CD play (if CD(s) are

loaded), press the CD control. The first track of the disc will begin playing. If returning from radio or tape mode, CD play will begin where it stopped last.

Press the CD control to toggle between single CD and CD changer play (if equipped).

Do not insert any promotional (odd shaped or sized) discs, or discs with removable labels into the CD player as jamming may occur.

Rewind

The rewind control works in tape and CD modes.

• In tape mode, radio play will

continue until rewind is stopped (with the TAPE control) or the beginning of the tape is reached.

• In CD mode, pressing the REW control rewinds the CD within the

current track.

TAPE CD

REW

Fast forward

The fast forward control works in tape and CD modes.

• In the tape mode, tape direction

will automatically reverse when the end of the tape is reached.

• In CD mode, pressing the control fast forwards the CD within the

current track.

Entertainment Systems

Tape direction select

Press SIDE 1–2 to play the alternate side of a tape.

SIDE 1-2

Eject function

Press the EJ control to stop and eject a tape.

Press the EJ control to stop and eject a CD.

DolbyT noise reduction

Dolbyt noise reduction operates in tape mode. Dolbyt noise reduction reduces the amount of hiss and static during tape playback.

Press the reduction.

Dolbyt noise reduction is manufactured under license from Dolbyt Laboratories Licensing Corporation. “Dolbyt” and the double-D symbol Corporation.

control to activate (and deactivate) the Dolbyt noise

are registered trademarks of Dolbyt Laboratories Licensing

Compression adjust

Compression adjust brings soft and loud CD passages together for a more consistent listening level.

Press the COMP control to activate and deactivate compression adjust.

COMP

Entertainment Systems

Shuffle feature

The shuffle feature operates in CD mode (if equipped) and plays all tracks on the current disc in random order. If equipped with the CD changer, the shuffle feature continues to the next disc after all tracks on the current disc are played.

Press the SHUFFLE control to start this feature. Random order play will continue until the SHUFFLE control is pressed again.

Setting the clock

To set the hour, press and hold the CLK control and press SEEK:

SHUFFLE

AUTO

CLK

•

To set the minute, press and hold the CLK control and press TUNE:

•

If your vehicle has a separate clock, (other than the digital radio display), the CLK control will not function in the above manner.

to decrease hours and to increase hours.

to decrease minutes and to increase minutes.

AUTO

CLK

Entertainment Systems

The CLK control will allow you to switch between media display mode (radio station, stereo information, etc.) and clock display mode (time). When in clock mode, the media information will display for 10 seconds, when the radio is turned on, and then revert to clock information. Any time that the media is changed, (new radio station, etc.), the media information will again display for 10 seconds before reverting back to the clock. In media mode, the media information will always be displayed.

Mute mode

Press the MUTE control to mute the playing media. Press the MUTE control again to return to the playing media.

MACHT AUDIO SYSTEM WITH AM/FM STEREO/CASSETTE/SINGLE CD

AUTO

CLK

MUTE

VOL - PUSH ON

AM FM

SEEK TUNE

REW FF

FM1

DOLBY B NR

SCAN

BASS TREB SEL BAL

SIDE 1-2 COMP SHUFFLE

DISC

TAPE

EJ CD

FADE

MUTE

AUTO

RDS

123456

Entertainment Systems

Volume/power control

Press the control to turn the audio system on or off.

Turn control to raise or lower volume.

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. If you wish to maintain your preset volume level, turn the audio system off with the power control before switching off the ignition.

VOL - PUSH ON

AM/FM select

The AM/FM select control works in radio, tape and CD modes.

AM FM

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.

AM/FM select in tape mode

Press this control to stop tape play and begin radio play.

AM/FM select in CD mode

Press this control to stop CD play and begin radio play.

Entertainment Systems

Tune adjust

The tune control works in radio or CD mode.

Tune adjust in radio mode

• Press to move to the next

frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

• Press

to move to the next frequency up the band (whether or not a listenable station is located there). Hold for quick movement.

Tune adjust for CD changer (if equipped)

• Press to select the previous disc in the CD changer. (Play will begin on the first track of the disc unless the CD changer is in shuffle mode. Refer to Shuffle feature for more information. Hold the control to continue reversing through the disc.

• Press

to select the next disc in the CD changer. Hold the control to fast-forward through the remaining discs.

SEEK

TUNE

SEEK

TUNE

SEEK

TUNE

SEEK

TUNE

Seek function

The seek function control works in radio, tape or CD mode.

Seek function in radio mode

• Press to find the next listenable station down the frequency band.

• Press

to find the next listenable station up the frequency band.

Entertainment Systems

Seek function in tape mode

• Press to listen to the previous selection on the tape.

• Press

Seek function for CD changer (if equipped)

• Press to seek to the previous track of the current disc. If a selection has been playing for three seconds or more and you press replay that selection from the beginning.

• Press the last track has been completed, the first track of the current disc will automatically replay.

Scan function

The scan function works in radio, tape or CD mode.

Scan function in radio mode

Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the control again to stop the scan mode.

Scan function in tape mode

Scan function in CD mode

to listen to the next selection on the tape.

, the CD changer will

to seek forward to the next track of the current disc. After

SCAN

Entertainment Systems

Radio station memory preset

The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).

Setting memory preset stations

1. Select the frequency band with

the AM/FM select control.

2. Select a station. Refer to Tune

adjust or Seek function for more information on selecting a station.

3. Press and hold a memory preset

control until the sound returns,

REW

indicating the station is held in memory on the control you selected.

Autoset memory preset

Starting autoset memory preset

1. Select a frequency using the AM/FM select controls.

2. Press the AUTO control.

3. When the first six strong stations

are filled, the station stored in memory preset control 1 will start playing.

If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available.

To deactivate autoset and return to your audio system’s manually set memory stations, press the AUTO control again.

AM FM

FF2SIDE 1-2

AUTO

RDS

COMP5SHUFFLE

Bass adjust

The bass adjust control allows you to increase or decrease the audio system’s bass output.

Press the BASS control then press:

•

Treble adjust

The treble adjust control allows you to increase or decrease the audio system’s treble output.

Press the TREB control then press:

•

to decrease bass output and to increase bass output.

to decrease treble output and to increase treble output.

Entertainment Systems

BASS TREB

SEL

BASS TREB

SEL

Speaker balance adjust

Speaker sound distribution can be adjusted between the right and left speakers.

BAL FADE

Entertainment Systems

Press the BAL control then press:

•

Speaker fade adjust

Speaker sound can be adjusted between the front and rear speakers.

Press the FADE control then press:

•

• to shift sound to the rear.

Tape/CD/CD changer (if equipped) select

• To begin tape play (with a tape

• To begin CD play (if CD(s) are

If equipped with a CD changer, press the CD control to toggle between single CD and CD changer play.

to shift sound to the left and to shift sound to the right.

SEL

BAL FADE

to shift sound to the front

and

loaded into the audio system) while in the radio or CD mode, press the TAPE control. Press the button during rewind or fast forward to stop the rewind or fast forward function.

loaded), press the CD control. The first track of the disc will begin playing. After that CD play will begin where it stopped last.

SEL

TAPE CD

Entertainment Systems

CD units are designed to play commercially pressed 12 cm audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent marker rather than adhesive labels. Please contact your dealer for further information.

Rewind

The rewind control works in tape and CD modes.

• In tape mode, radio play will continue until rewind is stopped (with the TAPE control) or the beginning of the tape is reached.

• In CD mode, pressing the REW control for less than three seconds results in slow rewind. Pressing the control for more than three seconds results in fast rewind.

Fast forward

The fast forward control works in tape and CD modes.

• In the tape mode, tape direction will automatically reverse when the end of the tape is reached.

• In CD mode, pressing the control for less than three seconds results in slow forward action. Pressing the control for more than three seconds results in fast forward action.

REW

Tape direction select

Press SIDE 1–2 to play the alternate side of a tape.

SIDE 1-2

Entertainment Systems

Eject function

Press the control to stop and eject a tape.

Press the control to stop and eject a CD.

DolbyT noise reduction

Dolbyt noise reduction operates only in tape mode. Dolbyt noise reduction reduces the amount of hiss and static during tape playback.

Press the reduction.

The Dolbyt noise reduction system is manufactured under license from Dolby Laboratories Licensing Corporation. Dolbyt and the double-D symbol are registered trademarks of Dolbyt Laboratories Licensing Corporation.

Compression adjust

Compression adjust brings soft and loud CD passages together for a more consistent listening level.

Press the COMP control to activate and deactivate compression adjust.

control to activate (and deactivate) Dolbyt noise

COMP

Shuffle feature

The shuffle feature operates in CD mode and plays all tracks on the current disc in random order. If equipped with the CD changer, the shuffle feature continues to the next disc after all tracks on the current disc are played.

Press the SHUFFLE control to start this feature. Random order play will continue until the SHUFFLE control is pressed again.

SHUFFLE

Setting the clock

Press the clock/RDS control until SELECT HOUR is displayed and press:

Entertainment Systems

AUTO

RDS

•

to decrease hours and to increase hours.

To set the minute, press the clock/RDS control until SELECT MIN is displayed and press:

•

to decrease minutes and to increase minutes.

SEL

AUTO

RDS

SEL

Entertainment Systems

Radio Data System (RDS) feature

This feature allows your audio system to receive text information from RDS-equipped FM radio stations.

Press and hold the control for three seconds to turn the feature on or off. Press the control to scroll through the following selections:

RDS traffic announcement

• Press the RDS control until TRAFFIC is displayed.

AUTO

RDS

AUTO

RDS

• Use the SELECT control to select ON or OFF. With the feature ON, use the SEEK or SCAN control to find a radio station broadcasting a traffic report (if it is broadcasting RDS data).

SEL

RDS select program type

• Press the RDS control until FIND program type is displayed.

Entertainment Systems

AUTO

RDS

• Use the SEL control to select the program type. With the feature on, use the SEEK or AUTOSET or SCAN control to find the desired program type from the following selections:

• Classic

• Country

• Info

• Jazz/R&B

• Religious

• Rock

• Soft

• Top 40

RDS show

• With the RDS menu enabled, press the RDS control until SHOW is displayed.

SEL

AUTO

RDS

Entertainment Systems

• Use the SEL control to select TYPE, NAME, TEXT or NONE.

SEL

When your radio is turned to a RDS station, RDS station TYPE, station NAME, or TEXT message will be displayed along with the frequency. Press SEL in order to scroll through the text messages.

Mute mode

Press the control to mute the playing media. Press the control again to return to the playing media.

MUTE

AUDIOPHILE AM/FM STEREO IN DASH SIX CD RADIO

SHUF DSP

SCAN

LOAD

DISC

TUNE

SEEK REW FF

MUTE

AM FM

PUSH ON

1 2 3 4 5 6

BALBASS

SEL

FADETREB

Entertainment Systems

Volume/power control

Press the control to turn the audio system on or off.

PUSH ON

Turn the control to raise or lower volume.

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

AM/FM select

The AM/FM select control works in radio and CD modes.

AM FM

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.

AM/FM select in CD mode

Press this control to stop CD play and begin radio play.

Tune adjust

The tune control works in radio or CD mode.

Entertainment Systems

Tune adjust in radio mode

• Press to move to the next frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

• Press a listenable station is located there). Hold for quick movement.

Tune adjust for CD mode

• Press to select the previous disc. (Play will begin on the first track of the disc unless shuffle mode is engaged.) Refer to Shuffle feature for more information. Hold the control to continue reversing through the discs.

• Press through the remaining discs.

Seek function

The seek function works in radio or CD mode.

Seek function in radio mode

• Press to find the next listenable station down the frequency band. SEEK DOWN will display.

• Press SEEK UP will display.

to move to the next frequency up the band (whether or not

to select the next disc. Hold the control to fast-forward

to find the next listenable station up the frequency band.

Entertainment Systems

Seek function in CD mode

• Press to seek to the previous track of the current disc. If the beginning of the disc is reached, the CD player seeks to the beginning of the last track on the current disc and begins playing.

• Press the last track has been completed, the first track of the current disc will automatically replay.

Scan function

The scan function works in radio or CD mode.

Scan function in radio mode

Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the SCAN control again to stop the scan mode.

Scan function in CD mode

to seek forward to the next track of the current disc. After

Radio station memory preset

The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).

Setting memory preset stations

1. Select the frequency band with the AM/FM select control. Press the

AM/FM control to toggle between AM, FM1, or FM2.

2. Press the SEEK control to access the next listenable station up or

down the frequency band. Press the TUNE control to go up or down the listening band in individual increments.

3. Select a station. Refer to Seek function for more information on

selecting a station.

Entertainment Systems

4. Press and hold a memory preset control. The playing media will mute

momentarily. When the sound returns, the station is held in memory on the control you selected. The display will read SAVED.

Autostore

Autostore allows you to set the strongest local radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations.

Starting autostore

1. Press and momentarily hold the AM/FM control.

2. AUTOSET will flash in the display

as the frequency band is scrolled through.

3. When the six strongest stations

are filled, the station stored in memory preset control 1 will start playing.

If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available.

To deactivate autoset and return to your audio system’s manually set memory stations, press the AM/FM control again.

AM FM

CD select

CD mode may be entered by pressing the CD control and the LOAD control. Load the CD into the audio system. The first track of the disc will begin playing. After that, CD play will begin where it stopped last.

If an alternative CD is desired, press the corresponding preset control (1–6) of a loaded CD, or press the TUNE control to access the other loaded CDs.

Entertainment Systems

NO CD will display if the CD control is activated when there is not a CD present in the audio system.

NO CD will illuminate in the display if the CD control and a present number (that is currently empty) are pressed. The system will play the next available disc.

If your vehicle is equipped with a CD changer, pressing the CD control again will allow you to toggle between accessing the multi disc system and the CD changer. The display will read CD or CDDJ.

Display description

Six circles are always lit in the digital display. These signify the six CD slots in the audio system. When a disc is loaded into a particular slot (1–6), the number inside that specific circle lights. If the circle is empty, there is no CD in that particular slot.

Load

The load feature allows you to load single CDs into the player internal to the radio.

This six disc CD player is equipped with a CD door. Compact discs should only be inserted into the player after the door has been opened by the player. Do not attempt to force the door open. Compact discs should only be loaded by pressing the LOAD control.

Press the LOAD control. (You can choose which slot will be loaded by pressing the desired preset number. If you do not choose a slot, the system will choose the next available one.) Wait until the CD door opens. Load the CD into the player. LOADING CD# is displayed. When the CD has been loaded, the door will close and the CD will begin to play. For example, to load a CD into slot 2, press the LOAD control and then press preset 2.

Entertainment Systems

Auto load

This feature allows you to autoload up to 6 discs into the multi disc CD player internal to the radio.

Press and hold the LOAD control until AUTOLOAD # is displayed. The CD door will open. Load the desired disc, one at a time. The CD is loaded into position and the audio system will display CD#. Each time the CD door opens, INSERT CD# is displayed. The door will close and the player will move to the next slot after each disc has been loaded. The process is repeated until all 6 slots are full. The audio system plays the last CD loaded and the display is updated. If some slots are already full and autoload is activated, the system will fill all empty slots.

Eject

Press the EJ control to stop and eject a CD. You can choose which CD will be ejected by pressing the EJ control and the desired preset number (1–6). For example, to eject CD 2, press the EJ control and then press the preset 2 control. If you do not choose a specific CD, the player will eject the current CD.

If a CD is ejected and not removed from the door of the CD player, the player will automatically reload the CD. This feature may be used when the ignition is ON or OFF.

Auto eject

Press and momentarily hold the EJ control to engage auto eject. All CDs which are present in the player will be ejected one at a time. If a CD is ejected and not removed from the door of the CD player, the player will automatically reload the CD. This feature may be used when the ignition is ON or OFF.

Rewind

The rewind control works in CD modes.

Press and hold the REW control until the desired selection is

Entertainment Systems

reached. If the beginning of the disc is reached, the CD will begin play at the first track. Release the control to disengage rewind mode.

When in rewind mode, your audio system will automatically lower the volume level of the playing media.

Fast forward

The fast forward control works in CD modes.

Press and hold the FF control until the desired selection is reached. If the end of the disc is reached, the CD will return to the first track. Release the control to disengage fast forward mode.

When in fast forward mode, your audio system will automatically lower the volume level of the playing media.

Shuffle feature

Press the SHUF control until the desired shuffle mode is displayed. The audio system will then engage the desired shuffle mode.

When engaged, the shuffle feature has two different modes: SHUFFLE DISC and SHUFFLE TRK.

SHUFFLE DISC randomly plays tracks from all the discs presently in the audio system.

SHUFFLE TRK plays all the tracks on the current disc in random order.

Compression feature

The compression feature operates in CD mode and brings soft and loud CD passages together for a more consistent listening level.

Press the MENU control until compression status is displayed. Press the SEL control to enable the compression feature when COMP OFF is displayed. Press the SEL control again to disable the feature when COMP ON is displayed.

SEL

Entertainment Systems

Bass adjust

The bass adjust control allows you to increase or decrease the audio system’s bass output.

Press the BASS control. Use the SEL control to increase or decrease the amount of bass.

Treble adjust

The treble adjust control allows you to increase or decrease the audio system’s treble output.

Press the TREB control. Use the SEL control to increase or decrease the amount of treble.

Speaker balance adjust

Speaker sound distribution can be adjusted between the right and left speakers.

Press the BAL control. Use the SEL control to adjust the sound between the speakers.

BASS

TREB

BASS

TREB

BAL

FADE

SEL

Speaker fade adjust

Speaker sound can be adjusted between the front and rear

BAL

speakers. Press the FADE control. Use the

FADE

SEL control to adjust the sound between the front and rear speakers.

Menu mode

The MENU control allows you to access many different features within your audio system. There are three sets of menus available depending upon which mode or feature is activated.

SEL

Entertainment Systems

While in FM mode, two menus are available. If RDS is turned OFF, you can access the following:

• SELECT HOURS — Refer to Setting the clock.

• SELECT MINUTES — Refer to Setting the clock.

• RDS OFF — Refer to Radio data system feature.

If RDS is turned ON, you can access the following:

• TRAFFIC ON/OFF-Refer to Traffic announcements.

• FIND type-Refer to Program type.

• SHOW (NAME, TYPE, NONE)- Refer to Radio data system feature.

• RDS ON— Refer to Radio data system feature.

• SELECT HOURS — Refer to Setting the clock.

• SELECT MINUTES —Refer to Setting the clock.

When in CD mode, you can access: SELECT HOURS, SELECT MINUTES or COMP ON/OFF.

SELECT HOURS, SELECT MINUTES— Allows you to adjust the hours and minutes. Refer to Setting the clock.

TRAFFIC ON/OFF— Traffic announcements can be programmed as local or distant. Refer to Traffic announcements.

RDS ON/OFF— This feature allows your audio system to receive text information from RDS-equipped FM radio stations. Refer to Radio Data

System feature.

FIND type — Allows you to select your desired FM program type and search for that selection.

SHOW — Allows you to select from NAME (displays the name of the radio station), TYPE (displays the RDS program type: rock, jazz, etc.), or NONE (deactivates the RDS display).

Entertainment Systems

Traffic announcements

This feature allows you to hear traffic announcements. When in this mode, traffic announcements will interrupt radio and CD play.

When in FM mode and RDS is activated, press the MENU until TRAFFIC OFF displays. Press the SEL control to engage the feature. The display will read TRAFFIC ON.

This feature also allows you to control the volume of traffic announcements. With the display reading TRAFFIC ON, adjust the volume using the volume control to the desired level. The volume level will show at the bottom of the display. Interrupting traffic announcements will be at the selected volume level.

To disengage the feature, press the MENU control until TRAFFIC ON displays. Press the SEL control. The display will read TRAFFIC OFF.

RDS traffic seek feature

When in traffic mode, you can use the SEEK feature to seek up or down the listenable traffic capable frequencies.

With the RDS activated, press MENU until TRAFFIC ON is displayed. Press and hold the SEEK control until the desired selection is reached. The feature disengages when the control is released.

RDS traffic scan feature

When in traffic mode, you can use the SCAN feature to scan up the frequency band for listenable traffic capable frequencies.

With the RDS activated, press the MENU control until TRAFFIC ON is displayed. Press the SCAN control. SCAN TRAFFIC will display. The audio system will scan to all traffic capable frequencies. If no valid stations are found after one pass, the scan function is cancelled and NOT FOUND displays.

SEL

Entertainment Systems

Radio data system (RDS) feature

This feature allows your audio system to receive text information from RDS-equipped FM radio stations.

To activate RDS:

• When in FM mode, press the MENU control until RDS OFF displays.

• Press the SEL control to engage this feature (RDS ON).

RDS features:

Once the RDS feature is on, press the MENU control to scroll through the following selections:

Traffic announcements

This feature allows you to hear traffic announcements while in CD mode. These announcements are broadcast by traffic capable RDS stations.

When in this mode, traffic announcements will interrupt radio and CD play.

• Press the MENU control until TRAFFIC is displayed.

• Press the SEL control to engage the feature. The display will read

TRAFFIC ON.

To disengage the feature, press the MENU control until TRAFFIC ON displays. Press the SEL control. The display will read TRAFFIC OFF.

Traffic announcements are not available in most U.S. markets.

Program type

This feature allows you to search for RDS stations selectively by their program type.

Press the MENU control until FIND program type is displayed.

Use the SEL control to select the program type. With the feature on, use the SEEK or SCAN control to find the desired program type from the following selections:

SEL

Entertainment Systems

• Classic

• Country

• Info

• Jazz

• Oldies

• R&B

• Religious

• Rock

• Soft

• Top 40

Show

This feature allows you to select the type of RDS broadcast information the radio will regularly show in the display.

With RDS activated, press the MENU control until SHOW is displayed.

Use the SEL control to select TYPE (displays the RDS program type: rock, jazz, etc), NAME (displays the name of the radio station) or NONE (deactivates the RDS display).

SEL

Digital signal processing

The digital signal processing (DSP) feature allows you to change the signal mode to suit your listening tastes.

Press the DSP control to access the DSP menu. Press the SEL control to enter one of the following modes:

DSP

SEL

• DSP OFF

• SIGNAL MODE

• OCCUPANCY MODE

Entertainment Systems

Use the SEL control to select the desired signal mode (the selected mode will appear in the display). The following signal modes can be selected:

• DSP OFF—disengages the feature

• NEWS—”voice-only” type of sound with a limited audio band

• JAZZ CLUB—jazz club with clearly reflected sounds

• HALL—rectangular concert hall capacity of about 2 000

• CHURCH—church with a high vault

• STADIUM—outdoor stadium with a capacity of about 30 000

Press the DSP control again to access the Occupancy Modes. Use the SEL control to optimize the sound based upon the occupants in the vehicle. The following occupancy modes can be selected:

• ALL SEATS — Optimizes the acoustic sound for all seating locations. Rear seat performance may be compromised in the interest of the front seats.

• DRIVER SEAT — Optimizes the acoustic sound for the driver. Rear seat and passenger seat performance may be compromised in favor of the driver.

• REAR SEATS- Optimizes the acoustic sound for the rear seat passengers and reduces the audio level in the front speakers. This enables the front seat passengers to speak while the rear seat passengers listen to the audio system.

SEL

Mute mode

Press the control to mute the playing media. Press the control again to return to the playing media.

Setting the clock

Press the MENU control until SELECT HOUR or SELECT MINUTE is displayed. (The menu mode must be engaged to enable clock mode).

Entertainment Systems

Use the SEL control to manually set the time.

• Press to increase hours/minutes.

• Press to decrease hours/minutes.

Press the MENU control again to disengage the clock mode.

TROUBLESHOOTING THE CD CHANGER (IF EQUIPPED)

The laser beam used in the compact disc player is harmful to the eyes. Do not attempt to disassemble the case.

If sound skips:

• You may be traveling on a rough road, playing badly scratched discs or the disc may be dirty. Skipping will not scratch the discs or damage the player.

If your changer does not work, it may be that:

• A disc is already loaded where you want to insert a disc.

• The disc is inserted with the label surface downward.

• The disc is dusty or defective.

• The player’s internal temperature is above 60°C (140°F). Allow the

player to cool down before operating.

• A disc with format and dimensions not within industry standards is inserted.

SEL

CLEANING COMPACT DISCS

Inspect all discs for contamination before playing. If necessary, clean discs only with an approved CD cleaner and wipe from the center out to the edge. Do not use circular motion.

CD AND CD CHANGER CARE

• Handle discs by their edges only. Never touch the playing surface.

• Do not expose discs to direct sunlight or heat sources for extended

periods of time.

• Do not insert more than one disc into each slot of the CD changer magazine.

CD units are designed to play commercially pressed 12 cm audio compact discs only. Due to technical incompatibility, certain

Entertainment Systems

recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent marker rather than adhesive labels. Please contact your dealer for further information.

RADIO FREQUENCY INFORMATION

The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission(CRTC) establish the frequencies AM and FM stations may use for their broadcasts. Allowable frequencies are:

AM 530, 540–1600, 1610 kHz FM 87.7, 87.9–107.7, 107.9 MHz Not all frequencies are used in a given area.

RADIO RECEPTION FACTORS

Three factors can affect radio reception:

• Distance/strength. The further an FM signal travels, the weaker it is. The listenable range of the average FM station is approximately 40 km (24 miles). This range can be affected by “signal modulation.” Signal modulation is a process radio stations use to increase their strength/volume relative to other stations.

• Terrain. Hills, mountains and tall buildings between your vehicle’s antenna and the radio station signal can cause FM reception problems. Static can be caused on AM stations by power lines, electric fences, traffic lights and thunderstorms. Moving away from an interfering structure (out of its “shadow”) returns your reception to normal.

• Station overload. Weak signals are sometimes captured by stronger signals when you pass a broadcast tower. A stronger signal may temporarily overtake a weaker signal and play while the weak station frequency is displayed.

The audio system automatically switches to single channel reception if it will improve the reception of a station normally received in stereo.

AUDIO SYSTEM WARRANTIES AND SERVICE

Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or a qualified technician.

Climate Controls

HEATER ONLY SYSTEM (IF EQUIPPED)

Fan speed control

Controls the volume of air circulated in the vehicle.

Temperature control knob

Controls the temperature of the airflow inside the vehicle. On heater-only systems, the air cannot be cooled below the outside temperature.

Mode selector control

Controls the direction of the airflow to the inside of the vehicle.

•

(Panel) – Distributes outside air through the instrument panel registers.

•

(Panel and floor) – Distributes outside air through the

instrument panel registers and the floor ducts.

• O (OFF) – Outside air is shut out and the fan will not operate. For short periods of time only, use this mode to prevent undesirable odors from entering the vehicle.

•

(Floor) – Allows for maximum heating. Distributes outside air

through the floor ducts.

• (Floor and defrost) – Distributes outside air through the floor ducts and the windshield defroster ducts.

• (Defrost) – Distributes outside air through the windshield defroster ducts. It can be used to clear ice or fog from the windshield.

Climate Controls

Operating tips

• In humid weather, place the climate control system in DEF before driving. This will reduce fogging on your windshield. Once the windshield has been cleared, select any desired position.

• To reduce humidity buildup inside the vehicle, do not drive with the climate control system in the OFF position.

• Under normal weather conditions, your vehicle’s climate control system should be left in any position other than OFF position when the vehicle is parked. This allows the vehicle to “breathe” through the outside air inlet duct.

• Under snowy or dirty weather conditions, your vehicle’s climate control system should be left in the OFF position when the vehicle is parked. This allows the climate control system to be free from contamination of outside pollutants.

• Do not place objects under the front seat which may interfere with the airflow to the rear seats.

• Remove any snow, ice, or leaves from the air intake area (at the base of the windshield and underneath the hood).

• Do not place objects over the defroster outlets. These objects may block airflow and reduce your visibility through the windshield. Avoid placing small objects on top of the instrument panel. These objects can fall into the defroster outlets and block airflow, in addition to, damaging your climate control system.

Do not place objects on top of the instrument panel, as these objects may become projectiles in instances of sudden impact or

a sudden stop.

MANUAL HEATING AND AIR CONDITIONING SYSTEM

Climate Controls

Fan speed control

Controls the volume of air circulated in the vehicle.

Temperature control knob

Controls the temperature of the airflow inside the vehicle.

Mode selector control

Controls the direction of the airflow to the inside of the vehicle.

The air conditioning compressor can operate in all modes except

, , and . However, the air conditioning will only

function if the outside temperature is about 6°C (43°F) or higher. Since the air conditioner removes considerable moisture from the air

during operation, it is normal if clear water drips on the ground under the air conditioner drain while the system is working and even after you have stopped the vehicle.

• MAX A/C- Uses recirculated air to cool the vehicle. MAX A/C is louder than A/C but more economical and will cool the inside of the vehicle faster. Airflow will be from the instrument panel registers. This mode can also be used to prevent undesirable odors from entering the vehicle.

• A/C-Uses outside air to cool the vehicle. It is quieter than MAX A/C but not as economical. Airflow will be from the instrument panel registers.

(Panel)-Distributes outside air through the instrument panel

•

registers. However, the air will not be cooled below the outside temperature because the air conditioning does not operate in this mode.

Climate Controls

• (Panel and floor)-Distributes outside air through the instrument panel registers and the floor ducts. Heating capabilities are provided in this mode. For added customer comfort, when the temperature control knob is anywhere in between the full hot and full cold positions, the air distributed through the floor ducts will be slightly warmer than the air sent to the instrument panel registers. However, the air will not be cooled below the outside temperature because the air conditioning does not operate in this mode.

• O (OFF)-Outside air is shut out and the fan will not operate. For short periods of time only, use this mode to prevent undesirable odors from entering the vehicle.

•

(Floor)-Allows for maximum heating by distributing outside air through the floor ducts. However, the air will not be cooled below the outside temperature because the air conditioning does not operate in this mode.

(Floor and defrost)-Distributes outside air through the windshield defroster ducts, the demister outlets, and the floor ducts. Heating and air conditioning capabilities are provided in this mode. For added customer comfort, when the temperature control knob is anywhere in between the full hot and full cold positions, the air distributed through the floor ducts will be slightly warmer than the air sent to the windshield defrost ducts. If the temperature is about 6°C (43°F) or higher, the air conditioner will automatically dehumidify the air to reduce fogging.

(Defrost)-Distributes outside air through the windshield defroster ducts and the demister outlets. It can be used to clear ice or fog from the windshield. If the temperature is about 6°C (43°F) or higher, the air conditioner will automatically dehumidify the air to reduce fogging.

Operating tips

• In humid weather conditions, place the climate control system in Defrost mode before driving. This will reduce fogging on your windshield. Once the windshield has been cleared, operate the climate control system as desired.

• To reduce humidity buildup inside the vehicle in cold weather conditions, don’t drive with the climate control system in the OFF or MAX A/C position.

Climate Controls

• To reduce humidity buildup inside the vehicle in warm weather conditions, don’t drive with the climate control system in the OFF position.

• Under normal weather conditions, your vehicle’s climate control system should be left in any position other than the MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” through the outside air inlet duct.

• If your vehicle has been parked with the windows closed during warm weather conditions, the air conditioner will perform more efficiently in cooling the vehicle if driven for two or three minutes with the windows open. This will force most of the hot, stale air out of the vehicle. Once the vehicle has been “aired out”, operate the climate control system as desired.

• Do not put objects under the front seat which may interfere with the airflow to the rear seats (if equipped).

• Remove any snow, ice or leaves from the air intake area (at the bottom of the windshield and underneath the hood).

• Do not place objects over the defroster outlets. These objects can block airflow and reduce visibility through your windshield. Avoid placing small objects on top of the instrument panel. These objects may fall down into the defroster outlets and block airflow, in addition to, damaging the climate control system.

To aid in side window defogging/demisting in cold weather conditions:

1. Select the position that distributes air through the Panel and Floor.

2. Set the temperature control to full heat.

3. Set the fan speed to full fan.

4. Direct the outer panel vents towards the side windows.

5. To increase airflow to the outer panel vents, close the central panel

vents.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

Climate Controls

REAR WINDOW DEFROSTER

The rear defroster control is located on the instrument panel.

Press the rear defroster control to clear the rear window of thin ice and fog.

• The small LED will illuminate when the rear defroster is activated.

The ignition must be in the ON position to operate the rear window defroster.

The heated rear screen does not turn off automatically. Press the control to turn it off after the screen has been cleared. If the heated rear screen is still in operation when the ignition is switched off, the heating function will be reactivated when the ignition is switched on again.

Lights

HEADLAMP CONTROL

Rotate the headlamp control to the first position to turn on the parking lamps. Rotate to the second position to also turn on the headlamps.

Your vehicle is equipped with a battery saver feature which, if you leave the headlamps on, automatically turns off the headlamps after 30 seconds when the ignition is in the OFF position.

Foglamp control (if equipped)

Turn on the low-beam headlamps. Press the foglamp control, located on the instrument panel, to activate the foglamps. The foglamp LED will illuminate when the foglamps are on. When the highbeams are activated, the foglamps will not operate.

Press the foglamp control to deactivate the foglamps.

Daytime running lamps (DRL) (if equipped)

Turns the headlamps on with a reduced output. To activate:

• the ignition must be in the ON position and

• the headlamp control is in the OFF or Parking lamps position.

OFF

Always remember to turn on your headlamps at dusk or during

inclement weather. The Daytime Running Lamp (DRL) system does not activate with your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

High beams

• Push forward past detent to activate.

• Pull toward you past detent to deactivate.

Flash to pass

Pull toward you slightly to activate and release to deactivate.

PANEL DIMMER CONTROL

Use to adjust the brightness of the instrument panel.

• Push and hold top of control to brighten.

Lights

OFF

• Push and hold bottom of control to dim.

Lights

AIMING THE HEADLAMPS

The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident the alignment of your headlamps

should be checked by a qualified service technician.

Vertical aim adjustment

1. Park the vehicle on a level surface approximately 7.6 meters (25 feet)

from a vertical wall or screen directly in front of it.

• (A) Eight feet

• (B) Center height of lamp to ground

• (C) Twenty five feet

• (D) Horizontal reference line

2. Measure the height from the center of your headlamp to the ground

and mark a 2.4 meter (8 foot) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well). The center of the lamp is marked by a 3.0 mm circle on the headlamp lens.

3. Turn on the low beam headlamps to illuminate the wall or screen and

open the hood. Cover the left-hand headlamp with an opaque cloth.

Lights

4. On the wall or screen you will

observe a light pattern with a distinct horizontal edge of high intensity light towards the right. If this edge is not at the horizontal reference line, the beam will need to be adjusted.

5. Locate the vertical adjuster on

the headlamp, then usea7mmhex socket or T20 Torx driver to turn the adjuster either counterclockwise (to adjust down) or clockwise (to adjust up) aligning the upper edge of the light pattern to the horizontal line.

6. Move the opaque cloth to cover the right-hand headlamp and repeat

steps 4 and 5 for the left-hand headlamp.

7. HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS

NON-ADJUSTABLE.

8. Close the hood and turn off the lamps.

TURN SIGNAL CONTROL

• Push down to activate the left turn signal.

• Push up to activate the right turn signal.

OFF

INTERIOR LAMPS Dome lamps and map lamps

The front dome lamp is located overhead between the driver and passenger seats.

The dome lamp will stay on if the control is moved to the passenger side position. When the control is in the middle position, the lamp will only come on when a door is opened. If the control is moved to the driver’s side position, the lamp will not come on at all.

Lights

With the control in the middle position, the dome lamp will illuminate whenever any door is opened. If any door has been opened from the outside, the lamp will remain on for 15 seconds after the door is shut.

The map lamp controls (without moon roof) are located on the dome lamp. Press the controls on either side of each map lamp to activate the lamps.

If equipped with a moon roof, the map lamps are located on the moon roof control panel. Press the controls on either side of each map lamp to activate the lamps.

This map lamp will illuminate whenever any door is opened. If any door has been opened from the outside, the lamp will remain on for 15 seconds after the door is closed.

Cargo and dome lamp

Rear cargo lamp equipped with an ON/OFF/DOOR control will light when:

• the doors are closed and the control is in the ON position.

• the control is in the DOOR position and any door is open.

• the headlamp control is rotated fully counterclockwise.

When the control is in the OFF position, it will not illuminate when you open the doors or fully rotate the headlamp control.

DOOR OFF ON

Lights

BULBS Replacing exterior bulbs

Check the operation of the following lamps frequently:

• Headlamps

• Foglamps

• High-mount brakelamp

• Brakelamps

• Parking lamps

• Turn signal lamps

• License plate lamp

• Tail lamps

• Back-up lamps

Do not remove lamp bulbs unless they can be replaced immediately with new ones. If a bulb is removed for an extended period of time, contaminants may enter the lamp housings and affect lamp performance.

Using the right bulbs

Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to assure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time.

Function Number of bulbs Trade number

Park/turn lamps (front) 2 3157 AK (amber) Headlamps 2 HB2 Rear stop/tail/sidemarker 2 3157K Rear turn lamps 2 3156K Backup lamp 2 3156K Foglamp (front) 2 898 Center High-mount stop lamp 5 168 Rear license plate lamp 2 W5W All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your dealer.

Lights

Replacing the interior bulbs

Check the operation of the following interior bulbs frequently:

• Interior overhead lamp

• Map lamp

For bulb replacement, see a dealer or qualified technician.

Replacing headlamp bulbs

1. Make sure that the headlamp control is in the OFF position.

2. Open the hood.

3. Press two tabs and disconnect the

electrical connector from the bulb.

4. Remove the rubber boot from the

lamp assembly by pulling on one of the tabs.

Lights

5. Press the retainer spring forward

and spread the spring releasing it from bulb hooks and rotate it away from the bulb.

6. Without turning, carefully pull

bulb out of headlamp assembly.

Handle a halogen headlamp

bulb carefully and keep out of children’s reach. Grasp the bulb only by its metal base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

Note: The bulb’s metal base gets very hot during headlamp operation. Be sure the bulb base is cool before handling.

If the bulb is accidentally touched, it should be cleaned with rubbing alcohol before being used.

7. Insert the glass end of the new bulb into the headlamp assembly. When the bulb’s three metal tabs are aligned with the grooves in the plastic base, push the bulb into the lamp assembly until the bulb’s metal base contacts the plastic base.

8. Rotate the retainer spring over the bulb metal base and secure it on the bulb hooks.

9. Install rubber boot on the lamp assembly. Be sure to press firmly around the perimeter of the boot and around the bulb to ensure the proper seal of the bulb.

Connect the electrical connector into the rear of the bulb until it “snaps.”

10.

Replacing brake/tail/turn/backup lamp bulbs

The brake/tail/turn/backup lamp bulbs are located in the tail lamp assembly, one just below the other. Follow the same steps to replace either bulb:

Lights

1. Open the liftgate to expose the lamp assemblies.

2. Remove the two screws from the lamp assembly.

3. Carefully remove the lamp assembly by pulling it rearward to disengage snap features on the outward side of the lamp.

4. Twist the bulb socket counterclockwise and remove from lamp assembly.

5. Pull the bulb straight out of the socket and push in the new bulb.

6. To complete installation, follow the removal procedure in reverse order.

Replacing license plate lamp bulbs

1. Pry the license plate lamp assembly (located above the license plate) from the liftgate.

2. Remove bulb socket from lamp assembly by turning counterclockwise.

3. Pull the bulb out from the socket and push in the new bulb.

4. Install the bulb socket in lamp assembly turning it clockwise,

5. To install, press the lamp assembly in to liftgate.

Replacing high-mount brake lamp bulbs

To remove the lamp assembly:

1. Remove the two screws and move the lamp assembly away from the liftgate.

2. Remove the bulb holder from the lamp assembly by depressing the snaps.

3. Pull the bulb straight out of the socket and push in the new bulb.

To complete installation, follow the removal procedure in reverse order.

Lights

Replacing front parking lamp/turn signal bulbs

For bulb replacement, see a dealer or qualified technician.

Replacing foglamp bulbs

For bulb replacement, see a dealer or qualified technician.

Driver Controls

WINDSHIELD WIPER AND WASHER

For intermittent operation, move control down one position.

Adjust the rotary control to the desired speed setting.

For normal or low speed wiper operation, move control down two positions from OFF.

For high speed wiper operation, move control down three positions from OFF.

Driver Controls

To activate the windshield washer, pull control toward you. Release control to stop washer fluid spray.

MIST FUNCTION

Move control up and release for one wipe.

Checking the wiper blades

If the wiper blades do not wipe properly, clean both the windshield and wiper blades using undiluted windshield wiper solution or a mild detergent. Rinse thoroughly with clean water. To avoid damaging the blades, do not use fuel, kerosene, paint thinner or other solvents.

Windshield wiper blades

Check the wiper blades for wear at least twice a year or when they seem less effective. Substances such as tree sap and some hot wax treatments used by commercial car washes reduce the effectiveness of wiper blades.

Driver Controls

Changing the wiper blades

To replace the wiper blades:

1. Pull the wiper arm away from the windshield and lock into the service position.

2. Turn the blade at an angle from the wiper arm. Push the lock pin manually to release the blade and pull the wiper blade down toward the windshield to remove it from the arm.

3. Attach the new wiper to the wiper arm and press it into place until a click is heard.

Rear window wiper/washer controls

For intermittent operation of rear wiper, rotate end of control upward to the INT position.

For normal speed rear wiper operation, rotate control upward to ON.

Driver Controls

To activate the rear washer, rotate the control to the release.

Rear window wiper blades

Refer to Windshield wiper blades in this section for more information on rear wiper blades.

MANUAL TILT STEERING COLUMN (IF EQUIPPED)

Push the tilt steering wheel lever downward to move the steering wheel up or down. Pull the control up into the original position to lock the steering wheel in position.

position and

Never adjust the steering wheel when the vehicle is moving.

Driver Controls

OVERHEAD CONSOLE (IF EQUIPPED)

The appearance of your vehicle’s overhead console will vary according to your option package.

Storage compartment (if equipped)

Press the OPEN control to open the storage compartment. The door will open slightly and can be moved to full open.

The storage compartment may be used to secure sunglasses or a similar object.

Installing a garage door opener (if equipped)

The storage compartment can be converted to accommodate a variety of aftermarket garage door openers:

• Remove the Velcro pad from the storage compartment door.

• Place Velcro on aftermarket transmitter opposite of actuator control.

• Install the transmitter on to storage compartment door aligning the actuator control with the rubber plunger.

• Close the door and press the storage compartment door to activate the transmitter.

Driver Controls

AUXILIARY POWER POINT

Power outlets are designed for accessory plugs only. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty.

The auxiliary power point is located on the instrument panel.

Do not plug optional electrical accessories into the cigarette lighter. Use the power point.

An additional auxiliary power point is located in the cargo area (if equipped).

POWER WINDOWS (IF EQUIPPED)

Press and hold the rocker switches to open and close windows. NOTE: The window switches will not illuminate when the window lock

control is in the LOCKED position.

Driver Controls

• Press the top portion of the rocker switch to close.

• Press the bottom portion of the rocker switch to open.

One touch down

• Press AUTO completely down to the second detent. The driver’s window will open fully. Depress up to stop window operation.

Driver Controls

Window lock (if equipped)

The window lock feature disables all the power windows except the drivers.

To lock out all the window controls except for the driver’s press the right side of the control.

NOTE: The window switches will not illuminate when the window control is in the LOCKED position.

Press the left side to restore the window controls.

POWER SIDE VIEW MIRRORS (IF EQUIPPED)

The ignition must be in the ACC or ON position to adjust the power side view mirrors.

To adjust your mirrors:

1. Rotate the control clockwise to

adjust the right mirror and rotate the control counterclockwise to adjust the left mirror.

2. Move the control in the direction

you wish to tilt the mirror.

3. Return to the center position to lock mirrors in place.

Driver Controls

Fold-away mirrors

Pull the side mirrors in carefully when driving through a narrow space, like an automatic car wash.

SPEED CONTROL (IF EQUIPPED) To turn speed control on

• Press ON.

Vehicle speed cannot be controlled until the vehicle is traveling at or above 48 km/h (30 mph).

Do not shift the gearshift lever into N (Neutral) with the speed control on.

Do not use the speed control in heavy traffic or on roads that are winding, slippery, or unpaved.

OFF

To turn speed control off

• Press OFF or

• Turn off the vehicle ignition.

Once speed control is switched off, the previously programmed set speed will be erased.

OFF

Driver Controls

To set a speed

• Press SET ACC. For speed control to operate, the speed control must be ON and the vehicle speed must be greater than 48 km/h (30 mph).

If you drive up or down a steep hill, your vehicle speed may vary momentarily slower or faster than the set speed. This is normal.

Speed control cannot reduce the vehicle speed if it increases above the set speed on a downhill. If your vehicle speed is faster than the set speed while driving on a downhill, you may want to shift to the next lower gear or apply the brakes to reduce your vehicle speed.

If your vehicle slows down more than 16 km/h (10 mph) below your set speed on an uphill, your speed control will disengage. This is normal. Pressing RSM will re-engage it.

Do not use the speed control in heavy traffic or on roads that are winding, slippery, or unpaved.

To set a higher set speed

• Press and hold SET ACC. Release the control when the desired vehicle speed is reached or

• Press and release SET ACC to operate the Tap-Up function. Each press will increase the set speed by 1.6 km/h (1 mph) or

• Accelerate with your accelerator pedal. When the desired vehicle speed is reached, press and release SET ACC.

You can accelerate with the accelerator pedal at any time during speed control usage. Releasing the accelerator pedal will return your vehicle to the previously programmed set speed.

RSM

CST

SET ACC

Driver Controls

To set a lower set speed

• Press and hold CST. Release the control when the desired speed is reached or

• Press and release CST to operate the Tap-Down function. Each press will decrease the set speed by 1.6 km/h (1 mph) or

• Depress the brake pedal. When the desired vehicle speed is reached, press SET ACC.

To disengage speed control

• Depress the brake pedal or

RSM

CST

SET

ACC

SET

ACC

• Depress the clutch pedal (if equipped).

Disengaging the speed control will not erase the previously programmed set speed.

Driver Controls

Pressing OFF will erase the previously programmed set speed.

To return to a previously set speed

• Press RSM. For RSM to operate, the vehicle speed must be faster than 48 km/h (30 mph).

CENTER CONSOLE

Your vehicle may be equipped with a variety of console features. These include:

• Utility compartment

• Cupholders

• Ashcup

RSM

OFF

CST

SET

ACC

Use only soft cups in the cupholder. Hard objects can injure you in a collision.

MOON ROOF (IF EQUIPPED)

To operate the moon roof:

• The moon roof is equipped with an automatic, one-touch, express opening feature. Press and release the rear portion of the control. To stop motion at any time during the one-touch opening, press the control a second time.

Driver Controls

• To close, press and hold the front portion of the control.

To operate the moon roof vent position:

• To open, press and hold the front portion of the control. This will open the vent.

• To close, press and hold the rear portion of the control.

If the battery is disconnected, discharged, or a new battery is installed, the moon roof needs to be opened to the vent position to reset the moon roof positions.

If you open and close the moon roof repeatedly, the moon roof motor may overheat and shut down for 45 seconds while the motor cools.

Do not let children play with the moon roof. They may seriously injure themselves.

LIFTGATE

To open the rear window, pull the right side of the liftgate handle.

To open the liftgate, pull the left side of the liftgate handle.

• Do not open the liftgate or liftgate glass in a garage or other enclosed area with a low ceiling. If the liftgate glass is raised and the liftgate is also opened, both liftgate and glass could be damaged against a low ceiling.

• Do not leave the liftgate or liftgate glass open while driving. Doing so could cause serious damage to the liftgate and its components as well as allowing carbon monoxide to enter the vehicle.

Make sure that the liftgate door and/or window are closed to

prevent exhaust fumes from being drawn into the vehicle. This will also prevent passengers and cargo from falling out. If you must drive with the liftgate door or window open, keep the vents open so outside air comes into the vehicle.

Driver Controls

CARGO AREA FEATURES Cargo cover (if equipped)

Your vehicle may be equipped with a cargo area shade that covers the luggage compartment of your vehicle.

To install the shade:

1. Fasten the cover into the mounting brackets (make sure the cover is right side up).

2. Pull the end of the shade toward you and hook the sides into the notches (right side first) in the rear trim panels.

To reduce the risk of

injuries, the fasteners for cargo area cover must be properly attached to the mounting clips on the rear trim panels.

Do not place any objects on the cargo area cover. They may

obstruct your vision or strike occupants of the vehicle in the case of a sudden stop or collision.

The cover may cause injury in a sudden stop or accident if it is

not securely installed.

Driver Controls

LUGGAGE RACK

Your vehicle is equipped with a roof rack. The maximum load for the roof rack is 44 kg (100 lbs), evenly distributed on the crossbars. If it is not possible to evenly distribute the load, position it in the center or as far forward on the crossbars as possible. Always use the adjustable tie down loops to secure the load.

To adjust the cross-bar position:

1. Loosen the thumbwheel at both ends of the cross-bar (both cross-bars are adjustable).

2. Slide the cross-bar to the desired location.

3. Tighten the thumbwheel at both ends of the cross-bar.

To remove the cross-bar assembly from the roof rack side rails:

1. Loosen the thumbwheel at both ends of the cross-bar (both cross-bars are adjustable).

Driver Controls

2. Slide the cross-bar to the end of the rail.

3. Use a long, flat object in order to depress the tongue in the endcaps on both sides of the cross-bar.

4. Slide the cross-bar assembly and the tie down loop off the end of the rail.

To reinstall the cross-bar assembly to the roof rack side rails:

1. Ensure that both cross-bar assemblies are installed with the F (front) arrow facing towards the front of the vehicle.

Driver Controls

2. Use a long, flat object to depress the tongue in the endcaps on both sides of the cross-bar.

3. Slide the tie down loops and the cross-bar assemblies over the end cap tongue and into the side rails.

4. Tighten thumbwheel at both ends of the cross-bar.

NO BOUNDARIES RACK SYSTEM (IF EQUIPPED)

Your vehicle may be equipped with an optional roof rack. This unique feature allows you to carry cargo on an inner roof rack as well as on the conventional roof rack. The maximum load for the conventional roof rack is 45 kg (100 lbs). The inner rack can also hold 45 kg (100 lbs) if in the down and locked position. Distribute the loads as evenly as possible on both the roof and inner rack, when extended or stowed. Always secure the loads by using the tie down loops.

To extend the rack:

1. Rotate the handle on the lift bar of the inner rack in the direction of the arrows on the handle.

2. Lift the bar straight up (about two inches).

3. Pull the inner rack towards you until it completely extends and stops.

Driver Controls

4. Lower the inner rack by pivoting at the hinges of the rack.

Do not pivot the inner rack

downward until it has been completely extended. Failure to fully extend the inner rack could result in improper positioning of the rack and possible damage to your vehicle.

5. Insert the feet into the receivers on the bumper. Push the rack into the bumper until the feet click into place.

6. Figure shows foot (A) clicked

into place correctly.

7. With the locking tab (B) exposed on the foot, this figure shows the rack is not installed correctly. Repeat steps 3 through 5 and secure the rack before loading cargo.

Do not drive the vehicle if the inner roof rack is extended and

loaded with cargo but is not secured into the receivers. This can cause dangerous driving conditions.

Driver Controls

Do not attempt to move or store the inner rack when loaded.

This can cause personal injury and damage to your vehicle that may not be covered by warranty.

Do not use the inner rack as a ladder. This could result in

personal injury and damage to your roof rack.

Driver Controls

To stow the inner rack:

1. Rotate the handle on the lift bar of the inner rack in the direction of the arrows on the handle and pull the inner rack away from the bumper.

2. Lift the inner rack (pivoting at the hinges).

Driver Controls

3. Continue lifting the inner rack until it is parallel with the roof.

4. Slide the rack forward onto the roof.

5. Lift the feet over the side rails and lock them into place.

6. Ensure both feet are locked and secured into place.

Driver Controls

To adjust the cross-bar assembly on the inner rack:

1. Loosen the screws on the cross-bar with a T-30 Torx driver.

2. Move the cross-bar to the desired location, keeping the cross-bar parallel with the upper bar.

3. Tighten the screws with the T–30 Torx driver.

4. Ensure that the cross-bar is tightened and secured into place before attempting to load cargo.

Loading cargo:

Only load cargo in the approved area (1) shown above. Do not load cargo outside of the designated area (2). Distribute the load as evenly as possible. Always use tie downs to secure the load.

Always stow the inner rack on the roof when using an automated car wash.

Do not attempt to open the liftgate or rear window when the rack is in the down position. This may damage the rack or your vehicle.

100

Ford ESCAPE-2002 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Introduction

Instrument Cluster

Entertainment Systems

Climate Controls

Lights

Driver Controls
