Ford Edge 1 2015 Owner's Manual

Download

Page 1

fordowner.com ford.ca

2015 EDGE Owner’s Manual

December 2014

First Printing

Owner’s Manual

Edge

Litho in U.S.A.

FT4J 19A321 AA

Page 2

The information contained in this publication was correct at the time of going to print. In the interest of continuous development, we reserve the right to change specifications, design or equipment at any time without notice or obligation. No part of this publication may be reproduced, transmitted, stored in a retrieval system or translated into any language in any form by any means without our written permission. Errors and omissions excepted.

Part Number: 20141125202446

Page 3

Page 4

Introduction

About This Manual...........................................7

Symbols Glossary.............................................7

Data Recording..................................................9

California Proposition 65..............................11

Perchlorate.........................................................11

Ford Credit..........................................................11

Replacement Parts

Recommendation........................................11

Special Notices................................................12

Mobile Communications

Equipment.....................................................12

Export Unique Options..................................13

Environment

Protecting the Environment........................14

Child Safety

General Information.......................................15

Installing Child Seats.....................................16

Booster Seats..................................................24

Child Seat Positioning..................................26

Child Safety Locks..........................................27

Safety Belts

Principle of Operation..................................29

Fastening the Safety Belts.........................30

Safety Belt Height Adjustment.................34

Safety Belt Warning Lamp and Indicator

Chime.............................................................34

Safety Belt Minder.........................................35

Child Restraint and Safety Belt

Maintenance................................................36

Personal Safety System™

Personal Safety System™..........................37

Supplementary Restraints

System

Principle of Operation..................................38

Driver and Passenger Airbags...................39

Front Passenger Sensing System............40

Side Airbags.....................................................42

Driver and Passenger Knee Airbags........43

Safety Canopy™............................................44

Crash Sensors and Airbag Indicator.......45

Airbag Disposal..............................................46

Keys and Remote Controls

General Information on Radio

Frequencies..................................................47

Remote Control...............................................47

Replacing a Lost Key or Remote

Control...........................................................53

MyKey™

Principle of Operation..................................54

Creating a MyKey............................................55

Clearing All MyKeys.......................................55

Checking MyKey System Status...............57

Using MyKey With Remote Start

Systems.........................................................58

MyKey Troubleshooting...............................58

Locks

Locking and Unlocking................................60

Manual Liftgate..............................................64

Power Liftgate.................................................65

Keyless Entry...................................................68

Security

Passive Anti-Theft System..........................71

Anti-Theft Alarm............................................73

Steering Wheel

Adjusting the Steering Wheel - Vehicles

With: Manual Adjustable Steering

Column...........................................................74

Adjusting the Steering Wheel - Vehicles

With: Power Adjustable Steering

Column...........................................................74

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Table of Contents

Page 5

Audio Control...................................................75

Audio Control...................................................76

Voice Control....................................................76

Cruise Control..................................................76

Information Display Control........................77

Heated Steering Wheel................................77

Wipers and Washers

Windshield Wipers.........................................78

Autowipers........................................................78

Windshield Washers.....................................79

Rear Window Wiper and Washers..........80

Lighting

General Information.......................................81

Lighting Control...............................................81

Autolamps........................................................82

Instrument Lighting Dimmer.....................83

Headlamp Exit Delay....................................83

Daytime Running Lamps.............................83

Automatic High Beam Control.................84

Direction Indicators.......................................85

Interior Lamps.................................................85

Ambient Lighting............................................87

Windows and Mirrors

Power Windows.............................................88

Global Opening..............................................88

Exterior Mirrors................................................89

Interior Mirror...................................................90

Sun Visors..........................................................91

Moonroof............................................................91

Instrument Cluster

Gauges...............................................................93

Warning Lamps and Indicators................95

Audible Warnings and Indicators.............98

Information Displays

General Information...................................100

Information Messages...............................109

Climate Control

Manual Climate Control - Vehicles With:

Electronic Manual Temperature

Control (EMTC).........................................124

Automatic Climate Control - Vehicles

With: Dual Automatic Temperature

Control (DATC).........................................126

Automatic Climate Control - Vehicles

With: Dual Automatic Temperature Control (DATC)/Sony Audio

System..........................................................127

Hints on Controlling the Interior

Climate.........................................................129

Heated Windows and Mirrors...................131

Cabin Air Filter.................................................131

Remote Start...................................................131

Seats

Sitting in the Correct Position..................133

Head Restraints.............................................133

Manual Seats.................................................135

Power Seats....................................................135

Memory Function..........................................137

Rear Seats.......................................................139

Heated Seats.................................................140

Climate Controlled Seats...........................141

Rear Seat Armrest........................................142

Universal Garage Door

Opener

Universal Garage Door Opener...............143

Auxiliary Power Points

Auxiliary Power Points................................147

Storage Compartments

Center Console..............................................149

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Table of Contents

Page 6

Overhead Console.......................................149

Starting and Stopping the

Engine

General Information....................................150

Ignition Switch...............................................150

Keyless Starting - Vehicles With: Push

Button Start...............................................150

Starting a Gasoline Engine.........................151

Engine Block Heater....................................154

Unique Driving Character-

istics

Auto-Start-Stop...........................................156

Fuel and Refueling

Safety Precautions......................................158

Fuel Quality....................................................159

Fuel Filler Funnel Location........................159

Running Out of Fuel....................................159

Refueling.........................................................160

Fuel Consumption........................................162

Emission Control System..........................163

Transmission

Automatic Transmission...........................166

All-Wheel Drive

Using All-Wheel Drive.................................170

Brakes

General Information.....................................175

Hints on Driving With Anti-Lock

Brakes............................................................175

Electric Parking Brake.................................176

Hill Start Assist..............................................178

Traction Control

Principle of Operation................................180

Using Traction Control...............................180

Stability Control

Principle of Operation..................................181

Using Stability Control................................182

Parking Aids

Principle of Operation.................................183

Rear Parking Aid............................................183

Front Parking Aid..........................................184

Side Sensing System..................................185

Active Park Assist.........................................187

Rear View Camera.......................................193

Cruise Control

Principle of Operation................................196

Using Cruise Control...................................196

Using Adaptive Cruise Control.................197

Driving Aids

Driver Alert.....................................................203

Lane Keeping System................................204

Blind Spot Information System.............208

Steering.............................................................212

Collision Warning System..........................212

Front View Camera......................................214

Drive Control...................................................215

Load Carrying

Rear Under Floor Storage...........................217

Cargo Nets.......................................................217

Roof Racks and Load Carriers..................217

Load Limit........................................................218

Towing

Towing a Trailer............................................226

Trailer Sway Control....................................227

Recommended Towing Weights............227

Essential Towing Checks..........................229

Transporting the Vehicle............................231

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Table of Contents

Page 7

Towing the Vehicle on Four Wheels -

6-Speed Automatic Transmission -

6F35...............................................................231

Towing the Vehicle on Four Wheels -

6-Speed Automatic Transmission -

6F50/6F55.................................................232

Driving Hints

Breaking-In.....................................................234

Economical Driving.....................................234

Cold Weather Precautions.......................234

Driving Through Water...............................234

Floor Mats.......................................................235

Roadside Emergencies

Roadside Assistance...................................237

Hazard Warning Flashers.........................238

Fuel Shutoff...................................................238

Jump Starting the Vehicle........................239

Post-Crash Alert System...........................241

Customer Assistance

Getting the Services You Need...............242

In California (U.S. Only).............................243

The Better Business Bureau (BBB) Auto

Line Program (U.S. Only).....................244

Utilizing the Mediation/Arbitration

Program (Canada Only).......................244

Getting Assistance Outside the U.S. and

Canada........................................................245

Ordering Additional Owner's

Literature....................................................246

Reporting Safety Defects (U.S.

Only)............................................................246

Reporting Safety Defects (Canada

Only).............................................................247

Fuses

Fuse Specification Chart..........................248

Changing a Fuse...........................................257

Maintenance

General Information...................................258

Opening and Closing the Hood..............258

Under Hood Overview - 2.0L

EcoBoost™................................................259

Under Hood Overview - 2.7L

EcoBoost™...............................................260

Under Hood Overview - 3.5L....................261

Engine Oil Dipstick - 2.0L

EcoBoost™................................................262

Engine Oil Dipstick - 2.7L EcoBoost™/

3.5L...............................................................262

Engine Oil Check..........................................262

Oil Change Indicator Reset......................263

Engine Coolant Check...............................263

Automatic Transmission Fluid Check -

2.0L EcoBoost™......................................266

Automatic Transmission Fluid Check -

2.7L EcoBoost™/3.5L............................267

Brake Fluid Check........................................268

Power Steering Fluid Check....................269

Washer Fluid Check....................................269

Fuel Filter........................................................269

Changing the 12V Battery.........................269

Checking the Wiper Blades.......................271

Changing the Wiper Blades.......................271

Adjusting the Headlamps.........................272

Removing a Headlamp..............................274

Changing a Bulb...........................................274

Bulb Specification Chart...........................276

Changing the Engine Air Filter.................278

Vehicle Care

General Information...................................279

Cleaning Products.......................................279

Cleaning the Exterior..................................279

Waxing............................................................280

Cleaning the Engine...................................280

Cleaning the Windows and Wiper

Blades...........................................................281

Cleaning the Interior....................................281

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Table of Contents

Page 8

Cleaning the Instrument Panel and

Instrument Cluster Lens........................281

Cleaning Leather Seats.............................282

Repairing Minor Paint Damage..............283

Cleaning the Alloy Wheels.......................283

Vehicle Storage............................................283

Wheels and Tires

General Information...................................286

Temporary Mobility Kit..............................288

Tire Care..........................................................294

Using Summer Tires.....................................311

Using Snow Chains.......................................311

Tire Pressure Monitoring System............312

Changing a Road Wheel............................315

Technical Specifications............................319

Capacities and Specific-

ations

Engine Specifications - 2.0L

EcoBoost™.................................................321

Engine Specifications - 2.7L

EcoBoost™.................................................321

Engine Specifications - 3.5L....................322

Motorcraft Parts - 2.0L EcoBoost™......323

Motorcraft Parts - 2.7L EcoBoost™......324

Motorcraft Parts - 3.5L..............................325

Vehicle Identification Number................326

Vehicle Certification Label.......................326

Transmission Code Designation.............327

Capacities and Specifications - 2.0L

EcoBoost™................................................328

Capacities and Specifications - 2.7L

EcoBoost™.................................................331

Capacities and Specifications - 3.5L....335

Audio System

General Information...................................339

Audio Unit - Vehicles With: AM/FM/CD/

SYNC...........................................................340

Audio Unit - Vehicles With: Premium AM/

FM/CD.........................................................343

Audio Unit - Vehicles With: Sony AM/FM/

CD..................................................................344

Digital Radio..................................................347

Satellite Radio..............................................349

Audio Input Jack...........................................352

USB Port..........................................................352

Media Hub......................................................353

SYNC™

General Information...................................354

Using Voice Recognition...........................356

Using SYNC™ With Your Phone............358

SYNC™ Applications and Services......368

Using SYNC™ With Your Media

Player............................................................372

SYNC™ Troubleshooting..........................379

MyFord Touch™

General Information...................................388

Settings...........................................................397

Entertainment..............................................407

Phone...............................................................424

Information....................................................430

Climate............................................................439

Navigation......................................................442

Accessories

Accessories.....................................................451

Extended Service Plan

(ESP)

Extended Service Plan (ESP).................453

Scheduled Maintenance

General Maintenance Information.......455

Normal Scheduled Maintenance..........458

Special Operating Conditions Scheduled

Maintenance..............................................461

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Table of Contents

Page 9

Scheduled Maintenance Record...........463

Appendices

End User License Agreement...................471

Type Approvals............................................492

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Table of Contents

Page 10

ABOUT THIS MANUAL

Thank you for choosing Ford. We recommend that you take some time to get to know your vehicle by reading this manual. The more that you know about it, the greater the safety and pleasure you will get from driving it.

WARNING

Driving while distracted can result in loss of vehicle control, crash and

injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any hand-held device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving.

Note: This manual describes product features and options available throughout the range of available models, sometimes even before they are generally available. It may describe options not fitted to the vehicle you have purchased.

Note: Some of the illustrations in this manual may show features as used in different models, so may appear different to you on your vehicle.

Note: Always use and operate your vehicle in line with all applicable laws and regulations.

Note: Pass on this manual when selling your vehicle. It is an integral part of your vehicle.

This manual may qualify the location of a component as left-hand side or right-hand side. The side is determined when facing forward in the seat.

E154903

Right-hand side.A Left-hand side.B

SYMBOLS GLOSSARY

These are some of the symbols you may see on your vehicle.

Safety alert

See Owner's Manual

Air conditioning system

Anti-lock braking system

Avoid smoking, flames or sparks

Battery

Battery acid

Brake fluid - non petroleum based

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Introduction

Page 11

Brake system

Cabin air filter

Check fuel cap

Child safety door lock or unlock

Child seat lower anchor

Child seat tether anchor

E71340

Cruise control

Do not open when hot

Engine air filter

Engine coolant

Engine coolant temperature

Engine oil

Explosive gas

Fan warning

Fasten safety belt

Front airbag

Front fog lamps

Fuel pump reset

Fuse compartment

Hazard warning flashers

Heated rear window

Heated windshield

Interior luggage compartment release

Jack

Keep out of reach of children

Lighting control

Low tire pressure warning

Maintain correct fluid level

Note operating instructions

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Introduction

Page 12

Panic alarm

E139213

Parking aid

Parking brake

Power steering fluid

Power windows front/rear

Power window lockout

Service engine soon

Side airbag

Shield the eyes

E138639

Stability control

Windshield wash and wipe

DATA RECORDING

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake

systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them vehicle diagnostic information received through a direct connection to your vehicle when diagnosing or servicing your vehicle. Additionally, when your vehicle is in for service or repair, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them data for vehicle improvement purposes. For U.S. only (if equipped), if you choose to use the SYNC Vehicle Health Report, you consent that certain diagnostic information may also be accessed electronically by Ford Motor Company and Ford authorized service facilities, and that the diagnostic information may be used for any purpose. See SYNC™ (page 354).

Event Data Recording

This vehicle is equipped with an event data recorder. The main purpose of an event data recorder is to record, in certain crash or near crash-like situations, such as an airbag deployment or hitting a road obstacle; this data will assist in understanding how a vehicle’s systems performed. The event data recorder is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less.

The event data recorder in this vehicle is designed to record such data as:

• How various systems in your vehicle were operating;

• Whether or not the driver and passenger safety belts were buckled/fastened;

• How far (if at all) the driver was depressing the accelerator and/or the brake pedal; and

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Introduction

Page 13

• How fast the vehicle was traveling; and

• Where the driver was positioning the steering wheel.

This data can help provide a better understanding of the circumstances in which crashes and injuries occur.

Note: Event data recorder data is

recorded by your vehicle only if a non-trivial crash situation occurs; no data is recorded by the event data recorder under normal driving conditions and no personal data or information (e.g., name, gender, age, and crash location) is recorded (see limitations regarding 911 Assist and Traffic, directions and Information privacy below). However, parties, such as law enforcement, could combine the event data recorder data with the type of personally identifying data routinely acquired during a crash investigation.

To read data recorded by an event data recorder, special equipment is required, and access to the vehicle or the event data recorder is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have such special equipment, can read the information if they have access to the vehicle or the event data recorder. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

Note: Including to the extent that any

law pertaining to Event Data Recorders applies to SYNC or its features, please note the following: Once 911 Assist (if equipped) is enabled (set ON), 911 Assist may, through any paired and connected cell phone, disclose to emergency services that the vehicle has been in a crash involving the deployment of an airbag or, in certain vehicles, the activation of the fuel pump shut-off. Certain versions or updates to 911 Assist may also be capable of being used to electronically or verbally provide to 911 operators the vehicle location (such as latitude and longitude), and/or other details about the vehicle or crash or personal information about the occupants to assist 911 operators to provide the most appropriate emergency services. If you do not want to disclose this information, do not activate the 911 Assist feature. See SYNC™ (page 354).

Additionally, when you connect to Traffic, Directions and Information (if equipped, U.S. only), the service uses GPS technology and advanced vehicle sensors to collect the vehicle’s current location, travel direction, and speed (“vehicle travel information”), only to help provide you with the directions, traffic reports, or business searches that you request. If you do not want Ford or its vendors to receive this information, do not activate the service. For more information, see Traffic, Directions and Information, Terms and Conditions. See SYNC™

(page 354).

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Introduction

Page 14

CALIFORNIA PROPOSITION 65

WARNING

Some constituents of engine exhaust, certain vehicle components,

certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

PERCHLORATE

Certain components in your vehicle such as airbag modules, safety belt pretensioners and remote control batteries may contain perchlorate material. Special handling may apply for service or vehicle end of life disposal.

For more information visit:

Web Address

www.dtsc.ca.gov/hazardouswaste/

perchlorate

FORD CREDIT

(U.S. Only)

Ford Credit offers a full range of financing and lease plans to help you acquire your vehicle. If you have financed or leased your vehicle through Ford Credit, thank you for your business.

For your convenience we offer a number of ways to contact us, as well as to help manage your account.

Phone: 1-800-727-7000 For more information regarding Ford Credit,

as well as to access Account Manager, please go to www.fordcredit.com.

REPLACEMENT PARTS RECOMMENDATION

Your vehicle has been built to the highest standards using quality parts. We recommend that you demand the use of genuine Ford and Motorcraft parts whenever your vehicle requires scheduled maintenance or repair. You can clearly identify genuine Ford and Motorcraft parts by looking for the Ford, FoMoCo or Motorcraft branding on the parts or their packaging.

Scheduled Maintenance and Mechanical Repairs

One of the best ways for you to make sure that your vehicle provides years of service is to have it maintained in line with our recommendations using parts that conform to the specifications detailed in this Owner’s Manual. Genuine Ford and Motorcraft parts meet or exceed these specifications.

Collision Repairs

We hope that you never experience a collision, but accidents do happen. Genuine Ford replacement collision parts meet our stringent requirements for fit, finish, structural integrity, corrosion protection and dent resistance. During vehicle development we validate these parts deliver the intended level of protection as a whole system. A great way to know for sure you are getting this level of protection is to use genuine Ford replacement collision parts.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Introduction

Page 15

Warranty on Replacement Parts

Genuine Ford and Motorcraft replacement parts are the only replacement parts that benefit from a Ford Warranty. Damage caused to your vehicle as a result of the failure of non-Ford parts may not be covered by the Ford Warranty. For additional information, refer to the terms and conditions of the Ford Warranty.

SPECIAL NOTICES

New Vehicle Limited Warranty

For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Manual that is provided to you along with your Owner’s Manual.

Special Instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

WARNINGS

You risk death or serious injury to yourself and others if you do not

follow the instruction highlighted by the warning symbol. Failure to follow the specific warnings and instructions could result in personal injury.

Front seat mounted rear-facing child

or infant seats should NEVER be

placed in front of an active passenger airbag.

On-board Diagnostics (OBD-II)

Your vehicle’s On-board Diagnostics (OBD-II) system has a data port for diagnostics, repair and reprogramming services with diagnostic scan tools. Installing a non-Ford-approved aftermarket OBD plug-in device that uses the port during normal driving, for example

remote insurance company monitoring, remote vehicle diagnostics, telematics or engine reprogramming, may cause interference or damage to vehicle systems. We do not recommend or endorse the use of any non-Ford-approved aftermarket OBD plug-in devices. The vehicle Warranty may not cover damage caused by any non-Ford-approved aftermarket OBD plug-in device.

MOBILE COMMUNICATIONS EQUIPMENT

Using mobile communications equipment is becoming increasingly important in the conduct of business and personal affairs. However, you must not compromise your own or others’ safety when using such equipment. Mobile communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile communication equipment includes, but is not limited to, cellular phones, pagers, portable email devices, text messaging devices and portable two-way radios.

WARNING

Driving while distracted can result in loss of vehicle control, crash and

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Introduction

Page 16

EXPORT UNIQUE OPTIONS

For your particular global region, your vehicle may be equipped with features and options that are different from the features and options that are described in this Owner’s Manual. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Manual is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s

Manual for all other required information and warnings.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Introduction

Page 17

PROTECTING THE ENVIRONMENT

You must play your part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps toward this aim.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Environment

Page 18

GENERAL INFORMATION

See the following sections for directions on how to properly use safety restraints for children.

WARNINGS

Always make sure your child is secured properly in a device that is

appropriate for their height, age and weight. Child safety restraints must be bought separately from your vehicle. Failure to follow these instructions and guidelines may result in an increased risk of serious injury or death to your child.

All children are shaped differently.

The recommendations for safety

restraints are based on probable child height, age and weight thresholds from National Highway Traffic Safety Administration and other safety organizations, or are the minimum requirements of law. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) and consult your pediatrician to make sure your child seat is appropriate for your child, and

WARNINGS

is compatible with and properly installed in your vehicle. To locate a child seat fitting station and CPST, contact the NHTSA toll free at 1-888-327-4236 or go to http://www.nhtsa.dot.gov. In Canada, check with your local St. John Ambulance office for referral to a CPST or for further information, contact your provincial ministry of transportation, locate your local St. John Ambulance office by searching for St. John Ambulance on the internet, or Transport Canada at 1-800-333-0371 (http://www.tc.gc.ca). Failure to properly restrain children in safety seats made especially for their height, age, and weight may result in an increased risk of serious injury or death to your child.

Do not leave children or animals unattended in the vehicle. On hot

days, the temperature in the trunk or vehicle interior can rise very quickly. Exposure of people or animals to these high temperatures for even a short time can cause death or serious heat-related injuries, including brain damage. Small children are particularly at risk.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Child Safety

Page 19

Recommendations for Safety Restraints for Children

Recommended restraint

type

Child size, height, weight, or ageChild

Use a child safety seat (sometimes called an

infant carrier, convertible

seat, or toddler seat).

Children weighing 40 lb (18 kg) or less

(generally age four or younger).

Infants or

toddlers

Use a belt-positioning

booster seat.

Children who have outgrown or no longer

properly fit in a child safety seat (gener-

ally children who are less than 4 ft. 9 in.

(1.45 m) tall, are greater than age four and less than age 12, and between 40 lb (18 kg) and 80 lb (36 kg) and upward to

100 lb (45 kg) if recommended by your

child restraint manufacturer).

Small children

Use a vehicle safety belt having the lap belt snug and low across the hips,

shoulder belt centered

across the shoulder and

chest, and seat back

upright.

Children who have outgrown or no longer

properly fit in a belt-positioning booster seat (generally children who are at least 4 ft. 9 in. (1.45 m) tall or greater than 80

lb (36 kg) or 100 lb (45 kg) if recom-

mended by child restraint manufacturer).

Larger children

• You are required by law to properly use safety seats for infants and toddlers in the United States and Canada.

• Many states and provinces require that small children use approved booster seats until they reach age eight, a height of 4 feet 9 inches (1.45 meters) tall, or 80 pounds (36 kilograms). Check your local and state or provincial laws for specific requirements about the safety of children in your vehicle.

• When possible, always properly restrain children 12 years of age and under in a rear seating position of your vehicle. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in a front seating position. See

Front Passenger Sensing System

(page 40).

INSTALLING CHILD SEATS

Child Seats

E142594

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Child Safety

Page 20

Use a child safety seat (sometimes called an infant carrier, convertible seat, or toddler seat) for infants, toddlers, or children weighing 40 pounds (18 kilograms) or less (generally age four or younger).

Using Lap and Shoulder Belts

WARNINGS

Airbags can kill or injure a child in a child seat. Never place a rear-facing

child seat in front of an active airbag. If you must use a forward-facing child seat in the front seat, move the seat upon which the child seat is installed all the way back.

Airbags can kill or injure a child in a

child seat. Children 12 and under

should be properly restrained in the rear seat whenever possible.

Depending on where you secure a

child restraint, and depending on the

child restraint design, you may block access to certain safety belt buckle assemblies and LATCH lower anchors, rendering those features potentially unusable. To avoid risk of injury, occupants should only use seating positions where they are able to be properly restrained.

When installing a child safety seat with combination lap and shoulder belts:

• Use the correct safety belt buckle for

that seating position.

• Insert the belt tongue into the proper

buckle until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.

• Keep the buckle release button

pointing up and away from the safety seat, with the tongue between the child seat and the release button, to prevent accidental unbuckling.

• Place the vehicle seat upon which the child seat will be installed in the upright position.

• Put the safety belt in the automatic locking mode. See Step 5. This vehicle does not require the use of a locking clip.

Perform the following steps when installing the child seat with combination lap and shoulder belts:

Note: Although the child seat illustrated is a forward facing child seat, the steps are the same for installing a rear facing child seat.

Standard safety belts

E142528

1. Position the child safety seat in a seat with a combination lap and shoulder belt.

E142529

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Child Safety

Page 21

2. After positioning the child safety seat in the proper seating position, pull down on the shoulder belt and then grasp the shoulder belt and lap belt together behind the belt tongue.

E142530

3. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer's instructions. Be sure the belt webbing is not twisted.

E142531

4. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) for that seating position until you hear a snap and feel the latch engage. Make sure the tongue is latched securely by pulling on it.

E142875

5. To put the retractor in the automatic locking mode, grasp the shoulder portion of the belt and pull downward until all of the belt is pulled out.

Note: The automatic locking mode is available on the front passenger and rear seats.

6. Allow the belt to retract to remove slack. The belt will click as it retracts to indicate it is in the automatic locking mode.

7. Try to pull the belt out of the retractor to make sure the retractor is in the automatic locking mode (you should not be able to pull more belt out). If the retractor is not locked, unbuckle the belt and repeat Steps 5 and 6.

E142533

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Child Safety

Page 22

8. Remove remaining slack from the belt. Force the seat down with extra weight, for example, by pressing down or kneeling on the child restraint while pulling up on the shoulder belt in order to force slack from the belt. This is necessary to remove the remaining slack that will exist once the extra weight of the child is added to the child restraint. It also helps to achieve the proper snugness of the child seat to your vehicle. Sometimes, a slight lean toward the buckle will provide extra help to remove remaining slack from the belt.

9. Attach the tether strap (if the child seat is equipped).

E142534

10. Before placing the child in the seat,

forcibly move the seat forward and back to make sure the seat is securely held in place. To check this, grab the seat at the belt path and attempt to move it side to side and forward and back. There should be no more than 1 inch (2.5 centimeters) of movement for proper installation.

Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician to make certain the child restraint is properly installed. In Canada, check with your local St. John Ambulance office for referral to a Certified Passenger Seat Technician.

Inflatable safety belts

E142528

1. Position the child safety seat in a seat with a combination lap and shoulder belt.

E146522

2. After positioning the child safety seat in the proper seating position, grasp the shoulder belt and lap belt together behind the belt tongue.

E142530

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Child Safety

Page 23

3. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer's instructions. Be sure the belt webbing is not twisted.

E146523

E146524

5. To put the retractor in the automatic locking mode, grasp the lap portion of the inflatable safety belt and pull upward until all of the belt is pulled out.

Note: The automatic locking mode is available on the front passenger and rear seats.

Note: Unlike the standard safety belt, the inflatable safety belt's unique lap portion locks the child seat for installation. The ability for the shoulder portion of the belt to move freely is normal, even after the lap belt has been put into the automatic locking mode.

Note: The lock-off device on some child restraints may not accommodate the shoulder portion of the inflatable safety belt. Follow all instructions provided by the manufacturer of the child restraint regarding the necessary and proper use of the lock-off device. In some instances, these devices have been provided only for use in vehicles with safety belt systems that would otherwise require a locking clip.

6. Allow the belt to retract to remove slack. The belt will click as it retracts to indicate it is in the automatic locking mode.

E146525

8. Remove remaining slack from the belt. Force the seat down with extra weight, for example, by pressing down or kneeling on the child restraint while pulling down on the lap belt in order to force slack from the belt. This is necessary to remove the remaining

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Child Safety

Page 24

slack that will exist once the extra weight of the child is added to the child restraint. It also helps to achieve the proper snugness of the child seat to your vehicle. Sometimes, a slight lean toward the buckle will additionally help to remove remaining slack from the belt.

9. Attach the tether strap (if the child seat is equipped).

E142534

10. Before placing the child in the seat,

Using Lower Anchors and Tethers for CHildren (LATCH)

WARNINGS

Never attach two child safety seats to the same anchor. In a collision, one

anchor may not be strong enough to hold two child safety seat attachments and may break, causing serious injury or death.

Depending on where you secure a

child restraint, and depending on the

child restraint design, you may block access to certain safety belt buckle assemblies or LATCH lower anchors, rendering those features potentially unusable. To avoid risk of injury, occupants should only use seating positions where they are able to be properly restrained.

The LATCH system is composed of three vehicle anchor points: two lower anchors located where seat back and seat cushion meet (called the seat bight) and one top tether anchor located behind that seating position.

LATCH compatible child safety seats have two rigid or webbing mounted attachments that connect to the two lower anchors at the LATCH equipped seating positions in your vehicle. This type of attachment method eliminates the need to use safety belts to attach the child seat, however the safety belt can still be used to attach the child seat. For forward-facing child seats, the top tether strap must also be attached to the proper top tether anchor, if a top tether strap has been provided with your child seat.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Child Safety

Page 25

E142535

Your vehicle has LATCH lower anchors for child seat installation at the seating positions marked with the child seat symbol.

E144054

The LATCH anchors are located at the rear section of the rear seat between the cushion and seat back below the symbols as shown. Follow the child seat manufacturer's instructions to properly install a child seat with LATCH attachments. Follow the instructions on attaching child safety seats with tether straps.

Attach LATCH lower attachments of the child seat only to the anchors shown.

Use of Inboard Lower Anchors from the Outboard Seating Positions (Center Seating Use)

WARNING

The standardized spacing for LATCH lower anchors is 11 inches (28

centimeters) center to center. Do not use LATCH lower anchors for the center seating position unless the child seat manufacturer's instructions permit and specify using anchors spaced at least as far apart as those in this vehicle.

The lower anchors at the center of the second row rear seat are spaced 20 inches (51 centimeters) apart. A child seat with rigid LATCH attachments cannot be installed at the center seating position. LATCH compatible child seats (with attachments on belt webbing) can only be used at this seating position provided that the child seat manufacturer's instructions permit use with the anchor spacing stated. Do not attach a child seat to any lower anchor if an adjacent child seat is attached to that anchor.

Each time you use the safety seat, check that the seat is properly attached to the lower anchors and tether anchor, if applicable. Tug the child seat from side to side and forward and back where it is secured to your vehicle. The seat should move less than one inch when you do this for a proper installation.

If the safety seat is not anchored properly, the risk of a child being injured in a crash greatly increases.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Child Safety

Page 26

Combining Safety Belt and LATCH Lower Anchors for Attaching Child Safety Seats

When used in combination, either the safety belt or the LATCH lower anchors may be attached first, provided a proper installation is achieved. Attach the tether strap afterward, if included with the child seat.

Using Tether Straps

Many forward-facing child safety seats include a tether strap

which extends from the back of the child safety seat and hooks to an anchoring point called the top tether anchor. Tether straps are available as an accessory for many older safety seats.

Contact the manufacturer of your child seat for information about ordering a tether strap, or to obtain a longer tether strap if the tether strap on your safety seat does not reach the appropriate top tether anchor in your vehicle.

Once the child safety seat has been installed using either the safety belt, the lower anchors of the LATCH system, or both, you can attach the top tether strap.

The tether strap anchors in your vehicle are in the following positions (shown from top view):

E142537

Perform the following steps to install a child safety seat with tether anchors:

Note: If you install a child seat with rigid LATCH attachments, do not tighten the tether strap enough to lift the child seat off your vehicle seat cushion when the child is seated in it. Keep the tether strap just snug without lifting the front of the child seat. Keeping the child seat just touching your vehicle seat gives the best protection in a severe crash.

1. Route the child safety seat tether strap over the back of the seat. For outboard seating positions, route the tether strap under the head restraint and between the head restraint posts. For the center seating positions, route the tether strap over the top of the head restraint. If needed, the head restraints can also be removed.

E193589

2. Locate the correct anchor for the selected seating position.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Child Safety

Page 27

E142539

3. Clip the tether strap to the anchor as shown.

4. Tighten the child safety seat tether strap according to the manufacturer's instructions.

If your child restraint system is equipped with a tether strap, and the child restraint manufacturer recommends its use, Ford also recommends its use.

BOOSTER SEATS

WARNING

Never place, or allow a child to place, the shoulder belt under a child's arm

or behind the back because it reduces the protection for the upper part of the body and may increase the risk of injury or death in a crash.

Note: Some booster seat safety belt guides may not accommodate the shoulder portion of the inflatable safety belt.

Use a belt-positioning booster seat for children who have outgrown or no longer properly fit in a child safety seat (generally children who are less than 4 feet 9 inches (1.45 meters) tall, are greater than age four (4) and less than age twelve (12), and between 40 pounds (18 kilograms) and 80 pounds (36 kilograms) and upward to 100 pounds (45 kilograms) if

recommended by your child restraint manufacturer). Many state and provincial laws require that children use approved booster seats until they reach age eight, a height of 4 feet 9 inches (1.45 meters) tall, or 80 pounds (36 kilograms).

Booster seats should be used until you can answer YES to ALL of these questions when seated without a booster seat:

E142595

• Can the child sit all the way back against their vehicle seat back with knees bent comfortably at the edge of the seat cushion?

• Can the child sit without slouching?

• Does the lap belt rest low across the

hips?

• Is the shoulder belt centered on the shoulder and chest?

• Can the child stay seated like this for the whole trip?

Always use booster seats in conjunction with your vehicle lap and shoulder belt.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Child Safety

Page 28

Types of Booster Seats

E68924

• Backless booster seats If your backless booster seat has a

removable shield, remove the shield. If a vehicle seating position has a low seat back or no head restraint, a backless booster seat may place your child's head (as measured at the tops of the ears) above the top of the seat. In this case, move the backless booster to another seating position with a higher seat back or head restraint and lap and shoulder belts, or consider using a high back booster seat.

E70710

• High back booster seats If, with a backless booster seat, you cannot

find a seating position that adequately supports your child's head, a high back booster seat would be a better choice.

Children and booster seats vary in size and shape. Choose a booster that keeps the lap belt low and snug across the hips, never up across the stomach, and lets you adjust the shoulder belt to cross the chest and rest snugly near the center of the shoulder. The following drawings compare the ideal fit (center) to a shoulder belt uncomfortably close to the neck and a shoulder belt that could slip off the shoulder. The drawings also show how the lap belt should be low and snug across the child's hips.

E142596

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Child Safety

Page 29

E142597

If the booster seat slides on the vehicle seat upon which it is being used, placing a rubberized mesh sold as shelf or carpet liner under the booster seat may improve this condition. Do not introduce any item thicker than this under the booster seat. Check with the booster seat manufacturer's instructions.

CHILD SEAT POSITIONING

WARNINGS

Airbags can kill or injure a child in a child seat. Never place a rear-facing

child seat in front of an active airbag. If you must use a forward-facing child seat in the front seat, move the vehicle seat upon which the child seat is installed all the way back. When possible, all children age 12 and under should be properly restrained in a rear seating position. If all children cannot be seated and restrained properly in a rear seating position, properly restrain the largest child in the front seat.

Always carefully follow the

instructions and warnings provided

by the manufacturer of any child restraint to determine if the restraint device is appropriate for your child's size, height, weight, or age. Follow the child restraint manufacturer's instructions and warnings provided for installation and use in conjunction with the instructions and

WARNINGS

warnings provided by your vehicle manufacturer. A safety seat that is improperly installed or utilized, is inappropriate for your child's height, age, or weight or does not properly fit the child may increase the risk of serious injury or death.

Never let a passenger hold a child on his or her lap while your vehicle is

moving. The passenger cannot protect the child from injury in a crash, which may result in serious injury or death.

Never use pillows, books, or towels

to boost a child. They can slide

around and increase the likelihood of injury or death in a crash.

Always restrain an unoccupied child

seat or booster seat. These objects

may become projectiles in a crash or sudden stop, which may increase the risk of serious injury.

Never place, or allow a child to place,

the shoulder belt under a child's arm

or behind the back because it reduces the protection for the upper part of the body and may increase the risk of injury or death in a crash.

To avoid risk of injury, do not leave

children or pets unattended in your

vehicle.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Child Safety

Page 30

Recommendations for attaching child safety restraints for children

Use any attachment method as indicated below by X

Combined

weight of child and child seat

Restraint

Type

Safety belt

only

Safety belt and LATCH

(lower

anchors

and top

tether

anchor)

Safety belt

and top

tether

anchor

LATCH

(lower

anchors

only)

LATCH (lower

anchors

and top

tether

anchor)

Up to 65 lb

(29.5 kg)

Rear facing

child seat

Over 65 lb

(29.5 kg)

Rear facing

child seat

XXX

Up to 65 lb

(29.5 kg)

Forward

facing

child seat

Over 65 lb

(29.5 kg)

Forward

facing

child seat

Note: The child seat must rest tightly against the vehicle seat upon which it is installed. It may be necessary to lift or remove the head restraint. See Seats (page

133).

CHILD SAFETY LOCKS

When these locks are set, the rear doors cannot be opened from the inside.

E112197

The childproof locks are located on the rear edge of each rear door and must be set separately for each door.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Child Safety

Page 31

Left-Hand Side

Turn counterclockwise to lock and clockwise to unlock.

Right-Hand Side

Turn clockwise to lock and counterclockwise to unlock.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Child Safety

Page 32

PRINCIPLE OF OPERATION

WARNINGS

Always drive and ride with your seatback upright and the lap belt snug and low across the hips.

To reduce the risk of injury, make sure children sit where they can be properly restrained.

Never let a passenger hold a child on his or her lap while your vehicle is moving. The passenger cannot

protect the child from injury in a crash.

All occupants of your vehicle, including the driver, should always

properly wear their safety belts, even when an airbag supplemental restraint system is provided. Failure to properly wear your safety belt could seriously increase the risk of injury or death.

It is extremely dangerous to ride in a

cargo area, inside or outside of a

vehicle. In a crash, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.

In a rollover crash, an unbelted

person is significantly more likely to

die than a person wearing a safety belt.

Each seating position in your vehicle

has a specific safety belt assembly

which is made up of one buckle and one tongue that are designed to be used as a pair. 1) Use the shoulder belt on the outside shoulder only. Never wear the shoulder belt under the arm. 2) Never swing the safety belt around your neck over the inside shoulder. 3) Never use a single belt for more than one person.

WARNINGS

When possible, all children 12 years old and under should be properly

restrained in a rear seating position. Failure to follow this could seriously increase the risk of injury or death.

Safety belts and seats can become

hot in a vehicle that has been closed

up in sunny weather; they could burn a small child. Check seat covers and buckles before you place a child anywhere near them.

Front and rear seat occupants,

including pregnant women, should

wear safety belts for optimum protection in an accident.

All seating positions in your vehicle have lap and shoulder safety belts. All occupants of the vehicle should always properly wear their safety belts, even when an airbag supplemental restraint system is provided.

The safety belt system consists of:

• Lap and shoulder safety belts.

• Shoulder safety belt with automatic

locking mode, (except driver safety belt).

• Height adjuster at the front outboard

seating positions.

• Safety belt pretensioner at the front

outboard seating positions.

• Belt tension sensor at the front

outboard passenger seating position.

• Safety belt warning light and chime.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Safety Belts

Page 33

• Crash sensors and monitoring system with readiness indicator.

The safety belt pretensioners at the front seating positions are designed to tighten the safety belts when activated. In frontal and near-frontal crashes, the safety belt pretensioners may be activated alone or, if the crash is of sufficient severity, together with the front airbags. The pretensioners may also activate when a Safety Canopy airbag is deployed.

FASTENING THE SAFETY BELTS

Standard belts shown, inflatable belts similar

The front outboard and rear safety restraints in the vehicle are combination lap and shoulder belts.

E142587

1. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) until you hear a snap and feel it latch. Make sure you securely fasten the tongue in the buckle.

E142588

2. To unfasten, press the release button and remove the tongue from the buckle.

Using the Sliding Clip (If Equipped)

Slide the clip away from the tongue so there is no loose webbing when an occupant or child seat is buckled up. You can also use the sliding clip to raise the tongue and prevent it from rattling or to ease access to the tongue.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Safety Belts

Page 34

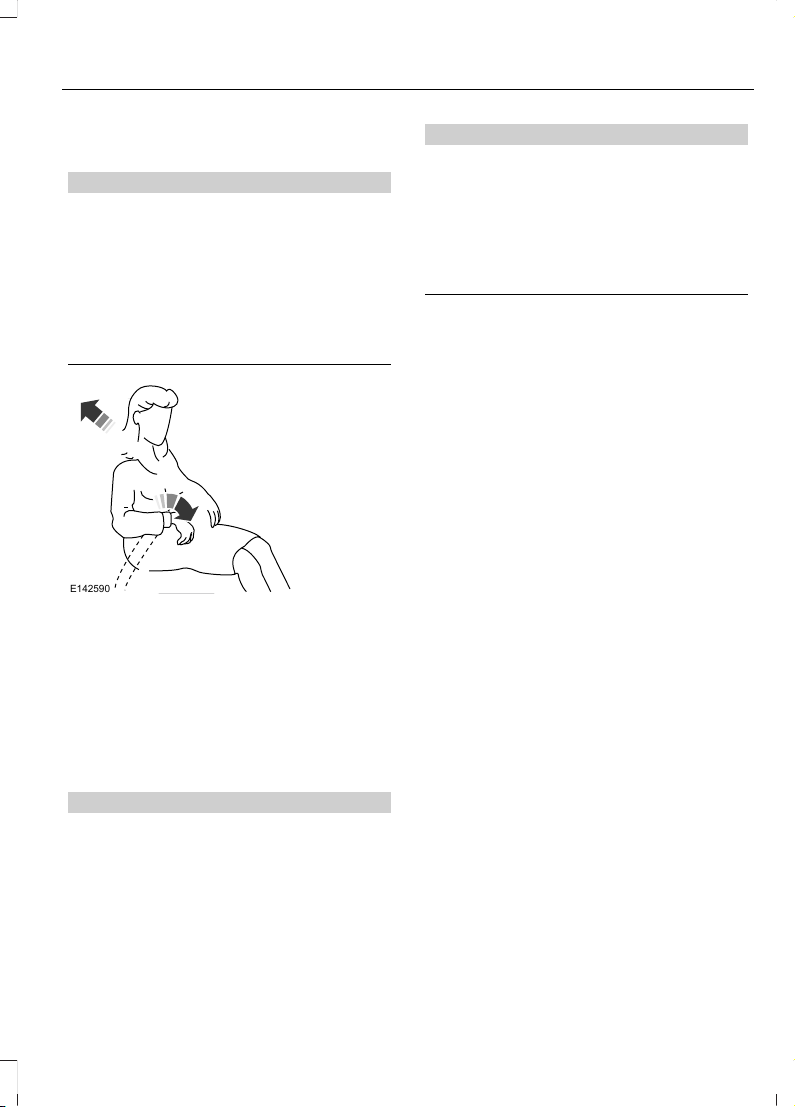

Using Safety Belts During Pregnancy

WARNING

Always ride and drive with your seatback upright and the safety belt

properly fastened. The lap portion of the safety belt should fit snug and be positioned low across the hips. The shoulder portion of the safety belt should be positioned across the chest. Pregnant women should also follow this practice. See the following figure.

E142590

Pregnant women should always wear their safety belt. The lap belt portion of a combination lap and shoulder belt should be positioned low across the hips below the belly and worn as tight as comfort will allow. The shoulder belt should be positioned to cross the middle of the shoulder and the center of the chest.

Safety Belt Locking Modes

WARNINGS

After any vehicle crash, the safety

belt system at all passenger seating

positions must be checked by an authorized dealer to verify that the automatic locking retractor feature for child seats is still functioning properly. In addition, all safety belts should be checked for proper function.

WARNINGS

Belt and retractor assembly must be replaced if the safety belt assembly

automatic locking retractor feature or any other safety belt function is not operating properly when checked by an authorized dealer. Failure to replace the belt and retractor assembly could increase the risk of injury in crashes.

All safety restraints in the vehicle are combination lap and shoulder belts. The driver safety belt has the vehicle sensitive locking mode. The front outboard passenger and rear seat safety belts have both the vehicle sensitive locking mode and the automatic locking mode.

Vehicle Sensitive Mode

This is the normal retractor mode, which allows free shoulder belt length adjustment to your movements and locking in response to vehicle movement. For example, if the driver brakes suddenly or turns a corner sharply, or the vehicle receives an impact of about 5 mph (8 km/h) or more, the combination safety belts will lock to help reduce forward movement of the driver and passengers.

In addition, the retractor is designed to lock if the webbing is pulled out too quickly. If this occurs, let the belt retract slightly and pull webbing out again in a slow and controlled manner.

Automatic Locking Mode

In this mode, the shoulder belt is automatically pre-locked. The belt will still retract to remove any slack in the shoulder belt. The automatic locking mode is not available on the driver safety belt.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Safety Belts

Page 35

When to Use the Automatic Locking Mode

This mode should be used any time a child safety seat, except a booster, is installed in passenger front or rear seating positions. Children 12 years old and under should be properly restrained in a rear seating position whenever possible. See Child

Safety (page 15).

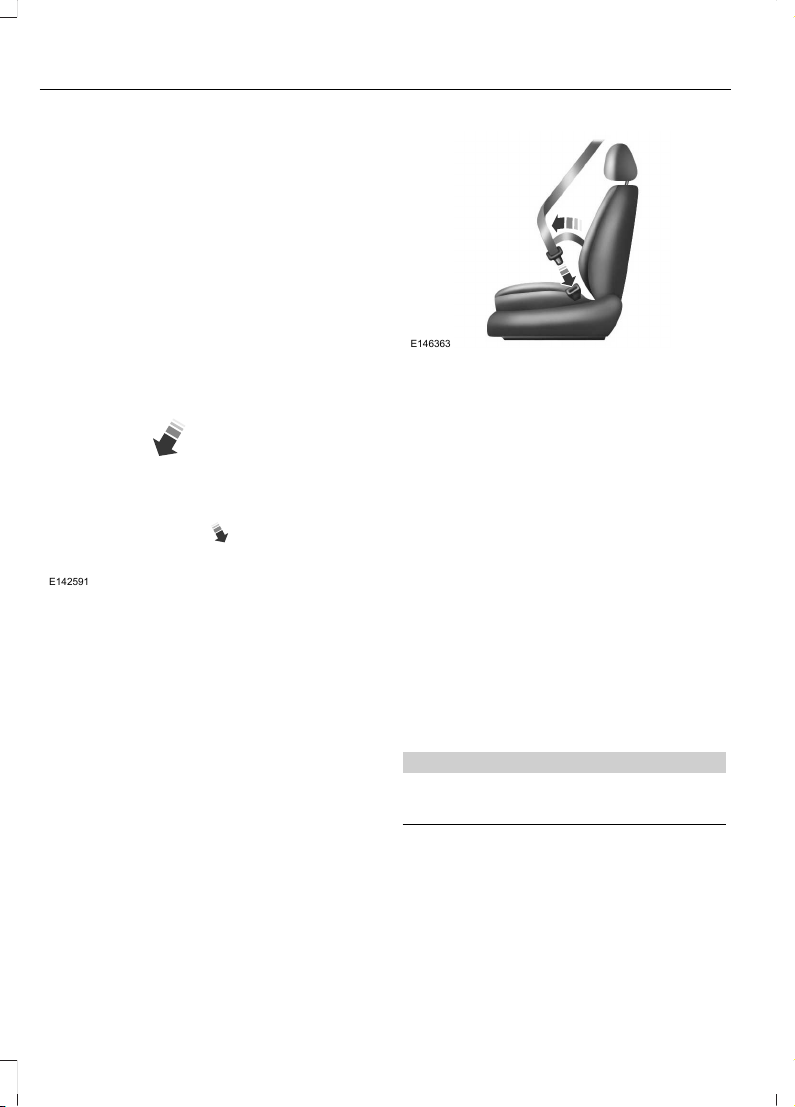

How to Use the Automatic Locking Mode

Non-inflatable safety belts

E142591

1. Buckle the combination lap and shoulder belt.

2. Grasp the shoulder portion and pull downward until the entire belt is pulled out. As the belt retracts, you will hear a clicking sound. This indicates the safety belt is now in the automatic locking mode.

Rear outboard inflatable safety belts (second row only–if equipped)

E146363

1. Buckle the combination lap and shoulder belt.

2. Grasp the lap portion of the belt and pull upward until the entire belt is pulled out.

3. Allow the belt to retract. As the belt retracts, you will hear a clicking sound. This indicates the safety belt is now in the automatic locking mode.

How to Disengage the Automatic Locking Mode

Unbuckle the combination lap and shoulder belt and allow it to retract completely to disengage the automatic locking mode and activate the vehicle sensitive (emergency) locking mode.

Rear Inflatable Safety Belt (If

Equipped)

WARNING

Do not attempt to service, repair, or modify the rear inflatable safety belt.

The rear inflatable safety belts are fitted in the shoulder portion of the safety belts of the second-row outboard seating positions.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Safety Belts

Page 36

Note: The rear inflatable safety belts are

compatible with most infant and child safety car seats and belt positioning booster seats when properly installed. This is because they are designed to fill with a cooled gas at a lower pressure and at a slower rate than traditional airbags. After inflation, the shoulder portion of the safety belt remains cool to the touch.

The rear inflatable safety belt consists of the following:

• An inflatable bag located in the shoulder safety belt webbing.

• Lap safety belt webbing with automatic locking mode.

• The same warning light, electronic control and diagnostic unit as used for the front safety belts.

• Impact sensors located in various parts of the vehicle.

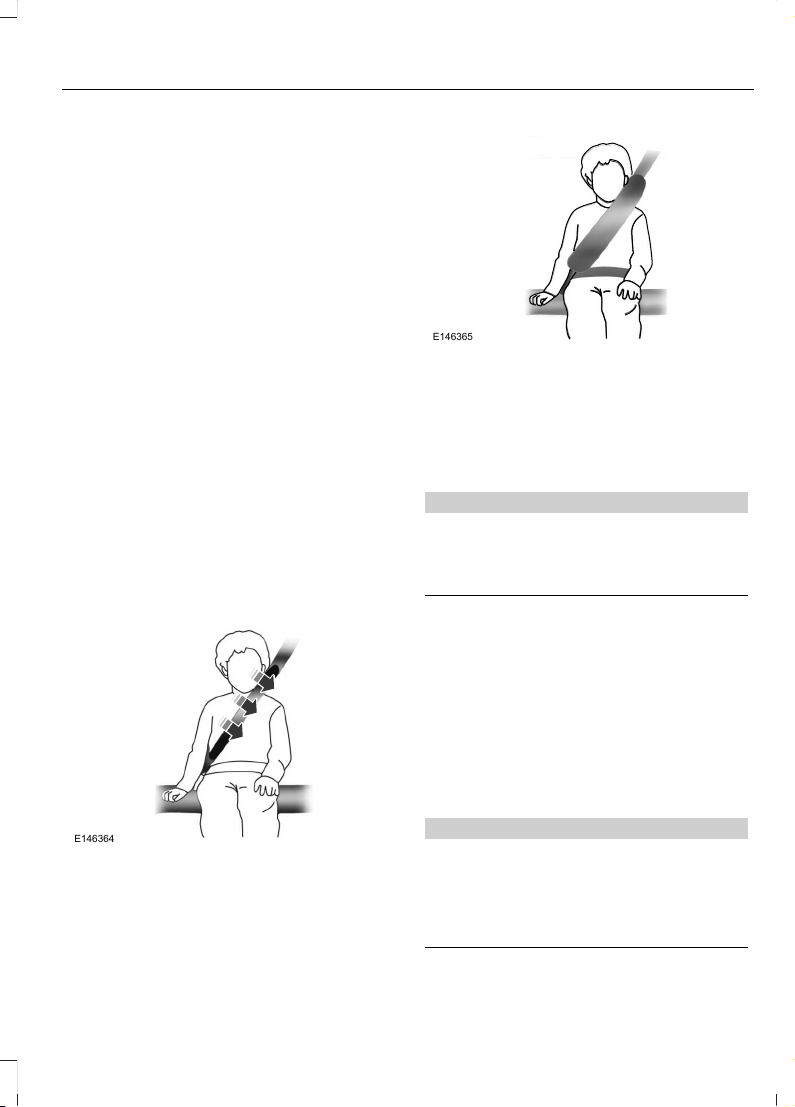

How does the rear inflatable safety belt system work?

The rear inflatable safety belts will function like standard restraints in everyday usage.

E146364

During a crash of sufficient force, the inflatable belt will inflate from inside the webbing.

E146365

The fully inflated belt's increased diameter more effectively holds the occupant in the appropriate seating position, and spreads crash forces over more area of the body than regular safety belts. This helps reduce pressure on the chest and helps control head and neck motion for passengers.

WARNING

If the rear inflatable safety belt has deployed, it will not function again. The rear inflatable safety belt system

must be replaced by an authorized dealer.

The rear inflatable safety belts are designed to inflate in frontal or near-frontal crashes and some side impact crashes and rollovers. The fact that the rear inflatable safety belt did not inflate in a crash does not mean that something is wrong with the system. Rather, it means the forces were not of the type sufficient to cause activation.

Safety Belt Extension Assembly

WARNINGS

Do not use extensions to change the fit of the shoulder belt across the torso.

Do not use extensions with an inflatable safety belt.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Safety Belts

Page 37

If the safety belt is too short when fully extended, a safety belt extension assembly can be obtained from an authorized dealer.

Use only extensions manufactured by the same supplier as the safety belt. Manufacturer identification is on a label located either at the end of the webbing or on the retractor behind the trim. Also, use the safety belt extension only if the safety belt is too short for you when fully extended.

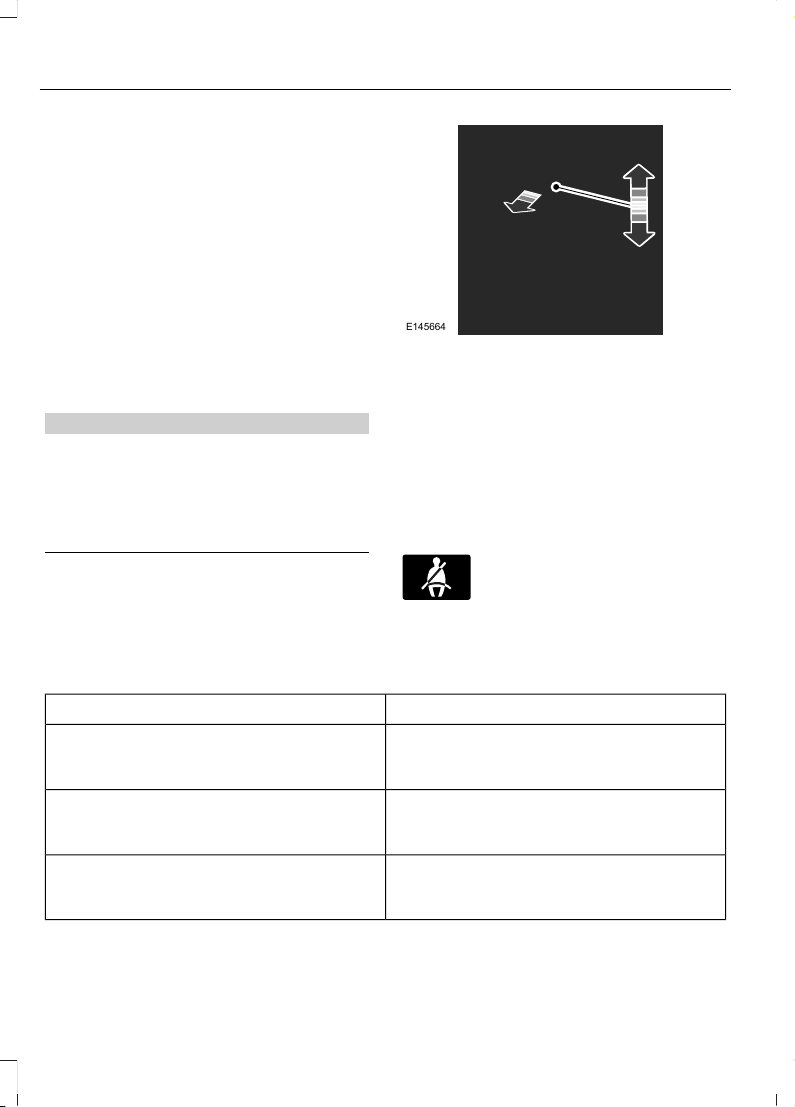

SAFETY BELT HEIGHT ADJUSTMENT

WARNING

Position the safety belt height adjuster so that the belt rests across

the middle of your shoulder. Failure to adjust the safety belt properly could reduce the effectiveness of the safety belt and increase the risk of injury in a crash.

Adjust the height of the shoulder belt so the belt rests across the middle of your shoulder.

E145664

To adjust the shoulder belt height:

1. Pull the button and slide the height adjuster up or down.

2. Release the button and pull down on the height adjuster to make sure it is locked in place.

SAFETY BELT WARNING LAMP AND INDICATOR CHIME

This lamp illuminates and an audible warning will sound if the

driver's safety belt has not been fastened when the vehicle's ignition is turned on.

Conditions of operation

Then...If...

The safety belt warning light illuminates 1-

2 minutes and the warning chime sounds

4-8 seconds.

The driver's safety belt is not buckled

before the ignition switch is turned to the

on position...

The safety belt warning light and warning

chime turn off.

The driver's safety belt is buckled while the

indicator light is illuminated and the

warning chime is sounding...

The safety belt warning light and indicator

chime remain off.

The driver's safety belt is buckled before

the ignition switch is turned to the on posi-

tion...

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Safety Belts

Page 38

SAFETY BELT MINDER

Belt-Minder™

This feature supplements the safety belt warning function by providing additional reminders that intermittently sound a tone and illuminate the safety belt warning light when you are in the driver seat or you have a front seat passenger and a safety belt is unbuckled.

The system uses information from the front passenger sensing system to determine if a front seat passenger is present and therefore potentially in need of a warning. To avoid the system turning on the Belt-Minder feature for objects you place on the front passenger seat, only the front seat passengers receive warnings as determined by the front passenger sensing system.

If the Belt-Minder warnings expire (warnings for about five minutes) for one passenger (driver or front passenger), the other passenger can still cause the Belt-Minder feature to turn on.

Then...If...

The Belt-Minder feature will not activate.You and the front seat passenger buckle your safety belts before you switch the ignition on or less than 1–2 minutes elapse after you switch the ignition on...

The Belt-Minder feature activates, the

safety belt warning light illuminates and a

warning tone sounds for 6 seconds every

25 seconds, repeating for about 5 minutes

or until you and the front seat passenger

buckle your safety belts.

You or the front seat passenger do not buckle your safety belts before your vehicle reaches at least 6 mph (9.7 km/h) and 1–2 minutes elapse after you switch the ignition on...

The Belt-Minder feature activates, the

safety belt warning light illuminates and a

warning tone sounds for 6 seconds every

25 seconds, repeating for about 5 minutes

or until you and the front seat passenger

buckle your safety belts.

The safety belt for the driver or front passenger is unbuckled for about 1 minute while the vehicle is traveling at least 6 mph (9.7 km/h) and more than 1–2 minutes elapse after you switch the ignition on...

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Safety Belts

Page 39

Deactivating and Activating the Belt-Minder Feature

WARNING

While the system allows you to switch this feature off, the intent of

the system is to remind you to wear your safety belt to improve your chance to survive an accident. We recommend you leave the system switched on for yourself and others who may use the vehicle.

Note: The driver and front passenger warnings switch on and off independently. When you perform this procedure for one seating position, do not buckle the other position as this will terminate the process.

Read Steps 1–4 thoroughly before proceeding with the programming procedure.

Before following the procedure, make sure that:

• The parking brake is set.

• The transmission is in park (P) or

neutral (N).

• The ignition is off.

• The driver and front passenger safety

belts are unbuckled.

1. Switch the ignition on. Do not start the

vehicle.

2. Wait until the safety belt warning light

turns off (about 1 minute). After Step 2, wait an additional 5 seconds before proceeding with Step 3. Once you start Step 3, you must complete the procedure within 30 seconds.

3. For the seating position you are

switching off, buckle then unbuckle the safety belt three times at a moderate speed, ending in the unbuckled state. After Step 3, the safety belt warning light turns on.

4. While the safety belt warning light is on, buckle and then unbuckle the safety belt. After Step 4, the safety belt warning light flashes for confirmation.

• This will switch the feature off for that seating position if it is currently on.

• This will switch the feature on for that seating position if it is currently off.

CHILD RESTRAINT AND SAFETY BELT MAINTENANCE

Inspect the vehicle safety belts and child safety seat systems periodically to make sure they work properly and are not damaged. Inspect the vehicle and child seat safety belts to make sure there are no nicks, tears or cuts. Replace if necessary. All vehicle safety belt assemblies, including retractors, buckles, front safety belt buckle assemblies, buckle support assemblies (slide bar-if equipped), shoulder belt height adjusters (if equipped), shoulder belt guide on seat back (if equipped), child safety seat LATCH and tether anchors, and attaching hardware, should be inspected after a crash. Read the child restraint manufacturer's instructions for additional inspection and maintenance information specific to the child restraint.

Ford Motor Company recommends that all safety belt assemblies in use in vehicles involved in a crash be replaced. However, if the crash was minor and an authorized dealer finds that the belts do not show damage and continue to operate properly, they do not need to be replaced. Safety belt assemblies not in use during a crash should also be inspected and replaced if either damage or improper operation is noted.

Properly care for safety belts. See Vehicle Care (page 279).

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Safety Belts

Page 40

The Personal Safety System provides an improved overall level of frontal crash protection to front seat occupants and is designed to help further reduce the risk of airbag-related injuries. The system is able to analyze different occupant conditions and crash severity before activating the appropriate safety devices to help better protect a range of occupants in a variety of frontal crash situations.

The Vehicle Personal Safety System consists of:

• Driver and passenger dual-stage airbag supplemental restraints.

• Front seat outboard safety belts with pretensioners, energy management retractors and safety belt usage sensors.

• Driver seat position sensor.

• Front passenger sensing system.

• Passenger airbag off and on indicator

lamp.

• Front crash severity sensors.

• Restraints control module with impact

and safing sensors.

• Restraint system warning light and backup tone.

• The electrical wiring for the airbags, crash sensors, safety belt pretensioners, front safety belt usage sensors, driver seat position sensor, front passenger sensing system and indicator lights.

How Does the Personal Safety System Work?

The Personal Safety System can adapt the deployment strategy of the safety devices according to crash severity and occupant conditions. A collection of crash and occupant sensors provides information to the restraints control module. During a crash, the restraints control module may deploy the safety belt pretensioners, one or both stages of the dual-stage airbags based on crash severity and occupant conditions.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Personal Safety System™

Page 41

PRINCIPLE OF OPERATION

WARNINGS

Airbags do not inflate slowly or gently, and the risk of injury from a deploying airbag is the greatest close

to the trim covering the airbag module.

All occupants of your vehicle, including the driver, should always

properly wear their safety belts, even when an airbag supplemental restraint system is provided. Failure to properly wear your safety belt could seriously increase the risk of injury or death.

Always transport children 12 years

old and under in the back seat and

always properly use appropriate child restraints. Failure to follow this could seriously increase the risk of injury or death.

Never place your arm over the airbag

module as a deploying airbag can

result in serious arm fractures or other injuries.

Airbags can kill or injure a child in a

child seat. Never place a rear-facing

child seat in front of an active airbag. If you must use a forward-facing child seat in the front seat, move the seat upon which the child seat is installed all the way back.

Do not attempt to service, repair, or

modify the airbag supplemental

restraint systems or its fuses as you could be seriously injured or killed. Contact your authorized dealer as soon as possible.

Several airbag system components

get hot after inflation. To reduce the

risk of injury, do not touch them after inflation.

If the airbag has deployed, the airbag

will not function again and must be

replaced immediately. If the airbag is not replaced, the unrepaired area will increase the risk of injury in a crash.

The airbags are a supplemental restraint system and are designed to work with the safety belts to help protect the driver and right front passenger from certain upper body injuries. Airbags do not inflate slowly; there is a risk of injury from a deploying airbag.

Note: You will hear a loud bang and see a cloud of harmless powdery residue if an airbag deploys. This is normal.

The airbags inflate and deflate rapidly upon activation. After airbag deployment, it is normal to notice a smoke-like, powdery residue or smell the burnt propellant. This may consist of cornstarch, talcum powder (to lubricate the bag) or sodium compounds (for example, baking soda) that result from the combustion process that inflates the airbag. Small amounts of sodium hydroxide may be present which may irritate the skin and eyes, but none of the residue is toxic.

While the system is designed to help reduce serious injuries, contact with a deploying airbag may also cause abrasions or swelling. Temporary hearing loss is also a possibility as a result of the noise associated with a deploying airbag. Because airbags must inflate rapidly and with considerable force, there is the risk of death or serious injuries such as fractures, facial and eye injuries or internal injuries, particularly to occupants who are not properly restrained or are otherwise out of position at the time of airbag deployment. Thus, it is extremely important that occupants be properly restrained as far away from the airbag module as possible while maintaining vehicle control.

Routine maintenance of the airbags is not required.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Supplementary Restraints System

Page 42

DRIVER AND PASSENGER AIRBAGS

WARNINGS

Never place your arm or any objects over an airbag module. Placing your

arm over a deploying airbag can result in serious arm fractures or other injuries. Objects placed on or over the airbag inflation area may cause those objects to be propelled by the airbag into your face and torso causing serious injury.

Airbags can kill or injure a child in a

child seat. Never place a rear-facing

child seat in front of an active airbag. If you must use a forward-facing child seat in the front seat, move the seat upon which the child seat is installed all the way back.

E151127

The driver and front passenger airbags will deploy during significant frontal and near frontal crashes.

The driver and passenger front airbag system consists of:

• Driver and passenger airbag modules.

• Front passenger sensing system.

· Crash sensors and monitoring system with readiness indicator. See Crash Sensors and Airbag

Indicator (page 45).

Proper Driver and Front Passenger Seating Adjustment

WARNING

National Highway Traffic Safety Administration (NHTSA)

recommends a minimum distance of at least 10 inches (25 centimeters) between an occupant’s chest and the driver airbag module.

To properly position yourself away from the airbag:

• Move your seat to the rear as far as you

can while still reaching the pedals comfortably.

• Recline the seat slightly (one or two

degrees) from the upright position.

After all occupants have adjusted their seats and put on safety belts, it is very important that they continue to sit properly. A properly seated occupant sits upright, leaning against the seat back, and centered on the seat cushion, with their feet comfortably extended on the floor. Sitting improperly can increase the chance of injury in a crash event. For example, if an occupant slouches, lies down, turns sideways, sits forward, leans forward or sideways, or puts one or both feet up, the chance of injury during a crash is greatly increased.

Children and Airbags

WARNING

Airbags can kill or injure a child in a

child seat. Never place a rear-facing

child seat in front of an active airbag. If you must use a forward-facing child seat in the front seat, move the seat upon which the child seat is installed all the way back.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Supplementary Restraints System

Page 43

E142846

Children must always be properly restrained. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in the front seating position. Failure to follow these instructions may increase the risk of injury in a crash.

FRONT PASSENGER SENSING SYSTEM

WARNINGS

Even with Advanced Restraints Systems, children 12 and under

should be properly restrained in a rear seating position. Failure to follow this could seriously increase the risk of injury or death.

Sitting improperly out of position or

with the seatback reclined too far

can take off weight from the seat cushion and affect the decision of the front passenger sensing system, resulting in serious injury or death in a crash. Always sit upright against your seat back, with your feet on the floor.

Any alteration or modification to the

front passenger seat may affect the

performance of the front passenger sensing system.

This system works with sensors that are part of the front passenger’s seat and safety belt to detect the presence of a properly-seated occupant and determine if the front passenger’s frontal airbag should be enabled (may inflate) or not.

The front passenger sensing system uses a passenger airbag status indicator that will illuminate indicating that the front passenger frontal airbag is either ON (enabled) or OFF (disabled).

The indicator lamp is located at the top center of the instrument panel.

Note: The passenger airbag status indicator OFF and ON indicator lamps will illuminate for a short period of time when the ignition is first turned on to confirm it is functional.

The front passenger sensing system is designed to disable (will not inflate) the front passenger's frontal airbag when a rear facing infant seat, a forward-facing child restraint, or a booster seat is detected. Even with this technology, parents are strongly encouraged to always properly restrain children in the rear seat. The sensor also turns off the passenger front airbag and seat-mounted side airbag when the passenger seat is empty.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Supplementary Restraints System

Page 44

• When the front passenger sensing system disables (will not inflate) the front passenger frontal airbag, the passenger airbag status indicator will illuminate the OFF lamp and stay lit to remind you that the front passenger frontal airbag is disabled.

• If the child restraint has been installed and the passenger airbag status indicator illuminates the ON lamp, then turn the vehicle off, remove the child restraint from the vehicle and reinstall the restraint following the child restraint manufacturer's instructions.

The front passenger sensing system is designed to enable (may inflate) the front passenger's frontal airbag anytime the system senses that a person of adult size is sitting properly in the front passenger seat.

• When the front passenger sensing system enables the front passenger frontal airbag (may inflate), the passenger airbag status indicator will illuminate the ON lamp and remain illuminated.

If a person of adult size is sitting in the front passenger’s seat, but the airbag off indicator lamp is lit, it is possible that the person is not sitting properly in the seat. If this happens:

• Turn the vehicle off and ask the person to place the seatback in the full upright position.

• Have the person sit upright in the seat, centered on the seat cushion, with the person’s legs comfortably extended.

• Restart the vehicle and have the person remain in this position for about two minutes. This will allow the system to detect that person and enable the passenger’s frontal airbag.

• If the indicator OFF lamp remains lit even after this, the person should be advised to ride in the rear seat.

Passenger airbagPassenger airbag status

indicator

Occupant

DisabledOFF: LitEmpty

ON: Unlit

DisabledOFF: LitChild

ON: Unlit

EnabledOFF: UnlitAdult

ON: Lit

Note: When the passenger airbag status indicator OFF off light is illuminated, the passenger (seat mounted) side airbag may be disabled to avoid the risk of airbag deployment injuries.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Supplementary Restraints System

Page 45

feet comfortably extended on the floor. Sitting improperly can increase the chance of injury in a crash event. For example, if an occupant slouches, lies down, turns sideways, sits forward, leans forward or sideways, or puts one or both feet up, the chance of injury during a crash is greatly increased.

If you think that the status of the passenger airbag off indicator lamp is incorrect, check for the following:

• Objects lodged underneath the seat

• Objects between the seat cushion and

the center console

• Objects hanging off the seat back

• Objects stowed in the seat back map

pocket

• Objects placed on the occupant's lap

• Cargo interference with the seat

• Other passengers pushing or pulling on

the seat

• Rear passenger feet and knees resting or pushing on the seat

The conditions listed above may cause the weight of a properly seated occupant to be incorrectly interpreted by the front passenger sensing system. The person in the front passenger seat may appear heavier or lighter due to the conditions described in the list above.

Make sure the front passenger sensing system is operating properly. See Crash Sensors

and Airbag Indicator (page 45).

If the airbag readiness light is lit, do the following:

The driver and adult passengers should check for objects lodged underneath the front passenger seat, or cargo interfering with the seat.

If there are lodged objects, or cargo is interfering with the seat, take the following steps to remove the obstruction:

• Pull the vehicle over.

• Turn the vehicle off.

• Driver and adult passengers should

check for any objects lodged underneath the front passenger seat or cargo interfering with the seat.

• Remove the obstruction(s) (if found).

• Restart the vehicle.

• Wait at least two minutes and verify

that the airbag readiness light is no longer illuminated.

• If the airbag readiness light remains illuminated, this may or may not be a problem due to the front passenger sensing system.

Do not attempt to repair or service the system. Take your vehicle immediately to an authorized dealer.

If it is necessary to modify an advanced front airbag system to accommodate a person with disabilities, contact the Ford Customer Relationship Center. See Getting the Services You Need (page

242).

SIDE AIRBAGS

WARNINGS

Do not place objects or mount equipment on or near the airbag

cover, on the side of the seatbacks (of the front seats), or in front seat areas that may come into contact with a deploying airbag. Failure to follow these instructions may increase the risk of personal injury in the event of a crash.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Supplementary Restraints System

Page 46

WARNINGS

Do not use accessory seat covers. The use of accessory seat covers

may prevent the deployment of the side airbags and increase the risk of injury in an accident.

Do not lean your head on the door.

The side airbag could injure you as it

deploys from the side of the seatback.

Do not attempt to service, repair, or

modify the airbag, its fuses or the

seat cover on a seat containing an airbag as you could be seriously injured or killed. Contact your authorized dealer as soon as possible.

If the side airbag has deployed, the

airbag will not function again. The

side airbag system (including the seat) must be inspected and serviced by an authorized dealer. If the airbag is not replaced, the unrepaired area will increase the risk of injury in a crash.

The side airbags are located on the outboard side of the seatbacks of the front seats. In certain sideways crashes, the airbag on the side affected by the crash will be inflated. The airbag was designed to inflate between the door panel and occupant to further enhance the protection provided occupants in side impact crashes.

E152533

The system consists of the following:

• A label or embossed side panel indicating that side airbags are fitted to your vehicle.

• Side airbags located inside the driver and front passenger seatbacks.

• Front passenger sensing system.

·Crash sensors and monitoring system with readiness indicator. See Crash Sensors and Airbag

Indicator (page 45). Note: The passenger sensing system will

deactivate the passenger seat-mounted side airbag if it detects an empty passenger seat.

The design and development of the side airbag system included recommended testing procedures that were developed by a group of automotive safety experts known as the Side Airbag Technical Working Group. These recommended testing procedures help reduce the risk of injuries related to the deployment of side airbags.

DRIVER AND PASSENGER KNEE AIRBAGS

WARNINGS

Keep the glove box door closed while driving for optimal performance of the passenger knee airbag during a

crash.

To reduce risk of injury, do not obstruct or place objects in the deployment path of the knee airbag.

A driver knee airbag is located under or within the instrument panel. A passenger knee airbag is located within the glove box door. During a crash, the restraints control module may activate the driver and passenger knee airbags based on crash

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Supplementary Restraints System

Page 47

severity and occupant conditions. Under certain crash and occupant conditions, the driver and passenger knee airbag may deploy but the driver front airbag may not activate. As with front and side airbags, it is important to be properly seated and restrained to reduce the risk of death or serious injury.

Make sure the knee airbags are operating properly. See Crash

Sensors and Airbag Indicator

(page 45).

SAFETY CANOPY™

WARNINGS

Do not place objects or mount equipment on or near the headliner

at the siderail that may come into contact with a deploying curtain airbag. Failure to follow these instructions may increase the risk of personal injury in the event of a crash.

Do not lean your head on the door.

The curtain airbag could injure you

as it deploys from the headliner.

Do not attempt to service, repair, or

modify the curtain airbags, its fuses,

the A, B, or C pillar trim, or the headliner on a vehicle containing curtain airbags as you could be seriously injured or killed. Contact your authorized dealer as soon as possible.

All occupants of your vehicle

including the driver should always

wear their safety belts even when an airbag supplemental restraint system and curtain airbag is provided. Failure to properly wear your safety belt could seriously increase the risk of injury or death.

To reduce risk of injury, do not

obstruct or place objects in the

deployment path of the curtain airbag.

WARNINGS

If the curtain airbags have deployed, the curtain airbags will not function

again. The curtain airbags (including the A, B and C pillar trim and headliner) must be inspected and serviced by an authorized dealer. If the curtain airbag is not replaced, the unrepaired area will increase the risk of injury in a crash.

The Safety Canopy will deploy during significant side crashes or when a certain likelihood of a rollover event is detected by the rollover sensor. The Safety Canopy is mounted to the roof side-rail sheet metal, behind the headliner, above each row of seats. In certain sideways crashes or rollover events, the Safety Canopy will be activated, regardless of which seats are occupied. The Safety Canopy is designed to inflate between the side window area and occupants to further enhance protection provided in side impact crashes and rollover events.

E75004

The system consists of the following:

• Safety canopy curtain airbags located

above the trim panels over the front and rear side windows identified by a label or wording on the headliner or roof-pillar trim.

• A flexible headliner which opens above

the side doors to allow air curtain deployment

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Supplementary Restraints System

Page 48

· Crash sensors and monitoring system with a readiness indicator. See Crash Sensors

and Airbag Indicator (page 45).

Children 12 years old and under should always be properly restrained in the rear seats. The Safety Canopy will not interfere with children restrained using a properly installed child or booster seat because it is designed to inflate downward from the headliner above the doors along the side window opening.

The design and development of the Safety Canopy included recommended testing procedures that were developed by a group of automotive safety experts known as the Side Airbag Technical Working Group. These recommended testing procedures help reduce the risk of injuries related to the deployment of side airbags (including the Safety Canopy).

CRASH SENSORS AND AIRBAG INDICATOR

WARNING

Modifying or adding equipment to the front end of the vehicle (including

frame, bumper, front end body structure and tow hooks) may affect the performance of the airbag system, increasing the risk of injury. Do not modify the front end of the vehicle.

Your vehicle has a collection of crash and occupant sensors which provide information to the restraints control module. The restraints control module deploys (activates) the front safety belt pretensioners, driver airbag, passenger

airbag, knee airbag(s), seat mounted side airbags, the Safety Canopy and optional rear inflatable safety belts. Based on the type of crash (frontal impact or side impact), the restraints control module will deploy the appropriate safety devices.

The restraints control module also monitors the readiness of the above safety devices plus the crash and occupant sensors. The readiness of the safety system is indicated by a warning indicator light in the instrument cluster or by a backup tone if the warning light is not working. Routine maintenance of the airbag is not required.

A difficulty with the system is indicated by one or more of the following:

The readiness light will not illuminate immediately after the ignition is turned on.

• The readiness light will either flash or stay lit.

• A series of five beeps will be heard. The tone pattern will repeat periodically until the problem, the light or both are repaired.

If any of these things happen, even intermittently, have the supplemental restraint system serviced at an authorized dealer immediately. Unless serviced, the system may not function properly in the event of a crash.

The safety belt pretensioners and the front airbag supplemental restraint system are designed to activate when the vehicle sustains frontal deceleration sufficient to cause the restraints control module to deploy a safety device.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Supplementary Restraints System

Page 49

The fact that the safety belt pretensioners or front airbags did not activate for both front seat occupants in a crash does not mean that something is wrong with the system. Rather, it means the restraints control module determined the accident conditions (crash severity, belt usage) were not appropriate to activate these safety devices.

• The design of the front airbags is to activate only in frontal and near-frontal crashes (not rollovers, side impacts or rear impacts) unless the crash causes sufficient frontal deceleration.

• The design of the safety belt pretensioners and optional rear inflatable safety belts is to activate in frontal, near-frontal and side crashes, and in rollovers.

• The knee airbag(s) may deploy based on crash severity and occupant conditions.

• The design of the Safety Canopy is to inflate in certain side impact crashes or rollover events. The Safety Canopy may activate in other types of crashes if the vehicle experiences sufficient sideways motion or deformation, or a certain likelihood of rollover.

AIRBAG DISPOSAL

Contact your authorized dealer as soon as possible. Airbags must be disposed of by qualified personnel.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Supplementary Restraints System

Page 50

GENERAL INFORMATION ON RADIO FREQUENCIES

This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Note: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term IC before the radio certification number only signifies that Industry Canada technical specifications were met.

The typical operating range for your transmitter is approximately 33 feet (10 meters). Vehicles with the remote start feature will have a greater range. One of the following could cause a decrease in operating range:

• Weather conditions.

• Nearby radio towers.

• Structures around the vehicle.

• Other vehicles parked next to your

vehicle.

The radio frequency used by your remote control can also be used by other radio transmitters, for example amateur radios, medical equipment, wireless headphones, wireless remote controls, cell phones, battery chargers and alarm systems. If the frequencies are jammed, you will not be able to use your remote control. You can lock and unlock the doors with the key.

Note: Make sure to lock your vehicle before leaving it unattended.

Note: If you are in range, the remote control will operate if you press any button unintentionally.

Intelligent Access (If Equipped)

The system uses a radio frequency signal to communicate with your vehicle and authorize your vehicle to unlock when one of the following conditions are met:

• You activate the front exterior door handle switch.

• You press the luggage compartment button.

• You press a button on the transmitter.

If excessive radio frequency interference is present in the area or if the transmitter battery is low, you may need to mechanically unlock your door. You can use the mechanical key blade in your intelligent access key to open the driver door in this situation. See Remote

Control (page 47).

REMOTE CONTROL

Integrated Keyhead Transmitters

(If Equipped)

Use the key blade to start your vehicle and unlock or lock the driver door from outside your vehicle. The transmitter portion functions as the remote control.

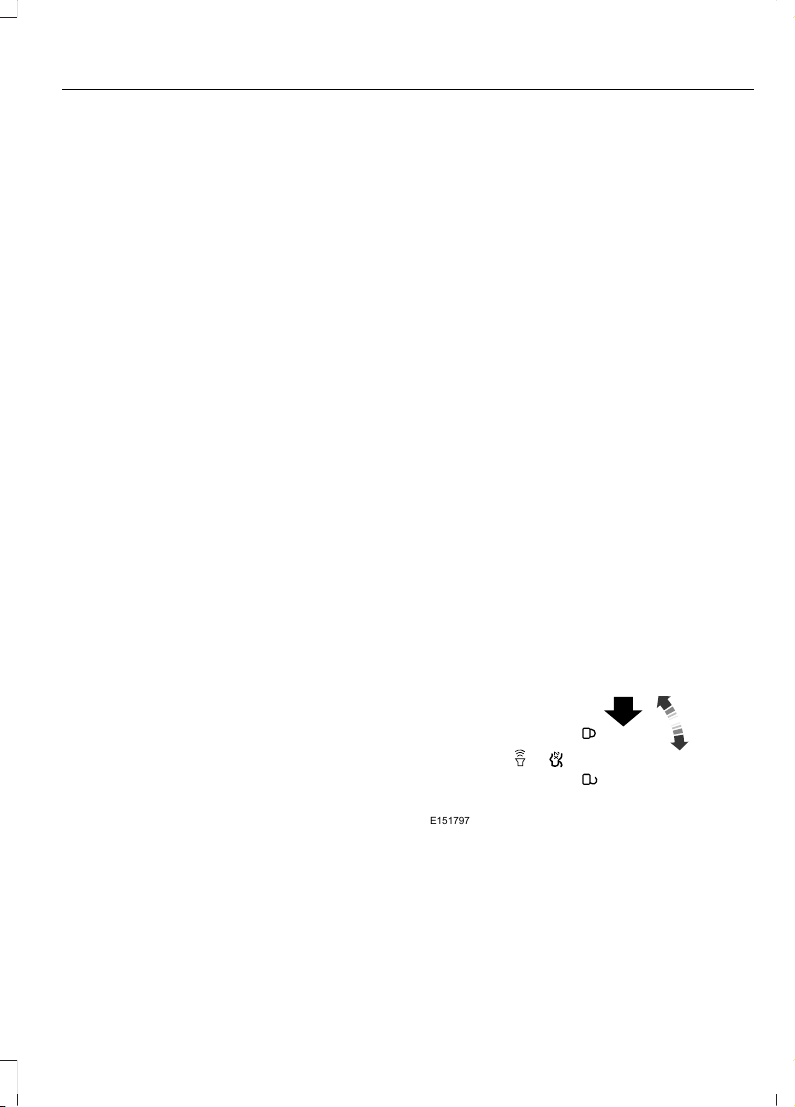

E151797

Press the button to release the key. Press and hold the button to fold the key back in when not in use.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Keys and Remote Controls

Page 51

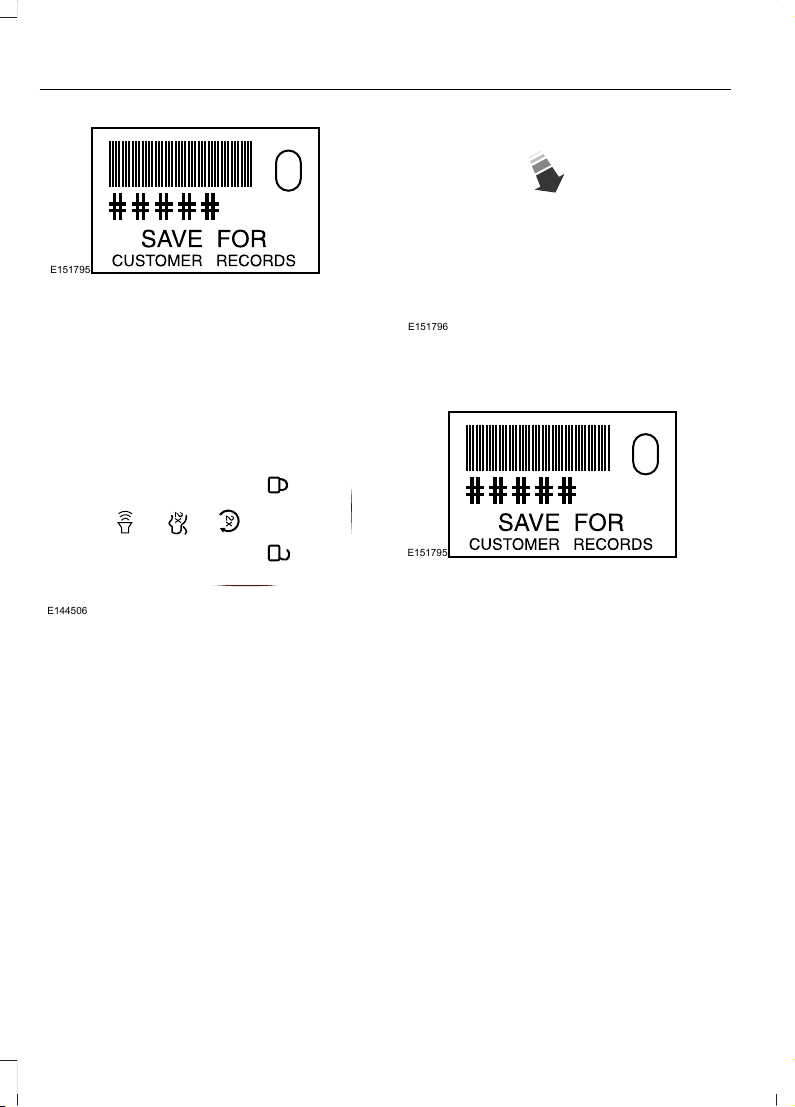

E151795

Note: The keys that came with your vehicle have a security tag that provides important vehicle key cut information. Keep the tag in a safe place for future reference.

Intelligent Access Key (If Equipped)

E144506

Your intelligent access keys operate the power locks and the remote start system. The key must be in your vehicle to activate the push-button start system.

Removable Key Blade

The intelligent access key also contains a removable mechanical key blade that you can use to unlock the driver door.

E151796

Slide the release on the back of the remote control and pivot the cover off to access the key blade.

E151795

Note: The backup keys that came with your vehicle have a security tag that provides important vehicle key cut information. Keep the tag in a safe place for future reference.

Using the Key Blade

The key cylinder is under a cap on the driver door handle.

To remove the cap:

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Keys and Remote Controls

Page 52

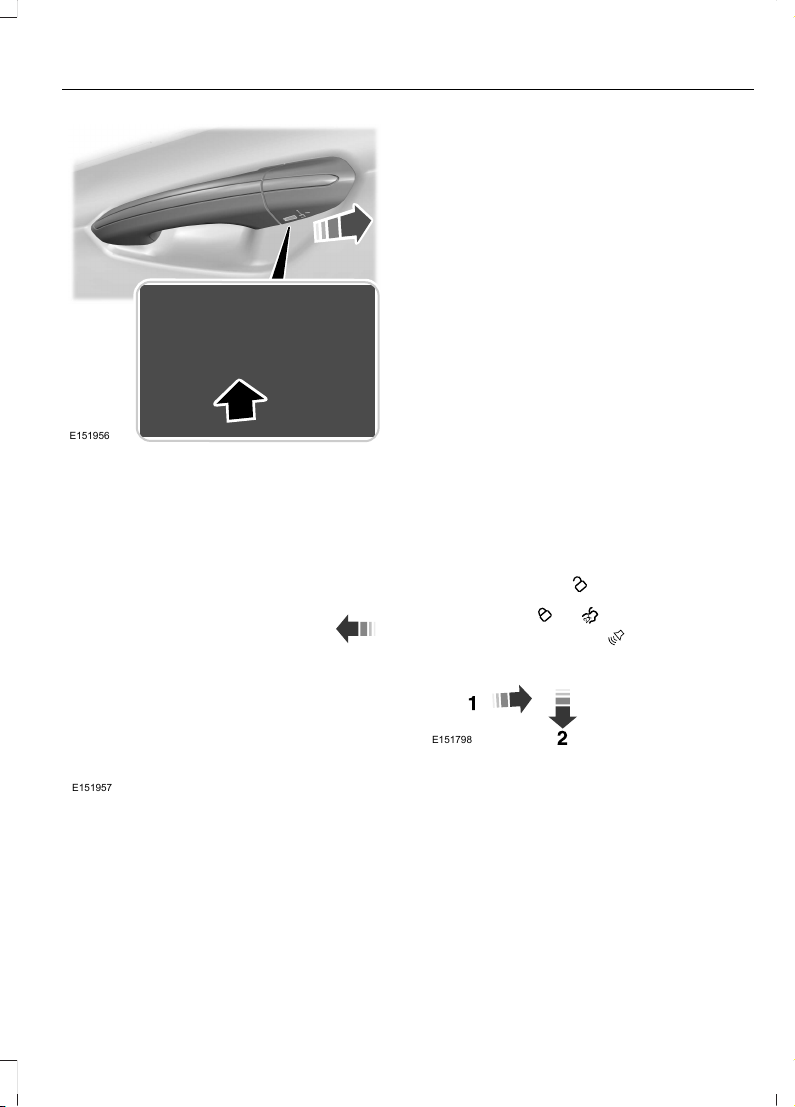

E151956

1. Insert the key blade into the slot on the bottom of the handle and press up.

2. Applying upward pressure, move the cap rearward to release it. Gently remove the key while doing so.

To install the cap:

E151957

1. Place the cap just forward of the key cylinder.

2. Applying pressure to the cap, move it forward until it is in place. You may hear a snap as it engages.

Make sure you have properly installed the cap by trying to move it rearward.

Replacing the Battery

Note: Refer to local regulations when

disposing of transmitter batteries. Note: Do not wipe off any grease on the

battery terminals or on the back surface of the circuit board.

Note: Replacing the battery will not delete the transmitter from the vehicle. The transmitter should operate normally.

A message appears in the information display when the remote control battery is low. See Information Messages (page

109).

Integrated Keyhead Transmitter

The remote control uses one coin-type three-volt lithium battery CR2032 or equivalent.

Press the button to release the key before beginning the procedure.

E151798

1. Insert a screwdriver in the position shown and gently push the clip.

2. Press the clip down to release the battery cover.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Keys and Remote Controls

Page 53

E151799

3. Carefully remove the cover.

Note: Do not touch the battery contacts or the printed circuit board with the screwdriver.

4. Insert a screwdriver as shown to release the battery.

E151801

5. Remove the battery.

6. Install a new battery with the + facing up.

7. Replace the battery cover.

Intelligent Access Transmitter

The remote control uses two coin-type three-volt lithium batteries CR2025 or equivalent.

E151796

1. Slide the release on the back of the remote control and pivot the cover off.

E153890

2. Insert a coin into the slot and twist to separate the housing.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Keys and Remote Controls

Page 54

E153891

3. Remove the batteries.

4. Install new batteries with the + facing each other.

Note: Make sure to replace the label between the two batteries.

5. Reinstall the housing and cover.

Car Finder

E138623

Press the button twice within three seconds. The horn sounds

and the direction indicators flash. We recommend you use this method to locate your vehicle, rather than using the panic alarm.

Sounding a Panic Alarm

Note: The panic alarm will only operate

when the ignition is off.

E138624

Press the button to activate the

alarm. Press the button again or

switch the ignition on to deactivate.

Remote Start (If Equipped)

WARNING

To avoid exhaust fumes, do not use remote start if your vehicle is parked indoors or areas that are not well

ventilated.

Note: Do not use remote start if your vehicle is low on fuel.

E138625

The remote start button is on the transmitter.

This feature allows you to start your vehicle from outside the vehicle. The transmitter has an extended operating range.

If your vehicle has automatic climate control, you can configure it to operate when you remote start your vehicle. See

Climate Control (page 124). See Information Displays (page 100). A

manual climate control system will run at the setting it was set to when you switched the vehicle off.

Many states and provinces have restrictions for the use of remote start. Check your local and state or provincial laws for specific requirements regarding remote start systems.

The remote start system will not work if:

• The ignition is on.

• The alarm system triggered.

• You disable the feature.

• The hood is open.

• The transmission is not in park (P).

• The vehicle battery voltage is too low.

• The service engine soon light is on.

Remote Control Feedback (If Equipped)

An LED on the remote control provides status feedback of remote start or stop commands.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Keys and Remote Controls

Page 55

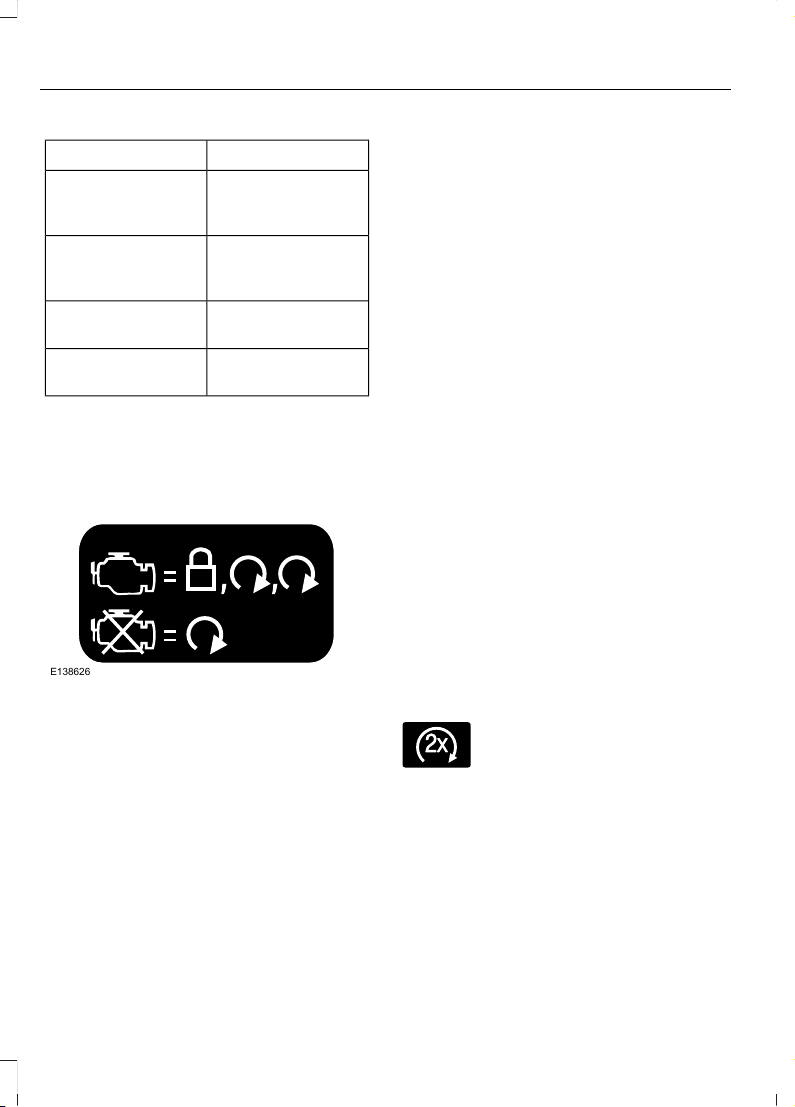

StatusLED

Remote start or

extension

successful.

Solid green.

Remote stop

successful; vehicle

off.

Solid red.

Remote start or

stop failed.

Blinking red.

Waiting for status

update.

Blinking green.

Remote Starting the Vehicle

Note: You must press each button within

three seconds of each other. Your vehicle will not remote start if you do not follow this sequence.

E138626

The tag with your transmitter details the starting procedure.

To remote start your vehicle:

1. Press the lock button to lock all the doors.

2. Press the remote start button twice. The exterior lamps flash twice.

The horn sounds if the system fails to start, unless quiet start is on. Quiet start will run the blower fan at a slower speed to reduce noise. It can be switched on or off in the information display. See General

Information (page 100).

Note: If you remote start the vehicle with

an integrated keyhead transmitter, you must switch the ignition on before driving your vehicle. With an intelligent access transmitter, you must press the START/STOP button on the instrument panel once while applying the brake pedal before driving your vehicle.

The power windows will not work during the remote start and the radio will not turn on automatically.

The parking lamps will remain on and the vehicle will run for 5, 10 or 15 minutes, depending on the setting.

Extending the Vehicle Run Time

Repeat Steps 1 and 2 with the vehicle still running to extend the run time for another remote start duration. If you programmed the duration to last 10 minutes, the second 10 minutes will begin after what is left of the first activation time. For example, if the vehicle had been running from the first remote start for five minutes, the vehicle will continue to run now for a total of 15 minutes. You can extend the remote start up to a maximum of 35 minutes.

Wait at least five seconds before remote starting after a vehicle shutdown.

Turning the Vehicle Off After Remote Starting

E138625

Press the button once. The vehicle and parking lamps will turn off.

You may have to be closer to the vehicle than when starting due to ground reflection and the added noise of the running vehicle.

You can disable or enable the remote start system through the information display. See General Information (page 100).

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Keys and Remote Controls

Page 56

Memory Feature

If programmed to a pre-set position, the integrated keyhead transmitter or intelligent access key recalls the driver seat and exterior mirror positions when you unlock your vehicle. It also recalls the power steering column and pedal positions. See Memory Function (page

137).

REPLACING A LOST KEY OR REMOTE CONTROL

Replacement keys or remote controls can be purchased from an authorized dealer. Authorized dealers can program remote controls for your vehicle. See Passive Anti-Theft System (page 71).

To re-program the passive anti-theft system see an authorized dealer.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Keys and Remote Controls

Page 57

PRINCIPLE OF OPERATION

MyKey allows you to program keys with restricted driving modes to promote good driving habits. All but one of the keys can be activated with these restricted modes.

Any keys that remain unprogrammed are referred to as administrator keys or admin keys. They can be used to:

• Create a MyKey.

• Program configurable MyKey settings.

• Clear all MyKey features.

When you have created a MyKey, you can access the following information by using the information display to determine:

• How many admin keys and MyKeys are programmed to your vehicle.

• The total distance your vehicle traveled with a MyKey.

Note: Switch the vehicle on to use the system.

Note: All MyKeys are programmed to the same settings. You cannot program them individually.

Note: For vehicles equipped with push-button start, when both a MyKey and an admin remote transmitter are present, the admin remote transmitter will be recognized by the vehicle while switching the vehicle on to start the vehicle.

Non-configurable Settings

The following settings cannot be changed by an admin key user:

• Safety belt reminder. You cannot disable this feature. The audio system will mute when the front seat passengers’ safety belts are not fastened.

• Early low fuel or charge. The low-fuel or low charge warning activates earlier, giving the MyKey user more time to refuel or recharge.

• Driver assist features, if equipped on your vehicle, are forced on: parking aid and Blind Spot Information System (BLIS) with cross traffic alert.

• Satellite radio adult content restrictions, if equipped on your vehicle.

Configurable Settings

With an admin key, you can configure certain MyKey settings when you first create a MyKey and before you recycle the key or restart the vehicle. You can also change the settings afterward with an admin key.

• A vehicle speed limit can be set. Warnings will be shown in the display followed by an audible tone when your vehicle reaches the set speed. You cannot override the set speed by fully depressing the accelerator pedal or by setting cruise control.

WARNING

Do not set MyKey maximum speed limit to a limit that will prevent the

driver from maintaining a safe speed considering posted speed limits and prevailing road conditions. The driver is always responsible to drive in accordance with local laws and prevailing conditions. Failure to do so could result in accident or injury.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

MyKey™

Page 58

• Various vehicle speed minders can be set. Once you select a speed, it will be shown in the display, followed by an audible tone when the preselected vehicle speed is exceeded.

• Audio system maximum volume of 45%. A message will be shown in the display when you attempt to exceed the limited volume. Also, the speed-sensitive or compensated automatic volume control will be disabled.

• Always on setting. When this is selected, you will not be able to switch off Advance Trac or traction control, 911 Assist or Emergency Assist, or the do not disturb feature (if your vehicle is equipped with these features).

CREATING A MYKEY

Use the information display to create a MyKey:

1. Insert the key you want to program into

the ignition. If your vehicle is equipped with a push-button start, place the intelligent access key fob into the backup slot. The location of your backup slot is in another chapter. See Starting and Stopping the Engine (page 150).

2. Switch the ignition on.

3. Access the main menu on the

information display controls, and select Settings then MyKey by pressing OK or the > button.

4. Press OK or the > button to select

Create MyKey.

5. When prompted, hold the OK button

until you see a message informing you to label this key as a MyKey. The key will be restricted at the next start.

MyKey is successfully created. Make sure you label it so you can distinguish it from the admin keys.

You can also program configurable settings for the key(s). See

Programming/Changing Configurable Settings.

Programming/Changing Configurable Settings

Use the information display to access your configurable MyKey settings.

1. Switch the ignition on using an admin key or fob.

2. Access the main menu on the information display controls, and select Settings, then MyKey by pressing OK or > button.

3. Use the arrow buttons to get to a feature.

4. Press OK or > to make a selection.

Note: You can clear or change your MyKey settings at any time during the same key cycle as you created the MyKey. Once you have switched the vehicle off, however, you will need an admin key to change or clear your MyKey settings.

CLEARING ALL MYKEYS

You can clear or change your MyKey settings using the information display control on the steering wheel. See Information Displays (page 100).

Switch the ignition on using an admin key or fob.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

MyKey™

Page 59

To clear all MyKeys of all MyKey settings, press the left arrow button to access the main menu and scroll to:

Action and DescriptionMessage

Press the OK button.Settings

Press the OK button.MyKey

Press and hold the OK button until the following message displays.

Clear MyKey

All MyKeys

Cleared

Note: When you clear your MyKeys, you remove all restrictions and return all MyKeys to their original admin key status.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

MyKey™

Page 60

CHECKING MYKEY SYSTEM STATUS

You can find information on programmed MyKey(s) using the information display control on the steering wheel. See

Information Displays (page 100).

To find information on programmed MyKey(s), press the left arrow button to access the main menu and scroll to:

DescriptionMessage

Press the OK button.Settings

Press the OK button.MyKey

Select one of the following:

Tracks the distance when drivers use a MyKey. The only way to delete the accumulated distance is by using an admin key to clear your MyKeys. If the distance does not accumulate as expected, then the intended user is not using the MyKey, or an admin key user recently cleared and then recreated a MyKey.

MyKey Dist.

Indicates the number of MyKeys programmed to your vehicle. Use this feature to detect how many MyKeys you have for your vehicle and determine when a MyKey has been deleted.

{0} MyKeys

Indicates how many admin keys are programmed to your vehicle. Use this feature to determine how many unrestricted keys you have for your vehicle, and detect if an additional MyKey has been programmed.

{0} Admin Keys

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

MyKey™

Page 61

USING MYKEY WITH REMOTE START SYSTEMS

MyKey is not compatible with non

Ford-approved, aftermarket remote start systems. If you choose to install a remote start system, see an authorized dealer for a Ford-approved remote start system.

MYKEY TROUBLESHOOTING

Potential CausesCondition

I cannot create a MyKey. • The key or transmitter used to start the

vehicle does not have admin privileges.

• The key or transmitter used to start the vehicle is the only admin key (there always has to be at least one admin key).

• Vehicles with keyless start: The keyless start transmitter is not placed in the backup position. See Starting a Gasoline Engine (page 151).

• SecuriLock passive anti-theft system is disabled or in unlimited mode.

• The key or transmitter used to start your vehicle does not have admin privileges.

• No MyKeys are created. See Creating a MyKey (page 55).

I cannot program the configurable settings.

• The key or transmitter used to start your vehicle does not have admin privileges.

• No MyKeys are created. See Creating a MyKey (page 55).

I cannot clear the MyKeys.

Purchase a new key from an authorized dealer.I lost the only admin key.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

MyKey™

Page 62

Potential CausesCondition

Program a spare key. See Passive Anti-Theft System (page 71).

I lost a key.

MyKey distances do not accumulate. • The MyKey user is not using the MyKey.

• An admin key holder cleared the MyKeys and created new MyKeys.

• The key system has been reset.

• An admin transmitter is present at vehicle

start.

• No MyKeys are created. See Creating a MyKey (page 55).

No MyKey functions with the keyless entry transmitter.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

MyKey™

Page 63

LOCKING AND UNLOCKING

You can use the power door lock control or the remote control to lock and unlock your vehicle.

Power Door Locks

The power door lock control is on the driver and front passenger door panels.

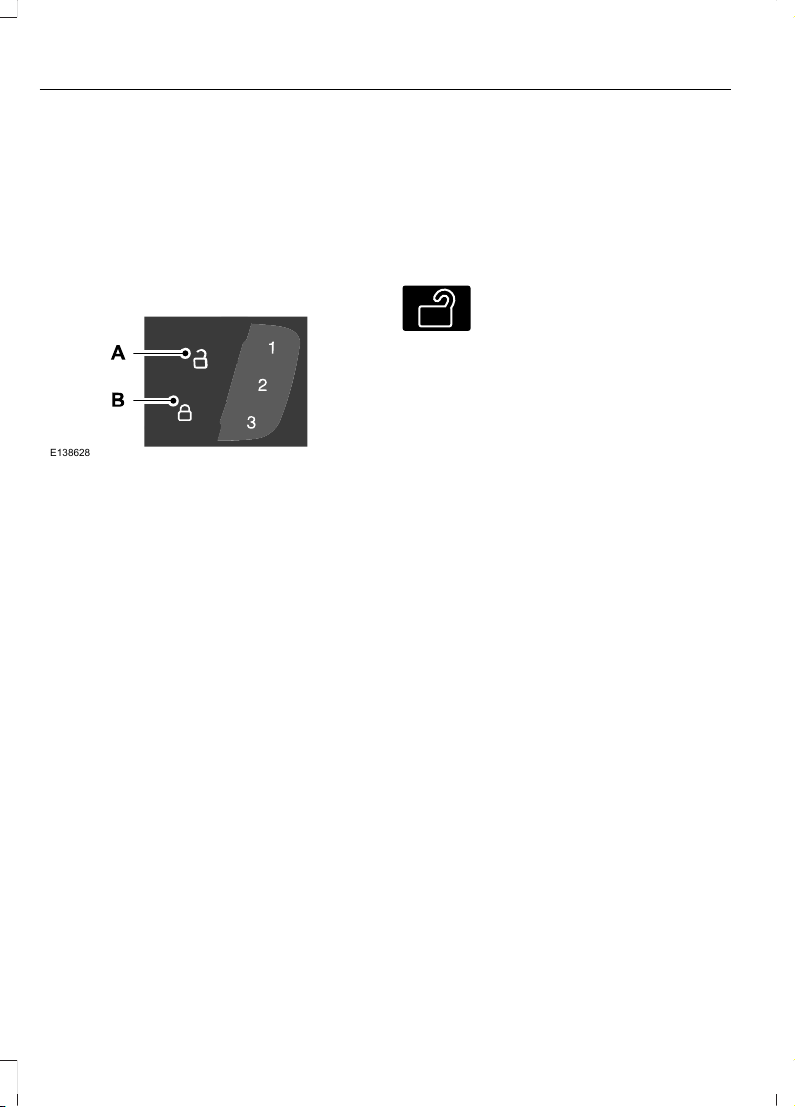

E138628

Unlock.A Lock.B

Door Lock Indicator

An LED on each door window trim illuminates when you lock the door. It remains on for up to 10 minutes after you switch the ignition off.

Door Lock Switch Inhibitor

When you electronically lock your vehicle, the power door lock switch no longer operates after 20 seconds. You must unlock your vehicle with the remote control or keyless keypad, or switch the ignition on, to restore function to these switches. You can switch this feature on or off in the information display. See Information

Displays (page 100).

Rear Door Unlocking and Opening

Pull the interior door handle twice to unlock and open a rear door. The first pull unlocks the door and the second pull unlatches the door.

Remote Control

You can use the remote control at any time. The luggage compartment release button only operates when your vehicle's speed is less than 5 mph (8 km/h).

Unlocking the Doors (Two-Stage Unlock)

E138629

Press the button to unlock the driver door.

Press the button again within three seconds to unlock all doors. The direction indicators flash.

Note: If the system does not function, use the key blade to lock and unlock your vehicle.

Press and hold both the lock and unlock buttons on the remote control for three seconds to change between driver door or all doors unlock mode. The direction indicators flash twice to indicate a change to the unlocking mode. Driver door unlock mode only unlocks the driver door when the unlock button is pressed once. All door unlock mode unlocks all doors when the unlock button is pressed once. The unlocking mode applies to the remote control, keyless entry keypad and intelligent access. You can also change the mode in the information display. See Information Displays (page 100).

Reporgramming the Unlocking Function

Note: When you press the unlock button, either all the doors are unlocked or only the driver door is unlocked. Pressing the unlock button again unlocks all the doors.

Press and hold the unlock and lock buttons on the remote control simultaneously for at least four seconds with the ignition off. The direction indicators flash twice to confirm the change.

To return to the original unlocking function, repeat the process.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Locks

Page 64

Locking the Doors

E138623

Press the button to lock all doors. The direction indicators flash.

Press the button again within three seconds to confirm that all the doors are closed. The doors lock again, the horn sounds and the direction indicators flash if all the doors and the luggage compartment are closed.

Note: If the system does not function, use the key blade to lock and unlock your vehicle.

Mislock

If any door or the luggage compartment is open, or if the hood is open on vehicles with an anti-theft alarm or remote start, the horn sounds twice and the direction indicators do not flash. You can switch this feature on or off in the information display. See Information Displays (page 100).

Opening the Luggage Compartment

E138630

Press twice within three seconds to open the luggage compartment.

Locking and Unlocking the Doors with the Key Blade

Locking the Doors

E112203

If the central locking function does not operate, lock the doors individually using the key in the position shown.

Left-Hand Side

Turn clockwise to lock.

Right-Hand Side

Turn counterclockwise to lock.

Unlocking the Doors

If the central locking function fails to operate, unlock the driver door and then unlock all other doors individually by pulling the interior door handles.

Note: If the doors have been unlocked using this method, the doors must be locked individually until the central locking function has been repaired.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Locks

Page 65

Activating Intelligent Access (If

Equipped)

You must have the intelligent access key within 3.3 ft (1 m) of your vehicle.

At a Door

Pull an exterior door handle to unlock and open the door. Make sure not to touch the lock sensor area on the front of the handle.

E157085

Touch the top of the door handle to lock your vehicle. There will be a brief delay before you can unlock your vehicle again.

Note: Keep the door handle clean to make sure the system operates correctly.

At the Luggage Compartment

E138632

Press the button located in the top of the liftgate pull cup handle to unlatch the liftgate, and then pull on the outside handle.

Smart Unlocks for Integrated Keyhead Transmitter

This helps to prevent you from locking yourself out of your vehicle if the key is still in the ignition.

When you open one of the front doors and lock your vehicle with the power door lock control, all the doors lock then unlock and the horn sounds twice if the key is still in the ignition.

You can still lock your vehicle with the key in the ignition. To do this, use the keyless entry keypad with the driver door closed, or press the lock button on the transmitter even if the doors are not closed.

If both front doors are closed, you can lock your vehicle by any method, regardless of whether the key is in the ignition or not.

Smart Unlocks for Intelligent Access Keys (If Equipped)

This helps to prevent you from locking your key inside the passenger compartment or rear cargo area.

When you electronically lock your vehicle with any door open, transmission in park (P) and the ignition off, the system searches for an intelligent access key in the passenger compartment after you close the last door. If the system finds a key, all of the doors immediately unlock and the horn sounds twice, indicating that a key is inside.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Locks

Page 66

You can override the smart unlock feature and intentionally lock the intelligent access key inside your vehicle. To do this, lock your vehicle after you have closed all the doors by:

• Using the keyless entry keypad.

• Pressing the lock button on another

intelligent access key.

• Touching the locking area on the handle with another intelligent access key in your hand.

When you open one of the front doors and lock your vehicle using the power door lock control, all doors lock then unlock if:

• The ignition is on.

• The ignition is off and the transmission

is not in park (P).

Auto Relock

If you press the unlock button on the remote control and do not open a door within 45 seconds, your vehicle locks and the alarm arms. You can switch this feature on or off in the information display. See Information Displays (page 100).

Autolock

The autolock feature locks all the doors when:

• All doors are closed.

• The ignition is on.

• You shift into any gear putting your

vehicle in motion.

• Your vehicle's sped is greater than 12 mph (20 km/h).

The autolock feature repeats when:

• You open then close any door while the ignition is on and your vehicle's speed is less than 9 mph (15 km/h).

• Your vehicle's speed is greater than 12 mph (20 km/h).

Autounlock

The autounlock feature unlocks all the doors when:

• The ignition is on, all the doors are closed and your vehicle's speed is greater than 12 mph (20 km/h).

• You stop your vehicle and switch the ignition off or to accessory.

• You open the driver door within 10 minutes of switching the ignition off or to accessory.

Note: The doors do not autounlock if you electronically lock your vehicle after you switch the ignition off and before you open the driver door.

Enabling or Disabling Autolock and Autounlock

Note: You can switch autounlock and

autolock on or off independently of each other.

You can switch these features on or off in the information display. See General

Information (page 100).

Illuminated Entry

The interior lamps and some exterior lamps illuminate when you unlock the doors with the remote control.

The lamps turn off if:

• The ignition is on.

• You press the remote control lock

button.

• 25 seconds have elapsed.

The lamps do not turn off if:

• You turn them on with the lamp control.

• Any door is open.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Locks

Page 67

Illuminated Exit

The interior lamps and some exterior lamps illuminate when all doors are closed, you switch the ignition off and you remove the key from the ignition.

The lamps turn off if all the doors remain closed and:

• 25 seconds have elapsed.

• You insert the key in the ignition

(integrated keyhead transmitter only).

• You press the START/STOP button (intelligent access key only).

Battery Saver

If you leave the courtesy lamps, dome lamps or headlamps on, the battery saver shuts them off 10 minutes after you switch the ignition off.

Accessory Mode Battery Saver for Intelligent Access Keys (If Equipped)

If you leave the ignition switched on, it shuts off once it detects a certain amount of battery drain, or after 45 minutes.

MANUAL LIFTGATE

WARNINGS

It is extremely dangerous to ride in a cargo area, inside or outside of a

WARNINGS

Make sure to close and latch the liftgate to prevent drawing exhaust

fumes into your vehicle. This will also prevent passengers and cargo from falling out. If you must drive with the liftgate open, keep the vents or windows open so outside air comes into your vehicle. Failure to follow this warning could result in serious personal injury.

Note: Be careful when opening or closing the liftgate in a garage or other enclosed area to avoid damaging the liftgate.

Note: Do not hang anything, for example a bike rack, from the glass or liftgate. This could damage the liftgate and its components.

Note: Do not leave the liftgate open while driving. This could damage the liftgate and its components.

Opening the Liftgate

Manually

E138632

Press the button located in the top of the liftgate pull cup handle to unlatch the liftgate, and then pull on the outside handle.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Locks

Page 68

With the Remote Control

E138630

Press the button twice within three seconds.

Closing the Liftgate

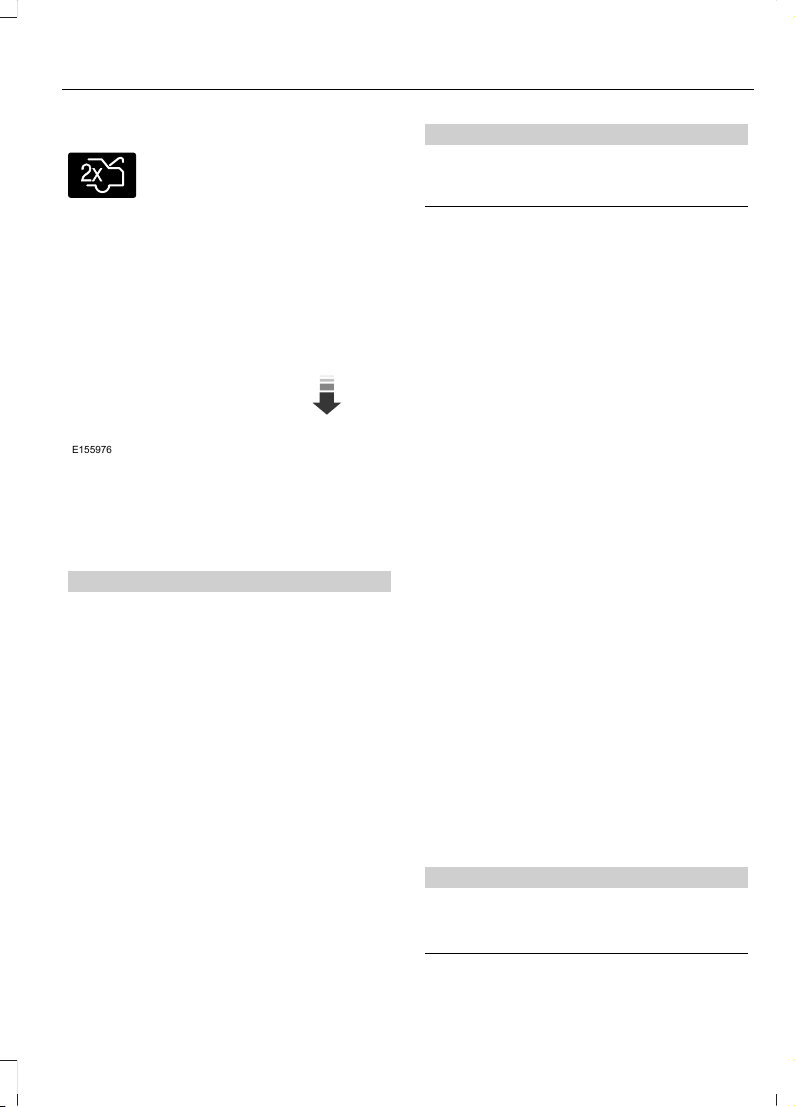

E155976

A handle is located inside the liftgate to help with closing.

POWER LIFTGATE (If Equipped)

WARNINGS

It is extremely dangerous to ride in a cargo area, inside or outside of a

vehicle. In a crash, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Make sure everyone in your vehicle is in a seat and properly using a safety belt. Failure to follow this warning could result in serious personal injury or death.

Make sure to close and latch the

liftgate to prevent drawing exhaust

WARNINGS

Keep keys out of reach of children. Do not allow children to play near an open or moving power liftgate.

Note: Cycling the ignition while the liftgate is power closing and is near the latch may cause the liftgate to reverse to full open position. Make sure that you close the liftgate before operating or moving the vehicle, especially in an enclosure, like a garage or a parking structure. You could damage the liftgate or its components.

Note: Do not hang anything, for example a bike rack, from the spoiler, glass or liftgate. This could damage the liftgate and its components.

If your vehicle is running, the liftgate only operates with the transmission in park (P).

One warning tone sounds as the liftgate begins to power close. Three short chimes indicate a problem with the open or close request, caused by:

• The ignition is on and the transmission is not in park (P).

• The battery voltage is below the minimum operating voltage.

• The vehicle speed is at or above 3 mph (5 km/h).

If the liftgate falls to the closed direction after the liftgate has stopped in the open position, ten short warning chimes indicate excessive weight on the gate or a possible gas strut failure. Have the system checked by an authorized dealer if you still have the issue after you remove the load.

Opening and Closing the Liftgate

WARNING

Make sure all persons are clear of the power liftgate area before using the power liftgate control.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Locks

Page 69

Note: Be careful when opening or closing

the liftgate in a garage or other enclosed area to avoid damaging the liftgate.

Note: Do not leave the liftgate open while driving. This could damage the liftgate and its components.

Note: You can stop the liftgate movement direction with a second press of the instrument panel button or the control button on the liftgate, a double press of the transmitter button, or by using a kicking motion with your foot for hands-free liftgates.

From the Instrument Panel

E138633

Press the button on the instrument panel.

With the Remote Control

E138630

Press the remote control button twice within three seconds.

Hands-Free Feature (If Equipped)

Make sure you have an intelligent access transmitter within 3.3 ft (1 m) of the liftgate.

E174120

1. Move your foot under and away from the center rear bumper in a single-kick motion. Do not move your foot sideways or the sensors may not detect the motion.

2. The liftgate powers open or close.

Note: Allow the power system to open the liftgate. Manually pushing or pulling the liftgate may activate the system’s obstacle detection feature and stops the power operation.

Note: Splashing water may cause the hands-free liftgate to open. Keep the intelligent access transmitter away from the rear bumper detection area while washing your car.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Locks

Page 70

With the Outside Control Button

Opening

1. Unlock the liftgate with the remote control or power door unlock control. If an intelligent access transmitter is within 3 ft (1 m) of the liftgate, the liftgate unlocks when you press the liftgate release button.

E138632

2. Press the control button located in the top of the liftgate pull-cup handle.

Note: Allow the power system to open the liftgate after pressing the control. Manually pushing or pulling the liftgate may activate the system’ s obstacle detection feature and stops the power operation.

Closing

E138636

Press and release the button.

WARNING

Keep clear of the liftgate when activating the rear switch.

Setting the Liftgate Open Height

1. Open the liftgate.

2. Manually move the liftgate to the desired height.

3. Press and hold the control button on the liftgate until you hear a chime, indicating programming is complete.

Note: You cannot program the height if the liftgate position is too low.

The new open liftgate height is recalled when the power liftgate is opened. To change the programmed height, repeat the above procedure. Once you open the power liftgate, you can manually move it to a different height.

When operating the power liftgate after you have programmed a lower height than full-open, you can fully open the liftgate by manually pushing it upward to the maximum open position.

Obstacle Detection

When Closing

The system stops when it detects an obstacle. Two short tones sound and the system reverses to open. Once you remove the obstacle, you can power close the liftgate.

Note: Entering your vehicle while the liftgate is closing can cause your vehicle to bounce and activate obstacle detection. To prevent this, let the power liftgate close completely before you enter your vehicle. Before driving off, check the instrument cluster for a liftgate or door ajar message or warning indicator. Failure to do this could result in unintentionally leaving the liftgate open while driving.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Locks

Page 71

When Opening

The system stops when it detects an obstacle and two short tones sound. Remove the obstacle to operate the liftgate.

KEYLESS ENTRY (If Equipped)

SECURICODE™ KEYLESS ENTRY KEYPAD

The keypad is near the driver window. It illuminates when touched.

Note: If you enter your entry code too fast on the keypad, the unlock function may not work. Enter your entry code again more slowly.

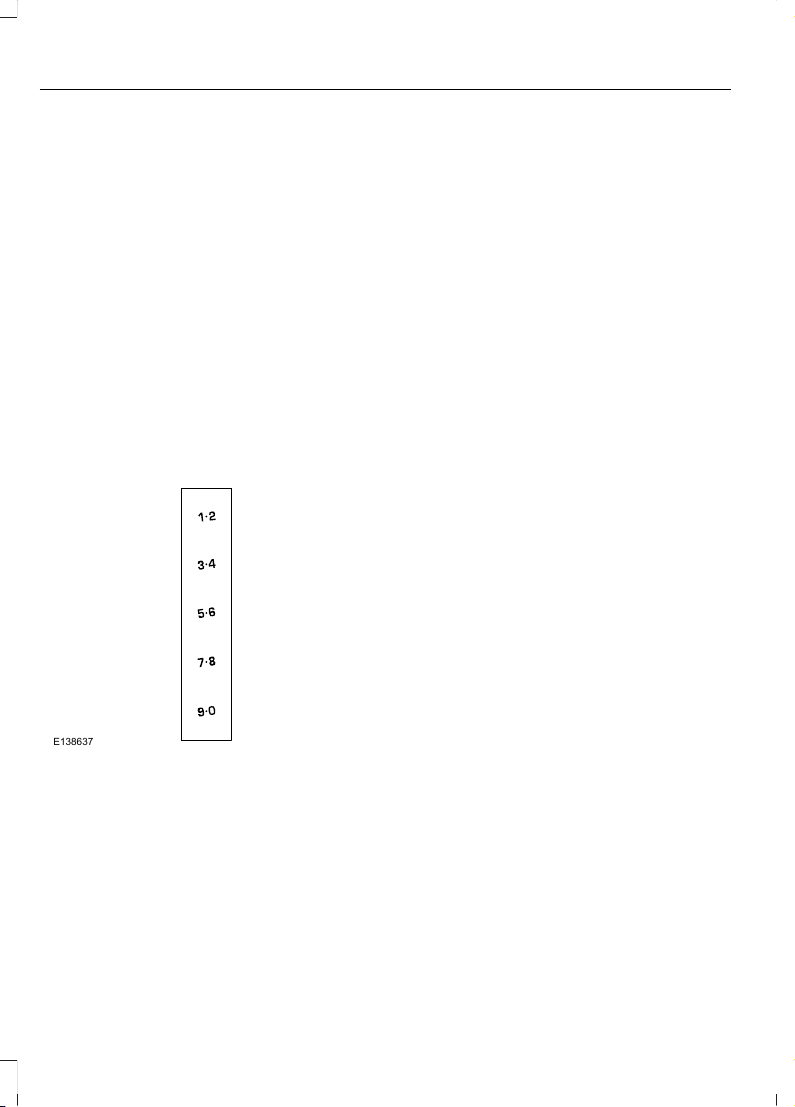

E138637

You can use the keypad to do the following:

• Lock or unlock the doors.

• Release the liftgate.

• Recall memory seat and mirror

positions.

• Program and erase user codes.

• Arm and disarm the anti-theft alarm.

You can operate the keypad with the factory-set five-digit entry code. The code is on the owner’s wallet card in the glove box and is available from an authorized dealer. You can also program up to five of your own five-digit personal entry codes.

Programming a Personal Entry Code

1. Enter the factory-set five-digit code.

2. Press 1·2 on the keypad within five seconds.

3. Enter your personal five-digit code. You must do this within five seconds of completing step 2.

4. Press 1·2 on the keypad to save personal code 1.

The doors lock then unlock to confirm that programming was successful.

To program additional personal entry codes, repeat steps 1 through 3, then for step 4:

• Press 3·4 to save personal code 2.

• Press 5·6 to save personal code 3.

• Press 7·8 to save personal code 4.

• Press 9·0 to save personal code 5.

If your vehicle is fitted with MyFord Touch, you can also program the system with a personal entry code. See Settings (page

397).

Hints:

• Do not set a code that uses five of the same number.

• Do not use five numbers in sequential order.

• The factory-set code works even if you have set your own personal code.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Locks

Page 72

Recalling Memory Positions (If Equipped)

The programmed entry codes recall driver memory positions as follows:

• Entry code 1 recalls driver 1 memory positions.

• Entry code 2 recalls driver 2 memory positions.

• Entry code 3 recalls driver 3 memory positions.

Note: Personal entry codes 4 and 5 do not recall memory positions.

Erasing a Personal Code

1. Enter the factory-set five-digit code.

2. Press and release 1·2 on the keypad within five seconds.

3. Press and hold 1·2 for two seconds. You must do this within five seconds of completing Step 2.

All personal codes erase and only the factory-set five-digit code works.

Anti-Scan Feature

The keypad goes into an anti-scan mode if you enter the wrong code seven times. This mode turns off the keypad for one minute and the keypad lamp flashes.

The anti-scan feature turns off after:

• One minute of keypad inactivity.

• You press the unlock button on the

remote control.

• You switch the ignition on.

• You unlock your vehicle using

intelligent access.

Locking and Unlocking the Doors

Locking All Doors

Press and hold 7·8 and 9·0 simultaneously with the driver door closed. You do not need to enter the keypad code first.

Unlocking the Driver Door

Enter the factory-set or your personal five-digit code. You must press each number within five seconds of each other. The interior lamps illuminate.

Note: All doors unlock if you enable the all-door unlocking mode. See Locking and

Unlocking (page 60).

Unlocking All Doors

Enter the factory-set or your personal five-digit code, then press 3·4 within five seconds.

To Release the Liftgate

Enter the factory-set or your personal five-digit code, then press 5·6 within five seconds.

Displaying the Factory-Set Code

Integrated Keyhead Transmitter

Note: You need to have two programmed keys for this procedure.

1. Switch the ignition on.

2. Switch the ignition off and remove the key.

3. Insert the second key into the ignition and switch the ignition on.

The factory-set code appears in the information display for a few seconds.

Note: The code may not display until after any other warning messages first display.

Intelligent Access Key

Note: You need to have two programmed intelligent access keys for this procedure.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Locks

Page 73

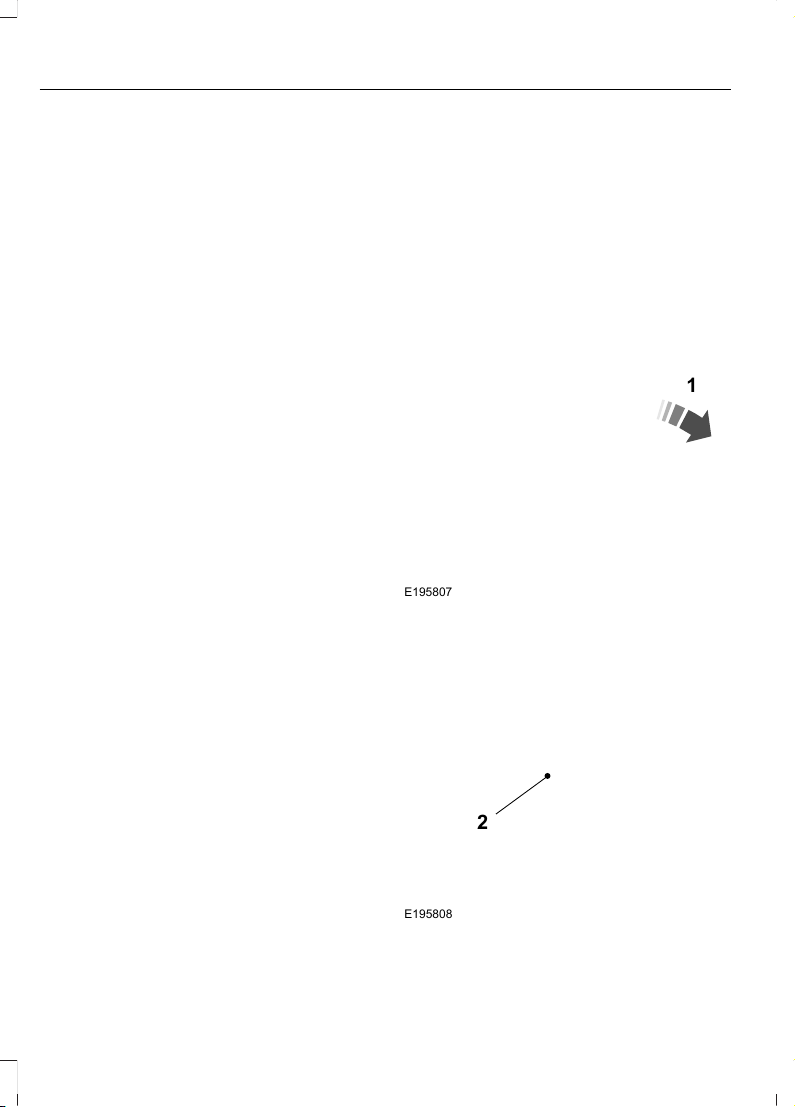

E195807

1. Open the floor console storage compartment lid.

E195808

2. With the buttons facing the rear of your vehicle and the key ring up, place the first intelligent access key into the backup slot inside the center console.

3. Press the START/STOP button once and wait a few seconds.

4. Press the START/STOP button again and remove the key.

5. Insert the second programmed key into the backup slot, then press the START/STOP button.

The factory-set code appears in the information display for a few seconds.

Note: The code may not display until after any other warning messages first display.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Locks

Page 74

PASSIVE ANTI-THEFT SYSTEM

Note: The system is not compatible with

non-Ford aftermarket remote start systems. Use of these systems may result in engine starting problems and a loss of security protection.

Note: Metallic objects, electronic devices or a second coded key on the same key chain may result in vehicle starting problems, especially if they are too close to the key when starting your vehicle. Prevent these objects from touching the coded key when starting your vehicle. Switch the ignition off, move all objects on the key chain away from the coded key and restart your vehicle if a problem occurs.

Note: Do not leave a duplicate coded key in your vehicle. Always take your keys and lock all doors when leaving your vehicle.

SecuriLock®

The system helps prevent the engine from starting unless you use a coded key programmed to your vehicle. Using the wrong key may prevent your vehicle from starting. A message may appear in the information display.

If you are unable to start your vehicle with a coded key, it is not operating correctly. A message may appear in the information display.

Automatic Arming

The system arms when you switch the ignition off.

Automatic Disarming

The system disarms when you switch the ignition on with a coded key.

Replacement Keys

Note: Your vehicle comes with two keys.

The integrated keyhead transmitter functions as a programmed ignition key that operates all the locks and starts your vehicle, as well as a remote control.

The intelligent access key functions as a programmed key that operates the driver door lock and activates the intelligent access with push button start system, as well as a remote control.

If your coded keys are lost or stolen and you do not have an extra coded key, you need to erase the key codes from your vehicle and program new coded keys. Contact an authorized dealer.

Store an extra programmed key away from your vehicle in a safe place. You can purchase replacement keys or remote controls from an authorized dealer.

Programming a Spare Integrated Keyhead Transmitter

Note: You can program a maximum of

eight coded keys to your vehicle. All eight can be integrated keyhead transmitters.

You can program your own integrated keyhead transmitter or standard SecuriLock coded keys to your vehicle. This procedure programs both the vehicle immobilizer keycode and the remote control to your vehicle.

Only use integrated keyhead transmitters or standard SecuriLock keys.

You must have two previously programmed coded keys and the new unprogrammed key readily accessible. If two previously programmed coded keys are not available, contact an authorized dealer.

Read and understand the entire procedure before you begin.

1. Insert the first previously programmed coded key into the ignition.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Security

Page 75

2. Switch the ignition from off to on. Keep the ignition on for at least 3 seconds, but no more than 10 seconds.

3. Switch the ignition off and remove the first coded key from the ignition.

4. After at least 3 seconds but within 10 seconds of switching the ignition off, insert the second previously coded key into the ignition.

5. Switch the ignition from off to on. Keep the ignition on for at least 3 seconds, but no more than 10 seconds.

6. Switch the ignition off and remove the second previously programmed coded key from the ignition.

7. After at least 3 seconds but within 10 seconds of switching the ignition off and removing the previously programmed coded key, insert the new unprogrammed key into the ignition.

8. Switch the ignition from off to on. Keep the ignition on for at least 6 seconds.

9. Remove the newly programmed coded key from the ignition.

If you have successfully programmed the new integrated keyhead transmitter, it will start your vehicle and operate the remote entry system.

If programming was unsuccessful, wait 10 seconds and repeat steps 1 through 8. If programming remains unsuccessful, contact an authorized dealer.

Programming a Spare Intelligent Access Key

Note: You can program a maximum of four

intelligent access keys to your vehicle.

You must have two previously programmed intelligent access keys inside your vehicle and the new unprogrammed intelligent access keys readily accessible. If two previously programmed coded keys are not available, contact an authorized dealer.

Make sure that the ignition is switched off before beginning this procedure. Make sure that you close all the doors before beginning and that they remain closed throughout the procedure. Carry out all steps within 30 seconds of starting the sequence. Stop and wait for at least one minute before starting again if you carry out any steps out of sequence.

Read and understand the entire procedure before you begin.

E195807

1. Open the floor console storage compartment lid.

E195808

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Security

Page 76

2. With the buttons facing the rear of your vehicle and the key ring up, place the intelligent access key into the backup slot.

3. Press the push button ignition switch.

4. Wait five seconds and then press the push button ignition switch again.

5. Remove the intelligent access key.

6. Within 10 seconds, place a second programmed intelligent access key in the backup slot and press the push button ignition switch.

7. Wait five seconds and then press the push button ignition switch again.

8. Remove the intelligent access key.

9. Wait five seconds, then place the unprogrammed intelligent access key in the backup slot and press the push button ignition switch.

Programming is now complete. Check that the remote control functions operate and your vehicle starts with the new intelligent access key.

If programming was unsuccessful, wait 10 seconds and repeat Steps 1 through 7. If programming remains unsuccessful, contact an authorized dealer.

ANTI-THEFT ALARM

The system will warn you of an unauthorized entry to your vehicle. It will be triggered if any door, the luggage compartment or the hood is opened without using the key, remote control or keyless entry keypad.

The direction indicators will flash and the horn will sound if unauthorized entry is attempted while the alarm is armed.

Take all remote controls to an authorized dealer if there is any potential alarm problem with your vehicle.

Arming the Alarm

The alarm is ready to arm when there is not a key in your vehicle. Electronically lock your vehicle to arm the alarm.

Disarming the Alarm

Disarm the alarm by any of the following actions:

• Unlock the doors or luggage compartment with the remote control or keyless entry keypad.

• Switch your vehicle on or start your vehicle.

• Use a key in the driver door to unlock your vehicle, then switch your vehicle on within 12 seconds.

Note: Pressing the panic button on the remote control will stop the horn and signal indicators, but will not disarm the system.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Security

Page 77

ADJUSTING THE STEERING WHEEL - VEHICLES WITH: MANUAL ADJUSTABLE STEERING COLUMN

WARNING

Do not adjust the steering wheel when your vehicle is moving.

Note: Make sure that you are sitting in the correct position. See Sitting in the Correct Position (page 133).

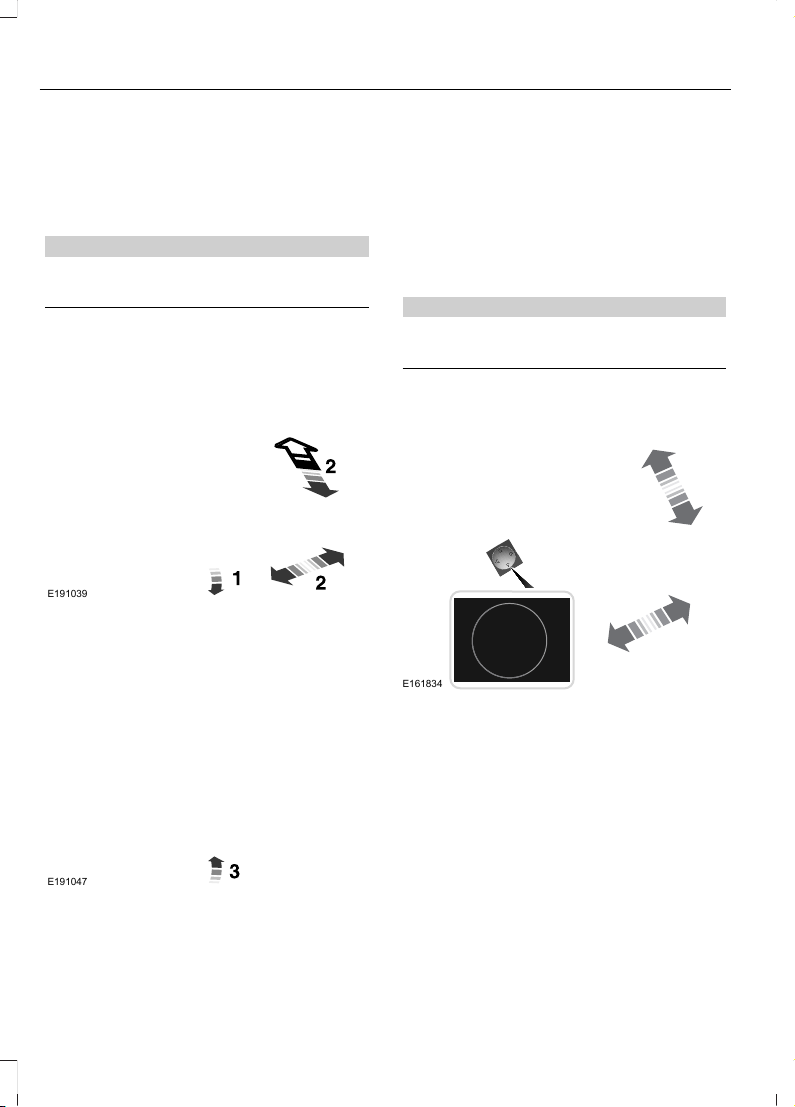

E191039

1. Unlock the steering column.

2. Adjust the steering wheel to the desired position.

E191047

3. Lock the steering column.

ADJUSTING THE STEERING WHEEL - VEHICLES WITH: POWER ADJUSTABLE STEERING COLUMN

Note: Make sure that you are sitting in the

correct position. See Sitting in the Correct Position (page 133).

WARNING

Do not adjust the steering wheel when your vehicle is moving.

E161834

Use the control on the side of the steering column to adjust the position.

To adjust:

• Tilt: Press the top or bottom of the control.

• Telescope: Press the front or rear of the control.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Steering Wheel

Page 78

End of Travel Position

The steering column sets a stopping position just short of the end of the column position to prevent damage to the steering column. A new stopping position sets if the steering column encounters an object when tilting or telescoping.

To reset the steering column to its normal stopping position:

1. Confirm there is nothing obstructing the motion of the steering column.

2. Press and hold the steering column control until the steering column stops moving.

3. Press the steering column control again. The steering column may begin to move again.

4. When the steering column stops, continue holding the control for an additional few seconds.

5. Repeat for each direction as necessary.

A new stopping position is set. The next time you tilt or telescope the steering column, it will stop just short of the end of the column position.

Memory Feature

You can save and recall the steering column position with the memory function. See Memory Function (page 137).

Note: Pressing the adjustment control during memory recall cancels the operation.

Easy Entry and Exit Feature

When you switch the ignition off, the steering column will move to allow extra room to exit your vehicle. The column will return to the previous setting when you switch the ignition on. You can enable or disable this feature in the information display. See Information Displays (page

100).

AUDIO CONTROL

Select the required source on the audio unit.

Operate the following functions with the control:

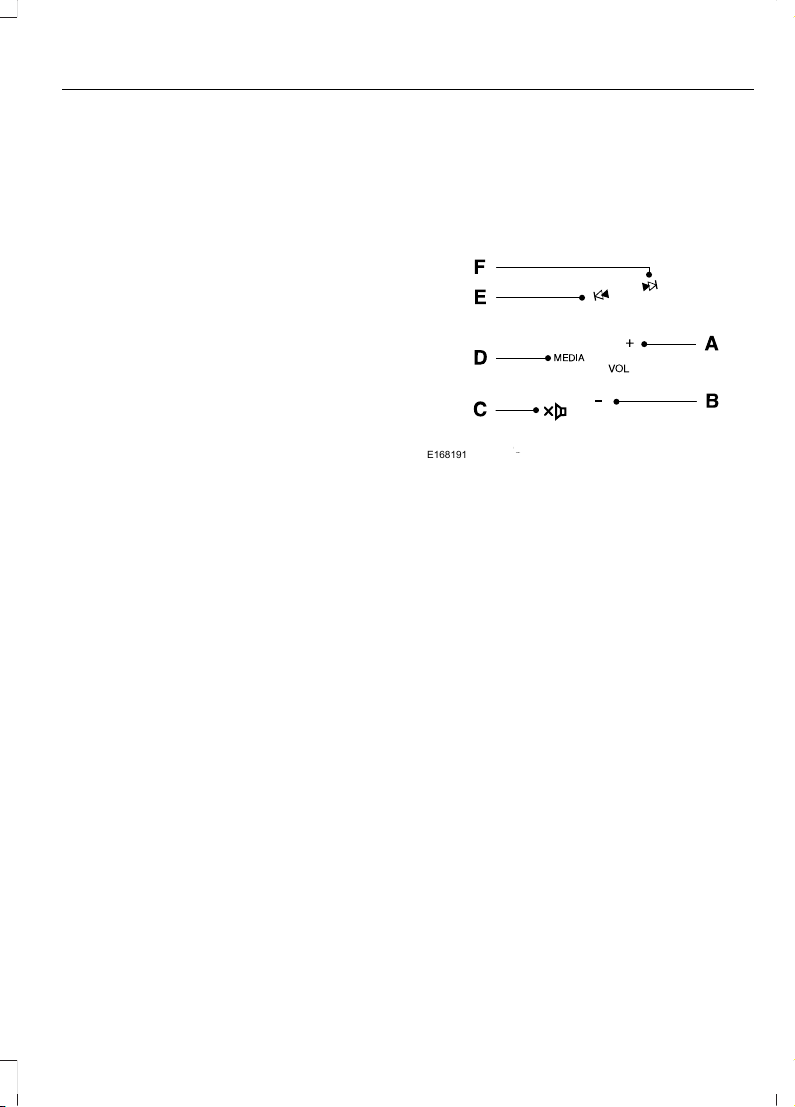

E168191

Volume up.A Volume down.B Mute.C Media.D Seek down or previous.E Seek up or next.F

MEDIA

Press repeatedly to scroll through available audio sources.

Seek, Next or Previous

Press the seek button to:

• tune the radio to the next or previous stored preset.

• play the next or the previous track.

Press and hold the seek button to:

• tune the radio to the next station up or down the frequency band.

• seek through a track.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Steering Wheel

Page 79

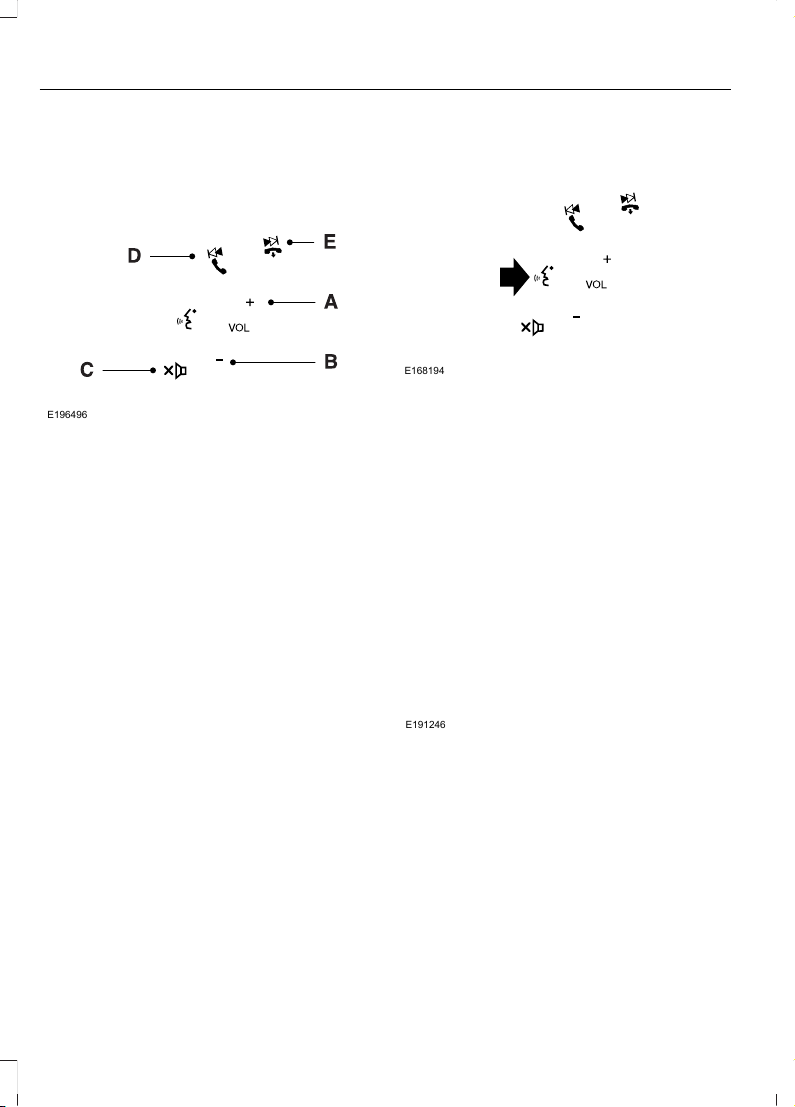

AUDIO CONTROL (If Equipped)

You can operate the following functions with the control:

E196496

Volume up.A Volume down.B Mute.C Seek down or previous.D Seek up or next.E

Seek, Next or Previous

Press the seek button to:

• Tune the radio to the next or previous stored preset.

• Play the next or the previous track.

Press and hold the seek button to:

• Tune the radio to the next station up or down the frequency band.

• Seek through a track.

VOICE CONTROL (If Equipped)

E168194

Press the button to select or deselect voice control. See SYNC™ (page 354).

CRUISE CONTROL

Type 1

E191246

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Steering Wheel

Page 80

Type 2

E191247

See Cruise Control (page 196).

INFORMATION DISPLAY CONTROL

E144636

See Information Displays (page 100).

Information Display Control Features

E144811

This control functions the same as the center control on the faceplate. See Audio Unit (page 343).

Use this control to adjust the right side of the information display. Navigate through the screen and press OK to select.

HEATED STEERING WHEEL (If

Equipped)

See MyFord Touch™ (page 388).

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Steering Wheel

Page 81

WINDSHIELD WIPERS

Note: Fully defrost the windshield before

you switch the windshield wipers on. Note: Make sure you switch the windshield

wipers off before entering a car wash. Note: Clean the windshield and wiper

blades if they begin to leave streaks or smears. If that does not resolve the issue, install new wiper blades.

Note: Do not operate the wipers on a dry windshield. This may scratch the glass, damage the wiper blades or cause the wiper motor to burn out. Always use the windshield washers before wiping a dry windshield.

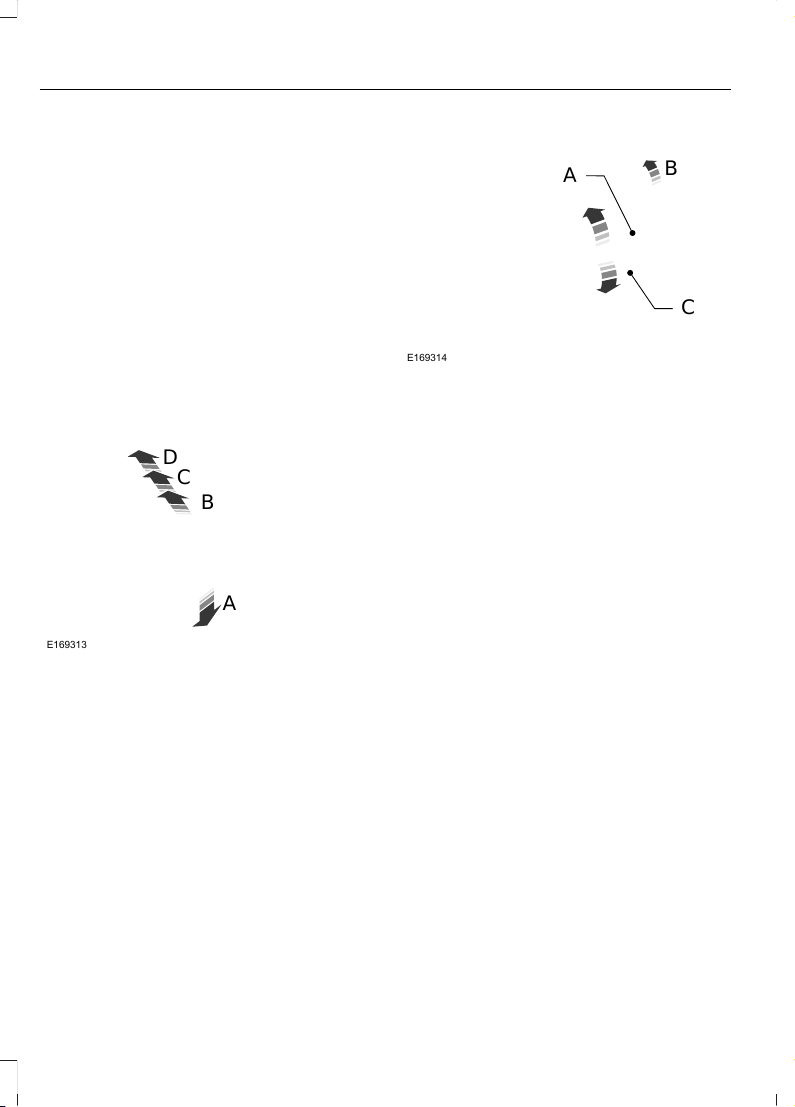

E169313

Single wipeA Intermittent wipeB Normal wipeC High speed wipeD

Intermittent Wipe

E169314

Shortest wipe intervalA Intermittent wipeB Longest wipe intervalC

Use the rotary control to adjust the intermittent wipe interval.

Speed Dependent Wipers

When your vehicle speed increases, the interval between wipes decreases.

AUTOWIPERS (If Equipped)

Note: Fully defrost the windshield before

switching on the windshield wipers. Note: Make sure you switch off the

windshield wipers before entering a car wash.

Note: Clean the windshield and wiper blades if they begin to leave streaks or smears. If that does not resolve the issue, install new wiper blades.

Note: If you switch autolamps on in conjunction with autowipers, your low beam headlamps will illuminate automatically when the rain sensor activates the windshield wipers continuously.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Wipers and Washers

Page 82

Note: Wet or winter driving conditions with

ice, snow or salty road mist can cause inconsistent and unexpected wiping or smearing.

In these conditions, you can do the following to help keep your windshield clear:

• Lower the sensitivity of the autowipers to reduce the amount of smearing.

• Switch to normal or high-speed wipe.

• Switch the autowipers off.

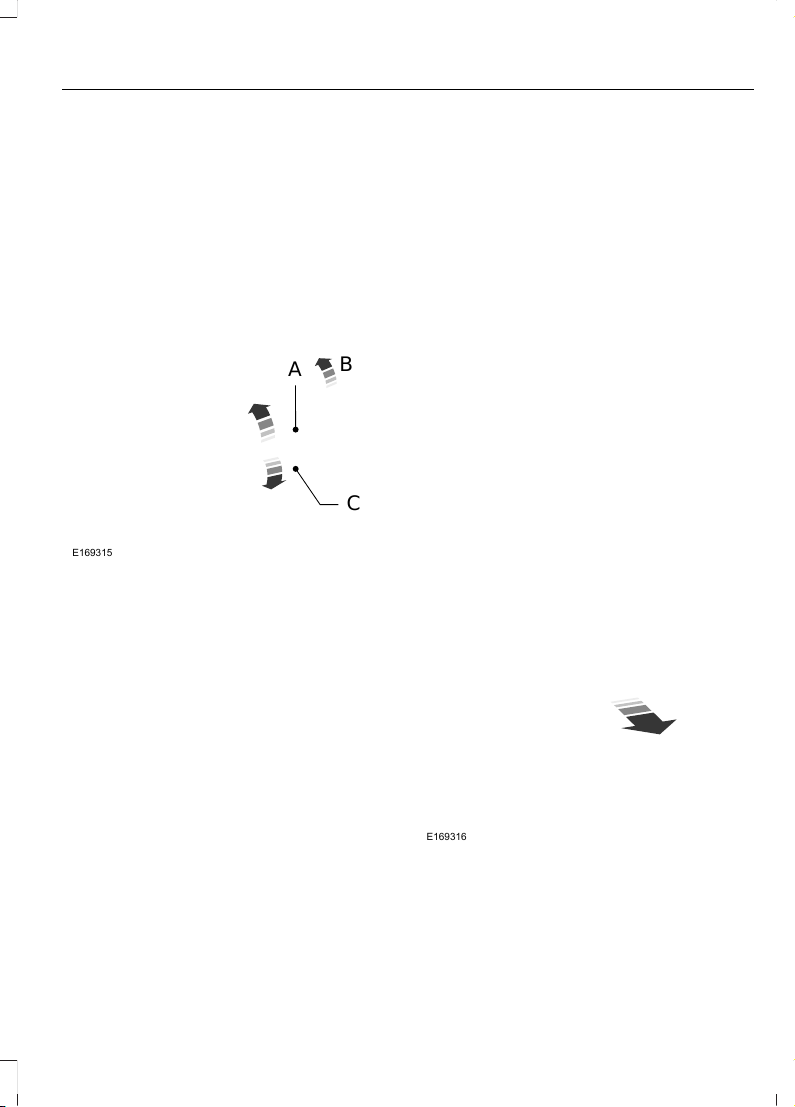

E169315

Highest sensitivityA OnB Lowest sensitivityC

The autowipers feature uses a rain sensor. You will find it in the area around the interior mirror. The rain sensor monitors the amount of moisture on the windshield and automatically turns on the wipers. It will adjust the wiper speed by the amount of moisture that the sensor detects on the windshield.

Note: This autowiper feature is automatically set to on and remains on until you switch it off in the information display. You can also switch the feature back on at any time. See Autowipers (page 78).

Use the rotary control to adjust the sensitivity of the rain sensor. Set the control to low sensitivity, and the wipers will turn on when the rain sensor detects a large amount of moisture on the windshield. Set the control to high sensitivity, and the wipers will turn on when the rain sensor detects a small amount of moisture on the windshield.

Note: When you set the wiper system to intermittent wipe and the autowiper system is on, the autowiper sensitivity setting adjusts the wiper speed according to the moisture on the windshield only. Use the wiper lever to wipe the windshield on-demand.

Keep the outside of the windshield clean. The rain sensor is very sensitive. If the area around the mirror is dirty, then the wipers may operate if dirt, mist or insects hit the windshield.

WINDSHIELD WASHERS

Note: Do not operate the washers when

the washer reservoir is empty. This may cause the washer pump to overheat.

E169316

To operate the washers and spray the windshield, pull the lever toward you.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Wipers and Washers

Page 83

A wipe will occur a few seconds after washing to clear any remaining washer fluid. This feature can be switched on or off in the information display. See General

Information (page 100).

Front Camera Washer (If Equipped)

Operating the windshield washer will also operate the front camera washer.

REAR WINDOW WIPER AND WASHERS

Rear Window Wiper

Note: Make sure you switch the rear

window wiper and ignition off before using an automatic car wash.

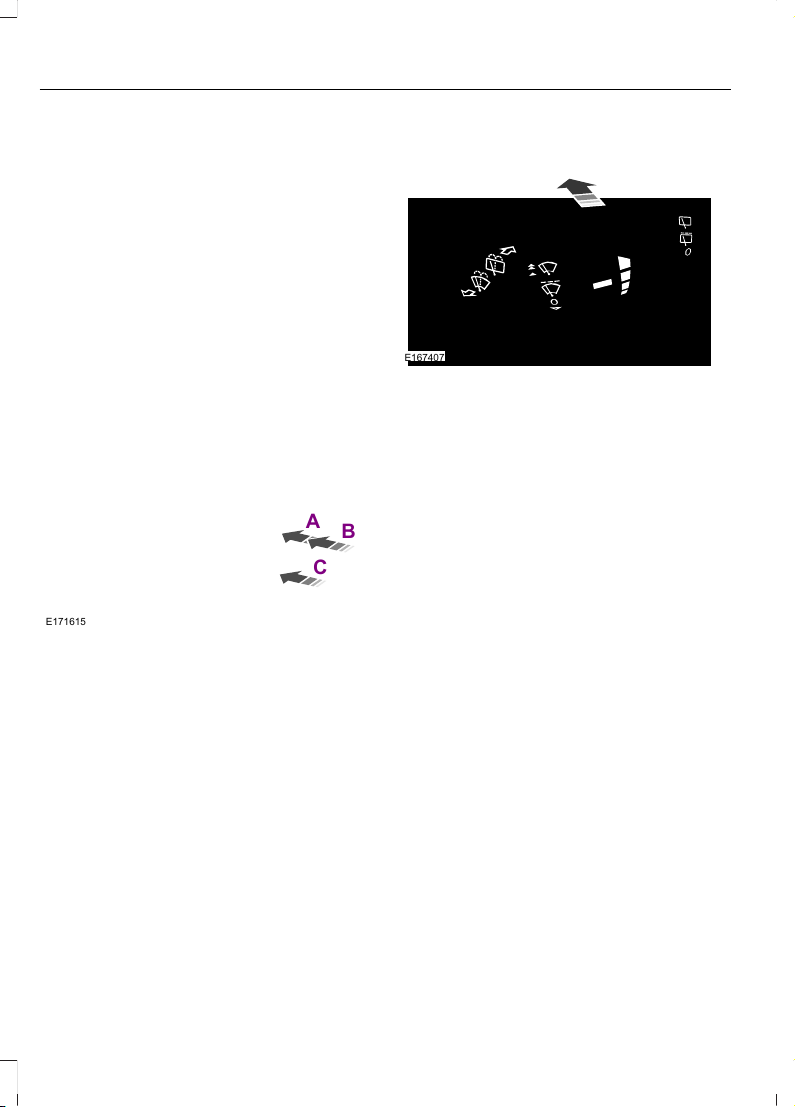

E171615

Intermittent wipe.A Low speed wipe.B Off.C

Press the top of the button to switch intermittent wipe on. Press the top of the button again to switch low speed wipe on. Press the bottom of the button to switch the rear window wiper off.

When you switch on the front wipers and move the gearshift lever to reverse (R), rear intermittent wipe automatically turns on.

Rear Window Washer

E167407

Push the lever away from you to operate the rear window washer. When you release the lever, wiping continues for a short period of time.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Wipers and Washers

Page 84

GENERAL INFORMATION

Condensation in Lamp Assemblies

Exterior lamps have vents to accommodate normal changes in air pressure.

Condensation can be a natural by-product of this design. When moist air enters the lamp assembly through the vents, there is a possibility that condensation can occur when the temperature is cold. When normal condensation occurs, a fine mist can form on the interior of the lens. The fine mist eventually clears and exits through the vents during normal operation.

Clearing time may take as long as 48 hours under dry weather conditions.

Examples of acceptable condensation are:

• The presence of a fine mist (no streaks, drip marks or large droplets).

• A fine mist covers less than 50% of the lens.

Examples of unacceptable condensation are:

• A water puddle inside the lamp.

• Streaks, drip marks or large droplets

present on the interior of the lens.

If you see any unacceptable condensation, have your vehicle checked by an authorized dealer.

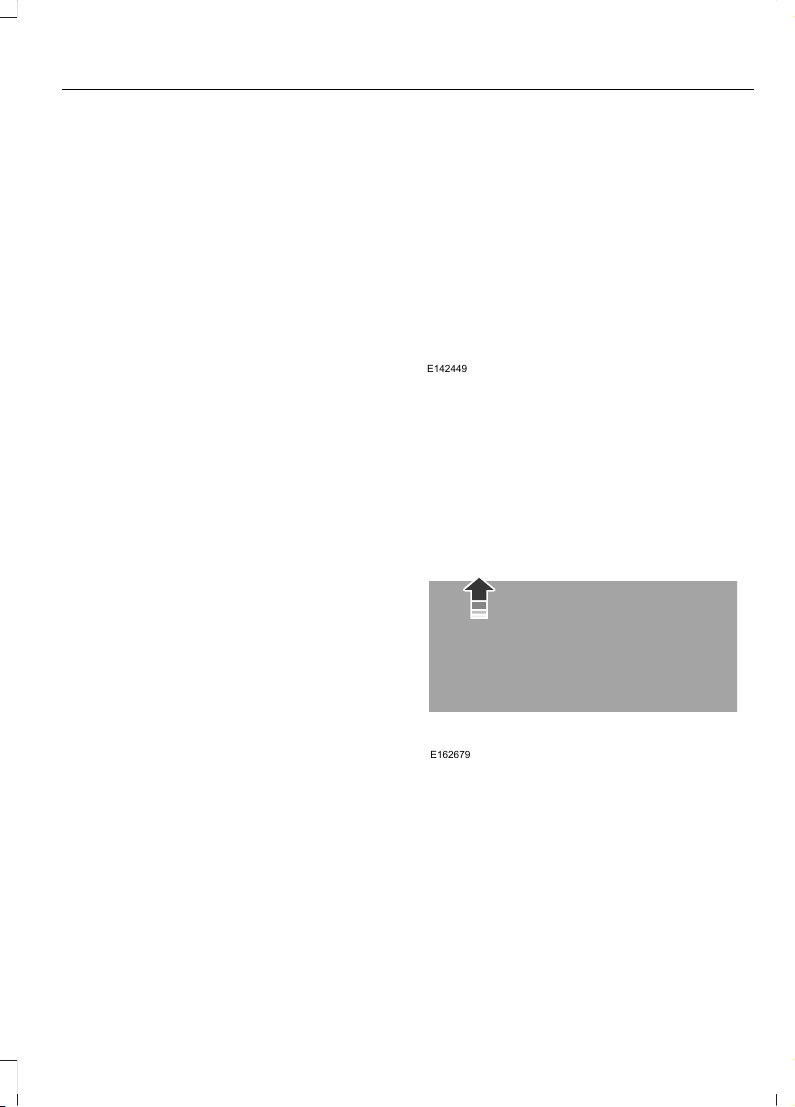

LIGHTING CONTROL

E142449

OffA Parking lamps, instrument panel

lamps, license plate lamps and tail lamps

HeadlampsC

High Beams

E162679

Push the lever forward to switch the high beams on.

Push the lever forward again or pull the lever toward you to switch the high beams off.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Lighting

Page 85

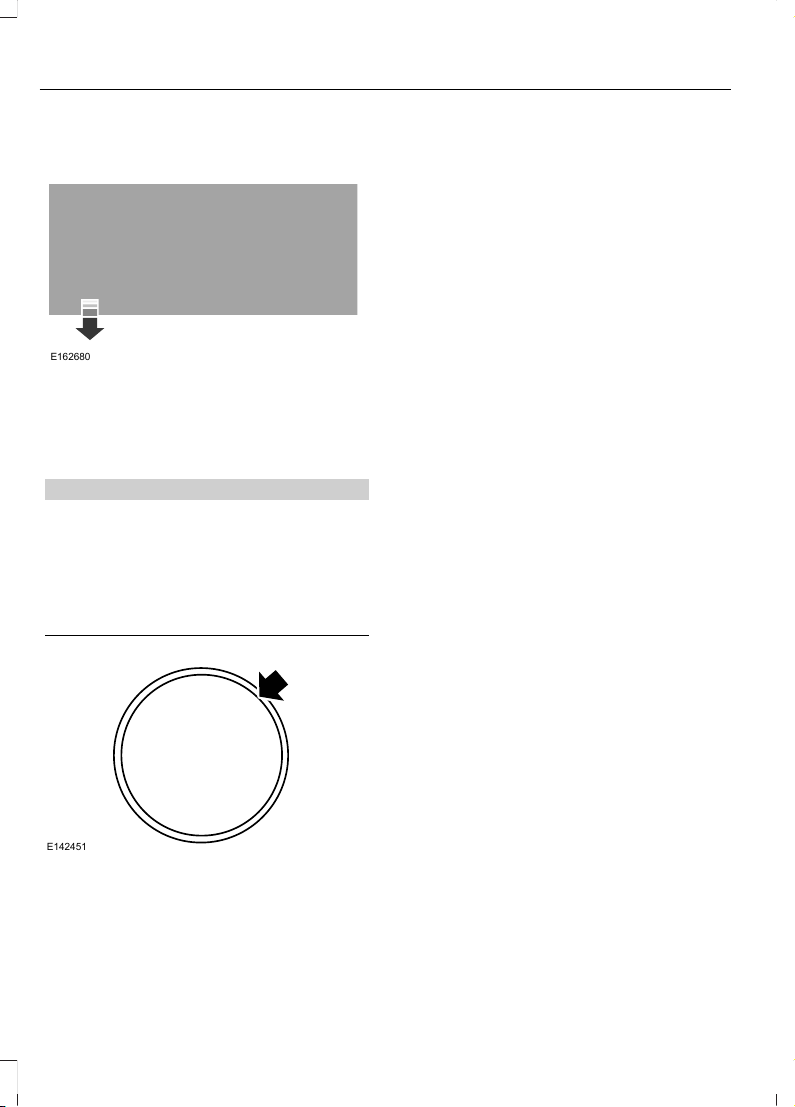

Headlamp Flasher

E162680

Pull the lever toward you slightly and release it to flash the headlamps.

AUTOLAMPS (If Equipped)

WARNING

The autolamps switch position may not activate the headlamps in all low

visibility conditions, such as daytime fog. Always ensure that your headlamps are switched to auto or on, as appropriate, during all low visibility conditions. Failure to do so may result in a collision.

E142451

When the lighting control is in the autolamps position, the headlamps automatically turn on in low light situations or when the wipers activate.

If equipped, the following also activate when the lighting control is in the autolamps position and you switch them on in the information display:

• Configurable daytime running lamps.

• Automatic high beam control.

• Adaptive headlamp control.

The headlamps remain on for a period of time after you switch the ignition off. Use the information display controls to adjust the period of time that the headlamps remain on. See Information Displays (page 100).

Note: With the headlamps in the autolamps position, you cannot switch the high beam headlamps on until the autolamps system turns the low beam headlamps on.

Windshield Wiper Activated Headlamps

The windshield wiper activated headlamps turn on within 10 seconds when you switch the windshield wipers on and the lighting control is in the autolamps position. They turn off approximately 60 seconds after you switch the windshield wipers off.

The headlamps will not turn on by wiper activation:

• During a mist wipe.

• When the wipers are on to clear washer

fluid during a wash condition.

• If the wipers are in intermittent mode.

Note: If you switch autolamps and autowipers on, the headlamps will automatically turn on when the windshield wipers continuously operate.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Lighting

Page 86

INSTRUMENT LIGHTING DIMMER

Note: If you disconnect the battery or it

becomes discharged, the illuminated components will switch to the maximum setting.

A B

E165366

Press repeatedly or press and hold to dim.

Press repeatedly or press and hold to brighten.

HEADLAMP EXIT DELAY

After you switch the ignition off, you can switch the headlamps on by pulling the direction indicator lever toward you. You will hear a short tone. The headlamps will switch off automatically after three minutes with any door open or 30 seconds after the last door has been closed. You can cancel this feature by pulling the direction indicator toward you again or switching the ignition on.

DAYTIME RUNNING LAMPS (If

Equipped)

WARNING

The daytime running lamps system does not activate the rear lamps and

may not provide adequate lighting during low visibility driving conditions. Also, the autolamps switch position may not activate the headlamps in all low visibility conditions, such as daytime fog. Make sure the headlamps are switched to auto or on, as appropriate, during all low visibility conditions. Failure to do so may result in a crash.

Type 1 - Conventional (NonConfigurable)

The daytime running lamps turn on when:

1. The ignition is switched to the on

position.

2. The transmission is not in park (P) for

vehicles with automatic transmissions or the parking brake is released for vehicles with manual transmissions.

3. The lighting control is in the off, parking

lamp or autolamps positions.

4. The headlamps are off.

Type 2 - Configurable

Switch the daytime running lamps on or off using the information display controls. See Information Displays (page 100).

The daytime running lamps turn on when:

1. They are switched on in the information

display. See Information Displays (page 100).

2. The ignition is switched to the on

position.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Lighting

Page 87

3. The transmission is not in park (P) for vehicles with automatic transmissions or the parking brake is released for vehicles with manual transmissions.

4. The lighting control is in the autolamps position.

5. The headlamps are off.

The other lighting control switch positions do not activate the daytime running lamps, and you can use them to temporarily override autolamp control.

When switched off in the information display, the daytime running lamps are off in all lighting control switch positions.

AUTOMATIC HIGH BEAM CONTROL (If Equipped)

The system will automatically turn on your high beams if it is dark enough and no other traffic is present. When it detects the headlights of an approaching vehicle, the tail lamps of the preceding vehicle or street lighting, the system will turn off the high beams before they distract other drivers. The low beams remain on.

Note: If it appears that automatic control of the high beams is not functioning properly, check the windshield in front of the camera for a blockage. A clear view of the road is required for proper system operation. Have any windshield damage in the area of the camera’s field-of-view repaired.

Note: If the system detects a blockage, for example bird droppings, bug splatter, snow or ice, the system will go into low beam mode until you clear the blockage. A message may also appear in the instrument cluster display noting the front camera is blocked.

Note: Typical road dust, dirt and water spots will not affect the performance of the automatic high beam system . However, in cold or inclement weather conditions, you will notice a decrease in the availability of the high beam system, especially at start up. If you want to change the beam state independently of the system, you may switch the high beams on or off using the multifunction switch. Automatic control will resume when conditions are correct.

Note: Modification of the vehicle ride height such as using much larger tires, may degrade feature performance.

A camera sensor, centrally mounted behind the windshield of your vehicle, continuously monitors conditions to decide when to switch the high beams off and on.

Once the system is active, the high beams will switch on if:

• the ambient light level is low enough

• there is no traffic in front of the vehicle

• the vehicle speed is greater than

approximately 24 mph (39 km/h)

The high beams will switch off if:

• the system detects the headlamps of an approaching vehicle or the tail lamps of a preceding vehicle.

• vehicle speed falls below approximately 17 mph (27 km/h)

• the ambient light level is high enough that high beams are not required

• the system detects severe rain, snow or fog

• the camera is blocked

Activating the System

Switch on the system using the information display and autolamps. See Information Displays (page 100). See Autolamps (page 82).

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Lighting

Page 88

E142451

Switch the lighting control to the autolamps position.

Manually Overriding the System

E169254

When the automatic control has activated the high beams, pushing or pulling the stalk will provide a temporary override to low beam.

Use the information display menu to permanently deactivate the system, or turn the lighting control switch from autolamps to headlamps.

DIRECTION INDICATORS

E169255

Push the lever up or down to use the direction indicators.

Note: Tap the lever up or down to make the direction indicators flash three times to indicate a lane change.

INTERIOR LAMPS

The lamps will turn on when you have met one of the following conditions:

• You open any door.

• You press a remote control button.

• You press the all lamps on button on

the front interior lamp.

Front Interior Lamp

Note: The front interior lamp buttons are

on the overhead console. The exact location of each button on the overhead console depends upon which roof, moonroof, and window shade features are equipped on the vehicle.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Lighting

Page 89

Note: Press the button to switch the door

function off when you open any door. The indicator lamp will light amber when the door function is off. When the door function is off and you open a door, the courtesy and door lamps will stay off. Press the button again to switch the door function back on. The indicator lamp will light blue when the door function is on. When the door function is on and you open a door, the courtesy and door lamps will light.

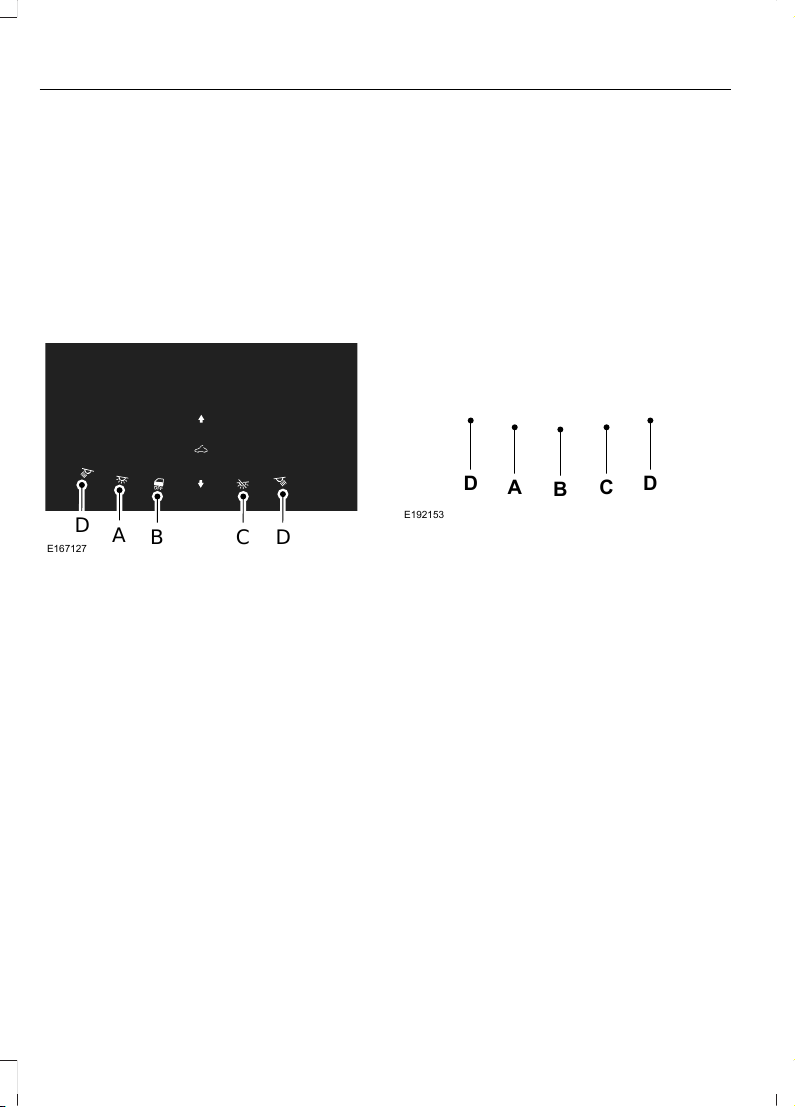

Type 1

E167127

B C D

All lamps on buttonA Door function buttonB All lamps off buttonC Individual dome lampsD

Type 2

E192153

D D

All lamps on buttonA Door function buttonB All lamps off buttonC Individual dome lampsD

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Lighting

Page 90

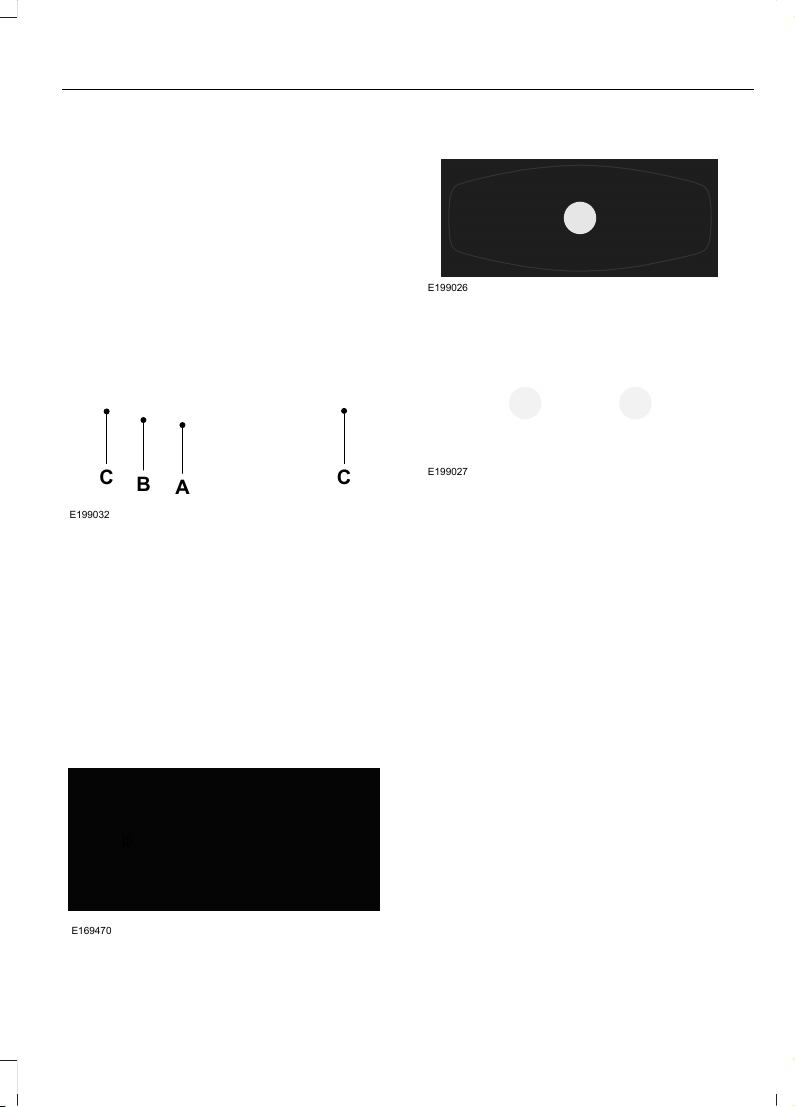

Type 3

E199032

C C

Door function buttonA All lamps on buttonB Individual dome lampsC

You can switch individual map lamps on independently by pressing a map lens.

Rear Interior Lamp (If Equipped)

Type 1

E169470

Type 2

E199026

Type 3

E199027

You can switch dome lamps on by pressing the button.

AMBIENT LIGHTING (If Equipped)

The ambient lighting system is adjusted with the touchscreen system. See MyFord Touch™ (page 388).

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Lighting

Page 91

POWER WINDOWS

WARNINGS

Do not leave children unattended in your vehicle and do not let them play with the power windows. They may

seriously injure themselves.

When closing the power windows, you should verify they are free of

obstructions and make sure that children and pets are not in the proximity of the window openings.

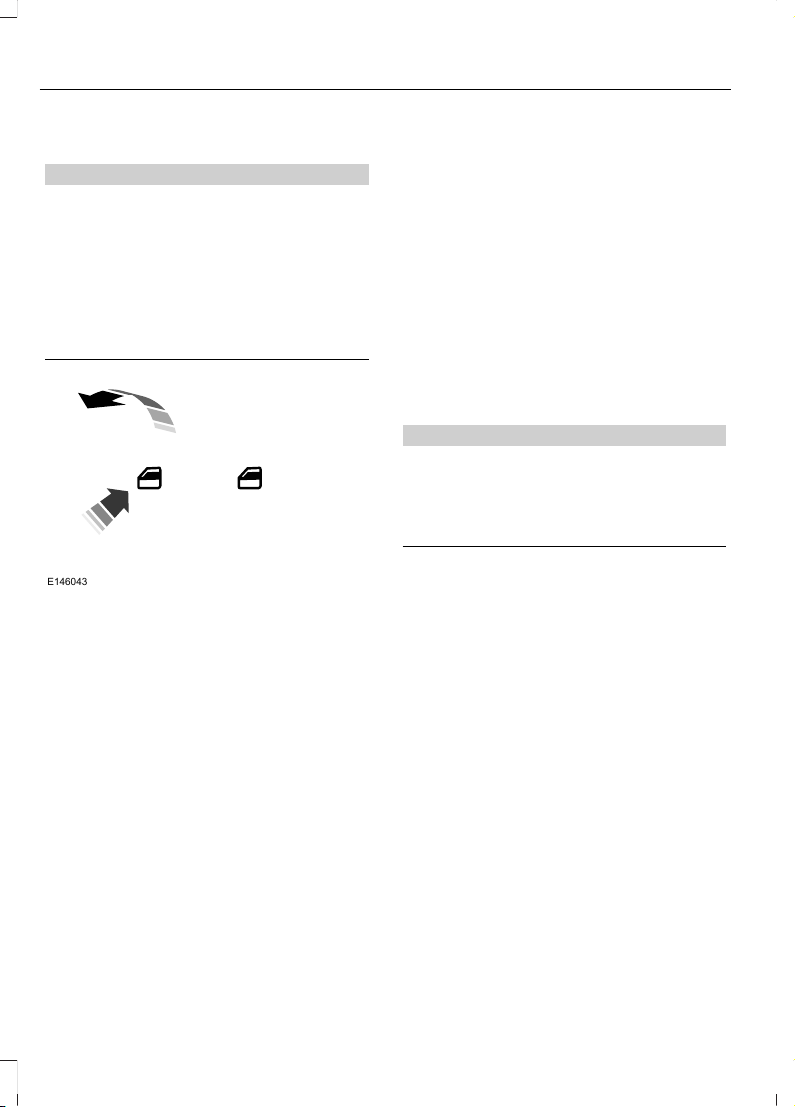

E146043

Note: You may hear a pulsing noise when just one of the windows is open. Lower the opposite window slightly to reduce this noise.

Press the switch to open the window. Lift the switch to close the window.

One-Touch Down

Press the switch fully and release it. Press again or lift it to stop the window.

One-Touch Up

Lift the switch fully and release it. Press or lift it again to stop the window.

Resetting One-Touch Up

1. Lift and hold the control until the

window is fully closed.

2. Release the control.

3. Open the window and then try to close it automatically.

4. Repeat the procedure if the window does not close automatically.

Note: The one-touch down and one-touch up feature only applies to the front windows.

Bounce-Back

The window stops automatically while closing. It reverses some distance if there is an obstacle in the way.

Overriding the Bounce-Back Feature

WARNING

When you override the bounce-back feature the window will not reverse

if it detects an obstacle. Take care when closing the windows to avoid personal injury or damage to your vehicle.

Pull up the window switch and hold within two seconds of the window reaching the bounce-back position. The window travels up with no bounce-back protection. The window stops if you release the switch before the window is fully closed.

Accessory Delay

You can use the window switches for several minutes after you switch the ignition off or until you open either front door.

GLOBAL OPENING

You can use the remote control to operate the windows with the ignition off.

Note: You can enable or disable this feature in the information display, or see an authorized dealer. See General Information (page 100).

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Windows and Mirrors

Page 92

Note: To operate this feature, accessory

delay must not be active.

Opening the Windows

You can open the windows for a short time after you unlock your vehicle with the remote control. After you unlock your vehicle, press and hold the remote control unlock button to open the windows. Release the button once movement starts. Press the lock or unlock button to stop movement.

Note: Only the front windows are operated during global opening.

EXTERIOR MIRRORS

Power Exterior Mirrors

WARNING

Do not adjust the mirrors when your vehicle is moving.

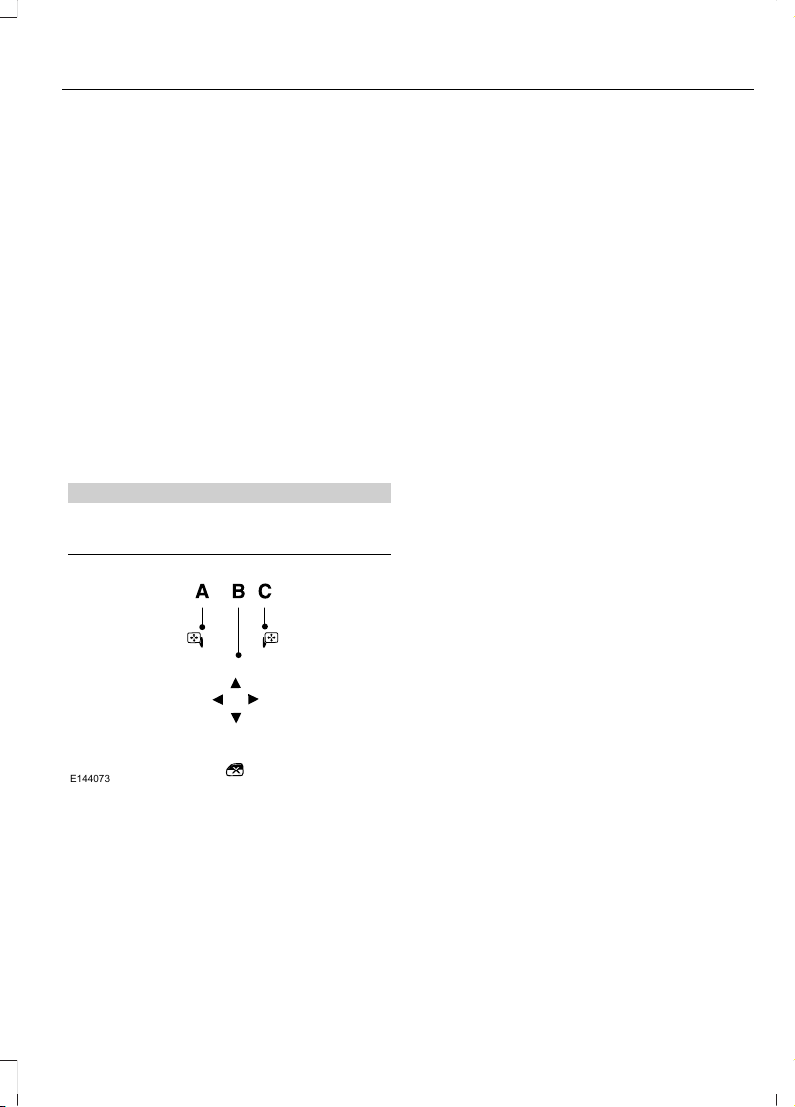

E144073

Left-hand mirror.A Adjustment control.B Right-hand mirror.C

To adjust your mirrors, switch your vehicle on (with the ignition in accessory mode or the engine running) and then:

1. Select the mirror you want to adjust. The control lights.

2. Use the adjustment control to adjust the position of the mirror.

3. Press the mirror control again. The control light turns off.

Fold-Away Exterior Mirrors

Push the mirror toward the door window glass. Make sure that you fully engage the mirror in its support when returning it to its original position.

Heated Exterior Mirrors (If Equipped)

See Heated Windows and Mirrors (page

131).

Memory Mirrors (If Equipped)

You can save and recall the mirror positions through the memory function. See Memory Function (page 137).

Auto-dimming Feature (If Equipped)

The driver exterior mirror automatically dims when the interior auto-dimming mirror turns on.

Direction Indicator Mirrors (If Equipped)

While the vehicle is running, the forward-facing portion of the appropriate mirror housing blinks when you switch on the direction indicator.

Puddle Lamps (If Equipped)

The lamps on the bottom part of the mirror housing light when you use your transmitter to unlock the doors or when you open a door.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Windows and Mirrors

Page 93

Integrated Blind Spot Mirror (If

Equipped)

WARNING

Objects in the blind spot mirror are closer than they appear.

Blind spot mirrors have an integrated convex mirror built into the upper outboard corner of the exterior mirrors. They can assist you by increasing visibility along the side of your vehicle.

Check the main mirror first before a lane change, then check the blind spot mirror. If no vehicles are present in the blind spot mirror and the traffic in the adjacent lane is at a safe distance, signal that you are going to change lanes. Glance over your shoulder to verify traffic is clear, and carefully change lanes.

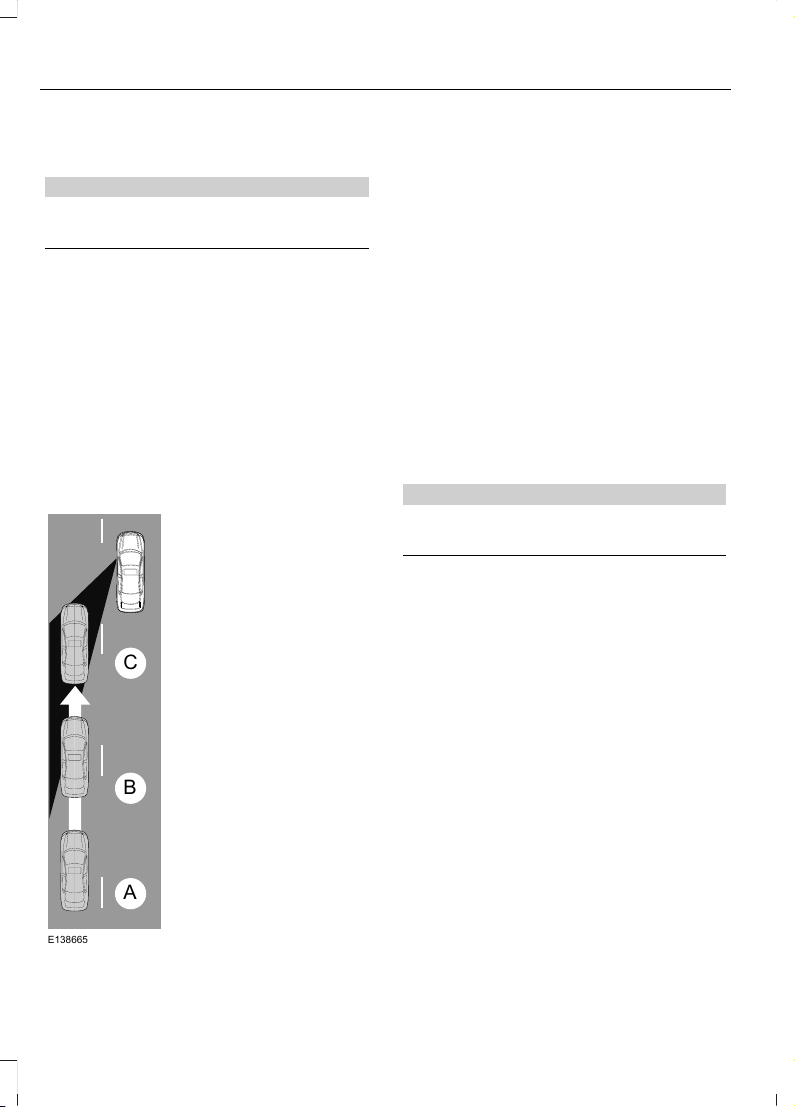

E138665

The image of the approaching vehicle is small and near the inboard edge of the main mirror when it is at a distance. The image becomes larger and begins to move outboard across the main mirror as the vehicle approaches (A). The image transitions from the main mirror and begins to appear in the blind spot mirror as the vehicle approaches (B). The vehicle transitions to your peripheral field of view as it leaves the blind spot mirror (C).

Blind Spot Information System (If

Equipped)

See Blind Spot Information System (page 208).

INTERIOR MIRROR

WARNING

Do not adjust the mirror when your vehicle is moving.

Note: Do not clean the housing or glass of any mirror with harsh abrasives, fuel or other petroleum or ammonia-based cleaning products.

You can adjust the interior mirror to your preference. Some mirrors also have a second pivot point. This lets you move the mirror head up or down and from side to side.

Pull the tab below the mirror toward you to reduce glare at night.

Auto-Dimming Mirror (If Equipped)

Note: Do not block the sensors on the front

and back of the mirror. Mirror performance may be affected. A rear center passenger or raised rear center head restraint may also block light from reaching the sensor.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Windows and Mirrors

Page 94

The mirror will dim automatically to reduce glare when bright lights are detected from behind your vehicle. It will automatically return to normal reflection when you select reverse gear to make sure you have a clear view when backing up.

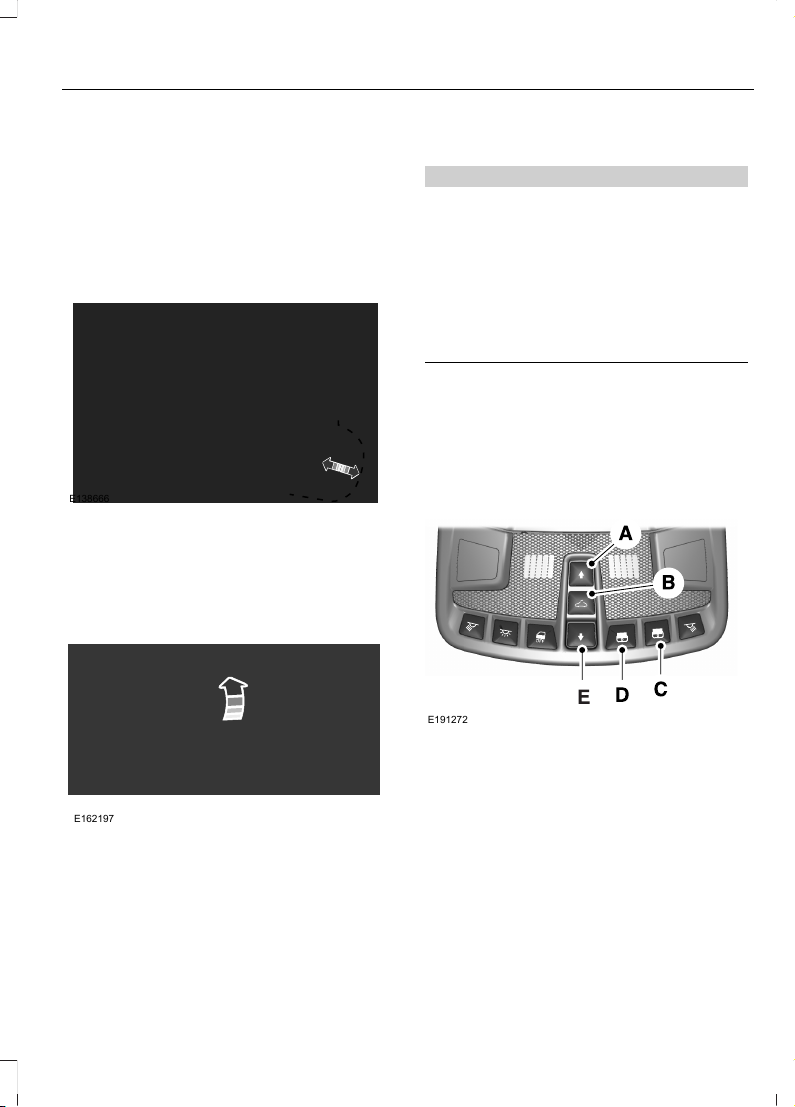

SUN VISORS

E138666

Rotate the sun visor toward the side window and extend it rearward for extra shade.

Illuminated Vanity Mirror

E162197

Lift the cover to switch the lamp on.

MOONROOF (If Equipped)

WARNINGS

Do not let children play with the moonroof or leave them unattended in the vehicle. They may seriously

hurt themselves.

When closing the moonroof, you should verify that it is free of

obstructions and make sure that children and pets are not in the proximity of the roof opening.

The moonroof controls are located on the overhead console and have a one-touch open and close feature. To stop its movement during one-touch operation, press the control a second time.

Opening and Closing the Moonroof

E191272

Moonroof open. Press and release to open the moonroof. The moonroof stops short of the fully opened position. Press and release the control again to open the moonroof fully.

Moonroof vent. Press and release to vent the moonroof.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Windows and Mirrors

Page 95

Sunshade open. Press and

release to open the sunshade. The sunshade opens automatically with the moonroof. You can also open the sunshade with the moonroof

closed. Note: The sunshade stops short of its fully opened position for the comfort of rear passengers. To open the sunshade fully, press the control again.

Sunshade close. Press and release to close the sunshade.

Moonroof close. Press and release to close the moonroof from either the open or vent positions.

Note: The moonroof stops 8 in (200 mm) from the closed position. To close the moonroof, press and hold the moonroof close control until the moonroof is in the fully closed position.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Windows and Mirrors

Page 96

GAUGES

Type 1

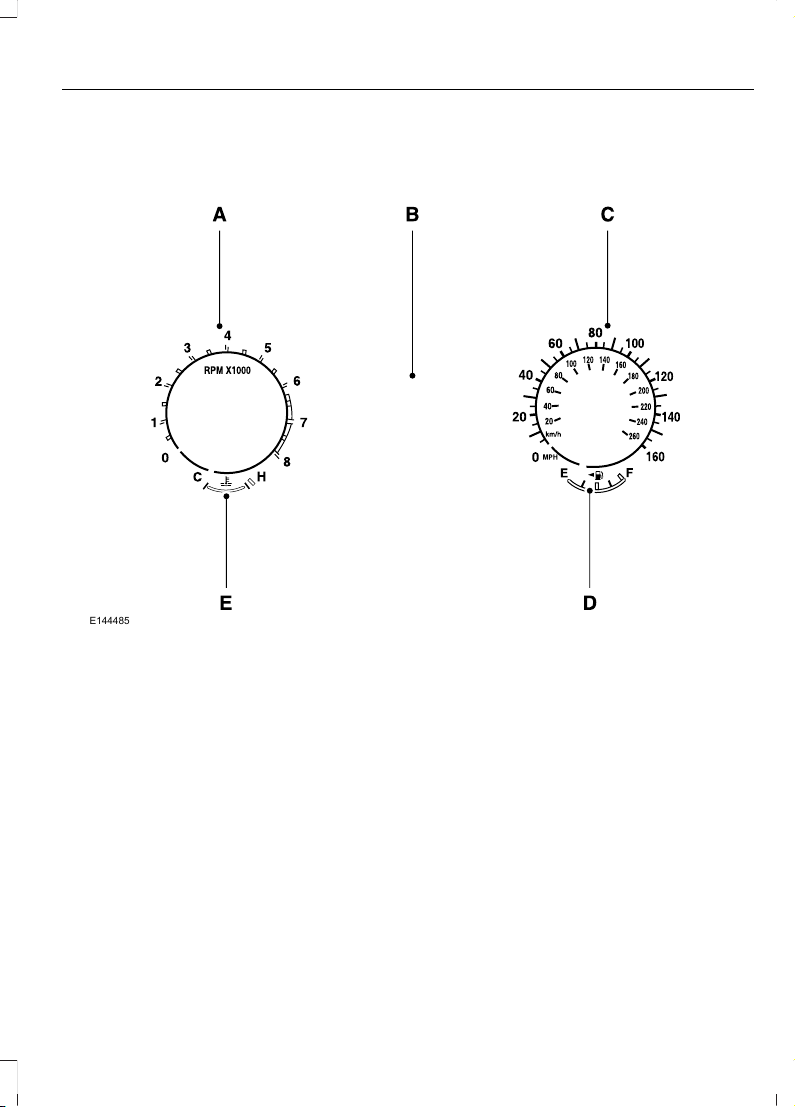

E144485

TachometerA Information DisplayB SpeedometerC Fuel GaugeD Engine Coolant Temperature GaugeE

Information Display

Odometer

Located in the bottom of the information display Registers the accumulated distance your vehicle has traveled.

Outside Air Temperature

Shows the outside air temperature.

Compass

Displays the vehicle’s heading direction.

Trip Computer

See General Information (page 100).

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Instrument Cluster

Page 97

Vehicle Settings and Personalization

See General Information (page 100).

Engine Coolant Temperature Gauge

Shows the temperature of the engine coolant. At normal operating temperature, the needle remains in the center section. If the needle enters the red section, the engine is overheating. Stop the engine, switch the ignition off and determine the cause once the engine has cooled down.

Note: Do not restart the engine until the cause of overheating has been resolved.

WARNING

Never remove the coolant reservoir cap while the engine is running or hot.

Fuel Gauge

Note: The fuel gauge may vary slightly

when your vehicle is moving or on a gradient.

Switch the ignition on. The fuel gauge indicates approximately how much fuel is left in the fuel tank. The arrow adjacent to the fuel pump symbol indicates on which side of your vehicle the fuel filler door is located.

The needle should move toward F when you refuel your vehicle. If the needle points to E after adding fuel, this indicates your vehicle needs service soon.

After refueling some variability in needle position is normal:

• It may take a short time for the needle to reach F after leaving the gas station. This is normal and depends upon the slope of pavement at the gas station.

• The fuel amount dispensed into the tank is a little less or more than the gauge indicated. This is normal and depends upon the slope of pavement at the gas station.

• If the gas station nozzle shuts off before the tank is full, try a different gas pump nozzle.

Low Fuel Reminder

A low fuel reminder triggers when the fuel gauge needle is at 1/16th.

Variations:

Distance-to-emptyFuel gauge positionDriving type (fuel economy

conditions)

35 miles to 80 miles (56 km

to 129 km)

1/16thHighway driving

35 miles (56km)1/ 16thSevere duty driving (trailer

towing, extended idle)

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Instrument Cluster

Page 98

Type 2

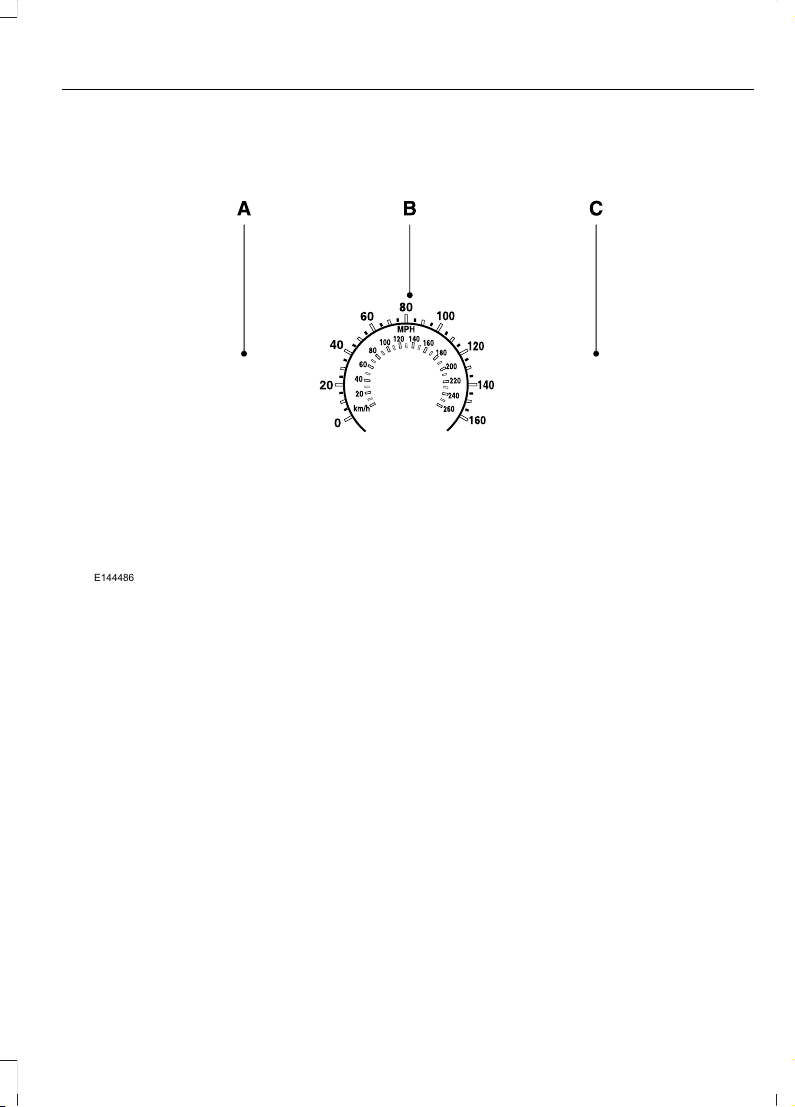

E144486

Left Information DisplayA SpeedometerB Right Information Display See General Information (page 100).C

Left Information Display

Odometer

Located in the bottom of the information display Registers the accumulated distance your vehicle has traveled.

Trip Computer

See General Information (page 100).

Vehicle Settings and Personalization

See General Information (page 100).

WARNING LAMPS AND INDICATORS

The following warning lamps and indicators will alert you to a vehicle condition that may become serious. Some lamps will illuminate when you start your vehicle to make sure they work. If any lamps remain on after starting your vehicle, refer to the respective system warning lamp for further information.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Instrument Cluster

Page 99

Note: Some warning indicators appear in

the information display and function the same as a warning lamp, but do not display when you start your vehicle.

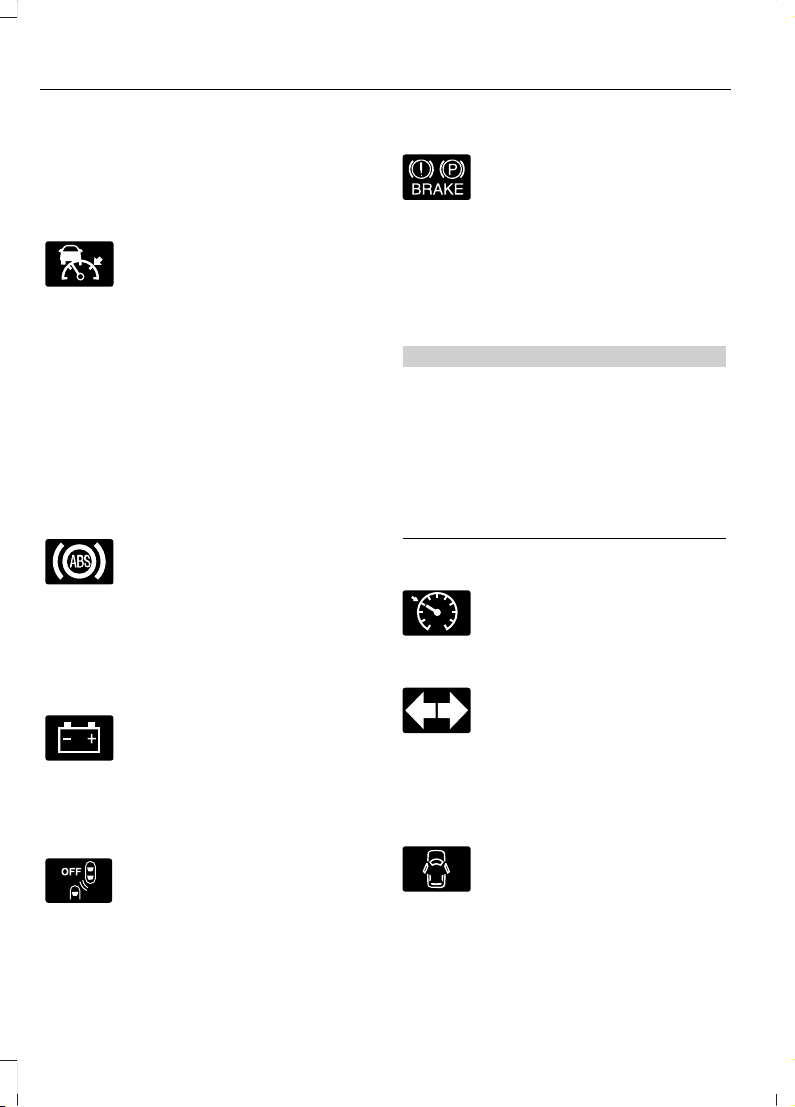

Adaptive Cruise Control (If Equipped)

E144524

The speed control system indicator light changes color to

indicate what mode the system is in: See Using Adaptive Cruise Control (page 197).

On (white light): Illuminates when you turn the adaptive cruise control system on. Turns off when you turn the speed control system off.

Engaged (green light): Illuminates when the adaptive cruise control system engages. Turns off when the speed control system is disengaged.

Anti-Lock Braking System

If it illuminates when you are

driving, this indicates a

malfunction. You will continue to have normal braking (without Anti-lock braking system) unless the brake system warning lamp is also illuminated. Have the system checked by an authorized dealer.

Battery

If it illuminates while driving, it

indicates a malfunction. Switch

off all unnecessary electrical equipment and have the system checked by an authorized dealer immediately.

Blind Spot Monitor (If Equipped)

E151262

It will illuminate when you switch this feature off or in conjunction with a message. See Blind Spot

Information System (page 208).

Brake System

E144522

It will illuminate when you engage the parking brake with the ignition on.

If it illuminates when you are driving, check that you do not have the parking brake engaged. If you do not have the parking brake engaged, this indicates low brake fluid level or a brake system malfunction. Have the system checked immediately by an authorized dealer.

WARNING

Driving your vehicle with the warning lamp on is dangerous. A significant

decrease in braking performance may occur. It will take you longer to stop your vehicle. Have your vehicle checked by your authorized dealer immediately. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.

Cruise Control (If Equipped)

E71340

It will illuminate when you switch this feature on.

Direction Indicator

Illuminates when you turn the left or right direction indicator or

the hazard warning flasher on. If the indicators stay on or flash faster, check for a burned out bulb. See Changing a

Bulb (page 274).

Door Ajar

Displays when the ignition is on

and any door is not completely

closed.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Instrument Cluster

Page 100

Electric Park Brake

E146190

It will illuminate or flash when the electric parking brake has a malfunction. See Electric

Parking Brake (page 176).

Engine Coolant Temperature

Illuminates when the engine coolant temperature is high.

Stop the vehicle as soon as possible, switch off the engine and let cool. See Engine Coolant Check (page 263).

Engine Oil

If it illuminates with the engine

running or when you are driving,

this indicates a malfunction. Stop your vehicle as soon as it is safe to do so and switch the engine off. Check the engine oil level. See Engine Oil Check (page 262).

Note: Do not resume your journey if it illuminates despite the level being correct. Have the system checked by your authorized dealer immediately.

Fasten Safety Belt

It will illuminate and a chime will

sound to remind you to fasten

your safety belt. See Safety

Belt Minder (page 35).

Front Airbag

If it fails to illuminate when you

start your vehicle, continues to

flash or remains on, it indicates a malfunction. Have the system checked by an authorized dealer.

Heads Up Display (If Equipped)

E156133

A red beam of lights will illuminate on the windshield in

certain instances when using adaptive cruise control or the collision warning system. It will also illuminate momentarily when you start your vehicle to make sure the display works.

High Beam

It will illuminate when you switch

the high beam headlamps on. It

will flash when you use the headlamp flasher.

Hood Ajar

E159324

Displays when the ignition is on

and the hood is not completely

closed.

Low Fuel Level

It will illuminate when the fuel

level is low or the fuel tank is

nearly empty. Refuel as soon as possible.

Low Tire Pressure Warning

It will illuminate when your tire

pressure is low. If the lamp

remains on with the engine

running or when driving, check your tire pressure as soon as possible.

It will also illuminate momentarily when you switch the ignition on to confirm the lamp is functional. If it does not illuminate when you switch the ignition on, or begins to flash at any time, have the system checked by an authorized dealer.

Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing

Instrument Cluster
