Follett UCD100A30ADACF User Manual

Tempo™
Operation and Service Manual
Welcome to Follett
Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and outstanding after-the-sale support. To ensure that this equipment delivers that same degree of service, review this guide carefully before you begin your installation.
Should you need technical help, please call our Technical Service group at (877) 612-5086 or (610) 252-7301.
Please have your model number, serial number and complete and detailed explanation of the problem when contacting Technical Service.
Getting Started
After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. All freight is to be inspected upon delivery. If visible signs of damage exist, please refuse delivery or sign your delivery receipt "damaged." Follett Customer Service must be notied within 48 hours. Wherever possible, please include detailed photos of the damage with the original packaging so that we may start the freight claim process.
801 Church Lane • Easton, PA 18040, USA Toll free (877) 612-5086 • +1 (610) 252-7301 www.follettice.com
Installation and Service Videos:
www.follettice.com/servicevideolibrary
01299049R03
CAUTION!
§ CALIFORNIA PROPOSITION 65
– This product contains chemicals known to the state of California to cause cancer and birth defects or
other reproductive harm. www.P65warnings.CA.gov
§ Your product contains R600a (Isobutane) which is a ammable hydrocarbon. It is safe for regular use. Do not use sharp objects to expedite defrosting. Do not service without consulting the “R600a specications” section included in the User Guide. Do not damage the refrigerant circuit.
§ This equipment is to be installed with adequate backow protection to comply with applicable federal, state, and local codes.
§ Do not tilt unit further than 30° off vertical during uncrating or installation.
§ Dispenser bin area contains mechanical, moving parts. Keep hands and arms clear of this area at all times. If access to this area is required, power to unit must be disconnected rst.
§ This appliance is not suitable for installation in an area where a water jet could be used.
§ This appliance must not be cleaned by a water jet.
§ User maintence should not be done by children.
§ Follett recommends a Follett water lter system be installed in the ice machine inlet water line (standard capacity #00130229, high capacity #00978957, carbonless high capacity #01050442).
§ Prior to operation clean the dispenser in accordance with instructions found in this manual.
§ Do not block air intake or exhaust.
§ This appliance should be permanently connected by a qualied person in accordance with application codes.
§ A qualied person shall provide a readily accessible disconnect device incorporated into the xed wiring.
§ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.
§ This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not play with the appliance.
§ This appliance is designed for commercial use.
§ WARNING! To avoid a hazard due to instability of the appliance, it must be xed in accordance with the instructions.
§ Warranty does not cover exterior or outside installations.
§ To reduce risk of shock, disconnect power before servicing.
§ Connect to potable water supply only.
§ Ice is slippery. Maintain counters and oors around dispenser in a clean and ice-free condition.
§ Ice is food. Follow recommended cleaning instructions to maintain cleanliness of delivered ice.
2 Tempo Undercounter Ice Machine Bin
Before You Begin
If needed, the serial number of your dispenser can be found by opening the door and locating the serial number label at the top right inside of the machine.
Note: For indoor use only. Designed for commercial use. Follett is not able to provide in-house services for
residential installations.
Model congurations
Ice storage capacity Height Filter ¹ Drain Pump Item number
34.12"
30 lb
(13.6kg)
¹ Internal lter is a 5 micron particle and carbon lter.
(86.7cm)
32.00" (81.3cm) for ADA applications
No Ye s UCD100A30-NF
Ye s Ye s UCD100A30-CF
No No UCD100A30ADA-NF
Ye s No UCD100A30ADA-CF
Tempo Undercounter Ice Machine Bin 3
Specications
Dimensions
Width Depth Height* Unit Shipping Weight
UCD100A30-NF UCD100A30-CF
UCD100A30ADA-NF UCD100A30ADA-CF
* Leveling legs, adjustable up to 0.25" (6.4 mm).
Ambient Information
CAUTION!
This unit is for indoor use only. Designed for commercial use. Follett is not able to provide in-house services for residential installations.
Air Temperature
Water Temperature 90 F (32.2 C) 40 F (4.5 C)
Water Pressure 70 psi (483 kpa) 10 psi (69 kpa)
Relative Humidity 55% at 78 F (25.5 C)
* Use outside of these limitations is misuse and will void warranty.
Best performance is achieved between 80 F (27 C) and 50 F (10 C).
14.96" (38.0 cm) 24.38" (61.9 cm) 34.12" to 35.12" (86.7 cm to 89.2 cm)
14.96" (38.0 cm) 24.38" (61.9 cm) 32.00" to 33.00" (81.3 cm to 83.8 cm)
Maximum* Minimum*
100 F (38 C) 50 F (10 C)
101 lb (45.8 kg)
101 lb (45.8 kg)
Plumbing
§ Water Inlet: 1/4" compression
§ 3/8" braided drain hose (8' (2.4 m) provided)
§ Water shut-off recommended within 5 ft (1.5 m) of dispenser
§ This equipment is to be installed with adequate backow protection to comply with applicable federal, state, and local codes.
4 Tempo Undercounter Ice Machine Bin
Water
WARNING!
Connect to potable water supply only.
§ Water Mineral Content: – TDS: greater than 5 ppm (mg/l) but less than 400 ppm (mg/l) – Hardness: Less than 200 mg/l (12 gpg)
§ Not recommended for use with softened water
§ Ingress Protection (IP) rating: IPX0 (no protection)
Clearances
§ Do not obstruct front grille air ow
§ 2.00" (5.08 cm) behind
Electrical
§ 115 V, 60 Hz, 1 phase, 2A.
§ Connect to dedicated 15 amp circuit, fuse or breaker.
§ 6' (1.8 m) cord with 90° rounded type B plug.
§ Must be grounded - requires 3-prong outlet. Do not remove ground.
§ A GFCI (ground fault circuit interrupter) is usually not required for xed location appliances and is not
recommended for your unit because it could be prone to nuisance tripping.
Refrigeration
WARNING!
Do not damage the refrigerant circuit. Refrigerant can cause personal injury and/or damage dispenser.
§ Refrigerant
– R600a – 1.59 ounces (45 grams)
Tempo Undercounter Ice Machine Bin 5
Tempo Detailed Drawing
air exhaust
W1
air inlet
H2
H1
D2
D1
D3
C3
C2
C1
W1 Width 14.96" (38.0 cm) D1 Depth without handle 22.56" (57.3 cm) D2 Depth including handle 24.38" (61.9 cm) D3 Kick recess depth 3.88" (9.86 cm) H1 Height – Standard model 34.12" to 35.12" (86.7 cm to 89.2 cm) H1 Height – ADA model 32.00" to 33.00" (81.3 cm to 83.8 cm) H2 Kick recess height 3.50" (8.89 cm)
Ventilation clearance Do not obstruct front grille air flow Service clearance 2.00" (5.08 cm) behind
3.125"
7.5"
(19.1 cm)
(10.2 cm)
Drain
4"
Water Line
(19.1 cm)
Power Cord
6' (1.83 m)
7.5"
(8.0 cm)
4"
(10.2 cm)
2" (5.1 cm)
C1 115 V/60/1 electrical 2 amps. Connect to dedicated 15 amp circuit, fuse or breaker. 6’ (1.8 m) cord with 90° rounded type B plug.
C2 Water inlet 1/4" compression C3 Drain 3/8" braided drain hose
(8' (2.4 m) provided)
6 Tempo Undercounter Ice Machine Bin
Site Preparation
Your product has been designed for either freestanding or built-in installation. When built-in, your unit does not require additional air space for top, sides, or rear. However, the front grille must NOT be obstructed, and clearance is required for an electrical connection in the rear.
Unit can NOT be installed behind a closed cabinet door. If you would like to align the face of the unit with other adjacent cabinet doors, you may need to alter the wall just behind the drain connection on the unit to accommodate the drain.
NOTE: To meet sanitary requirements in some areas, units must be built-in.
Cutout Dimensions
Preferred location for electrical outlet is in an adjacent cabinet.
34.25"
(87.0 cm)
to
35.25"
(88.9 cm)
24" (61.0 cm)
15.25"(38.7 cm)*
* 15" (38.1 cm) cutout width sufficient if door protrudes beyond adjacent cabinetry.
Installation
CAUTION!
No service or maintenance should be performed until the technician has thoroughly read this service manual. Except for routine cleaning and sanitizing, only qualied technicians should attempt to service or maintain this equipment.
§ This equipment is to be installed with adequate backow protection to comply with applicable federal, state, and
local codes.
§ The water pressure should be between 10 psi (69 kpa) and 70psi(483kpa).
§ The water line MUST have a shut-off valve in the supply line.
§ The water line should be looped into 2 coils. This will allow the unit to be removed for cleaning and servicing.
§ Make certain that the drain and water line are not pinched or damaged during installation.
§ A clearance of at least 3" (7.6 cm) is required behind the dispenser for electrical connection, and drain.
§ Use caution when handling back panel. The edges could be sharp.
Tempo Undercounter Ice Machine Bin 7
NOTE: To meet sanitary requirements in some areas, installer must
leave sufficient length (waterline, drain line, power cord) to permit the equipment to be moved for cleaning.Turn off water supply and disconnect electrical supply to product prior to attempting installation.

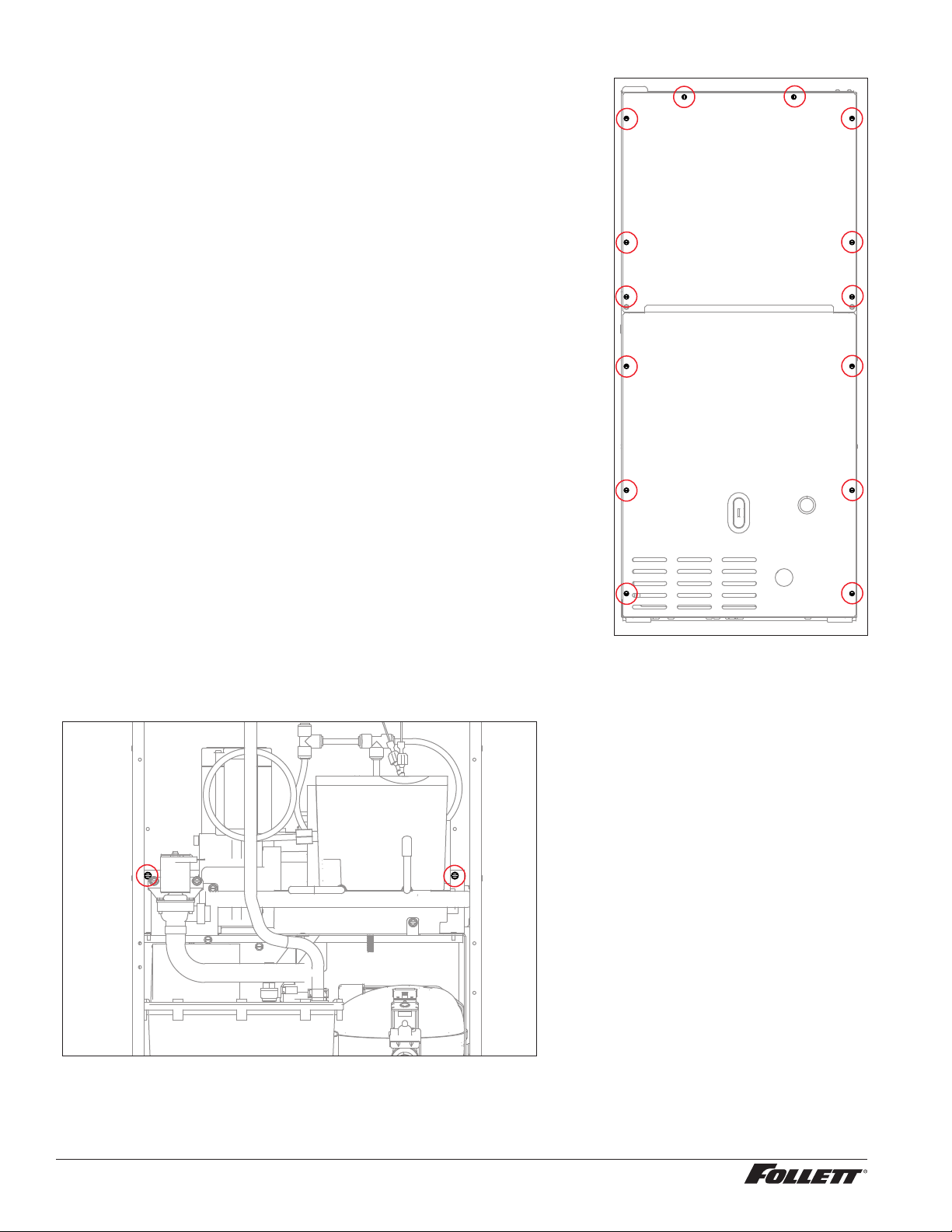

1. Remove the back panel.
2. Thread water line through back panel hole (with bushing).
§ The water valve uses a standard 1/4" (6.35 mm) compression tting. Water line not included.
– The water line should be looped into 2 coils. This will allow the unit
to be removed for cleaning and servicing. Make certain that the tubing is not pinched or damaged during installation.
Fig. 1
3
3. Locate water valve inlet and connect to valve.
4. Turn on water supply and check for leaks.
5. Reinstall back panel.
6. The maximum lift for the drain pump is 10 feet. This must be done as
close to the rear of the unit as possible.
Door Swing
1. 2.25" (57 mm) clearance is recommended from wall on hinge side
to allow the door to open 90°.
2. Units have a zero clearance when installed adjacent to cabinets.
Fig. 2
Fig. 3
4
2.25" MIN
(57 mm MIN)
Wall
8 Tempo Undercounter Ice Machine Bin
90°
Door Swing
Hinge Cover
Hinge cover included with the literature bag is optional.
1. Press hinge cover squarely over hinge.
Fig. 4
Hinge Cover
To Reverse the Door (if required)
Remove top hinge and door:
1. Hold door to keep it from falling.
2. Remove top hinge from cabinet using a Torx T-25 screwdriver to
remove three screws. Set aside and save.
3. Remove door by tilting forward and lifting door off bottom hinge. Retain shoulder washers; they will be reused.
4. Remove three screws from hinge holes on the opposite side. Reinstall into holes where the hinge was removed.
Fig. 5
Fig. 6
Remove Bottom Hinge
1. Remove bottom hinge from cabinet using a T-10 TORX screw driver
to remove three screws.
2. Remove corresponding screws on opposite side of cabinet. On some models there may be a nut behind one or both screws on either side.
Tempo Undercounter Ice Machine Bin 9
Fig. 7
Install Bottom Hinge
1. Install two or three screws, depending on model. Replace nuts if
used.
Prepare Door for Reinstallation
1. Remove gasket.
2. Rotate gasket 180° and press rmly into the gasket channel, starting
at the corners.
3. Rotate door 180° to reverse.
Fig. 8
Install Top Hinge and Door
1. Install hinge with longer straight edge aligned to outside edge of
cabinet. Do not tighten
2. Lift the door on to the bottom hinge.
3. Align edge of the hinge with the outer edge of the unit.
4. Tighten three hinge screws.
Align and adjust the door: Align and adjust the door (see DOOR
ALIGNMENT AND ADJUSTMENT).
Fig. 9
Door Alignment and Adjustment
Align and adjust the door if it is not level or is not sealing properly. If the door is not sealed, the unit may not cool properly, or excessive frost may form in the interior.
Properly aligned, the door’s gasket should be rmly in contact with the cabinet all the way around the door (no gaps). Carefully examine the door’s gasket to ensure that it is rmly in contact with the cabinet. Also make sure the door gasket is not pinched on the hinge side of the door.
To align and adjust the door:
1. Gently pry off hinge cover from top of unit.
2. Loosen (do not remove) top and bottom hinge screws using a Torx T-25 screwdriver.
3. Align door squarely with cabinet.
4. Make sure gasket is rmly in contact with cabinet all the way around the door (no gaps).
5. Tighten bottom hinge screws.
6. Tighten top hinge screws and replace hinge cover.
10 Tempo Undercounter Ice Machine Bin
Leveling Information
Installation Tip
Note: If the room oor is higher than the oor in the cutout opening,
adjust the rear legs to achieve a total unit rear height of 1/10" (2.54 mm) less than the opening’s rear height. Shorten the unit height in the front by adjusting the front legs. This allows the unit to be gently tipped into the opening. Readjust the front legs to level the unit after it is correctly positioned in the opening.
1. Use a level to conrm the unit is level. Level should be placed along
top edge and side edge as shown
Fig. 10
1
2. If the unit is not level, adjust the legs on the corners of the unit as necessary.
NOTE: To meet sanitary requirements in some areas, units are supplied
with gliders so that unit can be removed easily for cleaning and will have minimal adjustment.
3. Conrm the unit is level after each adjustment and repeat the
previous steps until the unit is level.
Set in Place
1. Plug in the power/electrical cord.
2. Gently push the unit into position. Be careful not to entangle the
cord or water and drain lines, if applicable.
3. Re-check the leveling from front to back and side to side. Make any necessary adjustments. The unit’s top surface should be approximately 1/8" (3 mm) below the countertop.
4. Install the anti-tip bracket.
5. Remove interior packing material and wipe out the inside of the unit
with a clean, water-dampened cloth.
6. Clean the unit prior to rst use (see the Cleaning section that follows).
Fig. 11
Turn to Adjust
Tempo Undercounter Ice Machine Bin 11
Control Operation
Function Command Notes
ON/OFF
Enable Sabbath Mode
Disable Sabbath Mode
Clean Mode See “Cleaning” section
Press and release
Press and hold for 5 s and release
Press
and release
Unit will immediately turn ON or OFF
The °F/°C symbol will ash briey after 5s. Interior light and display will go dark and remain so until user resets mode - unit continues to operate
Display and interior light return to normal operation
Door Alert Notication
1. When the door is left open for more than 30 minutes:
§ Ice production will cease
§ A tone will sound for several seconds every minute
§ dr will appear in display
2. Close door to silence alert and reset (Ice production will resume if bin sensor is not satised).
First Use
Initial startup requires no adjustments. See CONTROL OPERATION section for more details.
1. Follett recommends discarding the ice produced during the rst two to three hours of operation to avoid possible dirt or scale that may dislodge from the water line.
2. When plugged in, the unit will begin operating under the factory default settings. If the unit was turned off
during installation, simply press and release.
and the unit will immediately switch on. To turn the unit off, press
Ice
The Nugget Ice Machine produces cylindrical bits of compressed ice approximately 3/4" x 1/2".
Ice is produced until the machine senses the bin is full. As ice slowly melts in the bin, the level of ice drops and ice production resumes. This ensures a constant supply of fresh ice is always available.
12 Tempo Undercounter Ice Machine Bin
Cleaning
Dispenser
This ice machine has an automatic clean alert function. The control will indicate CL in the display, approximately every six months with normal use, reminding you to
clean your unit. When cleaning may be necessary. Cleaning removes lime scale, other mineral deposits, and sanitizes the machine. Poor ice quality and reduced ice output are signs that cleaning is necessary. If the machine consistently requires more frequent cleaning, consult a plumber to test the water quality and recommend appropriate treatment.
Under normal conditions, cleaning should be done when the display shows at any time by pressing and holding the clean button for 10 seconds.
01 will appear in the display indicating the start of the cleaning process.
CL is displayed, ice production will continue. Depending on water conditions, more frequent
CL. You may initiate a cleaning cycle
You may override
CL in the display without cleaning by pressing and holding the +, –, and buttons for 10
seconds. ICE will scroll in the display and the cleaning reminder (CL) will be reset for another approximate six month cycle. Failure to clean may reduce the quality and quantity of ice produced. Once the clean cycle begins,
it can be canceled by pressing
three times. Press once more to start making ice. The clean cycle will
automatically cancel if user fails to activate control at steps 7, 12, and 20 within 2 hours.
Required for cleaning:
§ Hose and funnel – provided with unit
§ Bucket and cleaning sponge
§ Clean potable water
§ SafeCLEAN Plus™ Cleaner
§ Water lter
Cleaning Process (approximate time: 40 minutes)
WARNING!
§ For protection, rubber gloves and safety goggles (and/or face shield) should be worn when handling
SafeCLEAN Plus™.
§ Do not use bleach, it will damage the dispenser.
1. Press and hold for 5 to 10 seconds.
2. 01 will appear in the display
3. Remove access shield
4. Remove all ice in bin
5. Remove any ice protruding from the ice dispenser tube
6. Insert the end of the cleaning tube (Fig. 12) into the ice dispenser;
Fig. 12
slowly pour in approximately 1 quart of hot potable water (100 F minimum). This will melt ice inside the dispenser tube. It is normal for some water to ow out of the ice dispenser tube and exit from
Cleaning Tube
and Funnel
Vent Tube
the vent tube while pouring. Omit this step if no ice is in the ice dispenser tube.
Ice
Tube
Tempo Undercounter Ice Machine Bin 13
7. Press and release .
8. 02 will appear in the display.
9. Mix 4 ounces of SafeCLEAN Plus™ with 2 quarts of hot potable water (100 F minimum).
10. Wait until
03 appears in the display.
11. Using the funnel and cleaning tube, slowly pour 3/4 of the cleaning solution into the dispenser tube. Air and some water will exit the vent tube. Remove cleaning tube.
12. Press and release
04 will appear in the display.
13.
.
14. The machine will circulate the solution, cleaning and sanitizing the internal components, for approximately 20 minutes.
15. While the machine is circulating the cleaning solution, use 1/2 of the remaining cleaning solution and a sponge to wipe down the inside of the ice bin and scoop. Rinse thoroughly with clean potable water.
16. When
05 appears in the display, 3 soft tones will sound, indicating the cleaning phase is complete.
1 7. Remove water lter by rotating approximately 1/4 turn counterclockwise.
18. Use the remaining cleaning solution to wipe the manifold and
Fig. 13
surrounding area (Fig. 13). Rinse with clean potable water.
19. Using the hose and funnel, slowly pour 1.5 quarts (48 oz.) of clean,
potable water into the ice dispenser tube. Air and some water will
Manifold
exit the vent tube.
20. Install new water lter.
2 1. Press and release
.
22. 06 will appear in the display.
23. Reinstall shield and close door - no further action is required.
24. The machine will circulate water and perform a series of nal rinses
for approximately 15 minutes.
25. The unit wiIl resume making ice - indicated by 3 soft tones and
ICE
scrolling in the display. Discard ice collected during rst 10 minutes.
User Interface and Exterior Cabinet
26. Plastic parts, including the user interface, can be cleaned with a non-abrasive glass cleaner. Clean
stainless steel panels with stainless steel cleaner.
14 Tempo Undercounter Ice Machine Bin
Loading...
+ 30 hidden pages
