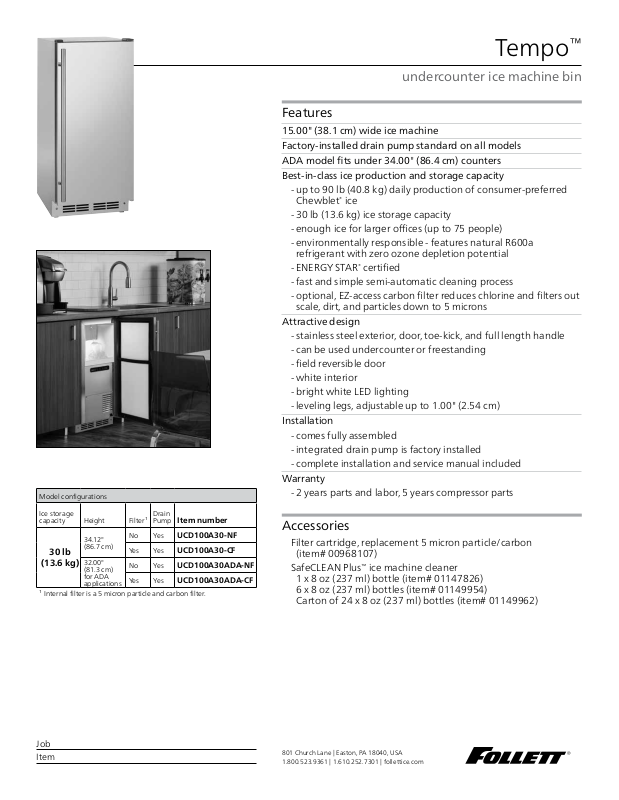

Follett UCD100A30ADACF Specifications

Model configurations

Tempo

undercounter ice machine bin

Features

15.00" (38.1 cm) wide ice machine
Factory-installed drain pump standard on all models
ADA model fits under 34.00" (86.4 cm) counters
Best-in-class ice production and storage capacity

- up to 90 lb (40.8 kg) daily production of consumer-preferred
Chewblet® ice

- 30 lb (13.6 kg) ice storage capacity

- enough ice for larger oces (up to 75 people)

- environmentally responsible - features natural R600a
refrigerant with zero ozonedepletion potential

- ENERGY STAR® certified

- fast and simple semi-automatic cleaning process

- optional, EZ-access carbon filter reduces chlorine and filters out
scale, dirt, and particles down to 5 microns

Attractive design

- stainless steel exterior, door, toe-kick, and full length handle

- can be used undercounter or freestanding

- field reversible door

- white interior

- bright white LED lighting

- leveling legs, adjustable up to 1.00" (2.54 cm)

Installation

- comes fully assembled

- integrated drain pump is factory installed

- complete installation and service manual included

Warranty

- 2 years parts and labor, 5 years compressor parts

™

Ice storage
capacity Height Filter ¹

34.12"

30 lb

(13.6kg)

¹ Internal filter is a 5 micron particle and carbon filter.

Job
Item

(86.7cm)

32.00"
(81.3cm)
for ADA
applications

Drain
Pump

No Yes

Yes Yes

No Yes

Yes Yes

Item number

UCD100A30-NF

UCD100A30-CF

UCD100A30ADA-NF

UCD100A30ADA-CF

Accessories

Filter cartridge, replacement 5 micron particle/carbon

(item# 00968107)

SafeCLEAN Plus

1 x 8 oz (237 ml) bottle (item#01147826)
6 x 8 oz (237 ml) bottles(item#01149954)
Carton of 24 x 8 oz (237 ml) bottles (item#01149962)

801 Church Lane | Easton, PA 18040, USA

1.800.523.9361 | 1.610.252.7301 | follettice.com

™

ice machine cleaner

Specification

Ice storage capacity 30 lb (13.6 kg)

W1 Width 14.96" (38.0 cm)
D1 Depth without handle 22.56" (57.3 cm)
D2 Depth including handle 24.38" (61.9 cm)
D3 Kick recess depth 3.88" (9.86 cm)
H1 Height – Standard model 34.12" to 35.12" (86.7 cm to 89.2 cm)
H1 Height – ADA model 32.00" to 33.00" (81.3 cm to 83.8 cm)
H2 Kick recess height 3.50" (8.89 cm)

Ventilation clearance do not obstruct front grille air flow
Service clearance 2.00" (5.08 cm) behind
C1 115 V/60/1 electrical 2 amps.

Connect to dedicated 15 amp circuit,
fuse or breaker.
6’ (1.8 m) cord with 90° rounded
type B plug.

C2 Water inlet 1/4" compression
C3 Drain 3/8" braided drain hose

(8' (2.4 m) provided)
Air temperature 50 -100 F (10 - 38 C)
Water temperature 40 - 90 F (4 - 32 C)
Water pressure 10 - 70 psi (69 - 482 kpa)
Ice production at

70 F (21 C) air and
50 F (10 C) water

Ice production at
90F (32 C) air and
70 F (21 C) water

Heat rejection 1700 BTU/hr
Energy consumption

90 F (32 C) air and
70 F (21 C) water

Water consumption 12 gal (45.4 L) of potable water per

Approximate net weight 89 lb (40 kg)
Approximate shippingweight 101 lb (46 kg)
NOTE: Intended for commercial use only. Follett can’t guarantee freight

carrier’s ability to deliver to residential locations. Follett service providers
may not be bonded to perform on-site warranty repairs in certain areas.

90 lb (40.8 kg)

65 lb (29.5 kg)

10 kWh per 100 lb (45.4 kg) ice

100 lb (45.4 kg) of ice

Dimensional drawing

W1

air exhaust

air inlet

D2

D1

H1

H2

D3

SHORT FORM SPECIFICATION:

undercounter ice machine bin or ______ 32"(81.3 cm) tall ADA undercounter
ice machine bin, with 30lb (13.6 kg) of ice storage. Factory installed drain pump
standard on all models. Environmentally responsible R600a ice machine to be
air-cooled. Ice machine to produce approximately 90lb (40.8 kg) of Chewblet
compressed nugget ice at air temperature of 70 F (21 C) and water temperature
of 50 F (10 C). Stainless steel exterior, door, toe-kick, and full length door handle
standard. White interior with bright white LED lights. 6' (1.8 m) cord and plug
provided 115V/60/1. NSF and UL listed.

(Choose one) ______ 34.12" (86.7 cm) tall

Tempo undercounter ice machine bin

8475-201909 | © Follett LLC

801 Church Lane | Easton, PA 18040, USA

1.800.523.9361 | 1.610.252.7301 | follettice.com

C3

ENERGY STAR and the ENERGY STAR mark are registered trademarks owned by the U.S. Environmental
Protection Agency.
SAFECLEAN PLUS and TEMPO are trademarks of Follett LLC.
CHEWBLET and FOLLETT are registered trademarks of Follett LLC, registered in the US.
Follett reserves the right to change specifications at any time without obligation. Certifications may vary
depending on country of origin.

C2

C1
