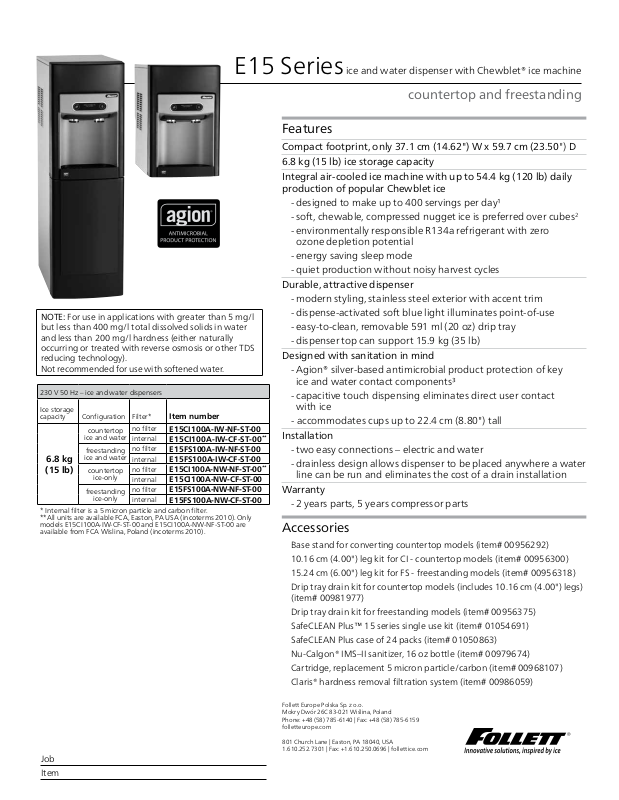

Follett E15CI100A-IW-CF-ST-00 User Manual

E15 Series

NOTE: For use in applications with greater than 5 mg/l
but less than 400 mg/l total dissolved solids in water
and less than 200 mg/l hardness (either naturally
occurring or treated with reverse osmosis or other TDS
reducing technology).
Not recommended for use with softened water.

230 V 50 Hz – ice and water dispensers

Ice storage
capacity Configuration Filter*

countertop

ice and water

freestanding

6.8kg

(15 lb)

* Internal filter is a 5 micron particle and carbon filter.
**All units are available FCA, Easton, PA USA (incoterms 2010). Only
models E15CI100A-IW-CF-ST-00 and E15CI100A-NW-NF-ST-00 are
available from FCA Wislina, Poland (incoterms 2010).

ice and water

countertop

ice-only

freestanding

ice-only

no filter
internal
no filter
internal
no filter
internal
no filter
internal

Item number
E15CI100A-IW-NF-ST-00

E15CI100A-IW-CF-ST-00
E15FS100A-IW-NF-ST-00
E15FS100A-IW-CF-ST-00
E15CI100A-NW-NF-ST-00
E15CI100A-NW-CF-ST-00
E15FS100A-NW-NF-ST-00
E15FS100A-NW-CF-ST-00

ice and water dispenser with Chewblet® ice machine

countertop and freestanding

Features

Compact footprint, only 37.1 cm (14.62") W x 59.7 cm (23.50") D

6.8 kg (15 lb) ice storage capacity
Integral air-cooled ice machine with up to 54.4 kg (120 lb) daily

production of popular Chewblet ice

- designed to make up to 400 servings per day

- soft, chewable, compressed nugget ice is preferred over cubes

- environmentally responsible R134a refrigerant with zero
ozonedepletion potential

- energy saving sleep mode

- quiet production without noisy harvest cycles

Durable, attractive dispenser

- modern styling, stainless steel exterior with accenttrim

- dispense-activated soft blue light illuminates point-of-use

- easy-to-clean, removable 591 ml (20 oz) drip tray

- dispenser top can support 15.9 kg (35 lb)

Designed with sanitation in mind

- Agion® silver-based antimicrobial product protection of key
iceand water contact components

- capacitive touch dispensing eliminates direct user contact
withice

- accommodates cups up to 22.4 cm (8.80") tall

Installation

**

- two easy connections – electric and water

- drainless design allows dispenser to be placed anywhere a water

**

line can be run and eliminates the cost of a drain installation

Warranty

- 2 years parts, 5 years compressor parts

Accessories

Base stand for converting countertop models (item#00956292)

10.16 cm (4.00") leg kit for CI - countertop models (item# 00956300)

15.24 cm (6.00") leg kit for FS - freestanding models (item# 00956318)

Drip tray drain kit for countertop models (includes 10.16 cm (4.00") legs)
(item#00981977)

Drip tray drain kit for freestanding models (item# 00956375)
SafeCLEAN Plus™ 15 series single use kit(item#01054691)
SafeCLEAN Plus case of 24 packs (item# 01050863)
Nu-Calgon® IMS–II sanitizer, 16 oz bottle (item# 00979674)
Cartridge, replacement 5 micron particle/carbon (item# 00968107)
Claris® hardness removal filtration system (item# 00986059)

2

Job
Item

Follett Europe Polska Sp. z o.o.
Mokry Dwór 26C 83-021 Wiślina, Poland
Phone: [phone] | Fax: [phone]
folletteurope.com

801 Church Lane | Easton, PA 18040, USA

1.610.252.7301 | Fax: [phone] | follettice.com

Specification

Ice storage capacity 6.8 kg (15 lb)

W1 Width 37.1 cm (14.62")
D1 Depth of bottom 56.2 cm (22.12")
D2 Depth of top 59.7 cm (23.50")
H1 Height – countertop models 57.2 cm (22.50")
H2 Height – freestanding models 119.4 cm (47.00")
H3 Height, base stand 62.2 cm (24.50")
H4 Dispense height clearance 22.40 cm (8.80")

Ventilation clearance 7.62 cm (3.00") on each side
Service clearance 7.62 cm (3.00") behind and

on each side

C1 230 V/50/1 electrical 5 amps.

Connect to dedicated 10 amp circuit,
fuse or breaker.
Dispenser has IEC 60320-C13
connector in rear of dispenser for

use with appropriate modular cord.
C2 Water inlet 1/4" MPT
Air temperature 10 - 38 C (50 -100 F)
Water temperature 4 - 32 C (40 - 90 F)
Water pressure 69 - 482 kpa (10 - 70 psi)
Ice production at

21 C (70 F) air and
10 C (50 F) water

Ice production at
32 C (90F) air and
21 C (70 F) water

Energy consumption
32 C (90 F) air and
21 C (70 F) water

Heat rejection 1700 BTU/hr
Water consumption 45.4 L (12 gal) of potable water per

Approximate shippingweight –
countertop models

Approximate shippingweight –
freestanding models

NOTE: For indoor use only. Designed for commercial use. Follett is not able
to provide in-house services for residential installations.

54.4 kg (120 lb) /day

40.8 kg (90 lb) /day

7.1 kWh per 45.4 kg (100 lb) ice

45.4 kg (100lb) of ice

46 kg (100 lb)

59 kg (130 lb)

Dimensional drawing

W1

H4

36.8 cm
(14.47")

C1

6.10 cm
(2.40" )

D2

air

intake

C2

D1

H1

H2

H3

39.8 cm
(15.69")

7.57 cm
(2.98")

SHORT FORM SPECIFICATION:

dispenser to be Follett® automatic load in (choose one) ____ countertop or
____ freestanding configuration, with6.8kg (15lb) of storage. Environmentally
responsible R134a ice machine to be air-cooled. Ice machine to produce
approximately 54.4 kg (120 lb) of Chewblet compressed nugget ice at air
temperature of 21 C (70 F) and water temperature of 10C (50 F). Ice machine
to be equipped with printed circuit board and diagnostics to allow simplified
servicing and with capacitive touch user interface. Storage area to be insulated
with non-CFC, high density foam-in-place polyurethane. 230 V/50/1. Dispenser
has IEC 60320-C13 connector in rear of dispenser for use with appropriate modular
cord. CE listed. For use in applications with greater than 5 mg/l but less than

(Choose one) ____ Ice and water or ____ ice-only

400mg/l total dissolved solids in water and less than 200 mg/l hardness
(either naturally occurring or treated with reverse osmosis or other TDS
reducing technology).

Follett Europe Polska Sp. z o.o.

E15 Series countertop and freestanding

Form #6200 07/15
© Follett Corporation

Mokry Dwór 26C 83-021 Wiślina, Poland
Phone: [phone] | Fax: [phone]
folletteurope.com

801 Church Lane | Easton, PA 18040, USA

1.610.252.7301 | Fax: [phone] | follettice.com

1 355 ml (12 oz) cups, 1/3 full of ice.
2 Independent third party studies. Contact Follett for details.
3 Disclaimer: Antimicrobial protection is limited to the treated components and does not treat water

orice.
