Follett D400A-W Service Manual
T400A/W, MCD400A/W, R400A/W,
MFD400A/W, D400A/W Icemakers
Order parts online
www.follettice.com
Installation, Operation and Service Manual
Following installation, please forward this manual
to the appropriate operations person.
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
208600R17
2
Table of contents
Welcome to Follett Corporation
Speci cations
Installation
Top mount icemakers (models T400A/W, MCD400A/W and MFD400A/W)
™
Satellite- ll
Ventilation
Ice transport tube
Start up
Operation
Cleaning
Weekly exterior care
Monthly condenser cleaning
Semi-annual evaporator cleaning
Service

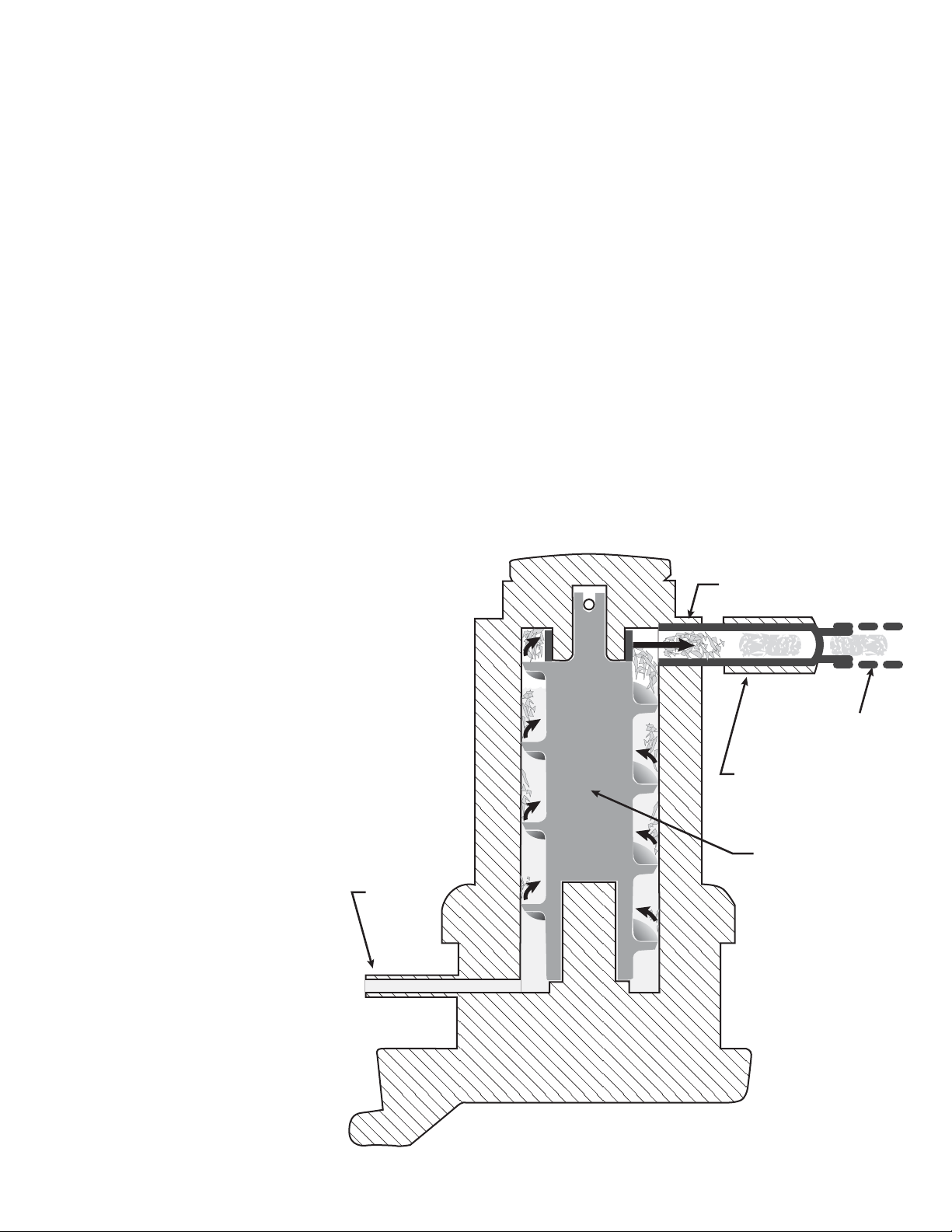

Icemaker operation
Technical speci cations
Refrigeration system diagram
Refrigeration pressure data
Compressor data
Gearmotor data
MCD400A/W wiring diagram
Electrical control system operation
Refrigeration system
Service procedures
Evaporator disassembly
Evaporator reassembly
Gearmotor replacement
Troubleshooting

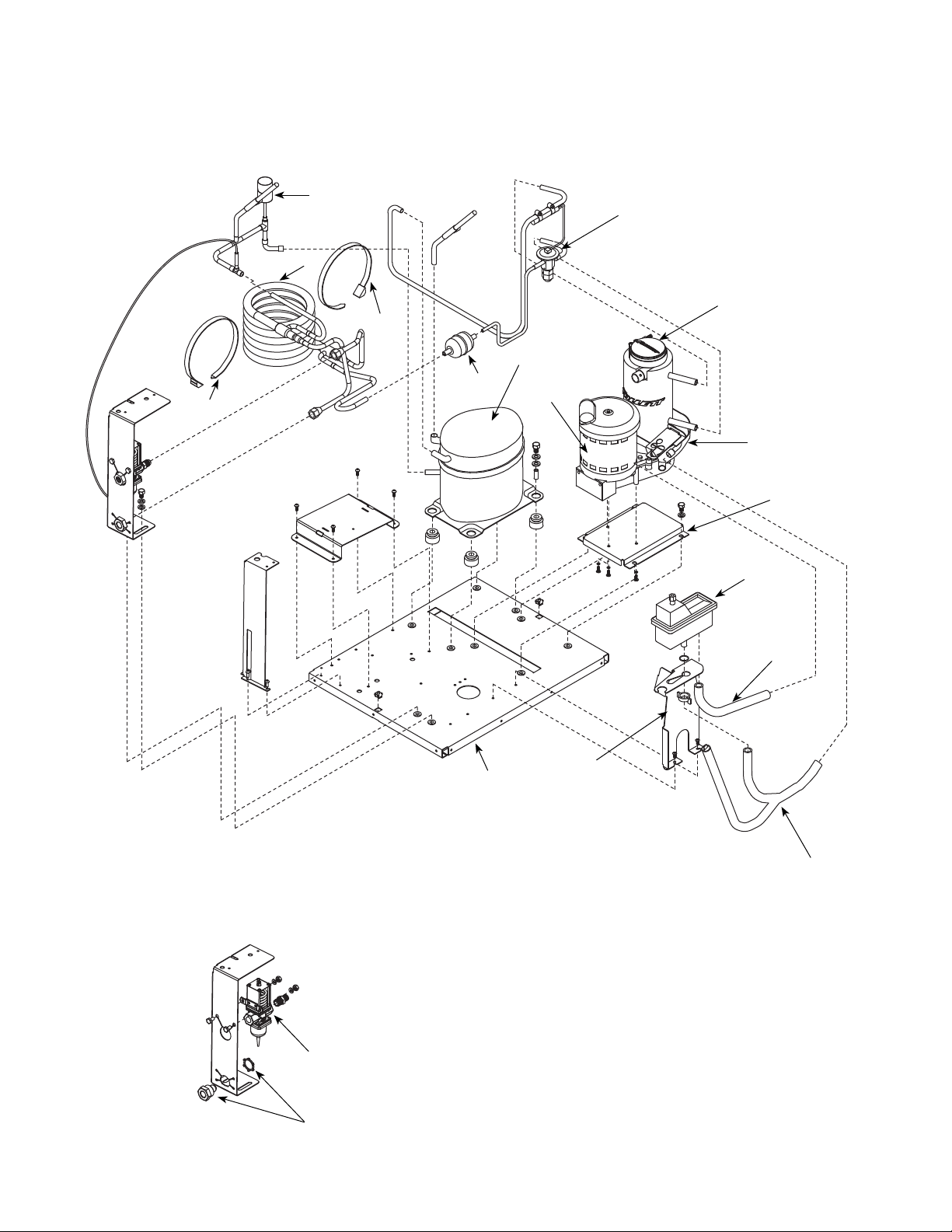

Replacement parts
icemakers (models MCD400A/W, R400A/W)
4
5
8
8
9
14
15
17
17
17
17
18
18
19
19
20
20
20
20
21
21
22
28
29
29
29
29
30
32
3
Welcome to Follett
Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and
outstanding after-the-sale support. To ensure that this equipment delivers that same degree of service, we ask
that you review the installation portion of this manual before beginning to install the unit. Our instructions are
designed to help you achieve a trouble-free installation. Should you have any questions or require technical
help at any time, please call our technical service group at (877) 612-5086 or +1 (610) 252-7301.
Before you begin
After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage is
found, notify the shipper immediately and contact Follett Corporation so that we can help in the ling of a claim,
if necessary.
Check your paperwork to determine which model you have. Follett model numbers are designed to provide information
about the type and capacity of Follett equipment. Following is an explanation of the different model numbers in the
400 series.
MCD400ABT
Icemaker capacity and refrigerant
400 – 400 lbs (181kg)/day, R404A
Voltage
D – 115V 60Hz
Icemaker series
Nugget icemaker
MCD – Satellite-fill installation, Vision
top installation, Follett ice storage bins
R – Remote installation, Symphony
D – Replacement icemaker, Symphony ice and water dispensers
Flake icemaker
MFD – Top installation, Follett ice storage bins
!
Important cautions
Condenser type
A – air-cooled
W – water-cooled
™
ice and beverage dispensers and
™
ice and water dispensers
Application
V – Vision
B – Bin
H – Harmony
Configuration
S – Satellite-fill
T – top-mount
™
Moving parts. Do not operate with front cover removed.
Hot parts. Do not operate with cover removed.
To reduce risk of shock disconnect power before servicing.
Most ice machine cleaners contain citric or phosphoric acid, which can cause skin irritation. Read caution
label on product and follow instructions carefully.
Ice is slippery. Maintain counters and oors around dispenser in a clean and ice-free condition.
Ice is food. Follow recommended cleaning instructions to maintain cleanliness of delivered ice.
4
Speci cations
Electrical
Each icemaker and dispenser require a separate circuit with electrical disconnect within 10 ft (6m).
Equipment ground required.
Standard electrical – 115V, 60Hz, 1 phase.
Maximum dispenser fuse – 15 amps,
Maximum icemaker fuse – 20 amps each
Maximum icemaker amperage – 11 amps each
Cord and plug provided on icemaker and dispenser
Electrical connections
Model Electrical connection Circuits required
25FB400A/W, 50FB400A/W, 110FB400A/W cord & plug provided 115/60/1, 20 amp max. fuse size
25CT400A/W, 50CT400A/W, 110CT400A/W cord & plug provided 115/60/1, 20 amp max. fuse size
25CR400A/W, 50CR400A/W, 110CR400A/W dispenser, icemaker 115/60/1, (2) circuits required
and bin signal: dispenser: 15 amp max. fuse size
cord & plug provided icemaker: 20 amp max. fuse size
VU155R400A/W, VU300R400A/W dispenser, icemaker 115/60/1, (2) circuits required
VU155BR400A/W, VU300BR400A/W and bin signal: dispenser: 15 amp max. fuse size
VU155R400A/WX, VU155BR400A/WX cord & plug provided icemaker: 20 amp max. fuse size
VU155NR400A/W, UD300R400A/W dispenser, icemaker 115/60/1, (3) circuits required
VU155R800A/W, VU300R800A/W, and bin signal:
VU155R800A/WX, cord & plug provided dispenser: 15 amp max. fuse size
VU155BR800A/W, VU300BR800A/W, (2) icemakers: 20 amps max. fuse
VU155R800A/WX size each
CAUTION
• Check start relay before supplying power
• Start relay is gravity sensitive, and MUST be in “up” position
• Failure to comply may cause equipment to overheat, resulting in equipment failure, equipment damage or fire hazard
UP
UP
UP
top mount and
Satellite-fill position
freestanding
position
5
Plumbing
3/8" OD push-in water inlet
3/4" MPT drain
3/8" FPT condenser inlet (water-cooled condenser only – 1.25 gpm minimum available ow)
3/8" FPT condenser drain (water-cooled condenser only)
Notes: Slope to drain of 1/4" per foot (6mm per 30.4cm run) with a 1/2" min. is recommended.
Water shut-off recommended within 10 feet (3m), drain to be hard piped and insulated.
Separate drains for icemaker and condenser. To prevent back ow, do NOT connect drains.
Follett recommends installation of an activated carbon lter in icemaker inlet water line.
Ambient
Air temperature 100 F/38 C max. 50 F/10 C min. (best performance below 80 F/27 C)
Water temperature 90 F/32 C max. 40˚F/4˚C min. (best performance below 70 F/21 C)
Water pressure 70 P.S.I max. (482 kPA) 10 P.S.I. min. (89 kPA)
6
Dimensions and clearances
Entire front of icemaker must be clear of obstructions/connections to allow removal.
12" (305mm) clearance above icemaker for service.
6" (153mm) minimum clearance between exhaust side of icemaker and any adjacent equipment.
MCD400A & R400A – 18" (457mm) minimum, 10 ft (3m) maximum clearance between discharge and air
intake grilles.
Front view — air-cooled
top mount
Front view — air-cooled
Satellite-fill
1.875" (48mm)
Back view — air-cooled
top mount
13.00"
(331mm)
4.875"
(124mm)
2.375"
(61mm)
C
B
A
Front view — water-cooled
Satellite-fill
Back view — water-cooled
top mount
C
F
B
A
12.875"
(327mm)
8.375"
(213mm)
4.75"
(121mm)
2.25"
(57mm)
1.875" (48mm)
7.00" (178mm)
C
D
E
F
B
A
6.875"
(175mm)
2"
(51mm)
Side view — air-cooled and water-cooled
top mount and Satellite-fill
22.75" (578mm)
20.75" (527mm)
17.00"
(432mm)
Satellite-fill air-cooled units only
A – 3/4" MPT drain
B – 3/8" OD push-in water inlet
C – Electrical cord
Icemaker plug
configuration
NEMA 5-20
D – 3/8" FPT condenser inlet
E – 3/8" FPT condenser drain
F – Bin signal cord
7
Installation
Icemaker performance is very sensitive to the quality of installation. To ensure proper performance, ease of
service and warranty coverage, it is critical that you follow the requirements detailed in this manual. If you cannot
meet these requirements or have questions, call our technical service group immediately at (877) 612-5086 or
+1(610) 252-7301.
Top mount icemaker on bin installation procedure
(models MCD400A/WBT and MFD400A/WBT)
Install icemaker and rough-in utilities
1. Install ice storage bin in its nal location.
2. Install one supplied grommet in large knockout in base of icemaker and second supplied grommet in ice
hole provided in top of ice storage bin.
3. Rough in plumbing and electrical per specs provided.
4. Flush all water lines before nal hook up.
5. Position icemaker with utility connections facing rear of bin.
A. If new storage bin and icemaker – position icemaker with connections facing rear of bin.
B. If using existing bin – place supplied gasket 2.5" (64mm) from front of bin (Fig. 2). Position icemaker
with utility connections facing rear of bin.
6. Make nal plumbing and electrical connections.
7. Working from inside bin storage area, push end of transport tube without fasteners up through grommets
into icemaker, leaving about 2" (51mm) hanging down in bin.
8. Route free end of tube to evaporator port.
9. Slip a hose clamp in free end of tube.
10. Push free end of tube on evaporator port and tighten clamp, making sure clamp is positioned on evaporator
side of ange (no ange on MFD400 series ake icemaker).
11. Position ice tube under oat bracket retaining tab.
12. Carefully slip ice level control stat alongside transport tube through both grommets and down into bin.
13. Run ice level control stat down through one side of cap tube fasteners attached to ice transport tube, form a
180˚ bend at end of tube and run back up through fastener (Fig. 1).
14. Adjust loop length to provide desired ice level. Loop must below end of ice transport tube.
15. Carefully bend end of cap tube to prevent it from slipping out of clamp.
Fig. 1
ice level control
stat fastener
ice level control stat
bin top
ice transport tube
Apply supplied gasket to bin top
as shown. Position icemaker on
bin top.
Fig. 2 – Replacing existing icemakers
bin top
existing gasket
top view shown
add gasket
front of icemaker
Before turning power on
1. Clean and sanitize ice storage bin in accordance with cleaning procedure in ice storage bin installation
information packed with ice storage bin.
2. Turn water to icemaker on.
3. Remove cover on oat reservoir.
4. Push down on oat to force water out over ow tube and into evaporator drain pan.
5. Check that water drains freely from evaporator drain pan.
6. Lift oat and check that oat valve shuts off incoming water when raised.
8
2.5"
(64mm)
After turning power on
1. Turn power to icemaker on and con rm that gearmotor, compressor and fan motor start immediately.
2. Check that ice begins to enter bin within approximately 10 minutes.
3. With icemaker running, check that oat reservoir water level is approximately 3/8" (10mm) below internal
over ow and adjust to this level (raised line on side of reservoir) if necessary.
4. After making ice for 10 minutes, put ice against ice level control stat cap tube and check that icemaker
shuts down.
5. Warm ice level control stat with your ngers and check that icemaker restarts in approximately 20 minutes.
(Bin must be calling for ice.)
Satellite- ll icemaker installation procedure
(models MCD400A/WHS and MCD400A/WVS)
Satellite- ll icemaker performance is very sensitive to the quality of installation. To ensure proper performance, ease
of service and warranty coverage. it is critical that you follow the requirements detailed in this manual. If you can
not meet these requirements or have questions, call our technical service group immediately at (877) 612-5086 or
+1(610) 252-7301.
Installing Satellite- ll icemaker and rough-in utilities without optional slide-out accessory
The requirements below are for icemaker installation without the Follett slide-out accessory. These procedures
ensure that the icemaker can be easily removed as one unit for cleaning and maintenance. For installation with the
slide-out accessory, refer to instructions to install icemaker and rough-in utilities with optional slide-out accessory.
General requirements
Front of icemaker free of obstructions, plumbing lines, electric conduits.
12" (305mm) minimum clearance above icemaker for access to icemaker components.
6" (153mm) minimum clearance between exhaust side of icemaker and adjacent equipment.
Do NOT weld icemaker to counter channels.
Large, removable panels in counter face to allow icemaker removal.
Machine stand accessory required for icemakers not supported on counter channels.
Connection requirements
Compression ttings for water and drain lines.
Separate drains for condenser and icemaker. Do NOT connect drains.
20 amp power supply with 6 feet.
bin signal from
dispenser
to icemaker
12"
305mm
separate power
to dispenser
front of
icemaker
clear
clearance
separate power
to icemaker
water shut off
compression fittings
for water and drain lines
Note: Diagram intended as guide only. All eld wiring to be installed in accordance with NEC and
local electrical codes.
9
Field wiring diagrams for Satellite- ll icemaker installations
All eld wiring must be installed in accordance with NEC and local electrical codes.
Field wiring diagram is intended only to aid electrician or technician in understanding how equipment works.
Should local codes require a hard-wired connection and/or shielded wiring, eliminate the cord and plug(s) and
follow the appropriate eld wiring diagram.
MCD400A/W and R400A/W icemakers have separate power supply from dispenser.
Electric disconnects required within 10 ft (3m) for all hard-wired connections.
Recommended junction box preparation of
hard-wired Satellite- ll icemakers.
1. Cut plugs from supplied power cords.
2. Replace upper (power) strain relief with
a cord connector.
3. Mount two 2" x 4" junction boxes using
supplied holes in icemaker face.
4. Make power and bin signal connections.
25, 50 or 110 ice and water dispenser with ONE Satellite- ll icemakers
(dispenser models 25CR400A/W, 25HR400A/W, 50CR400A/W, 50HR400A/W, 110CR400A/W)
Electric
power
source
Upper icemaker
junction box
(power)
GND GRN
X
W
B
LEGEND
WIRENUT FIELD
CONNECTIONS
EQUIPMENT
X
GROUND
B BLACK
WHITE
W
GREEN
GRN
BL BLUE
YELLOW
Y
RED
RD
Dispenser
junction box
GND GRN
X
B
W
R
Electric
power
source
Lower icemaker
junction box
(bin signal)
W
B
VU155/VU300 ice and beverage dispenser with either ONE or TWO Satellite- ll icemakers
Note: 24V bin signal; Verify black bin signal wire is on the 24V terminal
DISPENSER
Electric
power
source
Left junction box
W
B
GND
GRN
Right junction box
BL
Y
RD
Icemaker #1
(optional)
Lower junction box
(24V bin signal)
Icemaker #2
(optional)
Lower junction box
(24V bin signal)
10
Electric
power
source
B
W
Electric
power
source
W
B
Upper junction box
(power)
GND
Upper junction box
(power)
GND
X
X
W
B
GRN
W
B
GRN
Installing Satellite- ll icemaker and rough-in utilities with optional slide-out accessory
verical utility panel
slide-out-track
13"
(331mm)
14"
(356mm)
12.75
(324mm)
14"
(356mm)
The slide-out accessory allows the icemaker to be pulled out on a track from below a counter without
disconnecting utilities. A leg supports the icemaker in the full-out position. If your order did not include a
slide-out accessory proceed to icemaker ventilation and exhaust.
Step 1 – Installing track accessory (Follow either A or B below for Satellite- ll icemaker)
Track must be positioned ush against inside of counter and slightly above counter access opening.
A. When icemaker stand is used (required if icemaker is not supported on counter channels)
1. Bolt vertical utility panel to slide-out track assembly with supplied 10/32 screws.
2. Secure slide-out track assembly to icemaker stand with 10/32 screws provided.
3. Position icemaker stand in desired location and adjust stand legs to proper height and level in
both directions.
4. Using holes in anged legs as template, mark oor for 12 anchoring holes to be drilled.
5. Remove stand/track assembly and drill marked holes.
6. Reposition and anchor stand to oor with 12 fasteners appropriate to oor material (not supplied).
Stand MUST be anchored to avoid tipping and possible injury when icemaker is pulled out.
B. When icemaker is supported on counter channels
1. Bolt vertical utility panel to slide-out track assembly with supplied 10/32 screws.
2. Position track assembly on counter channels (Fig. 3).
3. Using holes in track assembly as a template, mark and drill required holes in counter channels.
4. Remove track assembly on channels and drill marked holes.
5. Reposition track assembly on channels and secure using appropriate hardware (not supplied).
11
Step 2 – Installing Satellite- ll icemaker on slide-out track
power cord
bin signal cord
(customer connection)
position track accessory so that 2" (51mm) duct
supplied with air-cooled satellite-fill icemaker mates
with back of counter opening.
counter front
grille supplied with air-
cooled satellite-fill icemakes
air in
(air-cooled units only)
bin signal cord
(icemaker connection)
A. When icemaker is shipped with slide-out track accessory (follow either A or B)
1. Connect inlet water, drain, and power supply to back of vertical utility panel.
2. Place icemaker on slide-out track assembly.
3. Connect drain and water lines.
4. Connect electrical plugs from icemaker to utility panel.
B. When icemaker is installed in and shipped with counter
1. Remove two outer rear screws from icemaker and install supplied spacer and screw (Fig. 3).
2. Place icemaker on slide-out track assembly.
3. Connect drain and water lines.
4. Connect electrical plug from icemaker to utility panel.
5. Remove pin from adjustable leg.
6. Place hold-down strap over leg block and secure strap to slide-out assembly with supplied screws (Fig. 4).
7. Reinstall pin in leg block.
8. At job site remove hold-down strap and make utility connections at rear utility panel.
Fig. 3
Fig. 4
hold-down strap
(for installation; remove
and discard)
supplied screws (for installation; remove and discard)
12
Remove screw. Install
supplied screws and spacers.
5.25"
(134mm)
25.875"
(658mm)
icemaker
power outlet
icemaker
twist-lock
bin signal cord
3/8" OD push-in condenser inlet
(water-cooled only)
3/8" OD push-in condenser drain
(water-cooled only)
3/8" OD push-in icemaker water inlet
barbed push-on icemaker drain
vertical utility panel
3/8" OD push-in condenser inlet
(water-cooled only)
3/8" OD push-in condenser drain
(water-cooled only)
3/8" OD push-in icemaker water inlet
icemaker power cord
bin signal cord connector
(to connect to dispenser bin signal cord)
22.75"
(578mm)
25.875"
(658mm)
19.25"
(489mm)
16"
(407mm)
1.563"
(40mm)
Icemaker front
16.75"
(415mm)
22.75"
(578mm)
3/4" MPT icemaker drain
cord holder
1.563"
(40mm)
Front view
Side view
(All customer eld
connections are made
to rear of vertical
utility panel)
Plan view
13
Satellite- ll icemaker ventilation and exhaust requirements
Air in
through louver
Standard 51mm
(2") duct
mates counter
opening
(behind grille) to
condenser front
Exhaust air
out side to
opening at least
457mm (18" )
from air intake
Air out through louver
Provide at least 645 sq. cm
(100 sq. inches) of counter
opening for exhaust air
Exhaust air
Air intake
Standard
louvered grille
(supplied)
Supplied 2" (51mm) duct MUST be installed
to front of icemaker and mated flush to inside
of counter face opening.
Fabricator-supplied, custom air intake grilles must have 12" x 12" (305mm x 305mm) opening yielding 100 sq.
inches (645 sq. cm) of open air space within duct perimeter. Block off any open area outside of the air duct.
Intake air requirements — air-cooled icemakers (MCD400AHS, MCD400AVS & R400A only)
1. Check that 2" (51mm) duct is installed on condenser front.
2. Cut a 12" x 12" (305mm x 305mm) opening in counter face to align with duct.
3. Position icemaker to mate duct ush with back of counter opening.
4. Install supplied grille on outside of counter opening.
Exhaust air — all icemakers (MCD400A/W & R400A/W)
Provide 100 sq. in. (645 sq. cm) of counter opening for exhaust air at least 18" (457mm) from intake opening
but not more than 10 ft (3m) away.
MCD400AHS, MCD400AVS & R400A — Side View
Front View
14
Loading...
