Focusrite REDNET 4 User manual

User Guide

FA0772-02

www.focusrite.com

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories speciﬁed by the manufacturer.

12.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. No naked ﬂames, such as lighted candles, should be placed on the apparatus.

The appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

Do not use a damaged or frayed power cord.

If the mains plug supplying the apparatus incorporates a fuse then it should only be replaced with a fuse of identical or lower rupture value.

The apparatus shall be connected to a mains socket outlet with a protective earthing connection.

Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

FIN

Laite on liitettävä suojamaadoituskoskettimilla va rustettuumpistorasiaan

NOR

Apparatet må tikoples jordet stikkontakt

SWE

Apparaten skall anslutas till jordat uttag

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning ﬂash with arrowhead symbol, within equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufﬁcient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (ser vicing) instructions

in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE AND OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THIS APPARATUS.

ENVIRONMENTAL DECLARATION

Compliance Information Statement: Declaration of Compliance procedure

Product Identiﬁcation: Focusrite RedNet Responsible party: American Music and Sound Address: 4325 Executive Drive Suite 300 Southaven MS 38672

Telephone: 800-431-2609

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For USA

To the User:

1. Do not modify this unit! This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modiﬁcations not expressly approved by Focusrite may void your authority, granted by the FCC, to use this product.

2. Important: This product satisﬁes FCC regulations when high quality shielded cables are used to connect with other equipment. Failure to use high quality shielded cables or to follow the installation instructions within this manual may cause magnetic interference with appliances such as radios and televisions and void your FCC authorization to use this product in the USA.

3. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which the user will be required to correct the interference at his own expense

For Canada

To the User:

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

RoHS Notice

Focusrite Audio Engineering Limited has conformed where applicable, to the European Union’s Directive 2002/95/EC on Restrictions

of Hazardous Substances (RoHS) as well as the following sections of California law which refer to RoHS, namely sections 25214.10,

25214.10.2, and 58012, Health and Safety Code; Section 42475.2, Public Resources Code.

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS .............................................. 2

INTRODUCTION ................................................................5

About this User Guide .........................................................6

Box Contents ................................................................6

INSTALLATION GUIDE ........................................................... 7

Unit Connections and Features .................................................7

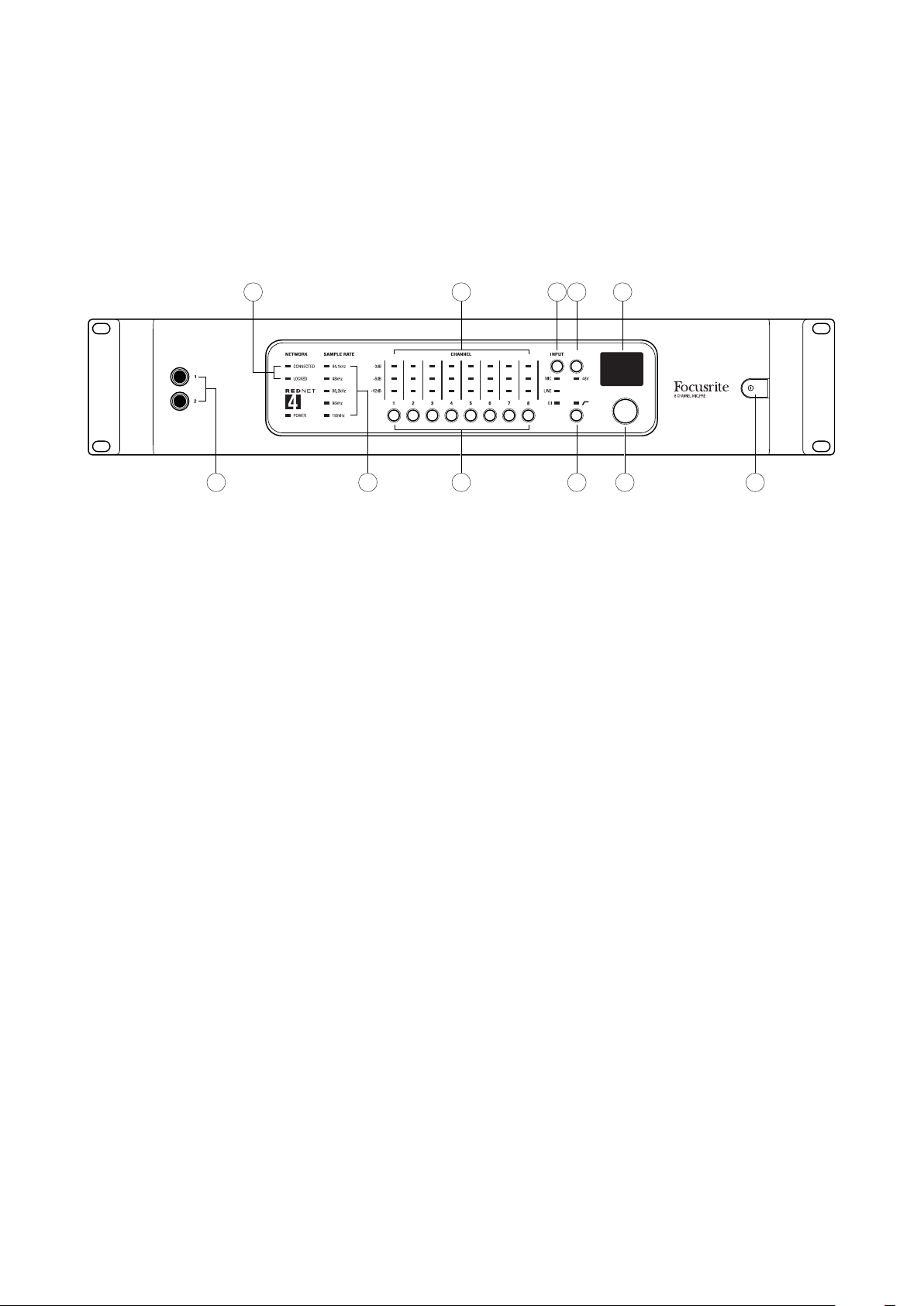

RedNet 4 - Front Panel ..........................................................7

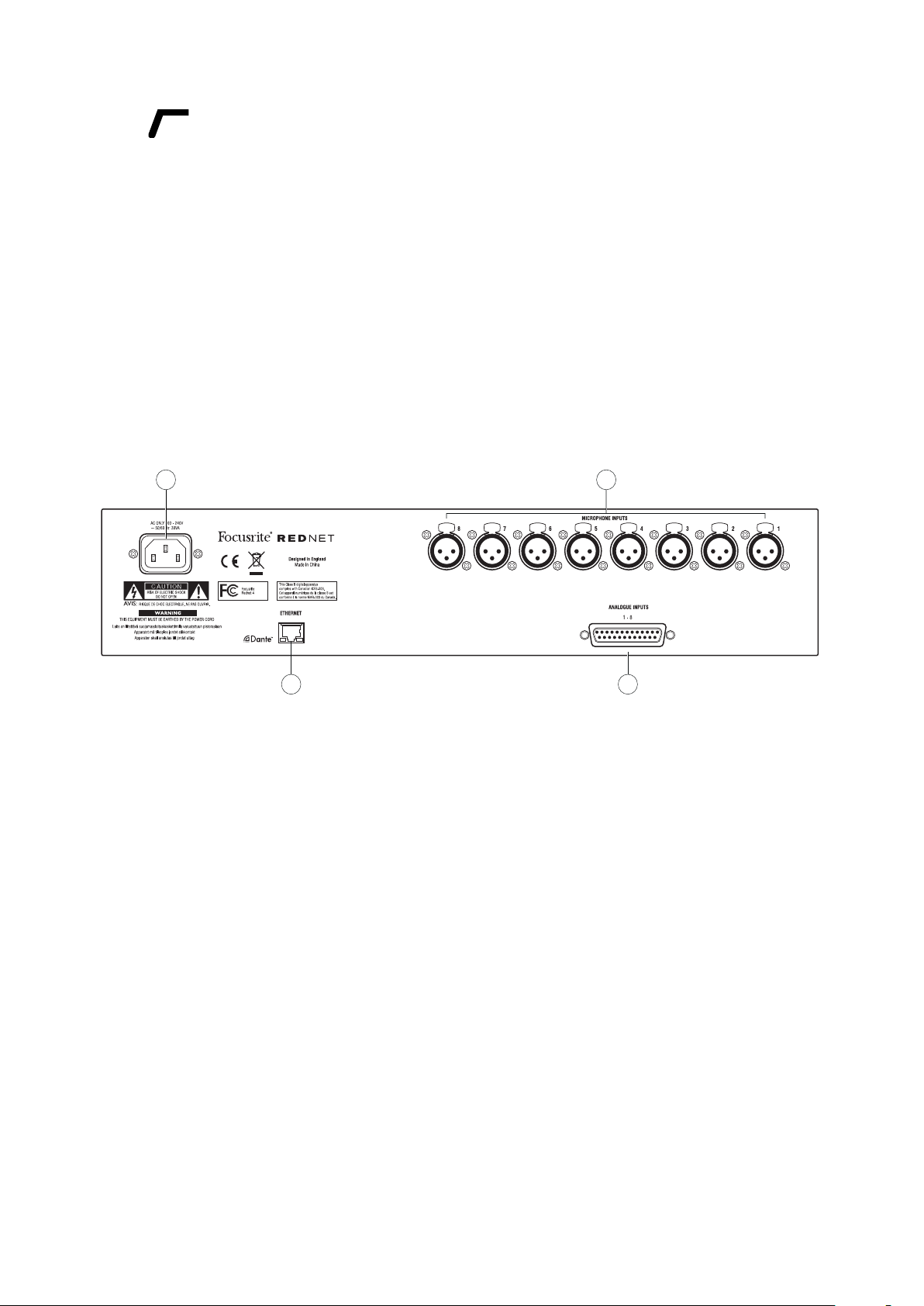

RedNet 4 - Rear Panel...........................................................8

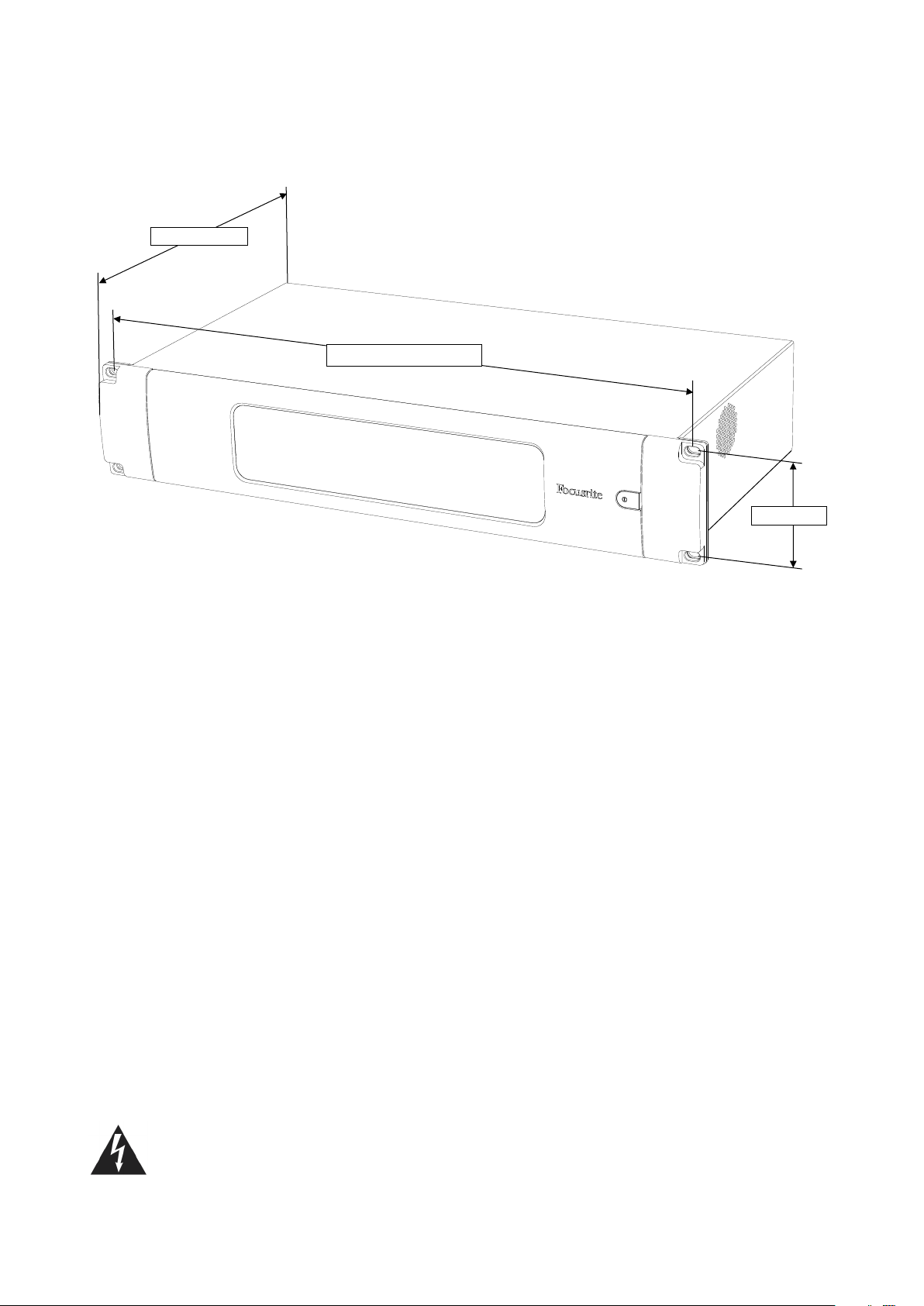

Physical Characteristics .......................................................9

Power Requirements..........................................................9

OTHER REDNET SYSTEM COMPONENTS ..........................................10

USING REDNET CONTROL.......................................................10

APPENDIX.................................................................... 11

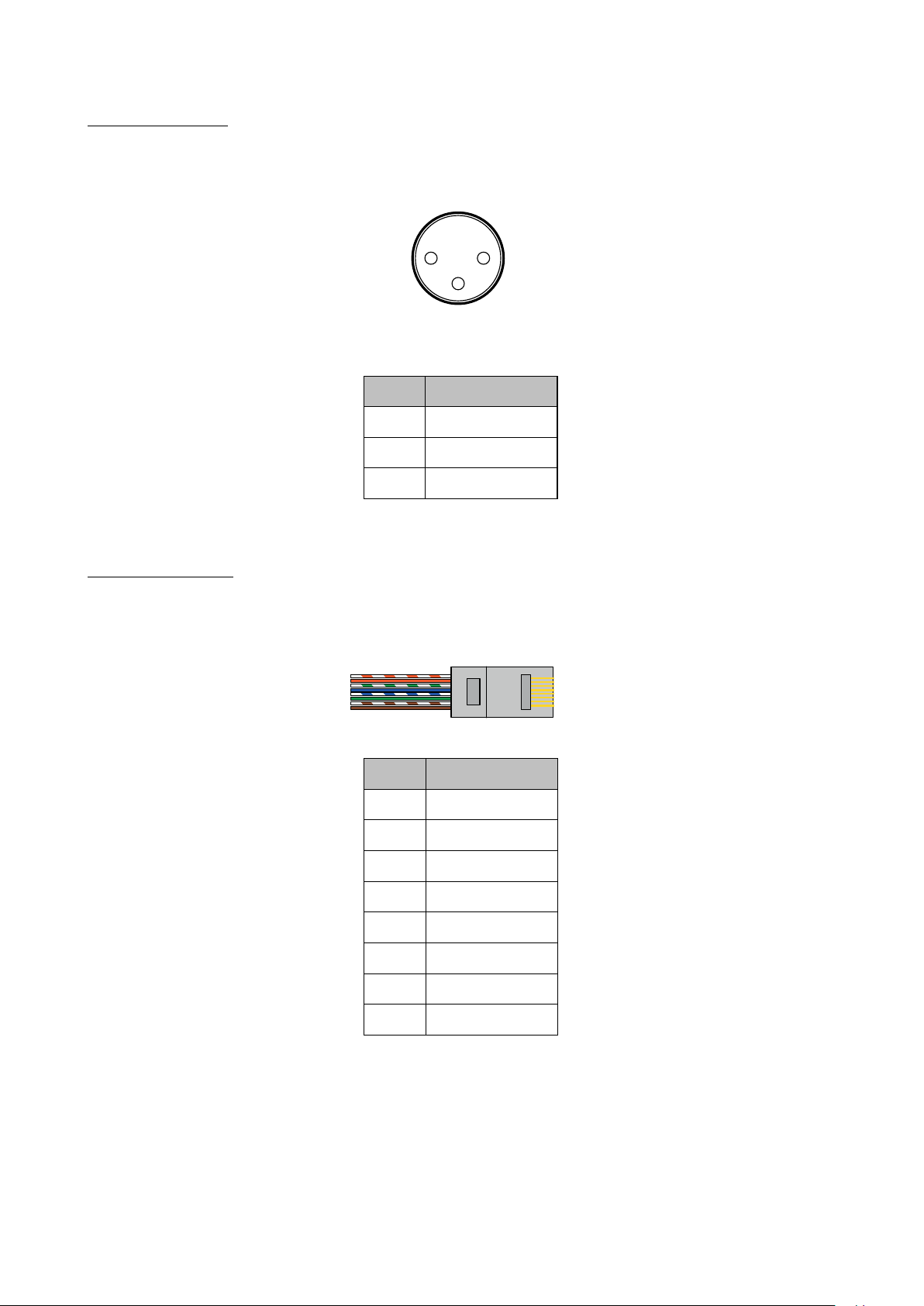

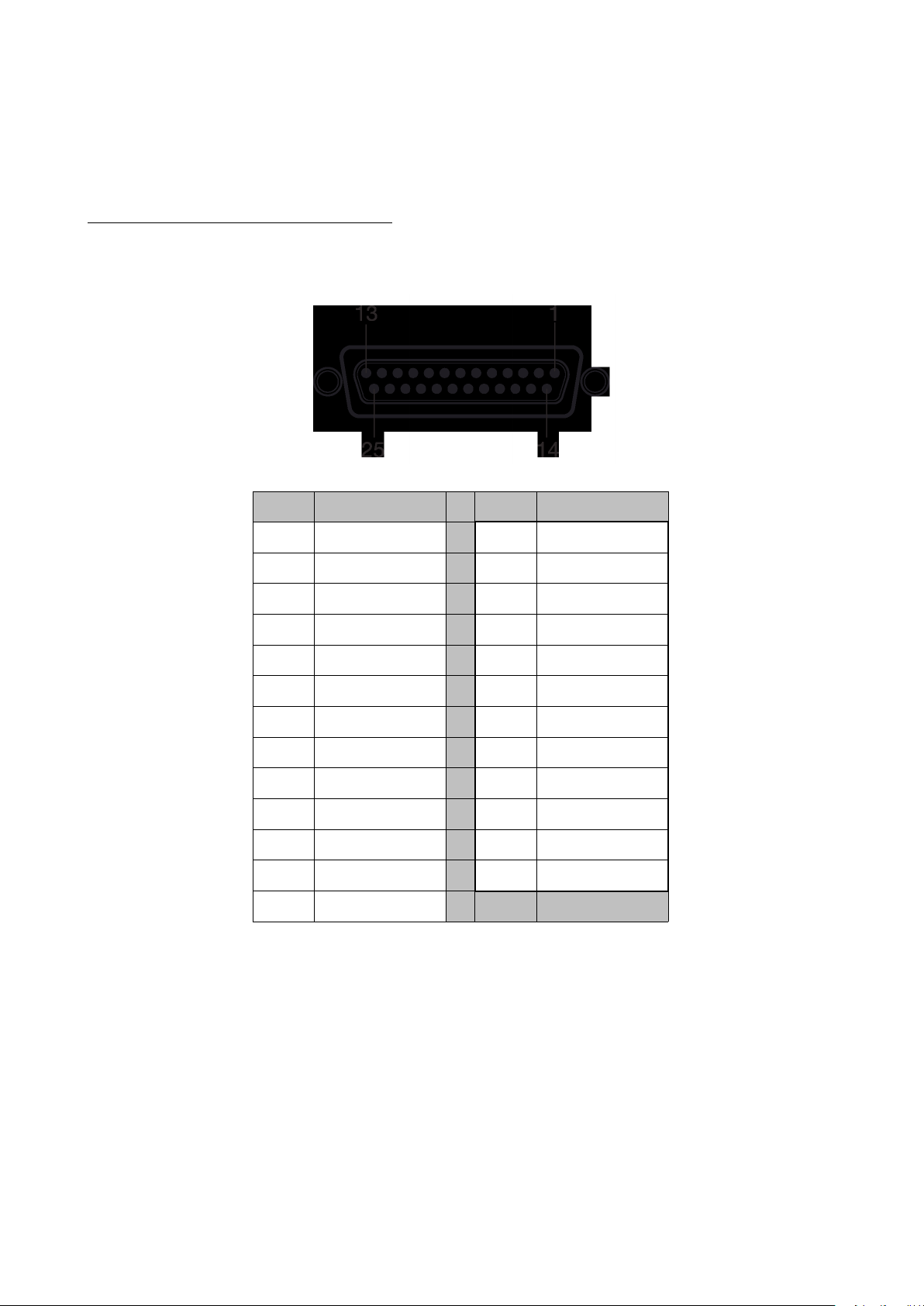

Connector Pinouts...........................................................11

Performance Speciﬁcations ...................................................13

Focusrite RedNet Warranty and Service .........................................14

Registering Your Product .....................................................15

Customer Support and Unit Servicing ...........................................15

Troubleshooting ............................................................15

INTRODUCTION

Thank you for purchasing this Focusrite RedNet 4.

RedNet 4 is a multichannel analogue mic/line preampliﬁer for use with a RedNet digital audio networking system.

RedNet is a powerful, low latency, digital audio networking system designed speciﬁcally for music, recording studio and broadcast applications. It is based on Audinate’s Dante™, a well-established audio networking technology known for its extreme robustness. Dante - and the RedNet system is capable of transporting up to 512 channels of bidirectional audio (at 48 kHz sample rate) over a single Gigabit Ethernet link. The number of channels available in your DAW will depend on the host method being used.

In RedNet 4, Focusrite mic preamp technology is combined with 24-bit A-D conversion at sample rates of up to 192 kHz. It provides eight analogue inputs - each of which may be either microphone or line level - plus two front panel DI inputs. Each mic input has switchable 48 V phantom power and a high-pass ﬁlter, and pairs of channels may be ganged for stereo operation. As with other RedNet analogue interfaces, JetPLL™ technology and up to 119 dB of dynamic range are standard.

Mic preamp parameters, including analogue gain, can be controlled both from the front panel, or remotely via the Ethernet connection using RedNet Control software.

The inputs are electronically balanced, with the mic inputs on standard 3-pin XLR connectors and the line inputs on a 25-pin Dsub connector. Channels 1 and 2 can additionally be conﬁgured as DI inputs, for direct connection of instruments to ¼” jack sockets on the front panel.

The front panel has a rotary gain control with numeric display, eight channel select buttons and switches for mic/line/DI selection, phantom power and high-pass ﬁlter. It also has LEDs conﬁrming network status, sample rate and per-channel signal level.
