Page 1

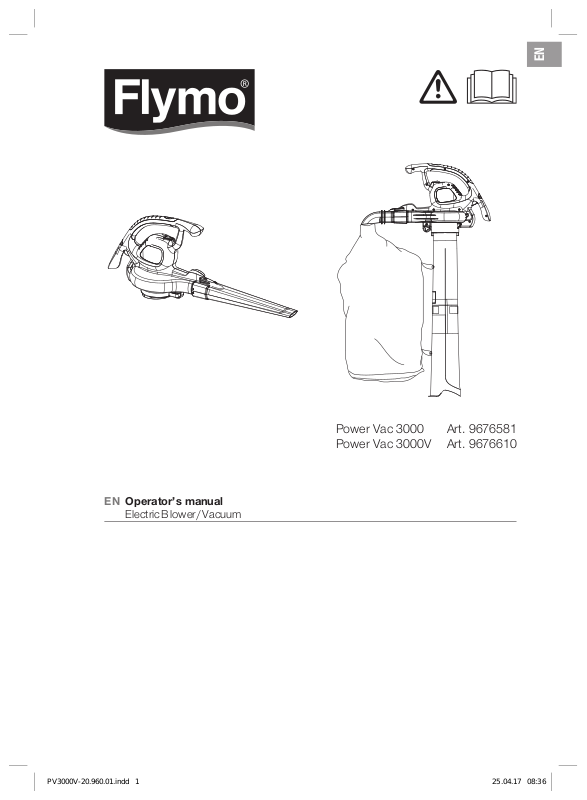

Power Vac 3000 Art. 9676581 Power Vac 3000V Art. 9676610

EN Operator’s manual

Electric B lower / Vacuum

PV3000V-20.960.01.indd 1 25.04.17 08:36

Page 2

FLYMO Blower / Vacuum Power Vac 3000 / Power Vac 3000V

1. SAFETY ........................................................................ 3

2. ASSEMBLY ..................................................................5

3. OPERATION .................................................................6

4. MAINTENANCE ............................................................6

5. STORAGE ....................................................................7

6. TROUBLESHOOTING .................................................. 7

7. TECHNICAL DATA .......................................................8

8. SERVICE / WARRANTY .................................................8

The initial language of these instructions is English. Other language versions are translations of the initial instructions.

product has been provided and the resulting dangers have been understood, by children aged 8 and above, as well as by persons with physical, sensory or mental disabilities or a lack of experience

1. SAFETY

PV3000V-20.960.01.indd 2 25.04.17 08:36

Page 3

FLYMO Blowe r / Vacuum P ower V ac 3000 / Power Vac 3000V

1. S AFETY ........................................................................ 3

2. A SSEMBLY ..................................................................5

3. OP ERATION .................................................................6

4. MA INTENANCE ............................................................6

5. S TORAGE ....................................................................7

6. TROUBLESHOOTING .................................................. 7

7. TECHNICAL DATA .......................................................8

8. S ERVICE / WARRANTY .................................................8

The initial language of these instructions is English. Other language versions are translations of the initial instructions.

This product may be used under super vision, or if instruction

regarding the safe use of the product has been provided and the resulting dangers have been understood, by children aged 8 and above, as well as by persons with physical, sensory or mental disabilities or a lack of experience

1. SAFETY

Symbols on the product:

and knowledge. Children must not be allowed to play with the product. Cleaning and user maintenance must not be performed by children without supervision. The use of this product by young people under the age of 16 is not recommended.

Intended use as blower:

The FLYMO Blower / Vacuum is suitable when used as ablower for sweeping debris or grass clippings from driveways, sidewalks, patios, etc. and for blowing grass clippings, straw, orleaves into piles, or removing debris from corners, around joints, or between bricks.

Intended use as vacuum:

The FLYMO Blower / Vacuum is suitable when used asavacuum for picking up dry material such as leaves, grass, small twigs, and bits of paper.

DANGER! Risk of injury! If not used properly this product can be dangerous. The warnings and safety instructions must be followed toensure reasonable safety and efficiency in using this product. The operator is responsible for following the warnings and instructions in this manual and on the product. Never use the product unless the guards provided by the manufacturer are in the correct position.

Read operator’s manual.

SWITCH OFF:

cleaning or maintenance.

Do not expose to rain.

The use of eye and ear protection is

PV3000V-20.960.01.indd 3 25.04.17 08:36

recommended. Keep in mind, that you

probably won’t hear bystanders, which

enter the working area.

Remove plug from mains before

Keep bystanders away.

Disconnect the m ains plug if the cord

becomes damaged or entangled.

Use o nly with fully installed

Wait until the rotor bla des

Do not use wh en wearing

suct ion tube and c overe d

collection bag in suction mode.

have sto pped moving after

switching off.

open hair, loose jewellery or

loose-fitting clothes.

Page 4

General safety warnings

Electrical safety

WARNING! Electric shock! Risk of injury due to electric shock.

v The product must be supplied through a residual

current device (RCD) having a rated residual operating current not exceeding 30 mA.

Cables:

If the supply cord is damaged, it must be replaces by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Extension cables are available from your local approved service centre. Only use extension cables specifically designed for outdoor use.

Use only 1.00 mm² size cable up to 40 metres length maximum.

Minimum rating: 1.00 mm² size cable.

1 General This annex presents safe operating practices for hand-

held mains-operated electrical garden vacuums, and garden blowe r / vacuums with or without shredding means and garden blowers.

These practices are not all inclusive. The substance of these requirements should be provided with each machine as appropriate and tailored to the specific type of machine. It should also include information concerning noise and vibration levels and any necessary warnings, together with the following:

IMPORTANT READ CAREFULLY BEFORE USE. KEEP FOR FUTURE REFERENCE.

2 Safe operating practices for hand-held mains-

operated electrical garden vacuums, and garden blower/vacuums with or without shredding means and garden blowers.

2.1 Training

a) Read the instructions carefully. Be familiar with the

controls and the correct use of the machine.

b) Never allow children or people unfamiliar with these

instructions to use the machine. Local regulations can restrict the age of the operator. c) Keep in mind, that the operator or user is responsible

for accidents or hazards occurring to other people or

their property.

2.2 Preparation

a) Obtain ear protection and safety glasses. Wear them

at all times while operating the machine. b) While operating the machine always wear substantial

footwear and long trousers. Do not operate the

machine when barefoot or wearing open sandals.

Avoid wearing clothing that is loose fitting or that has

hanging cords or ties. c) Do not wear loose clothing or jewellery that can be

drawn into the air inlet. Keep long hair away from the

air inlets. d) Operate the machine in a recommended position and

only on a firm, level surface.

e) Do not operate the machine on a paved or gravel sur-

face where ejected material could cause injury.

f) Before using, always visually inspect to see, that the

shredding means, shredding means bolts and other fasteners are secure, the housing is undamaged and that guards and screens are in place. Replace worn or damaged components in sets to preserve balance. Replace damaged or unreadable labels.

g) Before use, check the supply and extension cord for

signs of damage or aging. If the cord becomes damaged during use, disconnect the cord from the supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. Do not use the machine if the cord is damaged or worn.

h) Never operate the machine while people, especially

children, or pets are nearby.

2.3 Operation

a) Before starting the machine, make certain that the

feeding chamber is empty.

b) Keep your face and body away from the feed intake

opening.

c) Do not allow hands or any other part of the body or

clothing inside the feeding chamber, discharge chute, or near any moving part.

d) Keep proper balance and footing at all times. Do not

overreach. Never stand at a higher level than the base of the machine when feeding material into it.

e) Always stand clear of the discharge zone when oper-

ating this machine.

f) When feeding material into the machine be extremely

careful that pieces of metal, rocks, bottles, cans or other foreign objects are not included.

g) If the cutting mechanism strikes any foreign objects or

if the machine should start making any unusual noise or vibration, immediately shut off the power source and allow the machine to stop. Disconnect the machine from the supply and take the following steps before restarting and operating the machine:

• inspect for damage;

• replace or repair any damaged parts;

• check for and tighten any loose parts. h) Do not allow processed material to build up in the dis-

charge zone; this may prevent proper discharge and can result in kickback of material through the intake opening.

i) If the machine becomes clogged, shut-off the power

source and disconnect the machine from supply before cleaning debris.

j) Never operate the machine with defective guards or

shields, or without safety devices, for example debris collector in place.

k) Keep the power source clean of debris and other

accumulations to prevent damage to the power source or possible fire.

l) Do not transport this machine while the power source

is running.

m) Stop the machine, and remove plug from the socket.

Make sure that all moving parts have come to a complete stop

– whenever you leave the machine,

2. ASSEMBLY

To assemble for blower use:

To fit the blower tube [ Fig. A1 ]: NOTE: A safety switch will prevent the product from start-

ing if the blower tube

1. Align the grooves on the blower tube

2. Push the blower tube

To remove the blower tube ton

To fit the intake cover [ Fig. A2 ]:

NOTE: A safety switch will prevent the product from start-

ing if the intake cover

1. Put the intake cover

2. Tighten the fastening screw To remove the intake cover

screw remove it.

PV3000V-20.960.01.indd 4 25.04.17 08:36

Page 5

– before clearing blockages or unclogging chute, – before checking, cleaning or working on the

machine.

n) Do not tilt the machine while the power source is

running.

2.4 Maintenance and storage

a) When the machine is stopped for servicing, inspec-

tion, or storage, or to change an accessory, shut off

the power source, disconnect the machine from the

supply and make sure that all moving parts are come

to a complete stop. Allow the machine to cool before

making any inspections, adjustments, etc. Maintain

the machine with care and keep it clean. b) Store the machine in a dry place out of the reach of

children. c) Always allow the machine to cool before storing. d) When servicing the shredding means be aware that,

even though the power source is switched off due to

the interlock feature of the guard, the shredding

means can still be moved. e) Replace worn or damaged parts for safety. Use only

genuine replacement parts and accessories.

2. ASSEMBLY

WARNING! Risk of physical injury! Cut injury when the impeller turns or the

product starts accidentally.

v Wait for the impeller to stop, disconnect the

product from the mains and use gloves before you do assembly.

To assemble for blower use:

To fit the blower tube [ Fig. A1 ]: NOTE: A safety switch will prevent the product from start-

ing if the blower tube

1. Align the grooves on the blower tube grooves on the blower outlet

2. Push the blower tube snaps into place.

The blower tube is secured to the blower outlet with the tube release button

To remove the blower tube

and pull out the blower tube 1 at the same time.

ton

To fit the intake cover [ Fig. A2 ]:

NOTE: A safety switch will prevent the product from start-

ing if the intake cover

1. Put the intake cover garden blower and turn the intake cover up to the stop (bayonet fastening).

2. Tighten the fastening screw

To remove the intake cover

, turn the intake cover 4 anti-clockwise and

screw

remove it.

is not installed correctly.

onto the blower outlet 2 until it

, push the tube release but-

is not latched closed.

on the lower opening of the

, loosen the fastening

with the

clockwise

f) Never attempt to override the interlocked feature of the

guard.

2.5 Additional safety instructions for units with bagging attachments

Switch-off the machine before attaching or removing the bag.

2.6 Recommendation

The machine should be supplied via a residual current device (RCD) with a tripping current of not more than 30 mA.

Additional safety warnings

Danger! Small parts could be swallowed during assembly and there is a risk of suffocation from the polybag. Keep infants away during assembly.

Warning! This machine produces an electro magnetical field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manu facturer before operating this machine.

To assemble for vacuum use:

To fit the vacuum tube [ Fig. A3 / A4 ]: WARNING! Do not use the vacuum

is fitted to the upper tube

tube

1. Align the seams of the lower tube

2. Push the tubes engaged.

NOTE: A safety switch will prevent the product from starting if the vacuum tube

3. Put the vacuum tube garden vacuum and turn the vacuum tube up to the stop (bayonet fastening).

4. Tighten the fastening screw

To remove the vacuum tube

, turn the vacuum tube 6 anti-clockwise and

screw

remove it.

To attach the collection bag [ Fig. A5 ]:

NOTE: A safety switch will prevent the product from start-

ing if the elbow tube

1. Align the grooves on the elbow tube on the blower outlet

2. Push the elbow tube snaps into place.

The collection bag is secured to the blower outlet with the tube release button

3. Clip the collection bag vacuum tube

To remove the collection bag button

together until they are fully

is not installed correctly.

on the lower opening of the

is not installed correctly.

onto the blower outlet 2 until it

into both loops 0 on the

and pull out the elbow tube 7 at the same time.

unless the lower

and upper tube

clockwise

, loosen the fastening

with the grooves

, push the tube release

PV3000V-20.960.01.indd 5 25.04.17 08:36

Page 6

To attach the shoulder strap [ Fig. A6 ]:

For extra support when you use the product as a vacuum, a shoulder strap is included with your product. Attach the strap to the product before operation.

v Snap the hook onto the retainer

3. OPERATION

WARNING! Risk of physical injury!

Cut injury when the impeller turns or the

product starts accidentally.

v Wait for the impeller to stop, disconnect the

product from the mains and use gloves before you connect or transport the product.

To connect the product [ Fig. O1 ]:

DANGER! Risk of electric shock! To avoid damage to the mains cable

must be inserted into the cable lock

v Before you operate the product insert the mains

1. Loop the mains cable

2. Connect the mains cable

To start the product [ Fig. O1 ]:

To start:

v Push the start switch

To stop:

v Push the start switch

Variable speed control (only for Power Vac Art. 9676610) [ Fig. O1 ]:

The motor speed can be increased or decreased by using the variable speed control

CAUTION: To avoid causing damage to the product, only use the variable speed control in blow mode. DO NOT attempt to use the variable speed control in vacuum mode.

into the cable lock e.

cable

and pull tight.

lock

, insert the loop into the cable

into a 230 V mains socket.

to the ON-position.

to the OFF-position.

1. Remove the tubes and the collection bag.

2. Clean the airflow slots

5. STORAGE

To put into storage:

The product must be stowed away from children.

Lower speeds during vacuum use could allow debris to build up, stall the motor and cause product failure.

Work positions:

Blow mode [ Fig. O2 ]:

Use your product as a blower for sweeping debris or grass clippings from driveways, sidewalks, patios, etc. Also, for blowing grass clippings, straw, or leaves into piles, or removing debris from corners, around joints, or between bricks.

Direct air flow by directing the blower tube down or to one

side. Always work away from solid objects such as walks, large

stones, vehicles, and fences. Clean corners by starting in corners and moving outward.

This will help prevent an accumulation of debris which could fly into your face. Be careful when working near plants. The force of the air could damage tender plants.

Vacuum mode [ Fig. O3 ]:

Use your product as a vacuum to pick up dry material such as leaves, grass, small twigs, and bits of paper.

For best results during vacuum use, operate your unit at high speed.

Move slowly back and forth over the material as you vacuum. Avoid forcing the unit into a pile of debris as this can clog the unit.

Keep the vacuum tube about an inch above the ground for best results.

WARNING: If the product becomes clogged, stop the unit and unplug the extension cord. Wait until the impeller has completely stopped turning, then remove the vacuum tubes. Carefully reach into the vacuum opening and clear out the clogged debris.

This will reduce possible personal injury from the impeller.

1. Disconnect the mains cable.

2. Clean the product.

3. Stow the product in a dry area where it has protection

6. TROUBLESHOOTING

Problem Possible Causes Remedy

Product does not start Blower tube, elbow tube or vacuum

Product vibrates abnormally Debris in air intake area.

4. MAINTENANCE

WARNING! Risk of physical injury! Cut injury when the impeller turns or the

product starts accidentally.

v Wait for the impeller to stop, disconnect the

product from the mains and use gloves before you do maintenance.

PV3000V-20.960.01.indd 6 25.04.17 08:36

To clean the product [ Fig. M1 / M2 ]:

DANGER! Electric shock! Risk of injury and risk of damage to the

product.

v Do not clean the product with water or with a

water jet (in particular high-pressure water jet).

The airflow slots must always be clean.

Page 7

1. Remove the tubes and the collection bag.

2. Clean the airflow slots with a soft brush (do not use a screwdriver).

area

Remove all debris from the impeller.

and the air intake / outtake

5. STORAGE

3. Clean the blower head with a damp cloth.

4. Clean the tubes. Remove all debris from the tubes.

5. Turn the collection bag inside out and clean it with water.

To put into storage:

The product must be stowed away from children.

1. Disconnect the mains cable.

2. Clean the product.

3. Stow the product in a dry area where it has protection

from frost (Do not stow a dirty collection bag).

Disposal:

(in accordance with RL2012/19/EC)

The product must not be added to usual household waste. Refer to local environmental laws for discarding.

v Important: Make sure that the product is discarded

through your municipal recycling collection centre.

6. TROUBLESHOOTING

WARNING! Risk of physical injury! Cut injury when the impeller turns or the

product starts accidentally.

v Wait for the impeller to stop, disconnect the

product from the mains and use gloves before you do maintenance.

Problem Possible Causes Remedy

Product does not start Blower tube, elbow tube or vacuum

tube is not assembled correctly.

Collection bag is full.

Extension cable is disconnected.

Mechanical failure.

Product vibrates abnormally Debris in air intake area.

Mechanical failure.

For any other malfunctions please contact the Husqvarna UK Ltd. Customer Service. Repairs must only be done by Husqvarna UK Ltd. service departments or specialist dealers approved by FLYMO.

v Assemble the tubes correctly

(see 2. ASSEMBLY).

v Empty the collection bag.

v Connect the extension cable.

v Contact your authorized service

dealer.

v Clean the product. Remove any

debris.

v Contact your authorized service

dealer.

PV3000V-20.960.01.indd 7 25.04.17 08:36

Page 8

7. TECHNICAL DATA

Product liability

Unit Value

(Power Vac 3000)

Value (Power Vac 3000V)

Motor power consumption W 3000 3000

Mains voltage V 230 230

Mains frequency Hz 50 50

Max. vacuum flow l/s 170 170

Mulch ratio 16:1 16:1

Max. blow speed km/h 310 310

Capacity of collection bag l 45 45

Weight kg 4.8 4.8

Sound pressure level L Uncertainty k

Sound power level L measured / guaranteed Uncertainty k

Hand / arm v ibration a Uncertainty k

Measuring process complying with: 1) EN 50636-2-100 2) RL 2000/14/EC

vhw

83.2

dB(A)

3.0

dB(A) 100 / 102

3.0

3.25

m/s

1.5

83.2

3.0

100 / 102

3.0

3.25

1.5

8. S ervice / Warranty

Service:

Please contact the address on the back page.

Warranty:

In the event of a warranty claim, no charge is levied to you for the services provided.

Husqvarna UK Ltd. offers a two-year warranty (effective as of the date of purchase) for this product. This warranty includes all significant defects of the product that can be proved to be material or manufacturing faults. This warranty is fulfilled by supplying a fully functional replacement product or by repairing the faulty product sent to us free of charge; we reserve the right to choose between these options. This service is subject to the following provisions:

• The product was used for its intended purpose as per

the recommendations in the operating instructions.

• Neither the purchaser nor a third party has attempted to repair the product.

This manufacturer’s warranty does not affect warranty entitlements against the dealer / retailer.

If problems arise with this product, please contact our Service department or send the defective product along with a brief description of the fault to Husqvarna UK Ltd., making sure to have sufficiently covered any shipping costs and to have followed the relevant postage and packaging guidelines. A warranty claim must be accompanied by a copy of the proof of purchase.

Consumables:

The blower tube and the vacuum tubes are consumables and are not included in the guarantee.

In accordance with the German Product Liability Act, we hereby expressly declare that we accept no liability for damage incurred from our products where said products

EC Declaration of Conformity

The undersigned, Husqvarna AB, 561 82 Huskvarna, Sweden, hereby certifies that, when leaving our factor y, the products indicated below are in accordance with

Description of the product: Electric Blower / Vac

Product type Power Vac 3000

Article-Number Art. 9676581-01

CE-Directives 2006/42/EG

Harmonized EN EN ISO 12100

Deposited Documentation GARDENA Technical Documentation,

Conformity Assessment according to 2000/14/EC Procedure: ar t. 14 Annex V

Noise level: measured / guaranteed Power Vac 3000 100 dB(A ) / 102 dB(A)

Year of CE marking 2017

Ulm 20.04.2017

Authorized representative:

PV3000V-20.960.01.indd 8 25.04.17 08:36

Page 9

Product liability

In accordance with the German Product Liability Act, we hereby expressly declare that we accept no liability for damage incurred from our products where said products

have not been properly repaired by a FLYMO-approved service partner or where original FLYMO parts or parts authorised by FLYMO were not used.

EC Declaration of Conformity

The undersigned, Husqvarna AB, 561 82 Huskvarna, Sweden, hereby certifies that, when leaving our factor y, the products indicated below are in accordance with

Description of the product: Electric Blower / Vac

Product type Power Vac 3000

Article-Number Art. 9676581-01

CE-Directives 2006/42/EG

Harmonized EN EN ISO 12100

Deposited Documentation GARDENA Technical Documentation,

Conformity Assessment according to 2000/14/EC Procedure: ar t. 14 Annex V

Noise level: measured / guaranteed Power Vac 3000 100 dB(A ) / 102 dB(A)

Year of CE marking 2017

Ulm 20.04.2017

Authorized representative:

the harmonised EU guidelines, EU standards of safety and product specific standards. This certificate becomes void if the products are modified without our approval.

Power Vac 3000V

Art. 9676610-01

2014/30/EG 2011/65/EG 2000/14/EG

EN 60335-1 EN 50636-2-100

M. Kugler, 89079 Ulm

Power Vac 3000V 100 dB(A) / 102 dB(A)

John Thompson

Product and Marketing Director EUAP

PV3000V-20.960.01.indd 9 25.04.17 08:36

Page 10

PV3000V-20.960.01.indd 10 25.04.17 08:36

Page 11

PV3000V-20.960.01.indd 11 25.04.17 08:36

Page 12

Deutschland / Germany

GARDENA Manufacturing GmbH Central Service Hans-Lorenser-Straße 40 D-89079 Ulm Produktfragen: (+49) 731 490-123 Reparaturen: (+49) 731 490-290 [email protected]

Albania

COBALT Sh.p.k. Rr. Siri Kodra 1000 Tirana

Argentina

Husqvarna Argentina S.A. Av.del Libertador 5954 – Piso 11 – Torre B (C1428ARP) Buenos Aires Phone: (+54) 11 5194 5000 [email protected]

Armenia

Garden Land Ltd. 61 Tigran Mets 0005 Yerevan

Australia

Husqvarna Australia Pty. Ltd. Locked Bag 5 Central Coast BC NSW 2252 Phone: (+ 61) (0) 2 4352 7400 customer.service@ husqvarna.com.au

Austria / Österreich

Husqvarna Austria GmbH Industriezeile 36 4010 Linz Tel. : (+43) 732 77 01 01-485 service.gardena@ husqvarnagroup.com

Azerbaijan

Firm Progress a. Aliyev Str. 26A 1052 Baku

Belgium

Husqvarna België nv/sa Gardena Division Rue Egide Van Ophem 111 1180 Uccle / Ukkel Tel.: (+32) 2 720 92 12 Mail: [email protected]

Bosnia / H erzegovina

SILK TRADE d.o.o. Industrijska zona Bukva bb 74260 Tešanj

Brazil

Husqvarna do Brasil Ltda Av. Francisco Matarazzo,

1400 – 19

andar São Paulo – SP CEP: 05001-903 Tel: 0800-112252 marketing.br.husqvarna@ husqvarna.com.br

Bulgaria

AGROLAND България АД бул. 8 Декември, № 13 Офис 5 1700 Студентски град София Тел.: (+359) 24 66 6910 [email protected]

Canada / U SA

GARDENA Canada Ltd. 100 Summerlea Road Brampton, Ontario L6T 4X3 Phone: (+1) 905 792 93 30 [email protected]

Chile

Maquinarias Agroforestales Ltda. (Maga Ltda.) Santiago, Chile Avda. Chesterton # 8355 comuna Las Condes Phone: (+56) 2 202 4417 [email protected] Zipcode: 7560330

Our polic y of contin uous impro vement mea ns that the s pecific ation of product s may be altered from t ime to time wi thout pr ior notic e.

China

Husqvarna (China) Machinery Manufacturing Co., Ltd. No. 1355, Jia Xin Rd., Ma Lu Zhen, Jia Ding Dist., Shanghai 201801 Phone: (+86) 21 59159629 Domestic Sales www.gardena.com.cn

Colombia

Husqvarna Colombia S.A. Calle 18 No. 68 D-31, zona Industrial de Montevideo Bogotá, Cundinamarca Tel. 571 2922700 ext. 105 [email protected]

Costa Rica

Compania Exim Euroiberoamericana S.A. Los Colegios, Moravia, 200 metros al Sur del Colegio Saint Francis – San José Phone: (+506) 297 68 83 [email protected]

Croatia

SILK ADRIA d.o.o. Josipa Lončara 3 10090 Zagreb Phone: (+385) 1 3794 580 [email protected]

Cyprus

Med Marketing 17 Digeni Akrita Ave P.O. Box 27017 1641 Nicosia

Czech Republic

Husqvarna Česko s.r.o. Türkova 2319/5b 149 00 Praha 4 – Chodov Bezplatná infolinka : 800 100 425 [email protected]

Denmark

GARDENA DANMARK Lejrvej 19, st. 3500 Værløse Tlf.: (+45) 70 26 47 70 [email protected] www.gardena.com / dk

Dominican Republic

BOSQUESA, S.R.L Carretera Santiago Licey Km. 5 ½ Esquina Copal II. Santiago Dominican Republic Phone: (+809) 736-0333 [email protected]

Ecuador

Husqvarna Ecuador S.A. Arupos E1-181 y 10 de Agosto Quito, Pichincha Tel. (+593) 22800739 francisco.jacome@ husqvarna.com.ec

Estonia

Husqvarna Eesti OÜ Gardena Division Valdeku 132 Tallinn 11216, Estonia [email protected]

Finland

Oy Husqvarna Ab Gardena Division Lautatarhankatu 8 B /PL 3 00581 HELSINKI [email protected]

France

Husqvarna France 9/11 Allée des pierres mayettes 92635 Gennevilliers Cedex France http : //www.gardena.com/ fr N° AZUR: 0 810 00 78 23 (Prix d’un appel local)

and other p roduct a nd feature n ames are re gistered or unregistered trad emarks of Flymo S .A.

Flymo

Georgia

ALD Group Beliashvili 8 1159 Tleilisi

Great Britain

Husqvarna UK Ltd Preston Road Aycliffe Industrial Park Newton Aycliffe County Durham DL5 6UP Phone:+44 (0) 344 8444558 customer.services@husqvarna. co.uk

Greece

Π.ΠΑΠΑΔΟΠΟΥΛΟΣ ΑΕΒΕ Λεωφ. Αθηνών 92 Αθήνα Τ.Κ.104 42 Ελλάδα Τηλ. (+30) 210 5193 100 [email protected]

Hungary

Husqvarna Magyarország Kft. Ezred u. 1 - 3 1044 Budapest Telefon: (+36) 1 251-4161 vevoszolgalat.husqvarna@ husqvarna.hu

Iceland

Ó. Johnson & Kaaber Tunguhalsi 1 110 Reykjavik [email protected]

Ireland

Husqvarna UK Ltd Preston Road Aycliffe Industrial Park Newton Aycliffe County Durham DL5 6UP [email protected]

Italy

Husqvarna Italia S.p.A. Via Santa Vecchia 15 23868 VALMADRERA (LC) Phone: (+39) 0341.203.111 assistenza.italia@ it.husqvarna.com

Japan

KAKUICHI Co. Ltd. Sumitomo Realty & Development Kojimachi BLDG., 8F 5 -1 Nibanncyo Chiyoda-ku Tokyo 102-0084 Phone: (+81) 33 264 4721 [email protected]

Kazakhstan

LAMED Ltd. 155/1, Tazhibayevoi Str. 050060 Almaty IP Schmidt Abayavenue 3B 110 005 Kostanay

Korea

Kyung Jin Trading CO.,LTD. 107-4, SunDuk Bld., YangJae-dong, Seocho-gu, Seoul, (zipcode: 137-891) Phone: (+82) (0)2 574-6300

Kyrgyzstan

Alye Maki av. Moladaya Guardir J 3 720014 Bishkek

Latvia

Husqvarna Latvija SIA Gardena Division Ulbrokas 19A LV-1021 Rīga [email protected]

Lithuania

UAB Husqvarna Lietuva Gardena Division Ateities pl. 77C LT-52104 Kaunas [email protected]

Luxembourg

Magasins Jules Neuberg 39, rue Jacques Stas Luxembourg-Gasperich 2549 Case Postale No. 12 Luxembourg 2010 Phone: (+352) 40 14 01 [email protected]

Mexico

AFOSA Av. Lopez Mateos Sur # 5019 Col. La Calma 45070 Zapopan, Jalisco, Mexico Phone: (+52) 33 3818-3434 [email protected]

Moldova

Convel S.R.L. 290A Muncesti Str. 2002 Chisinau

Netherlands

Husqvarna Nederland B.V. GARDENA Division Postbus 50131 1305 AC ALMERE Phone: (+31) 36 521 00 10 [email protected]

Neth. Antilles

Jonka Enterprises N.V. Sta. Rosa Weg 196 P.O. Box 8200 Curaçao Phone: (+599) 9 767 66 55 [email protected]

New Zealand

Husqvarna New Zealand Ltd. PO Box 76-437 Manukau City 2241 Phone: (+64) (0) 9 9202410 [email protected]

Norway

Husqvarna Norge AS Gardena Division Trøskenveien 36 1708 Sarpsborg Tel: 69 10 47 00 www.gardena.no

Peru

Husqvarna Perú S.A. Jr. Ramón Cárcamo 710 Lima 1 Tel: (+51) 1 3320400 ext. 416 [email protected]

Poland

Husqvarna Poland Spółka z o.o. ul. Wysockiego 15 b 03-371 Warszawa Phone: (+48) 22 330 96 00 [email protected]

Portugal

Husqvarna Portugal, SA Lagoa - Albarraque 2635 - 595 Rio de Mouro Tel.: (+351) 21 922 85 30 Fax : (+351) 21 922 85 36 [email protected]

Romania

Madex International Srl Soseaua Odaii 117 - 123, RO 013603 Bucureşti, S1 Phone: (+40) 21 352.76.03 [email protected]

Russia / Россия

ООО „Хускварна“ 141400, Московская обл., г. Химки, улица Ленинградская, владение 39, стр.6 Бизнес Центр „Химки Бизнес Парк“, помещение ОВ02_04 http://www.gardena.ru

rbia

Domel d.o.o. Autoput za Novi Sad bb 11273 Belgrade Phone: (+381) 1 18 48 88 12 [email protected]

Singapore

Hy-Ray PRIVATE LIMITED 40 Jalan Pemimpin #02-08 Tat Ann Building Singapore 577185 Phone: (+65) 6253 2277 [email protected]

Slovak Republic

Husqvarna Česko s.r.o. Türkova 2319/5b 149 00 Praha 4 – Chodov Bezplatná infolinka: 800 154 044 [email protected]

Slovenia

Husqvarna Austria GmbH Industriezeile 36 4010 Linz Tel.: (+43) 732 77 01 01-485 service.gardena@ husqvarnagroup.com

South Africa

Husqvarna South Africa (Pty) Ltd Postnet Suite 250 Private Bag X6, Cascades, 3202 South Africa Phone: (+27) 33 846 9700 [email protected]

Spain

Husqvarna España S.A. Calle de Rivas nº 10 28052 Madrid Phone: (+34) 91 708 05 00 [email protected]

Suriname

Agrofix n.v. Verlengde Hogestraat #22 Phone: (+597) 472426 [email protected] Pobox : 2006 Paramaribo Suriname – South America

Sweden

Husqvarna AB Gardena Division S-561 82 Huskvarna [email protected]

Switzerland / Schweiz

Husqvarna Schweiz AG Consumer Products Industriestrasse 10 5506 Mägenwil Phone: (+ 41) (0) 62 887 37 90 [email protected]

Turk ey

GARDENA Dost Diş Ticaret Mümessillik A.Ş. Sanayi Çad. Adil Sokak No: 1/B Kartal 34873 Istanbul Phone: (+90) 216 38 93 939 [email protected]

Ukrain e / Україна

ТОВ « Хусварна Україна » вул. Васильківська, 34, офіс 204-г 03022, Київ Тел. (+38) 044 498 39 02 [email protected]

Uruguay

FELI SA Entre Ríos 1083 CP 11800 Montevideo – Uruguay Tel : (+598) 22 03 18 44 [email protected]

Venezuela

Corporación Casa y Jardín C.A. Av. Caroní, Edif. Trezmen, PB. Colinas de Bello Monte. 1050 Caracas. Tlf : (+58) 212 992 33 22 [email protected]

PV3000V-20.960.01/0417 Husqvarna AB S-561 82 Huskvarna Sweden

PV3000V-20.960.01.indd 12 25.04.17 08:36
