Fluke GPS430-II Operating Manual

GPS 430-II

GPS Synchronization Module

Instruction Sheet

Introduction

The GPS 430-II GPS Synchronization Module guarantees that the time
clock uncertainty of the Fluke 430-Series II Power Quality Analyzers does
not exceed ±20 ms for 50 Hz signals according to IEC 61000-4-30. This
performance is necessary to ensure that Class A instruments produce the
same 10 aggregation results when connected to the same signal. The
GPS 430-II can only be used on the Fluke 430-Series II Power Quality
Analyzers.

Note

The GPS system is operated by the government of the United
States, which is solely responsible for its accuracy and
maintenance.

Contacting Fluke

To contact Fluke, call one of the following telephone numbers:

 Technical Support USA: 1-800-44-FLUKE (1-800-443-5853)
 Calibration/Repair USA: 1-888-99-FLUKE (1-888-993-5853)
 Canada: 1-800-36-FLUKE (1-800-363-5853)
 Europe: [phone]
 Japan: [phone]
 Singapore: [phone]

 Anywhere in the world: [phone]

Or, visit Fluke's website at www.fluke.com.
To register your product, visit http://register.fluke.com.
To view, print, or download the latest manual supplement, visit

http://us.fluke.com/usen/support/manuals.

PN 4720044
September 2015

2015 Fluke Corporation. All rights reserved.
Specifications are subject to change without
notice. All product names are trademarks of
their respective companies.

Symbols

Symbol

Description



Risk of Danger. Important information. See Instruction
Sheet.



Conforms to European Union directives.



This product complies with the WEEE Directive
marking requirements. The affixed label indicates that
you must not discard this electrical/electronic product
in domestic household waste. Product Category: With
reference to the equipment types in the WEEE
Directive Annex I, this product is classed as category 9
"Monitoring and Control Instrumentation" product. Do
not dispose of this product as unsorted municipal
waste.

The table below lists the symbols used on the Product and in this
instruction sheet.

Before You Start

Warning

To prevent possible electric shock, fire, or personal injury,
do not permit the cables or GPS antenna to come in
contact with hazardous electrical conductors. This
Product is not intended to be installed in electrical
cabinets or other locations where hazardous conductors
are exposed.

Your shipment includes:
 1x GPS 430-II unit with 2 cables (Figure 1):

- Cable with mini USB connector

- Cable connected to the GPS module

 1x Universal Mains-Power Adapter BC430/820 (Figure 2)
 1x Instruction Sheet GPS 430-II (this sheet)
 1x Instruction Sheet BC430/820

gps430-ii.eps

Figure 1. GPS 430-II

The Universal Mains-Power Adapter consists of the following items:

 BC430/820 Switch Mode Power Adapter (with dc cable)
 Universal mains cord with male and female connector
 Set of mains plug adapters (6x) for all standard mains outlets
 Brazilian-style mains cord adapter, approximately 0.25 m (10 in)

Carefully check the contents of your shipment. If content is damaged or
missing, contact your distributor or the nearest Fluke sales or service
office.

Instructions

Read the instructions for the power adapter before you use.

 Caution

For connection to the mains outlet, use a power cord that
complies with national standards.

Note

Do not open the BC430/820, it is not serviceable.

To use the GPS 430-II:

1. Connect the BC430/820 power adapter output to the GPS 430-II.

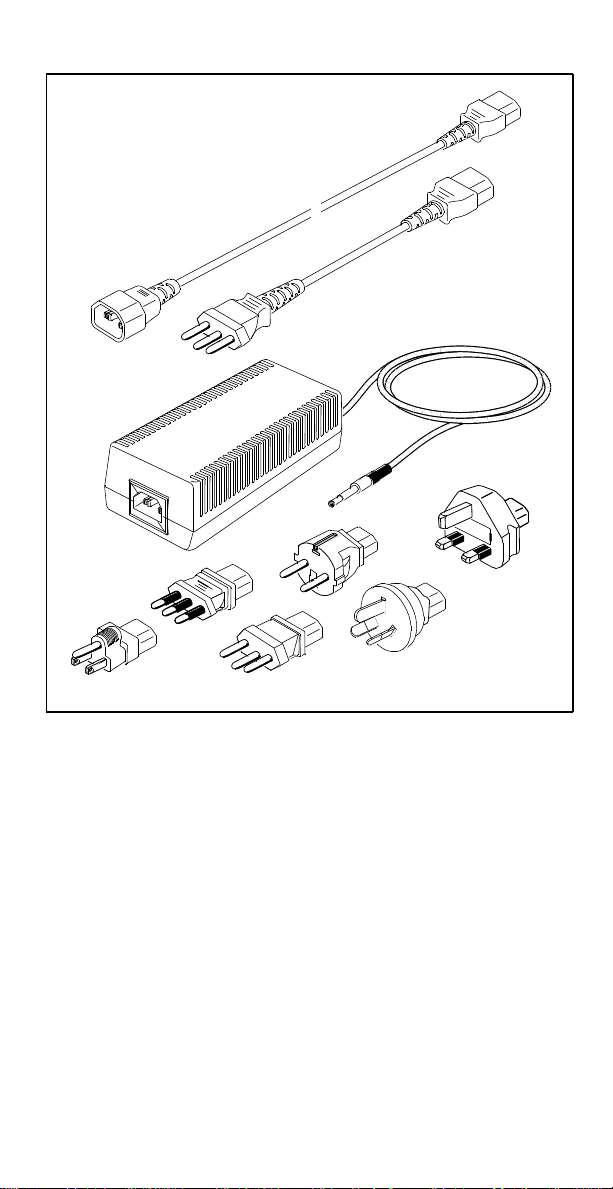

Figure 2. BC430/820

2. Connect the BC430/820 to the line voltage.
The blinking green LED on the GPS 430-II indicates that the power

to the module is turned on (Figure 1).

3. Connect the USB connector to the 430 Series II Power Quality
Analyzer (PQA).

4. Turn on the PQA.

On the PQA:

5. Push Setup button and F4 (Manual Setup).

6. Use the cursor to select Time.

7. Push F2 to turn on the GPS.

Note

For the correct reception, the GPS module should not be
covered by metal or enclosed in a steel cage. It is advised to
position this module close to a window to ensure it picks up as
many satellite signals as possible.

htx03.eps

Specifications

Safety .................................... Pollution Degree 2

Electromagnetic Compatibility

International ....................... IEC 61326-1: Basic Electromagnetic

Group 1: Equipment has intentionally generated and/or uses
conductively-coupled radio frequency energy that is necessary for
the internal function of the equipment itself.

Class A: Equipment is suitable for use in all establishments other
than domestic and those directly connected to a low-voltage
power supply network that supplies buildings used for domestic
purposes. There may be potential difficulties in ensuring
electromagnetic compatibility in other environments due to
conducted and radiated disturbances.

Emissions that exceed the levels required by CISPR 11 can occur
when the equipment is connected to a test object.

The equipment may not meet the immunity requirements of this
standard when test leads and/or test probes are connected.

USA (FCC) ......................... 47 CFR 15 subpart B. This product is

Temperature

Operating ..................... 0 °C to 50 °C (32 °F to 122 °F), up to 90 %

Storage ........................ -40 °C to +70 °C (-40 °F to +158 °F) 10 %

Altitude ............................... 2 000 m (6 562 ft) above sea-level

Environment
CISPR 11: Group 1, Class A

considered an exempt device per clause

15.103.

rel. humidity, no condensation

to 95 % rel. humidity

Service Centers

Fluke Corporation
P.O. Box 9090
Everett, WA 98206-9090
U.S.A.

Fluke Europe B.V.
P.O. Box 1186
5602 BD Eindhoven
The Netherlands

To locate an authorized service center, go to www.fluke.com.

This Fluke product will be free from defects in material and workmanship for one
year from the date of purchase. This warranty does not cover fuses, disposable
batteries, or damage from accident, neglect, misuse, alteration, contamination, or
abnormal conditions of operation or handling. Resellers are not authorized to extend

any other warranty on Fluke’s behalf. To obtain service during the warranty period,

contact your nearest Fluke authorized service center to obtain return authorization
information, then send the product to that Service Center with a description of the
problem.
THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER WARRANTIES, SUCH
AS FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSED OR IMPLIED.
FLUKE IS NOT LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR
THEORY. Since some states or countries do not allow the exclusion or limitation of
an implied warranty or of incidental or consequential damages, this limitation of
liability may not apply to you.

11/99

LIMITED WARRANTY AND LIMITATION OF LIABILITY
