Fluke 9150 Specifications

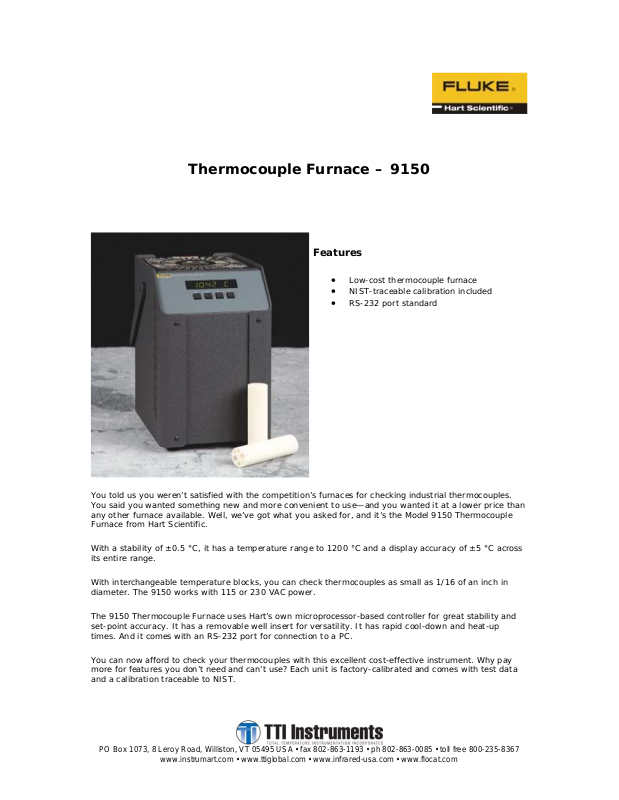

Thermocouple Furnace – 9150
Features
Low-cost thermocouple furnace
•
• NIST-traceable calibration included
• RS-232 port standard
You told us you weren’t satisfied with the competition’s furnaces for checking industrial thermocouples.
You said you wanted something new and more convenient to use—and you wanted it at a lower price than
any other furnace available. Well, we’ve got what you asked for, and it’s the Model 9150 Thermocouple
Furnace from Hart Scientific.
With a stability of ±0.5 °C, it has a temperature range to 1200 °C and a display accuracy of ±5 °C across
its entire range.
With interchangeable temperature blocks, you can check thermocouples as small as 1/16 of an inch in
diameter. The 9150 works with 115 or 230 VAC power.
The 9150 Thermocouple Furnace uses Hart’s own microprocessor-based controller for great stability and
set-point accuracy. It has a removable well insert for versatility. It ha s rapid cool-dow n and heat-up
times. And it comes with an RS-232 port for connection to a PC.
You can now afford to check your thermocouples with this excellent cost-effective instrument. Why pay
more for features you don’t need and can’t use? Each unit is factory-calibrated and comes with test data
and a calibration traceable to NIST.
PO Box 1073, 8 Leroy Road, Williston, VT 05495 USA • fax 802-863-1193 • ph 802-863-0085 • toll free 800-235-8367
Specifications
Temperature
Range
Display Resoluti on 0.1 ° to 999.9 °
Stability ±0.5 °C
Display Accuracy ±5 °C
Well Diameter 1.25" (32 mm)
Well Depth 140 mm (5.5 in); (101 mm [4 in]
Heating Time 35 minutes to 1200 °C
Cooling Time 140 minutes with block
Well-to-Well
Uniformity
Stabilization 20 minutes
Power 115 VAC (±10 %), 10.5 A or 230 VAC
Size (HxWxD) 315 x 208 x 315 mm
Weight 13 kg (28 lb.)
NIST-Traceable
Calibration
150 °C to 1200 °C
(302 °F to 2192 °F)
1 ° above 1000 °
removable insert plus 38 mm [1.5 in]
insulator)
±0.5 °C to ±1.0 °C
(Insert “C” at 1200 °C)
(±10 %), 5.2 A, switchable, 50/60 Hz,
1200 W
(12.4 x 8.2 x 12.4 in)
Data at 150 °C, 300 °C, 450 °C, 600 °C,
800 °C, 1000 °C, and 1200 °C
Ordering Information
9150-X Thermocouple Furnace (specify X, X = A, B, C,or D included insert)
3150-2 Insert A
3150-3
3150-4
3150-6
9315 Rugged Carrying Case
Insert B
Insert C
Insert D
PO Box 1073, 8 Leroy Road, Williston, VT 05495 USA • fax 802-863-1193 • ph 802-863-0085 • toll free 800-235-8367
