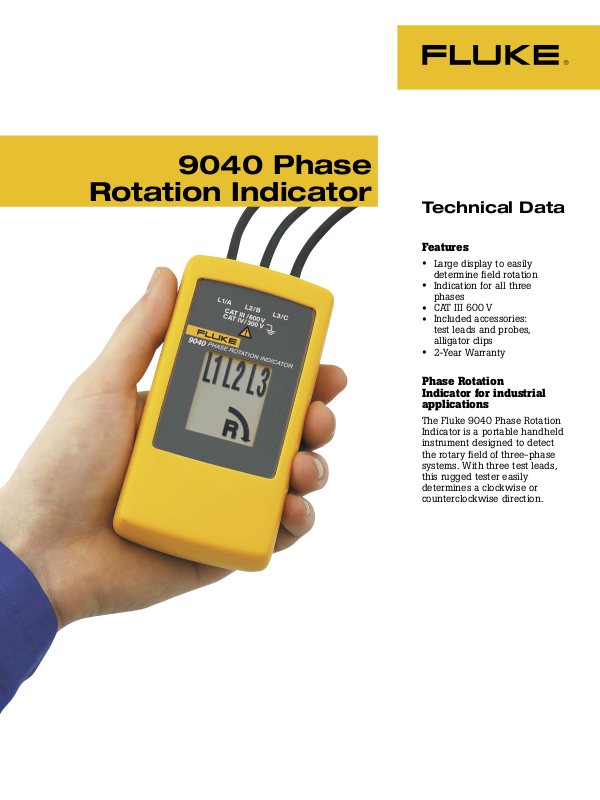

Fluke 9040 Specifications

9040 Phase

Rotation Indicator

Technical Data

Features

Large display to easily

•

determine field rotation

Indication for all three

•

phases

CAT III 600 V

•

Included accessories:

•

test leads and probes,
alligator clips

2-Year Warranty

•

Phase Rotation
Indicator for industrial
applications

The Fluke 9040 Phase Rotation
Indicator is a portable handheld
instrument designed to detect
the rotary field of three-phase
systems. With three test leads,
this rugged tester easily
determines a clockwise or
counterclockwise direction.

Specifications

Environmental

Operating temperature:
0 °C to +40 °C (32 °F to 104 °F)

Pollution degree:

2

Type of protection: IP 40

Mechanical specifications

Size (HxWxD):

124 mm x 61 mm x 27 mm
(4.9 in x 2.4 in x 1.1 in)
Weight: 200 g (0.44 lbs)

Safety specifications

Electrical safety:

IEC 61010/EN 61010,
IEC 61557-7/EN 61557-7

Maximum operating voltage (U

me): 690 V

Protection levels: CAT III 600 V to ground

Electrical specifications

Power supply: From unit under test

Determine rotary field direction

Nominal voltage: 40 to 690 V ac
Frequency range (f

n): 15 to 400 Hz

Current Pickup: 1 mA
Nominal test current (in per phase): 1 mA
Warranty: 2 years

Included

3 self-retaining test probes (black)
Alligator Clip
Users Manual

Ordering Information

Fluke-9040 Phase rotation
indicator
