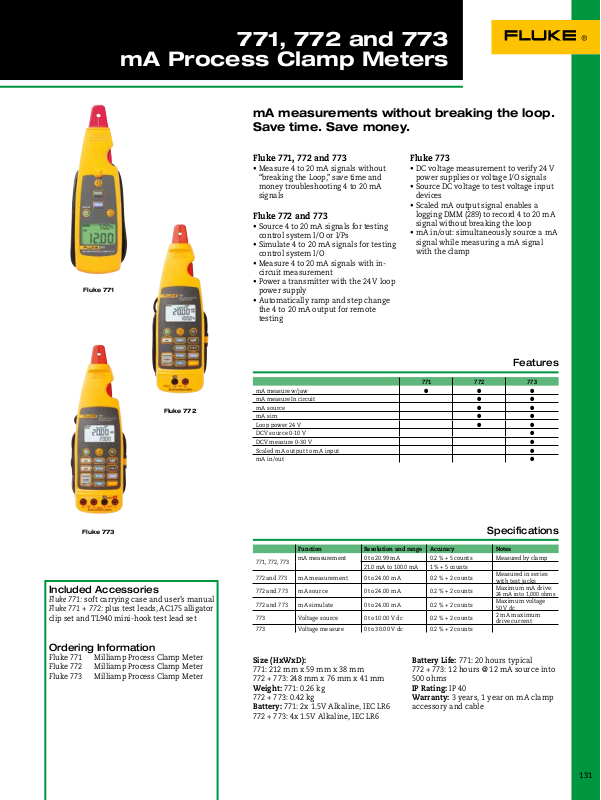

771, 772 and 773 mA Process Clamp Meters
Fluke 771
Fluke 772
Fluke 773
Included Accessories
Fluke 771: soft carrying case and user’s manual Fluke 771 + 772: plus test leads, AC175 alligator clip set and TL940 mini-hook test lead set
Ordering Information
Fluke 771 Milliamp Process Clamp Meter
Fluke 772 Milliamp Process Clamp Meter
Fluke 773 Milliamp Process Clamp Meter
mA measurements without breaking the loop. Save time. Save money.
Fluke 771, 772 and 773
•Measure 4 to 20 mA signals without “breaking the Loop,” save time and money troubleshooting 4 to 20 mA signals
Fluke 772 and 773
•Source 4 to 20 mA signals for testing control system I/O or I/Ps
•Simulate 4 to 20 mA signals for testing control system I/O
•Measure 4 to 20 mA signals with incircuit measurement
•Power a transmitter with the 24 V loop power supply
•Automatically ramp and step change the 4 to 20 mA output for remote testing
Fluke 773
•DC voltage measurement to verify 24 V power supplies or voltage I/O signals
•Source DC voltage to test voltage input devices
•Scaled mA output signal enables a logging DMM (289) to record 4 to 20 mA signal without breaking the loop
•mA in/out: simultaneously source a mA signal while measuring a mA signal with the clamp
|
|
|
Features |
|
|
|
|
|
|
|
|
|
771 |
772 |
773 |
mA measure w/jaw |
● |
● |
● |
mA measure In circuit |
|
● |
● |
mA source |
|
● |
● |
mA sim |
|
● |
● |
Loop power 24 V |
|
● |
● |
DCV source 0-10 V |
|
|
● |
DCV measure 0-30 V |
|
|
● |
Scaled mA output to mA input |
|
|
● |
mA in/out |
|
|
● |
|
|
|
|
|
Specifications |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Function |
Resolution and range |
Accuracy |
|
Notes |
|
771, 772, 773 |
mA measurement |
0 to 20.99 mA |
|
0.2 % + 5 counts |
|
Measured by clamp |
|
21.0 mA to 100.0 mA |
1 % + 5 counts |
|
|
||
|
|
|
|
|||
772 and 773 |
mA measurement |
0 to 24.00 mA |
|
0.2 % + 2 counts |
|
Measured in series |
|
|
with test jacks |
||||
|
|
|
|
|
|
|
772 and 773 |
mA source |
0 to 24.00 mA |
|
0.2 % + 2 counts |
|
Maximum mA drive: |
|
|
24 mA into 1,000 ohms |
||||
|
|
|
|
|
|
|
772 and 773 |
mA simulate |
0 to 24.00 mA |
|
0.2 % + 2 counts |
|
Maximum voltage |
|
|
50 V dc |
||||
|
|
|
|
|
|
|
773 |
Voltage source |
0 to 10.00 V dc |
|
0.2 % + 2 counts |
|
2 mA maximum |
|
|
drive current |
||||
|
|
|
|
|
|
|
773 |
Voltage measure |
0 to 30.00 V dc |
|
0.2 % + 2 counts |
|
|
Size (HxWxD): |
|
Battery Life: 771: 20 hours typical |
||||
771: 212 mm x 59 mm x 38 mm |
772 + 773: 12 hours @ 12 mA source into |
|||||
772 + 773: 248 mm x 76 mm x 41 mm |
500 ohms |
|
|
|||
Weight: 771: 0.26 kg |
|
IP Rating: IP 40 |
|
|
||
772 + 773: 0.42 kg |
|
Warranty: 3 years, 1 year on mA clamp |
||||
Battery: 771: 2x 1.5V Alkaline, IEC LR6 |
accessory and cable |
|
|
|||
772 + 773: 4x 1.5V Alkaline, IEC LR6 |
|
|
|
|
||
131
