Fluke 754/FPC User manual

Download
753/754

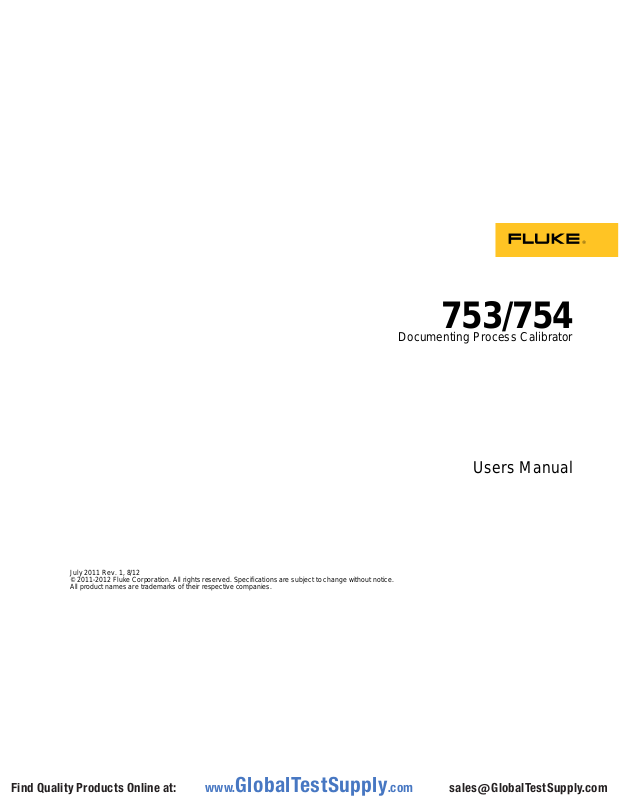

Documenting Process Calibrator

Users Manual

July 2011 Rev. 1, 8/12 © 2011-2012 Fluke Corporation. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies.
Find Quality Products Online at: sales@GlobalTestSupply.com

LIMITED WARRANTY AND LIMITATION OF LIABILITY

This Fluke product will be free from defects in material and workmanship for three years from the date of purchas e. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling. Resellers are not authorized to extend an y other warranty on Fluke’s behalf. To obtain service during the warranty period, contact your nearest Fluke authorized service center to obtain return authorization information, then send the product to that Service Center with a description of the problem.
THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER WARRANTIES, SUCH AS FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSED OR IMPLIED. FLUKE IS NOT LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR THEORY. Since some states or countries do not allow the exclusion or limitation of an implied warranty or of incidental or consequential damages, this limitation of liability may not apply to you.
11/99
Find Quality Products Online at: sales@GlobalTestSupply.com

Table of Contents

Title Page
Introduction .................................................................................................................... 1
Safety Information .......................................................................................................... 2
Standard Equipment....................................................................................................... 6
Functions ........................................................................................................................ 9
Get Started ..................................................................................................................... 11
Operation Features ........................................................................................................ 13
Input and Output Jacks .............................................................................................. 13
Buttons ...................................................................................................................... 15
Display ....................................................................................................................... 18
Strap and Stand......................................................................................................... 21
The Battery ..................................................................................................................... 22
Charge the Battery .................................................................................................... 22
Battery Charge Level ................................................................................................. 23
Battery Life ................................................................................................................ 23
i
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
Preserve Battery Life ................................................................................................ 25
The Battery Charger ................................................................................................. 25
Display Languages ........................................................................................................ 26
Display Intensity............................................................................................................. 26
Date and Time ............................................................................................................... 26
The Backlight ................................................................................................................. 28
Personalize the Product ................................................................................................. 28
Measure Mode ............................................................................................................... 29
Measurement Ranges ............................................................................................... 29
Electrical Parameter Measurement ........................................................................... 30
Continuity Test .......................................................................................................... 32
Pressure Measurement ............................................................................................. 32
Temperature Measurement ...................................................................................... 36
Thermocouple Use ............................................................................................... 36
Resistance-Temperature Detectors (RTDs) ......................................................... 39
Measurement Scale .................................................................................................. 43
Linear-Output Transmitters .................................................................................. 43
Square-Law Process Variables ............................................................................ 43
Measure or Source with Custom Units ...................................................................... 44
Using the 700-IV Current Shunt ................................................................................ 44
Damping Measurements ........................................................................................... 45
Source Mode ................................................................................................................. 45
Source Electrical Parameters ................................................................................... 45
4 to 20 mA Transmitter Simulation ............................................................................ 48
Supply Loop Power ................................................................................................... 50
Source Pressure ....................................................................................................... 52
Thermocouple Simulation ......................................................................................... 55
RTD Simulation ......................................................................................................... 56
Source Temperature with a Hart Scientific Drywell ................................................... 59
ii
Find Quality Products Online at: sales@GlobalTestSupply.com
Contents (continued)
Source Scale ............................................................................................................. 61
Linear-Responding Transmitters ........................................................................... 61
Square-Root Process Variables ............................................................................ 61
Step and Ramp the Output Value .............................................................................. 62
Manual Step Use .................................................................................................. 62
Auto Step Use ....................................................................................................... 62
Ramp the Output .................................................................................................. 63
Simultaneous Measure/Source ...................................................................................... 66
Process Instrument Calibration ...................................................................................... 69
Generate “As Found” Test Data ................................................................................ 69
Transmitter Adjustment ............................................................................................. 74
“As Left” Test Run ..................................................................................................... 75
Test Comments ......................................................................................................... 75
Calibrate a Delta-Pressure Flow Instrument .............................................................. 75
Switch Calibration ...................................................................................................... 76
Transmitter Mode ........................................................................................................... 79
Memory Operations ........................................................................................................ 80
Save Results ............................................................................................................. 80
Review the Memory ................................................................................................... 83
Log Data .................................................................................................................... 83
Record Min and Max Measurements ......................................................................... 86
Run a Preloaded Task ............................................................................................... 87
Clear the Memory ...................................................................................................... 87
The Calculator ................................................................................................................ 87
Save to and Recall from the Registers ...................................................................... 88
Use the Calculator to Set the Source Value .............................................................. 88
Quick Guide to Applications ........................................................................................... 88
Communication with a PC .............................................................................................. 101
Maintenance ................................................................................................................... 101
iii
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
Battery Replacement ................................................................................................ 101
Clean the Product ..................................................................................................... 101
Calibration Data ........................................................................................................ 102
In Case of Difficulty ................................................................................................... 102
Service Center Calibration or Repair ........................................................................ 102
User-Replaceable Parts ................................................................................................. 102
Accessories ................................................................................................................... 104
Specifications ................................................................................................................ 106
General Specifications ................................................................................................... 106
Environmental Specifications .................................................................................... 106
Standards and Agency Approval Specifications........................................................ 106
Detailed Specifications .................................................................................................. 107
DC mV Measurement ............................................................................................... 107
DC Voltage Measurement ......................................................................................... 108
AC Voltage Measurement ......................................................................................... 108
DC Current Measurement ......................................................................................... 109
Resistance Measurement ......................................................................................... 109
Continuity Testing ..................................................................................................... 109
Frequency Measurement .......................................................................................... 110
±DC Voltage Output .................................................................................................. 110
+DC Current Source ................................................................................................. 111
+DC Current Simulate (External Loop Power) .......................................................... 111
Resistance Sourcing ................................................................................................. 111
Frequency Sourcing .................................................................................................. 112
Temperature, Thermocouples ................................................................................... 113
Temperature, Resistance Temperature Detectors .................................................... 116
Loop Power ............................................................................................................... 117
iv
Find Quality Products Online at: sales@GlobalTestSupply.com

List of Tables

Table Title Page
1. Symbols ................................................................................................................................. 4
2. Summary of Source and Measure Functions ........................................................................ 10
3. Input/Output Jacks and Connectors ...................................................................................... 13
4. Buttons .................................................................................................................................. 16
5. Elements of a Typical Display ............................................................................................... 20
6. Typical Battery Life ................................................................................................................ 23
7. Thermocouple Types Accepted ............................................................................................. 37
8. RTD Types Accepted ............................................................................................................ 39
9. Simultaneous MEASURE/SOURCE Functions with Loop Power Disabled ........................... 67
10. Simultaneous MEASURE/SOURCE Functions with Loop Power Enabled ............................ 68
11. Duration Limits ...................................................................................................................... 84
12. Replacement Parts ................................................................................................................ 103
v
Find Quality Products Online at: sales@GlobalTestSupply.com

List of Figures

Figure Title Page
1. Standard Equipment .............................................................................................................. 7
2. Jumper Connections ............................................................................................................. 12
3. Measure/Source Example ..................................................................................................... 12
4. Input/Output Jacks and Connectors ...................................................................................... 14
5. Buttons .................................................................................................................................. 15
6. Elements of a Typical Display ............................................................................................... 19
7. Stand Use and Strap Attachment .......................................................................................... 21
8. Battery Removal and Charger Use ........................................................................................ 24
9. Time and Date Display .......................................................................................................... 27
10. Edit the Date Format ............................................................................................................. 27
11. Personalize the Product ........................................................................................................ 28
12. Electrical Measurement Connections .................................................................................... 31
13. Gage and Differential Pressure Modules ............................................................................... 33
14. Pressure Measurement Connections .................................................................................... 35
15. Temperature Measurement with a Thermocouple ................................................................. 38
vii
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
16. Correct Jumper Use .............................................................................................................. 41
17. Temperature Measurement with an RTD .............................................................................. 42
18. Electrical Source Connections .............................................................................................. 47
19. Connections fo Simulate a 4 to 20 mA Transmitter ............................................................... 49
20. Connections to Supply Loop Power ...................................................................................... 51
21. Connections to Source Pressure .......................................................................................... 54
22. Connections to Simulate a Thermocouple ............................................................................ 57
23. Connections to Simulate an RTD .......................................................................................... 58
24. Source Temperature with Drywell ......................................................................................... 60
25. Ramp Screen ........................................................................................................................ 64
26. Check a Relay Output Trip Alarm ......................................................................................... 65
27. Measure and Source Screen ................................................................................................ 66
28. Process Instrument Calibration Screen................................................................................. 70
29. Process Instrument Calibration Screen 2 .............................................................................. 70
30. Calibrate a Thermocouple Temperature Transmitter ............................................................ 71
31. Calibration Parameters Screen ............................................................................................. 72
32. Measure and Source Screen for Calibration ......................................................................... 73
33. Error Summary Screen ......................................................................................................... 73
34. As Left Data Screen .............................................................................................................. 75
35. Switch Terminology .............................................................................................................. 76
36. Saved Data Screen ............................................................................................................... 81
37. Additional Data Input Screen ................................................................................................ 81

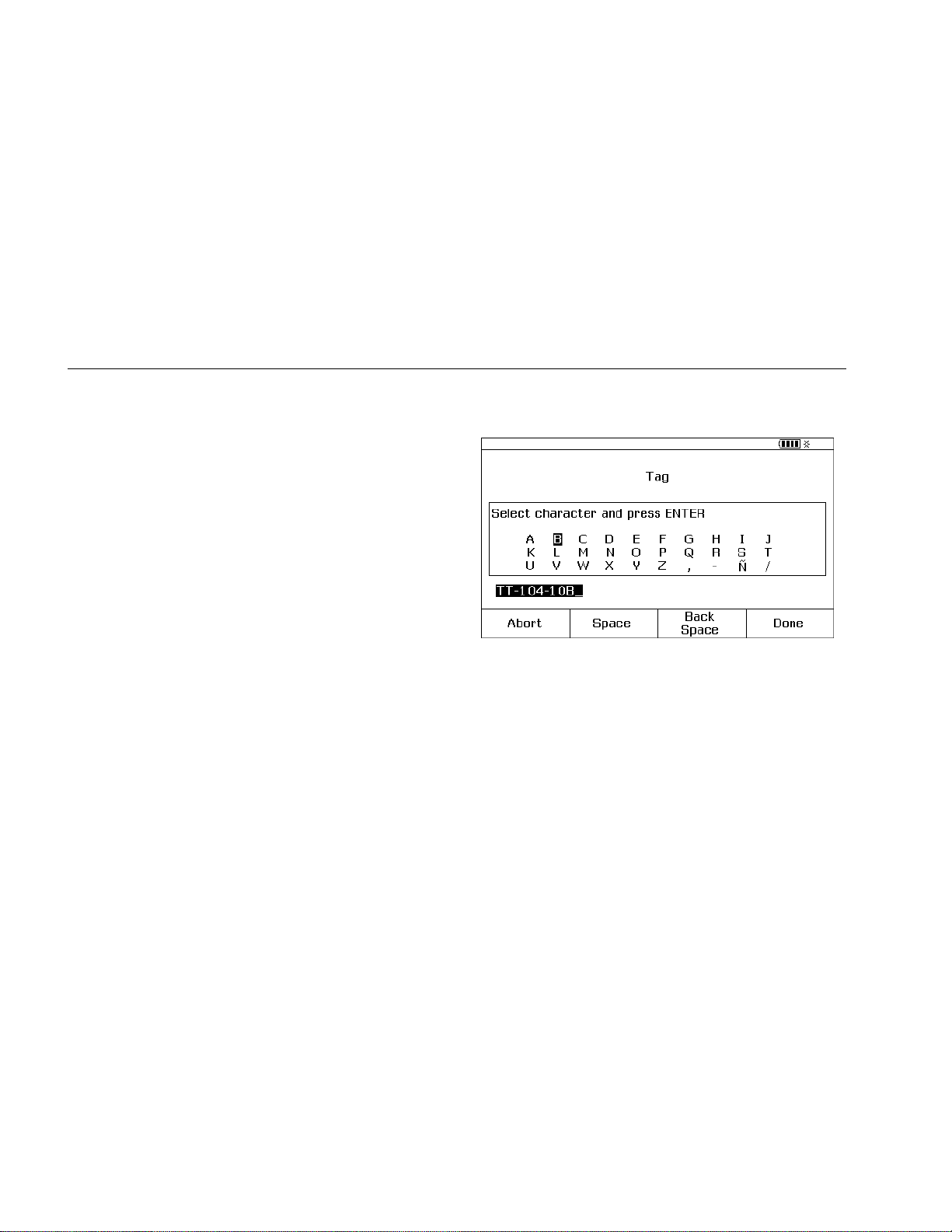

38. Alphanumeric Entry Window ................................................................................................. 82
39. Memory Review Screen ........................................................................................................ 83
40. Data Log Parameters Screen ............................................................................................... 83
41. Start Logging Screen ............................................................................................................ 85
42. Min Max Screen .................................................................................................................... 86
43. Chart Recorder Calibration ................................................................................................... 89
44. Voltage Drop Measurement .................................................................................................. 89
viii
Find Quality Products Online at: sales@GlobalTestSupply.com
Contents (continued)
45. Monitor AC Line Voltage and Frequency ............................................................................... 90
46. Current-to-Pressure (I/P) Transmitter Calibration .................................................................. 91
47. Output Current of a Transmitter Measurement ...................................................................... 92
48. Precision Resistor Measurement ........................................................................................... 93
49. Resistance Source ................................................................................................................ 93
50. Checking a Switch ................................................................................................................. 94
51. Tachometer Examination ....................................................................................................... 94
52. Analog and HART Pressure Transmitter Connection ............................................................ 95
53. mV to Current Transmitter Calibration ................................................................................... 96
54. Vortex Sheding Flowmeter Check ......................................................................................... 97
55. HART and Analog RTD Transmitter Connections ................................................................. 98
56. Analog and HART Thermocouple Transmitter Connections .................................................. 99
57. Transmitter HART- Comm Only ............................................................................................ 100
ix
Find Quality Products Online at: sales@GlobalTestSupply.com

Introduction

The 753 and 754 Documenting Process Calibrators (the Product) are battery-powered, hand-held instruments that measure and source electrical and physical parameters. In addition, the 754 supplies basic HART functions when used with HART-capable transmitters. See the 754 HART Mode Users Guide for instructions on how to use the HART communication feature.
The Product helps troubleshoot, calibrate, verify, and document work performed on process instruments.
Note
All figures in this manual show the 754.
communicator
1
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual

Safety Information

A Warning identifies conditions and actions that pose hazards to the user; a Caution identifies conditions and actions that may damage the Product or the equipment under test.
 Warning
To prevent personal injury, use the Product only as specified, or the protection supplied by the Product can be compromised.
To prevent possible electrical shock, fire, or personal injury:
• Read all safety Information before you use the Product.
• Carefully read all instructions.
• Use only correct measurement category
(CAT), voltage, and amperage rated probes, test leads, and adapters for the measurement.
• The battery must be locked in place before you operate the Product.
• Recharge the battery when the low battery indicator shows to prevent incorrect measurements.
• Do not apply more than the rated voltage, between the terminals or between each terminal and earth ground.
• Limit operation to the specified measurement category, voltage, or amperage ratings.
• Do not exceed the Measurement Category (CAT) rating of the lowest rated individual component of a Product, probe, or accessory.
• Measure a known voltage first to make sure that the Product operates correctly.
• Do not touch voltages > 30 V ac rms, 42 V ac peak, or 60 V dc.
• Do not use the Product around explosive gas, vapor, or in damp or wet environments.
• Do not use and disable the Product if it is damaged.
• Do not use the Product if it operates incorrectly.
• Keep fingers behind the finger guards on the probes.
• Remove all probes, test leads, and accessories that are not necessary for the measurement.
• Only use probes, test leads, and accessories that have the same measurement category, voltage, and amperage ratings as the Product.
2
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrators Safety Information
• Connect the common test lead before the
live test lead and remove the live test lead before the common test lead.
• Use only current probes, test leads, and
adapters supplied with the Product.
• Do not touch the probes to a voltage
source when the test leads are connected to the current terminals.
• Use only cables with correct voltage
ratings.
• Do not use test leads if they are damaged.
Examine the test leads for damaged insulation, exposed metal, or if the wear indicator shows. Check test lead continuity.
• Examine the case before you use the
Product. Look for cracks or missing plastic. Carefully look at the insulation around the terminals.
• Always put the stackable end of the test
lead into a terminal of the Product.
3
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
Symbols used on the Product and in this manual are explained in Table 1.
Table 1. Symbols
Symbol Meaning Symbol Meaning
4
Earth ground
AC- alternating current
DC- direct current Risk of danger. Important information.
See manual.
Hazardous voltage. Risk of electrical shock.
Pressure
Common (LO) Input equipotentiality Conforms to relevant North American Safety
Standards. Conforms to European Union directives.
This product complies with the WEEE Directive (2002/96/EC) marking requirements. The affixed label indicates that you must not discard this electrical/electronic product in domestic household waste. Product Category: With reference to the equipment types in the WEEE Directive Annex I, this product is classed as category 9 "Monitoring and Control Instrumentation” product. Do not dispose of this product as unsorted municipal waste. Go to website for recycling information.
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrators Safety Information
Table 1. Symbols (cont.)
Symbol Meaning Symbol Meaning
Application around and removal from
HAZARDOUS LIVE conductors is permitted.
Conforms to relevant Australian standards.
CAT II
5
Double insulated
CAT II equipment is designed to protect against transients from energy-consuming equipment supplied from the fixed installation, such as TVs, PCs, portable tools, and other household appliances.
German certifying body.
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual

Standard Equipment

Items included with the Product are listed below and shown in Figure 1. If the Product is damaged or something is missing, contact the place of purchase immediately.
• Battery with integrated charger/power supply and international adapters
• Printed multilingual 753/754 Getting Started Manual
• 753/754 Manual CD containing multilingual Users
Manuals
• Three sets of TP220-1 test probes
• Three sets of 75X industrial test leads with stackable
ends
• Three pairs of 754 Alligator Clip Set (extended tooth)
• Two sets of AC280 Suregrip Hook Clips (red and
black)
• Adjustable quick-release strap
• Jumper for three-wire RTD measurement
connections
• USB Cable: 6 ft. type A to type mini-B
• HART c
• Calibration Manual (available from website)
• Sample DPCTrack2 application software
• NIST-traceable Certif
• TC Input Cap
ommunications cable (754)
icate of Calibration
6
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Standard Equipment
TP220-1
Test Probe
(3 Red and 3 Black)
AC280 SureGrip
Hook Clip Set
(2 Red and 2 Black)
754-8016,
Alligator Clip Set
(3 Red and 3 Black)
TM
Test Lead Set (3 Red and 3 Black)
TC Cap
Fluke-75X-Stackable
Strap
Figure 1. Standard Equipment
Jumper
gks01f.eps
7
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
Battery Charger/Universal Power Supply
753/754 Getting Started
DPCTrack2 CD
753/754 Manuals CD
USB Cable
Lithium Ion
Battery Pack
HART
Communication
Cable
gks02f.eps
Figure 1. Standard Equipment (cont)
8
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Functions

Functions

A summary of functions supplied by the Product is shown in Table 2. More features include:
• Analog display for easy to read measurements when inputs are unstable.
• Localized display (5 languages). See “Display Languages”.
• Thermocouple (TC) input/output jack and internal isothermal block with automatic reference-junction temperature compensation. Or manually record an external temperature reference.
• Test results storage.
• Data logging. Automatically log up to 8,000 data points.
• A USB computer interface to upload or download tasks,
lists, and results.
• Automatic calibration procedures for transmitters and limit switches when you use split screen MEASURE/SOURCE mode.
• Transmitter mode in which the Product can be configured to emulate the functions of a process instrument.
• Calculator feature with square-root function, and accessible registers that contain measure and source values.
• Damp feature (smoothes the last several readings), with display indicator of damped status.
• Display of measurements in engineering units, percent of scale, square-law inputs, or custom units.
• Min/Max feature captures and shows minimum and maximum measured levels.
• Set source values to engineering units, percent of scale, square-law outputs, or custom units.
• Manual and automatic stepping and an output ramp feature for testing limit switches. Trip detect is either a 1 V change or a continuity status change (Open or Short) from one ramp increment to the next.
For performance testing and calibration instructions, download the 753/754 Calibration Manual from Fluke’s website.
9
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
Table 2. Summary of Source and Measure Functions
Function Measure Source
Volts dc 0 V to ±300 V 0 V to ±15 V (10 mA max)
h Volts ac 0.27 V to 300 V rms, 40 Hz to 500 Hz No sourcing
0.1 V to 30 V p-p sine wave, or 15 V peak
h Frequency
1 Hz to 50 kHz
square wave, 0.1 Hz to 50 kHz sine wave,
0.01 Hz square wave
q Resistance 0 Ω to 10 kΩ 0 Ω to 10 kΩ
dc Current 0 mA to 100 mA 0 to 22 mA sourcing or sinking
q Continuity
Beep and the word Short indicates continuity
No sourcing
t Thermocouple Types E, N, J, K, T, B, R, S, C, L,U, BP, or XK
100 Ω Platinum (3926) 100 Ω Platinum (385) 120 Ω Nickel (672)
t RTD
(2-W, 3-W, 4-W)
p Pressure
200 Ω Platinum (385) 500 Ω Platinum (385) 1000 Ω Platinum (385) 10 Ω Copper (427) 100 Ω Platinum (3916)
[1]
29 modules ranging from 0 to 1 inch H2O
(250 Pa) to 0 to 10,000 psi (69,000 kPa)
s Loop Power 26 V
[1] Use an external hand pump or other pressure source as a pressure stimulus for the source pressure function.
10
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Get Started

Get Started

Warning
To prevent possible electrical shock, fire, or personal injury:
• Remove circuit power before you connect
the Product in the circuit when you measure current. Connect the Product in series with the circuit.
• Do not touch exposed metal on banana
plugs, they can have voltages that could cause death.
• Disconnect power and discharge all high-
voltage capacitors before you measure resistance or continuity.
A brief getting started exercise follows:
1. After you unpack the Product, charge the battery for 8 hours (if the battery is outside of the Product, charge for 5 hours). For more information, see “The Battery”. The Battery will only charge if the Product is off.
2. Connect voltage output to the voltage input. To do this connect the left pair of jacks (V Ω RTD SOURCE) to the right pair of jacks (V MEASURE). See Figure 2.
3. Push o to turn on the Product. If necessary, adjust the display brightness. See “Display Brightness”. The Product powers up in the dc voltage measurement function, and is reading on the V MEASURE pair of input jacks.
4. Push  to show the SOURCE screen. The Product still measures dc voltage and the active measurement is at the top of the display.
5. Push  to select dc voltage sourcing. Push 5 on the keypad and to begin sourcing 5.0000 V dc.
6. Push  to go to the split-screen, simultaneous MEASURE/SOURCE mode. The Product simultaneously sources dc volts and measures dc volts. The measurement readings are shown on the top display, and the active source value on the bottom display as shown in Figure 3.
11
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
Figure 2. Jumper Connections
gks03f.eps
Figure 3. Measure/Source Example
12
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Operation Features

Operation Features

Input and Output Jacks

Figure 4 shows the input and output jacks and connectors. Table 3 explains their use.
Table 3. Input/Output Jacks and Connectors
No. Name Description
 
,
,
,
HART jack (754 only) Connects the Product to HART devices. Pressure module
connector
TC input/output
MEASURE V jacks SOURCE mA,
MEASURE mA Ω RTD jacks SOURCE V Ω RTD jacks
Battery Charger jack
USB port (Type 2) Connects the Product to a USB port on a PC.
Connects the Product to a pressure module. Jack to measure or simulate thermocouples. This jack accepts a miniature
polarized thermocouple plug with flat, in-line blades spaced 7.9 mm (0.312 in) center to center. Input jacks to measure voltage, frequency, or three- or four-wire RTDs (Resistance Temperature Detectors).
Jacks to source or measure current, measure resistance and RTDs, and supply loop power.
Output jacks to source voltage, resistance, frequency, and to simulate RTDs. Jack for the battery charger/universal power supply (referred to as the battery
charger throughout this manual). Use the battery charger for bench-top applications where ac line power is available.
13
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
P1
HART
15V DC
Users Manual
11
10
754
DOCUMENTING PROCESS CALIBRATOR
2
8
3
4
5
69 7
1
gks05f.eps
Figure 4. Input/Output Jacks and Connectors
14
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Operation Features

Buttons

Figure 5 shows the Product buttons and Table 4 tells their functions. The softkeys are the four (F1-F4) blue buttons below the display. Softkey functions are defined by the labels that show above the softkey during operation. Softkey labels and other display text are shown in this manual in bold type, for example, Choices.
3
754
2
1
16
15
14
13
4
DOCUMENTING PROCESS CALIBRATOR
5
6
7
8
9
10
11
12
gks06f.eps
Figure 5. Buttons
15
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
Table 4. Buttons
Item Button Description
o Turns the Product on and off.  Selects the dc voltage function in MEASURE mode, or selects dc voltage in SOURCE mode.  t p Selects the pressure measurement or source function.
W
Adjusts the backlight intensity (three levels).  s Enters and exits Setup mode to change operating parameters.
X Y Z
r (754)
(753)
Selects mA (current) measure or source function. For loop power on/off, go to the Setup mode.
Selects TC (thermocouple) or RTD (resistance temperature detector) measurement or sourcing functions.
Softkeys. Does the function specified by the label above each softkey on the display.
(754) Toggles between HART communication mode and analog operation. In calculator mode, this key supplies the square root function.
(753) Adjusts the Range of the Product.
16
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Operation Features
Table 4. Buttons (cont)
Item Button Description
Push or to increase display intensity. Push or to decrease intensity (seven levels).
, , ,
Make choices from lists on the display. Increase or decrease the source level when using the step feature. In calculator mode, provides arithmetic functions (+ - ÷ ×).
q
h
  Cycles the Product through MEASURE, SOURCE, and MEASURE/SOURCE modes.
Numeric keypad
Clears a partial data entry, or prompts for output value when in the SOURCE mode. When you use a pressure module, zeros the pressure module indication.
Completes a numeric entry when a source value is set, or confirms a choice in a list. In calculator mode, acts as the equals arithmetic operator (=).
Toggles between resistance and continuity functions in MEASURE mode, or selects the resistance function in SOURCE mode.
Toggles between ac voltage and frequency functions in MEASURE mode, or selects frequency output in SOURCE mode.
Used when a numeric entry is necessary.
17
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual

Display

Figure 6 and Table 5 show a typical display. The display shown is MEASURE mode. Near the top of the display is “Source Off.” This display area shows what is happening in the other mode (SOURCE or MEASURE). The other parts of the display are:
• Status Bar: Shows the time and date, and the status of Loop Power, Auto Battery Save, and Backlight Timeout; all of which are set in Setup mode. The selected HART channel (if HART is active-754 only) and low-battery and backlight-on symbols are also show here.
• Mode Indicator: Shows if the Product is in MEASURE or SOURCE mode. In split screen MEASURE/SOURCE mode, there is a Mode Indicator for each window.
• Measured Value: Shows the measured value in a selection of engineering units or percent of scale.
• Range Status: Shows if Auto Range is on, and what range is currently in operation.
• Custom Units Indicator: Shows that the displayed units are custom. The initial engineering units of the measure or source function are not shown.
• Secondary Value: Shows the measure or source value in initial engineering units when scaling or custom units are on.
18
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Operation Features
13
12
1
11
2 3 4
10
5
6
7
8
9
gks07c.eps
Figure 6. Elements of a Typical Display
19
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
Table 5. Elements of a Typical Display
Item Description
Time and Date Display  HART Indicator  Loop Power Indicator  Battery Gauge  Backlight Indicator  Source Status  Undamped (Unsettled) Indicator  Custom Units Indicator  Secondary Value  Softkey Labels  Measured Value  Mode Indicator  Status bar
20
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Operation Features

Strap and Stand

After you unpack the Product, attach its carrying strap as shown in Figure 7. The straps can be adjusted as necessary to hang the Product on any sturdy support. Figure 7 also shows how to open the Stand to put the Product at an optimal sight angle for bench top use.
gks8f.eps
Figure 7. Stand Use and Strap Attachment
21
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual

The Battery

Caution
For safe operation and maintenance of the product:
• Do not keep cells or batteries in a
• Repair the Product before use if the battery
• Remove battery to prevent battery leakage
• Connect the battery charger to the mains
• Use only Fluke approved power adapters
• Keep cells and battery packs clean and
• Do not short the battery terminals together.
container where the terminals can be shorted.
leaks.
and damage to the Product if it is not used for an extended period.
power outlet before the Product.
to charge the battery.
dry. Clean dirty connectors with a dry, clean cloth.
Warning
To prevent personal injury:
• Do not put battery cells and battery packs
near heat or fire. Do not put in sunlight.
• Do not disassemble or crush battery cells
and battery packs.
• Do not disassemble the battery.
• Batteries contain hazardous chemicals that
can cause burns or explode. If exposure to chemicals occurs, clean with water and get medical aid.

Charge the Battery

Before you use the Product for the first time, charge its battery.
To charge the battery while it is inside the Product:
1. Turn the Product OFF.
2. Connect the battery charger to the Product and keep it OFF. The battery will not charge if the Product is on.
The battery fully charges in 8 hours while inside the Product. See Figure 8.
To charge the battery while it is outside of the Product:
1. Turn the Product face down.
2. Use a flat-head screwdriver and move the battery lock from (locked) to (unlocked).
22
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator The Battery
3. Remove the battery.
4. Connect the battery charger to the input. Outside of the Product, the battery will charge in 5 hours.
Note
An optional 12-Volt car charger is available. See “Accessories”.

Battery Charge Level

Use these two methods to make sure the Battery is charged:
• See the Battery Gauge Bar Graph on the display.
• See the Battery Charge Indicator on the battery.
The Battery Charge Indicator can be seen while the battery is outside of the Product. With the battery removed and not connected to its charger, push the button below the Battery Charge Indicator. Solid Green LEDs show the level of charge on the battery. The Battery is fully charged when all LEDs are illuminated.
Connect the battery charger to the battery and push the button below the Battery Charge Indicator. LEDs flash to show the charge level but also show that the battery is being recharged. As the battery charges, the LED flashes and moves to the top of the charge indicator.

Battery Life

The battery gauge bar graph is shown on the upper right of the display.
Table 6 shows the typical operation time for a new, fully­charged battery. Product performance is guaranteed to its specification until the battery gage reads empty ().
To replace the battery, see “Battery Replacement”.
Table 6. Typical Battery Life
Operation Modes
Measure, continuous 13 Hours 12 Hours Measure and source, with
loop power on, continuous Typical intermittent
operation
Backlight
Low
7 Hours 6 Hours
>16 Hours >16 Hours
Backlight
High
23
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
gks9f.eps
Figure 8. Battery Removal and Charger Use
24
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator The Battery

Preserve Battery Life

An optional Auto Battery Save feature turns the Product off after a selected set idle time. The default setting for Auto Battery Save is Off. The setting is kept after the Product power is off. Auto Battery Save operates the same when the battery charger is used.
To turn on the Auto Battery Save feature:
1. Push s.
2. Push  to highlight Off that follows Auto Battery Save.
3. Push  or the Choices softkey.
4. Push to  highlight On, then push .
5. To use the timeout period shown on the display, stop here. Push the Done softkey to exit Setup mode and do not go on to step 6.
6. If you wish to change the timeout period, push to select the timeout period following Battery Save Timeout.
7. Push  or the Choices softkey.
8. Record choice of timeout period in minutes (accepted range: 1 to 120 minutes).
9. Push the Done softkey.
10. Push the Done softkey or s to exit Setup mode.

The Battery Charger

Caution
To avoid damage to the Product, use only the Battery that comes with the Product, Fluke model BP7240, part number 4022220.
Where ac power is available, the battery charger can be used to conserve battery power and energize the Product. When the battery is in the Product, the battery charges only when the Product is off. When you calibrate an instrument, best results come from battery power use.
An optional 12-V car adapter is available that can be used to charge the battery outside of the Product. See “Accessories”.
25
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual

Display Languages

The Product shows information in five languages:
• English
• European French
• Italian
• German
• Spanish
To change the display language:
1. Push s.
2. Push Y twice.
3. Push  three times.
4. Push .
5. Push  or  to highlight the language choice.
6. Push  to confirm the language choice. This language is the power-up default.
7. Push s to exit Setup mode.

Display Intensity

There are two ways to increase display intensity:
• Push . There are three levels of intensity when using this button.
• Push  or to increase display intensity. Push or to decrease intensity. There are six levels of intensity when these buttons are used.
In calculator mode, all four direction keys are used for arithmetic functions.

Date and Time

The date and time can be shown at the top of the display during normal operation. The date and time can be turned on or off in Setup mode. Date and time formats can also be controlled. If you choose to not use the date and time display, the calendar and clock must be set since a timestamp is applied to all kept results.
26
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Date and Time
To set the time and date displays:
1. Push s.
2. Push the Next Page softkey. See Figure 9.
Figure 10. Edit the Date Format
4. Push  or  to move the cursor to the necessary date format.
5. Push  to select the format and go back to Setup mode.
6. Choose a different selection or push the Done softkey or s to save the settings and exit Setup mode.
Figure 9. Time and Date Display
3. Push  and  to move the cursor to the necessary parameter, then push or the Choices softkey to choose a setting for that parameter.
For example, the display in Figure 10 is shown after you select Date Format.
27
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual

The Backlight

Push to change the backlight intensity from dim to bright and back again. shows at the top of the display when the backlight is active. Set the Product to turn the backlight off automatically to keep battery use to minimum. When the backlight is on and Auto Backlight Off is in operation, a is shown at the top of the display.
To automatically dim the backlight after a set time:
1. Push s.
2. Push  to move the cursor to the same line as Auto Backlight Off.
3. Push  or the Choices softkey.
4. Push  to highlight On, then push .
5. To use the timeout period shown on the display, stop here. Push the Done softkey to exit Setup mode and do not go on to step 6.
6. To change the timeout period, push to highlight the timeout period following Backlight Timeout.
7. Push  or the Choices softkey.
8. Record the choice of timeout period in minutes (accepted range: 1 to 120 minutes).
9. Push the Done softkey.
10. Push the Done softkey or s to exit Setup mode.
When the backlight dims, the Product also beeps.

Personalize the Product

Alphanumeric identifiers can be put into the Product to be shown at power-up and in results that you keep. To install an identifier:
1. Push s.
2. Push Next Page twice.
3. Push  to move the cursor to the same line as ID.
4. Push  or the Choices softkey. The screen in Figure 11 is shown.
Figure 11. Personalize the Product
28
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Measure Mode
5. The ID string is shown at the bottom of the boxed area. To erase a character, push the Back Space softkey. To erase the complete string, push . Information recorded in the ID string is recorded with all measurements stored in memory.
6. Push , , , or  to select a character, then push . Use the numeric keypad to record numbers.
7. Do step 6 until satisfied with the ID string.
8. Push the Done softkey.
9. Push the Done softkey or s to exit Setup mode.

Measure Mode

Note
To get the best noise rejection and highest accuracy performance when you measure, use the battery; do not use the battery charger.
The operation mode (for example, MEASURE, SOURCE) is shown in the top left of the display. If the Product is not in MEASURE mode, push until MEASURE is shown. The Product must be in MEASURE mode to change the MEASURE parameters.

Measurement Ranges

The Product usually changes to the correct measurement range automatically. The lower left side of the display shows “Range” or “Auto” if on the range status. Auto Range switch points are shown in Specifications. When the Range softkey is pushed, the range is locked. Push it again to go to and lock on the next higher range. Auto Range is in operation when a different measurement function is selected.
If the range is locked, overrange inputs show on the display as - - - - - -. In Auto Range, out of range is shown as ! ! ! ! ! !.
29
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual

Electrical Parameter Measurement

When the Product is turned on, it is in the dc voltage measurement function. Figure 12 shows electrical measurement connections. To select an electrical measurement function from SOURCE or MEASURE/SOURCE mode, first push for MEASURE mode:
1. Push  for current,  for dc voltage, h once for ac voltage or twice for frequency, or q for resistance.
Note
When you measure frequency, the Product tells you to select a frequency range. If the measured frequency is expected to be below 20 Hz, push to select the lower frequency range, and then push .
2. Connect the test leads for your measurement function as shown in Figure 12.
30
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Measure Mode
+–
gks10f.eps
Figure 12. Electrical Measurement Connections
31
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual

Continuity Test

When you do a continuity test, the beeper sounds and Short is shown on the display when the resistance between the Ω MEASURE jack and its common jack is less than 25 Ω. Open is shown when the resistance is larger than 400 Ω.
To do a continuity test:
1. De-energize the circuit under test.
2. If necessary, push for MEASURE mode.
3. Push q twice so that Open is shown.
4. Connect the Product to the circuit under test. See Figure 12.

Pressure Measurement

Many ranges and types of pressure modules are available from Fluke. See “Accessories”. Before you use a pressure module, read its instruction sheet. The modules are different in how they are used, zeroed, what types of process pressure media are allowed, and accuracy specifications.
Figure 13 shows gage and differential modules. Differential modules also operate in gage mode when you leave the low fitting open to atmosphere.
To measure pressure, attach the applicable pressure module for the process pressure you will test as described in the module’s Instruction Sheet.
To measure pressure:
Warning
To prevent personal injury, shut off the valve and slowly bleed off the pressure before attaching the pressure module to the pressure line to avoid a violent release of pressure in a pressurized system.
32
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Measure Mode
Caution
Gage
700P06
PRESSURE MODULE
RANGE
100 PSIG
BURST PRESSURE 300 PSIG
7 bar700 kPa
Differential
700P04
PRESSURE MODULE
RANGE
15 PSID/G
1 bar100 kPa
BURST PRESSURE 45 PSIG
HighLow
gks11f.eps
Figure 13. Gage and Differential Pressure Modules
To prevent possible damage to the Product or to equipment under test:
• Never apply more than 10 ft.-lb. of torque
between the pressure module fittings, or between the fittings and the body of the module.
• Always apply correct torque between the
pressure module fitting and connecting fittings or adapters.
• Never apply pressure above the rated
maximum printed on the pressure module.
• Use the pressure module only with
specified materials. See the printing on the pressure module or the pressure module instruction sheet for the acceptable material compatibility.
33
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
Connect a pressure module to the Product as shown in Figure 14. The threads on the pressure modules accept standard ¼ NPT pipe fittings. Use the supplied ¼ NPT to ¼ ISO adapter if necessary.
1. Push  for MEASURE mode.
2. Push p. The Product automatically senses which pressure module is attached and sets its range accordingly.
3. Zero the pressure. See the module’s Instruction Sheet. Modules can have different zeroing procedures that depend on module type.
Note
Zeroing MUST be done before doing a task that sources or measures pressure.
4. If necessary, the pressure display units can be changed to psi, mHg, inHg, inH2O, ftH2O, mH2O, bar, Pa, g/cm2, or inH2O@60°F. Metric units (kPa, mmHg, etc.) are shown in Setup mode in their base units (Pa, mHg, etc.). To change pressure display units:
1. Push s.
2. Push Next Page twice.
3. Push  or the Choices softkey with the cursor
on Pressure Units.
4. Set the pressure units with or .
5. Push .
6. Push the Done softkey.
34
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Measure Mode
Isolation
754
DOCUMENTING PROCESS CALIBRATOR
Gage
Module
Differential
Module
Valve
HL
Tank
gks12c.eps
Figure 14. Pressure Measurement Connections
35
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual

Temperature Measurement

Thermocouple Use

The Product supports thirteen standard thermocouples, each identified with an alpha character: E, N, J, K, T, B, R, S, C, L, U, XK, or BP. Table 7 summarizes the ranges and qualities of the supported thermocouples.
To measure temperature using a thermocouple:
1. Attach the thermocouple leads to the correct TC miniplug, then to the TC input/output. See Figure 15.
Caution
To prevent possible damage to the Product, do not try to force a miniplug in the wrong polarization. One pin is wider than the other.
Note
If the Product and the thermocouple plug are at different temperatures, stop for one minute or more for the connector temperature to stabilize after you plug the miniplug into the TC input/output.
2. If necessary, push for MEASURE mode.
3. Push t.
4. Select TC.
5. The display tells you to select the thermocouple type.
6. Select the necessary thermocouple type using the or followed by .
7. If necessary, change between °C, °F, °R, and °K Temperature Units as follows:
1. Push s.
2. Push the Next Page softkey twice.
3. Push  and  to move the cursor to the
necessary parameter.
4. Push  or the Choices softkey to choose a
setting for that parameter.
5. Push  or  to move the cursor to the necessary
setting.
6. Push  to go back to the s display.
7. Push the Done softkey or s to exit Setup mode.
8. If necessary, change between ITS-90 or IPTS-68 Temperature Scale in Setup mode. The procedure is the same as steps 1-7 above.
36
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Measure Mode
Table 7. Thermocouple Types Accepted
Type
E N J K T
B R S
[3]
C L (DIN J) U (DIN T)
BP XK
[1] American National Standards Institute (ANSI) device negative lead (L) is always red. [2] International Electrotechnical Commission (IEC) device negative lead (L) is always white. [3] Not an ANSI designation but a Hoskins Engineering Company designation.
Positive Lead
Material
Chromel Purple Violet Constantan Ni-Cr-Si Orange Pink Ni-Si-Mg Iron White Black Constantan Chromel Yellow Green Alumel Copper Blue Brown Constantan Platinum (30 %
Rhodium) Platinum (13 % Rhodium) Platinum (10 % Rhodium) Tungsten (5 % Rhenium) White Tungsten (26 % Rhenium)
Iron Constantan Copper Constantan
95 % W + 5 % Re Red or Pink 80 % W + 20 % Re
90.5 % Ni = 9.5 % Cr Violet or Black 56 % CU + 44 % Ni
Positive Lead (H)
Color
[1]
ANSI
IEC
Gray Platinum (6 % Rhodium) Black Orange Platinum Black Orange Platinum
GOST
[2]
Negative Lead
Material
Specified Range
(°C)
-250 to 1000
-200 to 1300
-210 to 1200
-270 to 1372
-250 to 400 600 to 1820
-20 to 1767
-20 to 1767 0 to 2316
-200 to 900
-200 to 600
0 to 2500
-200 to 800
37
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
TC Miniplug
Figure 15. Temperature Measurement with a Thermocouple
Process Temperature
Warning 30 V maximum to
gks12f.eps
38
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Measure Mode

Resistance-Temperature Detectors (RTDs)

The Product accepts RTD types shown in Table 8. RTDs are characterized by their resistance at 0 °C (32 °F), which is called the “ice point” or R Product accepts RTD measurement inputs in two-, three-, or four-wire connections. See Figure 17. A four-wire configuration gives the highest measurement precision, and two-wire gives the lowest measurement precision.
. The most common R0 is 100 Ω. A large number of RTDs come in a three-terminal configuration. The
0
Table 8. RTD Types Accepted
RTD Type Ice Point (R
) Material α Range (°C)
0
Pt100 (3926) 100 Ω Platinum 0.003926 Ω/Ω/°C -200 to 630 Pt100 (385)
[1]
100 Ω Platinum 0.00385 Ω/Ω/°C -200 to 800 Ni120 (672) 120 Ω Nickel 0.00672 Ω/Ω/°C -80 to 260 Pt200 (385) 200 Ω Platinum 0.00385 Ω/Ω/°C -200 to 630 Pt500 (385) 500 Ω Platinum 0.00385 Ω/Ω/°C -200 to 630 Pt1000 (385) 1000 Ω Platinum 0.00385 Ω/Ω/°C -200 to 630 Cu10 (427) 9.035 Ω
[2]
Copper 0.00427 Ω/Ω/°C -100 to 260
Pt100 (3916) 100 Ω Platinum 0.003916 Ω/Ω/°C -200 to 630
[1] Per IEC 751-Standard [2] 10 Ω @ 25 °C
39
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
To measure temperature where an RTD input is used:
1. If necessary, push for MEASURE mode.
2. Push t.
3. Push  and  then Select RTD Type is shown.
4. Push  or  to select the necessary RTD type.
5. Push .
6. Push  or  to select a 2-, 3-, or 4-wire connection. The connections are shown on the display.
7. Attach the RTD to input jacks as the display or Figure 14 shows. Use the supplied jumper between the mA Ω RTD MEASURE low jack and the V MEASURE low jack as shown if using a 3-wire connection.
8. Push .
Caution
To prevent possible damage to the Product, do not force a dual banana plug between any two jacks in the horizontal orientation. Doing so will damage the jacks. Use the supplied jumper wire when needed for RTD measurements. A dual banana plug may be used in the vertical orientation. See Figure 16.
40
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Measure Mode
8. If necessary, change between °C, °F, K, and °R temperature units in Setup:
1. Push s.
2. Push the Next Page softkey twice.
3. Push  and  to move the cursor to
Temperature Units.
4. Push  or the Choices softkey to choose a
setting for that parameter.
5. Push  or  to move the cursor to the necessary
setting.
6. Push  to go back to the s display.
7. Push the Done softkey or s to exit Setup mode.
9. If necessary, change between ITS-90 or IPTS-68 Temperature Scale in Setup mode. The procedure is the same as steps 1-7 above.
gks14f.eps
Figure 16. Correct Jumper Use
41
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
2
Wire
3
Wire
4
Wire
Figure 17. Temperature Measurement with an RTD
RTD
RTD
RTD
gks15f.eps
42
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Measure Mode

Measurement Scale

This feature scales measurements in accordance with a applicable process instrument’s response. Percent of scale works for linear-output transmitters or square-law transmitters such as differential pressure transmitters that report flow rate.

Linear-Output Transmitters

1. If necessary, push for MEASURE mode.
2. Select a measurement function (, , h, q, t, or p) as previously described.
3. Push the Scale softkey.
4. Select % from the list.
5. Use the numeric keypad to record the 0% of scale value (0% Value).
6. Push .
7. Use the numeric keypad to record the 100% of scale value (100% Value).
8. Push .
9. Push the Done softkey.
Percent of scale stays in effect until you change to a different measurement function or until you push the Scale softkey and select a different scale mode.

Square-Law Process Variables

When you select √ within scaling, the Product takes the square root of its input and shows the measurement in percent. For example, when the Product is connected to the output of a delta-pressure transmitter, the Product indication is in proportion to flow rate.
1. If necessary, push for MEASURE mode.
2. Select a measurement function (, , h, q, t, or p) as previously described.
3. Push the Scale softkey.
4. Select √ from the list.
5. Use the numeric keypad to record the 0% of scale value (0% Value).
6. Push .
7. Use the numeric keypad to record the 100% of scale value (100% Value).
8. Push the Done softkey.
Square root percent of scale stays in effect until you change to a different measurement function or the Scale softkey is pushed and you select a different scale mode.
43
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual

Measure or Source with Custom Units

Warning
To avoid possible electric shock, when using Custom Units for measurement, always see the secondary value displayed below and to the right of the main display for the actual value of the measurement in native engineering units.
The measurement or source display can be setup to show custom units. To do this, select a function, for example mV dc, scale it as necessary, then record an alphanumeric name for the custom units, for example, “PH.”
To set up a custom unit:
1. When you measure or source the necessary function, push the Scale softkey, and then select Custom Units from the list.
2. Record the 0% and 100% scale points for the input of the transfer function.
3. Push the
4. Record the 0% and 100% scale points for the output of the transfer function.
5. Record the name of the custom units (up to four characters), for example PH (for pH), using the alphanumeric entry window, then push .
Custom Units softkey.
While Custom Units are active, shows on the display to the right of the custom unit. Once the custom measurement unit has been programmed, the unit is available for calibration procedures in split-screen MEASURE/SOURCE mode. To cancel Custom Units, push the Custom Units softkey again.

Using the 700-IV Current Shunt

To source and measure current simultaneously, a current shunt is necessary and uses the volts measure function. The Fluke 700-IV Current Shunt is designed specifically for use with the 700 Series Documenting Process Products.
To measure current with the current shunt:
1. Connect the current shunt to the MEASURE V jacks.
2. Connect the current signal to be measured to the current shunt.
3. Push  to select the dc voltage measure function.
4. Push the Scale softkey.
5. Select Current Shunt from the list.
6. Push .
7. The Product is automatically configured and uses the correct custom scaling factor for the current shunt.
44
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Source Mode

Damping Measurements

The Product normally applies a software filter to dampen measurements in all functions except continuity. The specifications assume that damping is turned on. The damping method is a running average of the last eight measurements. Fluke recommends leaving damping on. Turning damping off may be useful when measurement response is more important than accuracy or noise reduction. To turn damping off, push the More Choices softkey twice, then push the Dampen softkey so that Off is shown. Push Dampen again to turn damping back on. The default state is On.
Note
If a measurement falls outside a random noise window, a new average is started. If damping is turned off, or until measurements are fully damped, the symbol is displayed.

Source Mode

The operating mode (for example, MEASURE, SOURCE) is shown on the display. If the Product is not in SOURCE mode, push until SOURCE is shown. The Product must be in SOURCE mode to change any of the SOURCE parameters.

Source Electrical Parameters

To select an electrical source function:
1. Connect the test leads as shown in Figure 18, depending on the source function.
2. Push  for current,  for dc voltage, h for frequency, or q for resistance.
3. Record the necessary output value, then push . For example, to source 5.5 V dc, push 5 .  .
45
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
Note
If sourcing frequency, respond when the Product asks you to select a zero-symmetric sine or positive square wave. The amplitude specified is p-p amplitude.
4. To change the output value, record a new value and push .
Note
If sourcing current, wait for the disappear before you use the output.
g
symbol to
5. To set the output value in the present source function, push then enter the desired value and push .
6. To turn off sourcing completely, push twice.
Note
Use the source current function to drive a current loop. This is different than the loop power function in which the Product is powering a process instrument. To source loop power, use the Loop Power function accessible from Setup mode.
46
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Source Mode
Common
Common
gks16f.eps
Figure 18. Electrical Source Connections
47
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual

4 to 20 mA Transmitter Simulation

The Product can be configured as a load on a current loop through the SOURCE mA function. In SOURCE mode, when is pressed, the display prompts to select Source mA or Simulate Transmitter. When you Source mA the Product is sourcing current, and when you Simulate Transmitter the Product is sourcing a variable resistance to keep the current to the specified value. Connect an external loop supply to the positive (top) mA jack as shown in Figure
19.
Note
Also see “Transmitter Mode” in which the Product can be temporarily configured to replace a two-wire process transmitter.
48
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Source Mode
DOCUMENTING PROCESS CALIBRATOR
754
+
Loop
Power
Supply
+24
UUT
–
gks17c.eps
Figure 19. Connections to Simulate a 4 to 20 mA Transmitter
49
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual

Supply Loop Power

The Product supplies loop power at 26 V dc through an internal series resistance of 250 Ω. The setting supplies sufficient current for two or three 4-20 mA devices on the loop.
When you use loop power, the mA jacks are dedicated to measuring the current loop. This means that the SOURCE mA, measure RTD, and measure Ω functions are not available (see Table 10.)
Connect the Product in series with the instrument current loop as Figure 20 shows. To supply loop power:
1. Push s for Setup mode.
Note
Loop Power, Disabled is highlighted.
2. Push  and  to select Disabled or Enabled.
3. Push .
4. Push the Done softkey. “LOOP” is shown on the display when Loop Power is in operation.
50
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Source Mode
DOCUMENTING PROCESS CALIBRATOR
754
TEST DC PWR
+–+–
–+
gks18c.eps
Figure 20. Connections to Supply Loop Power
51
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual

Source Pressure

The Product has a source pressure display function where an external pressure hand pump is necessary. Use this function to calibrate instruments where a pressure source or differential pressure measurement is necessary. See Figures 21 and 36 for information about that application.
Many ranges and types of pressure modules are available from Fluke, see “Accessories”. Before you use a pressure module, read its instruction sheet. The modules are different in how they are used, zeroed, what types of process pressure media are allowed, and accuracy specifications.
To use the source pressure display, see Figure 21:
Warning
To avoid a violent release of pressure in a pressurized system, shut off the valve and slowly bleed off the pressure before attaching the pressure module to the pressure line.
Caution
To avoid mechanically damaging the pressure module:
• Never apply more than 10 ft.-lb. of torque
between the pressure module fittings or between the fittings and the body of the module.
• Always apply correct torque between the
pressure module fitting and connecting fittings or adapters.
• To avoid damaging the pressure module
from overpressure, never apply pressure above the rated maximum printed on the pressure module.
• To avoid damaging the pressure module
from corrosion, use it only with specified materials. See the printing on the pressure module or the pressure module instruction sheet for the acceptable material compatibility.
52
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Source Mode
1. Connect a pressure module and pressure source to the Product as Figure 21 shows. The threads on the pressure modules accept ¼ NPT fittings. Use the supplied ¼ NPT to ¼ ISO adapter if necessary.
2. If necessary, push for SOURCE mode.
3. Push p. The Product automatically senses which pressure module is attached and sets its range accordingly.
4. Zero the pressure module as described in the module’s instruction sheet. The module types are different in how they are zeroed. The pressure module MUST be zeroed before doing a task that sources or measures pressure.
5. Pressurize the pressure line with the pressure source to the necessary level as shown on the display.
6. If necessary, change the pressure display units to psi, mHg, inHg, inH
O@60°F. Metric units (kPa, mmHg, etc.) are shown
inH
2
in Setup mode in their base units (Pa, mHg, etc.). To change the pressure display units:
1. Push s.
2. Push Next Page twice.
3. Push  with the cursor on Pressure Units.
4. Select the pressure units with or .
5. Push .
6. Push the Done softkey.
O, ftH2O, mH2O, bar, Pa , g/cm2, or
2
53
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
754
DOCUMENTING PROCESS CALIBRATOR
Pressure
Module
Hand
Pump
gks19c.eps
Figure 21. Connections to Source Pressure
54
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Source Mode

Thermocouple Simulation

Note
See “Temperature Measurement” for a table of thermocouple types that are supported by the Product.
Connect the Product TC input/output to the instrument under test with thermocouple wire and the correct thermocouple mini-connector (polarized thermocouple plug with flat, in-line blades spaced 7.9 mm (0.312 in) center to center).
Caution
To prevent possible damage to the Product, do not try to force a miniplug in the wrong polarization. One pin is wider than the other.
Figure 19 shows this connection. To simulate a thermocouple:
1. Attach the thermocouple leads to the correct TC miniplug, and then to the TC input/output. See Figure
15.
2. If necessary, push for SOURCE mode.
3. Push t, and then push  to select the TC sensor type. The display asks you to select the thermocouple type.
4. Push  or  followed by  to select the necessary thermocouple type.
5. Push  or  followed by  to select Linear T (default), or Linear mV, (to calibrate a temperature transmitter that responds linearly to millivolt inputs).
6. Record the temperature to simulate as prompted by the display and push .
Note
If you use copper wire instead of thermocouple wire, the reference junction is no longer inside the Product. The reference junction moves to the instrument (transmitter, indicator, controller, etc.) input terminals. The external reference temperature must be measured accurately and recorded into the Product. To do this, push and set Ref. Junc. Compensat. and Ref. Junc. Temp.. After you record the external reference temperature, the Product corrects all voltages to adjust for this new reference junction temperature.
55
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual

RTD Simulation

Note
See Table 8 for data about RTD (Resistance­Temperature Detector) types compatible with the Product.
Connect the Product to the instrument under test as shown in Figure 23. The figure shows connections for two, three, or four-wire transmitters. For three or four-wire transmitters, use the 4-inch long stackable jumper cables to connect the third and fourth wires at the source V Ω RTD jacks.
To simulate an RTD (Resistance-Temperature Detector):
1. If necessary, push for SOURCE mode.
2. Push t.
3. Push  or  to select RTD.
4. Push . The Select RTD Type display is shown.
5. Push  or  followed by  to select the necessary RTD type.
6. The product tells you to use the keypad to enter the temperature to simulate. Input the temperature, and then push .
56
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Source Mode
DOCUMENTING PROCESS CALIBRATOR
754
Color depends
on type of TC
TC Miniplug
TEST DC PWR
++–
–+
gks20c.eps
Figure 22. Connections to Simulate a Thermocouple
57
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
-PS +PS M
-IN +IN
S
Z
gks21f.eps
Figure 23. Connections to Simulate an RTD
58
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Source Mode

Source Temperature with a Hart Scientific Drywell

The Product can source temperature using a Hart Scientific Drywell. Many models are supported.
The drywell driver is able to talk to other drywells from Hart Scientific, provided that they respond to Hart Scientific’s standard serial interface commands.
Connect the Product to the drywell by plugging the drywell interface cable into the pressure module connector as shown in Figure 24. If the drywell has a DB9 connector, plug the drywell interface cable directly into the drywell using the DB9 Null Modem adapter. Drywells with the 3.5 mm jack connector need to use the serial cable supplied with the drywell in addition to the Product drywell interface cable. Join the DB9 connectors of the two cables, and connect the
3.5 mm jack to the drywell. Be sure the drywell is configured for serial communication at
2400, 4800, or 9600 bits per second. Other rates are not supported by the Product.
To source a temperature with a drywell:
1. If necessary, push for SOURCE mode.
2. Push t to display the temperature mode menu.
3. Select Drywell from the list of options, and press .
4. The Product will begin to search for a drywell. If the Product shows Attempting connection for more than
10 seconds, double check your cable connections and drywell configuration.
5. If a dual well is recognized, a menu will pop up that allows you to select a "hot" or "cold" side of the dual well. Only one side of the drywell may be controlled at a time. Switching sides requires the drywell to be reconnected, by disconnecting the serial cable or by leaving drywell source mode and selecting it again.
6. When the drywell is connected, the primary display will show the actual temperature of the drywell, as measured by the drywell internally. The drywell model number will appear above the primary reading. The setpoint for the drywell is displayed in the secondary display, at the bottom of the screen. Initially, the setpoint will be set to the value already stored in the drywell.
7. Enter the temperature you wish to source and press .
The settled indicator will be cleared when the actual temperature is within one degree of the setpoint, and the actual temperature is not changing quickly. Refer to the drywell documentation for that model's recommendations for stabilization time.
The upper temperature limit is restricted by the "High Limit" setting stored in the drywell. If the Product will not set the drywell to temperatures within the drywell spec, refer to the drywell manual to check the "High Limit" setting.
59
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
754
DOCUMENTING PROCESS CALIBRATOR
Null Modem
60
Drywell
Interface Cable
Fluke
3.5 mm
Interface Cable
Figure 24. Source Temperature with Drywell
Fluke
Drywell
(DB9)
Fluke
Drywell (3.5 mm)
gks99f.eps
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Source Mode
Note
When the Product is set to display temperatures in Kelvin, the drywell readout will show Celsius, and when the Product shows Rankine, the drywell will show Fahrenheit.

Source Scale

This feature scales the output in accordance with the input requirements of an applicable process instrument’s response. Percent of scale can be used for linear­responding transmitters, or square-root responding transmitters.

Linear-Responding Transmitters

1. If necessary, push for SOURCE mode.
2. Select a source function (, , h, q, t, or p) as previously described, and record a value.
3. Push the Scale softkey.
4. Select % from the list.
5. Push .
6. Use the numeric keypad to record the 0% of scale value (0% Value).
7. Push .
8. Use the numeric keypad to record the 100% of scale value (100% Value).
9. Push the Done softkey. Percent of scale stays in effect until you change to a
different source function or until the Scale softkey is pushed and you select a different scale mode.

Square-Root Process Variables

When you select √ within scaling, the Product output value is the percent value recorded, squared, and converted to engineering units.
1. If necessary, push for SOURCE mode.
2. Select a source function (, , h, q, t, or p) as previously described, and record a value.
3. Push the Scale softkey.
4. Select √ from the list.
5. Use the numeric keypad to record the 0% of scale value (0% Value).
6. Push .
7. Use the numeric keypad to record the 100% of scale value (100% Value).
8. Push .
9. Push the Done softkey.
61
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
Square root percent of scale is in effect until the Product is changed to a different source function or the Scale softkey is pushed and you select a different scale mode.

Step and Ramp the Output Value

Two features are available that let you adjust the value of source functions, except pressure. For pressure, an external pressure source must be used:
• Step the output manually with  and , or in automatic mode.
• Ramp the output with optional continuity or V trip detect.

Manual Step Use

The manual Step feature selects a step size in engineering units (mV, V, mA, °C, etc.) or % of scale. Step the output in % of scale to quickly jump between 0 % and 100 % (set step size = 100 %) or 0-50-100 % (set step size = 50 %). Step works in SOURCE and in MEASURE/SOURCE modes.
To select a step size:
1. See the applicable Source Mode subheading in this manual (for example, “Source Electrical Parameters”) and connect the Product to the test circuit.
2. If necessary, push for SOURCE mode.
3. Set the Product for the necessary source value.
4. To step the source value in % of scale, set the % of scale value as given before in “Measurement Scale”.
5. Push the Step softkey.
6. Use the numeric keypad to record the step size in the units shown on the display.
7. Push the Done softkey.
8. Push  and  to adjust the output in steps.

Auto Step Use

To configure the Product to make a sequence of steps automatically, either once through the sequence or repetitively:
1. See the applicable Source Mode subheading in this manual (for example, “Source Electrical Parameters”) and connect the Product to the test circuit.
2. If necessary, push for SOURCE mode.
3. Set the Product for the necessary source value.
4. To step the source value in % of scale, set the % of scale value as given before in “Measurement Scale”.
5. Push the Step softkey.
6. Push the Auto Step softkey.
62
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Source Mode
7. The display tells you to select values for these parameters:
• Start point (in units or % of scale)
• End point
• Number of steps
• Time per step
• Repeat mode, single shot or continuous
repetition
• Step style, Sawtooth or Triangle pattern
• Start delay
Push the Start Step softkey to automatically start the step function. The softkey label changes to Stop Step.
8. To Push the Stop Step softkey to stop the automatic step function.
9. Push the Done softkey to continue normal operation.

Ramp the Output

When ramped, the source sweeps up or down in value. Use the ramp feature to check a switch or alarm, or when a smooth increase or decrease of the output function is necessary. The Product can be set to ramp up or down in engineering units (mV, V, mA, °C, etc.) or % of scale.
While the signal ramps, the output is adjusted 4 times per second. The size of the steps is bound by the selection of endpoints and ramp time. For example, if you set the Product to ramp from 1 mV to 1 V over 10 seconds, the output is adjusted in approximately 25 mV steps.
The Ramp function continues until you get the selected limit, or until an optional trip condition is met. The optional trip detect works as follows: during ramping, the Product checks for either a 1 V change in dc voltage or a change in continuity status (Open or Short) from one ¼ second interval to the subsequent interval.
63
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
To ramp (for example, sweep the source):
1. See the applicable section earlier in this manual (for example, “Source Electrical Parameters”) and connect the Product to the test circuit.
2. To automatically stop the Ramp function if a trip condition is sensed, connect a voltage trip circuit to the V MEASURE jacks or a continuity trip circuit to the mA Ω RTD MEASURE jacks. (Continuity detection is not available when sourcing current.)
3. If necessary, push for SOURCE mode.
4. Set the Product for the necessary source value as given before.
5. To Ramp the output in % of scale, set % of scale as given before under “Measurement Scale”.
6. Push the More Choices softkey.
7. Push the Ramp softkey. The display changes to the screen shown Figure 25.
8. Record the parameters given. Record the Start Value, End Value, and Ramp Time.
9. To automatically stop the Ramp function if a trip condition is sensed, set the Trip Detect to Enabled, and select Voltage or Continuity as the trip function.
Figure 25. Ramp Screen
10. Push the Done softkey. Note RAMP next to SOURCE at the top of the display.
11. Select a low-to-high ramp or a high-to-low ramp with the Ramp Up/Down softkey.
12. To start the Ramp function, push the Start Ramp softkey.
13. The Ramp function continues until a trip is sensed (if enabled), the ramp time expires, or the Stop Ramp softkey is pushed. See Figure 26.
64
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Source Mode
DOCUMENTING PROCESS CALIBRATOR
754
Voltage Trip Detect
Source mA
Trip Relay
Output
–+
Input
4 – 20 mA
+–
gks22c.eps
Figure 26. Check a Relay Output Trip Alarm
65
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual

Simultaneous Measure/Source

Use the MEASURE/SOURCE mode to calibrate or emulate a process instrument. Push so that a split screen display shows as in Figure 27.
Figure 27. Measure and Source Screen
Table 9 shows the functions that can be used at the same time when Loop Power is disabled. Table 10 shows the functions that can be used at the same time when Loop Power is enabled.
Step or Auto Step features can be used to adjust the output in MEASURE/SOURCE mode, or use the calibration routine given when the As Found softkey is pushed.
Use the two softkeys shown in MEASURE/SOURCE mode when you calibrate a process instrument:
• As Found, which can be used to set up a calibration routine to get and record as found data.
• Auto Step, which can be used to set up the Product for auto-stepping, as given before.
66
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Simultaneous Measure/Source
Table 9. Simultaneous MEASURE/SOURCE Functions with Loop Power Disabled
Measure Function
dc V mA Freq Ω TC RTD Pressure
dc V • • • • • • • mA • • • • • • ac V • • • • • • • Frequency (≥20 Hz) • • • • • • • Low Frequency (<20 Hz) Ω • • • • • • Continuity • • • • • • TC • • • • • • RTD • • • • • • 3W RTD • • • • • • 4W RTD • • • • • • Pressure • • • • • •
Source Function
67
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
Table 10. Simultaneous MEASURE/SOURCE Functions with Loop Power Enabled
Measure Function
dc V mA Freq Ω TC RTD Pressure
dc V • • • • • • mA • • • • • • ac V • • • • • • Frequency (≥20 Hz) • • • • • • TC • • • • • Pressure • • • • •
Source Function
68
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Process Instrument Calibration

Process Instrument Calibration

Note
To calibrate a HART-capable transmitter using the built-in HART interface, see the 754 HART Mode
Users Guide for instructions.
When the Product is in MEASURE/SOURCE, a built-in calibration routine can be configured when the As Found softkey is pushed. As Found data is the test results that show the condition of a transmitter before it is adjusted. The Product can run preloaded tasks that are developed with a host computer and DPCTrack2 application software. See “Communication with a PC”.

Generate “As Found” Test Data

The subsequent example shows how to supply as found data for a thermocouple temperature transmitter.
Here, the Product simulates the output of a thermocouple and measures the current regulated by the transmitter. Other transmitters use this same procedure. Go back to MEASUREMENT or SOURCE mode and change the operation parameters before you push As Found.
1. Connect the test leads to the instrument under test as shown in Figure 30. The connections simulate a thermocouple and measure the corresponding output current.
2. If necessary, push for MEASURE mode.
3. Push .
4. Push  for SOURCE mode.
5. Push t and  to select TC sensor.
6. Push  and  to select the thermocouple type.
7. Push  to select then  to select Linear T source mode.
8. Record a source value, for example 100 degrees, and then push .
69
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
9. Push  for MEASURE/SOURCE mode. The display changes to the screen shown in Figure 28.
Figure 28. Process Instrument Calibration Screen
10. Push the As Found softkey, followed by the Instrument selection ().
The display changes to the screen shown in Figure 29.
Figure 29. Process Instrument Calibration Screen 2
11. Record values for 0% and 100% of 4.0 mA and
20.0 mA, in that sequence. Set Tolerance to 0.5% of span.
70
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Process Instrument Calibration
DOCUMENTING PROCESS CALIBRATOR
754
TEST DC PWR
++–
–+
Original
Circuit Wiring
Power
–+
Supply
gks23c.eps
Figure 30. Calibrate a Thermocouple Temperature Transmitter
71
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
12. More delay time can be input for the process instrument to become stable than the Product’s usual settling time (about 2 seconds). To change the delay time, input that time in seconds for Delay.
13. Push  and  to move the cursor down to record 0% and 100% values for SOURCE temperature. Our example uses 100 °C and 300 °C.
14. If the instrument calibration procedure requires you to manually record the measurement value or source, push the User Value softkey, for user-recorded values.
Custom Units lets you specify user units such as PH. See “Creating Custom Measurement Units”, given before in this manual for an example.
When you use custom units, is shown next to the value on the display and in results.
Push the Done softkey after the custom unit has been programmed.
15. The Test Strategy is the number of test points and which test points are performed rising and falling in percent of scale. This example uses five points (0 %, 25 %, 50 %, 75 %, and 100 %), rising only. Rising is indicated by the up arrow on the display. Push to change to a different test strategy on this line. A list of strategies is shown from which to choose. Select one, and then push the Done softkey.
16. When you are done recording the calibration parameters, the display should change to the screen shown in Figure 31.

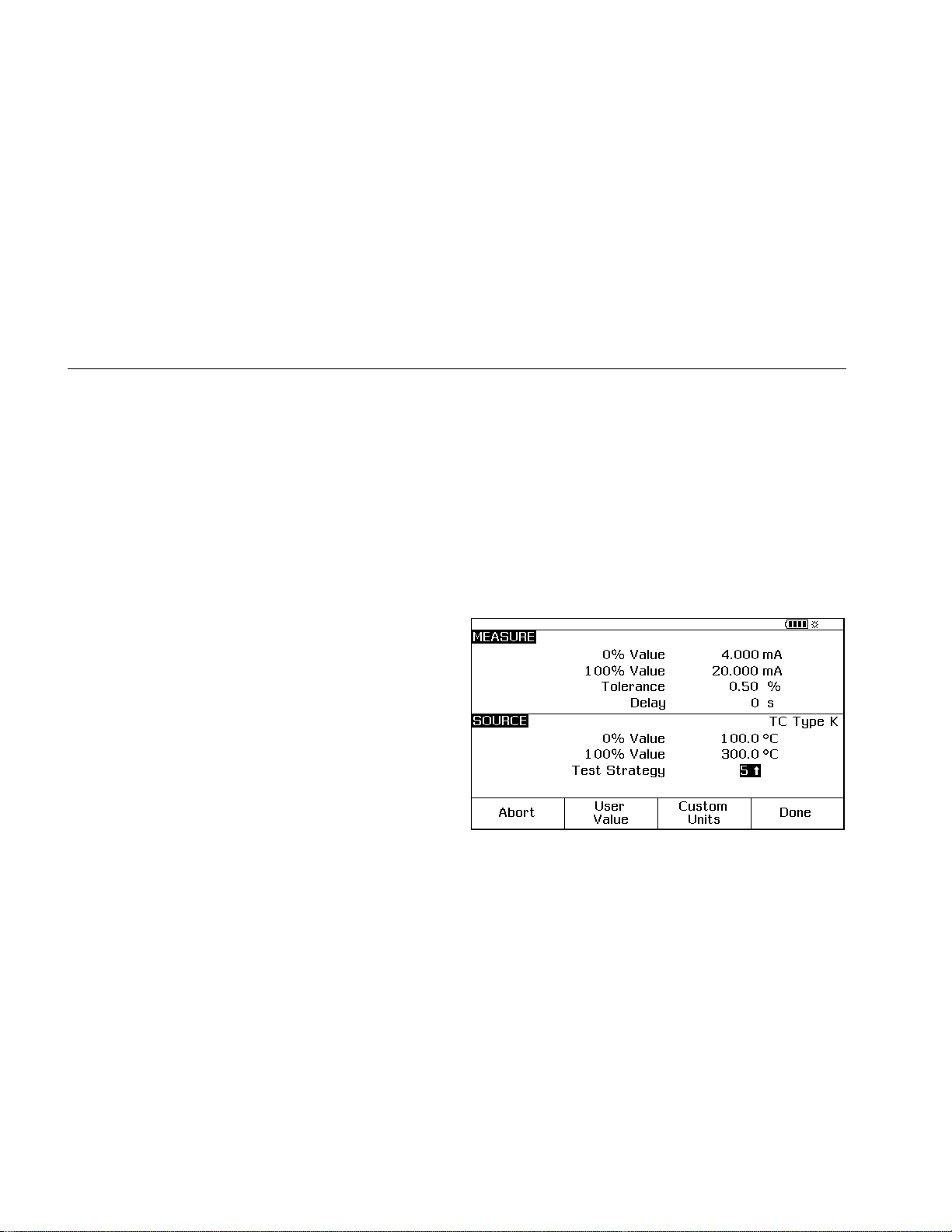

Figure 31. Calibration Parameters Screen
72
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Process Instrument Calibration
17. Push the Done softkey to accept the calibration parameters. The display changes to the screen shown in Figure 32.
Figure 32. Measure and Source Screen for Calibration
18. At this time you can do an automatic test or step through the test points manually. Push the Auto Test softkey to have the Product go through the tests automatically. If necessary, push Abort to exit from the calibration procedure. The tests start at the first test point, sources the correct temperature and measures the corresponding current from the transmitter.
When a measurement is stable and recorded, the Product goes to the subsequent step. Because the Product waits until the measurement becomes stable, the Auto Test works as necessary for instruments with built-in damping. The error of the expected measured value is shown in the top left of the measure window.
19. The Product moves to the remaining set of points. For temperature and electrical parameter calibration, the points are done automatically. If your source pressure, the Product stops at each step to let you adjust the pressure source. When the tests are complete, an error summary table similar to Figure 33 is shown.
Figure 33. Error Summary Screen
73
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
In the results summary test, failures are highlighted. An adjustment is necessary in this example because three tests show failures. The failures were outside the ±0.5 % tolerance that was selected.
20. Push the Done softkey to keep the data, or the Abort softkey to erase the data and start again.
See the data entry that was recorded and recall the table later with the Review Memory softkey during normal operation. This data can be uploaded to a host computer that runs compatible DPCTrack2 application software. See “Communication with a PC”.

Transmitter Adjustment

Note
Always read the transmitter manufacturer’s instructions to find the adjustment controls and connection points for your transmitter.
To make calibration adjustments to the transmitter:
1. Push the Done softkey after you review the results summary.
2. Push the Adjust softkey. The Product sources 0 % of span (100 °C in this example) and shows these softkeys:
• Go to 100%/Go to 0%
• Go to 50%
• As Left
• Done
3. Adjust the transmitter output for 4 mA and then push the Go to 100% softkey.
4. Adjust the transmitter output for 20 mA. If HART adjustments (output Trim and Sensor trim) are necessary, please refer to the 754 HART Mode Users Guide.
5. If the span was adjusted in step 4, do steps 3 and 4 until adjustment is no longer necessary.
6. Examine the transmitter at 50 %. If it is in specification, the adjustment is done. If not, adjust the linearity and start this procedure again at step 3.
74
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Process Instrument Calibration

“As Left” Test Run

Proceed as follows to generate and record as left data for the thermocouple temperature transmitter that was adjusted.
1. Push the As Left softkey to record as left data.
2. Push the Auto Test softkey to start an automatic sequence through all the test points, or step through the tests manually.
3. When the tests are complete, read the error summary table. See Figure 34.
Figure 34. As Left Data Screen
Unsettled measure or source values are highlighted. This means that there was an unsettled value (g annunciator) when the measurement was taken.
4. If all the results are in specification, as they are here, push the Done softkey. An entry in memory is made for as left data.

Test Comments

The Product does tasks (custom procedures) that are made with a host computer and DPCTrack2 application software. See “Communication with a PC”. A task can show a list of proposed comments as it operates . When the comment list is shown, push and and then to select a comment to be kept with the test results.

Calibrate a Delta-Pressure Flow Instrument

The procedure to calibrate a √ instrument is the same as for other instruments, as given before, with these differences:
• Source square-root is automatically enabled after the As Found calibration template is complete.
• Measure/Source displays are in engineering units.
• The measurement percentage is automatically
corrected for the transmitter’s square-root response, and is used to calculate instrument errors.
75
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
Select the √ instrument procedure in a menu after you push the As Found softkey.

Switch Calibration

The procedure to calibrate a switch also uses the As Found and As Left calibration templates. Select the 1 Pt. Switch or
2 Pt. Switch procedure in a menu after you push the As Found softkey. Figure 35 specifies the terminology used
when you calibrate limit switches. The template to set up the switch procedure uses these
parameters:
• Switch sense (normally open or closed)
• For each setpoint:
• Setpoint value
• Setpoint tolerance
• High limit or low limit
• Minimum deadband
• Maximum deadband
Switch B
Open
Deadband
Switch B
Closed
Process Variable
Switch A
Closed
Deadband
Switch A
Open
Switch A: Low Limit Switch B: High Limit
Switch B Setpoint
Reset
Reset
Switch A Setpoint
gj24f.eps
Figure 35. Switch Terminology
76
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Process Instrument Calibration
To do a pressure switch test: The switch in this example sets at a high limit of 10 psi. The set condition is a closed switch contact. For pressure switches, use the Manual Test selection. For switches where sourcing pressure is not necessary, use the Auto Test selection to do the test.
1. Connect the test leads between the pressure switch contact output and the mA Ω RTD (center) jacks on the Product.
2. Connect the pressure module to the Product, and connect a pressure line to the switch. Keep the pressure line vented to atmosphere.
3. If necessary, push for MEASURE mode.
4. Push q for the continuity measure function.
5. Push  for SOURCE mode.
6. Push p for the pressure source function.
7. Push  to zero the pressure module.
8. Push .
9. Push the As Found softkey.
10. Highlight 1 Pt. Switch Test from the menu and push .
11. Push  to modify the parameters for Setpoint 1.
12. Make these selections:
Setpoint 1 = 10.000 psi Setpoint Type = High Set State = Short
13. Push the Done softkey.
14. Set the Tolerance to 0.5 psi.
15. The next parameters, Deadband Min and Deadband Max, are optional. Do not set them in this example. These parameters would describe the minimum allowable size of the deadband.
77
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
16. Push to move through the choices to Set Trip Function to Trip Cont.
17. Push the Done softkey.
18. Push the Manual Test softkey.
19. Close the pressure line vent and slowly move the pressure up to the trip point.
20. When the switch sets, slowly decrease the pressure until the switch resets. If necessary, this cycle can be done again.
21. Push the Done softkey and see the results.
22. Push the Done softkey and if necessary, record Tag, S/N, and/or ID.
23. Push the Done softkey.
24. Exercise the switch by varying the applied pressure. Adjust the switch until the set point is correct.
25. Use the softkeys to control the Product, and adjust the switch as necessary.
26. Push the Done softkey.
27. Push the As Left softkey to start the test again with the same parameters. Results from the As Found and As Left tests are kept in Product memory to view later or upload.
The procedure for switches that respond to other parameters work similarly. When you do a 2 Pt. Switch Test, follow the directions given on the display for the first switch test, change test leads, and do the second switch test.
78
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Transmitter Mode

Transmitter Mode

The Product can be set so that a varying input (MEASURE) controls the output (SOURCE), like a transmitter. This is “Transmitter mode”. In Transmitter mode, you can use the Product temporarily as an alternative for a defective transmitter or for one that you think could be defective.
Warning
To avoid possible personal injury, do not use Transmitter mode in any environment that requires intrinsic safe equipment and practices.
Caution
Transmitter mode is for diagnostic purposes only. Use a completely charged battery. Do not use the Product in place of a transmitter for extended periods.
To set up the Product to emulate a transmitter:
1. Disconnect the control bus wires from the transmitter output (loop current or dc V control signal).
2. Connect test leads from the appropriate Product SOURCE jacks to the control wires in place of the transmitter.
3. Disconnect the process input (for example, thermocouple) from the transmitter.
4. Connect the process input to the applicable Product MEASURE jacks or input connector.
5. If necessary, push for MEASURE mode.
6. Push the applicable function key for the process input.
7. Push  for SOURCE mode.
79
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
8. Push the applicable function key for the control output (for example, or ). If the transmitter is connected to a current loop that has a power supply, select Simulate Transmitter for the current output.
9. Select a source value, for example, 4 mA.
10. Push  for MEASURE/SOURCE mode.
11. Push More Choices until the Transmitter Mode softkey is shown.
12. Push the Transmitter Mode softkey.
13. Set the 0 % and 100 % values for MEASURE and SOURCE on the display. Linear or √ can be selected for the transfer function.
14. Push the Done softkey. The Product is now in Transmitter mode. It measures
the process input and sources the control signal output proportional to the input.
15. To change the Transmitter mode parameters, push Change Setup, and do the procedure in step 13 again.
16. To exit Transmitter mode, push the Abort softkey.

Memory Operations

Save Results

As Found/As Left test results are automatically kept at the end of each test routine. Any other time during MEASURE, SOURCE, or MEASURE/SOURCE, if necessary, push the Save softkey to keep the data on the display for later inspection.
80
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Memory Operations
After you push Save, the Product keeps the information on the display and shows a kept result index number, the date and time, and the percentage of memory available, as in Figure 36.
Figure 36. Saved Data Screen
To add information to the kept data, push the Continue softkey, the display asks you to record the instrument tag identifier (Tag), instrument serial number (S/N), and operator name (ID), as shown in Figure 37.
Figure 37. Additional Data Input Screen
81
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
Record alphanumeric characters into the highlighted field with the optional bar code reader or the Product buttons.
To record alphanumeric characters using the Product buttons, push with the cursor on the necessary field to change (for example, Tag, above).
The display shows an alphanumeric entry window. See Figure 38.
Figure 38. Alphanumeric Entry Window
1. Record numbers using the numeric keypad, and letters by highlighting the necessary character with , , , and followed by . Push the Space softkey, followed by to record a space character.
2. When the entry is complete, push the Done softkey.
82
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Memory Operations

Review the Memory

Push the More Choices softkey until Review Memory is shown, then push the Review Memory softkey to recall and see results that you have kept.
When the Review Memory softkey is pressed, the display changes to the screen shown in Figure 39.
Figure 39. Memory Review Screen
Push or and or the Go to Result softkey to view a result that was kept.

Log Data

Users can record a series of measurements for later upload to a host computer that uses DPCTrack2 application software. See “Communication with a PC”. Up to 8000 readings can be recorded, depending on the reading rate, duration, and how much memory is being used for other things such as tasks or kept results. Record the reading rate and duration in minutes. See Figure 40.
Figure 40. Data Log Parameters Screen
83
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
To log data:
1. If necessary, push for MEASURE mode.
2. Push the More Choices softkey twice.
3. Push the Log softkey.
4. A list is shown; select a reading rate (1, 2, 5, 10, 20, 30, or 60 readings per minute). Push or to select the reading rate.
5. Push .
6. Push  to move the cursor to Duration.
7. Use the numeric keypad to record the duration in minutes, followed by . The maximum duration will depend on the reading rate and how much memory is available to log data.
Table 11 gives an estimate of the limits for duration, assuming that no memory is being used for other purposes.
Table 11. Duration Limits
Readings/Minute
1 8000 133 hours 2 8000 66 hours 5 8000 26 hours 10 8000 13 hours 20 8000 6 hours 30 7980 4 hours 60 7980 2 hours
Maximum Readings
Approximate
Duration
84
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Memory Operations
Caution
To prevent possible damage to the Product, use a completely charged battery and the appropriate duration, or use the battery charger to avoid losing power during a logging session. If a low-battery condition occurs during a log session, the session is terminated and data collected to that point is kept. A long logging duration can exceed the life of a battery charge.
8. After the Product records the duration selection, the display shows how much memory that duration will consume. See the Memory Available percentage on the display. Memory Available indicates the percentage of available memory that will be used by the specified log.
9. Push the Done softkey. The display changes to the screen shown in Figure 41.
Figure 41. Start Logging Screen
85
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
10. Note the LOG annunciator next to MEASURE. Push the Start Logging softkey to record data.
11. The Product continues to keep data points until the duration has passed, or until the Done softkey is pushed. If logging is stopped by these procedures the Product keeps the data as a memory item that can be uploaded to a host computer that uses DPCTrack2 application software. See “Communication with a PC”.

Record Min and Max Measurements

You can set the display to record and show the maximum (max) and minimum (min) readings. Min and Max readings are always undamped, even if Dampen is On. Push the More Choices softkey twice, then push the Min Max softkey to energize this feature. Push to reset the Min Max registers. Push the Min Max softkey again to revert to the normal display. Figure 42 shows the display with Min Max on.
Figure 42. Min Max Screen
86
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator The Calculator

Run a Preloaded Task

Push the More Choices softkey until the Tasks softkey is shown, then push Tasks to see the list of tasks (procedures) downloaded from a host computer. Tasks are Product configurations, kept with a procedure name, for example the type and manufacturer of a specific transmitter. A task configures the Product for transmitter calibration with all the calibration parameters (source and measure functions, 0% and 100% levels, test strategy) predefined.
While the task controls the Product, the Continue softkey becomes Continue Task.

Clear the Memory

In Setup mode, highlight the Clear Memory choice and push to erase the memory:
• Results that have been kept
• Min Max data
• Log data sets
A confirmation message is shown so that the memory is not accidently erased.

The Calculator

For mathematical equations that involve the Product’s source or measured value, use the Product’s built-in calculator. The current measure and source values and units, are always available to be put into an equation with one keystroke. The Product measures and sources during calculator operation.
Push the Calc softkey to start the calculator from the SOURCE, MEASURE, or MEASURE/SOURCE mode. Push the More Choices softkey to see the Calc softkey if necessary.
After you push Calc, the display, number keys, and keys with calculator functions (, , , , r and ) become an algebraic-entry calculator.
Push the Done softkey to start normal Product operation.
87
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual

Save to and Recall from the Registers

When the Product is in calculator mode, the top half of the display shows three register names and their contents:
• MEASURE (the present measured value)
• SOURCE (the present sourced value)
• REGISTER (temporary storage for your use)
Push the Recall softkey and then the softkey for the applicable register to insert the contents of any register into a calculation.
Push Store to copy the number from the calculator display (lower half) into REGISTER to temporarily save the number for later use, or into SOURCE.

Use the Calculator to Set the Source Value

When you store to SOURCE, the Product shows a selection of unit multipliers when necessary (for example, mV or V), then starts sourcing that value. The Product will not keep out-of-range values to SOURCE.

Quick Guide to Applications

The subsequent figures show test lead connections and which Product functions to use for many different applications.
88
Find Quality Products Online at: sales@GlobalTestSupply.com
Documenting Process Calibrator Quick Guide to Applications
Measure V
DOCUMENTING PROCESS CALIBRATOR
0 to 1V dc
Input
754
Circuit
Ω
250
DOCUMENTING PROCESS CALIBRATOR
754
gks26c.eps
Figure 43.Chart Recorder Calibration
gks25c.eps
Figure 44.Voltage Drop Measurement
89
Find Quality Products Online at: sales@GlobalTestSupply.com
753/754
Users Manual
754
DOCUMENTING PROCESS CALIBRATOR
Measure V
gks27c.eps
Figure 45. Monitor AC Line Voltage and Frequency
90
