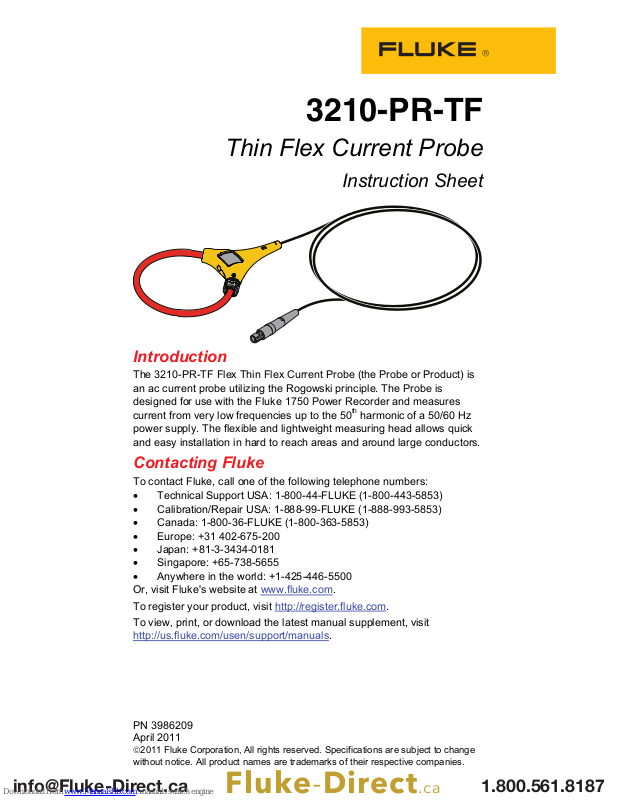

Fluke 3210-PR-TF Instruction Sheet

3210-PR-TF

Fluke-Direct

Thin Flex Current Probe

Instruction Sheet

Introduction

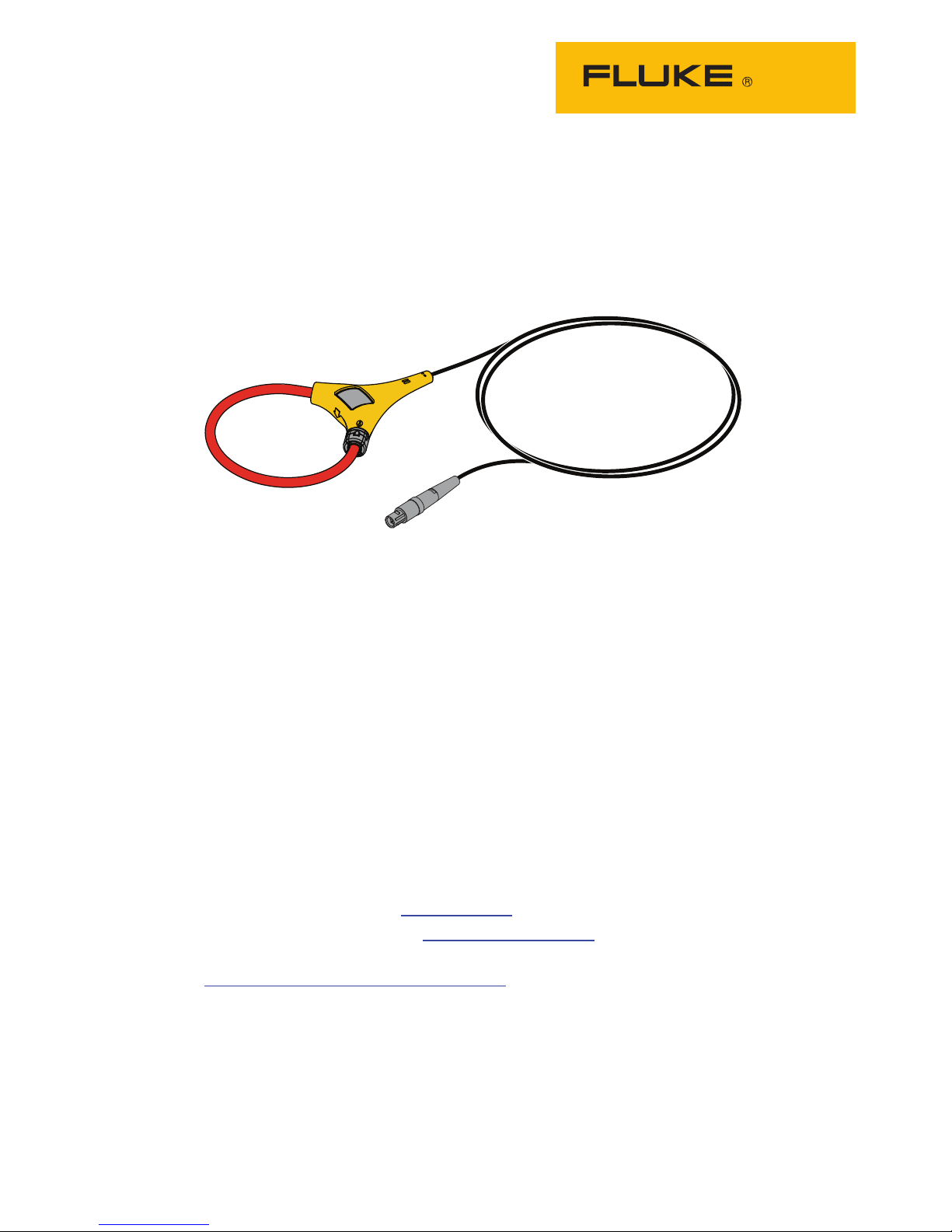

The 3210-PR-TF Flex Thin Flex Current Probe (the Probe or Product) is
an ac current probe utilizing the Rogowski principle. The Probe is
designed for use with the Fluke 1750 Power Recorder and measures
current from very low frequencies up to the 50
power supply. The flexible and lightweight measuring head allows quick
and easy installation in hard to reach areas and around large conductors.

th

harmonic of a 50/60 Hz

Contacting Fluke

To contact Fluke, call one of the following telephone numbers:

• Technical Support USA: 1-800-44-FLUKE (1-800-443-5853)

• Calibration/Repair USA: 1-888-99-FLUKE (1-888-993-5853)

• Canada: 1-800-36-FLUKE (1-800-363-5853)

• Europe: [phone]

• Japan: [phone]

• Singapore: [phone]

• Anywhere in the world: [phone]

Or, visit Fluke's website at www.fluke.com

To register your product, visit http://register.fluke.com

To view, print, or download the latest manual supplement, visit

http://us.fluke.com/usen/support/manuals

PN 3986209
April 2011

2011 Fluke Corporation, All rights reserved. Specifications are subject to change
without notice. All product names are trademarks of their respective companies.

.

.

.

.ca

1.800.561.8187[email protected]

Symbols

Fluke-Direct

The table below lists the symbols used on the Probe and/or in this
instruction sheet.

Symbol Description
















CAT III

Do not dispose of this product as unsorted municipal
waste. Go to Fluke’s website for recycling information.

Important Information. See manual.

Hazardous Voltage. Risk of electric shock.

Double insulation.

Do not apply to or remove from hazardous, live
conductors, without using personal protective
equipment.

Canadian Standards Association- Complies with
relevant North American Safety Standards.

Complies with the relevant European standards.

Conforms to relevant Australian standards.

Equipment is designed to protect against transients in
equipment in fixed equipment installations, such as
distribution panels, feeders and short branch circuits,
and lighting systems in large buildings.

Equipment is designed to protect against transients

CAT IV

from the primary supply level, such as an electricity
meter or an overhead or underground utility service.

Safety Instructions

Please read this section carefully. It will familiarize you with the most
important safety instructions for handling the Probe. In this instruction
sheet, a Warning identifies conditions and actions that pose hazard(s) to
the user. A Caution identifies conditions and actions that may damage
the Probe or the test equipment.

 Warning

To prevent possible electrical shock, fire, or personal injury:

• The Probe is to only be used and handled by qualified

personnel.

• Always connect to display device before it is installed

around the conductor.

• Use the Product only as specified, or the protection

supplied by the Product can be compromised.

• High voltages and currents can be in adjacent circuits

under test.

• Before each use, examine the Product. Look for cracks or

missing pieces of the clamp housing or output cable
insulation. Also look for loose or weakened components.
Carefully examine the insulation around the jaws.

• Do not use if the output cable wear indicator shows

(contrasting color inner insulation).

• Do not use and disable the Product if it is damaged.

.ca

1.800.561.8187[email protected]

• Comply with local and national safety codes. Use

Fluke-Direct

personal protective equipment (approved rubber gloves,
face protection, and flame-resistant clothes) to prevent
shock and arc blast injury where hazardous live
conductors are exposed.

• Do not work alone.

• Limit operation to the specified measurement category,

voltage, or amperage ratings.

• De-energize the circuit or wear personal protective

equipment in compliance with local requirements before
you apply or remove the Flexible Current Probe.

• Do not touch voltages > 30 V ac rms, 42 V ac peak, or

60 V dc.

• Equipment is to be used in 600 V CAT IV and 1000 V

CAT III environments.

• Do not use the Product around explosive gas, vapor, or in

damp or wet environments.

Operating Instructions

1. Connect the Probe to the 1750 via the 1750 current input jack.

2. Wear protective equipment or de-energize the circuit and place
the Probe around the conductor under test. To lock the coil,
see Figure 1.

3. Re-energize the circuit.

4. Observe and take measurements as required. Positive output
indicates that the current flow is in the direction shown by the
arrow on the Probe.

5. Wear protective gloves or de-energize the circuit before
removal of the Probe.

Maintenance

Clean the Probe periodically by wiping it with a damp cloth and detergent.
Do not use abrasive cleaners or solvents. Do not immerse the Probe in
liquids.

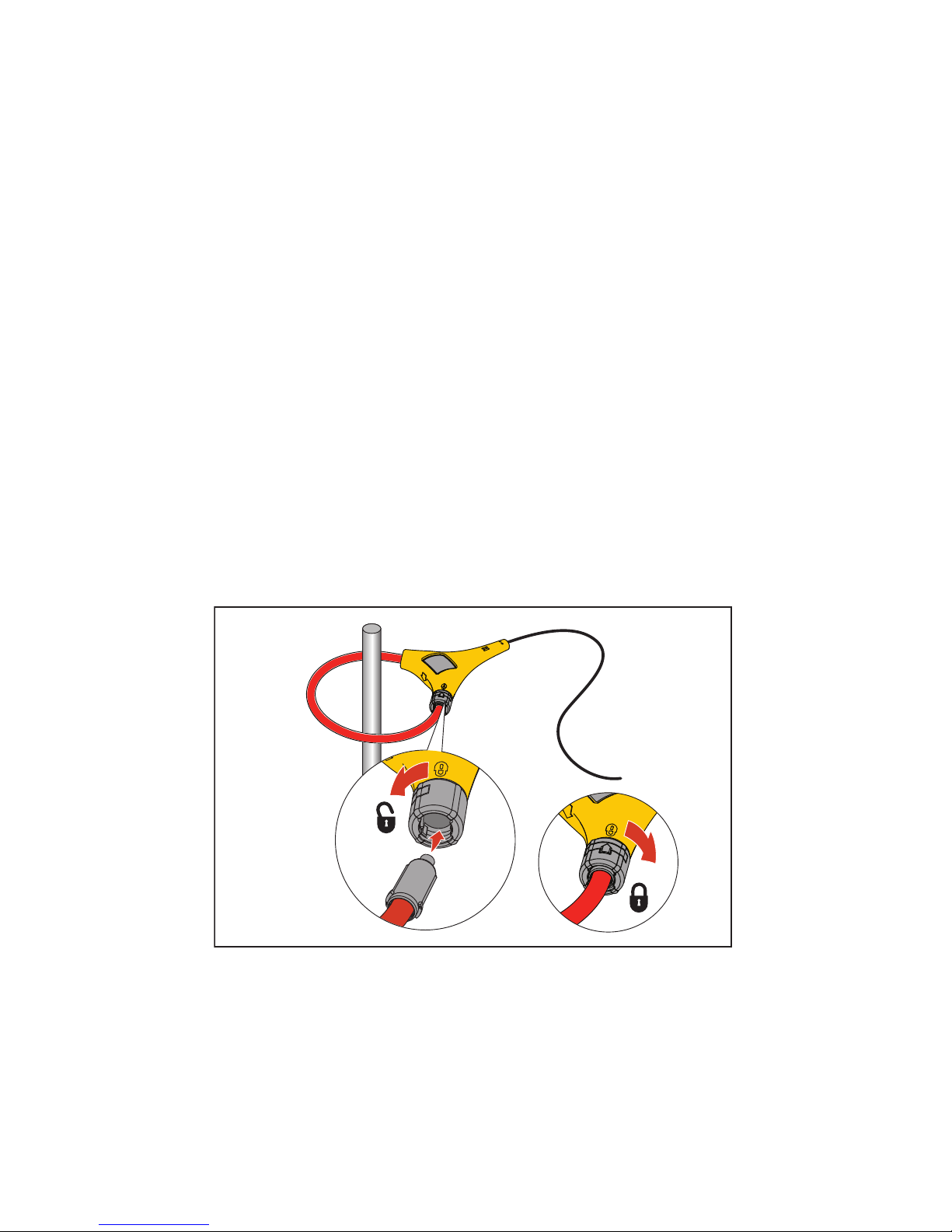

Figure 1. Locking the Coil

.ca

fig1.eps

1.800.561.8187[email protected]

Specifications

Fluke-Direct

Electrical Characteristics

Measurement Range 20 to 1000 A (with a crest factor ≤3)
Frequency Range 40 Hz to 5 kHz
Accuracy (@ 25 °C) ±1 % of reading
Linearity (10 % to 100 % of range) ±0.2 % of reading
Temperature Coefficient ±0.05 % of reading per °C
Position Sensitivity (with cable >25
mm from the coupling)
External Field (with cable >200 mm
from the head)
Working Voltage (see Safety
Standards)

General Characteristics

Probe and Cable Material Alcryn 2070NC, reinforced insulation,

Probe Cable Length 24 in. (610 mm)
Probe Cable Diameter 0.3 in. (8 mm)
Transducer Bend Radius (min) 1.5 in. (38.1 mm)
Output Cable 2 core screened, double insulated, 3

Output Connector LEMO 6 pin male connector
Operating Temperature Range -4 to +158

Storage Temperature Range -40 to 176
Operating Humidity 15 % to 85 % (non condensing)
Altitude max 6562 ft. (2000 m)
Degree of ingress protection IP40 (IEC 60529)

±2 % of reading

±1 % of reading

1000 V ac rms or dc

UL94 V0, Color: RED

meters long

°F (-20 to +70 °C) (the

temperature of the conductor under test
shall not exceed 176

°F /80 °C)

°F (-40 to +80 °C)

Safety Standards

EN/IEC 61010-1:2001
EN/IEC 61010-031:2002+A1:2008
EN/IEC 61010-2-032:2002
Pollution Degree 2
Use of the Probe on uninsulated conductors is limited to 1000 V under CAT III
installations and 600 V under CAT IV installations ac rms or dc and frequencies
below 1 kHz.
Note that the safety rating for the output to ground is limited to 30 V ac rms or dc by
the connector specified.
