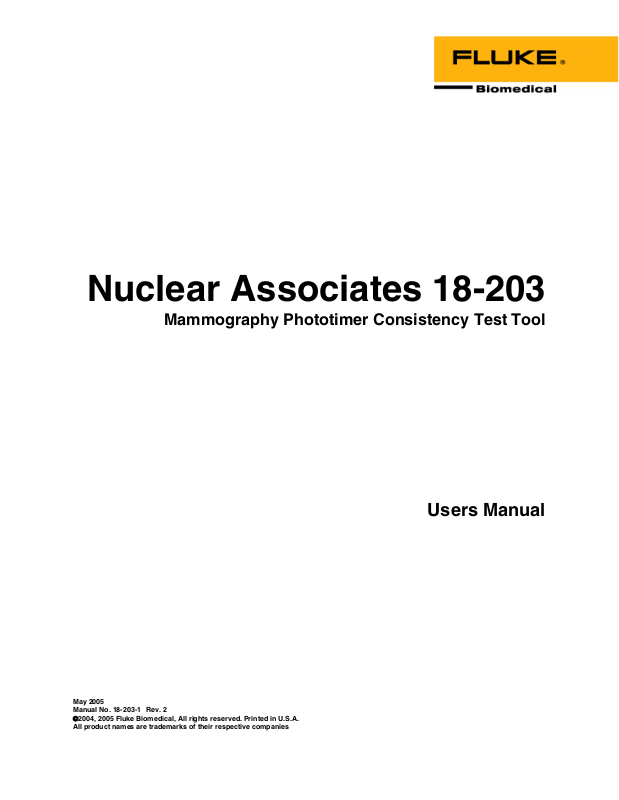

Page 1
Nuclear Associates 18-203
Mammography Phototimer Consistency Test Tool
May 2005
Manual No. 18-203-1 Rev. 2
©2004, 2005 Fluke Biomedical, All rights reserved. Printed in U.S.A.
All product names are trademarks of their respective companies
Users Manual
Page 2
Fluke Biomedical
Radiation Management Services
6045 Cochran Road
Cleveland, Ohio 44139
440.498.2564
www.flukebiomedical.com/rms
Page 3
Introduction
Product Description
1
Section 1
Introduction
1.1 Product Description
The mammographic unit’s automatic exposure control should be capable of maintaining optical density
within ± 0.15 OD as the voltage is varied from 25 to 35 kVp, and as breast thickness is varied from 2 to 8
cm for each technique. Test images taken of uniform phantoms of varying thicknesses should not differ by
more than 0.30 OD from each other. These tests should be carried out over the kVp range customarily
used by the mammography center.
The Phototimer Consistency Test Tool is available in two materials: acrylic; and, for more accurate
results, breast-tissue-equivalent BR-12 material. Both are supplied in uniform 2.0 cm slabs to produce
thicknesses of 2, 4, 6, and 8 cm.
Figure 1-1. Model 18-203
1.2 Specifications
Material Set of four acrylic slabs
Dimension 10 x 12.5 x 2 cm thick
Weight 3 lb (1.34 kg)
1-1
