PART# 4 -2036, Gre v. 2, 08/14
18
%
25
%
31
%
34
%
37
%
47
%
28
%
GREEN
BROWN
BLACK = PRO45
NATURAL
GREY
RED
LIGHT BLUE

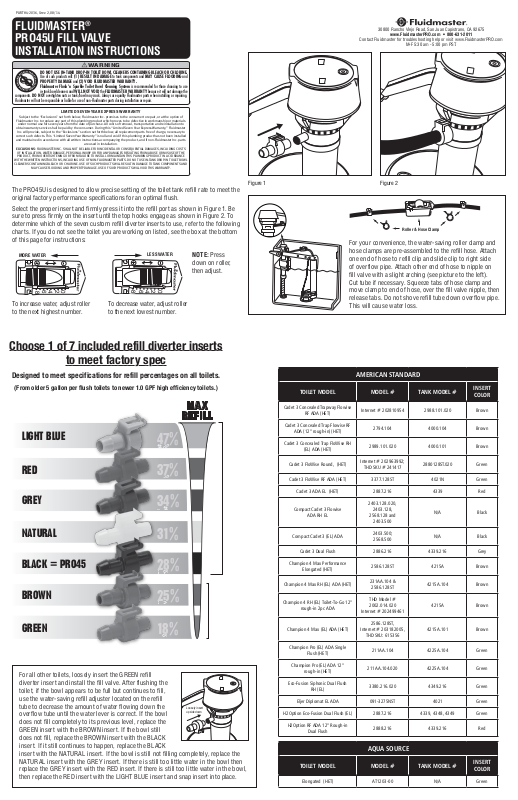

FLUIDMASTER
®
PRO45U FILL VALVE
INSTALLATION INSTRUCTIONS
WARNING
DO NOT USE IN-TANK DROP-IN TOILET BOWL CLEANERS CONTAINING BLEACH OR CHLORINE.
Use of such products will: (1) RESULT IN DAMAGE to tank components and MAY CAUSE FLOODING and
PROPERTY DAMAGE and (2) VOID FLUIDMASTER WARRANTY.
Fluidmaster Flush 'n Sparkle Toilet Bowl Cleaning System is recommended for those choosing to use
components. DO NOT overtighten nuts or tank/bowl may crack. Always use quality Fluidmaster parts when installing or repairing.
Fluidmaster will not be responsible or liable for use of non-Fluidmaster parts during installation or repair.
Subject to the “Exclusions” set forth below, Fluidmaster Inc. promises to the consumer to repair, or at the option of
Fluidmaster Inc. to replace any part of this plumbing product which proves to be defective in workmanship or materials
under normal use for seven years from the date of purchase. All costs of removal, transportation and reinstallation to
obtain warranty service shall be paid by the consumer. During this “Limited Seven Year Express Warranty,” Fluidmaster
Inc. will provide, subject to the “Exclusions” section set forth below, all replacement parts free of charge, necessary to
correct such defects. This “Limited Seven Year Warranty” is null and void if this plumbing product has not been installed
and maintained in accordance with all written instructions accompanying the product, and if non-Fluidmaster Inc. parts
EXCLUSIONS: FLUIDMASTER INC. SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING COSTS
OF INSTALLATION, WATER DAMAGE, PERSONAL INJURY OR FOR ANY DAMAGES RESULTING FROM ABUSE OR MISUSE OF THE
PRODUCT, FROM OVERTIGHTENING OR FROM FAILURE TO INSTALL OR MAINTAIN THIS PLUMBING PRODUCT IN ACCORDANCE
WITH THE WRITTEN INSTRUCTIONS, INCLUDING USE OF NON-FLUIDMASTER PARTS. DO NOT USE IN-TANK DROP-IN TOILET BOWL
CLEANERS CONTAINING BLEACH OR CHLORINE. USE OF SUCH PRODUCTS WILL RESULT IN DAMAGE TO TANK COMPONENTS AND
The PRO45U is designed to allow precise setting of the toilet tank refill rate to meet the
original factory performance specifications for an optimal flush.
Select the proper insert and firmly press it into the refill port as shown in Figure 1. Be
sure to press firmly on the insert until the top hooks engage as shown in Figure 2. To
determine which of the seven custom refill diverter inserts to use, refer to the following
charts. If you do not see the toilet you are working on listed, see the box at the bottom
of this page for instructions:
MORE WATER
To increase water, adjust roller
to the next highest number.
in-tank bowl cleaners and WILL NOT VOID the FLUIDMASTER WARRANTY because it will not damage the
LIMITED SEVEN-YEAR EXPRESS WARRANTY
are used in installation.
MAY CAUSE FLOODING AND PROPERTY DAMAGE. USE OF SUCH PRODUCTS WILL VOID THIS WARRANTY.
LESS WATER
6
0
4
6
0
4
8
2
To decrease water, adjust roller
to the next lowest number.
8
2
NOTE: Press
down on roller,
then adjust.
30800 Rancho Viejo Road, San Juan Capistrano, CA 92675
Contact Fluidmaster for troubleshooting help or visit www.FluidmasterPRO.com
For your convenience, the water-saving roller clamp and
hose clamps are pre-assembled to the refill hose. Attach
one end of hose to refill clip and slide clip to right side
of overflow pipe. Attach other end of hose to nipple on
fill valve with a slight arching (see picture to the left).
Cut tube if necessary. Squeeze tabs of hose clamp and
move clamp to end of hose, over the fill valve nipple, then
release tabs. Do not shove refill tube down overflow pipe.
This will cause water loss.
www.FluidmasterPRO.com • 800-631-2011
M-F 5:30 am - 5:00 pm PST.
Figure 2Figure 1
Roller & Hose Clamp

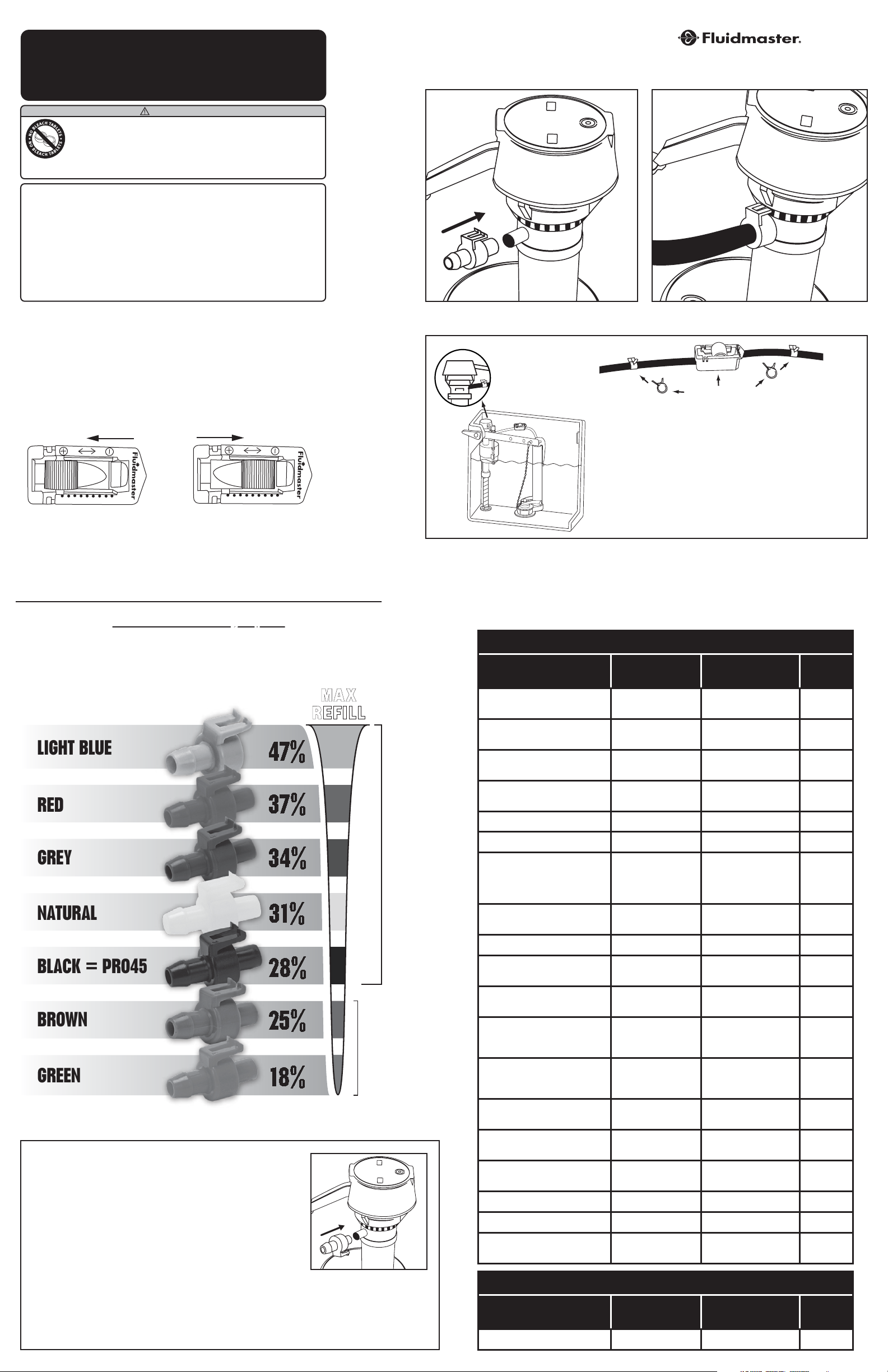

Choose 1 of 7 included refill diverter inserts
Choose 1 of 7 included refill diverter inserts
Choose 1 of 7 included refill diverter inserts
to meet factory spec
to meet factory spec
to meet factory spec
Designed to meet specifications for refill percentages on all toilets.
(From older 5 gallon per flush toilets to newer 1.0 GPF high efficiency toilets.)
MAX
REFILL
AMERICAN STANDARD
TOILET MODEL MODEL # TANK MODEL #
Cadet 3 Concealed Trapway Flowise
RF ADA (HET)
Cadet 3 Concealed Trap Flowise RF
ADA (12” rough-in) (HET)
Cadet 3 Concealed Trap FloWise RH
(EL) ADA (HET)
Cadet 3 FloWise Round, (HET)
Cadet 3 FloWise RF ADA (HET) 3377.128ST 4021N Green
Cadet 3 ADA EL (HET) 2887.216 4339 Red
Compact Cadet 3 Flowise
ADA RH EL
Compact Cadet 3 (EL) ADA
Internet # 202810954 2988.101.020 Brown
2794.104 4000.104 Brown
2989.101.020 4000.101 Brown
Internet # 202963992;
THD SKU # 241417
2403.128.020,
2403.128,
2568.128 and
2403.500
2403.500;
2568.500
2880128ST.020 Green
N/A Black
N/A Black
INSERT
COLOR
For all other toilets, loosely insert the GREEN refill
diverter insert and install the fill valve. After flushing the
toilet, if the bowl appears to be full but continues to fill,
use the water-saving refill adjuster located on the refill
tube to decrease the amount of water flowing down the
overflow tube until the water lever is correct. If the bowl
does not fill completely to its previous level, replace the
GREEN insert with the BROWN insert. If the bowl still
does not fill, replace the BROWN insert with the BLACK
insert. If it still continues to happen, replace the BLACK
insert with the NATURAL insert. If the bowl is still not filling completely, replace the
NATURAL insert with the GREY insert. If there is still too little water in the bowl then
replace the GREY insert with the RED insert. If there is still too little water in the bowl,
then replace the RED insert with the LIGHT BLUE insert and snap insert into place.
Loosely insert
upside down
Cadet 3 Dual Flush 2886.216 4339.216 Grey
Champion 4 Max Performance
Elongated (HET)
Champion 4 Max RH (EL) ADA (HET)
Champion 4 RH (EL) Toilet-To-Go 12”
rough-in 2pc ADA
Champion 4 Max (EL) ADA (HET)
Champion Pro (EL) ADA Single
Flush (HET)
Champion Pro (EL) ADA 12”
rough-in (HET)
Eco-Fusion Siphonic Dual Flush
RH (EL)
Eljer Diplomat EL ADA 091-3275NST 4021 Green
H2Option Eco-Fusion Dual Flush (EL) 2887.216 4339, 4348, 4349 Green
H2Option RF ADA 12” Rough-in
Dual Flush
2586.128ST 4215A Brown
231AA.104 &
2586.128ST
THD Model #
2002.014.020
Internet # 202499461
2586.128ST,
Internet # 203182005,
THD SKU: 615356
211AA.104 4225A.104 Green
211AA.104.020 4225A.104 Green
3380.216.020 4349.216 Green
2888.216 4339.216 Red
4215A.104 Brown
4215A Brown
4215A.101 Brown
AQUA SOURCE
TOILET MODEL MODEL # TANK MODEL #
Elongated (HET) AT1203-00 N/A Green
INSERT
COLOR
Page 2
CAPIZZI
KOHLER
TOILET MODEL MODEL # TANK MODEL #
Thor 3” RF Single Flush (HET) 6800 6 Brown
INSERT
COLOR
CRANE
TOILET MODEL MODEL # TANK MODEL #
Galaxy Cranada RF 3782 3742 Green
INSERT
COLOR
DELTA
TOILET MODEL MODEL # TANK MODEL #
Prelude (RD) (HET)
Prelude (EL) (HET)
Corrente Elongated ADA (HET) C43904-WH RP71192 Brown
C41901-WH,
THD SKU: 794603
C43901-WH,
THD SKU: 794636
RP71179 Green
RP71179 Brown
INSERT
COLOR
ELJER
TOILET MODEL MODEL # TANK MODEL #
Diplomat (EL) ADA Single Flush
12” Rough-in
091-3275 4021.416 Green
INSERT
COLOR
FERGUSON
TOILET MODEL MODEL # TANK MODEL #
Cavata; 45989-0 Dual Flush
(EL) ADA
Cimarron (EL) ADA (HET)
Cimmaron Class 6 (EL) ADA K-3589 4418 Black
Karsten Dual Force EL 402028 402023 Green
Sterling Stinson EL (HET)
Single Flush
Sterling Windham (HET) Single Flush 402215-0 404515 Green
Wellworth Classic Complete Solution
(HET) 2pc Round
Wellworth Classic (HET)
Wellworth Classic (EL) (HET) K-3575; K-11498 4436 Grey
Wellworth (EL) K-3948 4841 Grey
K-45989 4137 Light Blue
K-3609:
SOLD AS: K-11451
(THD), K-11813
(Lowe’s) & K-11823
402076; 404702 402091 Green
K-11464-0 K-4436 Red
K-11498; K-3575;
K-11498
4421 Green
K4436 Grey
INSERT
COLOR
LAMOSA VORTENS
TOILET MODEL MODEL # TANK MODEL #
Wc Delfos Dual Flush Elongated 3130 -V N/A Green
Pegasus Tulip EL (HET) - 3427 Green
INSERT
COLOR
TOILET MODEL MODEL # TANK MODEL #
Mirabelle RF ADA (HET) - MIRBD200 Brown
ProFlo RF (DISCONTINUED) -
ProFlo RD Single Flush (HET) - PF1400HE Green
PF1400HEWH/
PF5112HEWH
INSERT
COLOR
Green
GERBER
TOILET MODEL MODEL # TANK MODEL #
Viper Elongated Dual Flush Bowl (B) 21-512 28-590 Light Blue
Viper ErgoHeight Bowl (C) 21-512
EH28-590
(Pedestal flush valve)
INSERT
COLOR
Light Blue
GLACIER BAY
TOILET MODEL MODEL # TANK MODEL #
Glacier Bay EO Dual Flush Elongated N2316 215-583 Natural
Glacier Bay (EL) ADA
Glacier Bay (EL) ADA 12" rough-in
(HET)
N2316,
THD SKU: 215-583
THD SKU 331-725 135-428 Green
N2316T
by Niagara
INSERT
COLOR
Green
Rhoda EL ADA (HET) 3123-3436 3436 V Green
Vienna RF DF (HET) 3208-3420 3420 Green
Vienna RF DF 3208-3436 3436-V Green
(Vienna ELX)
Vienna ELX DF
Vienna ELX Single Flush 3113 3436-SPS Green
Murano (EL) ADA (HET)
(Bowl #2)
Murano (EL) (HET)
(Bowl #5)
Murano RF (HET);
(Bowl #1)
3113-3420
(Vienna ELX - DF)
3113-3436
3140-3425 3425 10" Tank Green
3147-3425 3425 10" Tank Green
3219-3425 3425 Green
3420 Green
LORETTO
TOILET MODEL MODEL # TANK MODEL #
Hurricane RF (HET) 3140-3473 3473 Green
(Loretto EL ADA)
Hurricane Toilet (HET)
3140-3475
(Superio EL ADA)
3140-3475
3475 Green
INSERT
COLOR
Glacier Bay; Round 340995 N2428T Brown
Glacier Bay All-In-One (EL)
ADA (HET)
Glacier Bay; All In One 135-428 140-911 Green
Glacier Bay (EL) ADA
Glacier Bay by Niagara Dual Flush
(EL) ADA 12” rough in (HET)
Glacier Bay All-In-One Dual Flush
(EL) ADA
669-706
N2316,
THD SKU: 215-583,
569-919
635-678 N2430T Brown
215-583 N2316T Green
135-438T-IN
(insulated by Niagara)
N2316T
by Niagara
Green
Brown
JACUZZI
TOILET MODEL MODEL # TANK MODEL #
(Lowe's) Perfecta Round Jacuzzi SKU EZ33959 EZ33959 Natural
Era (EL) ADA Jacuzzi SKU BK37959 N/A Brown
Perfecta RF ADA (Toilet in a Box) Jacuzzi SKU: EZ33959 EZ33 Natural
Perfecta (0130294 / EZ33959) EZ33 Natural
INSERT
COLOR
MANSFIELD
TOILET MODEL MODEL # TANK MODEL #
Alto (EL) ADA 12" rough in (HET) 413710007 3121 Green
Magnum (EL) 722 N/A Green
Pro Fit 2, SmartPak Complete Toilet
Kit (EL) 12” rough-in (HET) OR Alto
(EL) 12” rough in ADA (HET)
Pro Fit 2, SmartPak Complete Toilet
Kit (EL) 12” rough-in (HET) OR Alto
(EL) 12” rough in ADA (HET)
Summit Dual Flush Elongated Front 4382CTK 3386 Black
4135 3121 Green
4135-3121 3121 Green
INSERT
COLOR
PENGUIN
TOILET MODEL MODEL # TANK MODEL #
Rough In WaterSense (EL) ADA (HET)
Overflow Protection
524 (EL) ADA 12” rough-in (HET) 524 524 Brown
524 577 Brown
INSERT
COLOR
TOTO
TOILET MODEL MODEL # TANK MODEL #
Aquia II EL CST416M ST416M Green
Aquia III (EL) CST464M ST464M Green
ECO Drake (EL) 2pc Single
Flush (HET)
Drake II (EL) ADA;
(Formerly Gwyneth Two-Piece) (HET)
Drake II (EL) ADA;
(Formerly Gwyneth Two-Piece) (HET)
CST744E(G)
CST454CEF(G) ST454E #1 - Drake II Black
CST454CEF(G)
ST454E#1 - Drake II /
ST743E
ST43E
Vespin II
INSERT
COLOR
Brown
Black
