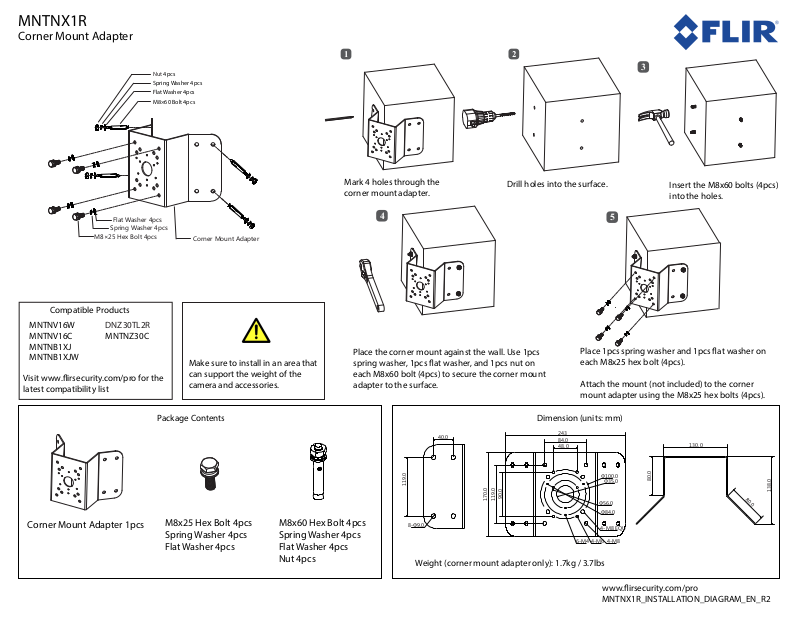

Flir MNTNX1R Installation

MNTNX1R

Corner Mount Adapter

Nut 4pcs

Spring Washer 4pcs

Flat Washer 4pcs

M8×60 Bolt 4pcs

1

2

3

Flat Washer 4pcs

Spring Washer 4pcs

M8×25 Hex Bolt 4pcs

Compatible Products

MNTNV16W
MNTNV16C

DNZ30TL2R

MNTNZ30C
MNTNB1XJ
MNTNB1XJW

Visit www.irsecurity.com/pro for the
latest compatibility list

Package Contents

Corner Mount Adapter

Make sure to install in an area that
can support the weight of the
camera and accessories.

Mark 4 holes through the

Drill holes into the surface.

corner mount adapter.

4

Place the corner mount against the wall. Use 1pcs
spring washer, 1pcs at washer, and 1pcs nut on
each M8x60 bolt (4pcs) to secure the corner mount
adapter to the surface.

40.0

5

Place 1pcs spring washer and 1pcs at washer on
each M8x25 hex bolt (4pcs).

Attach the mount (not included) to the corner
mount adapter using the M8x25 hex bolts (4pcs).

Dimension (units: mm)

243

84.0

48.0

Insert the M8x60 bolts (4pcs)
into the holes.

130.0

Corner Mount Adapter 1pcs

M8x25 Hex Bolt 4pcs
Spring Washer 4pcs
Flat Washer 4pcs

M8x60 Hex Bolt 4pcs
Spring Washer 4pcs
Flat Washer 4pcs
Nut 4pcs

119.0

90.0

170.0

119.0

8-Φ9.0

6-M4

Weight (corner mount adapter only): 1.7kg / 3.7lbs

Φ56.0

4-M6

Φ100.0

Φ35.0

Φ84.0

4-M8 EQU

4-M8

80.0

www.irsecurity.com/pro
MNTNX1R_INSTALLATION_DIAGRAM_EN_R2

80.0

138.0
