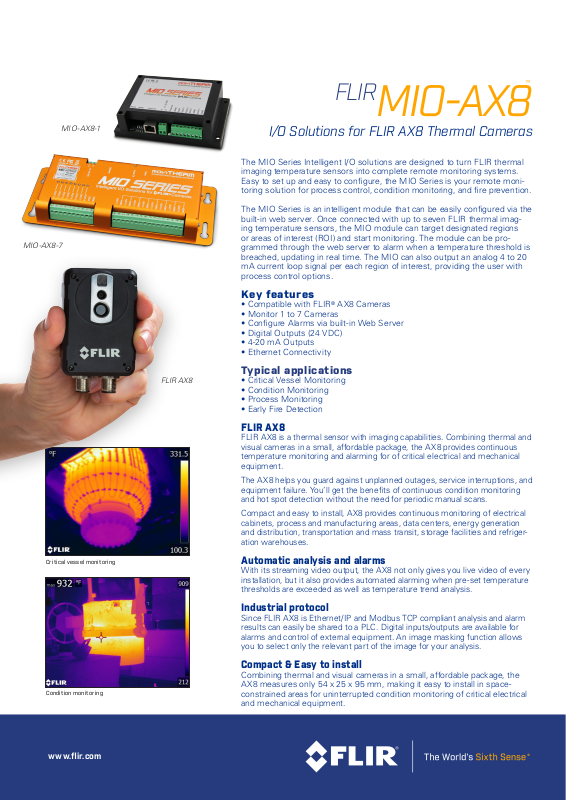

Flir MIO-AX8-7, MIO-AX8-1 Data Sheet
MIO - AX 8 -7
MIO - A X8 -1
™
FLIR
MIO-AX8
I/O Solutions for FLIR AX8 Thermal Cameras
The MIO Series Intelligent I/O solutions are designed to turn FLIR thermal
imaging temperature sensors into complete remote monitoring systems.
Easy to set up and easy to configure, the MIO Series is your remote monitoring solution for process control, condition monitoring, and fire prevention.
The MIO Series is an intelligent module that can be easily configured via the
built-in web server. Once connected with up to seven FLIR thermal imaging temperature sensors, the MIO module can target designated regions
or areas of interest (ROI) and start monitoring. The module can be programmed through the web server to alarm when a temperature threshold is
breached, updating in real time. The MIO can also output an analog 4 to 20
mA current loop signal per each region of interest, providing the user with
process control options.
Key features
• Compatible with FLIR® AX8 Cameras
• Monitor 1 to 7 Cameras
• Configure Alarms via built-in Web Server
• Digital Outputs (24 VDC)
• 4-20 mA Outputs
• Ethernet Connectivity
Critical vessel monitoring
FLIR AX 8
Typical applications
• Critical Vessel Monitoring
• Condition Monitoring
• Process Monitoring
• Early Fire Detection
FLIR A X8
FLIR AX8 is a thermal sensor with imaging capabilities. Combining thermal and
visual cameras in a small, affordable package, the AX8 provides continuous
temperature monitoring and alarming for of critical electrical and mechanical
equipment.
The AX8 helps you guard against unplanned outages, service interruptions, and
equipment failure. You’ll get the benefits of continuous condition moni toring
and hot spot detection without the need for periodic manual scans.
Compact and easy to install, AX8 provides continuous monitoring of electrical
cabinets, process and manufacturing areas, data centers, energy generation
and distribution, transportation and mass transit, storage facilities and refrigeration warehouses.
Automatic analysis and alarms
With its streaming video output, the A X8 not only gives you live video of every
installation, but it also provides automated alarming when pre-set temperature
thresholds are exceeded as well as temperature trend analysis.
Industrial protocol
Since FLIR A X8 is Ethernet/IP and Modbus TCP compliant analysis and alarm
results can easily be shared to a PLC. Digital inputs/outputs are available for
alarms and control of external equipment. An image masking function allows
you to select only the relevant part of the image for your analysis.
Condition monitoring
www.flir.com
Compact & Easy to install
Combining thermal and visual cameras in a small, affordable package, the
AX8 measures only 54 x 25 x 95 mm, making it easy to install in spaceconstrained areas for uninterrupted condition monitoring of critical electrical
and mechanical equipment.
Technical Specifications
Model MIO-A X8-1 MIO -A X8-7
Part number T130086 T130087
Product specifications
Maximum Cameras Supported 1 7
Ethernet Connection 100 Bas e-T 100 Bas e-T
Communication Protocol Modbus TCP/IP Modbus TCP/IP
4-20 mA Transmitter Channels 2 CH, Loop Powered, Isolated 8 CH, Loop Powered, Isolated
Digital Output Channels 2 8
Digital Output Current 0.5A per Channel, 1.5A All Channels 0.5A per Channel, 1.5A All Channels
Digital Output Voltage 10-3 0 VDC 10-30 V DC
Power Supply Voltage 24 VDC 24 VDC
Maximum Power Consumption 3 W 7 W
Dimensions 5.7 x 3.6 x 1.6 in (145 x 90 x 40 mm) 8.8 x 3.9 x 1.2 in (223 x 99 x 31 mm)
Weight 0.5 lbs (0.23 kg) 0.7 lbs (0.32 kg)
Enclosure Material ABS Anodized Aluminum
Shipping Information
Packaging Type Cardboard box Cardboard box
List of Contents MI O-A X8-1 Uni t
Din Rail Mountable
Manual on USB drive
Packaging Weight 0.66 lbs (0.3 kg) 0.84 lbs (0. 38 kg)
Packaging Size 7.125 x 4.4375 x 2 in
(181 x 113 x 5 0 mm)
Countr y of Origin USA USA
MIO -AX 8-7 Uni t
Manual on USB drive
Din Rail Adapter Clip
8.875 x 4.125 x 1.375 in
(226 x 105 x 35 mm)
Process monitoring
Fire detection
