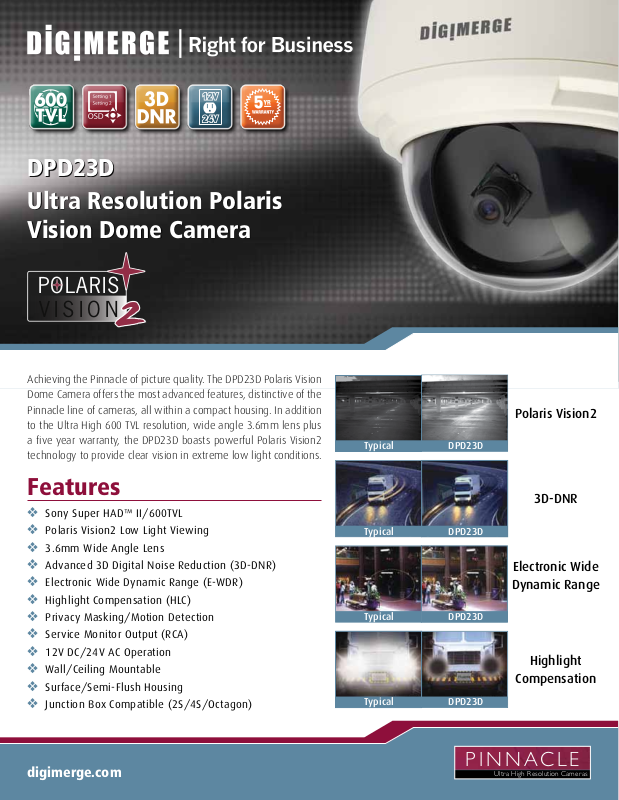

Flir DPD23D Specsheet
DPD23D
Ultra Resolution Polaris
Vision Dome Camera
POLARIS
VIS I O N
Achieving the Pinnacle of picture quality. The DPD23D Polaris Vision
Dome Camera offers the most advanced features, distinctive of the
Pinnacle line of cameras, all within a compact housing. In addition
to the Ultra High 600 TVL resolution, wide angle 3.6mm lens plus
a five year warranty, the DPD23D boasts powerful Polaris Vision2
technology to provide clear vision in extreme low light conditions.
Polaris Vision2
Typical DPD23D
Features
❖❖ Sony❖Super❖HAD™❖II/600TVL
❖❖ Polaris❖Vision2❖Low❖Light❖Viewing
❖❖ 3.6mm❖Wide❖Angle❖Lens
❖❖ Advanced❖3D❖Digital❖Noise❖Reduction❖(3D-DNR)
❖❖ Electronic❖Wide❖Dynamic❖Range❖(E-WDR)
❖❖ Highlight❖Compensation❖(HLC)
❖❖ Privacy❖Masking/Motion❖Detection
❖❖ Service❖Monitor❖Output❖(RCA)
❖❖ 12V❖DC/24V❖AC❖Operation
❖❖ Wall/Ceiling❖Mountable
❖❖ Surface/Semi-Flush❖Housing
❖❖ Junction❖Box❖Compatible❖(2S/4S/Octagon)
digimerge.com
3D-DNR
Typical DPD23D
Electronic Wide
Dynamic Range
Typical DPD23D
Highlight
Compensation
Typical DPD23D
PINNACLE
Ultra High Resolution Cameras
Specifications
2 13
4
56789101112
C
D
E
F
G
H
变更版次标记
变更处数
变更内容描述
签名和日期
58
111.54
Ø120.27
Power Source:
Power Consumption:
Minimum Power Requirement:
Image Sensor:
Total Pixels:
Effective Pixels:
Scanning System:
Scanning Frequency:
Sync. System:
Resolution:
Min. Illumination:
Video Output:
S/N Ration:
3D-DNR:
E-WDR:
BLC:
Day & Night:
Motion Detection:
Sens-up:
Privacy Masking:
White Balance:
Auto Gain Control:
Electronic Shutter Speed:
Sharpness:
Flip:
Effect:
Setup Method:
OSD Language:
Power Input:
Video Output:
Lens Mount:
Lens:
Operating Temperature:
Operating Humidity:
Junction Box Compatibility
External Dimension:
Weight:
DC❖12V❖/❖AC❖24V❖±❖10%
2.5❖Watts
250mA
1/3”❖SONY❖Super❖HAD❖II™❖High❖
Sensitivity❖Color❖CCD
811❖(H)❖x❖508❖(V)
768❖(H)❖x❖494❖(V)
2:1❖Interlace
15.734KHz❖(H)❖x❖59.94Hz❖(V)
Internal/Line❖Lock
600❖TV❖Lines
0.1lux❖F❖1.2❖@❖50❖IRE
1.0❖Vp-p❖(75❖ohm,❖composite)
50dB❖(AGC❖OFF)
On/Off❖(Adjustable❖Gain)
On❖(Indoor/Outdoor)/Off
BLC/HSBLC/OFF❖Adjustable❖Size❖&❖Gain
Color/BW/Auto
On/Off❖(4❖Programmable❖zone)
Auto/Off❖(Selectable❖limit❖2x❖~❖256x)
On/Off❖(8❖Programmable❖zone)
AWB/ATW/AWC/Manual/Indoor/
Outdoor
On❖(low/middle/high)/off
Auto/Flickerless/Manual
On/Off❖(level❖adjustable)
Horizontal/Vertical/Rotate
D-Zoom❖x32❖(pan/tilt)/nega/freeze
OSD❖setup❖menu
English/Korean/Japanese/Chinese
2-Pin❖terminal❖block
BNC❖Connector
Fixed❖mount
3.6mm❖fixed
-10ºC❖~❖+50ºC❖/❖14ºF❖~❖122ºF
0❖~❖90%❖(non-condensing)
2S,❖4S,❖Octagon❖(with❖incl.❖mounting❖
adapter❖plate)
130❖x❖112❖mm❖(Bubble❖Diameter❖Ø95)
0.9lbs❖/❖0.5kg
Dimensions
112mm/
4.4”
130mm/
5.1”
Product Information
UPC: 8-41430-00676-3
Weight: 1.9lbs / 0.9kg
Package
Dimensions:
(W x D x H)
Package Cube: 0.0049 cbm / 0.173cu ft
170mm x 160mm x 180mm
6.7” x 6.3” x 7.1”
What’s Included:
User Manual
RCA - BNC Test Cable
2S / 4S / Octagon Junction Box Adapter
Surface/Flush Mounting Template
digimerge.com
®
Digimerge Technologies Inc.
250 Royal Crest Court, Markham, ON Canada L3R 3S1
Tel: 905.946.8477 Fax: 905.947.0138
Because our products are subject to continuous
improvement, Digimerge reserves the right to modify
product design and specifications without notice and
without incurring any obligation. E&O.E.
3-30112011
